Products Description
MXL-150D

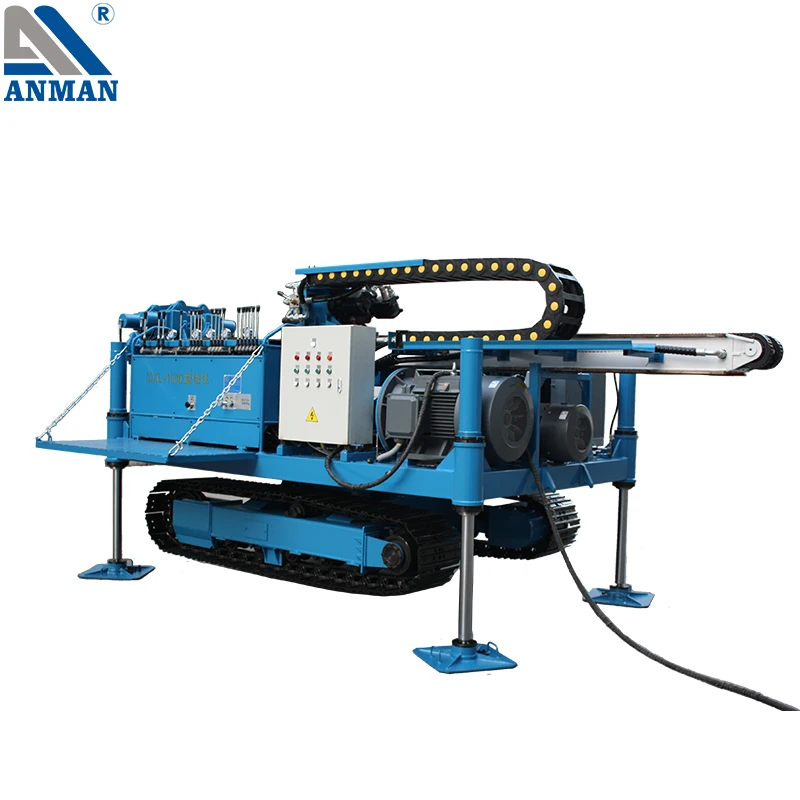

MXL-150D Deep Foundation Crawler Drilling Rig is a high efficiency drilling rig mainly for anchoring, jet-grouting and dewatering,which is well designed and produced by Wuxi Anman Construction Machinery Co., Ltd. This series of drilling rig is all-hydraulic operated drill in accordance with the construct requirements of subway, high-rise building, airport and the other deep foundation pit.
PRODUCT SPECIFICATIONS
MXL-150D Manufacturer DTH hammer impact drill by water dangerous rock groundwork reinforcing engineering anchor drilling rig
Model number | MXL-150D |
Hole diameter(mm) | Φ150~Φ250 |
Hole depth(m) | 130~170 |
Rod diameter(mm) | Φ73,Φ89,Φ102,Φ114, Φ133, Φ146, Φ168 |
Hole angle(°) | 0~90 |
Output speed of rotary head(max)(r/min) | 170 |
Output torque of rotary head(max)(N.m) | 7500 |
Stroke of rotary head(mm) | 3400 |
Stroke of slide flame(mm) | 900 |
Lifting force of rotary head(kN) | 70 |
Lifting speed of rotary head(m/min) | 0~5/7/23/30 |
Feeding force of rotary head(kN) | 36 |
Feeding speed of rotary head(m/min) | 0~10/14/46/59 |
Input power(Electromotor)(kW) | 55+22 |
Dimension(L*W*H)(mm) | 5400*2100*2000 |
Weight(kg) | 6000 |
Walking speed(m/h) | 800 |
