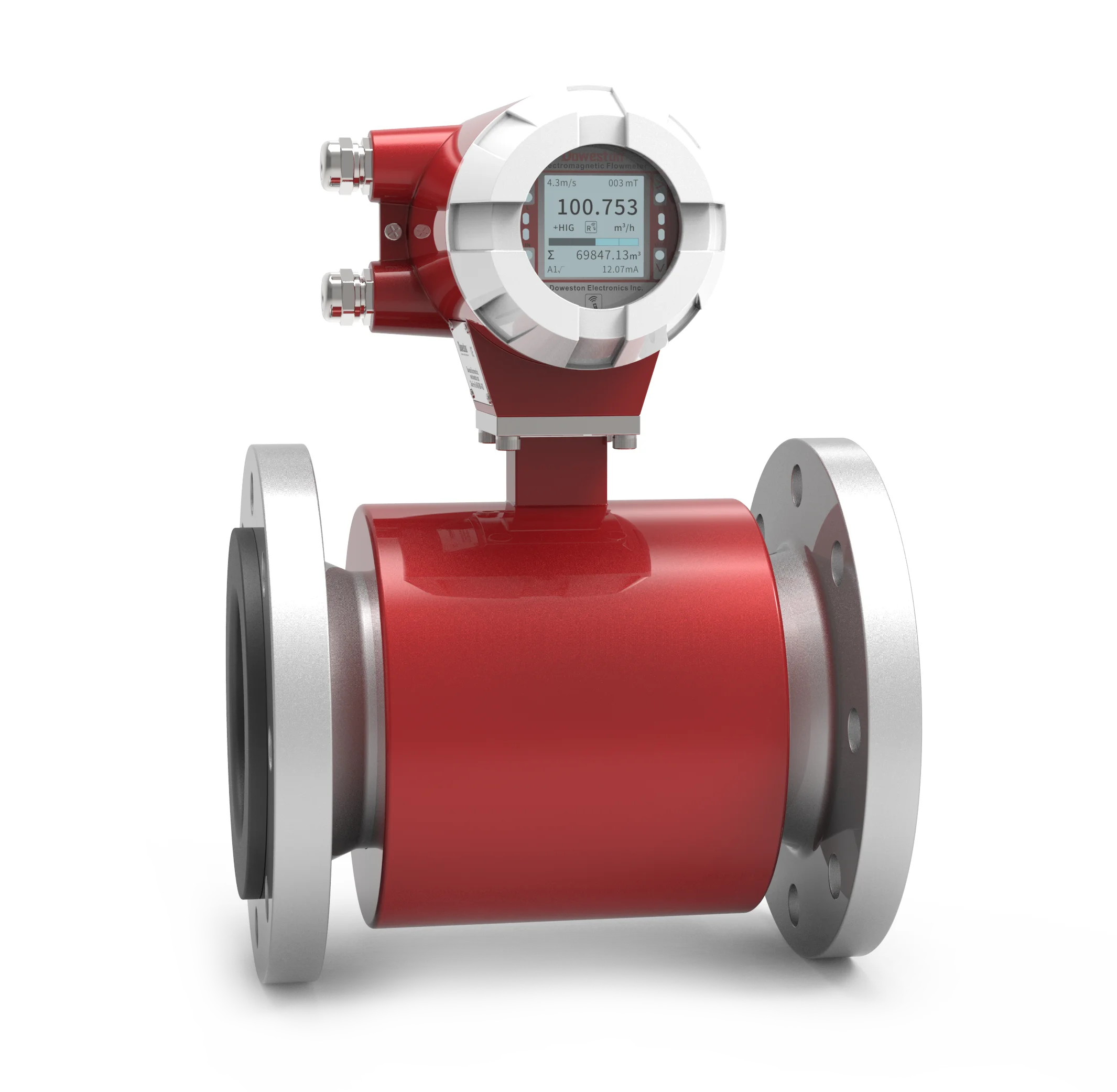

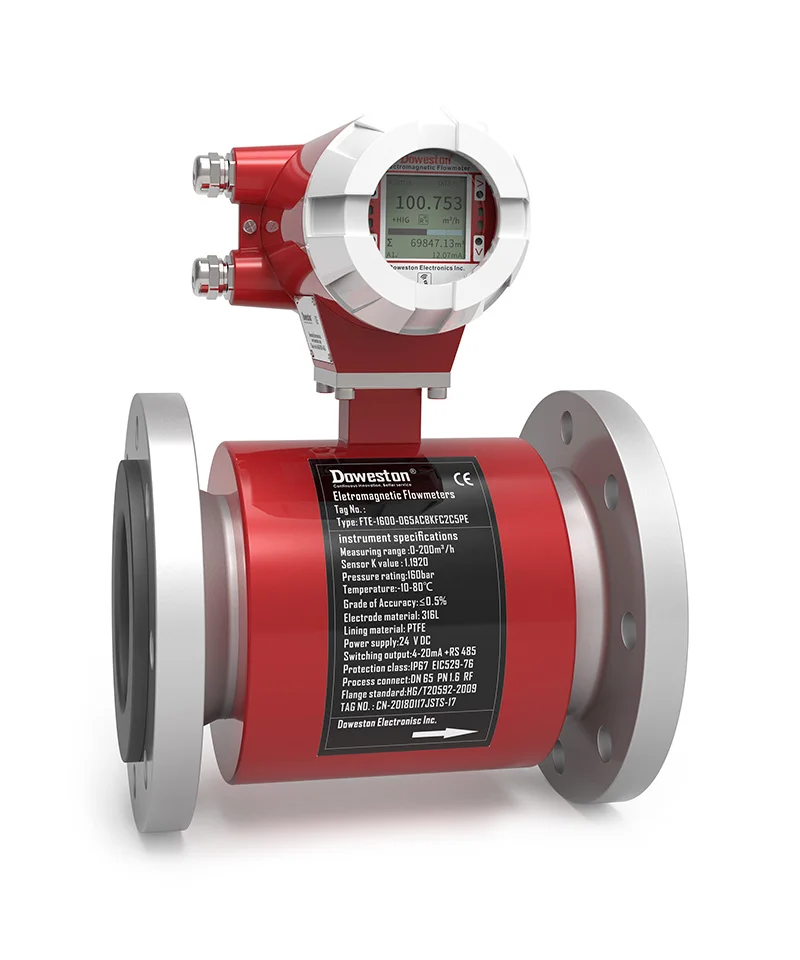

Factory Hot Sale Modern High Flow Turbine Air Electromagnetic Flowmeter 16 Inches
- Category: Flow Sensors >>>
- Supplier: Doweston (china) Co. Ltd.
Share on (1600457694232):
Product Overview
Description
Product Overview
FTE-1600s series
Standard electromagnetic flowmeter
Standard electromagnetic flowmeter
FTE-1600s standard electromagnetic flowmeter is an instrument that uses the principle of electromagnetic induction to measure the flow of conductive fluid according to the electromotive force induced by the conductive fluid when passing through the external magnetic field. It is widely used for the flow of conductive liquid or liquid-solid two-phase media such as clean water, sewage, corrosive and toxic. There are no obstructed moving parts in the pipe, almost no pressure loss, low requirements for the straight pipe section and displays the cumulative flow, Instantaneous flow, flow velocity, flow percentage, etc. have been widely used in industrial technology and management departments such as chemical industry, environmental protection, metallurgy, medicine,papermaking, water supply and drainage, etc.
FEATURES AT A GLANCE
Performance characteristics
Low accuracy, up to 0.03m/s
The sensor shell is all made of precision aluminum mold, with beautiful products, strong appearance consistency, tight fitting, no welding as a whole, fast loading and unloading and convenient maintenance
It has digital communication signal outputs such as RS485, RS232, Hart, MODBUS and PROFIBUS DP (optional)The measurement results are independent of physical parameters such as fluid pressure, temperature, density and viscosity
There are no flow blocking parts and pressure loss in the measuring pipe, and the requirements for straight pipe section are low. It has unique adaptability to slurry measurement
Right elevation
Left elevation

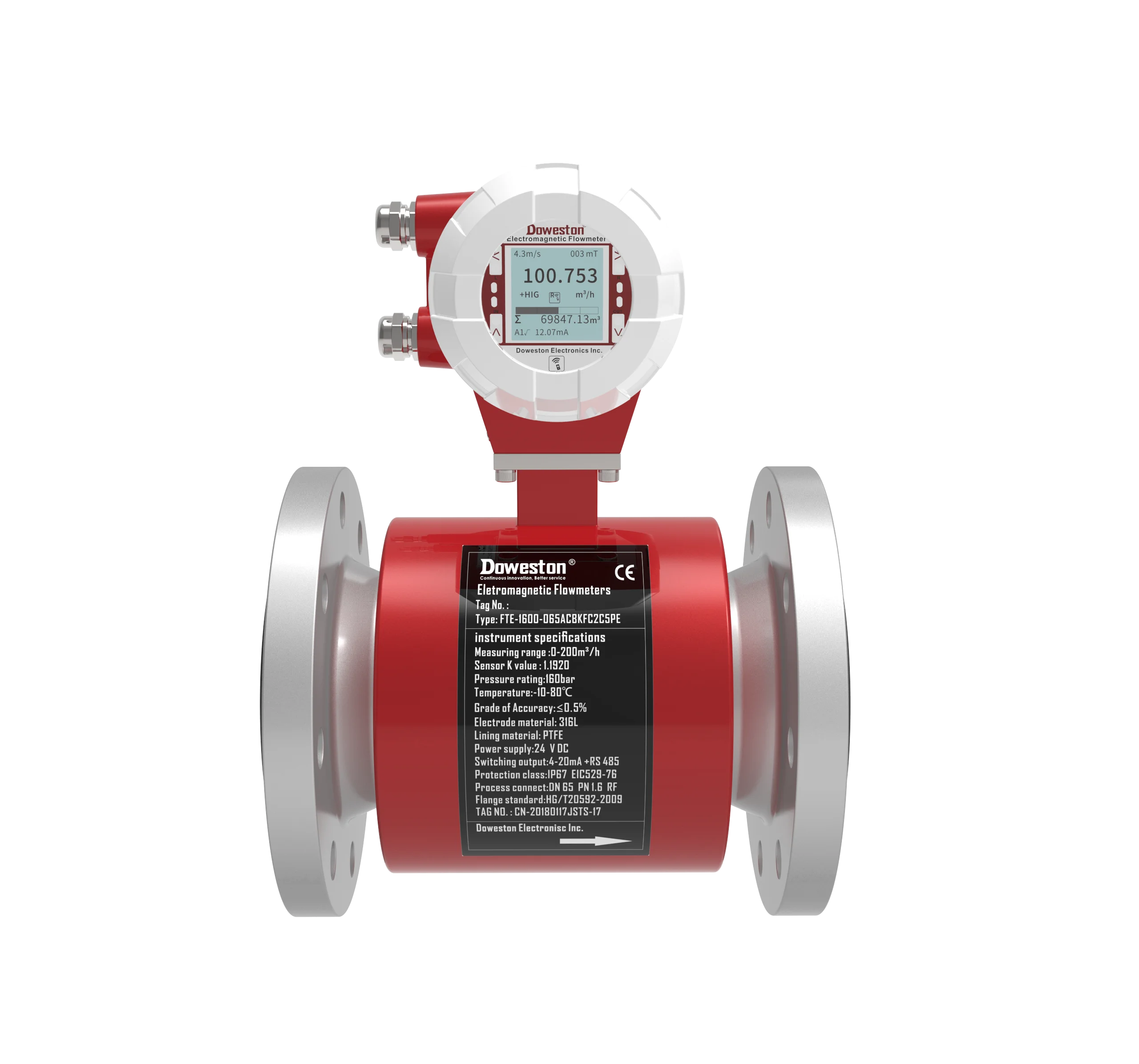

Front elevation
PRODUCT SPECIFICATIONS
Applicable medium | Various conductive liquids; |
Caliber range | DN3-DN3000 (DN3\\DN4 is flange clamping type) |
Lining type | Polychloroprene rubber, PTFE, F46, PFA,silicon fluoride, polyurethane rubber; |
Electrode type | 316L, Ha B, Ha C, titanium, tantalum, platinum-iridium alloy, stainless steel tungsten carbide |
Pressure range | 0.6~42Mpa; (high pressure needs to be customized) |
Temperature resistance | -25~80℃; |
Accuracy | ±0.5%, can be customized ±0.3%, ±0.2%; |
Protection level | Sensor IP65\\IP67\\IP68 (optional), converter IP65 |
Output type | Frequency, pulse, 4-20mA, RS485, Modbus protocol; Hart protocol (optional), Profibus DP (optional): |
Power supply | 85~250V, 45~63Hz, 20VDC --- 36VDC |
PRODUCT CONFIGURATION
Transmitter
sensor
Transmitter
