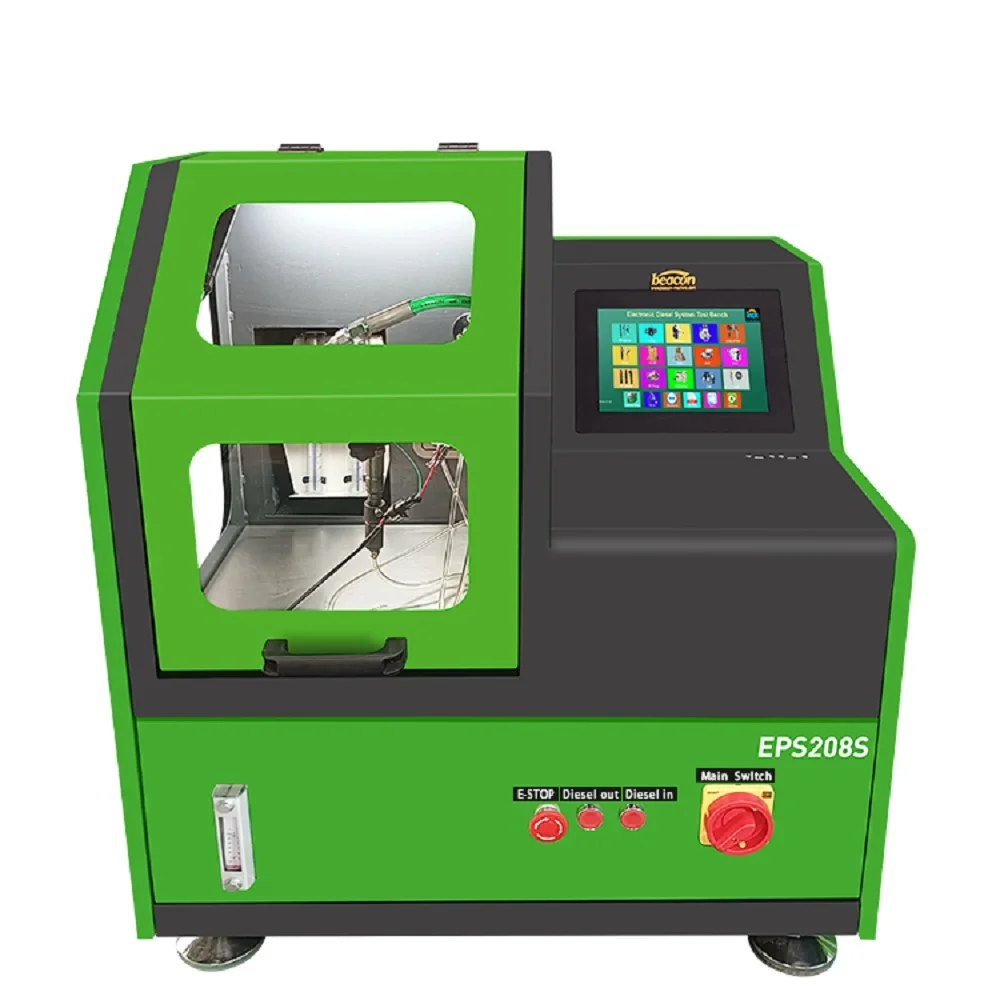

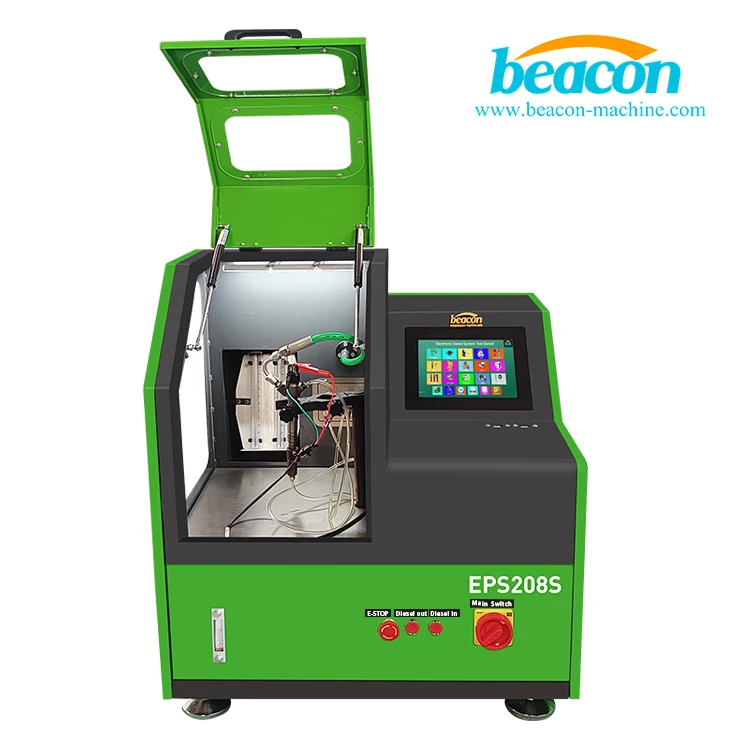

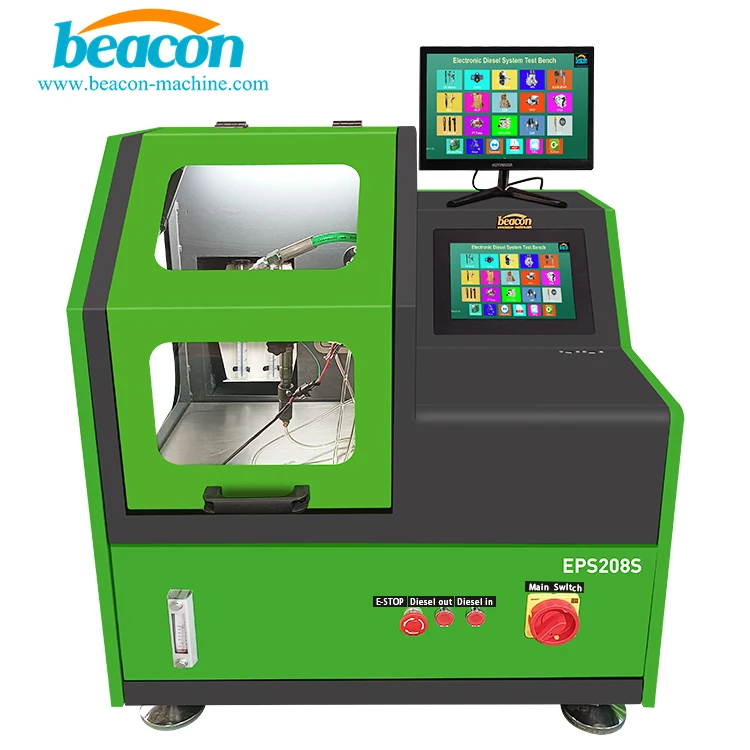

Injector Tester EPS208S Common Rail Diesel Fuel Injector Test Bench EPS205
Product Description
Injector Tester EPS208S Common Rail Diesel Fuel Injector Test Bench EPS205 introduction:
EPS208 common rail diesel fuel injector testing calibration machine is our latest indepentent researched special device to test the performance of high-pressure common rail injector,controlled by industrial computer, Windows operating system. The oil quantity is measured by sensor and displayed on computer screen. All data can be searched and saved. It adopts BOSCH original common rail pump to provide 0~2000 bar of rail pressure. The rail pressure can be adjusted automatically. it can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO. Advanced technology, steady performance, precise measurement and convenient operation.
Injector Tester EPS208S Common Rail Diesel Fuel Injector Test Bench EPS205
Function: 1.Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.
2. Test 1 piece of injector.
3. Test the pre-injection oil quantity of common rail injector.
4. Test the max. oil quantity of common rail injector.
5. Test the cranking oil quantity of common rail injector.
6. Test the backflow oil quantity of common rail injector.
7.Test the average oil quantity of common rail injector.
8. Test the seal performance of common rail injector.
9. Data can be searched and saved.
10. Clean the common rail injector.
2. Test 1 piece of injector.
3. Test the pre-injection oil quantity of common rail injector.
4. Test the max. oil quantity of common rail injector.
5. Test the cranking oil quantity of common rail injector.
6. Test the backflow oil quantity of common rail injector.
7.Test the average oil quantity of common rail injector.
8. Test the seal performance of common rail injector.
9. Data can be searched and saved.
10. Clean the common rail injector.
Specification
1. Pulse width | 0.1~20ms |
2. Continuous injection times | 0~1000 |
3. Fuel temperature | 40±2°C |
4. Rail high pressure | 0~2000 bar |
5. Test oil filtered precision | 5μ |
6. Input power | 220V/60hz/1phase |
7. Rotation speed | 0~4000RPM |
8. Oil tank capacity | 16L |
9. Overall dimension(MM) | 865×775×1430 |
10. Weight | 150KG |
Injector Tester EPS208S Common Rail Diesel Fuel Injector Test Bench EPS205

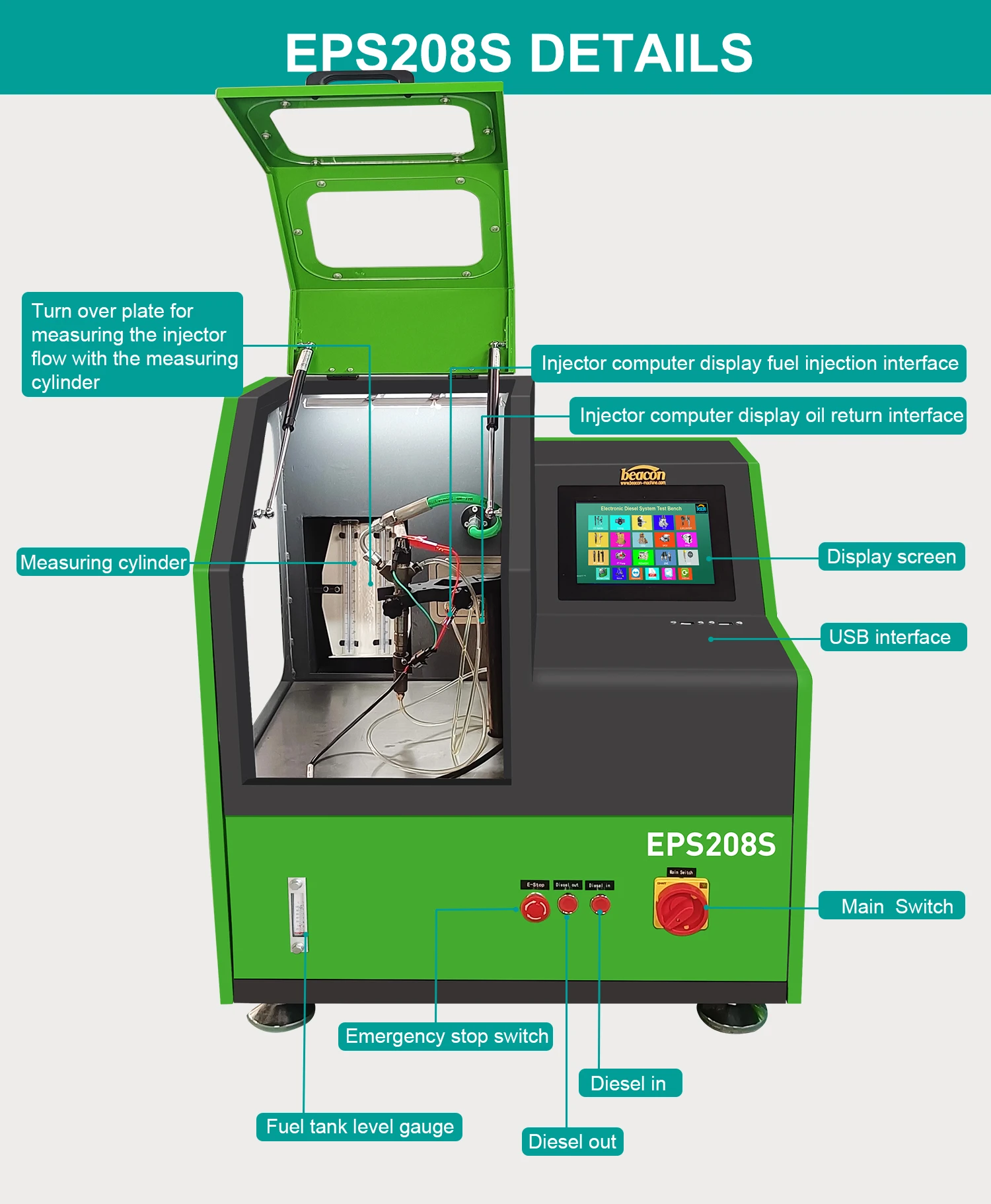

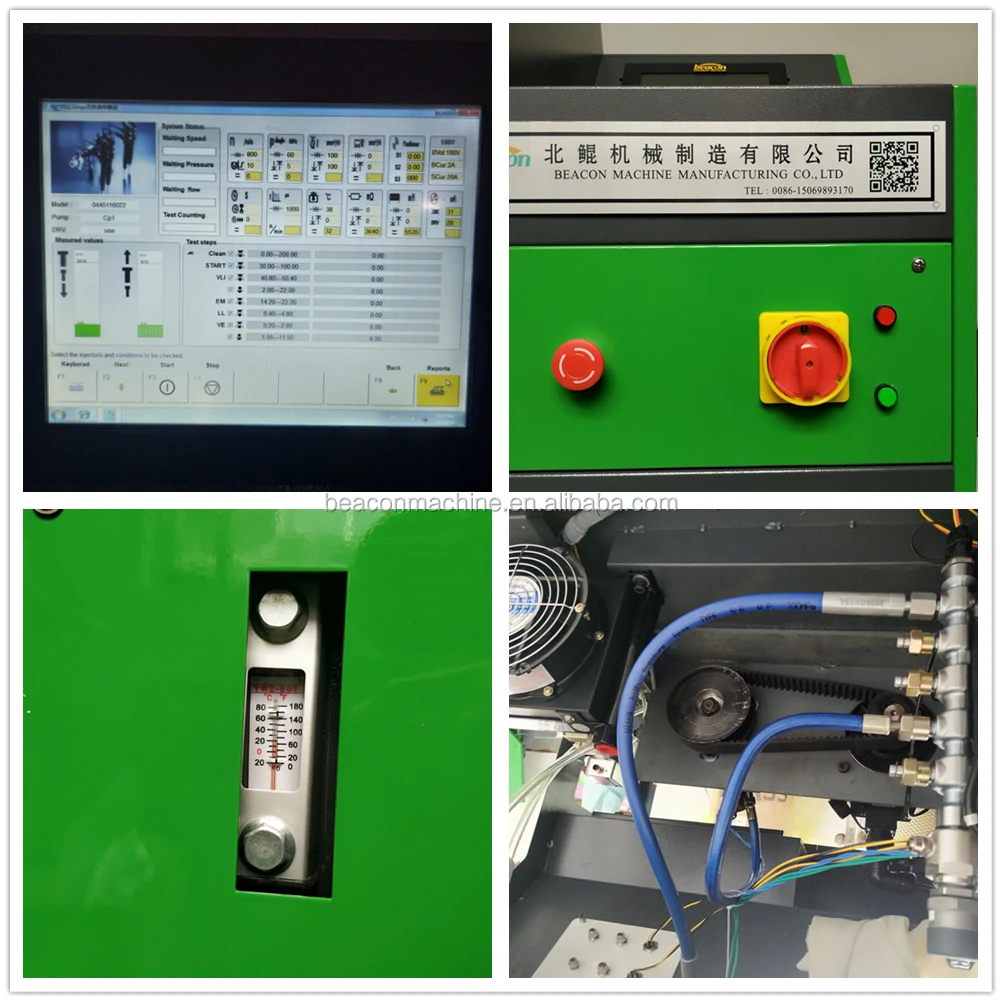

CHARACTERISTIC 1. Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 10.4tactile LCD screen;
3. More than 400 kinds of injecotors data can be searched and used.
4. Data can be searched and saved.
5. It is installed BOSCH common rail pump to provide 0~1600 bar of rail pressure.
6. Rail pressure can be tested in real time, it contains the high-pressure protection function
7. Pulse and frequency of the injector drive signal can be adjusted.
8. Injection time can be setted.
9. Protection function of short-circuit.
10.Precise measurement, easy operation, low noise.
2. Oil quantity is measured by sensor and displayed on 10.4tactile LCD screen;
3. More than 400 kinds of injecotors data can be searched and used.
4. Data can be searched and saved.
5. It is installed BOSCH common rail pump to provide 0~1600 bar of rail pressure.
6. Rail pressure can be tested in real time, it contains the high-pressure protection function
7. Pulse and frequency of the injector drive signal can be adjusted.
8. Injection time can be setted.
9. Protection function of short-circuit.
10.Precise measurement, easy operation, low noise.
