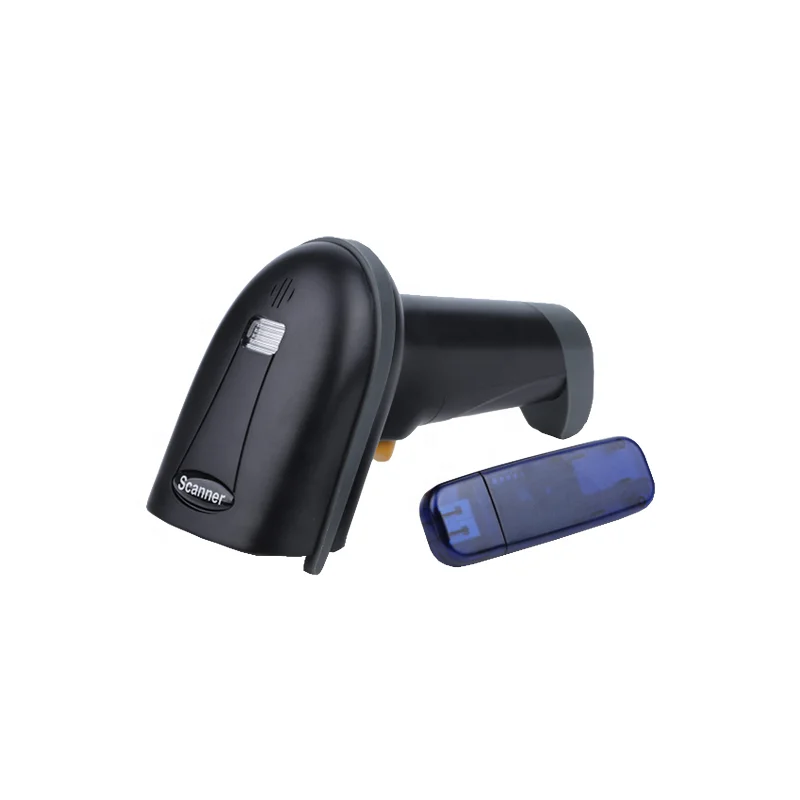

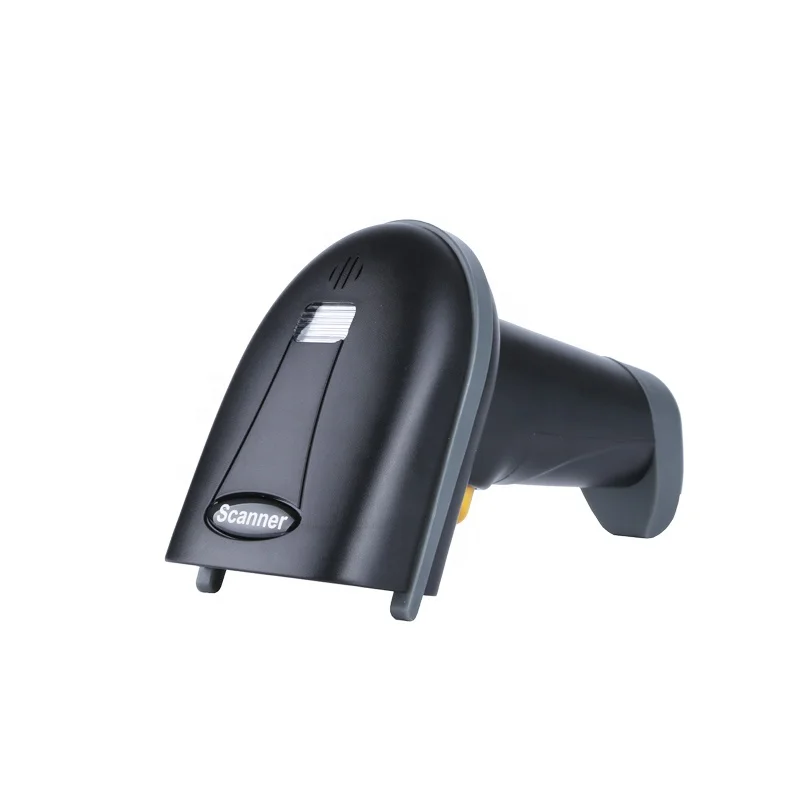

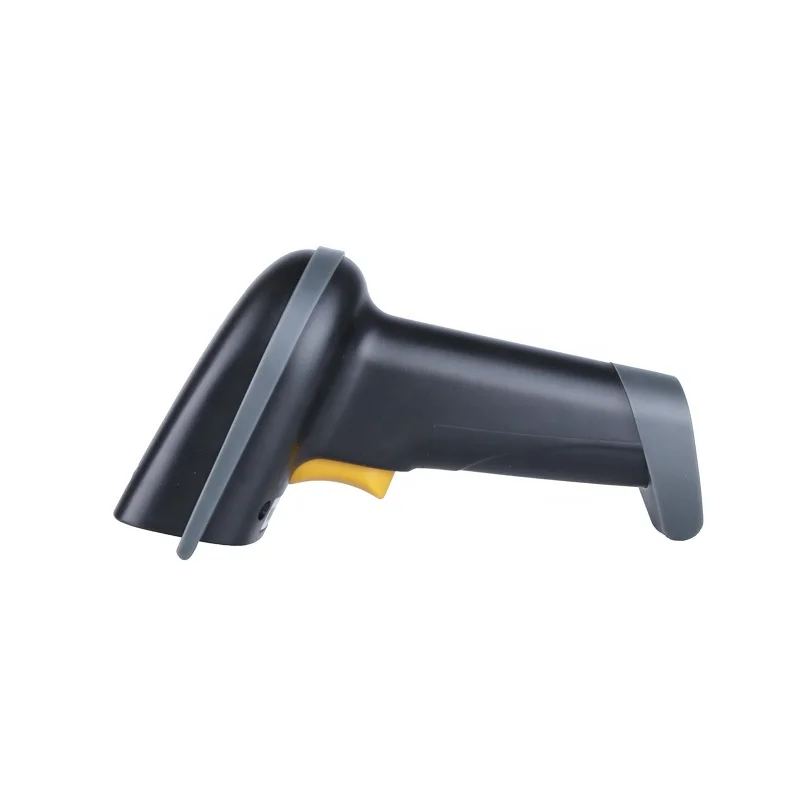

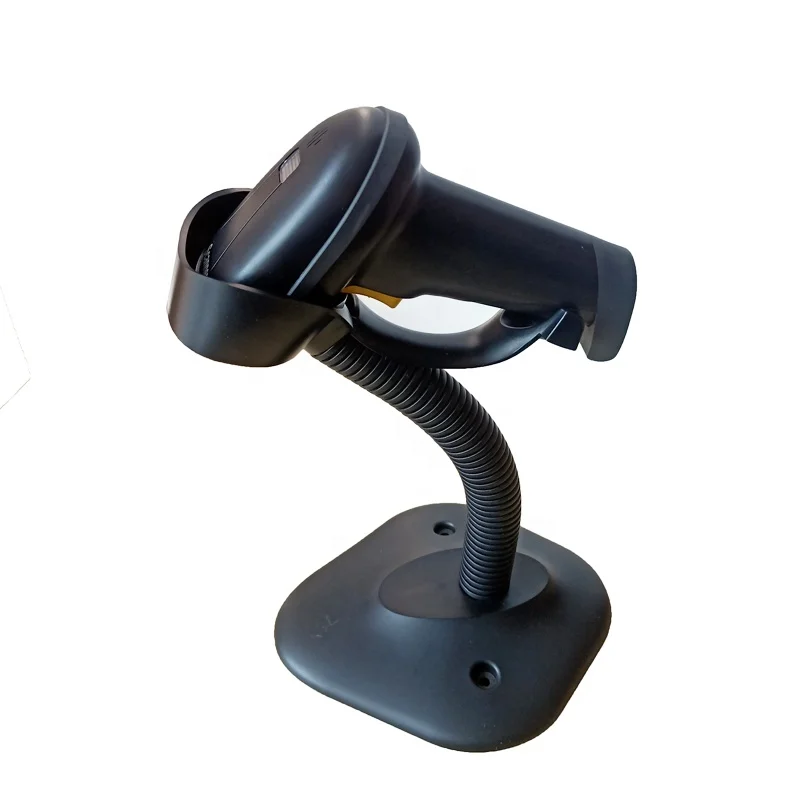

1D 2D CMOS Laser Programmable Data Editable Scanner Barcode Storage Blue tooth Handheld Cordless Barcode Scanner With Bracket
- Category: >>>
- Supplier: Shenzhen Honor Way Electronic Co. Ltd.
Share on (1600463032017):
Product Overview
Description
1D 2D CMOS Programmable Data Editable Scanner Barcode Storage Blue tooth Handheld Cordless Barcode Scanner With Bracket
The Advantage and Features

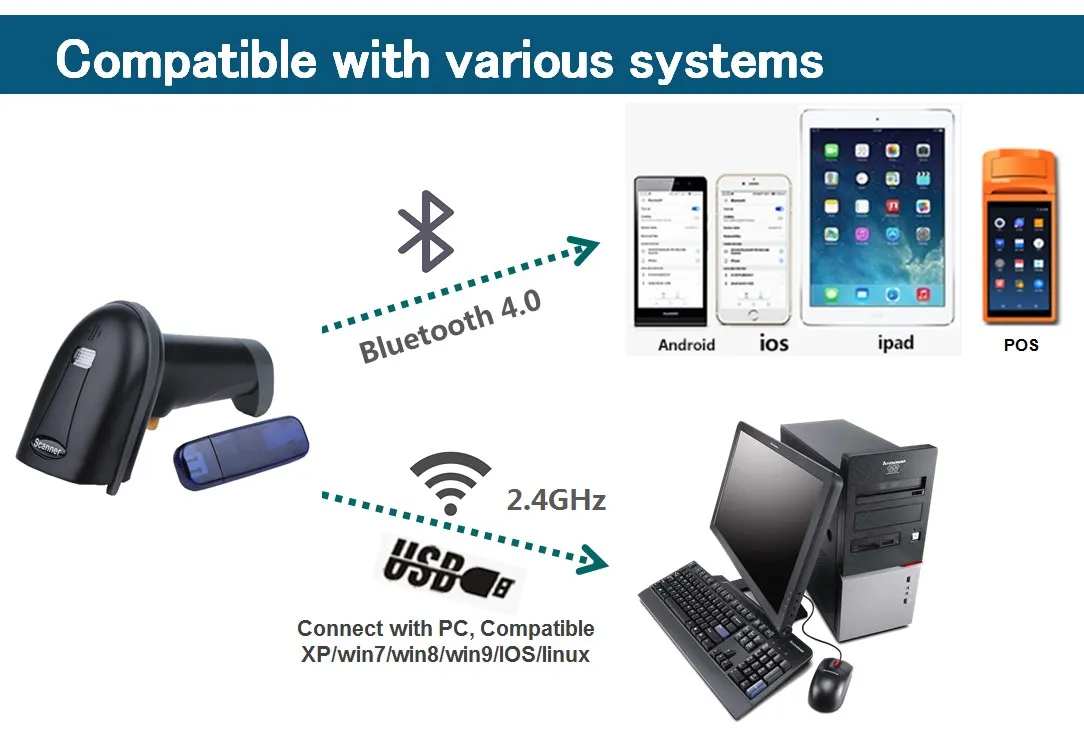

1. Support blue tooth+wireless communication methods,and switch mode by press/hold button 10seconds.
2. Data transmission,blue tooth ≤50M, 2.4GHz≤100M

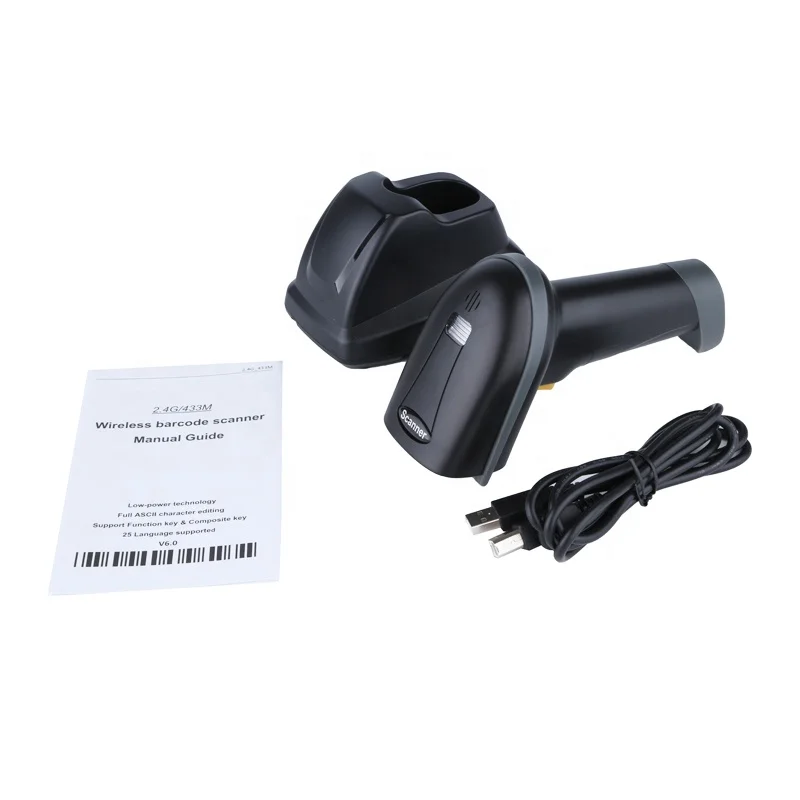

3. With Charging base can be used for charging and placing barcode scanner.
4. Indicator lights of different colors d indicate different states.

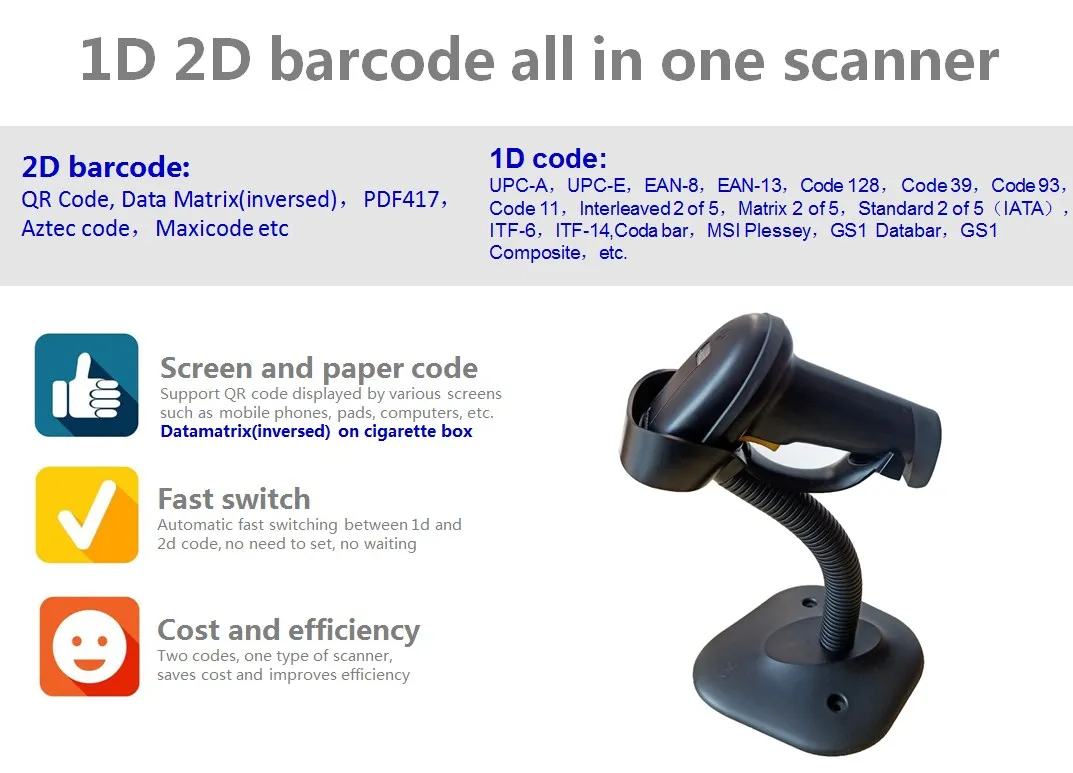

5. Support 1d+2d+QR+ pdf417+Data matrix etc almost all bar codes.
6. With 2200mAH battery, can store 8K barcodes(characters≤128)
7. Factory direct sale, highly cost-effective.
Product Parameters
Item | Para.Name | Para.Value |
Reading performance | Image Sensor | CMOS 30fps |
Resolution | 640*480pixels | |
Decoding capacity | Support paper and screen barcodes | |
2D: QR ,PDF417,Data Matrix Aztec Maxi code etc. | ||
1D: UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Code 11,Interleaved 2of 5,industrial 2 of 5,Matrix 2 of 5,Standard 2 of 5,Coda bar,MSI Plessey,GS1,etc. all normal 1D barcode | ||
Precision | 4mil | |
Light Source | 617nm Visible red LED,white LED | |
Scan Angle | Rotation360°,tilt±60°,skew±60° | |
Min Contrast | 25% | |
Scanning Speed | 500 times/s | |
Typical DOF | 60-100mm(4mil code39) 50-250mm(13mil EAN13) 40-300mm(20mil QR) 40-280mm(10mil PDF417) Performance may be impacted by bar code quality and environmental conditions | |
Mechanical and electrical | Interface | USB/USB COM |
| Charging Method | USB Cable | |
Working Voltage | DC 5V | |
Current | 200mA(working) 10mA(standby) | |
Battery | 2200mAH lithium battery, working 3-7days,charge time 4-5H | |
Memory Size | 7680 barcodes (characters/barcode≤128) | |
Dimensions | 170*65*100mm(scanner) | |
Weight | 195g(without cable) | |
Cable Length | 1.5M | |
Indication | Buzzer & LED | |
Environment Request | Working Tem | -20~60℃ |
Storage Tem | -40~85℃ | |
Humidity | 5%-95%(Non-condensing) | |
Light Immunity | 0~100,000Lux | |
Drop Test | 1.5M |
