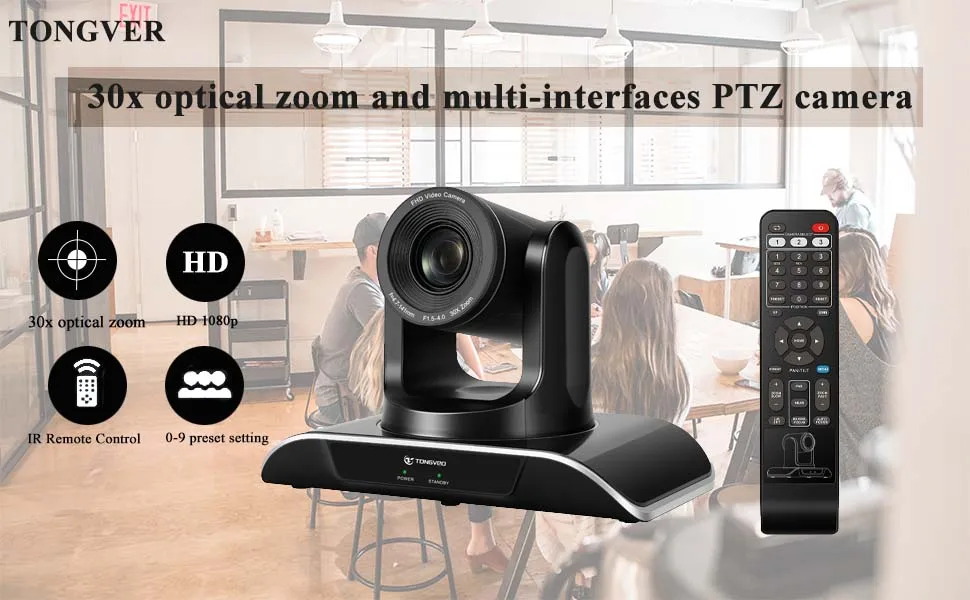

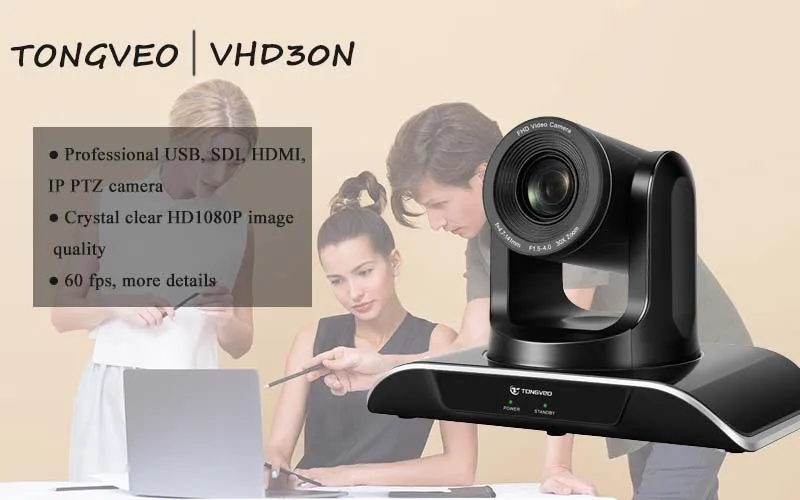

Best selling professional High Definition 30x optical zoom streaming and broadcast video conference ptz ip camera
- Category: Conference System >>>
- Supplier: Xian Tongveo Video Technology Co. Ltd.
Share on (1600469468238):
Product Overview
Description
Products Description
Main Features:

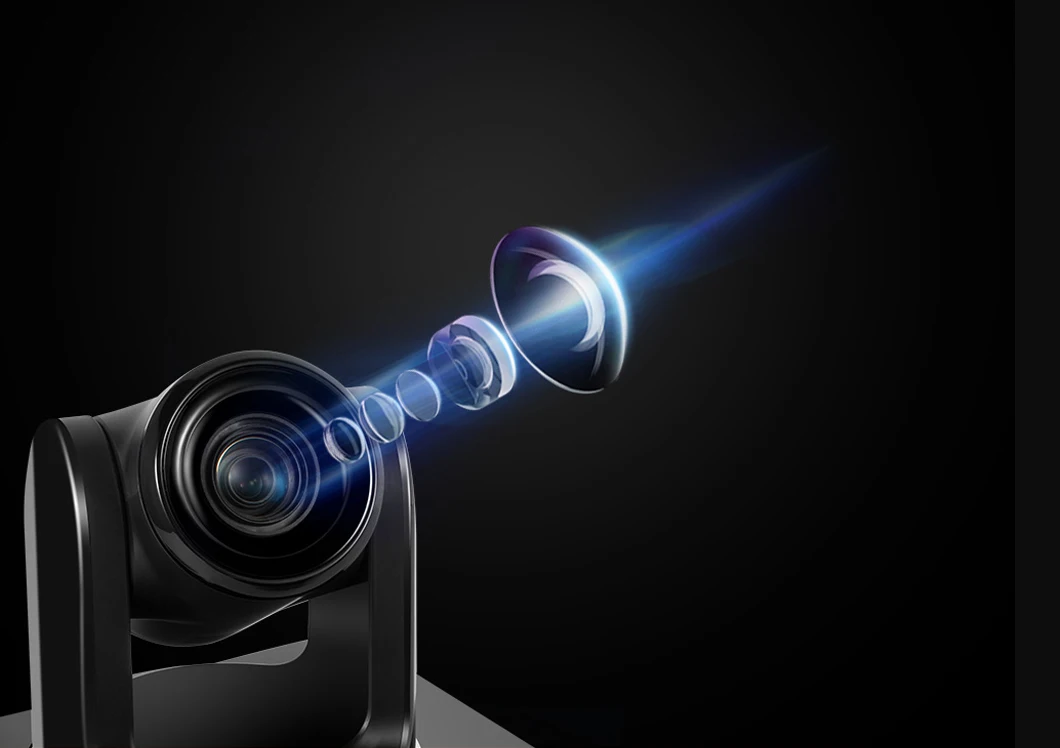

01. 30x optical zoom
02. Crystal clear HD1080P image quality
03. HD-SDI, HDM I，RJ45, and USB Video Output.
04. Preset: 10 via IR remote setting (256 via RS232)
05. Wide field of view with no video distortion
06. 1/3 inch high quality, 3.28MP (16:9)CMOS sensor
07. Accurate, smooth and silent PTZ Movement
Product advantages
Wide compatibity
This ptz camera can be compatible with most online video meeting applications such as SKYPE, Webex, GoToMeeting, ZOOM, Google Meet, and so on. It can also work with PC systems. Foe example, Windows 7, 8.1 or 10, Mac OS X 10.7 and above, Android, Linux.
Perfect for medium to large conference room
This ptz camera is equipped with lens of 30x optical zoom and 60 fps , so it can capture more details and deliver more clear image. Anyone in the conference room can be seen clearly, and it would be perfect for medium to large conference room.

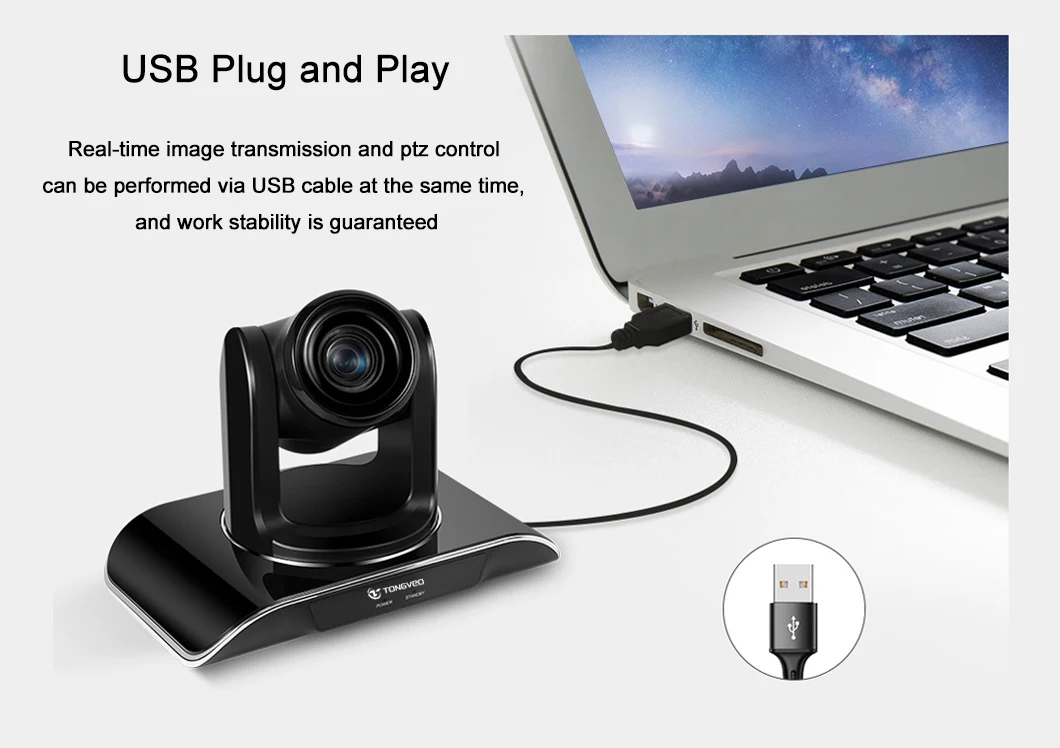

Easy to set up and connect
Without need any of flash drivers, just plug the cable in and then you can start your video meeting.

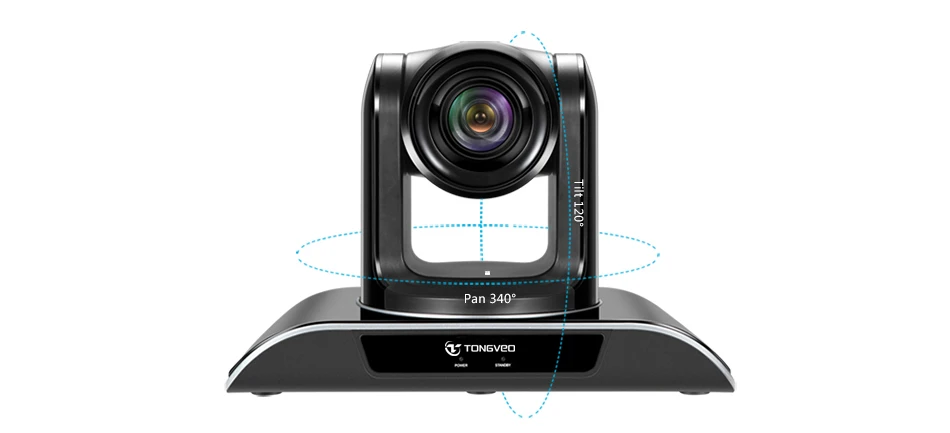

PTZ Camera
Pan rotation: 340 degree
Tilt rotation: 120 degree
Product Parameters
Model No | TEVO-VHD30N | ||||||
Image Sensor | 1/3 inch HD CMOS | ||||||
Effective Pixel | 3.28 megapixel(16:9) | ||||||
Horizontal Resolution | 1080p60/50/30/25, 1080I60/50/30/25, 720p 60/50 | ||||||
Focal Length | F=4.7mm(wide)-140.0(tele)F=1.6mm(wide)-Close(tele) | ||||||
Signal Standard | NTSC/PAL | ||||||
Zoom | 30x zoom | ||||||
Horizontal View Angle | Near-end 69.5°~Far-end 2.7° | ||||||
Gain Control | Auto/manual | ||||||
SNR ratio | 1/1 sec to 1/10000s (22steps) | ||||||
Preset Position | Remote-controller supports 9 presets, PELCO Control Protocol supports 255 presets | ||||||
Pan/Tilt movement range | Pan: 340°(Max Speed 80°/s), Tilt: 120°(Max Speed 60°/s) | ||||||
Control Terminal | RS-232, RS-485 | ||||||
Control Protocol | VISCA, PELCO-D, PELCO-P(rs-232, R-S485) | ||||||

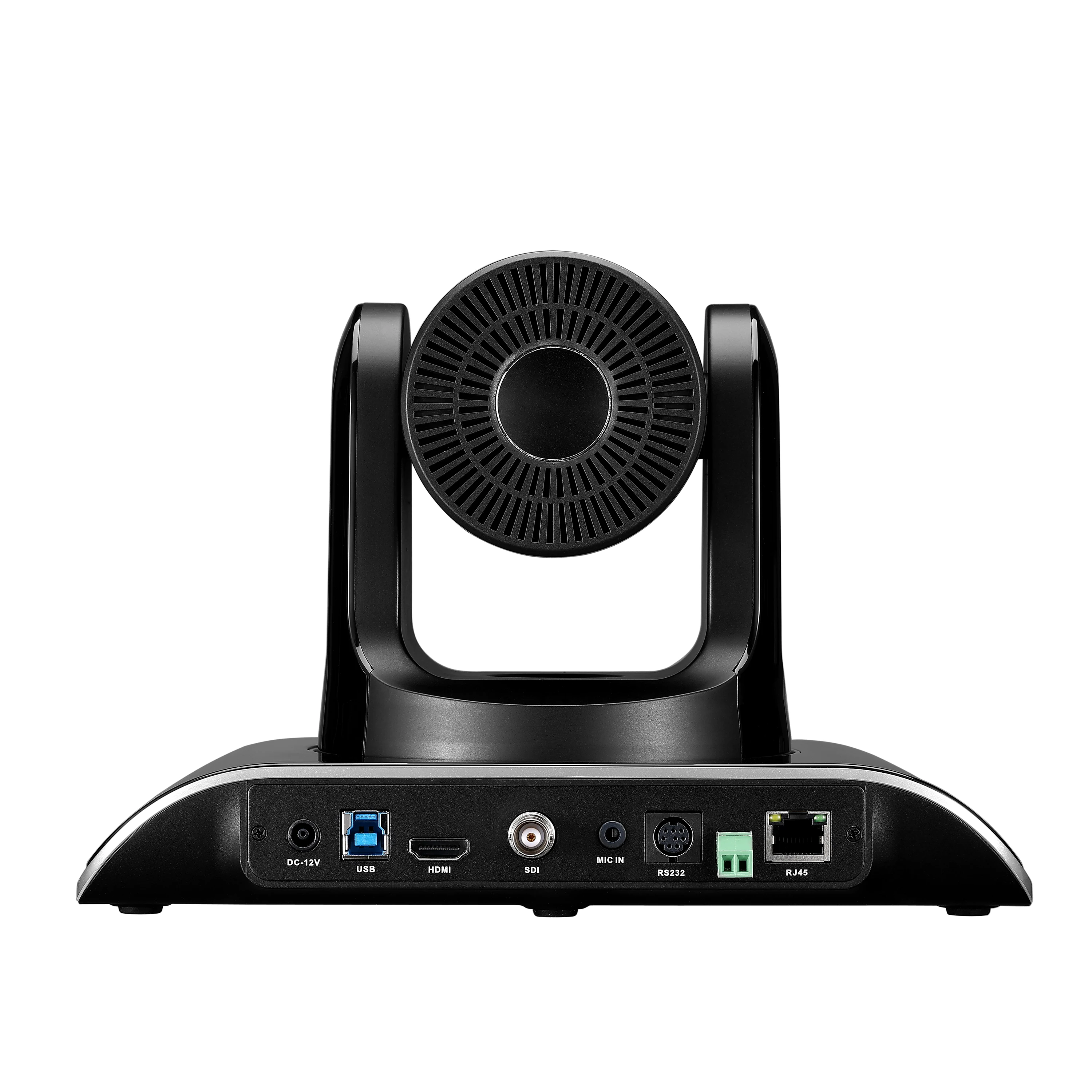

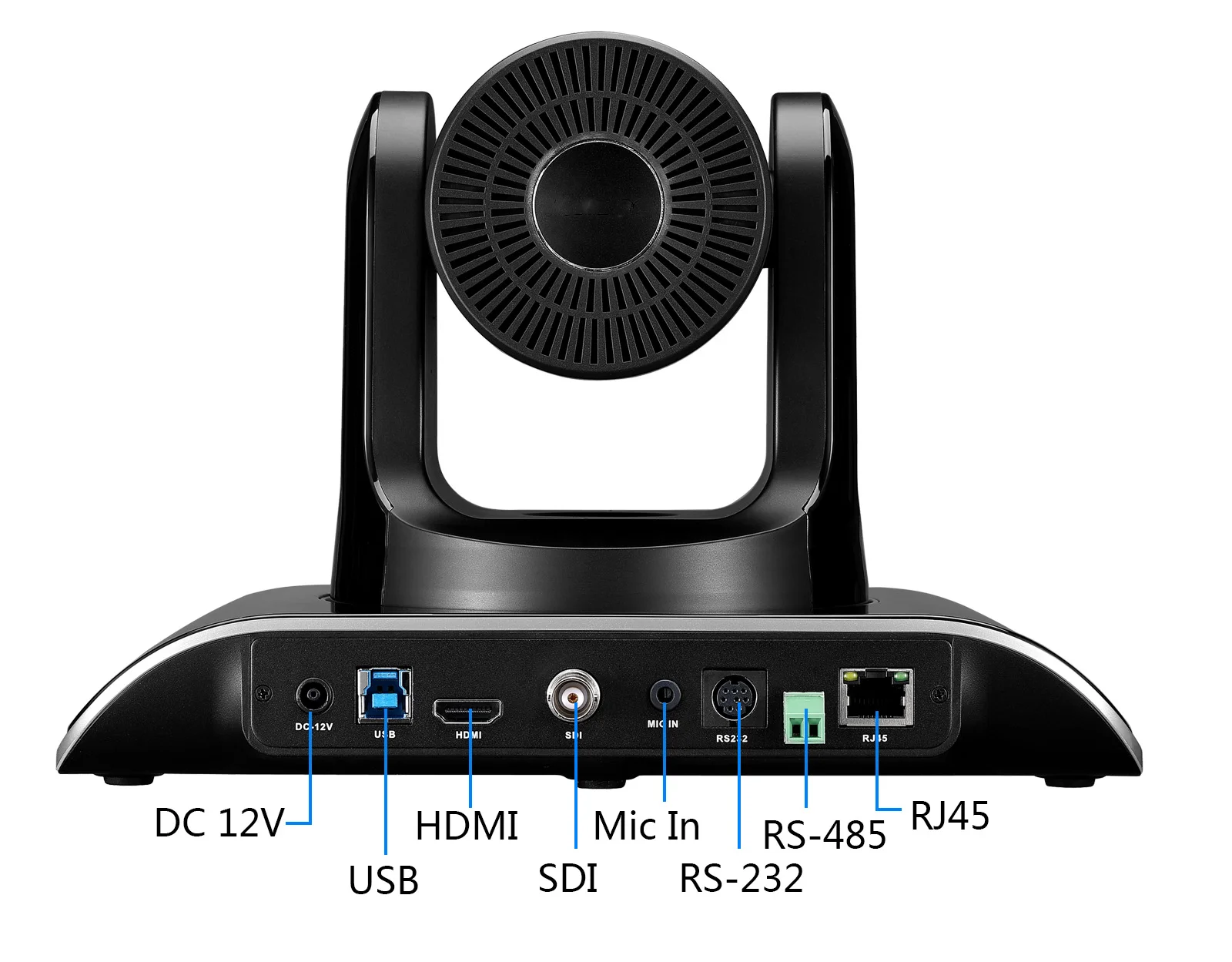

Video Output | 3G-SDI, HDMI, USB, RJ45 | ||||||
Noise Reduction | 2D/3D | ||||||
Work Temperature | -10°~50° | ||||||
Work Humidity | -20°~60° | ||||||
Decoder | 2400/4800/9600/19200bps | ||||||
Address Set | 1-64 | ||||||
Weight | 1.7kg/3.5kg | ||||||
Power | 12w | ||||||
Installation | Support desktop | ||||||

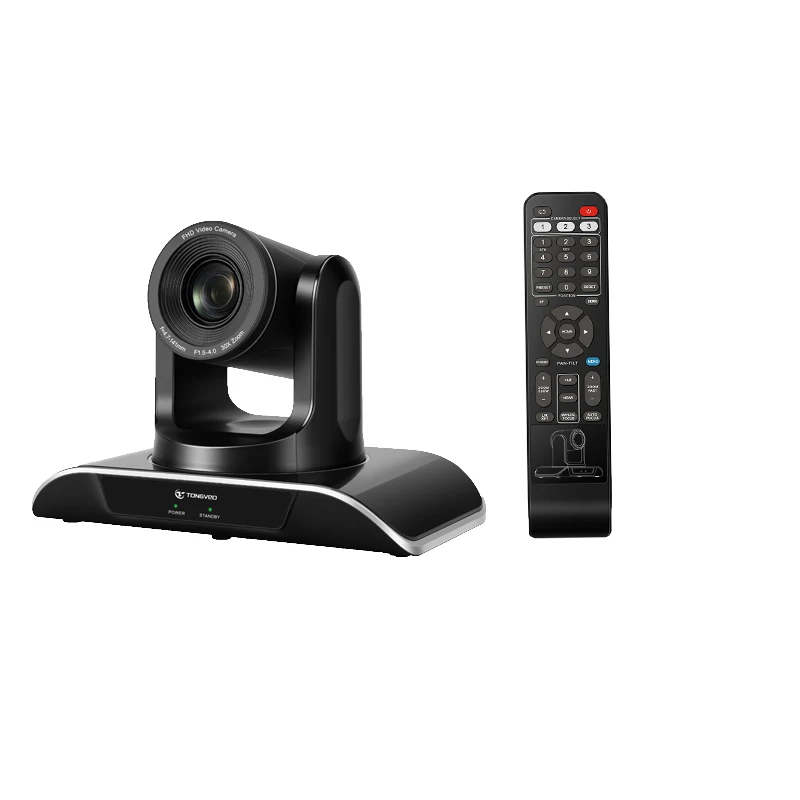

Accessories | DC12V Power Adaptor, IR remote control, Ceiling brackets and screws, Manual | ||||||

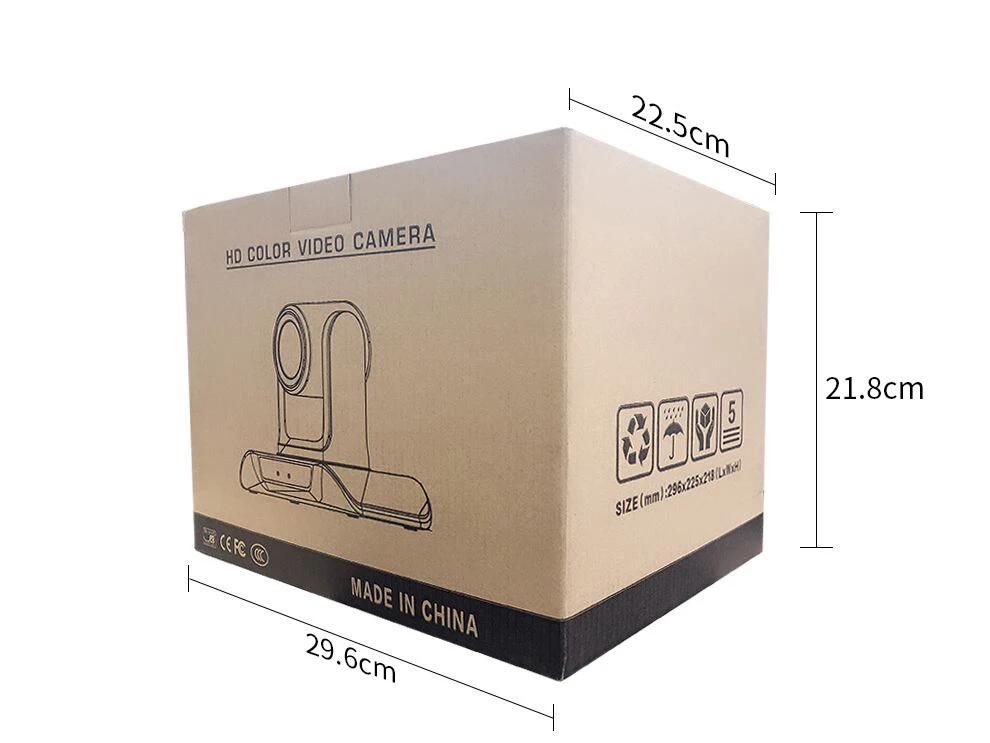

Size | 260*175*180mm/296*255*218mm(before/after packing) | ||||||
Usage Scenarios

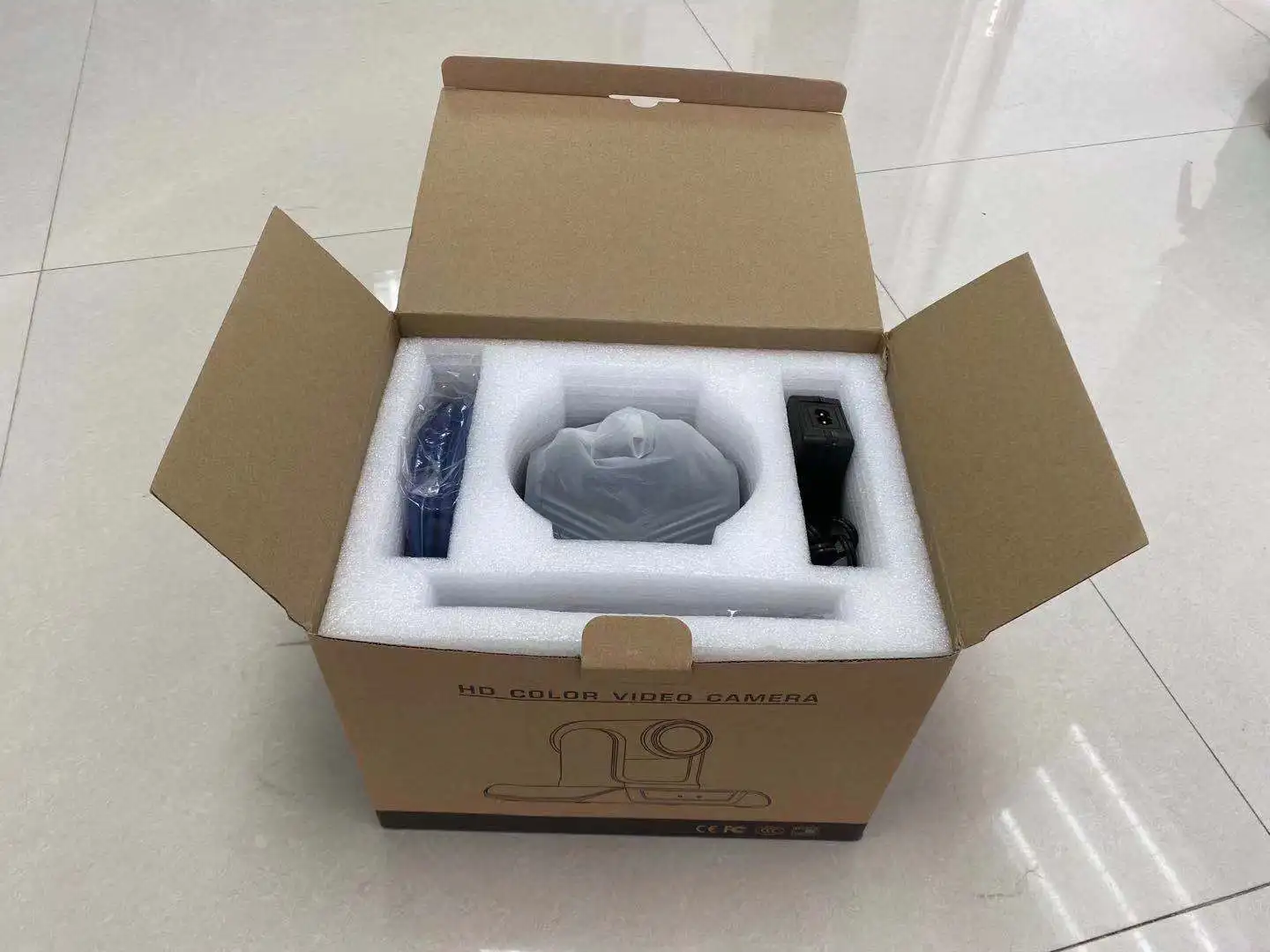

Package and shipping
Company Profile
Who are Tongveo?
Tongveo is focusing on developing and implicating the technology of video conferencing products,SD,HD PTZ video
conference camera and omni-directional conference microphone speakers.We are professional and we have good reputation in product development, production, sales and after service.
We can design produce and sale directly in order to ensure the most competitive price and excellent quality under control.All of our products are compliant with CE,FCC and ROHS standards. We have established a sound sales & service network.Offices has been set up in Shenzhen, Hongkong, Beijing, Guangzhou, Xi'an,etc.
We also successfully sold our products to many foreign countries. We are sincerely to make any meeting better and easier! Welcome your OEM/ODM orders.
What we do?
Tongveo, which is a professional Audio &Video integration and conference solution supplier, was founded in 2011. Tongveo has more than 10 years OEM/ODM/JDM experience, been focusing on Full HD, Ultra HD video camera and audio devices covering HD video conferencing PTZ camera, HD Webcam, All-in-one camera, speakerphone, etc.
conference camera and omni-directional conference microphone speakers.We are professional and we have good reputation in product development, production, sales and after service.
We can design produce and sale directly in order to ensure the most competitive price and excellent quality under control.All of our products are compliant with CE,FCC and ROHS standards. We have established a sound sales & service network.Offices has been set up in Shenzhen, Hongkong, Beijing, Guangzhou, Xi'an,etc.
We also successfully sold our products to many foreign countries. We are sincerely to make any meeting better and easier! Welcome your OEM/ODM orders.
What we do?
Tongveo, which is a professional Audio &Video integration and conference solution supplier, was founded in 2011. Tongveo has more than 10 years OEM/ODM/JDM experience, been focusing on Full HD, Ultra HD video camera and audio devices covering HD video conferencing PTZ camera, HD Webcam, All-in-one camera, speakerphone, etc.
Certifications
Why Choose Us?
01.
We have ten more years' OEM &ODEM production experience and have served plenty of buyers around the world.
02.
We have strict QC process-- Four times strict 100% inspection Raw Material Inpection + Semi-finished product inspection + Finished product inspection + Customer commissioned inspection (AQL 2.5 Standard)
03.
We provide replacement within 3 months , 24 months warranty, and lifetime technical support service.
04.
We have Qualified Certificates: CE, FCC, RoHS, VCCI, ISO 9001.
05.
We have Qualified Certificates: CE, FCC, RoHS, VCCI, ISO 9001.
05.
In addition to the export industry standards, our products are up to the Japanese Production Guide.
FAQ
Q1: Which kind of software does your camera compatible with?
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
A:Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Gotomeeting, Blue Jeans, Cisco, Vmix, etc.
Q2: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q3: What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 20x and 30x PTZ cameras for larger meeting rooms.
Q4: Is it easy to operation?
A:Yes, easy to Plug-in, Driver free, Plug&Play
A:Yes, easy to Plug-in, Driver free, Plug&Play
Q5: What is your payment term?
A: We accept Paypal, WU, T/T, FFT, L/C at Sight and Alibaba Trade Assurance.
A: We accept Paypal, WU, T/T, FFT, L/C at Sight and Alibaba Trade Assurance.
Q6: What is your warranty period?
A: The warranty period is 2 years
A: The warranty period is 2 years
Q7: Can I put my own logo on products?
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo,lable,package .etc
A:Yes,We Provide OEM/ODM service, We accept customer’s design, logo,lable,package .etc
Q8: How about your delivery time?
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
A: We have Samples in stock for the same day shipping, For bulk order, Please contact us for the delivery time.
Q9: Do you test all your video conferencing camera before delivery?
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
A: Yes, We have a complete quality assurance control system to ensure full-quality products before delivery.
Q10: Can the camera be mounted upside down on the ceiling?
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
A: The PTZ conference camera is designed for an upright, vertical orientation and installation on a flat, level surface or tripod. The webcam support the desktop, tripod and PC.
