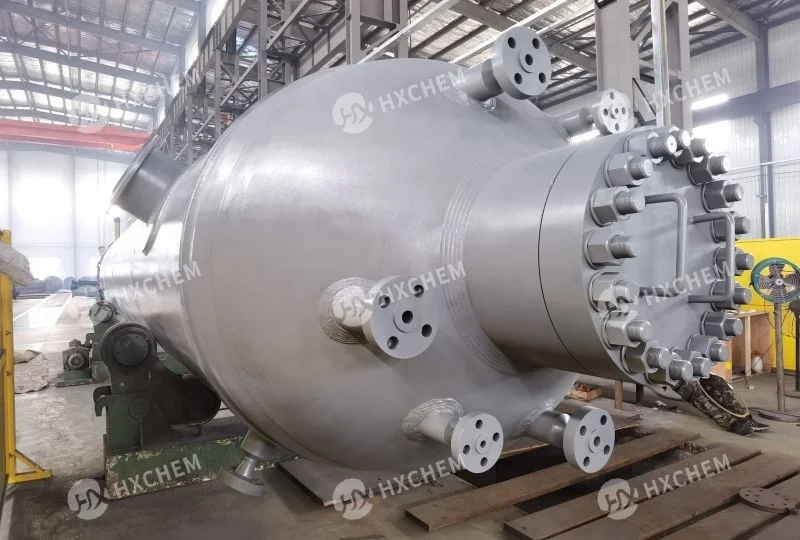

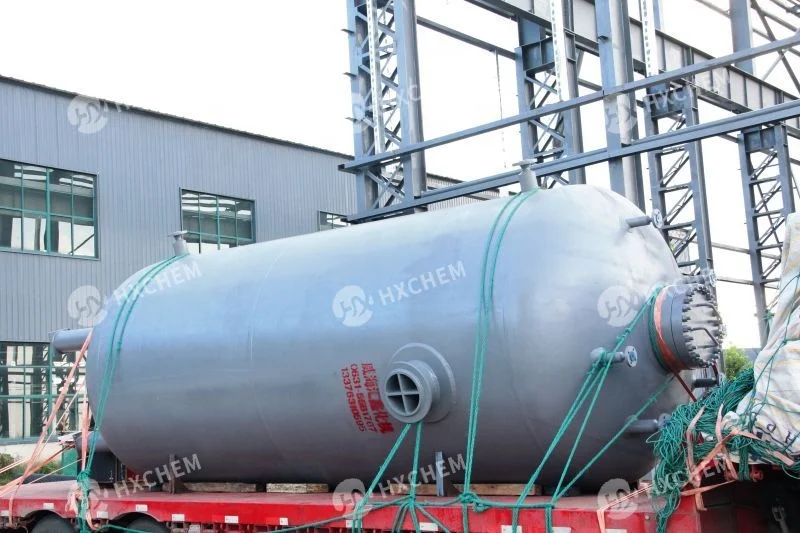

20m3 High pressure vessel storage tank for hydrogen storage
This serie product is applicated in the hydrogen storage, which is under the high pressure enviroment. The higher the working pressure of pressure vessels is, the thicker the wall of cylinder should be. If the vessel thickness exceeds 16mm, cladding plates could be considered, base material used for strength and clad material used for anti-corrosion function. Reduce costs for you!



Model
HNS
Volume
23 m3
Material
Carbon steel Q345R
Max pressure
230 bar
Design temp.
200℃


Product Features






* Large scale industrial scale storage tank;
* GB, ASME design and manufacture certificate.
* Max pressure: 230 bar; Max temperature up to 250 ℃;
* We offer carbon steel, stainless steel, or most exotic alloys such as Hastelloy, Monel, or Inconel;
* When the pressure is large, cladding plates could be considered, including base material for strength and clad material for anti-corrosion. Reduce costs for you!
* Internal cooling coil, vent port, liquid / powder charging, dip tube, thermowell, safety rupture disc, pressure safety valve, flush bottom outlet, baffles, light & sight glass, handhole / manhole etc.
* Lugs or floor stand leg support.


Product Paramenters


Norminal volume
100L-200 m3
0.6
Material
Carbon steel , SS, other alloy lined
4
Design pressure
-1~250 bar
Design temp.
-40~350℃
Base Thickness
6~160mm
Clad Thickness
3~10mm
Max Length
16 m
Max Diameter
6 m
Max weight
200 tons
Shape
Vertical or horizontal
Head type
Semi-elliptical, Dished type,
Hemispherical, Flat type
Jacket
Dimpled, Half-pipe, Std.
Heating type
Oil electric heating; Oil heating; Steam heating
Note: If the diameter exceeds 6,000mm, it need to be fabricated on the site.
If the unit weight exceeds 200tons or the total length exceeds40m, segmented transport and field welding will be required.




Notes：When the pressure is large, cladding plates could be considered, including base material for strength and clad material for
anti-corrosion. Reduce costs for you!


Production Details


Flat top head
Hemispherical head
Semi-elliptical head


Vessel body
Dished head
Internal cooling coils


Limpet half pipe jacket
Full jacket
Internal polish


Recommend Products




Customization


Customized Specifications
If there has special process requires, HXHCEM will also customize for you!
Pls list your basis process parameters like follows:
1. Volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material
5. Vessel head type（Upper head & Bottom head）
6. Heating Jacket type？ Cooling method？
7. Your other requests
......Contact us！
We like to help you to accomplish your plans.
