Новый резервуар для хранения жидкого аммиака по низкой цене, резервуар для хранения пропен, газовый танкер 10 тонн 20 тонн 30 тонн 40 тонн 50 тонн
- Category: Pressure Vessels >>>
- Supplier: Chengli,Special,Automobile,Co.,Ltd.
Share on:
Product Overview
Description
New cheap price of liquid ammonia storage tank, propene storage tank, gas tanker 10 tons 20 tons 30 tons 40 tons 50 tons

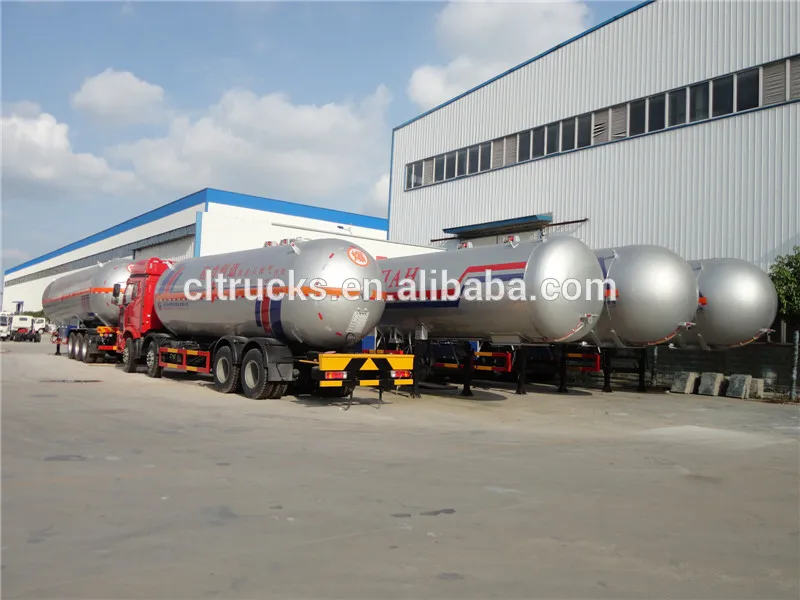

The function characteristic of liquefied gas truck of chengli company
The anti-corrosion coating of liquefied gas semi-trailer adopt the following process:sandblast ,spray painting,purging and so on .
There are domestic or imported safety accessories with high quality,its matching is complete
We adopt scientific advanced construction process strictly,ensure that the products are with the lowest shrinkage and highest dimensional stability at low temperature.
We inspect the quality of product strictly,ensure that A and B type of welding seam pass the examination of level two radio graphic test ,C and D type of welding seam pass the examination of level one radio graphic test .

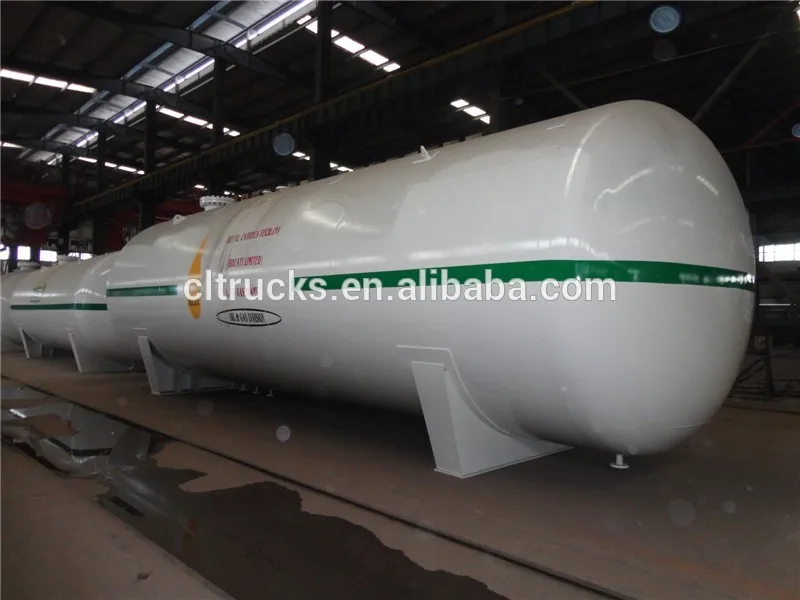

Product Description
| LPG STORAGE TANK SPECIFICATION | ||||||
Capacity (CBM) | Diameter DN | Shell thickness (mm) | Head thickness (mm) | Kerb weight (kg) | Loading Weight (kg) | Overall dimension(mm) | |
5 | 1600 | 10 | 10 | 2030 | 1995 | 3070*1620*2210 | |
8 | 1600 | 10 | 10 | 2540 | 3192 | 4270*1620*2210 | |
10 | 1600 | 10 | 10 | 2950 | 3990 | 5260*1620*2210 | |
12 | 1800 | 10 | 12 | 3360 | 4788 | 5034*1820*2410 | |
15 | 1800 | 10 | 12 | 3920 | 5985 | 6224*1820*2410 | |
20 | 1800 | 10 | 12 | 4820 | 7980 | 8174*1820*2410 | |
25 | 2200 | 12 | 14 | 6020 | 9975 | 7008*2224*2814 | |
32 | 2400 | 14 | 14 | 7710 | 12768 | 7508*2428*3018 | |
50 | 2600 | 14 | 16 | 10910 | 19950 | 9912*2628*3218 | |
50 | 2700 | 14 | 16 | 10640 | 19950 | 9182*2728*3318 | |
80 | 3100 | 16 | 18 | 17000 | 31920 | 11166*3132*3722 | |
80 | 3200 | 18 | 18 | 18140 | 31920 | 10516*3236*3826 | |
100 | 3100 | 16 | 18 | 20410 | 39900 | 13866*3132*3722 | |
100 | 3200 | 18 | 18 | 21800 | 39900 | 13016*3236*3826 | |
120 | 3400 | 18 | 20 | 24960 | 47880 | 13820*3436*4026 | |
Design pressure | 1.77MPa | ||||||
Corrosion allowance( mm) | 1mm | ||||||
Medium density (kg/m3) | 420kg/m3 | ||||||
Material of tank and main pressure parts | Q345R | ||||||
Carried standard | Pressure vessels,supervision regulation on safety technology for stationary pressure vessels | ||||||
Safety valve of selection fitting | Safety valve, column magnetic reversible level meter,pressure gauge, thermometer,cut-off valve | ||||||
Remark:
1 The safety valve is designed under the condition that the tank is placed under spray device whose flow is larger than 10L/m.min
2 The location dimension of pipe orifice can be setted by the user's actual place .
3 We can change reversible level meter to magnetic float ball type according to the user's requirement.
4 The data list is only for reference ,take the drawing as accuracy.
