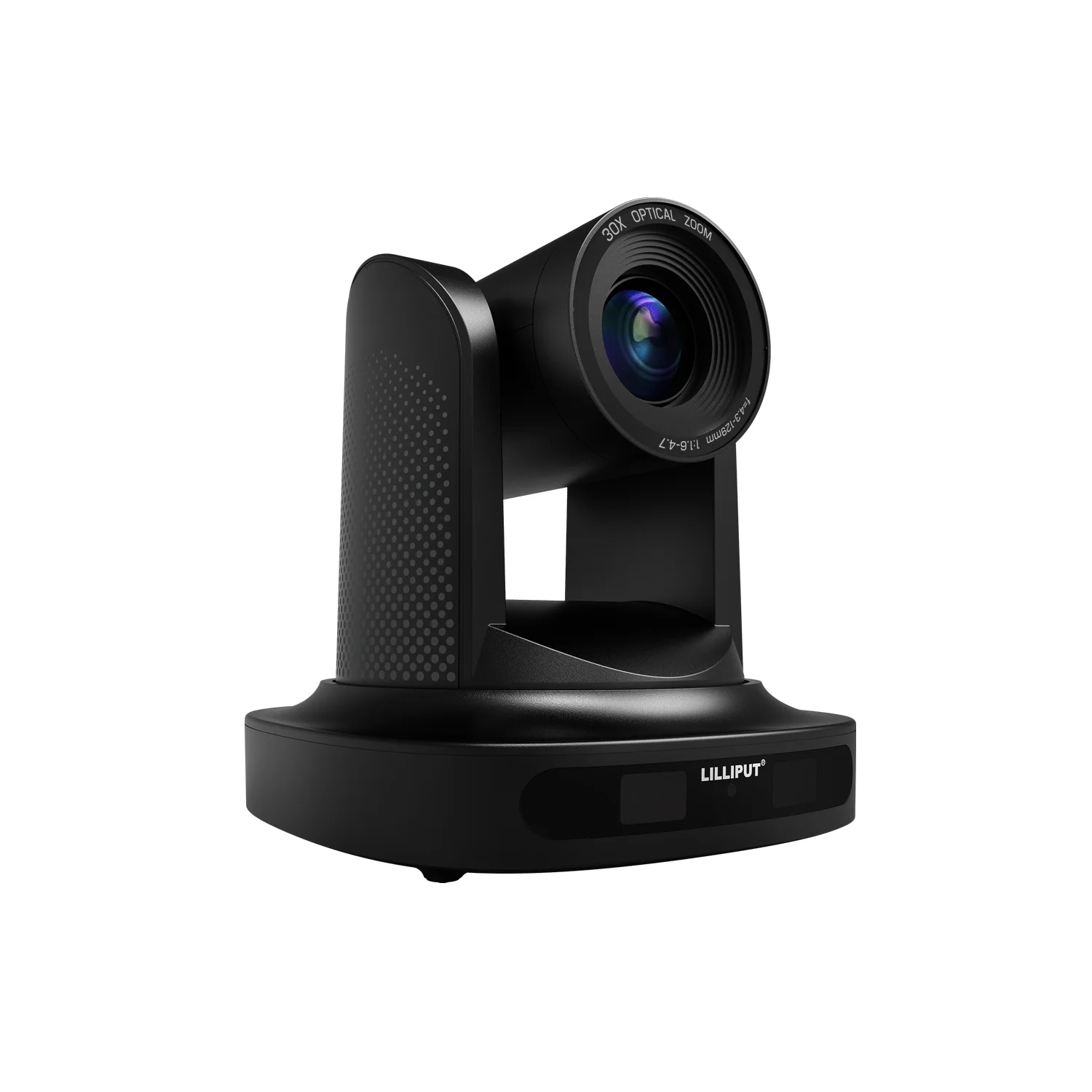

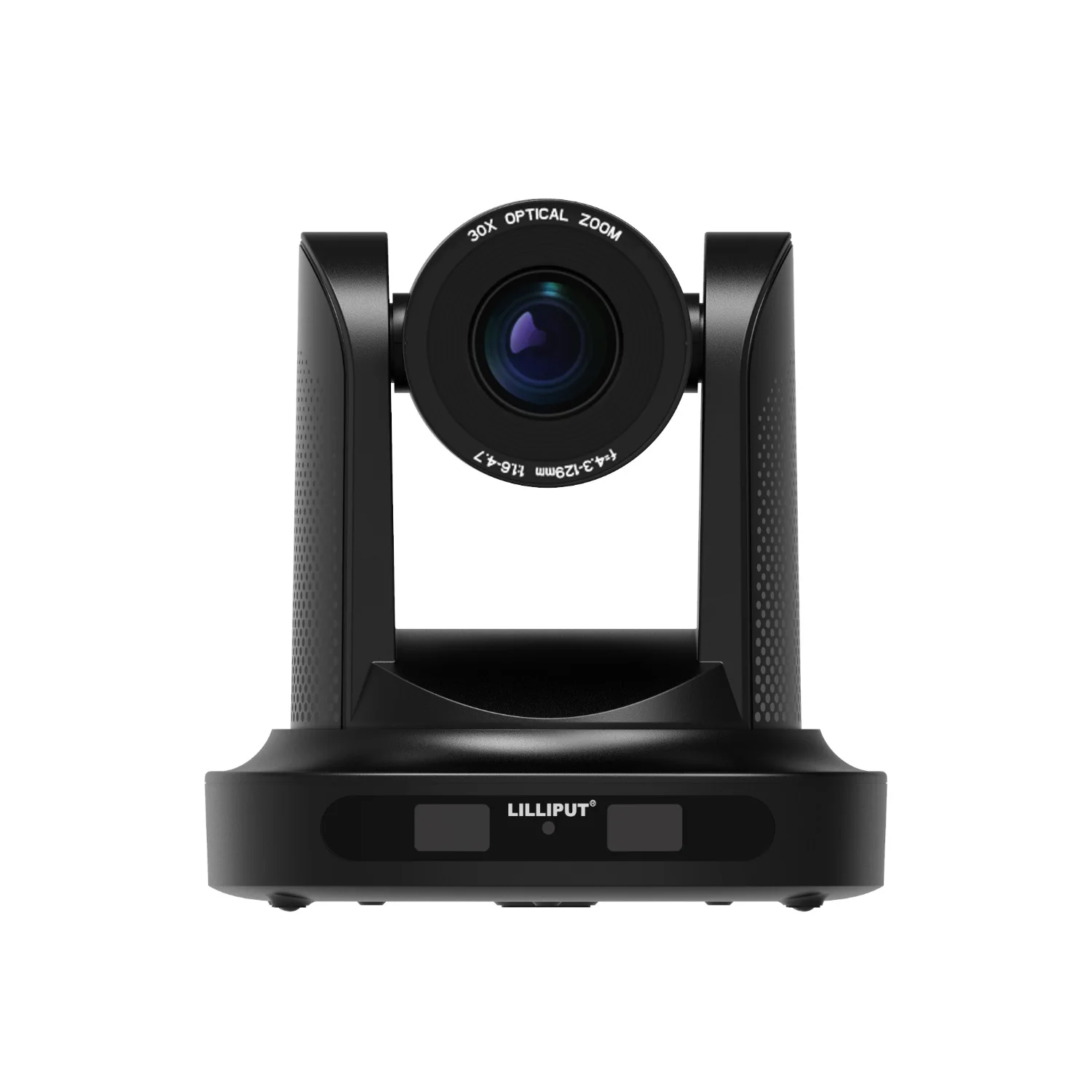

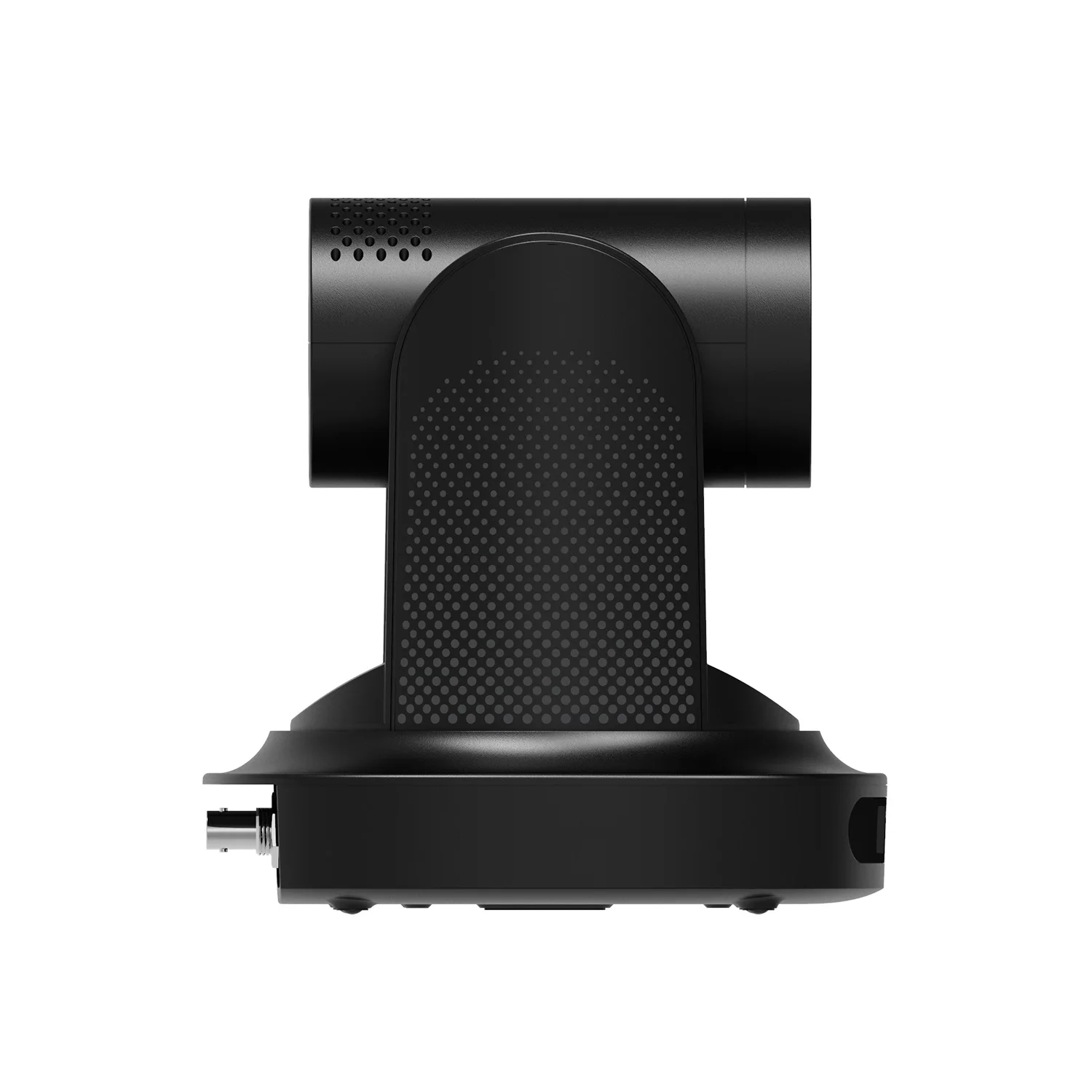

LILLIPUT FULL HD ptz ip camera HDMI SDI POE Video Conference System for Church Camera
LILLIPUT FULL HD ptz ip camera HDMI SDI POE Video Conference System for Church Camera
LILLIPUT FULL HD ptz ip camera HDMI SDI POE Video Conference System for Church Camera
LILLIPUT FULL HD ptz ip camera HDMI SDI POE Video Conference System for Church Camera
LILLIPUT FULL HD ptz ip camera HDMI SDI POE Video Conference System for Church Camera
LILLIPUT FULL HD ptz ip camera HDMI SDI POE Video Conference System for Church Camera
LILLIPUT FULL HD ptz ip camera HDMI SDI POE Video Conference System for Church Camera

LILLIPUT FULL HD ptz ip camera HDMI SDI POE Video Conference System for Church Camera

Share on (1600475306985):


Price:$719.00 - $899.00

Quantity:


Product Overview

Description


LILLIPUT FULL HD ptz ip camera HDMI SDI POE Video Conference System for Church Camera


Lilliput-PTZ-camera



Product Description


 full-HD-PTZLilliput-HD-PTZPOE-full-HD-PTZ-cameraNDI-PTZ-camera





Specifications

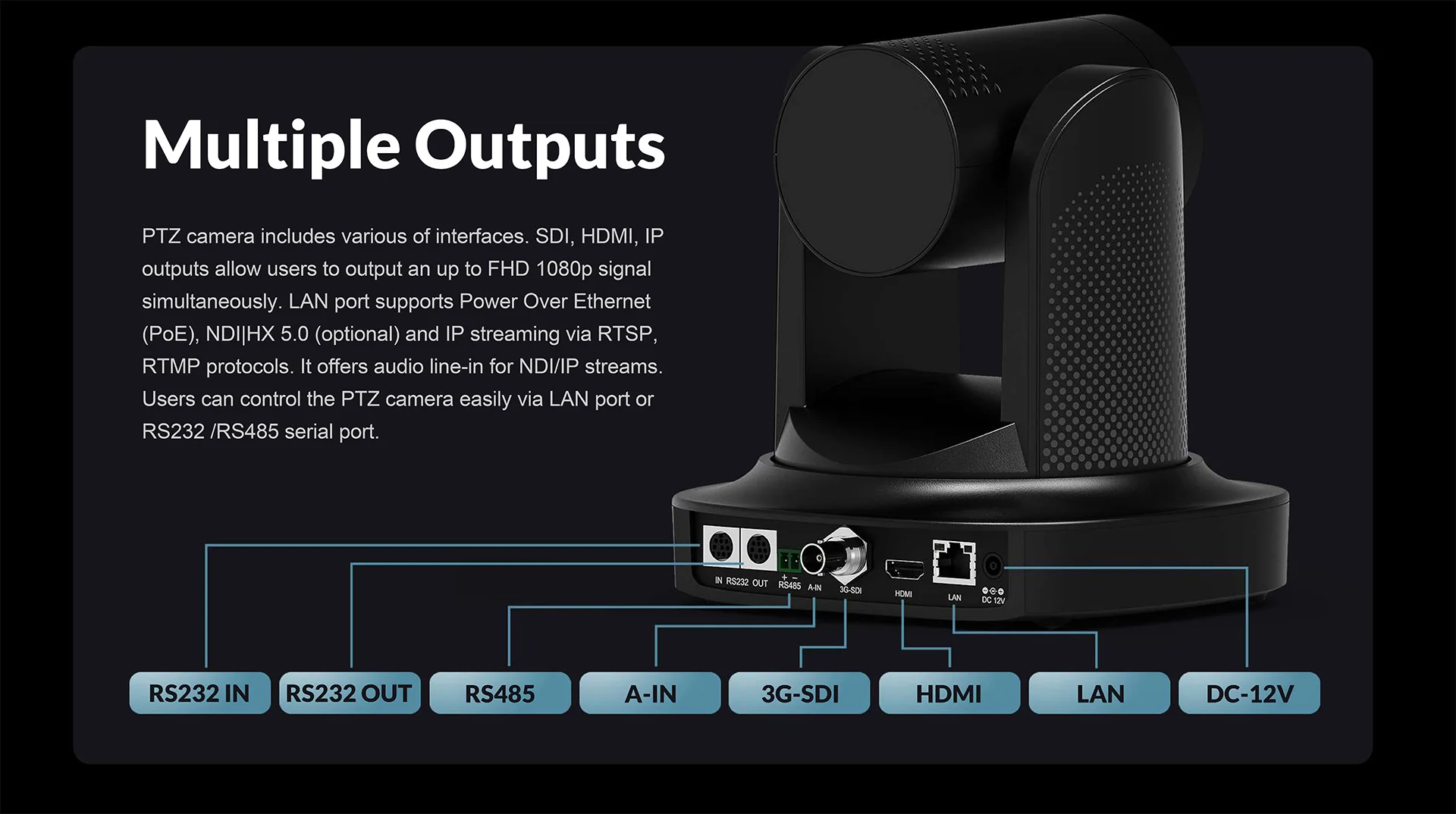

NTERFACES


MODEL


C20P


LAN Port


IP Streaming: RTSP/RTMP/SRT/ PoE


LAN Port Audio Input


        3.5mm audio (Line-level)

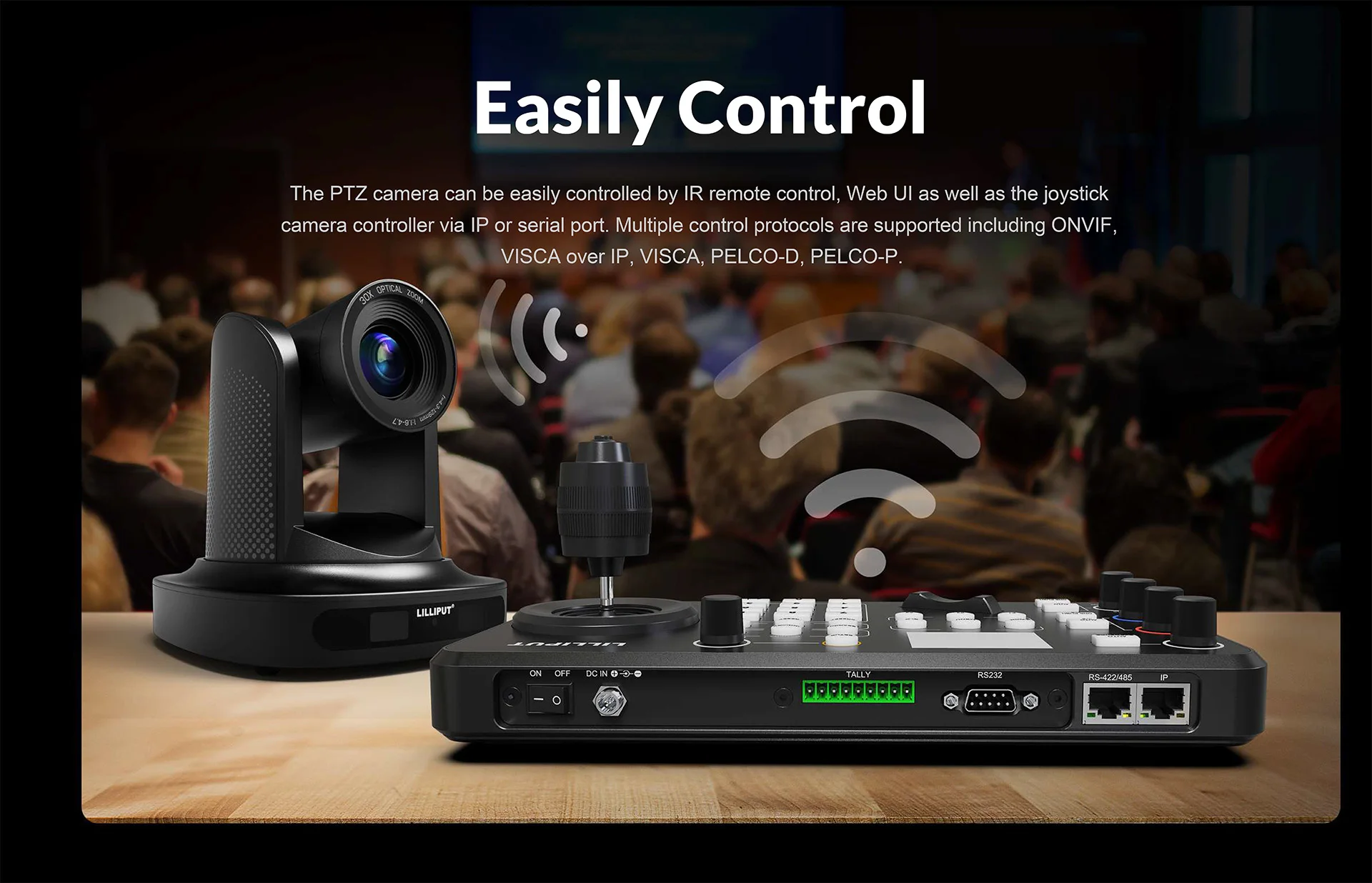

ontrol Interface


RS-232 In and Out, RS485 In


Control Protocol


Onvif, VISCA over IP/ VISCA/ Pelco-D/P


Video Format


HDMI/ SDI Video up to 1080P60


Video Out


SDI, HDMI


CAMERA PARAMETERS


Optical Zoom


20x /30x


Focal Length


F=5.5~110mm


View Angle


3.3°(tele) 54.7°(wide)


Aperture Value


F1.6 ~ F3.5


Sensor


1/2.8 inch, High quality HD CMOS sensor


Effective Pixels


16: 9, 2.07 Megapixel


Digital Zoom


10×


Minimum Illumination


0.5Lux (F1.8, AGC ON)


DNR


2D & 3D DNR


SNR


>55dB


White Balance


Auto/ Manual/ One Push/ 3000K/ 3500K/ 4000K/ 4500K/ 5000K/ 5500K/ 6000K/ 6500K/ 7000K


WDR


OFF/ Dynamic level adjustment


Video Adjustment


Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve


Other Camera Parameters


Auto Focus, Auto Aperture, Auto Electronic Shutter, BLC


PTZ PARAMETERS


Rotation Angle


Pan: ±170°, Tilt: -30°~+90°


Rotation Speed


Pan: 60°/sec (Range: 0.1 -180°/sec), Tilt: 30°/sec (Range: 0.1-80°/sec)


Preset Number


255 presets (10 presets by remote controller)


OTHERS


Input Voltage


DC12V±10%


Input Current


1A (Max)


Consumption


12W (Max)


Temperature


Working Temperature: -10~+50°C, Store Temperature: -10~+60°C


Working Humidity


Working Humidity: 20~80% RH (no condensation), Store Humidity: 20~95% RH (no condensation)


Dimension


170×170×180.31mm


Weight


Net weight: 1.25kg; Gross weight: 2.1kg


Accessories


Power Supply, RS232 Control Cable, Remoter, Manual


Installation Methods


1/4 inch tripod hole; Bracket installation for Optional

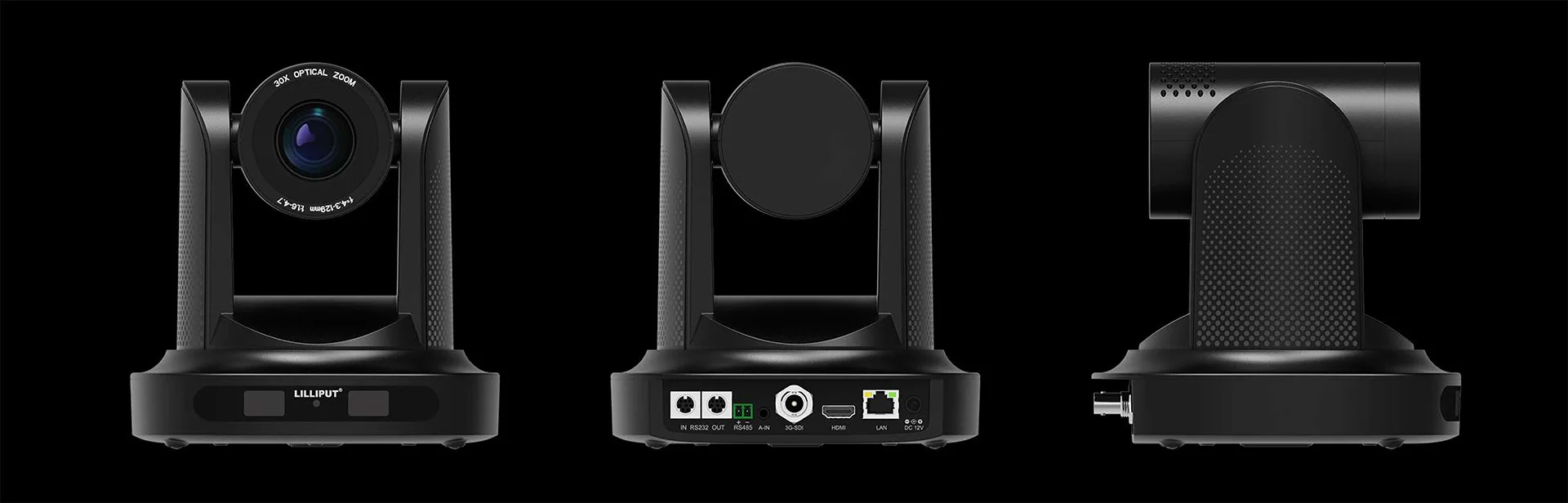

POT-NDI-PTZ-camera



Company Information








FAQ


Q: How can i get the price?
A: We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

Q: Can I buy samples placing orders?
A: Yes.Please feel free to contact us.

Q: What is your lead time?
A: It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.

Q: What is your payment term?
A: T/T,Western Union,L/C,and Paypal.This is negotiable.

Q: What is the shipping method?
A: It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
