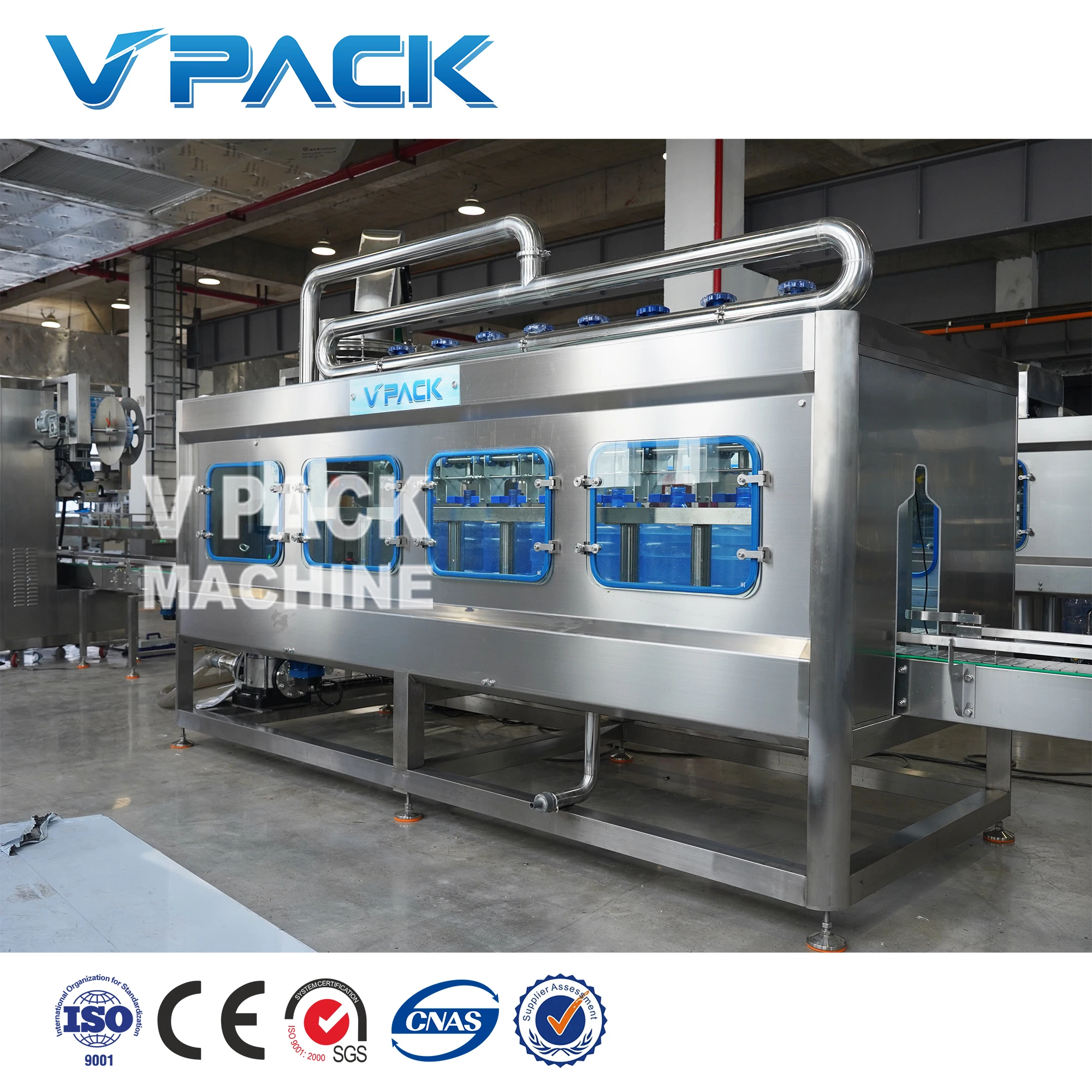

5 Gallon bottle water filling machine/ Outside bottle washing and rinsing machine/ Multi row inside rinsing filling capping
- Category: Injection Molding Machines >>>
- Supplier: Zhangjiagang V Pack Machinery Co. Ltd.
Share on (1600477166686):
Product Overview
Description
Product Description
QGF-100 QGF-300
QGF-450 QGF-700 QGF-1000 QGF-1200

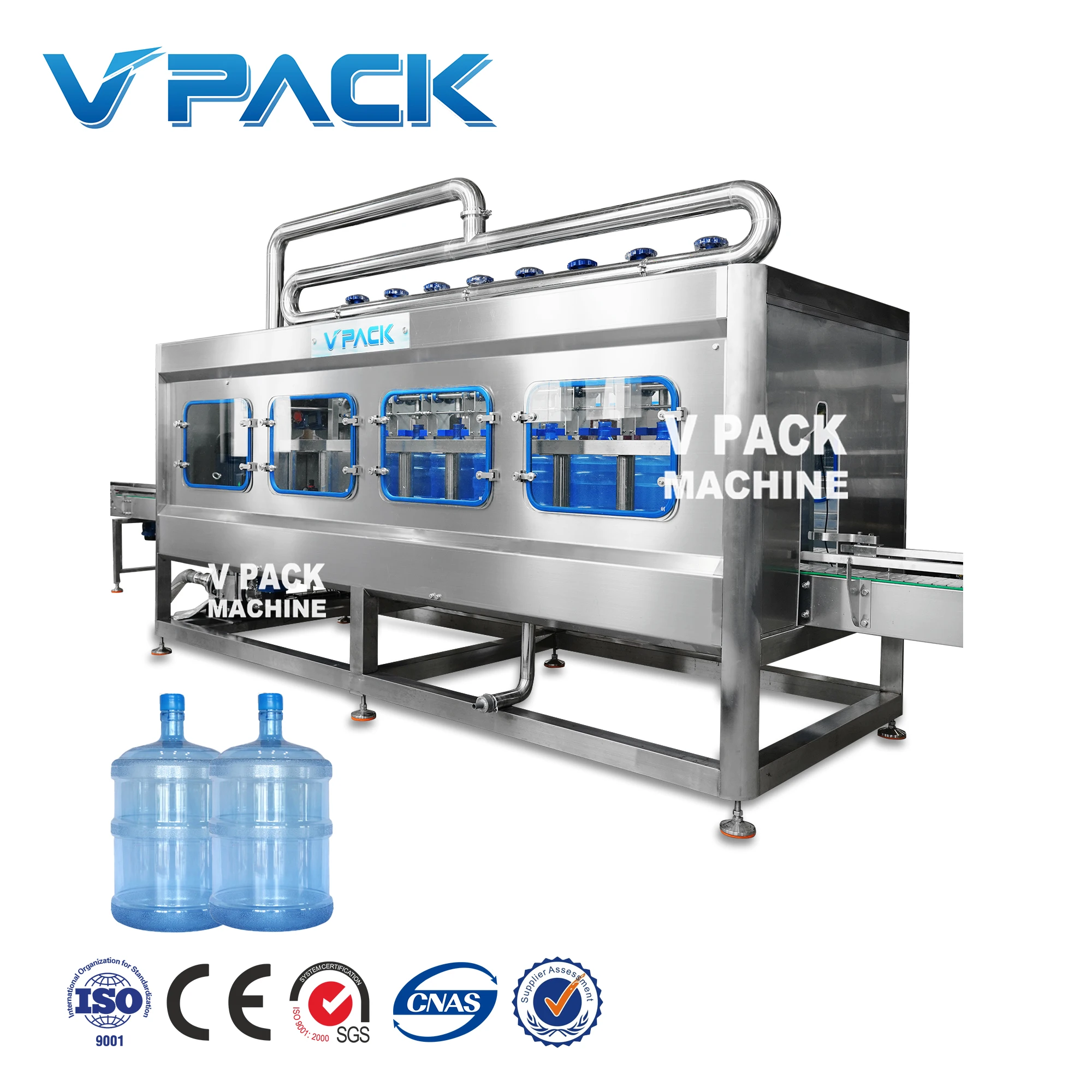

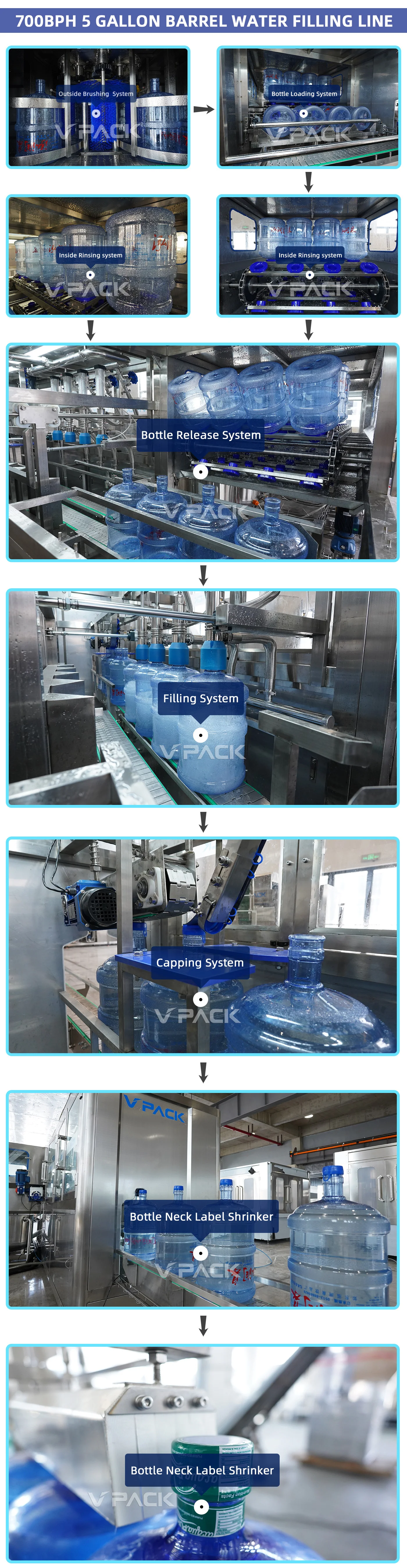

Full Automatic Barrel Production Line
The filling line special for 3-5 gallons barreled drinking water, with type of QGF-100,QGF-240,QGF-300,QGF-450,QGF-600,QGF-900,QGF-1200.It integrates bottle washing,filling and capping into one unit.In order to chineve the purpose of washing and sterilizing.The washing machine uses multi-washing liquid spray.This thimerosal can be used circularly.The capping machine can automatic.This line equips with water spraying device in order to ensure those caps sterile and clean.It also can automatic carry out barrel.Washing,sterilizing,filling capping,counting and products discharging.With complete fuction,modern design and high degree of automation.It is new kind of barreled water auto-producing line,which integrates mechanism,electricity and pneumatic technologies together.
Main Features
This production line is an automatic barrel production line for drinking water of 3-5gallon. Meanwhile, it is also suitable to produce barrel wine and so on. This production line is adopted sufficiently tech-knowledge from overseas’ drinking water equipment and plus our elaborately design due to our nation tradition to work out. So it has full functions, low energy consumption, low investment, and higher and fast effecting characteristic. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.QGF-900 is an automatic barrel production line for drinking water of 3-5gallon. Pneumatic elements adopt the products with brand of AIRTAC.

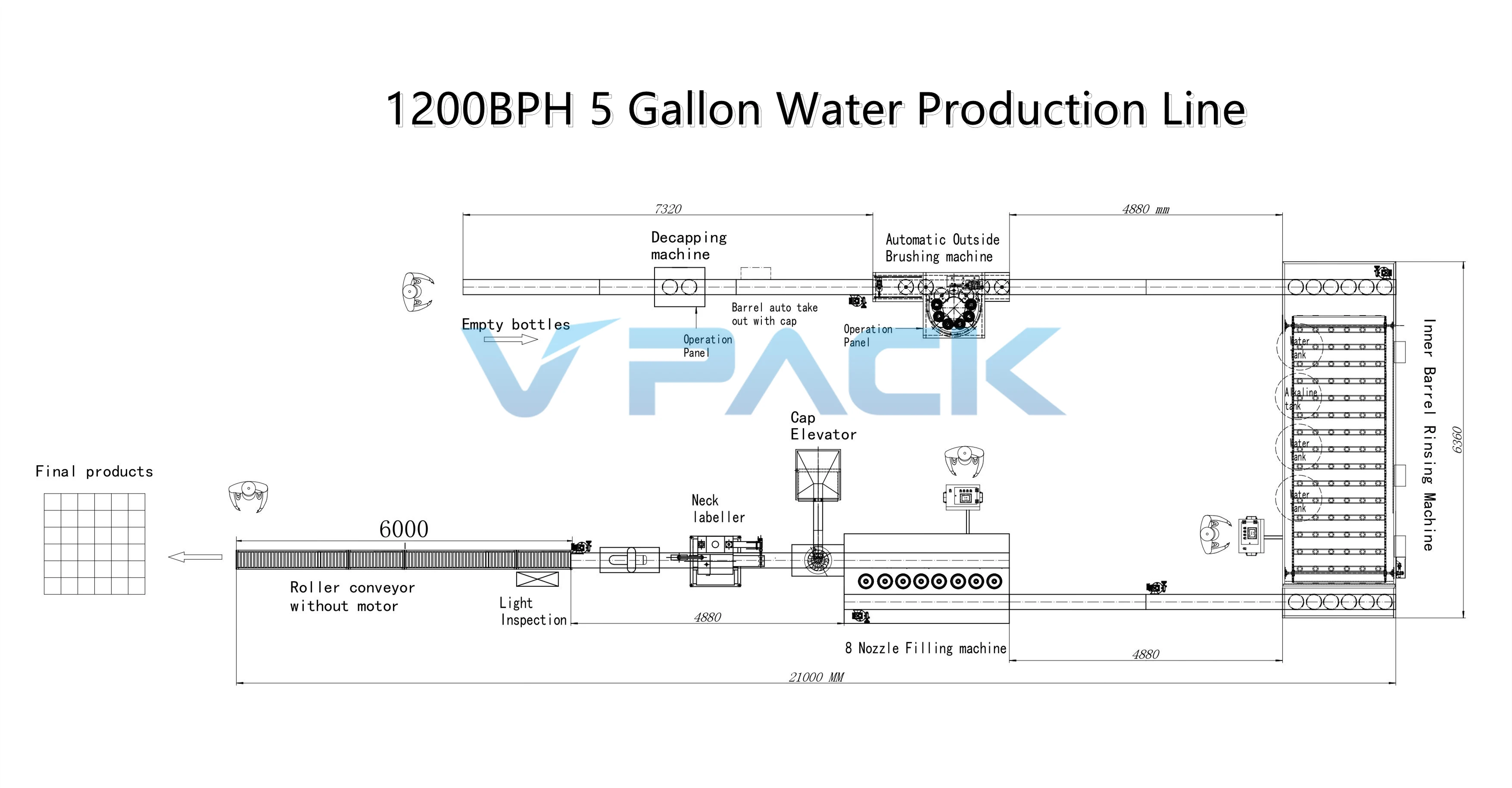

We will draw engineering drawings for you according to the area of your factory.
Product Paramenters
Model | QGF-100 | QGF-240 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
Filling heads | 1 | 2 | 2 | 3 | 4 | 6 | 12 |
Volume(Gallon) | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 | 3&5 |
Barrel size(mm) | φ270*490 | φ270*490 | φ270*490 | φ270*490 | φ270*490 | φ270*490 | φ270*490 |
Capacity(b/h) | 100 | 240 | 300 | 450 | 600 | 900 | 1200 |
Gas pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
Gas consumption (m³/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
Motor power(kw) | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.8 | 13.5 |
Weight(kg) | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |
Detailed Images
Decapping machine
Automatic cap remover machine is used to remove 5 gallon bottle cap ,easy operation and maintenance.
(1) Simple structure in linear type ,easy in installation and maintation.
(2) SUS304 material frame.
(3) Need euqipped with air compressor to provide compressor air .
(4) Capacity 100-2500caps per hour is optional.
(2) SUS304 material frame.
(3) Need euqipped with air compressor to provide compressor air .
(4) Capacity 100-2500caps per hour is optional.
Outside Washing Parts

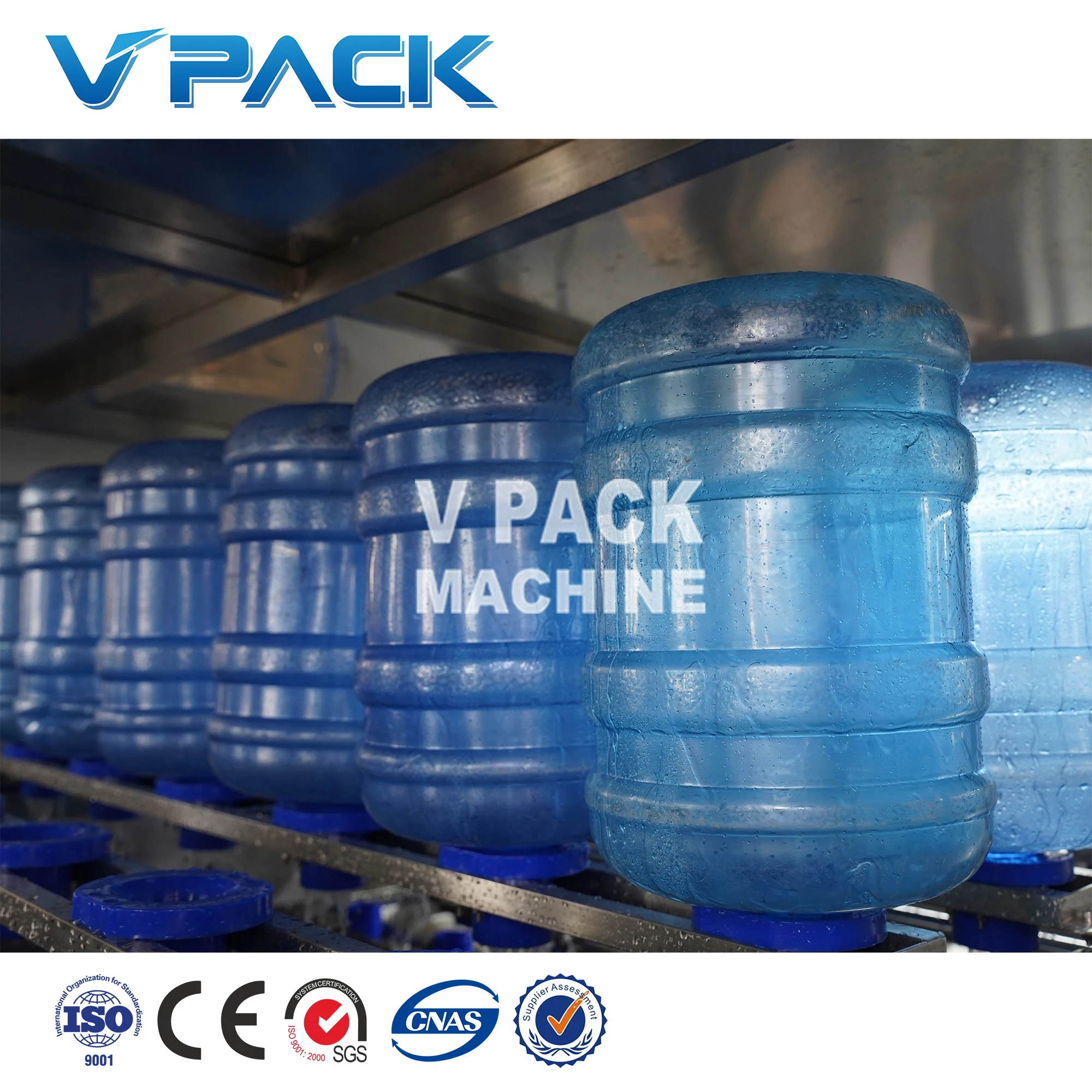

Automatic barrel outer brushing machine specially work with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. Inside Washing Parts
Using three steps to make the barrel inside clean.
Hot alkali-----Disinfectant liquid-----Pure water
The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance.

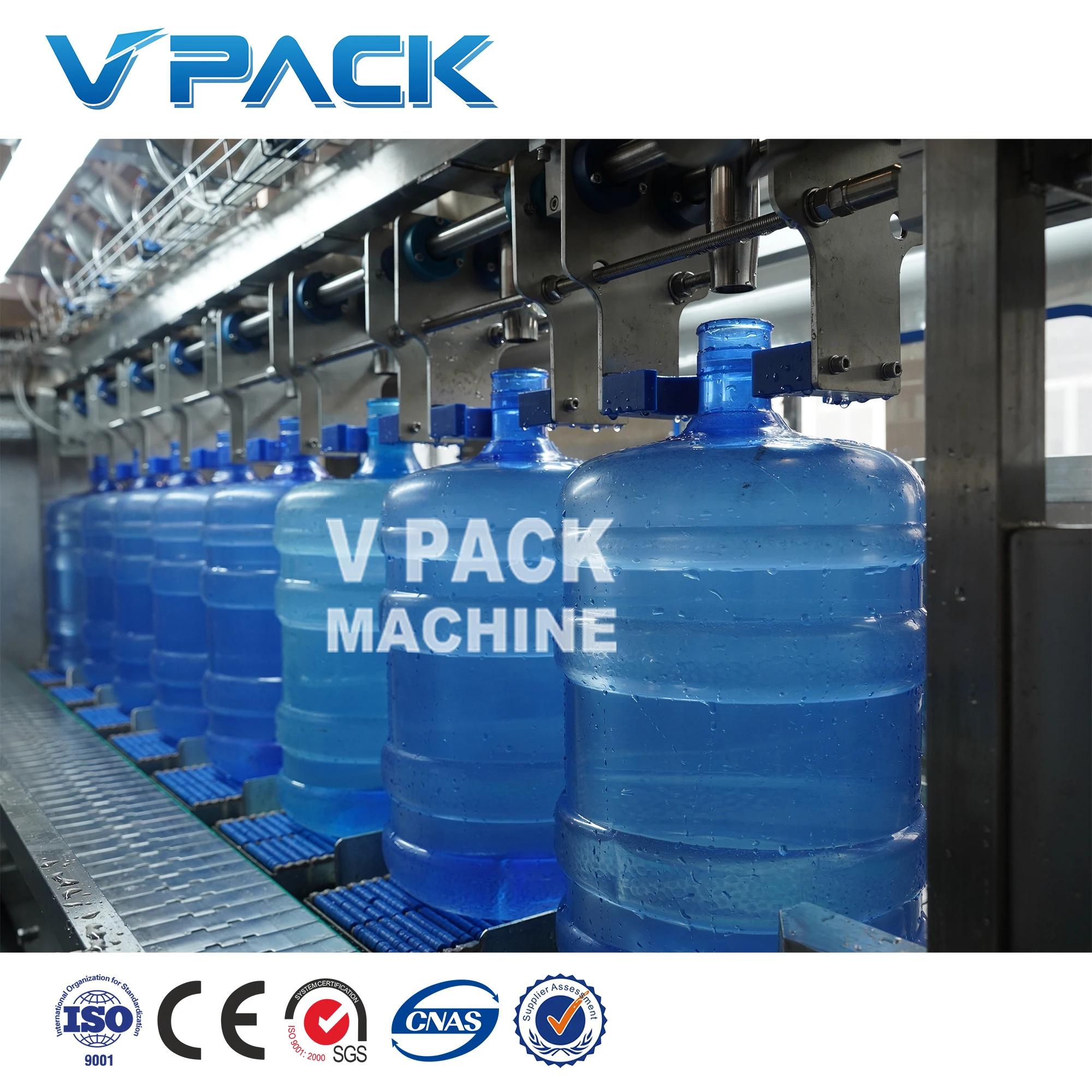

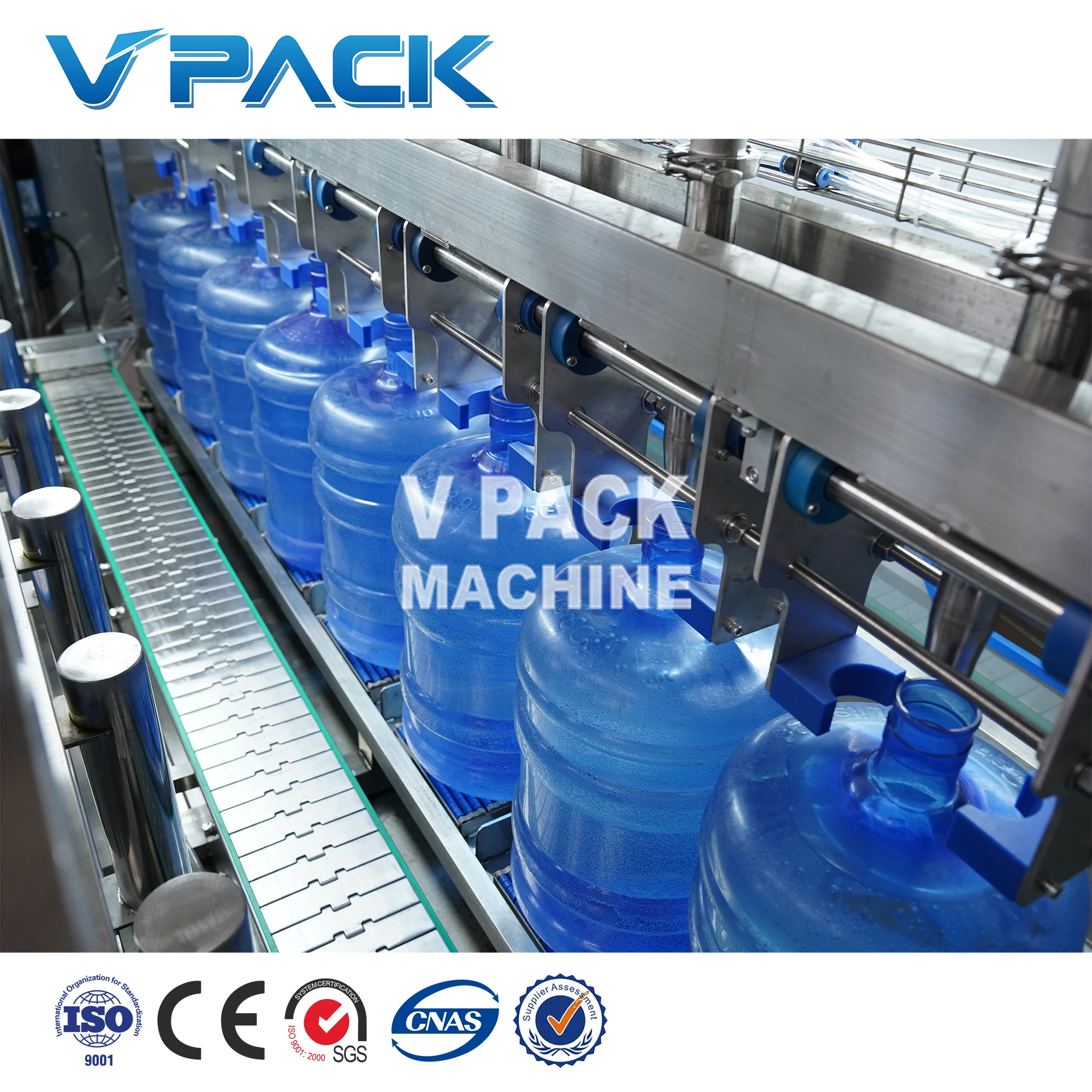

Filling parts
1.Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
2.Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
2.Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.
Capping parts
1.Liquid level difference is controlled in 1cm.
2.Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
2.Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
240BPH 5GL Water Line Video
500BPH 5GL Water Line Video
600BPH 5GL Water Line Video
900BPH 5GL Water Line Video
Our Clients' Feedback
1200BPH 5GL Water Line Video
Related Products

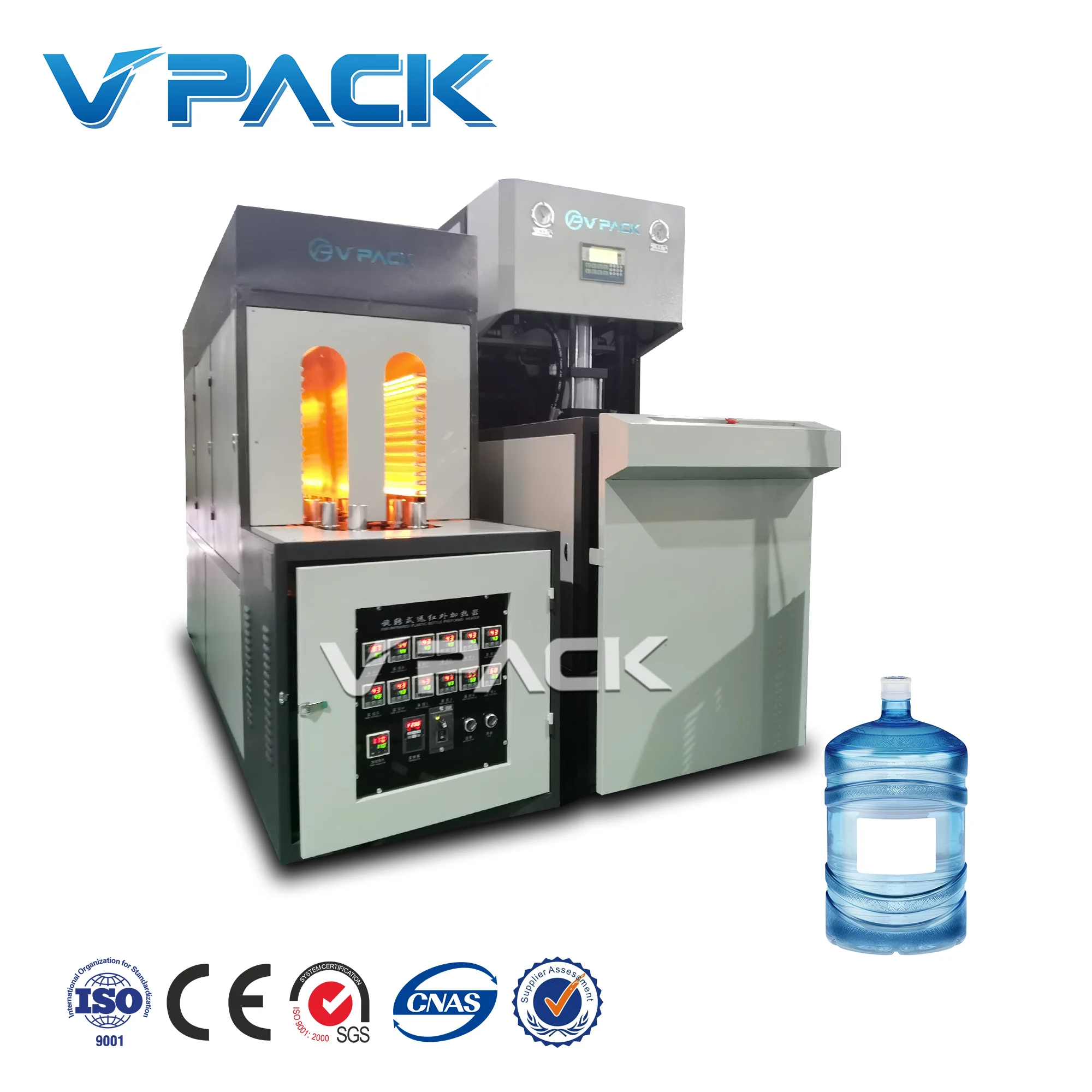

5 Gallon Bottle Blow Moulding machine
Semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 100-2000ml. It is
widely used to produce the mineral water bottle, carbonated soft drink,juice,oil bottle etc..
widely used to produce the mineral water bottle, carbonated soft drink,juice,oil bottle etc..
Production Capacity: 80-120BPH
Dimension : 2400*800*1600mm
Dimension for oven: 2620*670*1600mm
Total power: 15kw
Total weight: 900kg
Dimension : 2400*800*1600mm
Dimension for oven: 2620*670*1600mm
Total power: 15kw
Total weight: 900kg

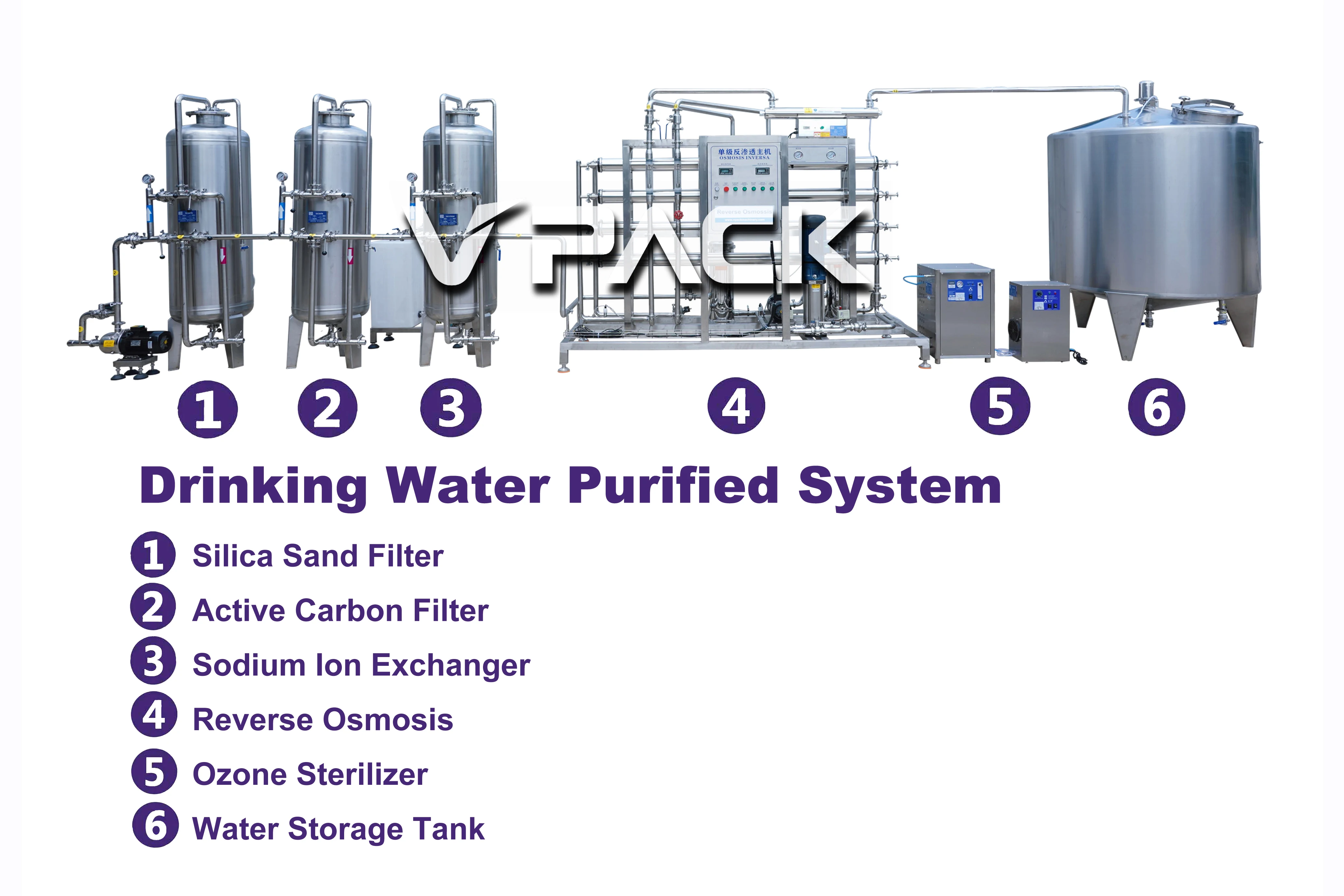

Water Treatment System
V pack Machine Services Online Supply
1 - Machine running video
2 - Watch our factory online
3 - Supply a running beverage line in your country , you can see machine runing directly.
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrangeseasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and thesalary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality,specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller'sdemand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems.
2 - Watch our factory online
3 - Supply a running beverage line in your country , you can see machine runing directly.
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrangeseasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and thesalary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality,specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller'sdemand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems.
Would like to know more about V Pack Machine equipment, feel free to send us an inquiry!
Our Suppliers
Our Company
Packing & Delivery
Sales Manager | Ruby Xu |
Responsible for the project | CO2 & Fiber Laser Printer, Water purificaiton system, Water filling machine,Juice hot filling machine ,5 Gallon Water Production,Bottle blower...all kind of machine after-service |
Responsible for the market | Peru, Nigeria, Yemen, The Dominican Republic, Saudi Arabia,Thailand,etc |
