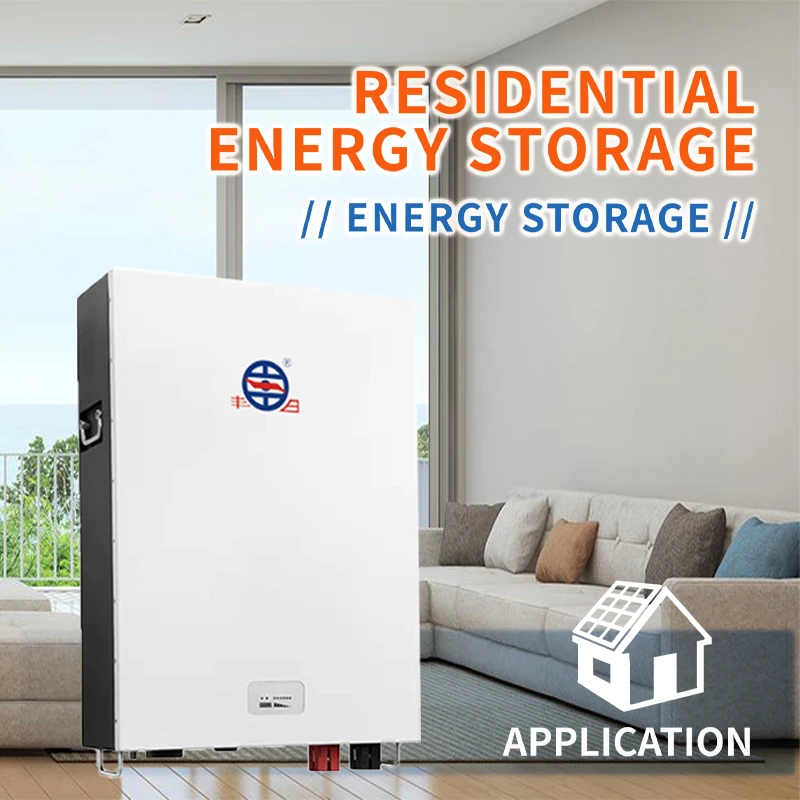

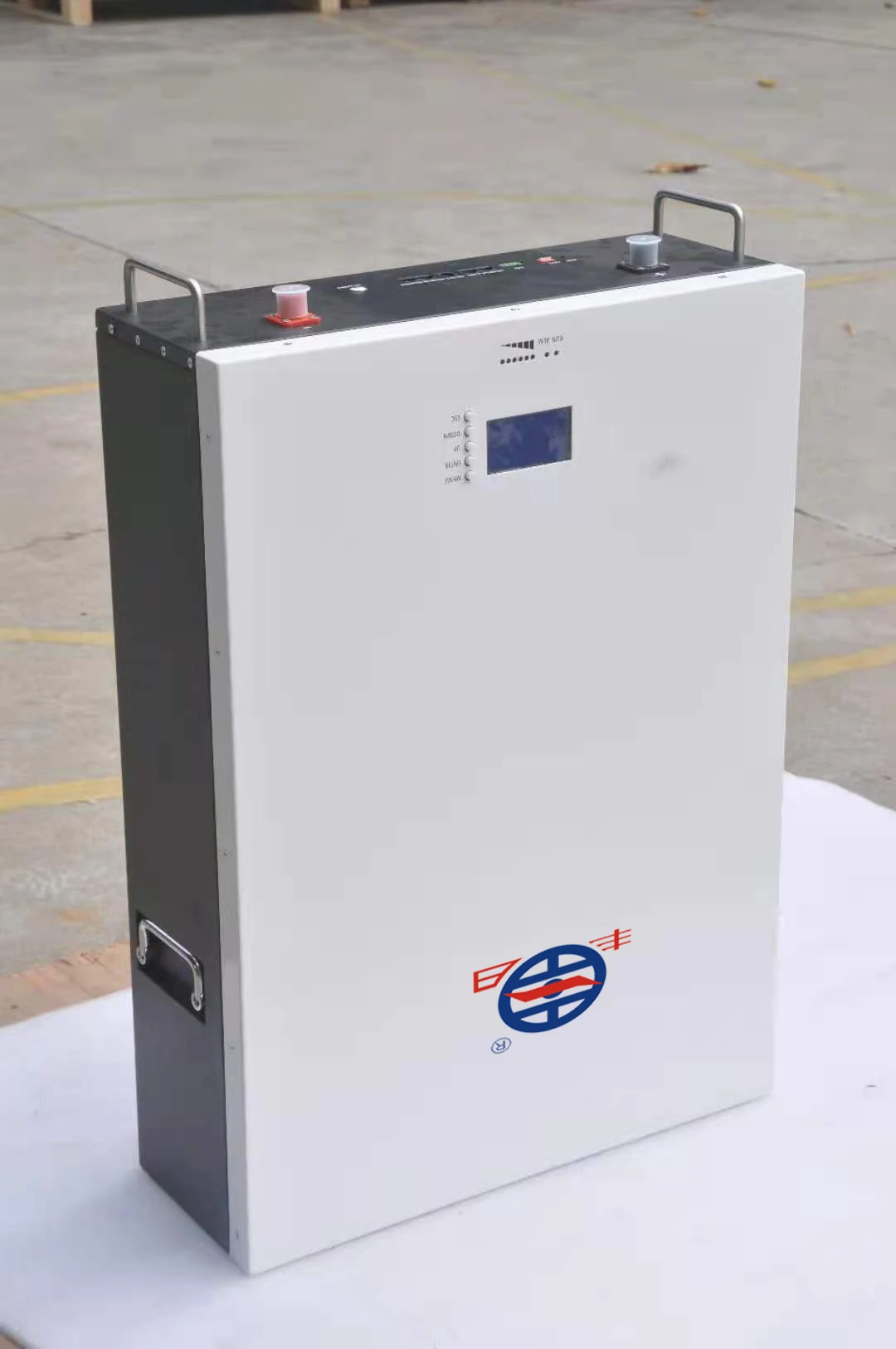

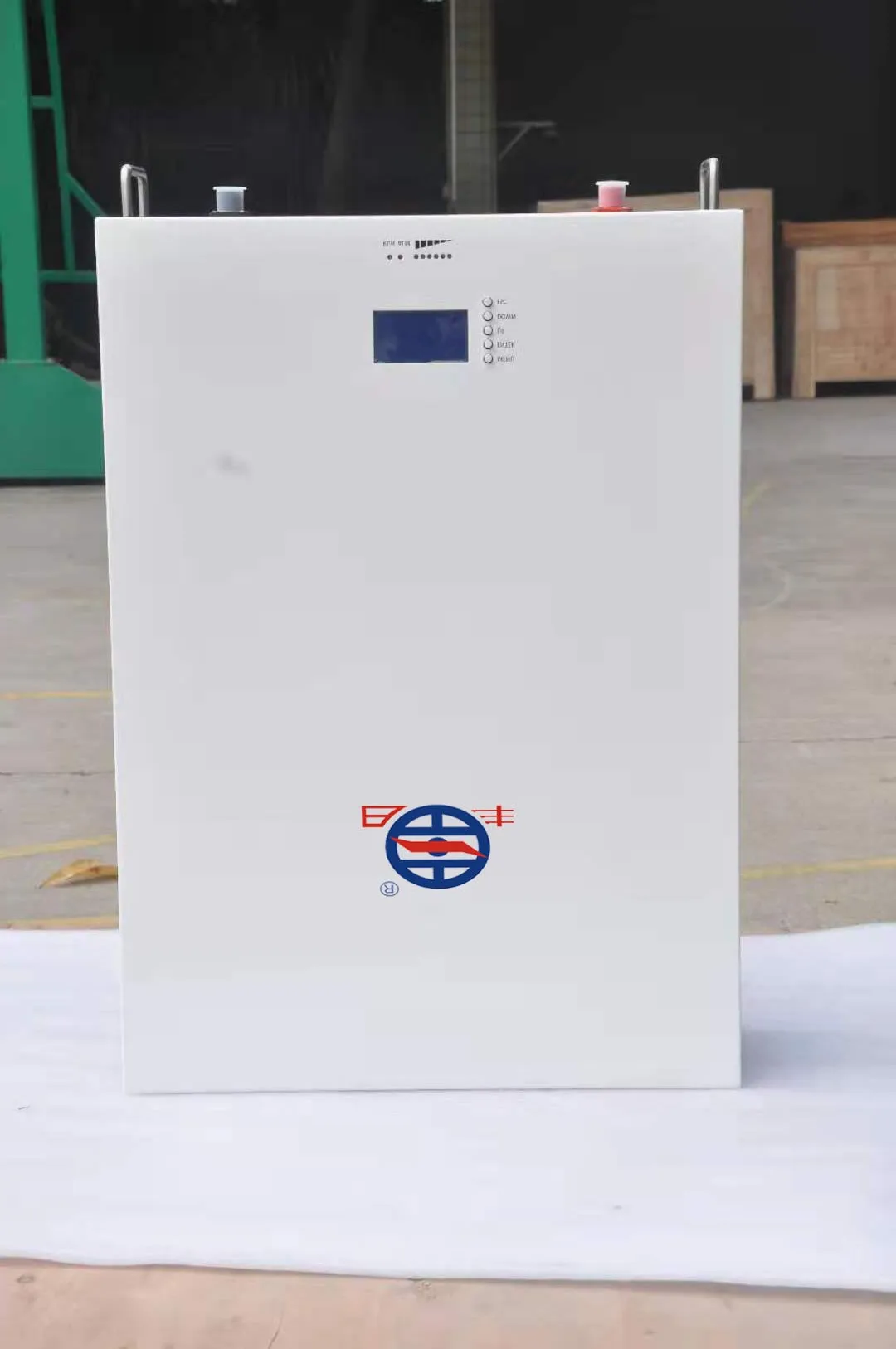

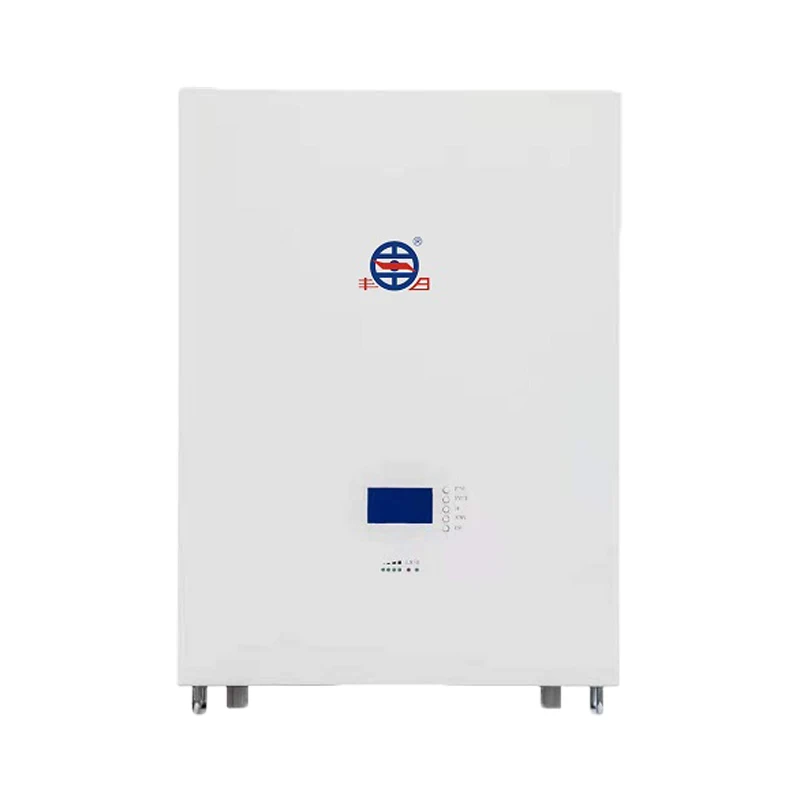

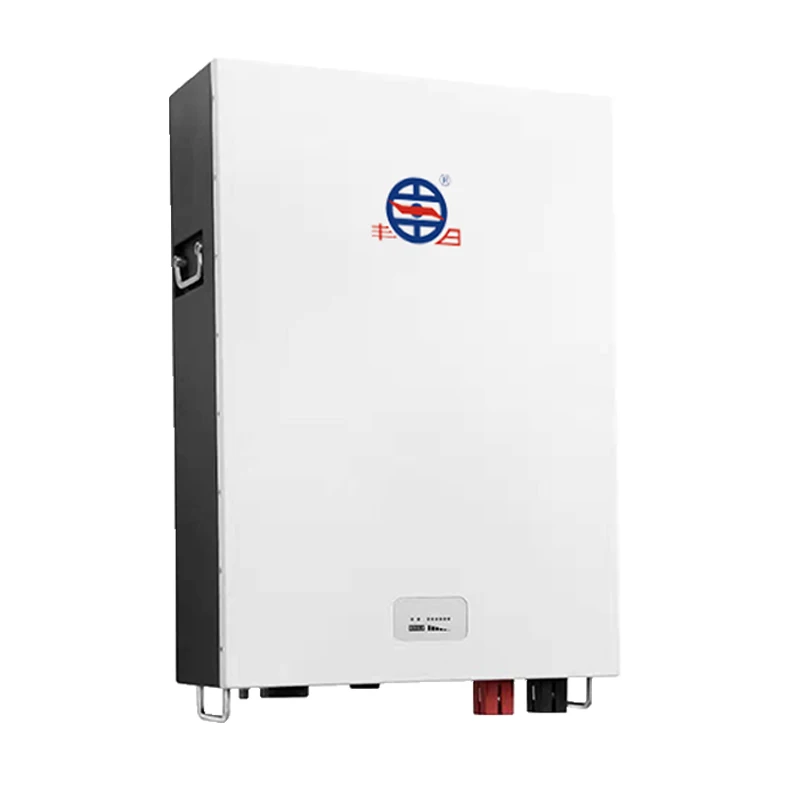

Литиевая настенная батарея 5 кВтч 10 кВтч Lifepo4 48 в 100 Ач 200 ач домашняя солнечная система настенная батарея для хранения питания
- Category: Batteries >>>
- Supplier: Hunan Fengri New Energy Technology Co. Ltd.
Share on (1600484156374):
Product Overview
Description
Products Description
• External Bluetooth/4G/WiFI module;
• Real-time operating data can be uploaded via IP
• High volume energy ratio, saving space;
• High mass-energy ratio, saving load-bearing requirements;
• High energy conversion efficiency, saving energy
• Group cycle life reaches 3000 times;
• Float service life of up to 10 years;
• No fire or explosion in destructive test;

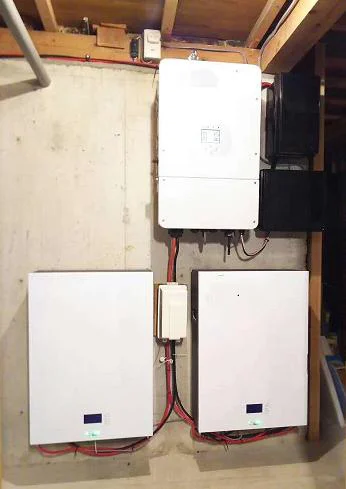

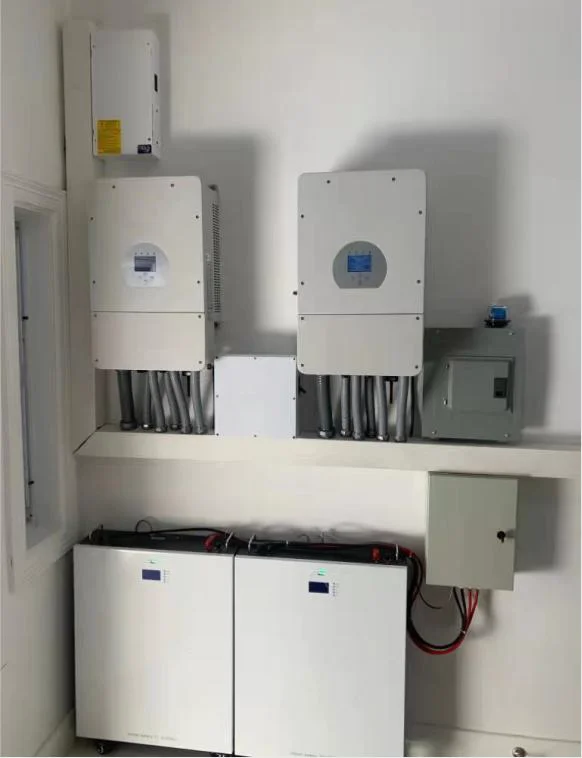

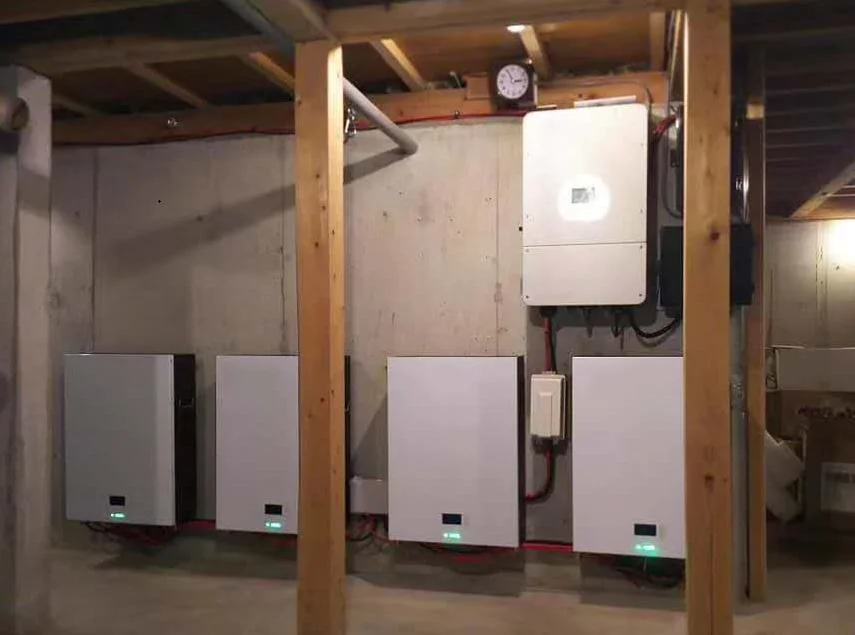

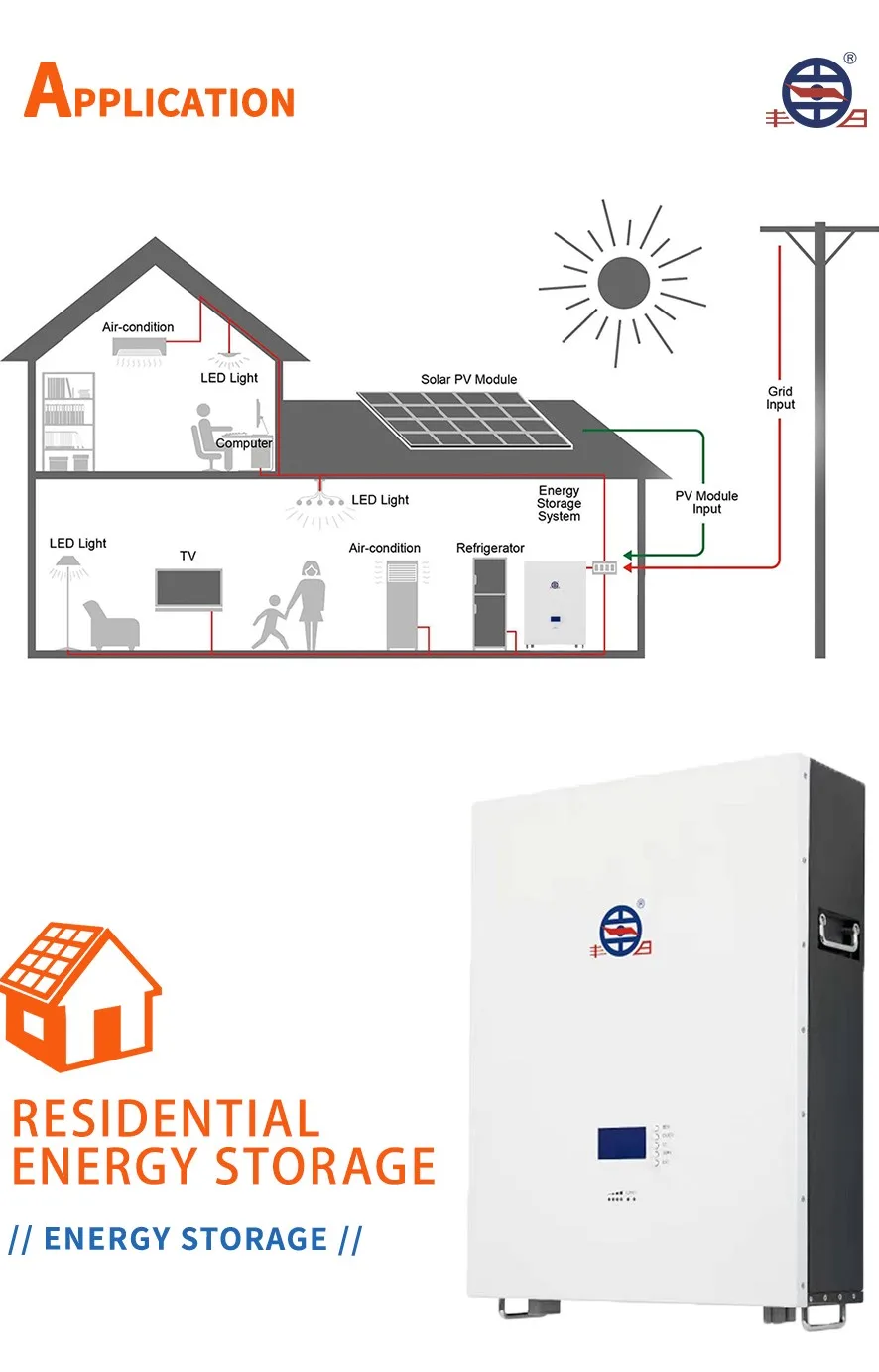

• It has been stably applied to photovoltaic energy storage/UPS backup power industry in batches
Combination method | 15S2P | |||
Typical | 100Ah | |||
Minimum | 98Ah | |||
Factory Voltage | 49V-51.0V(40-60%) | |||
Discharge Cut-off Voltage | 40-44V | |||
Charging Voltage | 53-55V | |||
Internal Impedance | ≤60mΩ | |||
Standard charge | Constant Current 20A 0.02CA cut-off | |||
Limiting current | 20A | |||
Constant current：20A | ||||
Maximum Continuous Charge Current | 100A | |||
Maximum Continuous Discharge Current | 100A | |||
Charge: 0~45℃ | ||||
Discharge: -20~55℃ | ||||
Storage Temperature Range | Less than 12 months : -10~35℃ | |||
less than 3 months: -10~45℃ | ||||
Less than 7 day : -20~65℃ | ||||
Dimensions | L580*W450*H210(mm) | |||
Weight | Approx ：56kg | |||
Professional product customization service! | ||||
Company Profile
Certifications
Packing & Shipping
FAQ
Q: If we could accept OEM & ODM service?
A: We could accept customized, such as the brand, Logo, Container color, etc. The premise is to reach a certain Quantity.Q:How many days for lead time normally?
A:Normally 3-7 days for samples order. and 1-4 weeks for mass order normally depend on order quantity or complexity.Q:Whether we support to make a sample order?
A:Yes, we can efficiently make the sample or customized item for your reference and test before mass order.Q: About the certificates & Other services
A: We have a professional export sales team with full experience, and you just need to confirm the batteries you need and also advise us of the certificates you need and the docs for customs clearance.We Recommend
