RUTAN 2022 pump system for irrigation solar water pump solar powered submersible water pumps for irrigation / agriculture built
- Category: Solar Applications >>>
- Supplier: Wenling Jingzhan Mechanical&Electrical Co. Ltd.
Share on (1600488941010):
Product Overview
Description
Product Overview
RUTAN2022 solar powered water pumps solar water pump for agriculture solar submersible water pump for irrigation commercial
RUTAN solar impeller brush pumps use a stable, reliable and low-cost brushed design to achieve higher performance, higher stability and stronger performance than brushed screw pumps, which can be used for small-scale agricultural irrigation and small-scale household water, using solar DC or battery power supply without grid, more friendly to the environment.
PRODUCT SPECIFICATIONS

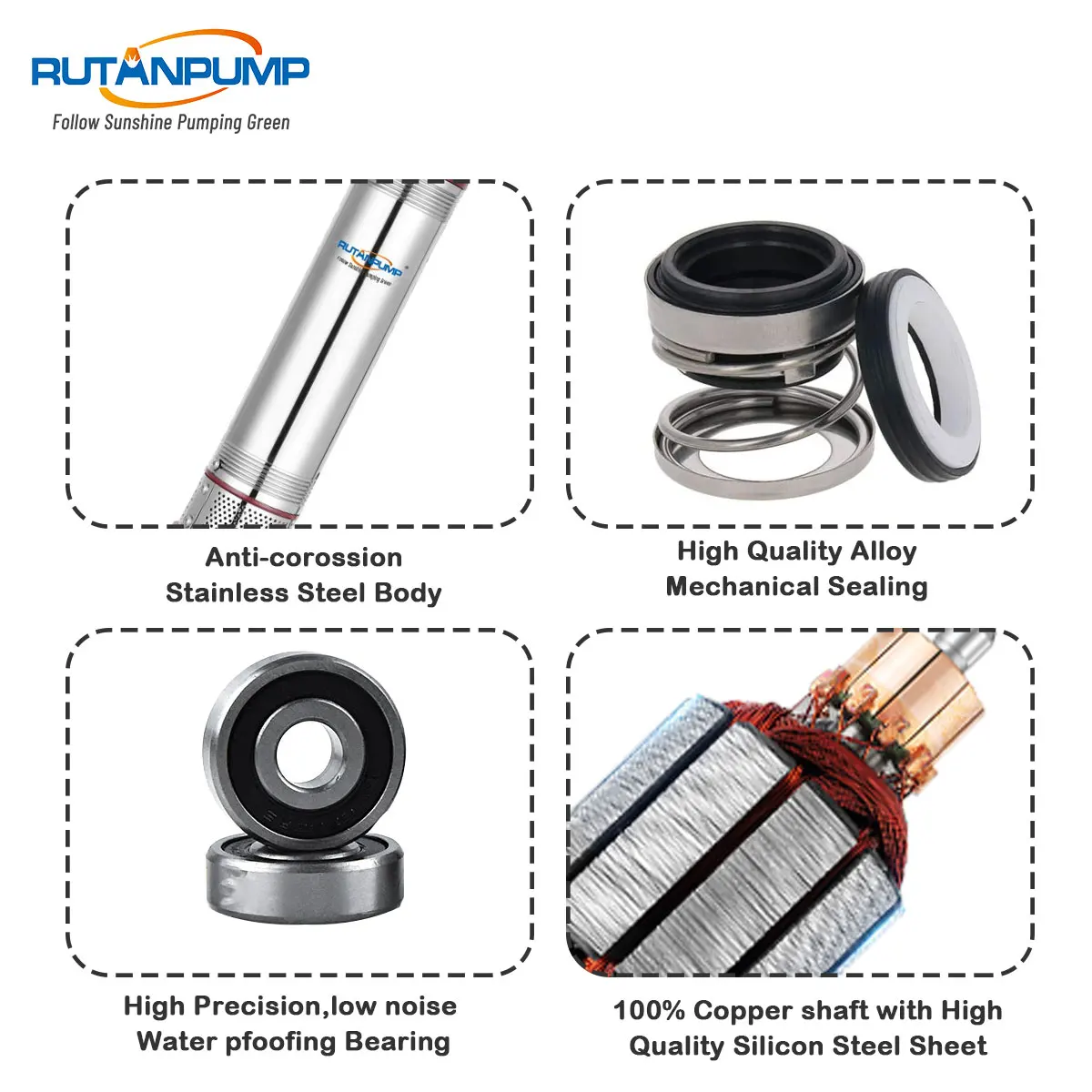

– Stainless steel body
– 100% copper motor wire–Simple structure, less components, easy maintenance.
– Stable Performance, large flow and long life because of its anti-corrosion properties

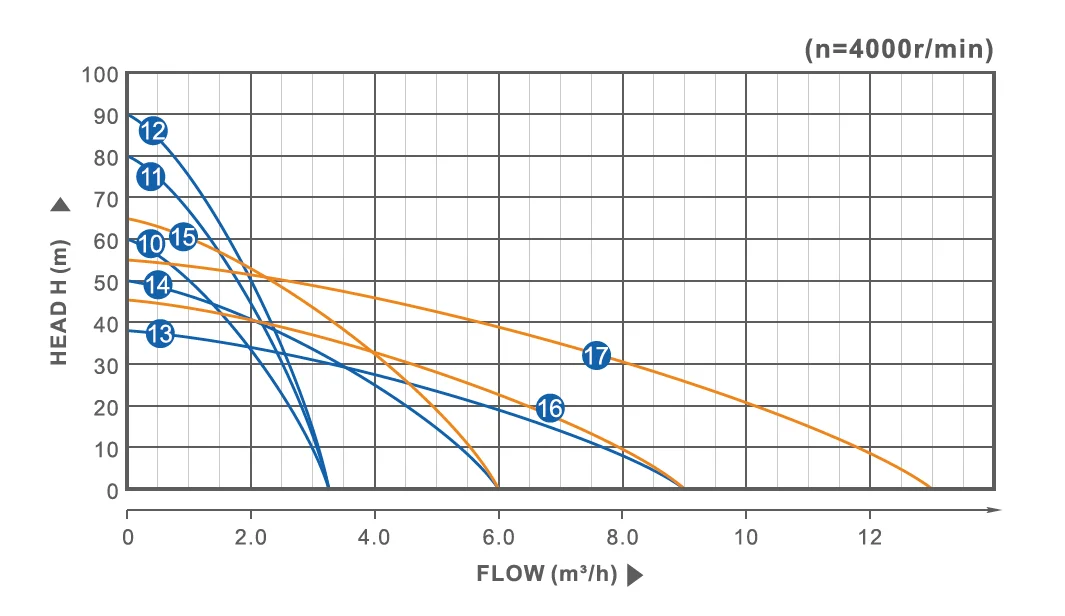

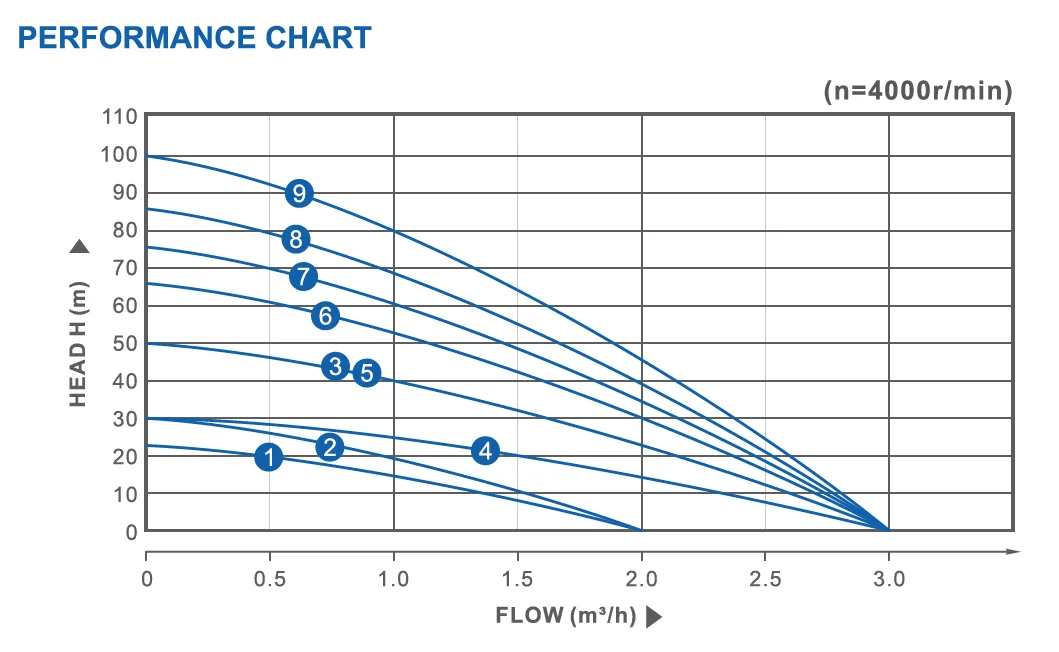

NO. | Model | Voltage | Power | Max Flow | Max Head | Outlet | Motor Size | Cable （copper wire） | Required solar panels |
1 | SSDC3I-24V-25 | 24V | 250W | 2m³/h | 22m | 1" | 3inch | 10m | 2*150W solar panels in series or 1 solar panel 250W |
2 | SSDC3I-36V-30 | 36V | 300W | 2m³/h | 30m | 1" | 3inch | 10m | 1 solar panel 300W |
3 | SSDCBI24V-50 | 24V | 400W | 3m³/h | 50m | 1" | 3inch | 18m | 2*solar panels 275W in parallel |
4 | SSDCBI36V-30 | 36V | 300W | 3m³/h | 30m | 1" | 4inch | 18m | 1 solar panel 300W |
5 | SSDCBI48V-50 | 48V | 400W | 3m³/h | 50m | 1" | 4inch | 18m | 2*solar panels 275W in series |
6 | SSDCBI72V-65 | 72V | 600W | 3m³/h | 65m | 1" | 4inch | 18m | 3*solar panels 275W in series |
7 | SSDCBI96V-75 | 96V | 700W | 3m³/h | 75m | 1" | 4inch | 18m | 3pcs 275W solar panels in series |
8 | SSDCBI110V-85 | 110V | 900W | 3m³/h | 85m | 1" | 4inch | 18m | 4*275W solar panels in series |
9 | SSDCBI120V-100-1 | 120V | 1000W | 3m³/h | 100m | 1" | 4inch | 18m | 4*275W solar panels in series |
10 | SSDCBI48V-60-3.5-1 | 48V | 400W | 3.5m³/h | 60m | 1" | 4inch | 18m | 2*275W solar panels in series |
11 | SSDCBI72V-80-3.5-1 | 72V | 600W | 3.5m³/h | 80m | 1" | 4inch | 18m | 3*275W solar panels in series |
12 | SSDCBI96V-90-3.5-1 | 96V | 700W | 3.5m³/h | 90m | 1" | 4inch | 18m | 3*275W solar panels in series |
13 | SSDCBI72V-9-38-2 | 72V | 750W | 9m³/h | 38m | 2" | 4inch | 18m | 3*275W solar panels in series |
14 | SSDCCI120V-6-50-2 | 120V | 1000W | 6m³/h | 50m | 2" | 4.5inch | 18m | 4*275W solar panels in series |
15 | SSDCCI130V-6-65-2 | 130V | 1000W | 6m³/h | 65m | 2" | 4.5inch | 18m | 4*275W solar panels in series |
16 | SSDCCI120V-9-45-2 | 120V | 1000W | 9m³/h | 45m | 2" | 4.5inch | 18m | 4*275W solar panels in series |
17 | SSDCCI130V-13-55-2 | 130V | 1000W | 13m³/h | 55m | 2" | 4.5inch | 18m | 4*275W solar panels in series |
PRODUCT CONFIGURATION

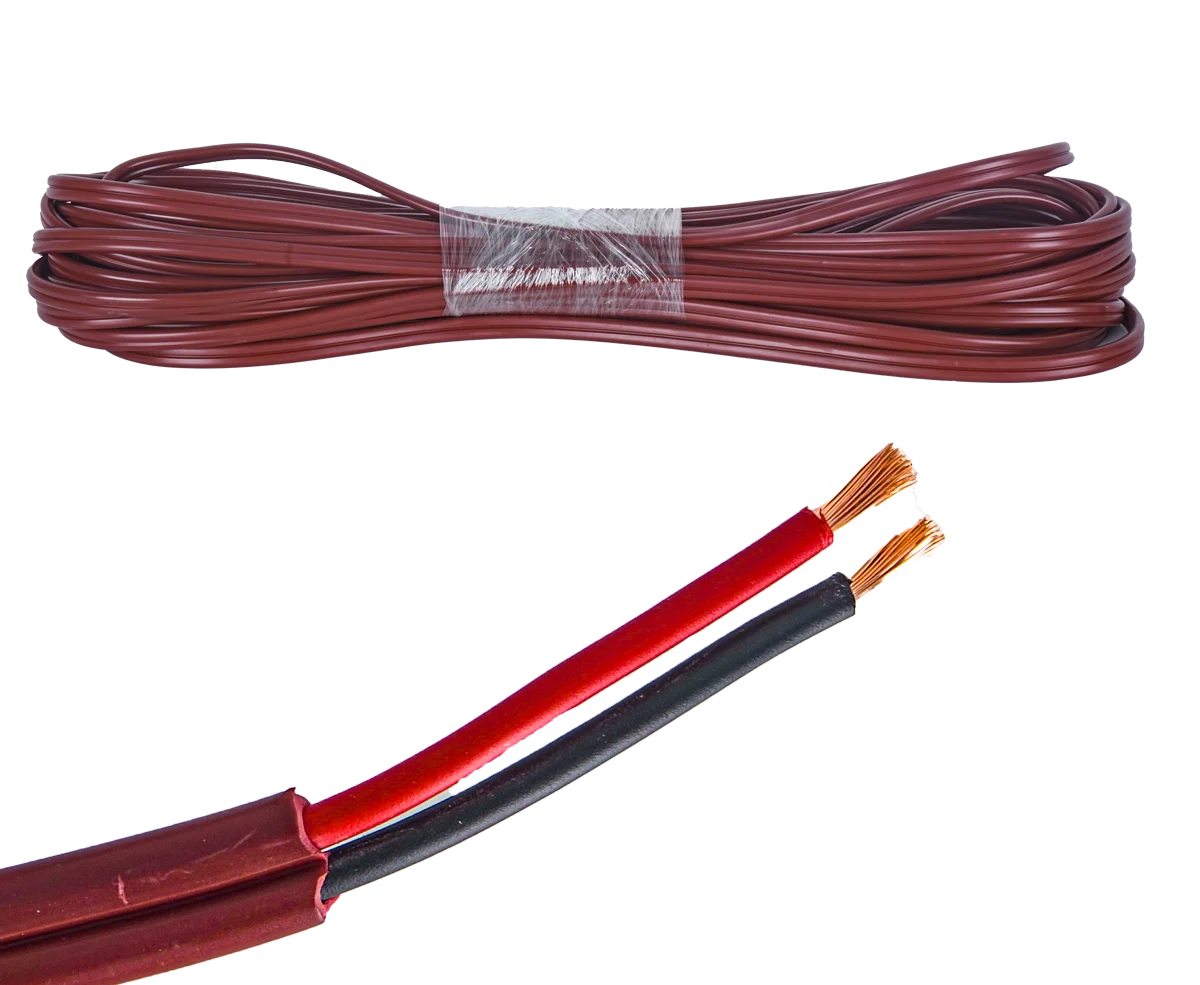

100% copper wire
Up to 18m cop 100% copper cable
Stainless steel anti-corrosion body
Customer Photos
Company Profile
Follow Sunshine Pumping Green
Wenling Jingzhan Mechanical & Electrical Co., Ltd., established in 2012, is one of the earliest supplier of Solar water pump,solar submersible water pump, solar pump inverter, etc. the most advanced and innovative. Our Solar water pumps come bearing corrosion & abrasive resistance capability, designed for optimized efficiency. RUTAN Solar
water pumps are Constructed in a rugged manner; thus highly reliable and durable. RUTAN Solar Pumps does not require grid electricity, is Eco-friendly and easy to install.
What we offer:
1) Good quality control
2) Highly competitive prices
3) Smooth communication
4) Effective OEM&ODM service
By the way, we sincerely welcomes you to visit our company and hopes to have a good communication and double-win partnership with all of you cause RUTAN PUMP is always on the way to be better!
I hereby on behalf of all the members of RUTAN PUMP , thank all of you for the long-term supporting and concerning of our growth.
water pumps are Constructed in a rugged manner; thus highly reliable and durable. RUTAN Solar Pumps does not require grid electricity, is Eco-friendly and easy to install.
What we offer:
1) Good quality control
2) Highly competitive prices
3) Smooth communication
4) Effective OEM&ODM service
By the way, we sincerely welcomes you to visit our company and hopes to have a good communication and double-win partnership with all of you cause RUTAN PUMP is always on the way to be better!
I hereby on behalf of all the members of RUTAN PUMP , thank all of you for the long-term supporting and concerning of our growth.
Product packaging
FAQ
Q:What's your MOQ?
A:Trial Order acceptable.
Q:What's your payment terms?
A: T/T,L/C,D/A,D/P
Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
Q: How to buy our pumps ?
A: leave the message we will reply you asap.
Q:What is the fluid ?
A:Clean water(temperature), dirty water(temperature), particles,or slurry ?
A:Trial Order acceptable.
Q:What's your payment terms?
A: T/T,L/C,D/A,D/P
Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
Q: How to buy our pumps ?
A: leave the message we will reply you asap.
Q:What is the fluid ?
A:Clean water(temperature), dirty water(temperature), particles,or slurry ?
