Complete Kit high quality solar water pump system solar submers pump solar water pump for agriculture deep well Irrigation
- Category: Solar Applications >>>
- Supplier: Juancheng,County,Yibiyuan,Water-Saving,Equipment,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Solar Pumping System
As a professional manufacturer of complete solar power system and solar water pump system, YIbiyuan offer practical, professional and affordable AC and DC solar powered water pumping system to residential and commercial application.
Yibiyuan solar pumping system mainly consists of solar panels, the specialized pump inverter and water pump.
Yibiyuan solar pumping system mainly consists of solar panels, the specialized pump inverter and water pump.
DC Pump Data 3 Inches | ||||||||||||||||
Solar array voltage | Solar array power | Max.flow | Max.head | OUTLET | G.W | Size | ||||||||||
V | W | m3/h | m | IN | kg | mm | ||||||||||
3JTS(T)1.0/30-D24/80 | Screw | 36 | 110 | 1.0 | 30 | 0.75" | 7 | 76x460 | ||||||||
3JTS(T)1.3/50-D24/140 | 36 | 180 | 1.3 | 50 | 0.75" | 7.2 | 76x460 | |||||||||
3JTS(T)1.5/80-D24/210 | 36 | 280 | 1.5 | 80 | 0.75" | 7.5 | 76x460 | |||||||||
3JTS(T)1.5/95-D24/270 | 36 | 360 | 1.5 | 95 | 0.75" | 8 | 76x460 | |||||||||
3JTS(T)2.1/100-D48/500 | 72 | 660 | 2.1 | 100 | 0.75" | 8.5 | 76x460 | |||||||||
3JTS(T)2.3/80-D48/750 | 72 | 960 | 2.3 | 80 | 0.75" | 9 | 76x460 | |||||||||
3JTS(T)2.3/120-D72/1000 | 108 | 1320 | 2.3 | 20 | 0.75" | 9.5 | 76x460 | |||||||||
3JTS(T)2.3/140-D72/1300 | 108 | 1680 | 2.3 | 140 | 0.75" | 10 | 76x460 | |||||||||
3JTSI1.0/30-D24/80 | Screw | 36 | 110 | 1 | 30 | 0.75" | 7 | 76x460 | ||||||||
3JTSI1.3/50-D24/140 | 36 | 180 | 1.3 | 50 | 0.75" | 7.2 | 76x460 | |||||||||
3JTSI1.5/80-D24/210 | 36 | 280 | 1.5 | 80 | 0.75" | 7.5 | 76x460 | |||||||||
3JTSI1.5/95-D24/210 | 36 | 360 | 1.5 | 95 | 0.75" | 8 | 76x460 | |||||||||
3JTSI1.5/115-D36/500 | 72 | 660 | 2.1 | 100 | 0.75" | 8.5 | 76x460 | |||||||||
3JTSI2.3/80-D48/750 | 72 | 960 | 2.3 | 80 | 0.75" | 9 | 76x460 | |||||||||
3JTSI2.3/120-D72/1000 | 108 | 1320 | 2.3 | 120 | 0.75" | 9.5 | 76x460 | |||||||||
3JTSI2.3/140-D72/1300 | 108 | 1680 | 2.3 | 140 | 0.75" | 10 | 76x460 | |||||||||
3JTSC5.0/30-D24/270 | 36 | 480 | 5.0 | 30 | 1.25" | 13 | 76x500 | |||||||||
3JTSC5.0/50-D48/500 | 72 | 600 | 5.0 | 50 | 1.25" | 13.5 | 76x500 | |||||||||
3JTSC5.0/65-D48/750 | 72 | 600 | 5.0 | 65 | 1.25" | 14.0 | 76x500 | |||||||||
3JTSC6.5/80-D72/1000 | 108 | 1320 | 6.5 | 80 | 1.25" | 14.5 | 76x560 | |||||||||
3JTSC6.5/120-D72/1300 | 108 | 1680 | 6.5 | 120 | 1.25" | 15.5 | 76x600 | |||||||||
3JTSC7.0/140-D192/1800 | 288 | 2400 | 7.0 | 140 | 1.25" | 17.5 | 76x650 | |||||||||
3JTSC7.0/180-D216/2200 | 288 | 2880 | 7.0 | 180 | 1.25" | 18.5 | 76x720 | |||||||||
Detailed
Solar Panels
> From 5W to 360W
>25 years Warranty
> Highest quality with TUV,ETL,CE,INMETRO,ISO certificates
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance
>25 years Warranty
> Highest quality with TUV,ETL,CE,INMETRO,ISO certificates
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance
Pumping Inverter
> AC Pump Inverter
380/400/415/440VAC(+15%) ,Three Phase
>DC Pump Inverter
24/36/48/72/192/216VAC
Warranty : 3 Year Warranty
All Inverter with Grid-Tie Function ,Connect City Grid
380/400/415/440VAC(+15%) ,Three Phase
>DC Pump Inverter
24/36/48/72/192/216VAC
Warranty : 3 Year Warranty
All Inverter with Grid-Tie Function ,Connect City Grid
Water Pump
> AC Submerisible Pump
From 0.25KW to 93KW
> DC Submerisible Pump
From 80W to 3000W
Warranty : 1 Year Warranty
From 0.25KW to 93KW
> DC Submerisible Pump
From 80W to 3000W
Warranty : 1 Year Warranty
Accessories
> Water Sensor
> Electrical Resistor
> PV Cable
> PV Connector
> Electrical Resistor
> PV Cable
> PV Connector
Mounting structure
> Ground Solar Mounting system
> Aluminum and Galvanized Steel Structure
> Warranty : 15 Year Warranty ,25 Year Service
> Aluminum and Galvanized Steel Structure
> Warranty : 15 Year Warranty ,25 Year Service
Application
WHY CHOOSE US
Efficient: Designing efficient products delivers more water, improves reliability and lowers the total cost of the system, our solar water pump systems will run cooler, need less PV modules can pump water.
Best Engineers Team: Our engineering team focus on the right designs, the right materials and manufacturing methods to make very reliable, maintainable and repairable solar pump system that fit the application.
Production Show
Packing & Delivery
Package
Pearl wool inside + corrugated carton package
Delivery
Few quantity by express(DHL, UPS, FedEx, TNT)
Batch order by air or sea(LCL/FCL)
Certifications

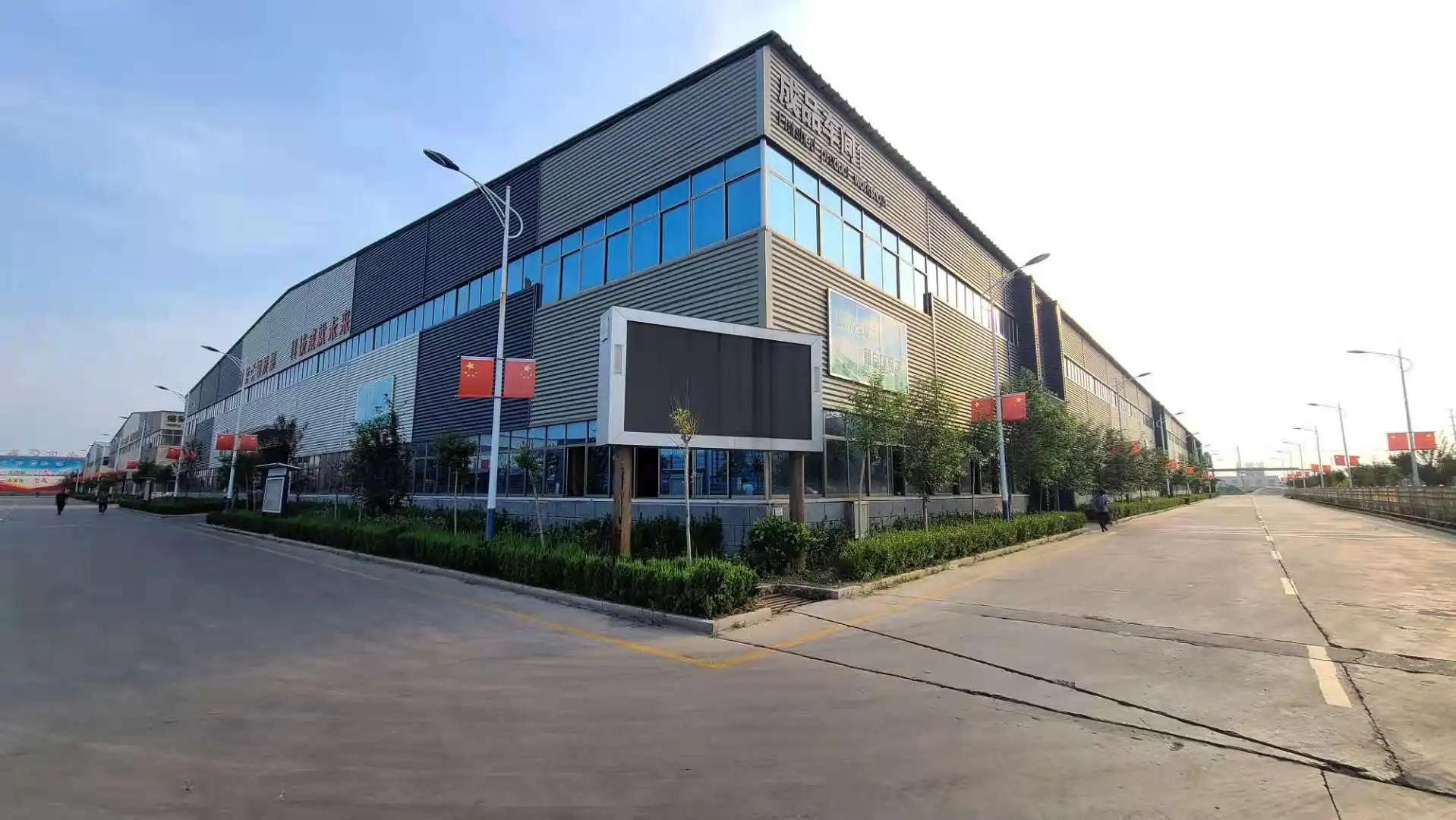

Our Company
FAQ
Q1: What are your main products?
A1: We're leading manufacture of solar systems, solar panels, inverters, controllers, batteries and mounting systems and all related solar accessories.
Q2: Can you print our company logo on the nameplate and packaging?
A2: Yes, we can do it according to your design.
Q3: Can you support OEM and field installation?
A3: Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, full support and assistance services.
Q4: How does your factory conduct quality control?
A4: Quality first. We have a professional QC team to strictly control the quality. Only when the quality meets the requirements, it will be packaged out of the factory.
Q5: What are your strengths in solar systems?
A5: Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with well-known brands such as Jinko, JA, TRW, etc., and can provide large-brand solar energy series products.
Q6: Can I get one for sample?
A6: Yes,we accept sample order or trail order for testing.
