Product Overview
Description
we can customized machine according to your detailed demands, if you have photo or drawing can share with us for getting detailed quotation.If not have, we shall recommend u fit machine according to our sales history,feel free contact with me +8615617690951 (miss megan)
Product Description

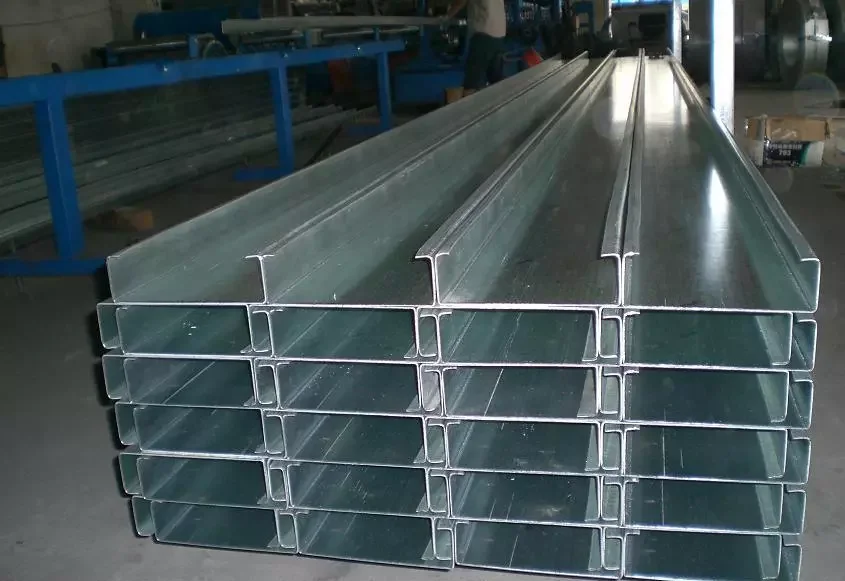

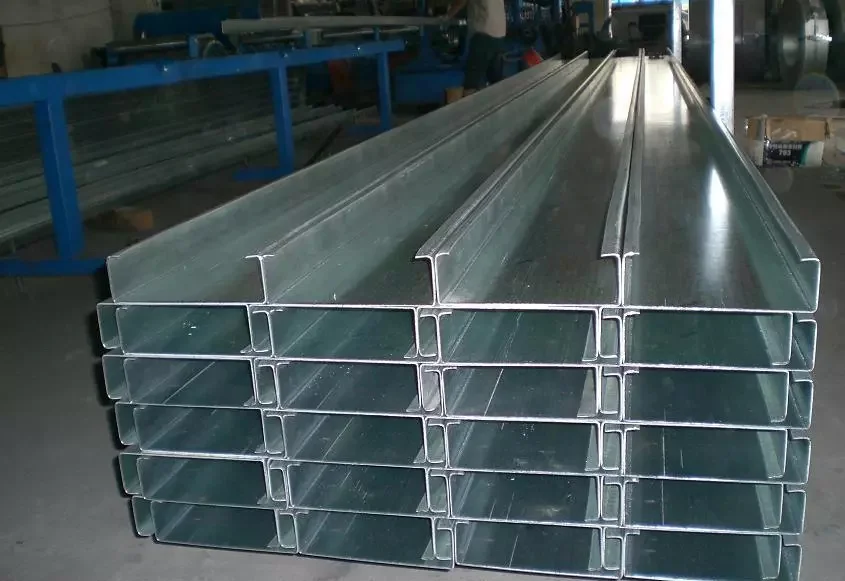

C shaped steel is a purlin and wall beam widely used in steel structure construction. It can also be combined into lightweight roof trusses and brackets. In addition, it can also be used for columns, beams and arms in the manufacture of light machinery. .It is widely used in steel structure workshops and steel structure engineering and is a commonly used construction steel. It is made by cold bending of hot rolled plate.
The C-shaped steel wall is thin and light, with excellent cross-sectional performance and high strength. Compared with traditional channel steel, the same strength can save 30% of the material.
The C-shaped steel wall is thin and light, with excellent cross-sectional performance and high strength. Compared with traditional channel steel, the same strength can save 30% of the material.

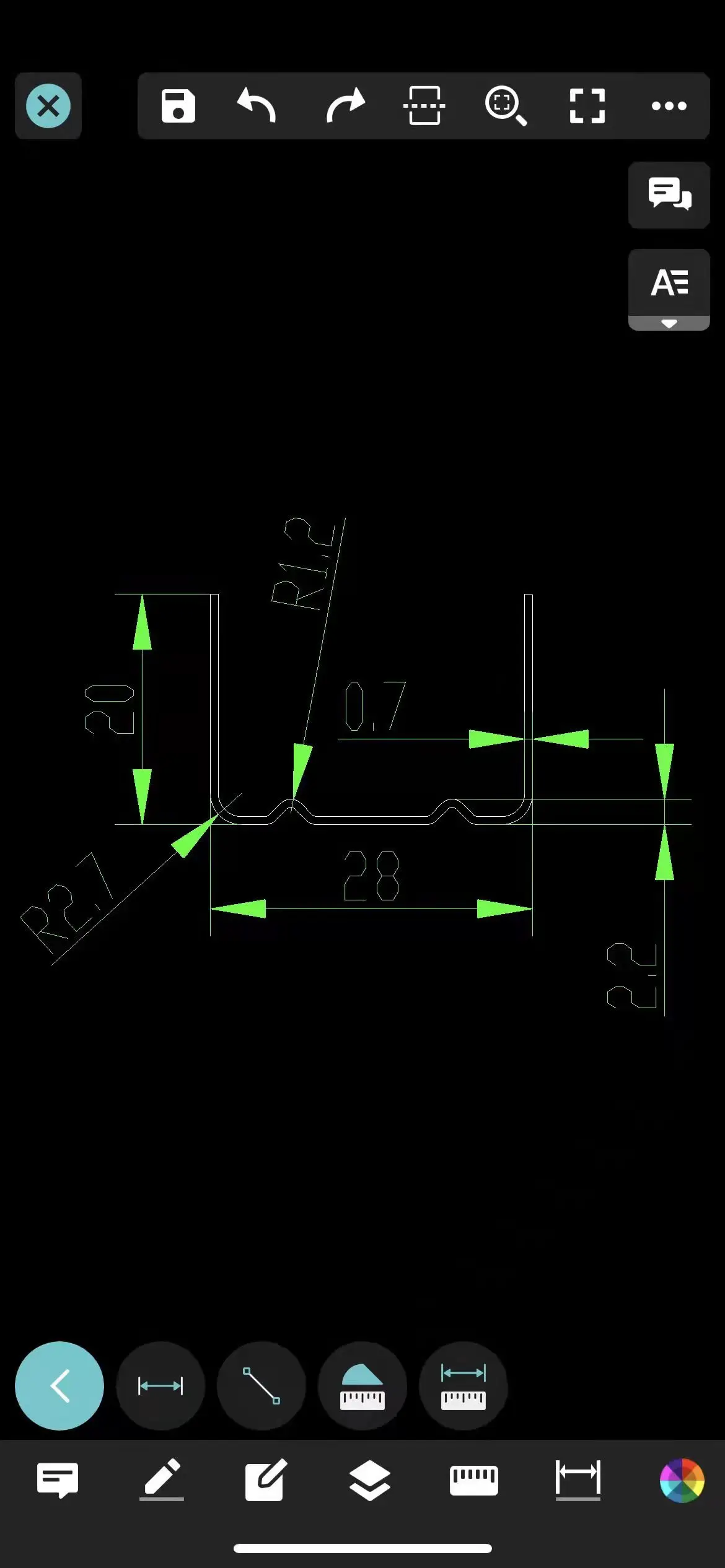

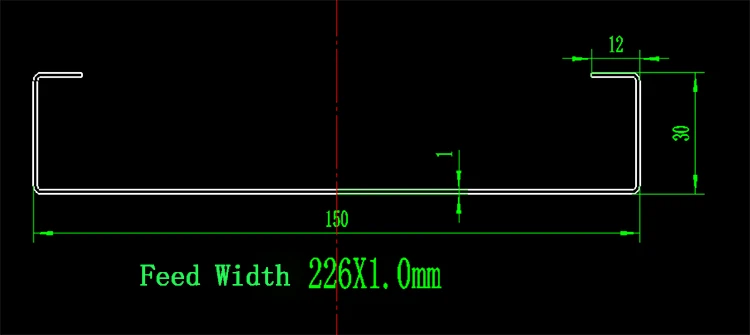

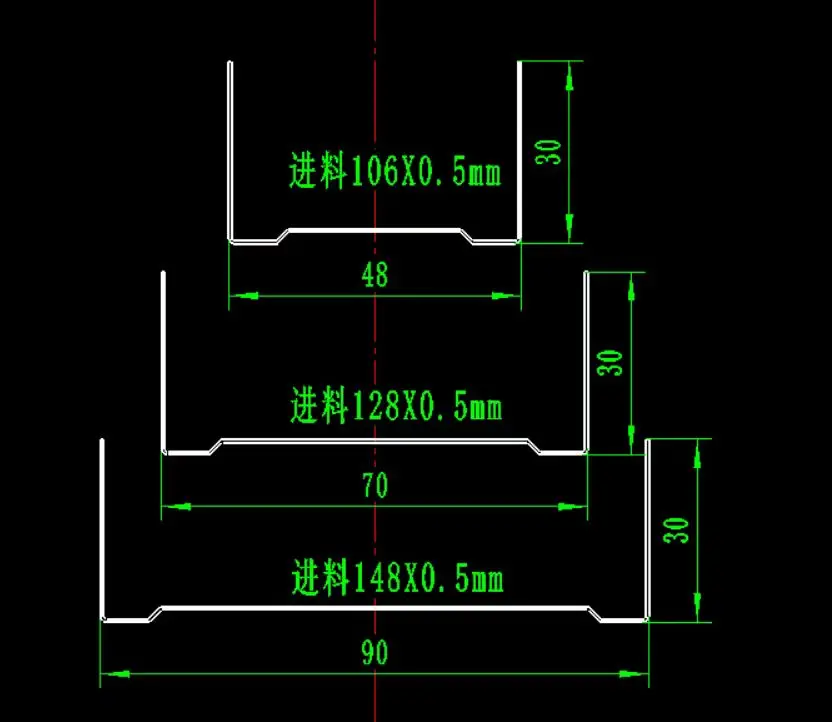

Below are popular shapes for your reference,more details contact with me ,+8615617690951 (miss megan):
Specification
Applicable Industries | Building Material Shops, Manufacturing Plant, Construction works |
Product Name | C Purlin Rool Forming Machine |
Frame Materials | 350H steel |
Diameter | 80mm |
Forming roller | 16row |
Forming Shaft | Material 45# quenched and tempered |
Max.speed | 15m/min |
Effective with | 80-300mm |
Pressing width | 1000mm |
Cutting System | Hydraulic Cutting |
Main Engine power | 22 KW with cycloidal reducer |
Electric tension | 380V 50 Hz 3 Phase or as your requirements |
Hydraulic oil | 40# hydraulic oil |
Material of cutting table | Cr 12 mould steel with quenched treatment |
Product Details
Metal stud and track drywall profile U profile making equipment C channel roll former Z purlin roll forming machine
Many houses use purlins to lift the rafters to support the rafters. The purlins are made into roof beams, and the paving and tiles are placed on the roof truss or diagonal beams of the house. The steel purlin from purlin machine is lighter in size,which is in line with the characteristics of the roof purlin.
Steel frame purlin machine can be designed with C Z , that is CZ purlin forming machine, suitable for different sizes and thickness of raw materials, which basically meets the needs of different purlins on the market.
Steel frame purlin machine can be designed with C Z , that is CZ purlin forming machine, suitable for different sizes and thickness of raw materials, which basically meets the needs of different purlins on the market.
we have basic machine and advanced machine ,different configuration for your choice:

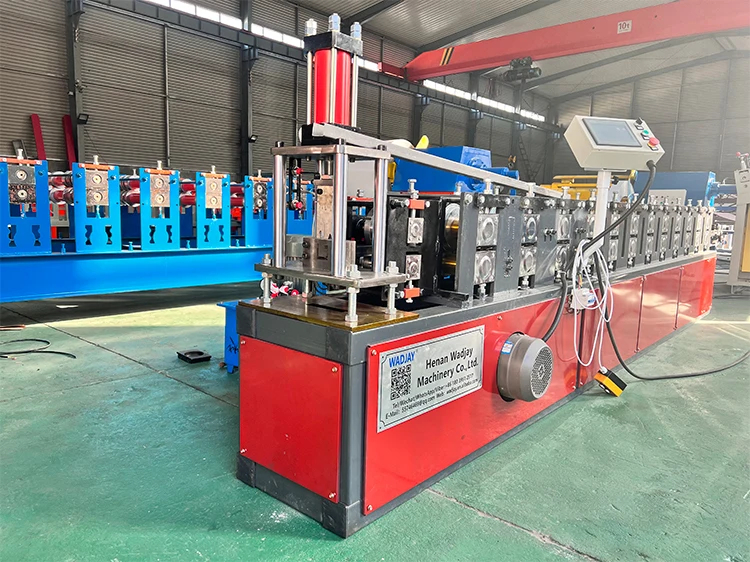

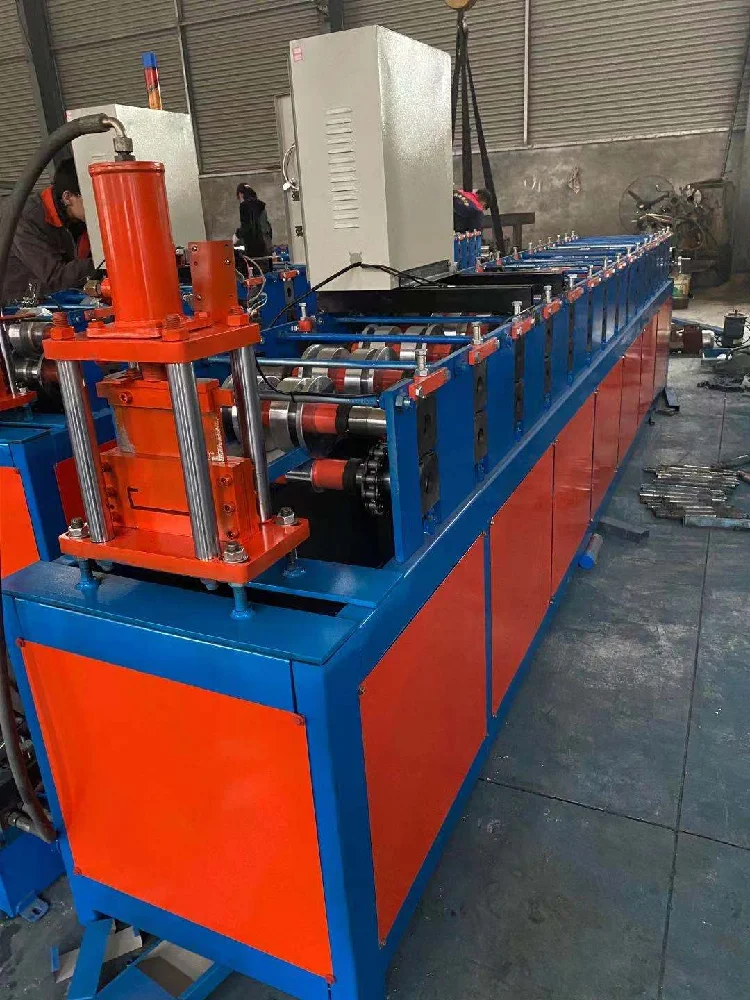

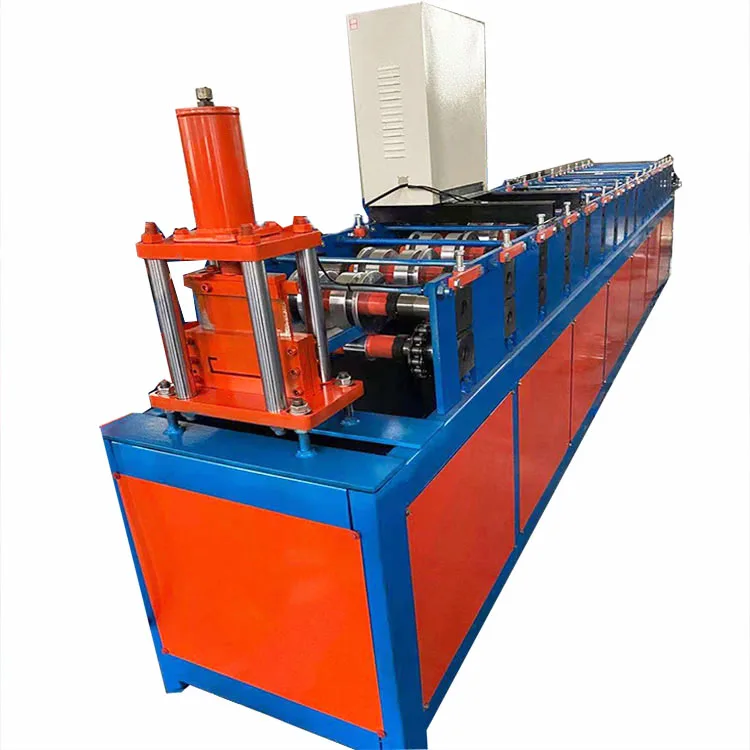

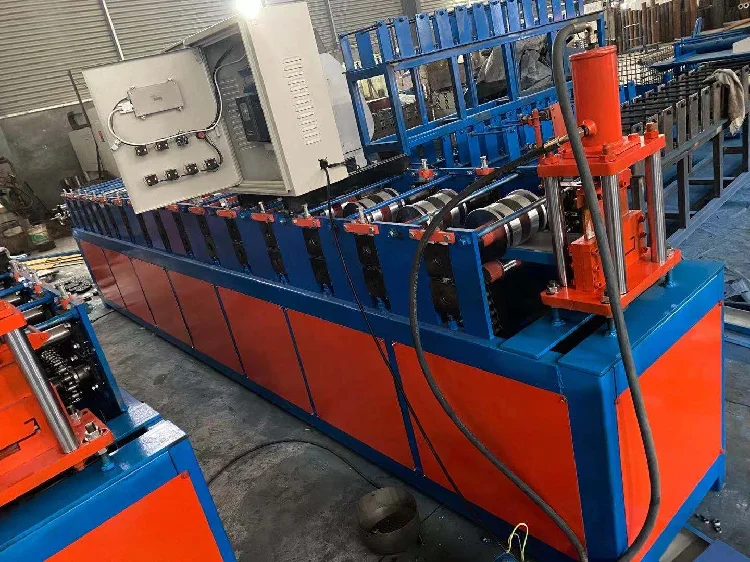

first photo is basic machine, second photo is advanced machine
C Z purlin roll forming machine load parts, decoiler loading frame we can offer different type can choose. standard type are
manual,also can choose electric loading frame or hydraulic loading frame
This loading frame decoiler also can use in other type machine, customer can buy it alone.
manual,also can choose electric loading frame or hydraulic loading frame
This loading frame decoiler also can use in other type machine, customer can buy it alone.

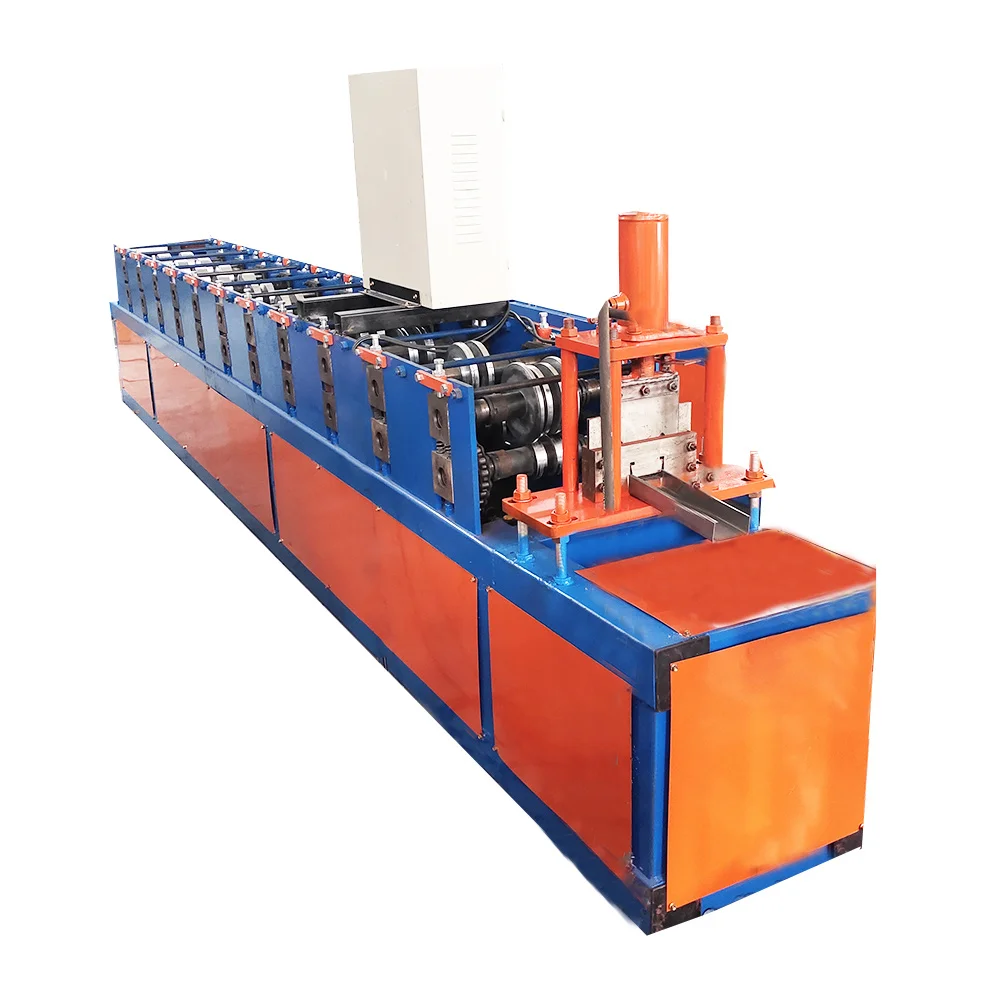

C Z purlin roll forming machine adopts welded steel frame structure, it make sure roof sheet machine can operation more stable
AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing,
hard plating, heat treatment and chrome coating.
AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing,
hard plating, heat treatment and chrome coating.
C Z purlin roll forming machine forming roll quality decide final sheet shapes, we can according to your local sheet shape
customized different type rollers
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment.
customized different type rollers
Roller chrome coated thickness: 0.05 mm
Roller material: Forging Steel 45# heat treatment.
More model for your choice
We can customized different shape profile according to your photo or drawing, pls feel free contact with us !!! +8615617690951
Omega profile roll forming machine | Omega channel roll forming machine | Omega channel roll forming machine | Top hat roll forming machine
Omega profile roll forming machine popular sell in many countries. Product thickness common between 0.3-0.6 mm, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc
Omega profile roll forming machine popular sell in many countries. Product thickness common between 0.3-0.6 mm, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc
3 in 1 c channel machine | multiple c channel machine | C u channel roll forming machine
Multiple C channel machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc
Multiple C channel machine popular sell in many countries, common thickness between 0.3-0.6 mm, Common speed 10-20 m/min, with servo motor speed can max reach to 30-50 m/min, we sell lots of such machine to Iraq, Egypt, UAE, Chile, Zambia, etc
Angle bead roll forming machine | Corner bead production line | Metal angle bead machine | Corner bead roll forming machine | V shape roll forming machine | Steel wall angle bar roll forming machine
Angle bead roll forming machine popular sell in many countries, size common include 20*20 mm, 25*25 mm, 27*27 mm, 30*30 mm. Product thickness common between 0.3-0.6 mm
Angle bead roll forming machine popular sell in many countries, size common include 20*20 mm, 25*25 mm, 27*27 mm, 30*30 mm. Product thickness common between 0.3-0.6 mm
Customer Feedback
Packing & Delivery
Metal stud and track drywall profile U profile making equipment C channel roll former Z purlin roll forming machine
1)Usually shipping by containers, which will be more convenient and safe for this big machine
2)You can choice use our agent or your agent all is OK. Just share all your ideas to us, we'll sharing one satisfied planing.
FAQ
Q1.If machine can customize according to my demands?
Yes dear, we can customize machine according to your tile drawing or photo.
Q2.My place voltage is 220v,60hz,3phase ,if your machine fit?
yes dear,we can design machine according to your demands.
Q3.Machine production need how long?
Machine production need about 20 working days after getting deposit
Q4.What is the package? Is it suitable for shipment?
Machine delivery by container, we packed by protective film is enough.
Q5.How about your payment terms?
50% T/T as down payment, balance 50% by T/T before delivery. If others payment terms, we can discuss the details.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
Yes dear, we can customize machine according to your tile drawing or photo.
Q2.My place voltage is 220v,60hz,3phase ,if your machine fit?
yes dear,we can design machine according to your demands.
Q3.Machine production need how long?
Machine production need about 20 working days after getting deposit
Q4.What is the package? Is it suitable for shipment?
Machine delivery by container, we packed by protective film is enough.
Q5.How about your payment terms?
50% T/T as down payment, balance 50% by T/T before delivery. If others payment terms, we can discuss the details.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
