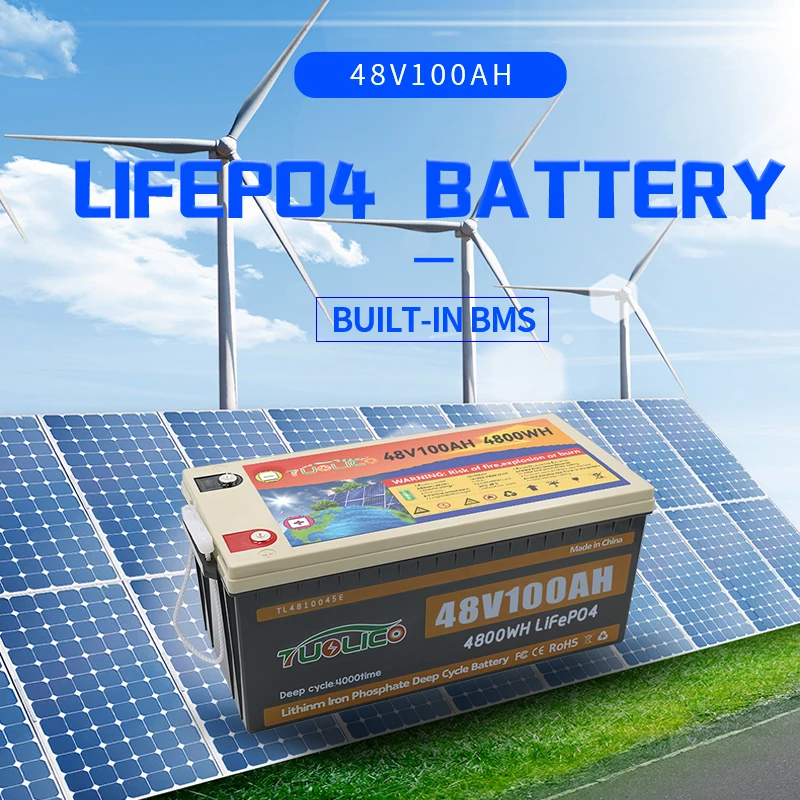

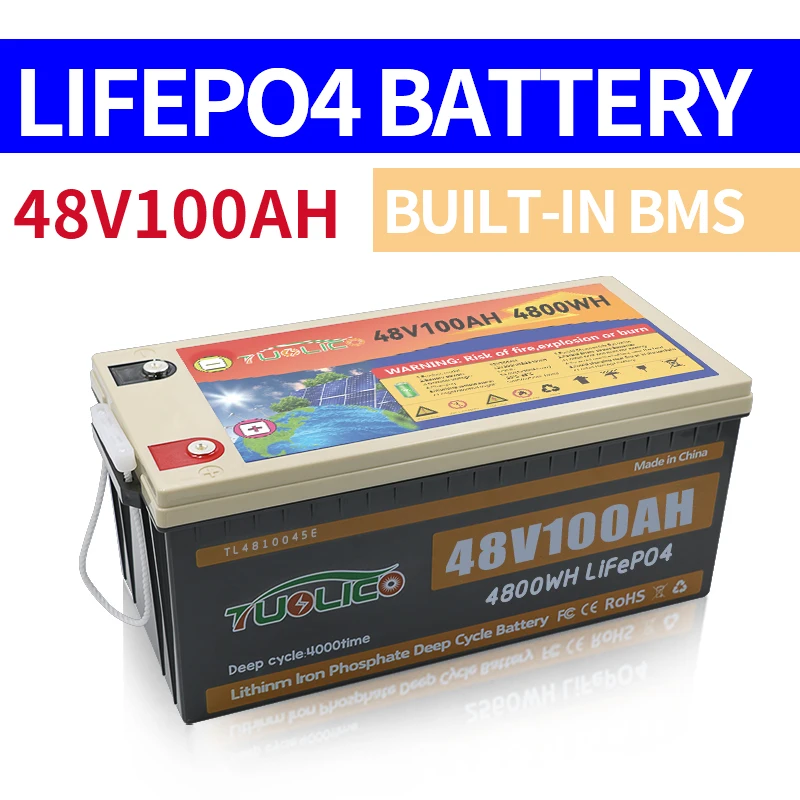

Литий ионный Аккумулятор Lifepo4 48 в 100 Ач 100 Ач 3,2 в 100 Ач 48 в 100 Ач для солнечной энергетической системы
Литий-ионный Аккумулятор Lifepo4 48 в 100 Ач 100 Ач 3,2 в 100 Ач 48 в 100 Ач для солнечной энергетической системы
Литий-ионный Аккумулятор Lifepo4 48 в 100 Ач 100 Ач 3,2 в 100 Ач 48 в 100 Ач для солнечной энергетической системы
Литий-ионный Аккумулятор Lifepo4 48 в 100 Ач 100 Ач 3,2 в 100 Ач 48 в 100 Ач для солнечной энергетической системы
Литий-ионный Аккумулятор Lifepo4 48 в 100 Ач 100 Ач 3,2 в 100 Ач 48 в 100 Ач для солнечной энергетической системы
Литий-ионный Аккумулятор Lifepo4 48 в 100 Ач 100 Ач 3,2 в 100 Ач 48 в 100 Ач для солнечной энергетической системы
Литий-ионный Аккумулятор Lifepo4 48 в 100 Ач 100 Ач 3,2 в 100 Ач 48 в 100 Ач для солнечной энергетической системы

Литий ионный Аккумулятор Lifepo4 48 в 100 Ач 100 Ач 3,2 в 100 Ач 48 в 100 Ач для солнечной энергетической системы

Share on (1600492568630):


Price:

Quantity:


Product Overview

Description

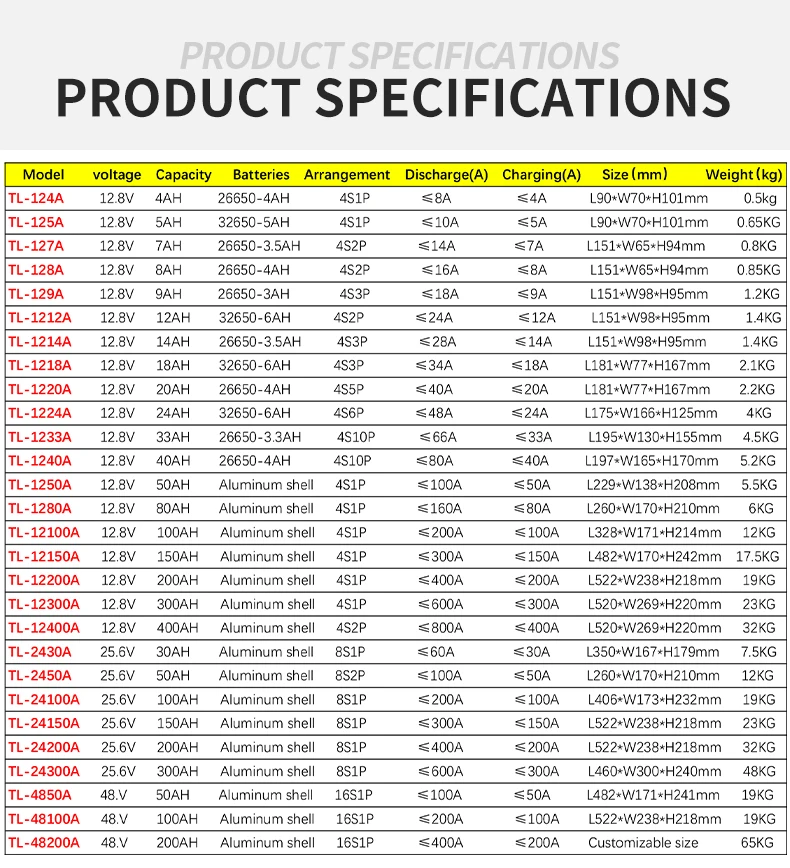

Specification





Electrical
Characteristics
Nominal Voltage
48V
Nominal Capacity
100Ah@0.2C
Energy
4800Wh
Internal Resistance
≤150mΩ

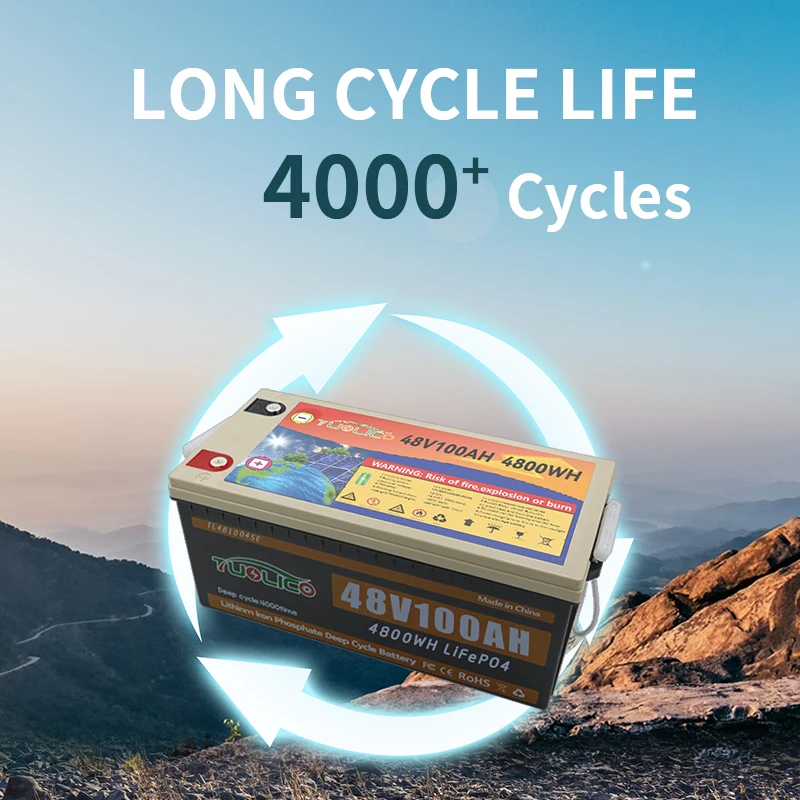

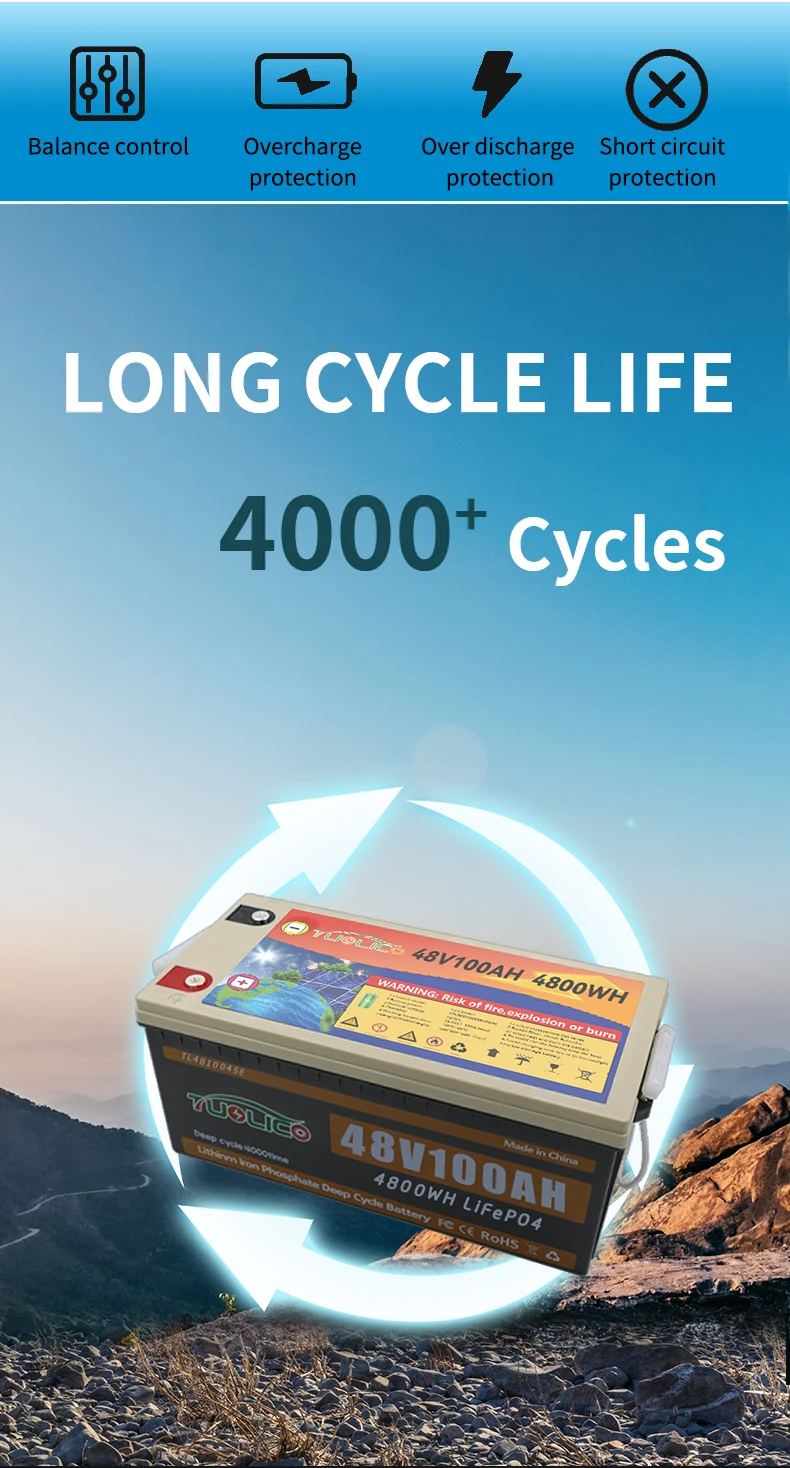

Cycle Life
3000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Self Discharge
≤3.5% per month at 25℃




Standard Charging
Max.Charging Voltage
56.0~58.4V

Charging Mode
At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of
58.4V until the current was not more than 0.02C
Charging Current
50A
Max.Charging Current
100A



Standard Discharging
Discharging Current
100A
Max. Continuous Current
200A
Max.Pulse Current
600A(<3S）
Discharging Cut-off Voltage
40V
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity


Operating Condition
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity

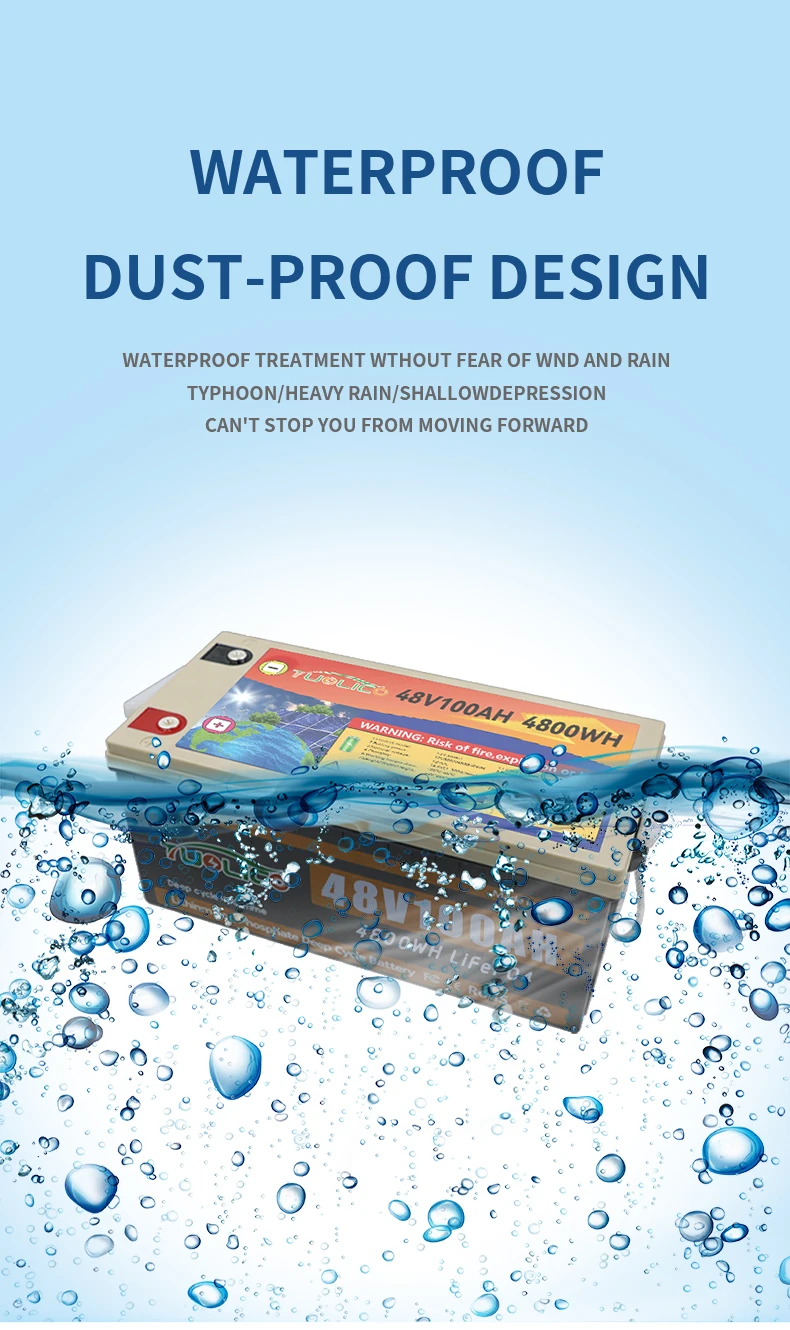

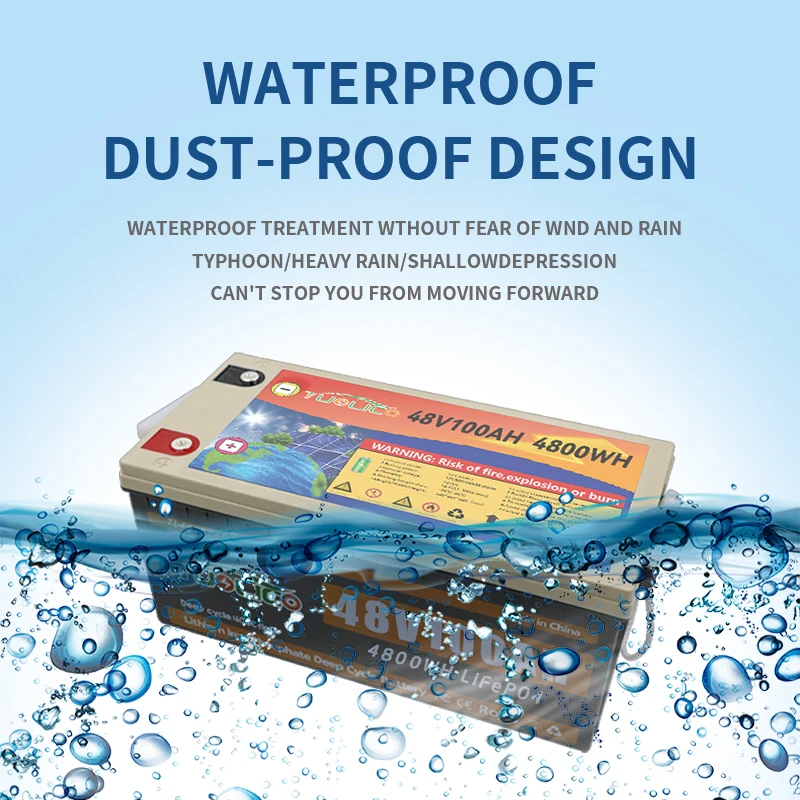

Water Dust Resistance
IP65

Structure
Cell & Format
100AH/15S1P
communication
Bluetooth/RS485/RS232/CAN/MODBUS

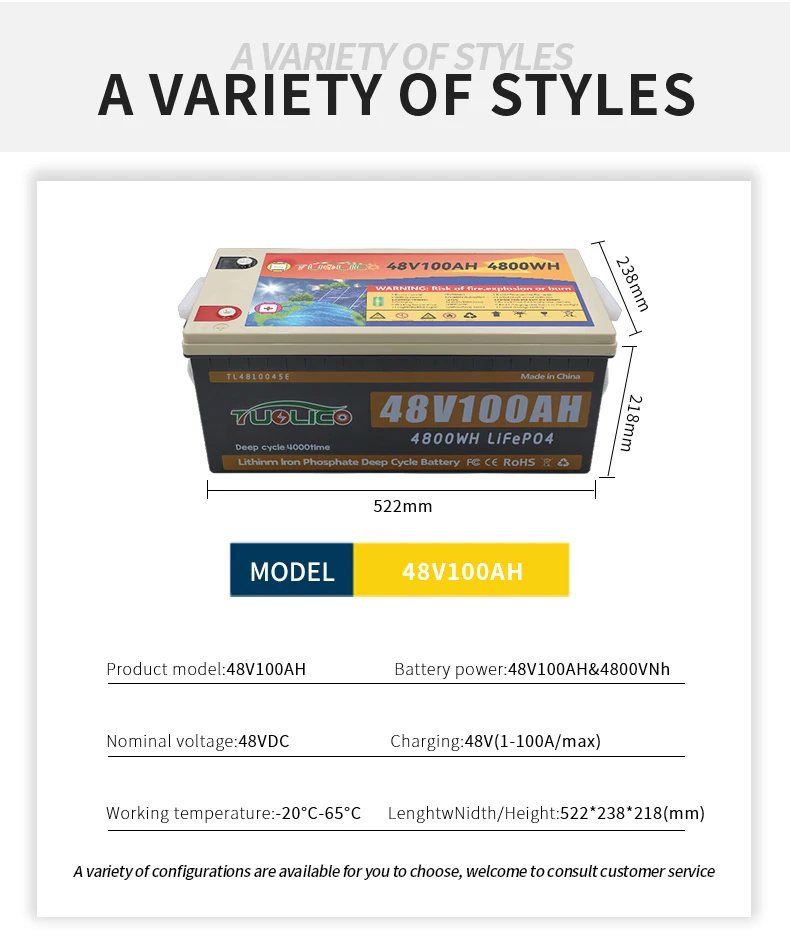

Dimension(L*W*H*TH)
520*269*220mm
Weight
Approx. 19Kg

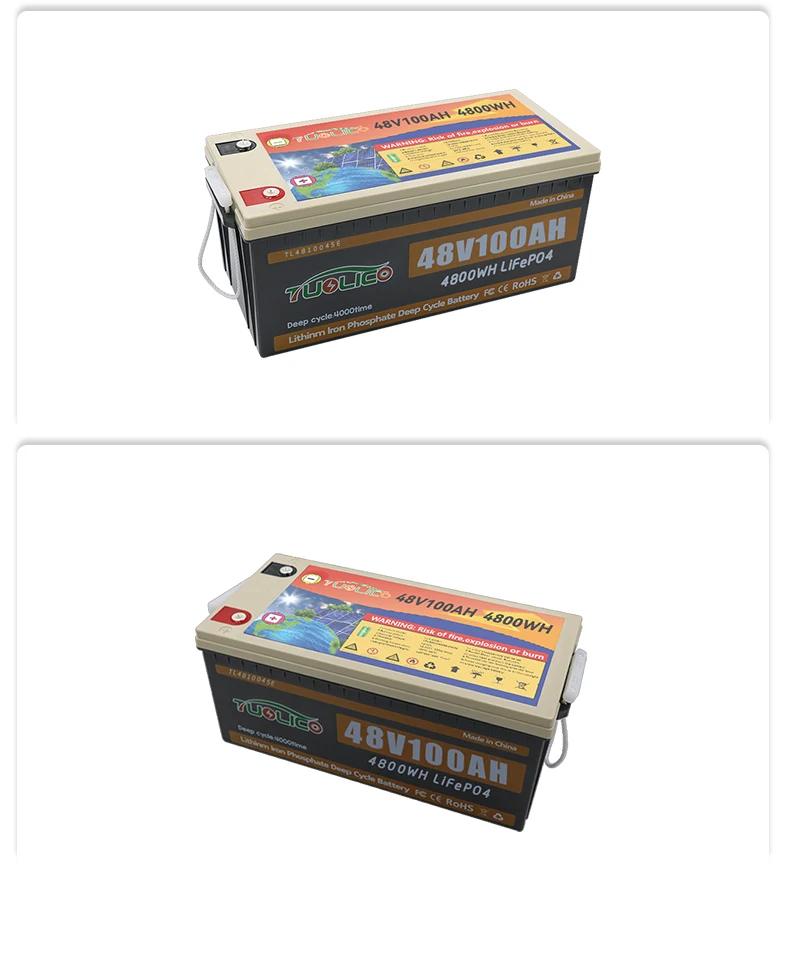

Details Images








Product Description

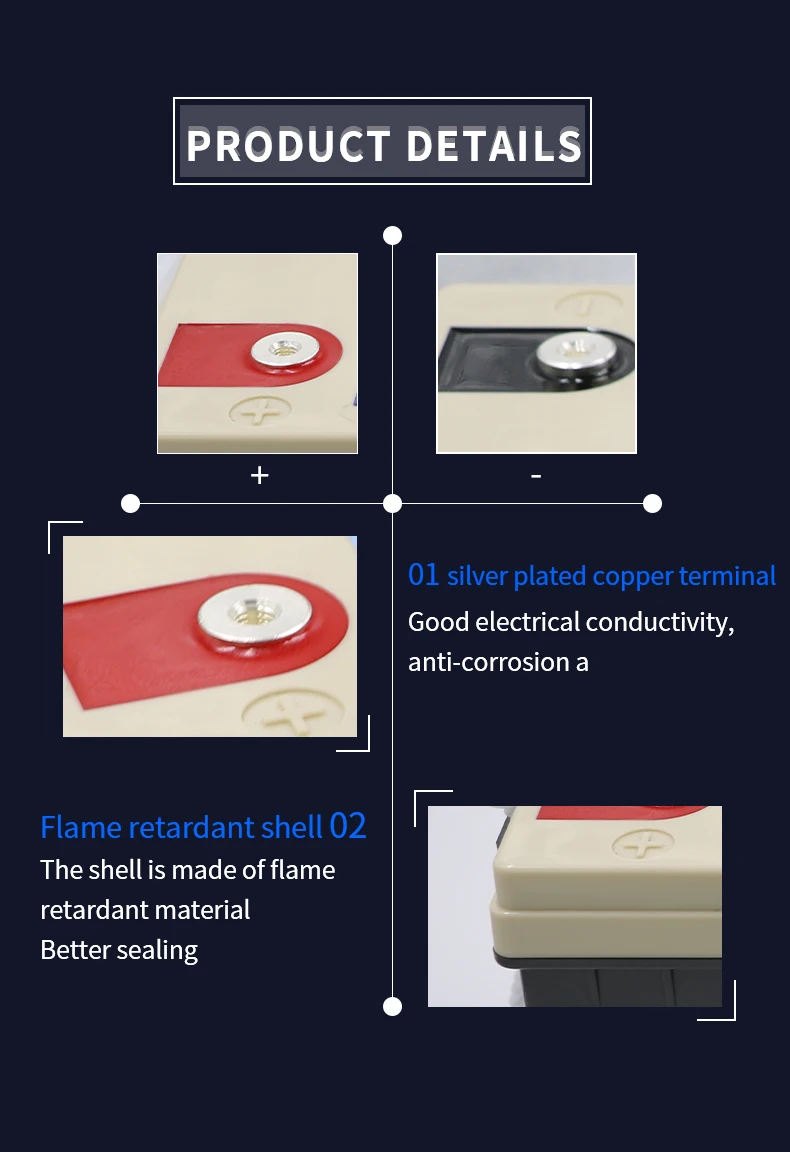

Product Details




Application

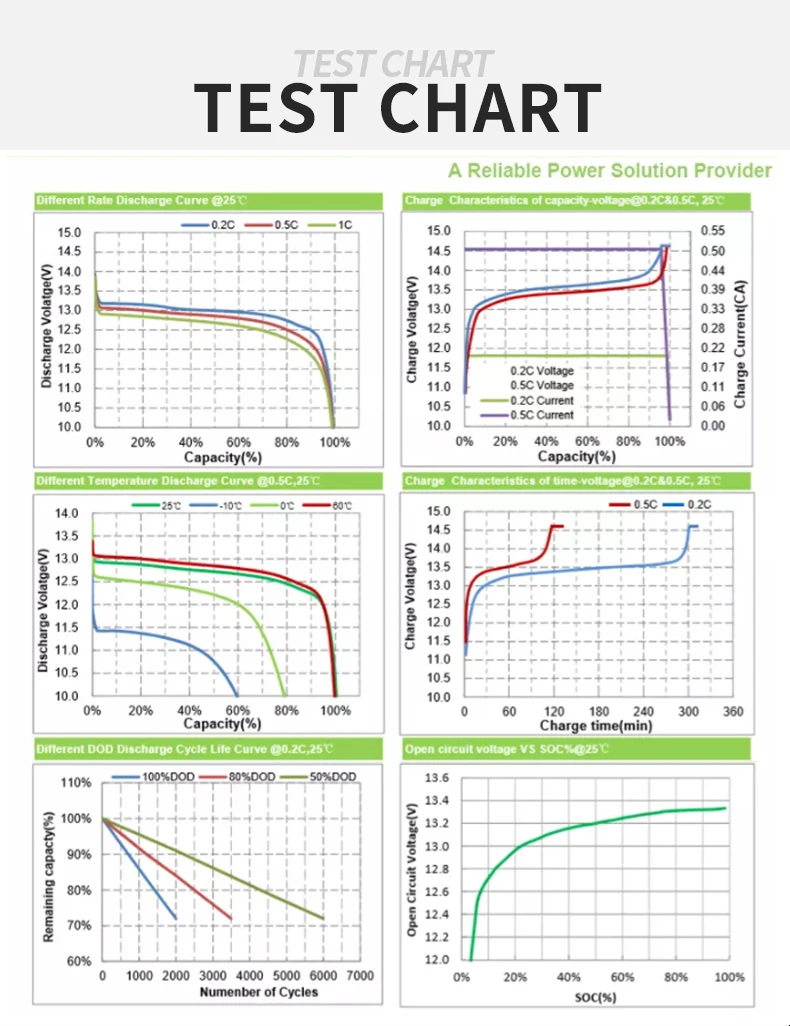

Chart

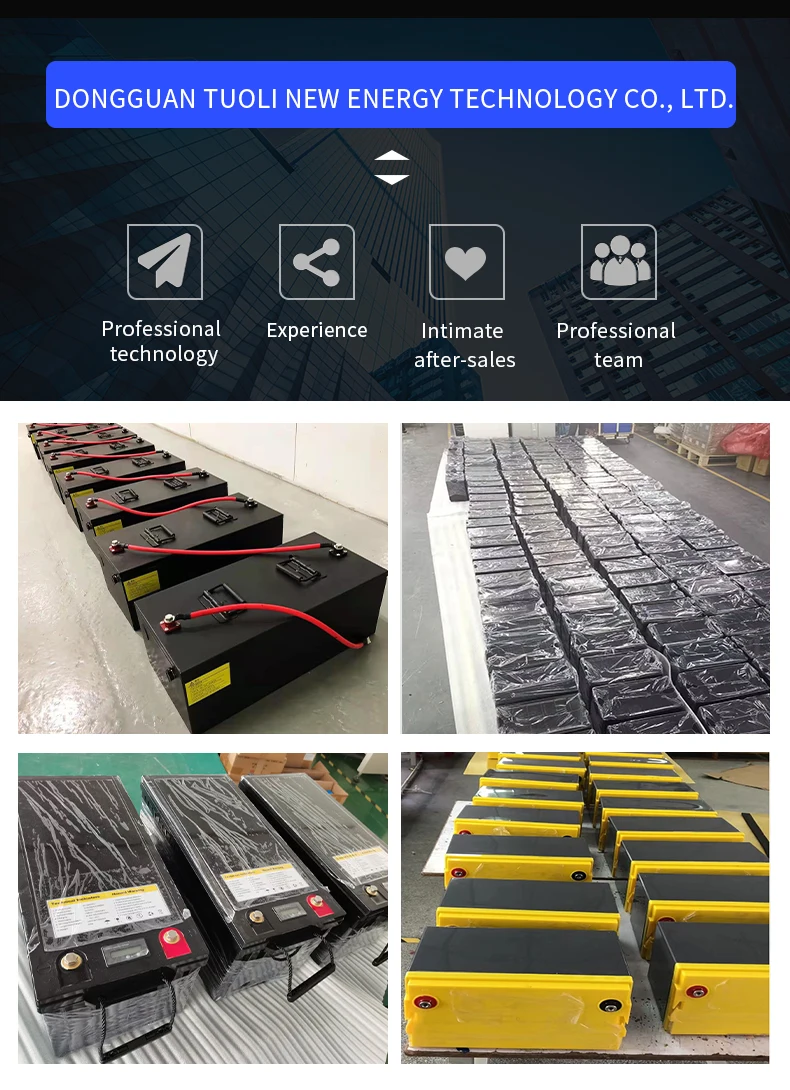

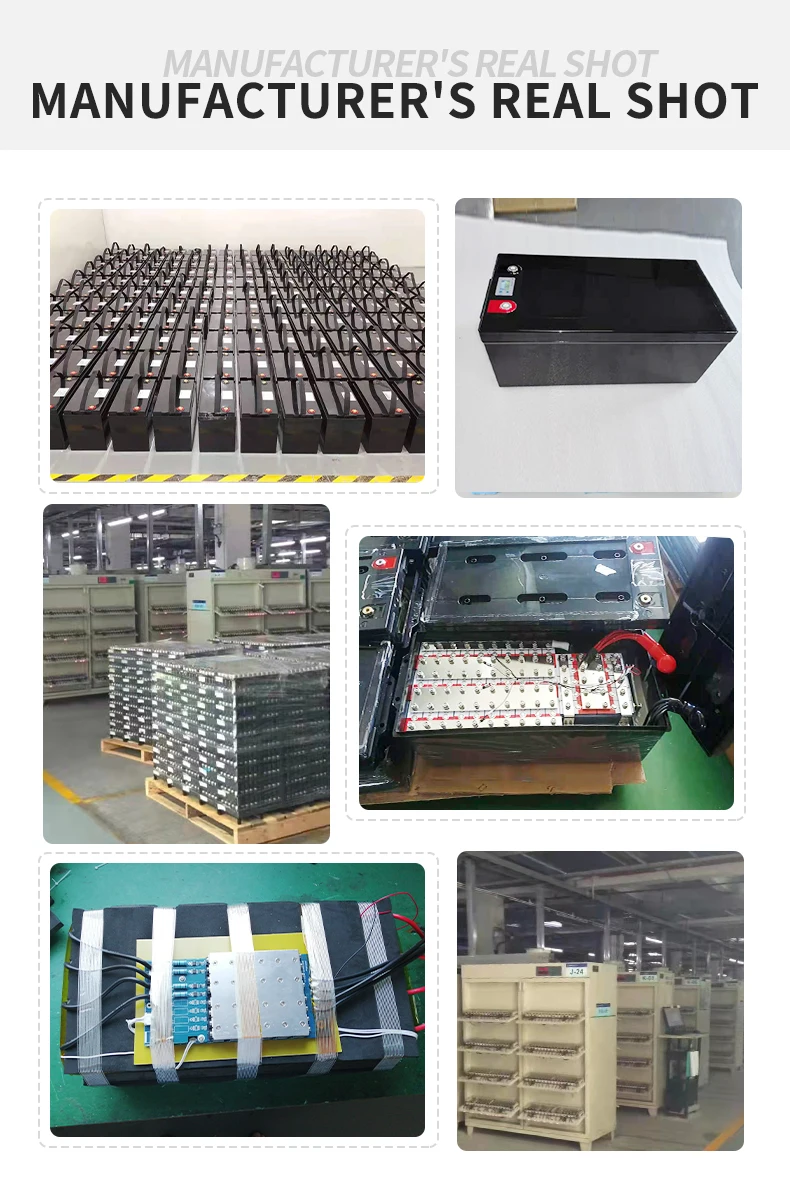

Production cases


















FAQ


Q1. Can I have a sample order? A. Yes, we welcome sample order to test and check quality. Q2. What about the lead time? A. Sample
needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity. Q3. Do you have any MOQ limit? A. Yes, we have
MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample
checking is available. Q4. How do you ship the goods and how long does it take to arrive? A. It usually takes 5-7 days to arrive.
Airline and sea shipping is also optional. Q5. How to proceed with an order? A. Firstly let us know your requirements or
application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places
a deposit for formal order. Fourthly We arrange the production. Q6. Is it OK to print my logo on the product? A. Yes. Please
inform us formally before our production and confirm the design firstly based on our sample. Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc. Q8.How about warranty? A:3 year warranty.
