nema 23 RV25 worm reducer gearbox speed ratio 7.5:1 for cnc router milling

Product Overview

Description

nema 23 RV25 worm reducer gearbox speed ratio 7.5:1 for cnc router milling

Quick Details

Applicable Industries:	Automation in industry
Gearing Arrangement:	Worm
Output Torque:	4NM
Input Speed	0-1400rpm
Output Speed:	186.RPM
Ratio	1:7.5,10,15,20,30,40,50,60
Material	Aluminium Alloy
Noise	low noise (<60DB)
Color	Silver

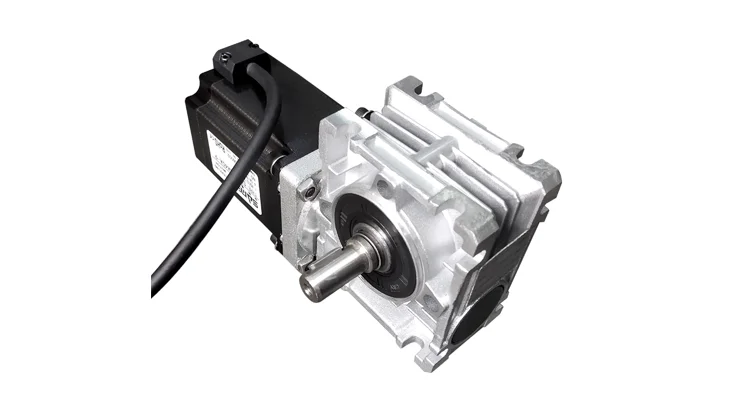

Matched motor	50W-200WServo motor /nema17/23stepper motor

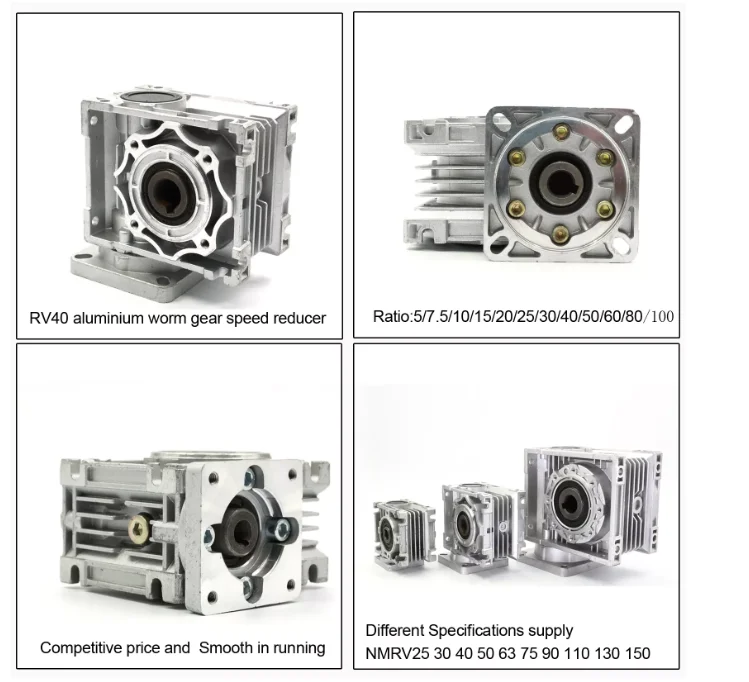

Model	From RV25 up to RV150 (25,30,40,50,63,75,90,110,130,150)

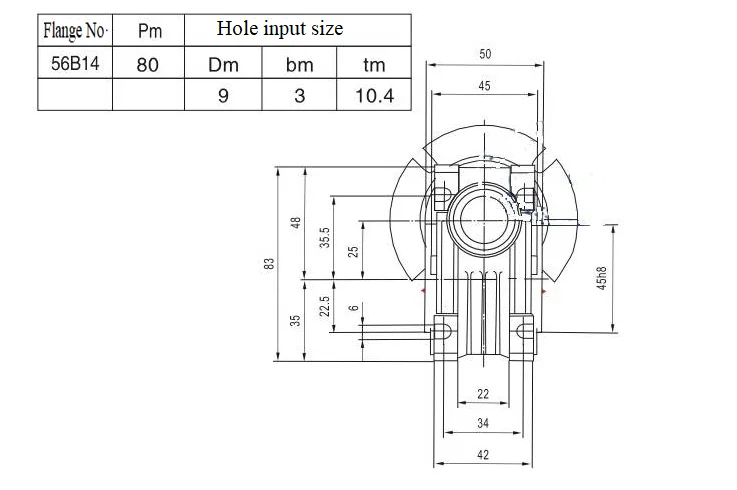

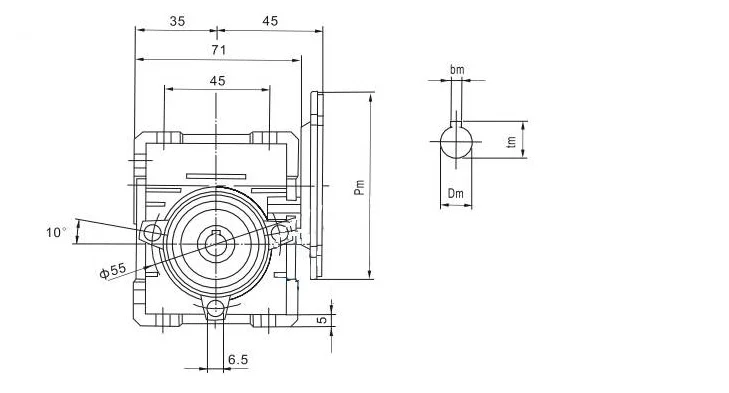

Dimensions(Unit:MM)



Picture Show:







Packaging information

Packaging Informations







Company Informations







FAQ

1.Factory or Agent?
We are Agent, but have professional R&D team as introduced in company information.



2. How about the delivery?
- Sample: 1-3 days.
- Bulk order: 5-20 days.



3. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.



4. Why choose us?
1. Accept customize & 24/7 after-sale services.
2. From mold customization to material processing and welding, from fine components to finished assembly,strict aging, finished product inspection.



5. Do you get the relevant certification?
All products are made according to ISO9001, CE &RoHS requirements.
