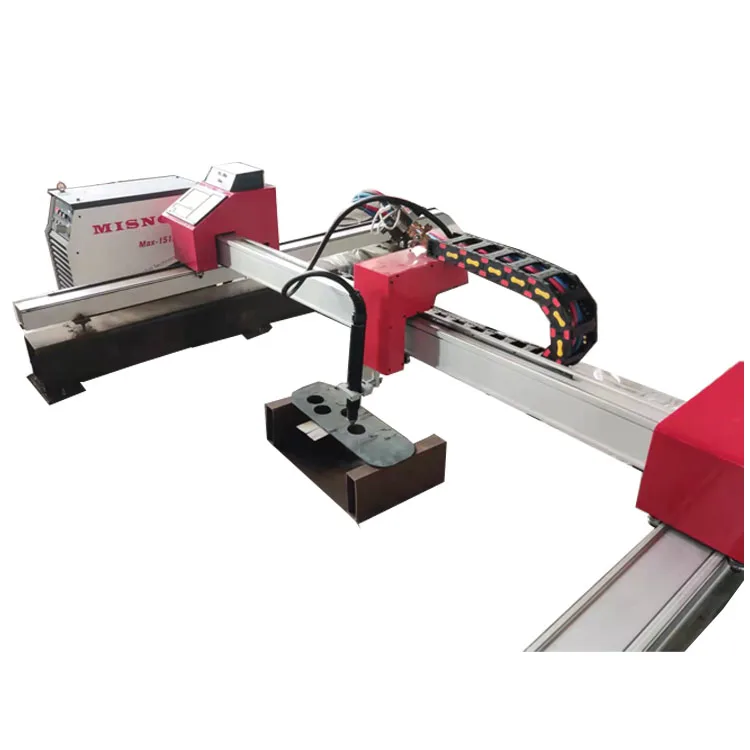

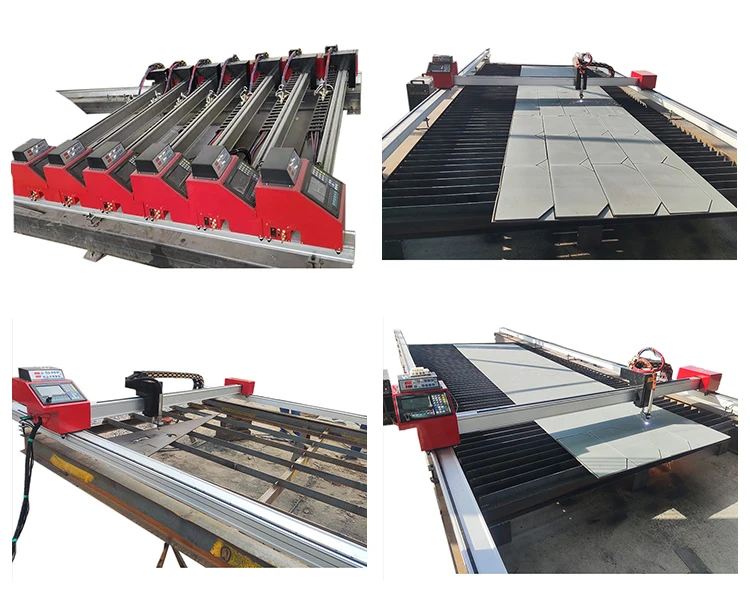

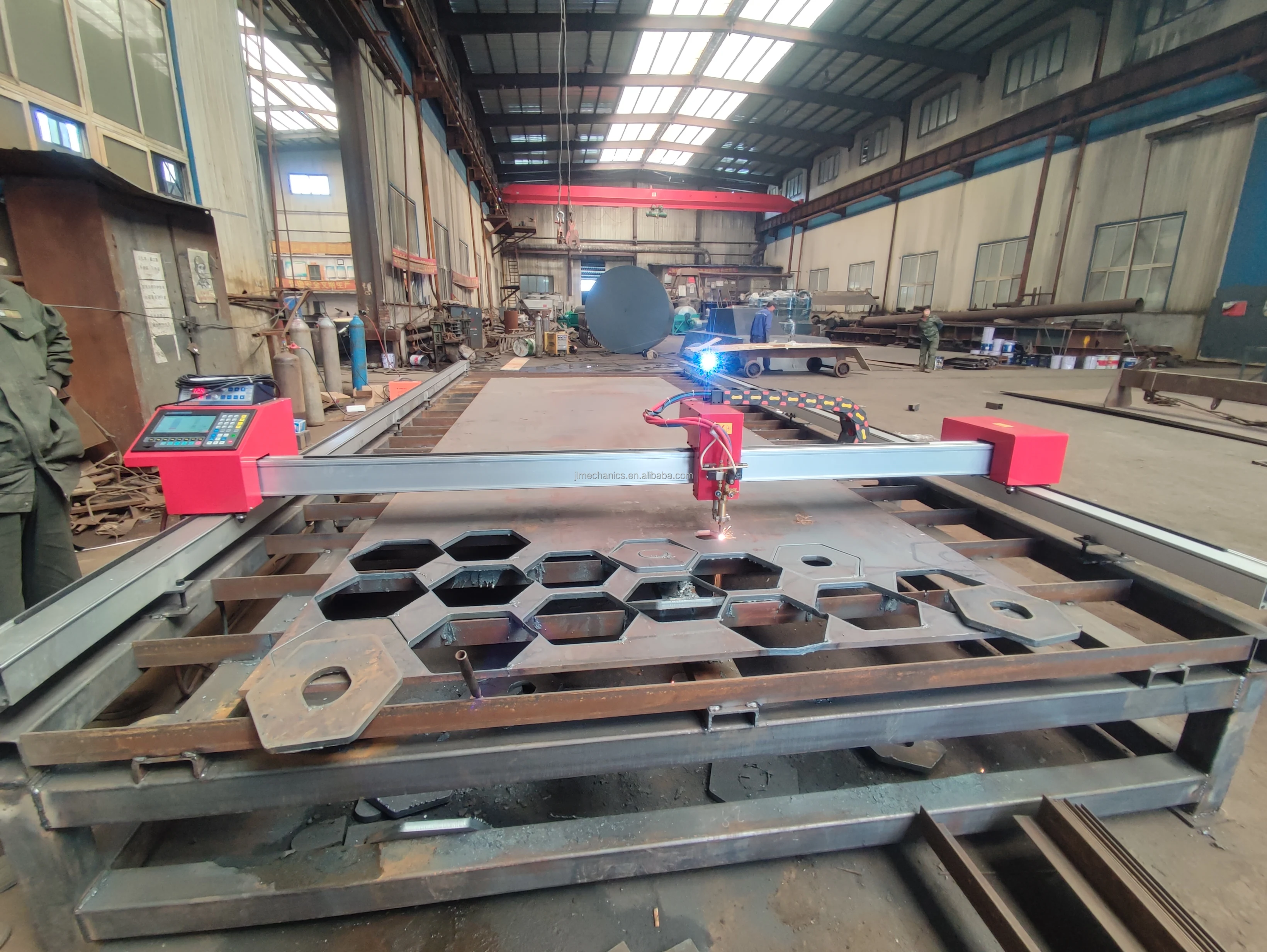

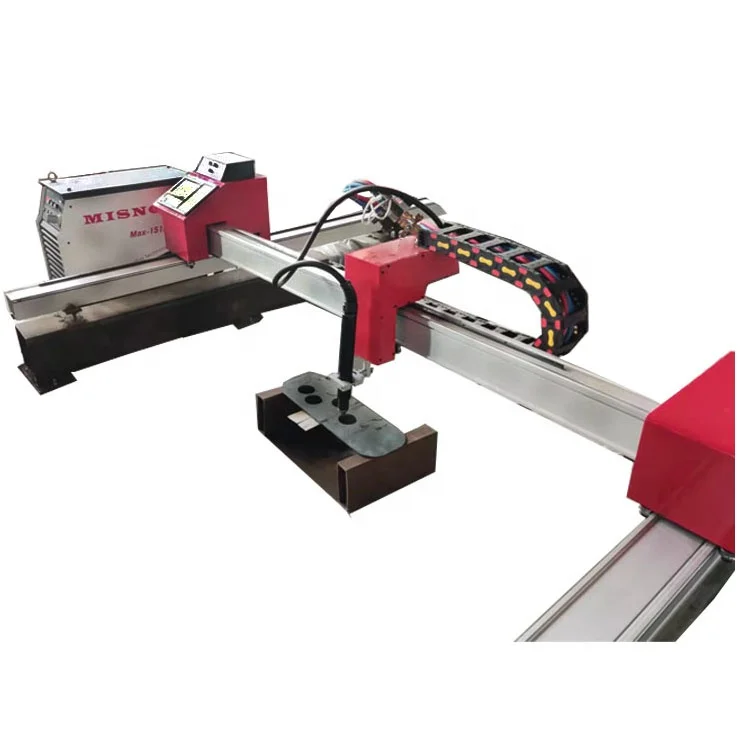

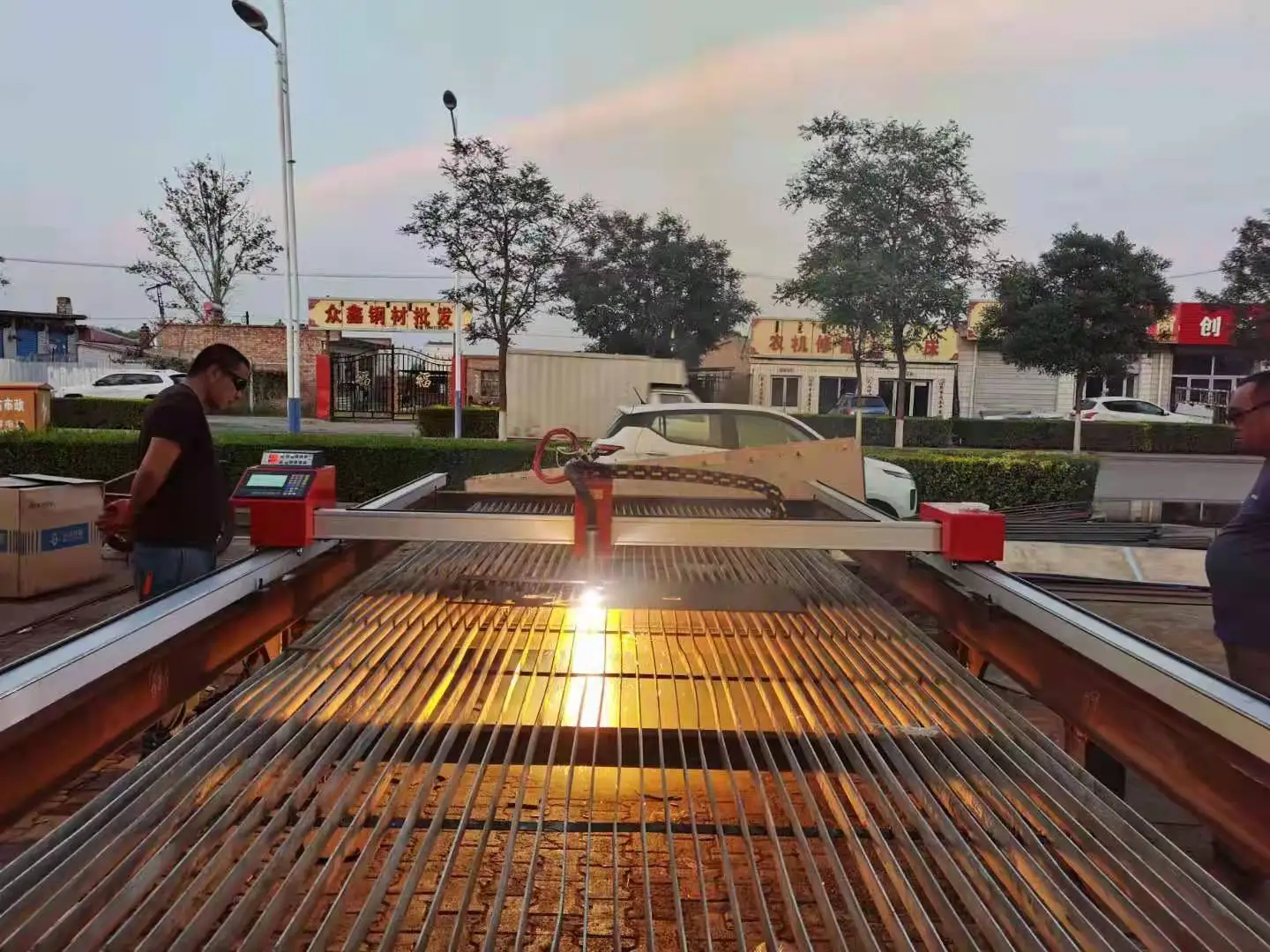

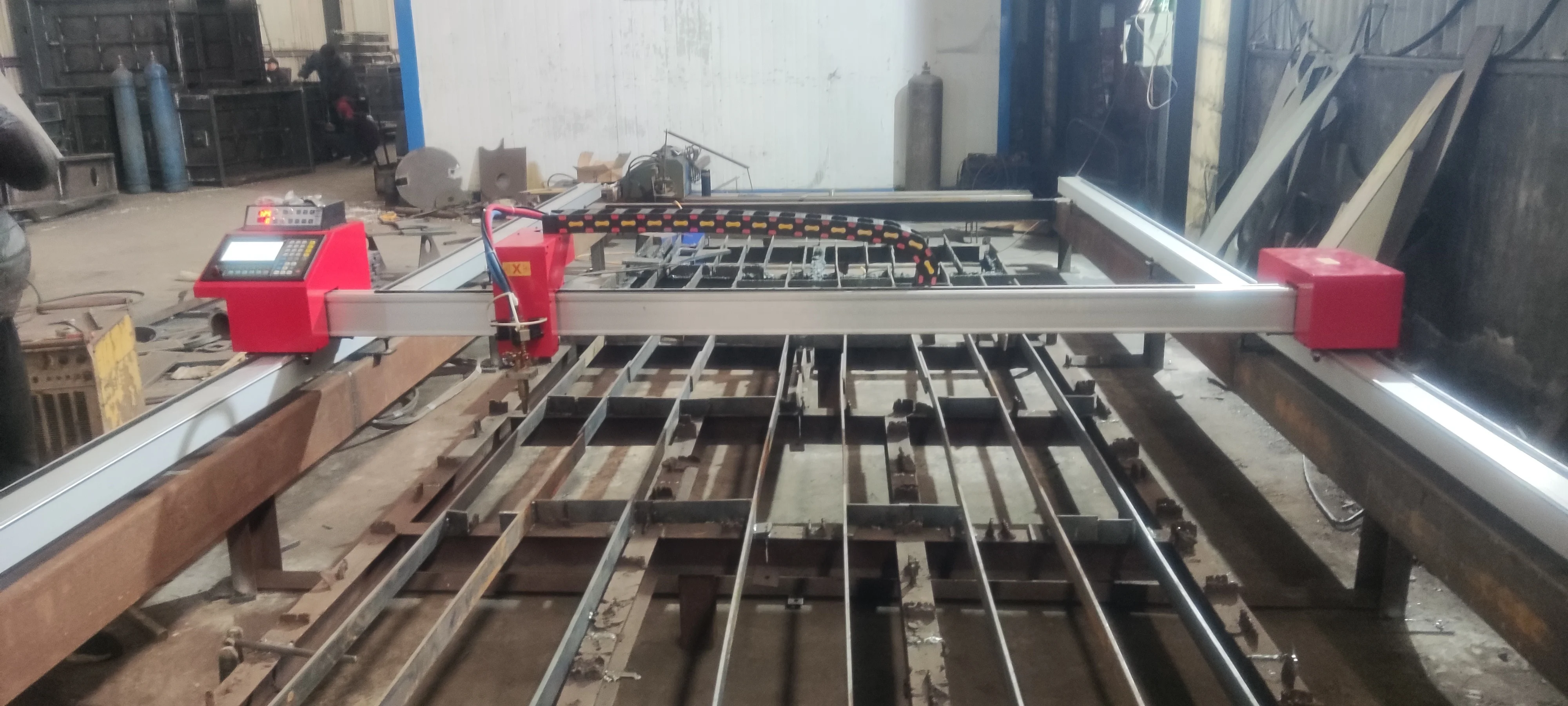

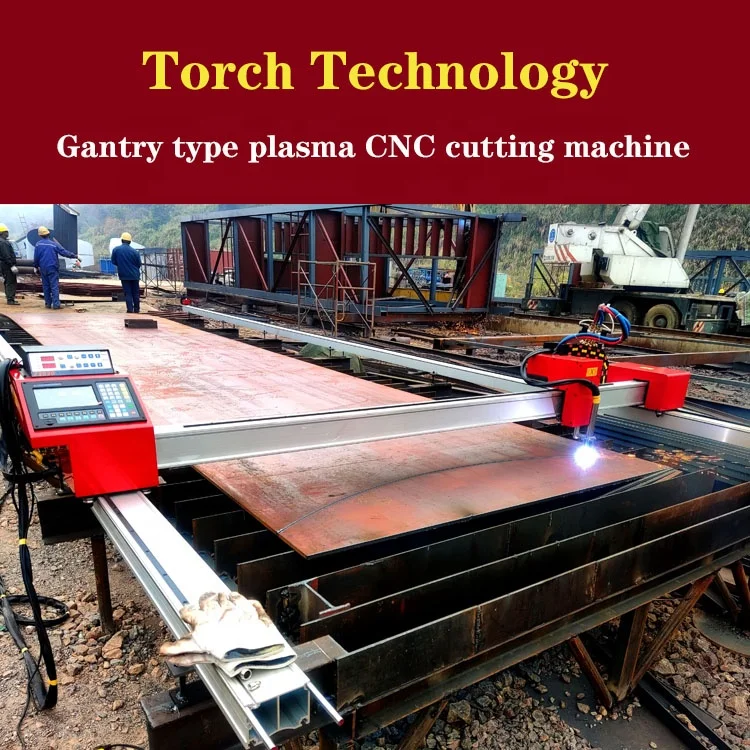

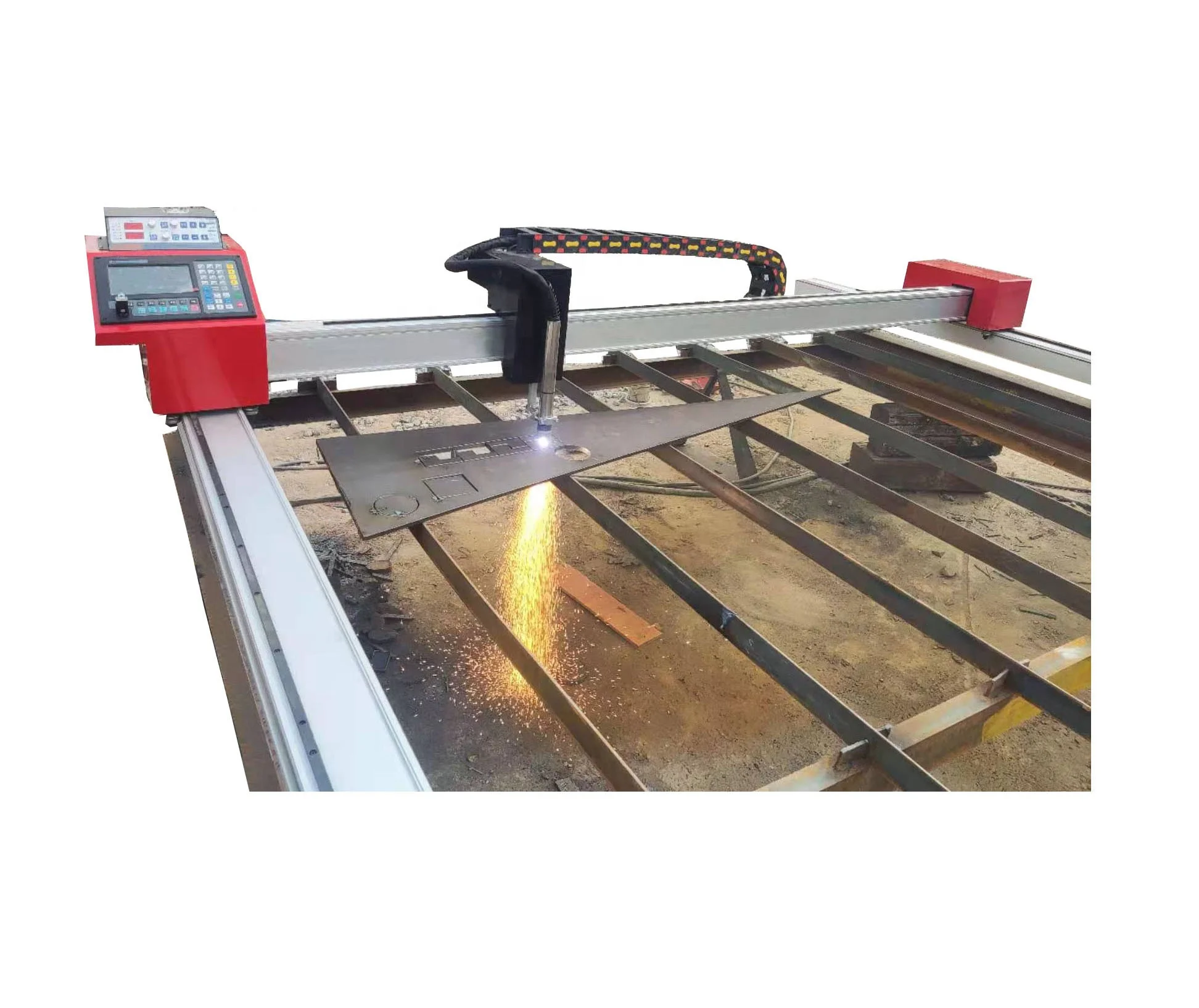

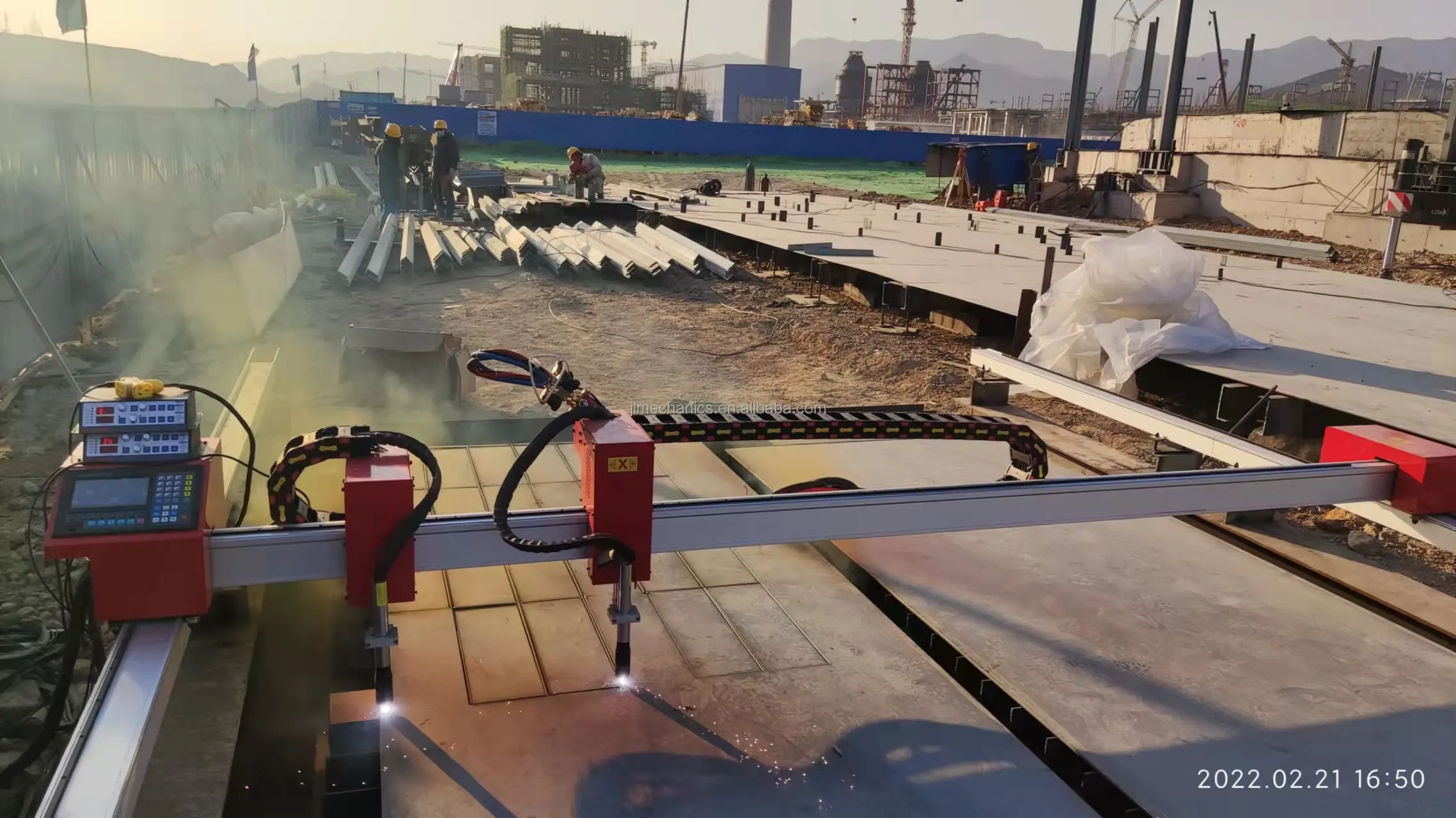

Portable gantry CNC plasma/flame cutting machine

Price:$1,190.00 - $1,340.00

Quantity:

specifications and models Can be customized	QXLM-1530
Longitudinal rail length/can be extended (mm)	3500
Effective cutting length/can be extended (mm)	1500
Effective Cutting Width	1800（Total width 2400mm）

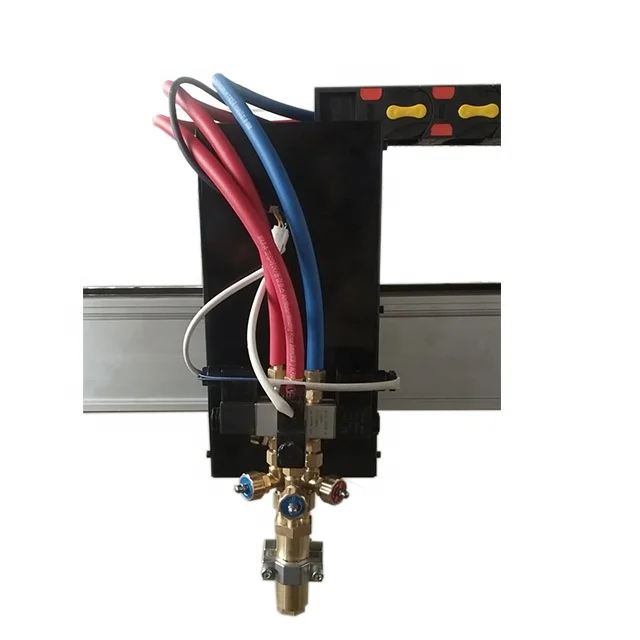

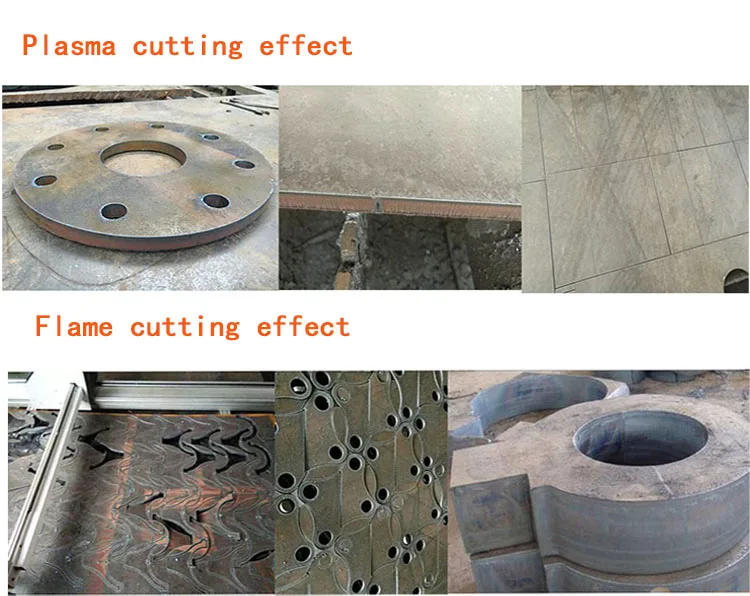

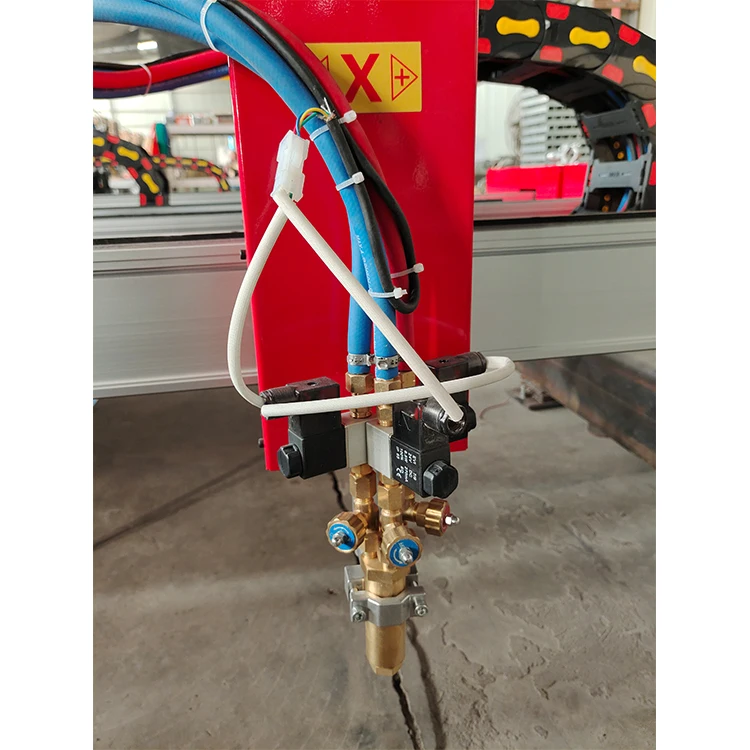

cutting ways	Oxygen/propane or acetylene; Air plasma cutting power supply is available
drive mode	Bilateral drive
running speed	Maximum blank line speed 8000mm/min, cutting speed depends on the cutting method
Standard of cutting quality and dimensional accuracy	JB/T 10045.4-1999 (Thermal cutting plasma arc cutting quality and dimensional deviation)
input power	500W ( Host power, excluding the power of the plasma power supply)
input voltage	220V/50HZ(uniphase)

Plasma automatic height adjuster

Simple operation intelligent lifting performance stable super power General purpose Square F1620/ Midfield 2020

Numerical control system F2100B

Display: 7 inch 800*480 high resolution 16 million color high brightness LCD screen● Memory: 64M SDRAM● User program space: 256M

New products from manufacturers at wholesale prices
