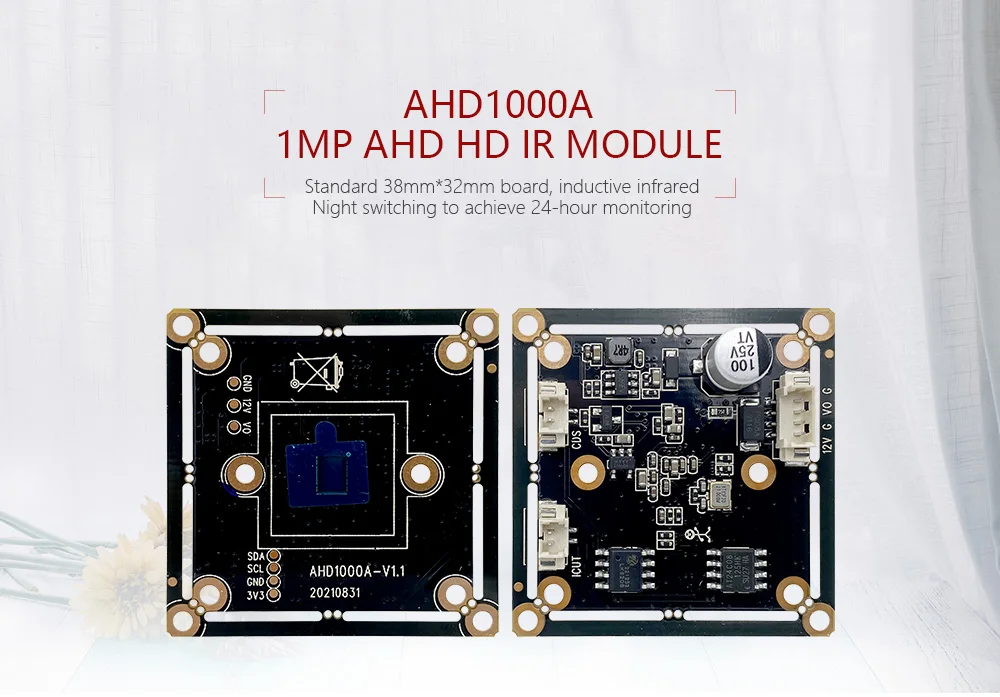

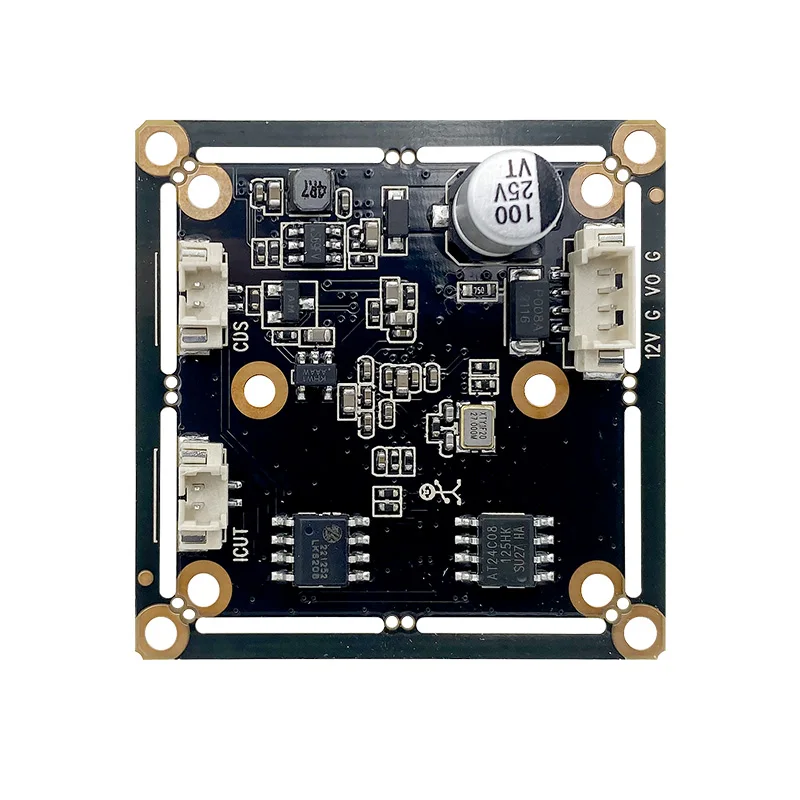

ON SALE!!! video security system AHD1000A HD OEM camera module AHD 1MP CCTV
- Category: Surveillance Products >>>
- Supplier: Hangzhou Topsvision Technology Co. Ltd.
Share on (1600499240091):
Product Overview
Description
We have our own factory and professional R&D team, worry-free after-sales.
Welcome to visit the factory! Looking forward to working with you！
PRODUCT DESCRIPTION
Features
* Super-high cost performance；
* 720P HD image, effective resolution 1280*720, no delay, no compression, low power consumption, real-time transmission, low illumination;

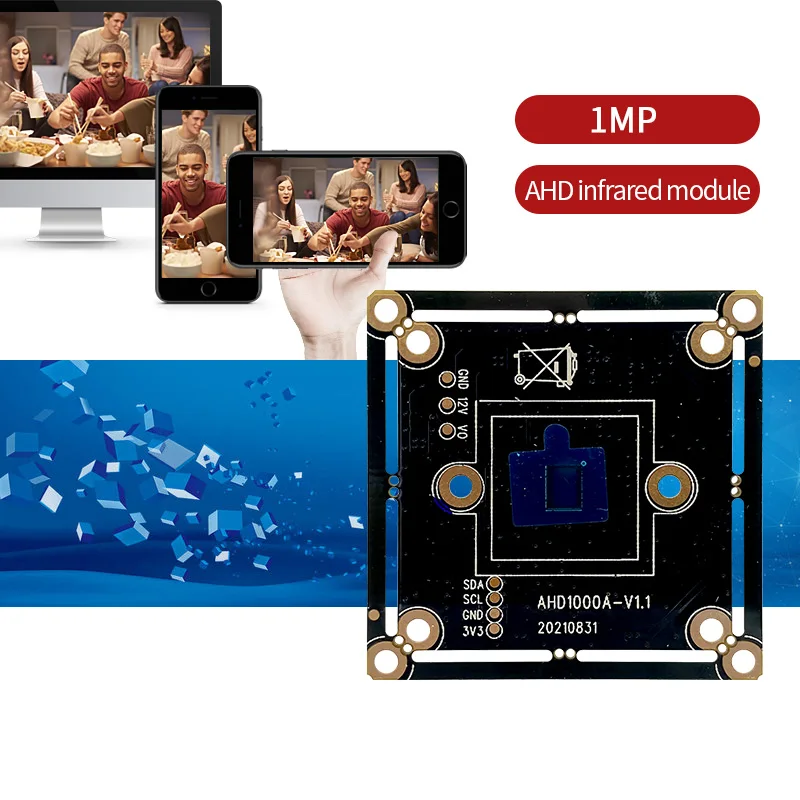

* 1MP pixel、1/4″Target surface、Standard 38mm * 32mm plate；
* Support infrared day and night switching, realize 24-hour monitoring；
* 25*4 pin standard output interface, AHD output;
* electric video double lightning protection design, electric lightning protection 3KV, video lightning protection 6KV;
* 720P HD image, effective resolution 1280*720, no delay, no compression, low power consumption, real-time transmission, low illumination;
* 1MP pixel、1/4″Target surface、Standard 38mm * 32mm plate；
* Support infrared day and night switching, realize 24-hour monitoring；
* 25*4 pin standard output interface, AHD output;
* electric video double lightning protection design, electric lightning protection 3KV, video lightning protection 6KV;
Product Paramenters
Specification and model | CAM 1000A |
Sensor | 100W Pixel,TS100AP 1/4’’CMOS sensor |
Signal mode | AHD |
Effective pixel | 1280 (H) × 720 (V) |
Standard | 1MP 25 FPS*S / 30 FPS*S |
UTC | nonsupport |
HD switch | nonsupport |
IR-CUT drive | Wide voltage drive |
IR-LED drive | External signal input controls IRC and B / W switching |
Signal to noise ratio | self-adaption |
Noise reduction | self-adaption |
White balance | automatic |
Input power | DC8-16V / DV12-30mA |
Protection design | 2000V video port anti-lightning/anti-connection reverse design |
Wide dynamic | Digital wide dynamic/automatic shutter |
video output | 1.0Vp-p, 75Ω |
Minimum illumination | F1.2/0.03Lux/200mV |
Size | 38-38/32-32mm |
power dissipation | <1W |

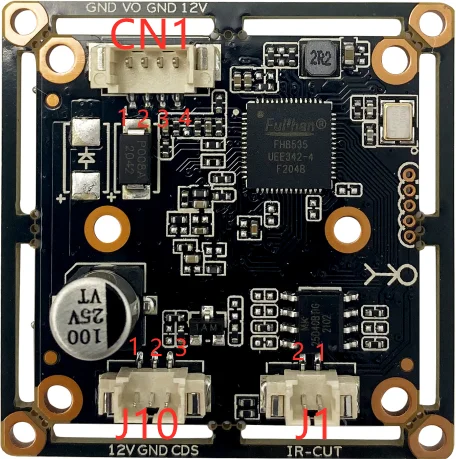

CN1 (Interface clearance/ 1.25 mm)
1. GND
2. Video output
3. GND
4. 12V DC Input
J10 (Interface clearance/1.5 mm)
1. 12V DC Input
2. GND
3. Infrared output
J1 (Interface clearance/1.25 mm)
1. IRC drive
2. IRC drive
3. GND
4. 12V DC Input
J10 (Interface clearance/1.5 mm)
1. 12V DC Input
2. GND
3. Infrared output
J1 (Interface clearance/1.25 mm)
1. IRC drive
2. IRC drive

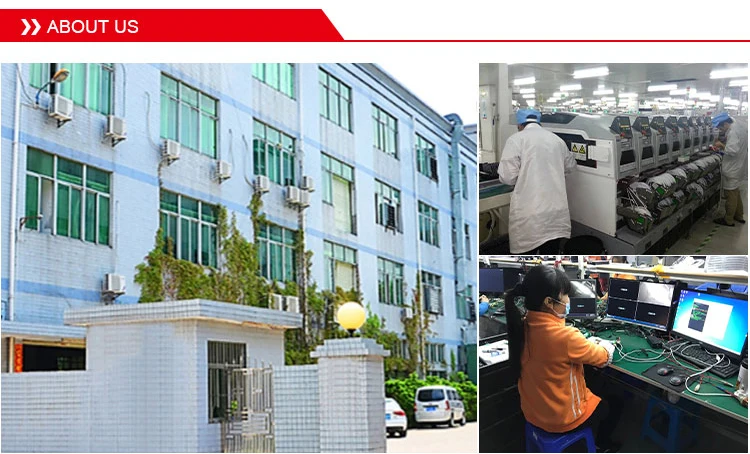

HangZhou TaoShi Technology Co., Ltd. was established in November 2012. It is an excellent enterprise focusing on the design of video surveillance products. The company's main products include XVR five-in-one series, AHD five-in-one series, and H.265 NVR and IPC. The company has a strong R&D team, the team members are vigorous, active, united, harmonious, and endowed with innovative spirit, and constantly expand new knowledge fields, gaining knowledge and accumulating, accumulate and develop！As a young company, TaoShi Technology adheres to the corporate spirit of "Integrity, Responsibility, Efficiency, and Pursue Excellence". It is customer-centric, provides the most comprehensive technical support, assists customers in expanding the market, and strives to create a win-win cooperation.
333
Q1: Are you a factory?
A: Yes, we have our own factory in Shenzhen. Welcom to visit our company if you have free time.
Q2: Do you provide free sample?
A: Yes, we could offer free sample for some items, but do not pay the cost of freight.
Q3: Can I make my own logo on it?
A: Of course. We suppot OEM and ODM service, including color, logo, package, size etc.
Q4: What's your MOQ?
A: For orders supply from stock, the MOQ is 1 pcs. For OEM or ODM orders, the MOQ is 500 pcs.
Q5: Can I add or delete items from my order if I change my mind?
A: Yes, but you need to tell us asap. If your order has been done in our production line, we cannot change it. It is about 2 days after confirming the order.
