Price:$92,000.00 - $93,000.00

Quantity:


Product Overview

Description








GS-HS
GS-HS plastic injection machine of oil-electric compound system control series is the product newly developed by Guangsu Company with features of economic benefits, energy saving, high response and low noise.

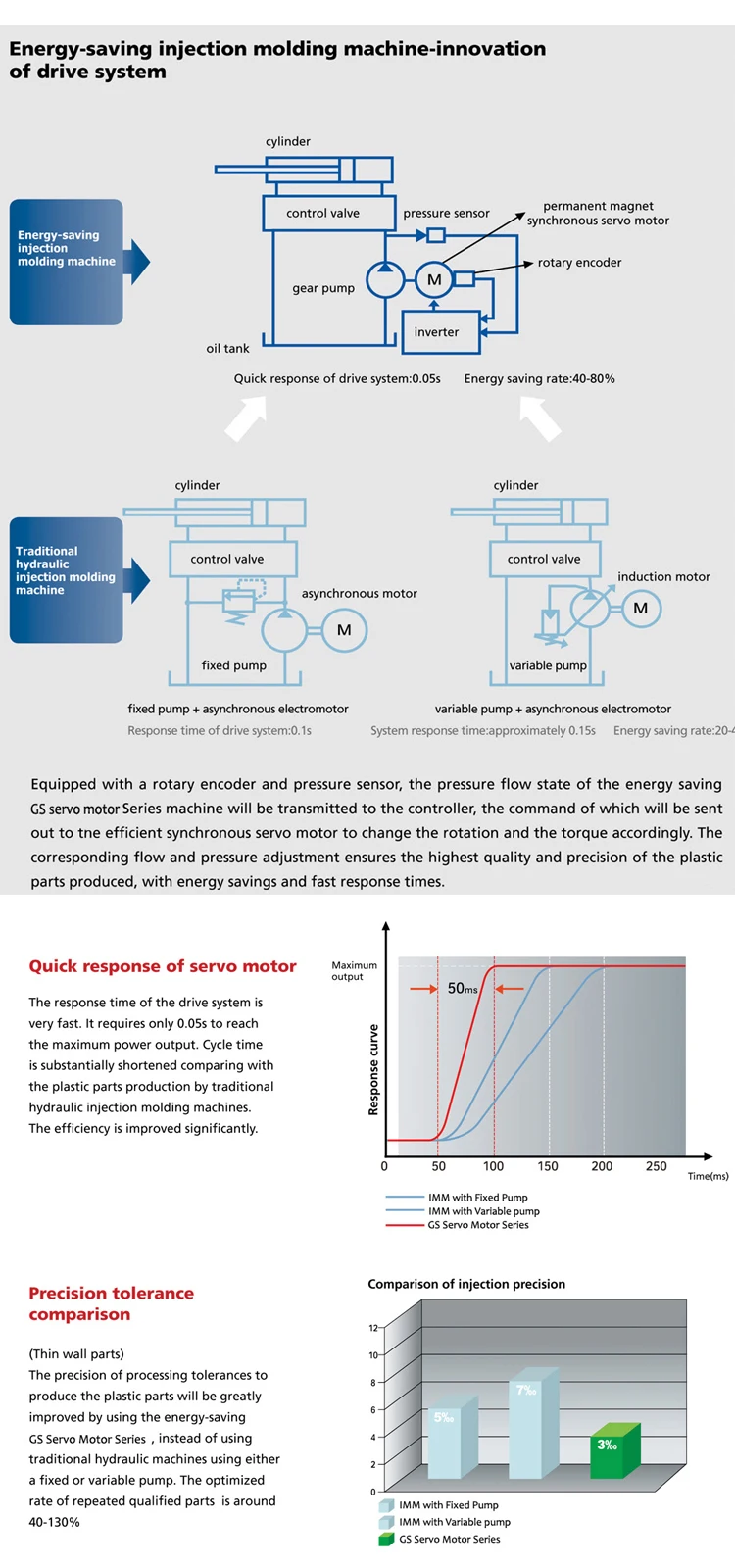

Structure principle: during actual working status, the system directly feedbacks the pressure-flow rate signal through exit pressure sensor of oil pump and cycloscope to the high speed servo driver. The servo driver gives out electric signal to servo driving motor and oil pump, allowing for corresponding change of pressure and flow rate, therefore, the closed circuit control of pressure and flow rate is realized.


Energy-saving

Super low energy consumption, saving energy about 30% as compared to load sensitive variable pump, and about up to 80% as compared to constant flow pump, and its energy saving effect is comparable to the fully electric forming machine.
Low noise and Easy operation

Reduce greatly the noise produced by pressure control operation.Parameters setting and system speed adjustment are very simple digital operations. The customer only needs to operate the control panel just like common machine.
Reducing cost for long term and High performance
Realize energy saving and reduce running cost. Compared to electric type, the initial investment and maintenance cost is reduced greatly.
High response (30ms-130ms), high stability, accurate repeatability and energy saving.

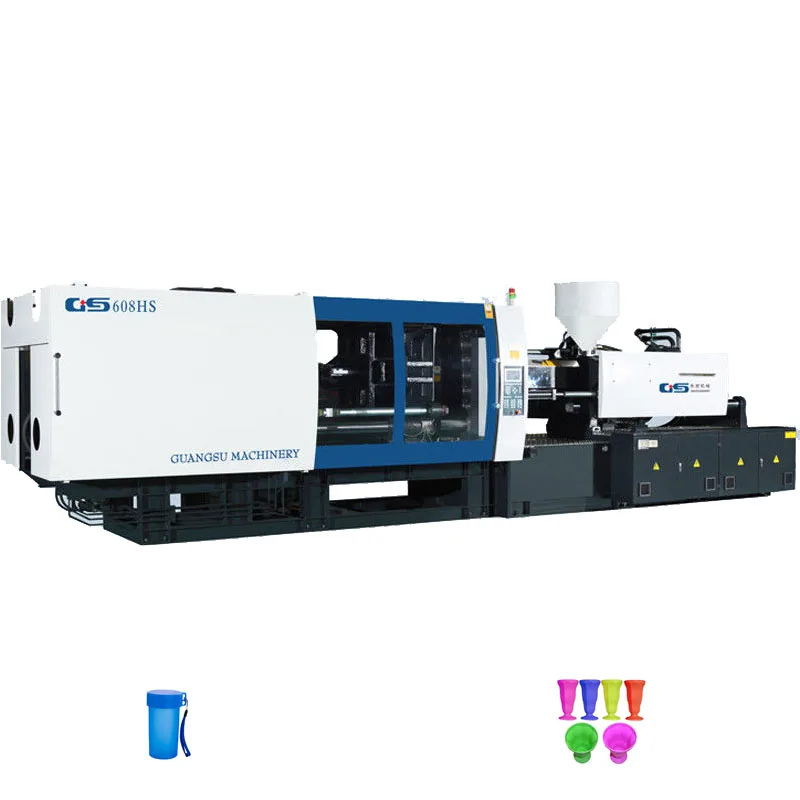

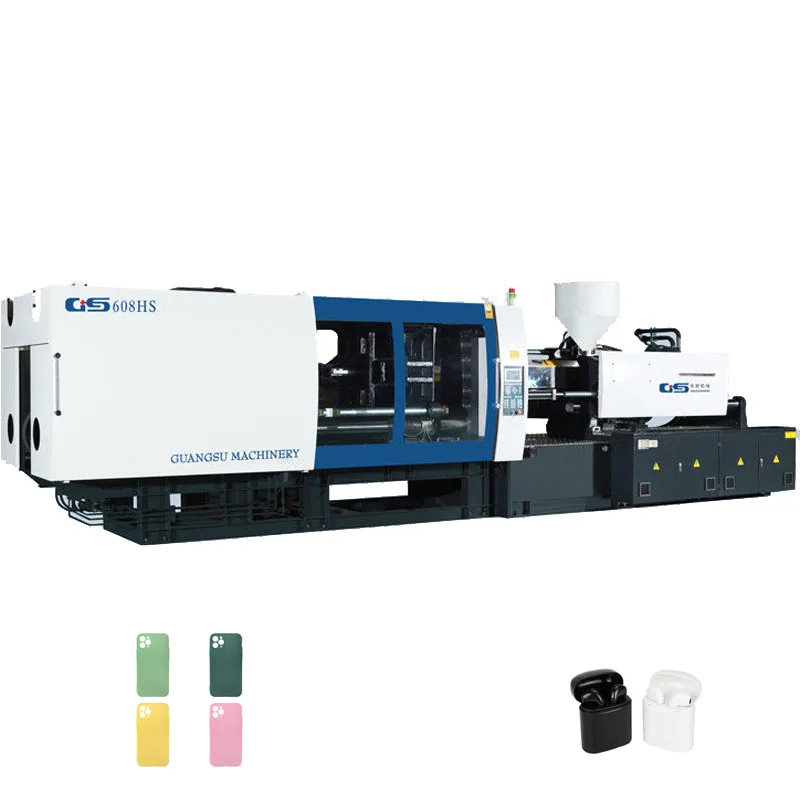

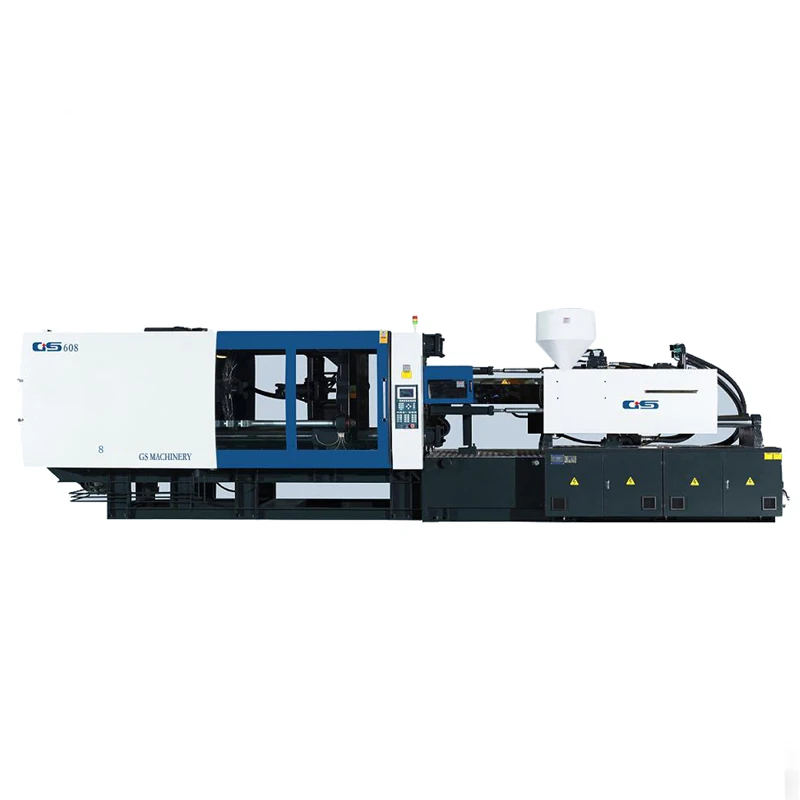

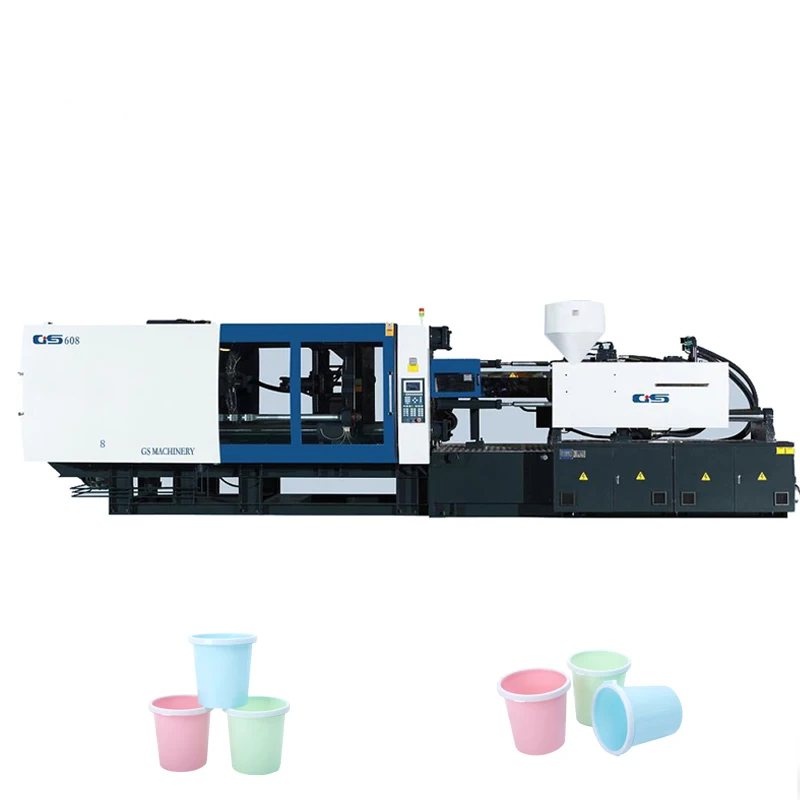

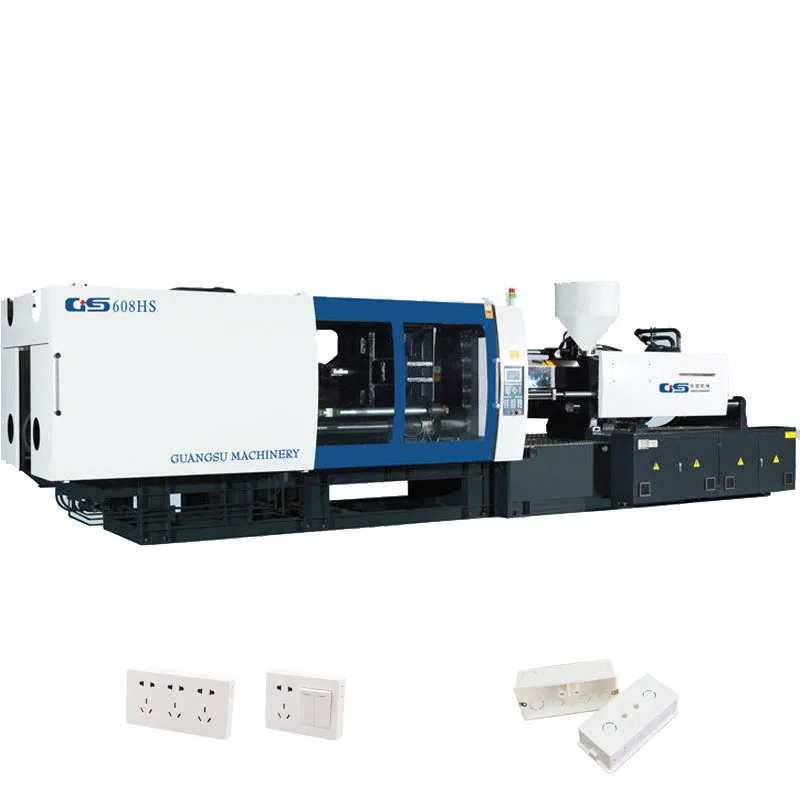

GS608
Injection Unit
A
B
C
D
Screw Diameter(mm)
80
85
90
100
Length/Diameter Ratio
21.2
20
18
17.6
Theoretical Shot Volume(cm³)
2362
2667
2990
3691
Injection Weight(PS)(g)
2150
2427
2721
3359
Theoretical Injection Pressure(MPa)
184
163
146
118
Injection Rate(PS)(g/s)
475
536
601
742
Plasticizing Capacity(g/s)
94
112
130
167
Maximum Screw Speed(rpm)
135
Injection Stroke(mm)
470
Clamping Unit
Clamp Tonnage(kN)
6080
Toggle Stroke(mm)
900
Space Between lie Bars(H*V)
880*880
Max.Mold Height(mm)
880
Min.Mold Height(mm)
350
Daylight Opening(mm)
1780
Ejector Stroke(mm)
240
Ejector Tonnage(kN)
158
Ejector Number(Piece)
21
Others
System Pressure(MPa)
16
Pump Moter Power(kW)
(HS)30+30
Heater Power(kW)
44.3
Machine Dimension(L*W*H)(m)
8.81*2.27*2.45
Machine Weight(t)
22
Hopper Capacity(Kg)
100
Oil Tank Capacity(L)
640
