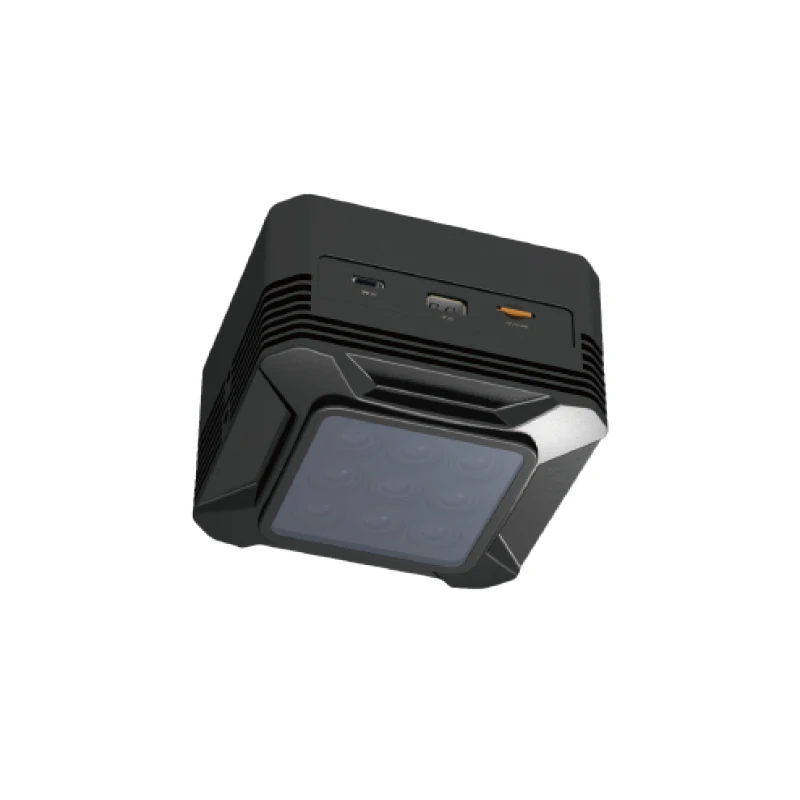

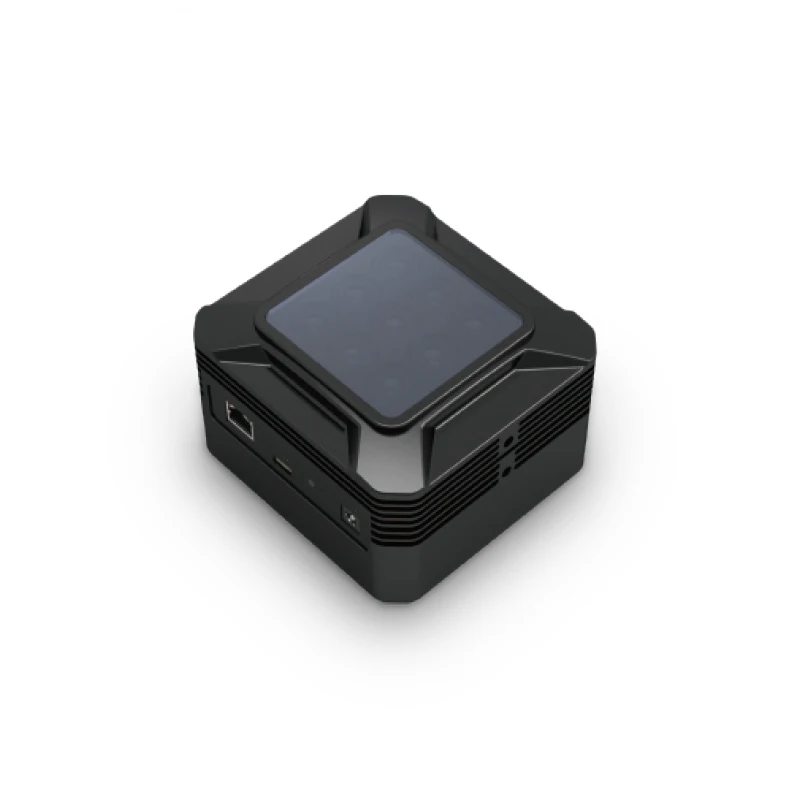

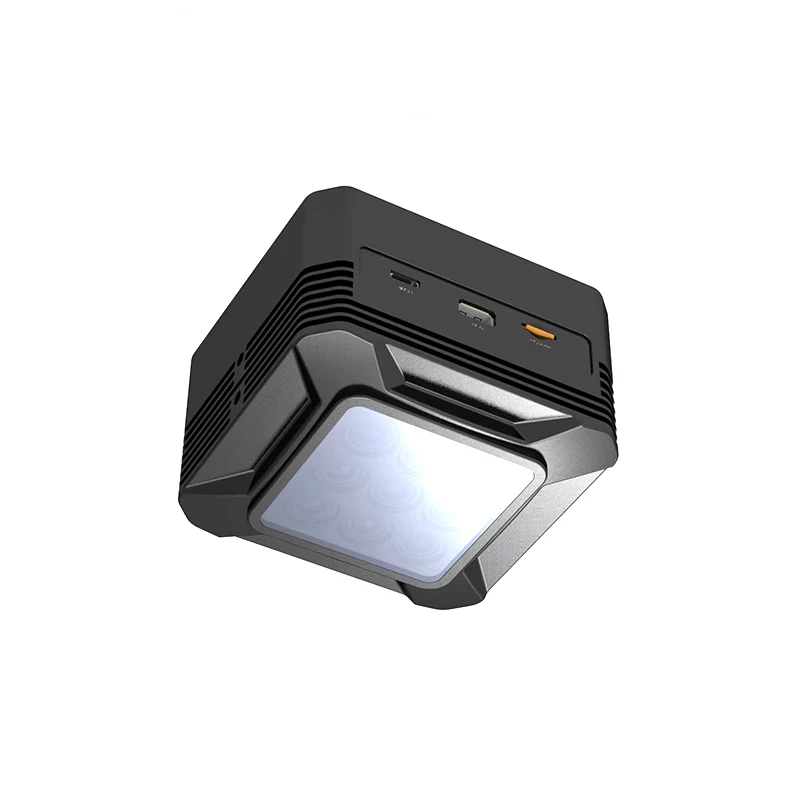

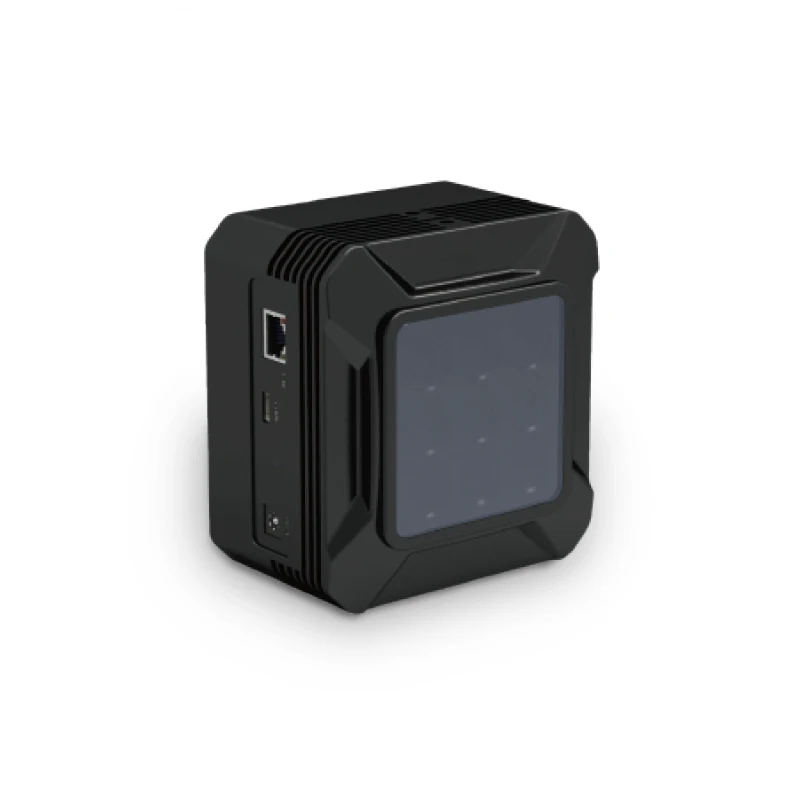

High precision Analysis Application Radiometric Calibration Industrial Machine Vision Spectral Camera
- Category: Surveillance Products >>>
- Supplier: SmartMore Corporation Limited
Share on (1600502145824):
Product Overview
Description
Product Description
Video spectral cameras are widely used in mounted, portable, indoor and other application scenarios, and can quickly and accurately obtain spectral information in fields such as industrial inspection, ecological environment, and precision agriculture on demand. The product can combine the spatial image information and spectral information of the target object, and use the spectral characteristics of different parts or components of the target object to perform non-destructive, non-contact, fast and
efficient accurate acquisition, discovery and identification, classification screening and analysis applications.
efficient accurate acquisition, discovery and identification, classification screening and analysis applications.
Product Features
◆8 channels, can collect more spectral information
◆Various spectral band options, providing a strong data base
◆Support multi-spectral + color RGB simultaneous imaging
◆1440*1080 HD image resolution
◆Higher acquisition frame rate
◆ Real-time image transmission, real-time viewing of calculation results, and unusual conditions being clear at a glance
◆Support UAV (fixed-wing, rotary-wing, etc.) flight platform integration
◆High-precision radiometric calibration with real-time correction of ambient light radiation. More accurate spectrum data acquisition
◆Domestic, independent intellectual property rights, independent and controllable
◆Various spectral band options, providing a strong data base
◆Support multi-spectral + color RGB simultaneous imaging
◆1440*1080 HD image resolution
◆Higher acquisition frame rate
◆ Real-time image transmission, real-time viewing of calculation results, and unusual conditions being clear at a glance
◆Support UAV (fixed-wing, rotary-wing, etc.) flight platform integration
◆High-precision radiometric calibration with real-time correction of ambient light radiation. More accurate spectrum data acquisition
◆Domestic, independent intellectual property rights, independent and controllable
Specification
Multispectral imaging | 7+RGB |
Multispectral band | (Standard) 450 nm, 550 nm, 650 nm, 720 nm (narrow band), 750 nm (narrow band), 800 nm, 850 nm (Optional) 410 nm, 490 nm, 530 nm, 570 nm, 600 nm, 660 nm, 680 nm, 720 nm, 750 nm, 780 nm, 900 nm |
Image sensor | 1/2.9 inch CMOS, global shutter, 1.55 million pixels |
Image resolution | 1440*1080 |
Data depth | 12 bit |
Lens | Focal length f=5.0 mm, aperture F/2.0 |
FOV | HFOV: 52.8°，VFOV: 40.9° |
Typical width | 120*89 m@h=120m, ground space resolution: 8.28 cm@h=120 m |
Acquisition frame rate | 20 frames per second (real time) |
Spectral image format | IMG (ENVI standard) /TIFF/JPG |
Memory | MicroSD card, standard capacity 128GB |
Interface | 1 x RJ-45 Gigabit Ethernet port, 1 x USB3.0, 1 x Mini-HDMI, 1 x RS232, 2 x I/O ports |
Expansion | Can be extended through the interface to support GPS/IMU, WIFI, downlink opto-sensor |
Supported software | Dedicated spectrum acquisition control software, providing secondary development SDK |
Flying platform | Compatible with flying platforms (rotor UAV, fixed-wing UAV, unmanned airships, etc.) |
Shooting method | Can be collected in real time |
Power supply | DC 12 V/2 A |
Power consumption | ＜10 W |
Weight | 766 g |
Dimension | 123 mm*115 mm*79 mm |
Operating temperature | -20℃ to 50℃ |
Storage temperature | -20℃ to 60℃ |
