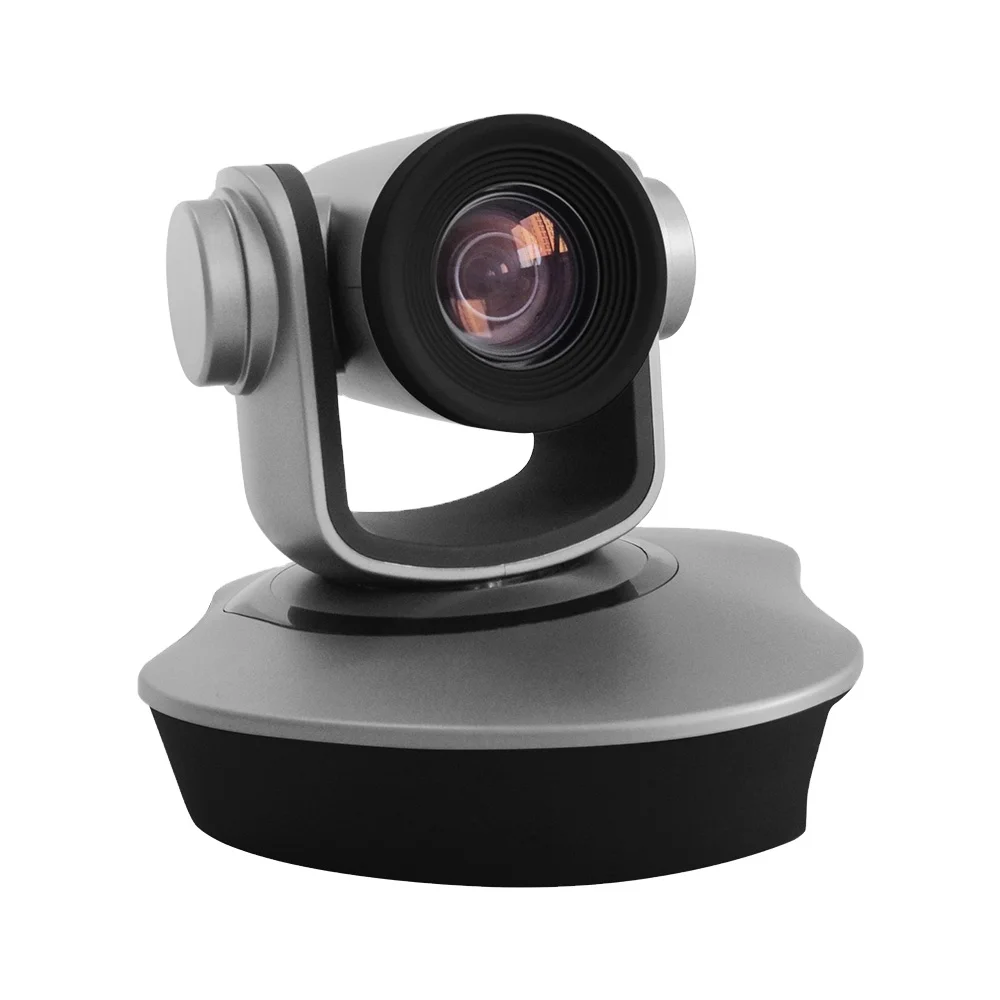

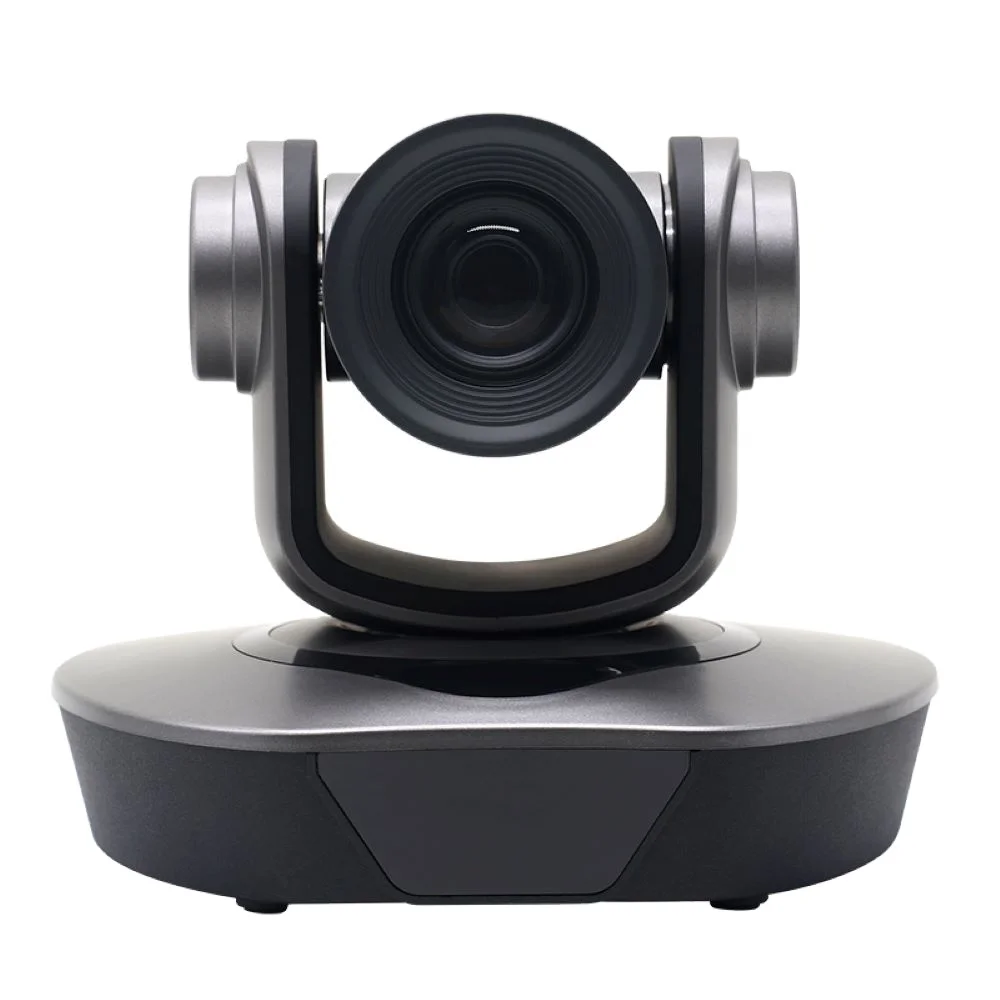

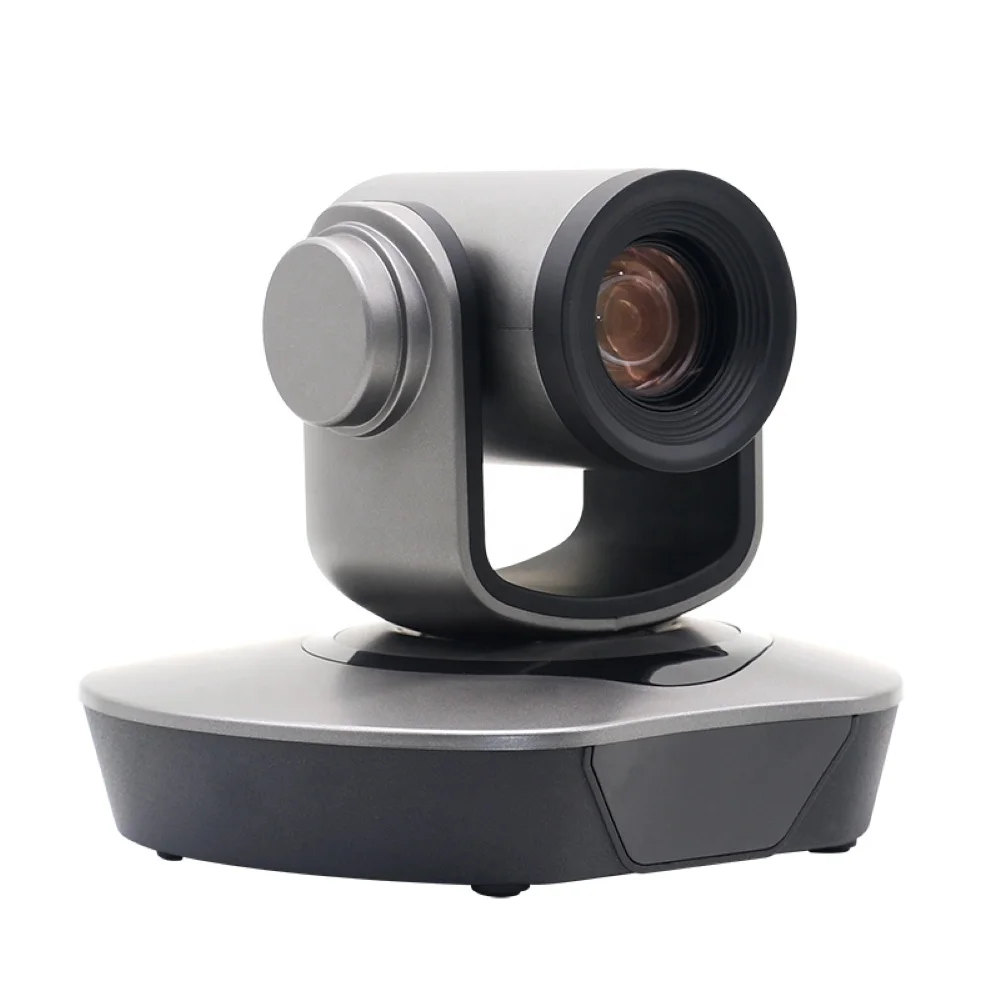

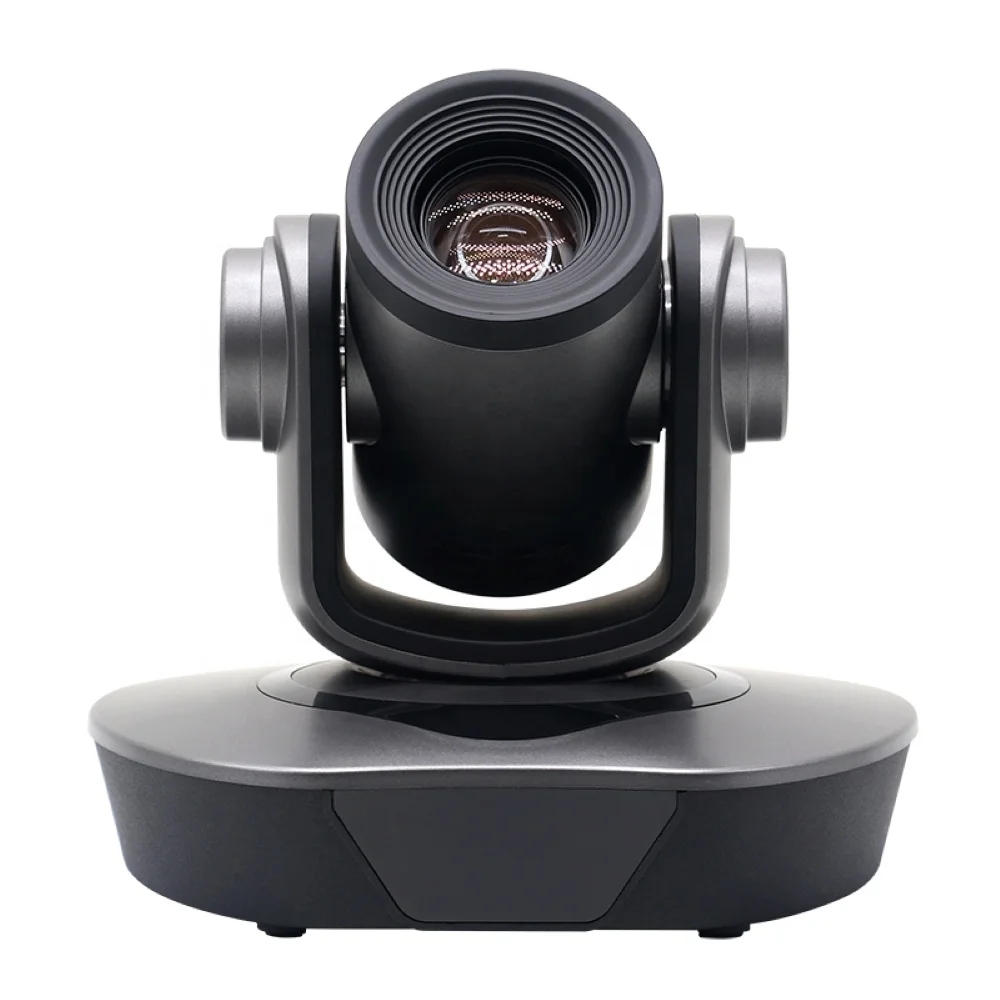

High performance medical surgical church web live streaming 1080P60 USB 3.0 /H DMI/Lan 20X zoom 360 PTZ camera conference

Mode

ZMK620U3

Optical Parameter

Sensor

1/2.8' inch CMOS

Effective Pixels

16:9 2.1 Megapixels

Resolution

USB3.0: 1080p60/50/30/25/10,720p60/50/30/25/20/10,USB2.0: 1080p10,720p25/20/10,800X600P60/50/30/25,640X480P60/50/30/25

Optical Lens

20X,F1.6~F3.5,f=4.7mm~94mm ,X12

Horizontal View Angle

20X,58.7°(wide-angle)~3.2°(distal)

Min illumination

0.1Lux

White Balance

Auto, Manual

Focus

Auto, Manual

Aperture

Auto

Shutter

Auto

Noise-Signal Ratio

≥50db

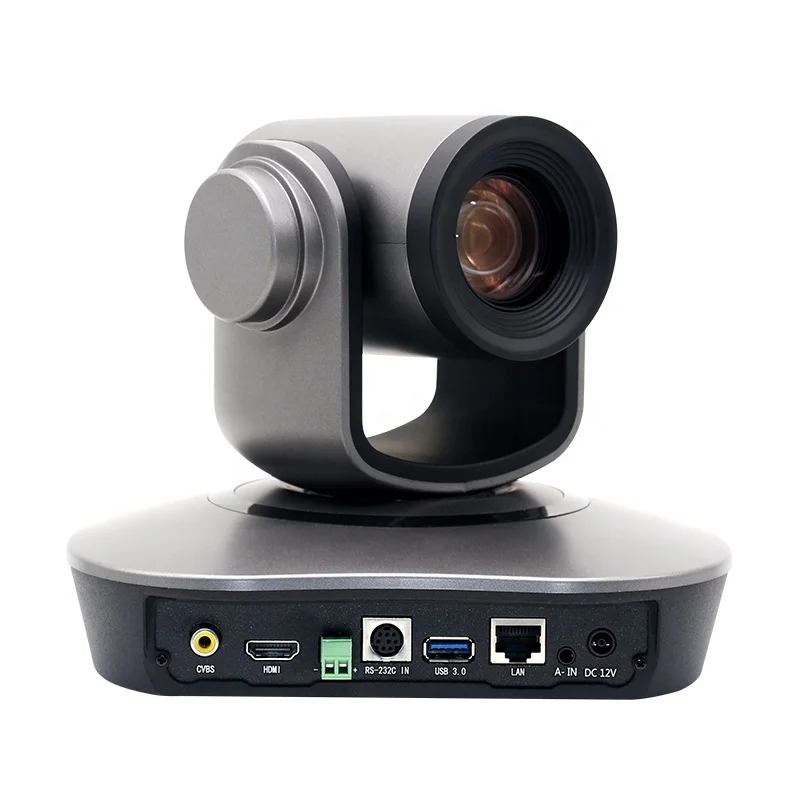

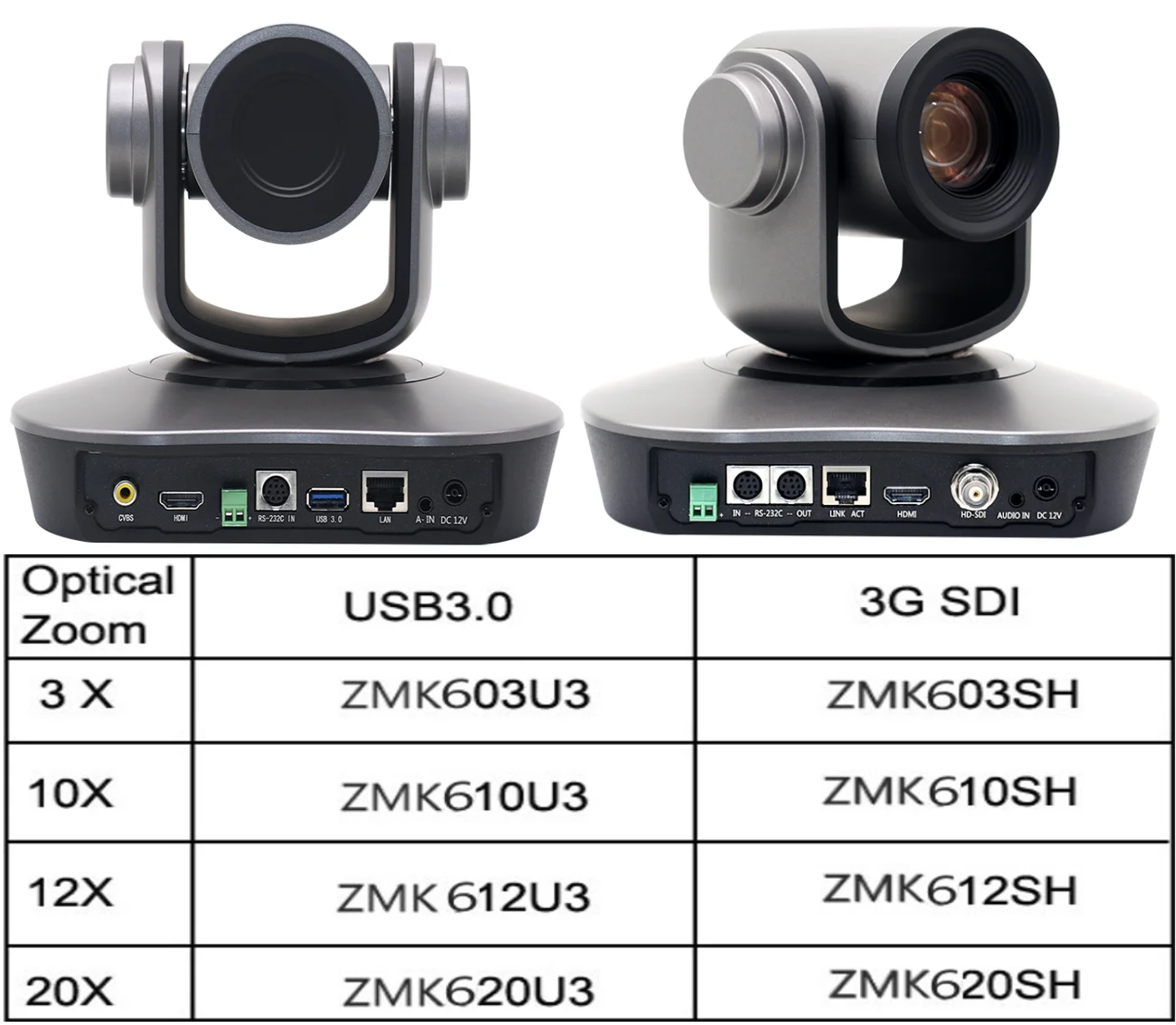

Input/Output interface

HD video interface

HDMI,USB3.0,RJ45,CVBS

Control signal interface

8 mini DIN

Control signal format

Baud rate:9600/4800/2400bps

Power interface

HEC3800 power socket

Support operating system

Windows XP,Vista,7,8, Windows 10, Mac OS X, Linux

USB protocol

UVC1.1

USB interface PTZ control

Support PTZ control

Mechanical Parameter

Pan-Tilt

Horizontal Angle: ±170°(Maximum speed: 100° /s);

Vertical Angle: -30° to +90°(Maximum speed: 60° /s)

Preset accuracy:±0.1°

No. of Preset Positions:255

Colour

Steel gray

Power adapter

AC110V-AC220V turn to DC12V/2A

Input voltage

DC12V(DC11.5-DC12.5V)

Power dissipation

12W(Max)

Storage Temperature

-10℃~+60℃

Working Temperature

0℃~45℃

Dimensions

(Length)156 × (Width)176 x (Height)170mm

Weight(Net weight)

2.5KG(1.3KG)

Environment

Indoor
