UAV radio detection system anti drone

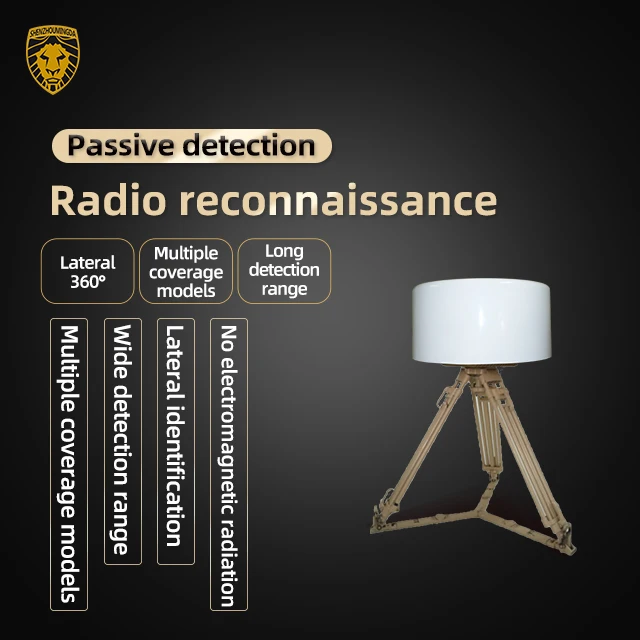

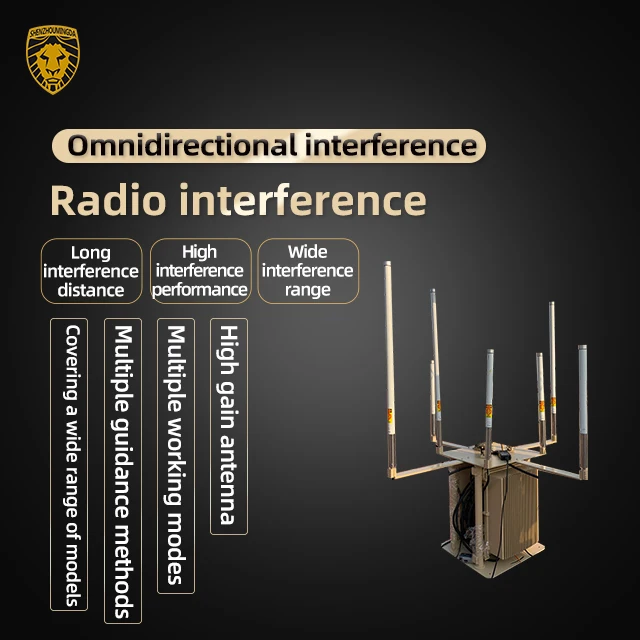

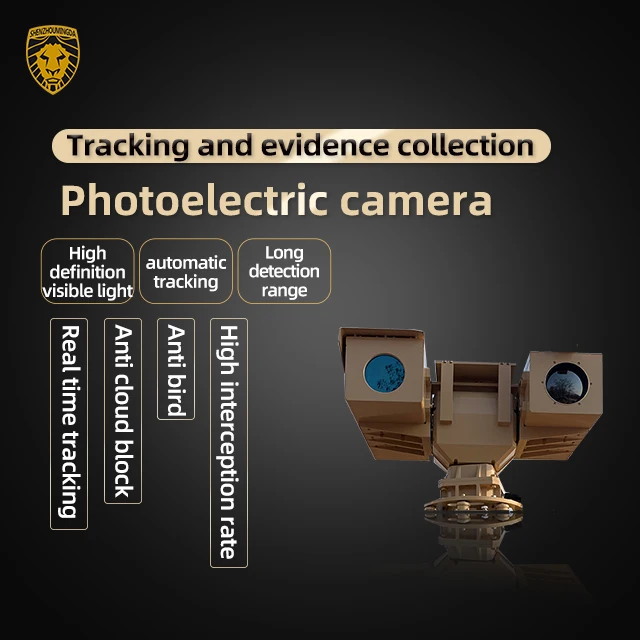

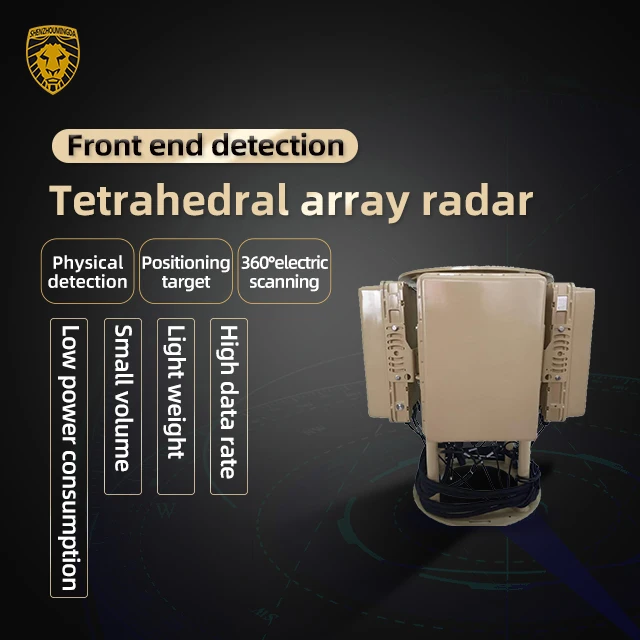

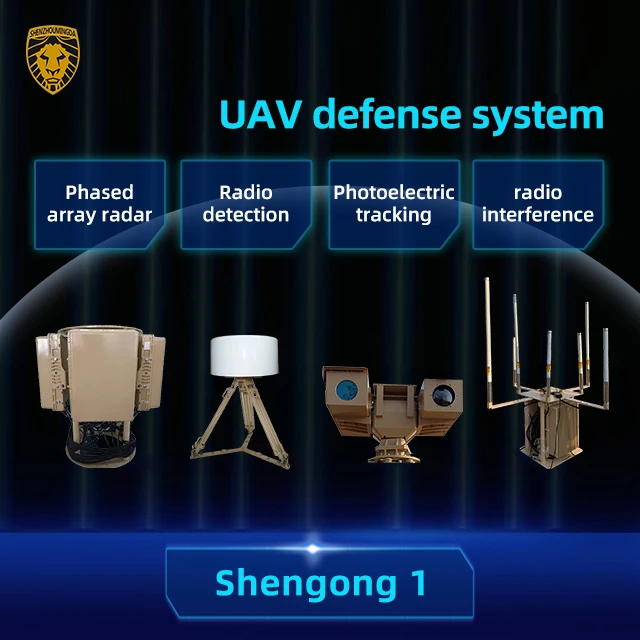

The automatic detection and defense system of UAV is composed of four main subsystems and modules: search system, photoelectric tracking system, RF interference system and display and control unit. Among them, the search system completes the functions of monitoring and position indication of low altitude targets in the mission area. It is composed of search radar and radio spectrum monitoring system. The search systems of the two systems can be used independently or together according to the environment to improve the detection performance; The photoelectric tracking system completes the automatic tracking function of the target, so that the omni-directional antenna of the radio frequency interference system can aim at the target in real time; The radio frequency interference system is used to complete the omni-directional radio frequency interference function to the GPS and wireless telemetry link of the target UAV, making the UAV out of control and unable to continue flying; The display and control unit mainly completes the state monitoring, control, situation display and human-computer interaction functions of the system.
