4G Sim беспроводной видеорегистратор мониторинг мини AHD система камер удаленный мониторинг сети 1080p AHD HD широкоугольная камера ночного видения

Product Overview

Description

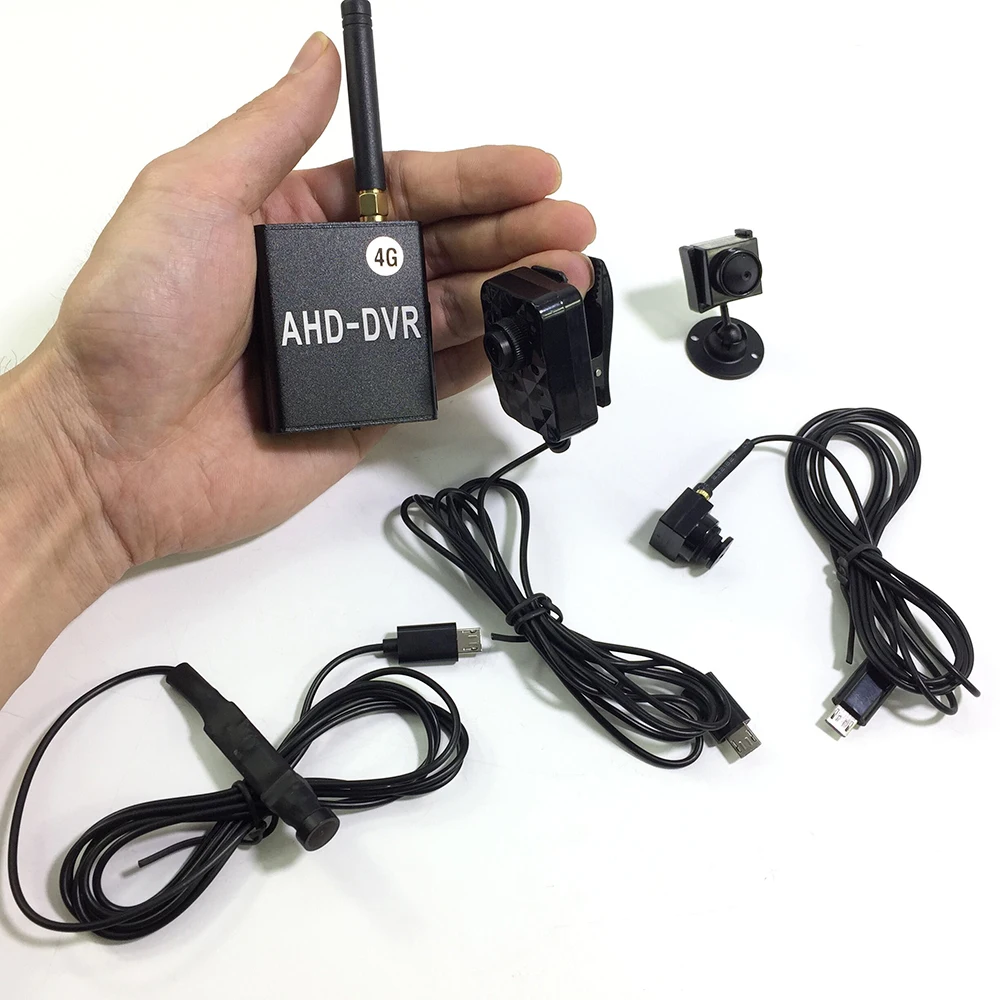

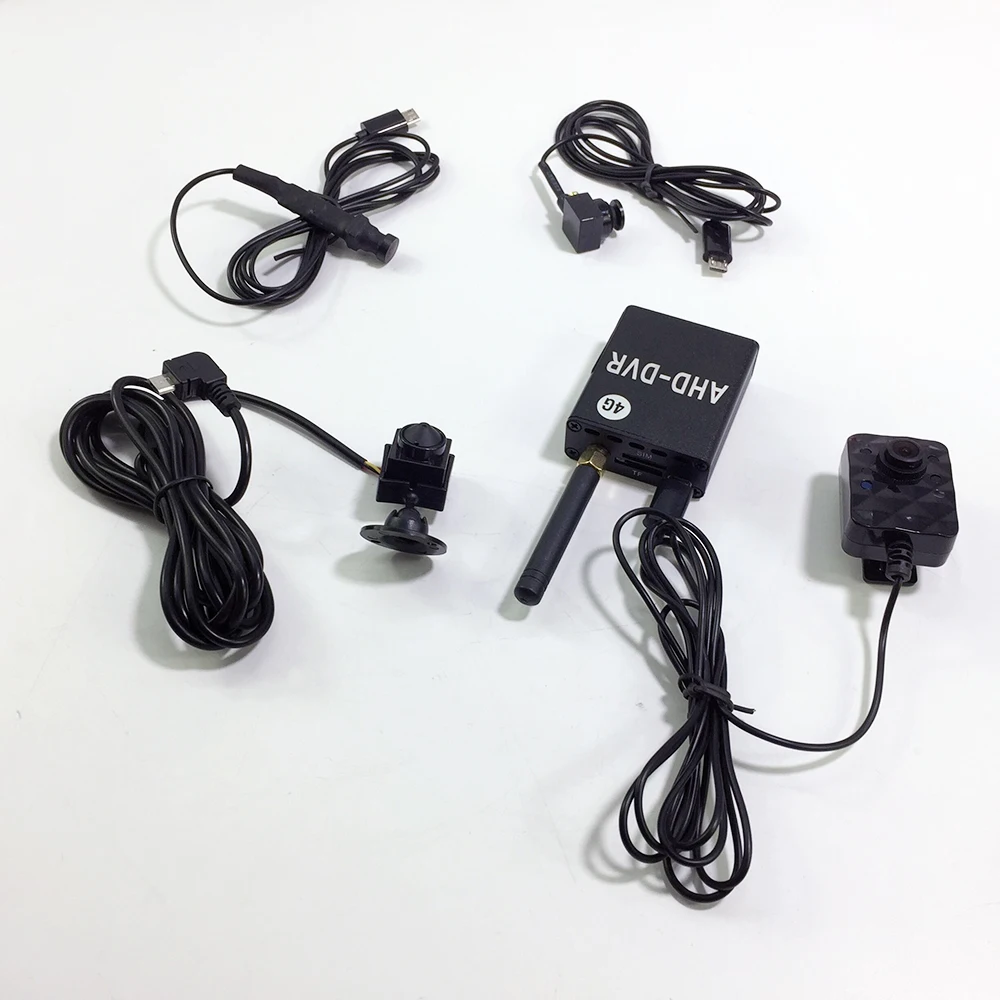

4G Sim Wireless DVR Monitoring Mini Camera System Remote Network Monitoring 1080p AHD HD Wide-Angle Camera Night Vision

Notice:

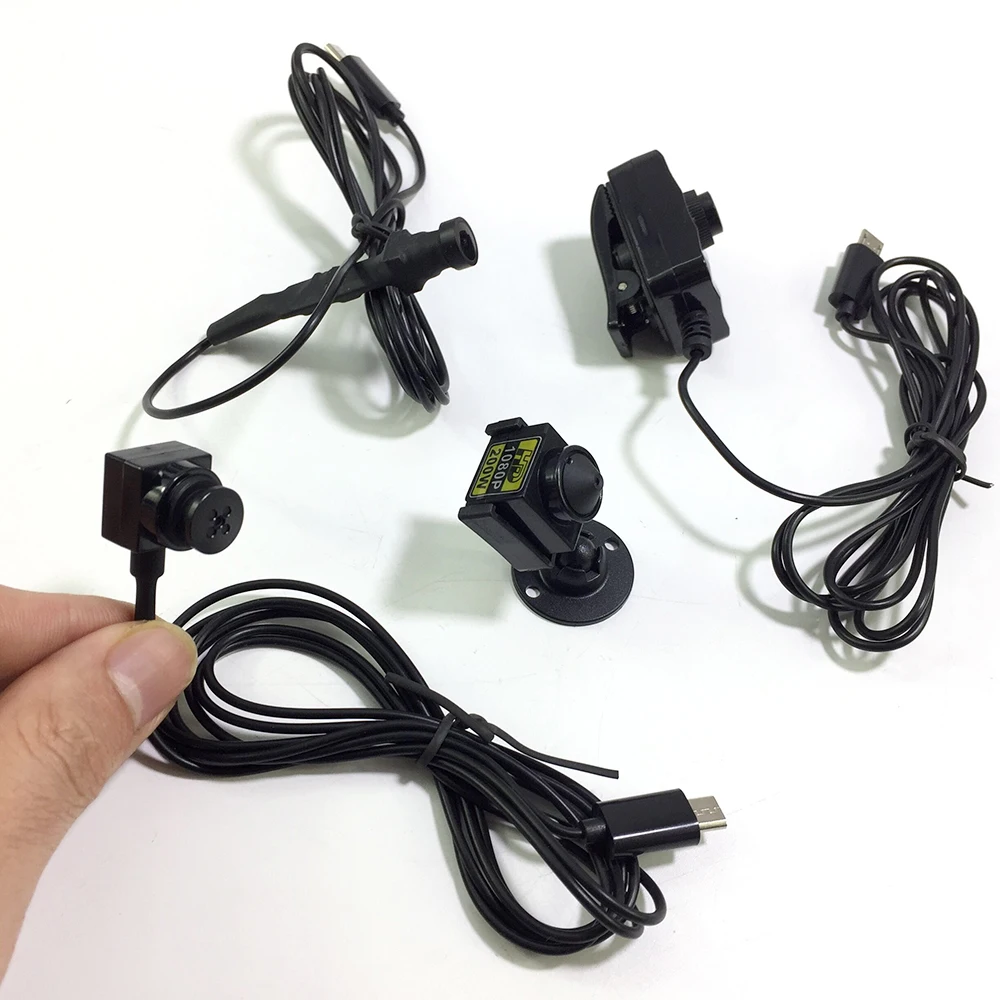

we have 18 type camera for the mini 4g ahd dvr , pls contact with our sales for more information!

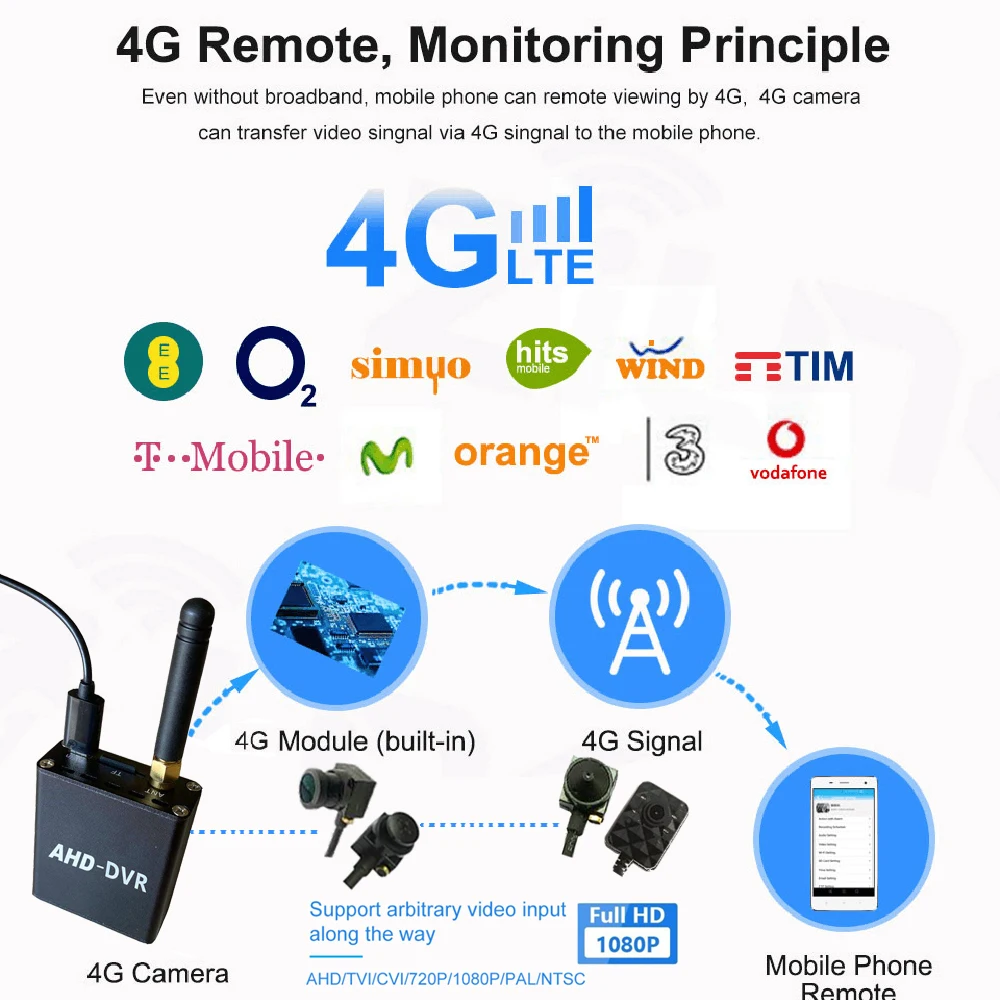

4G Micro SIM card HD DVR network supply Camera connect



4G LTE network supply, no worry about slow network or poor wifi coverage.

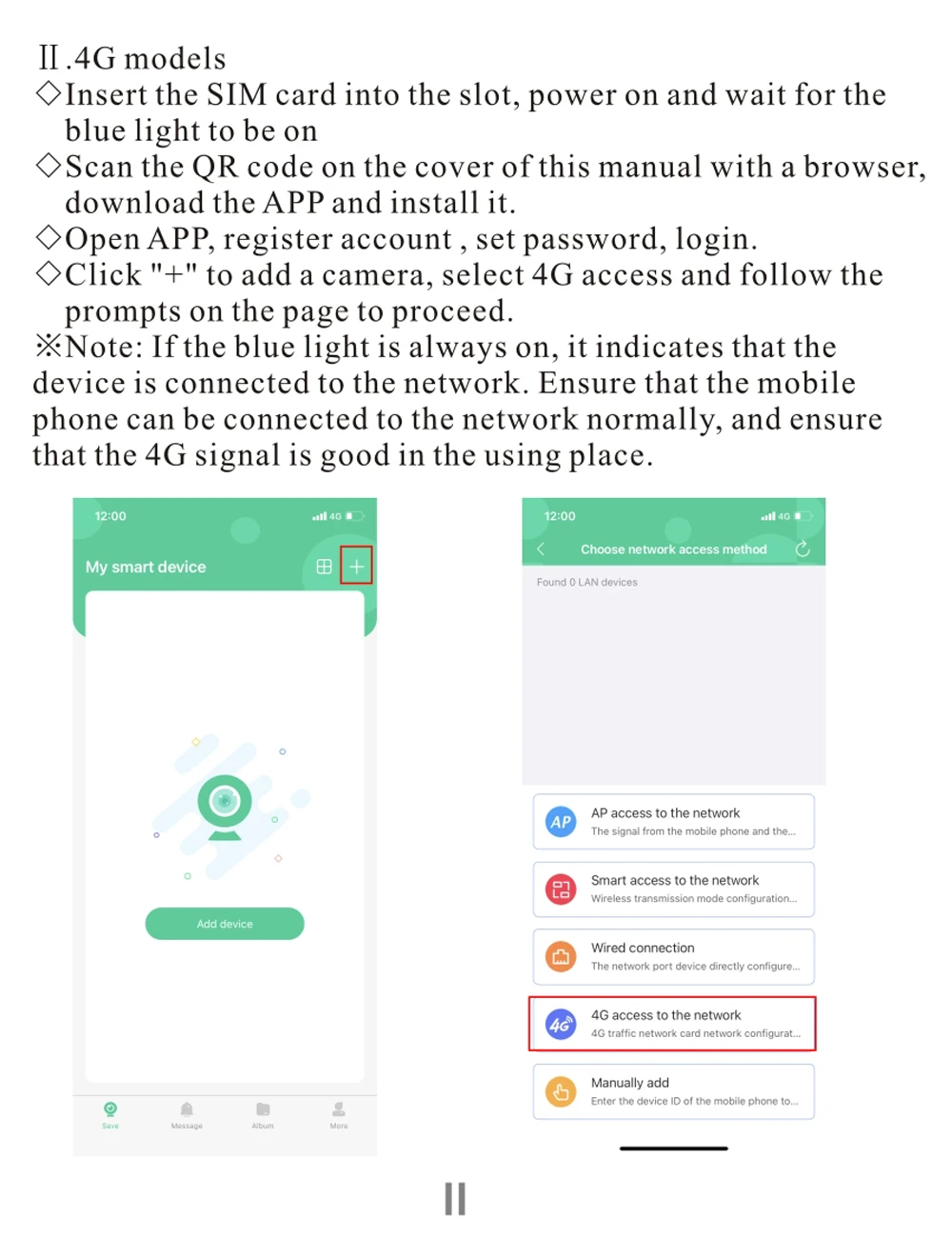

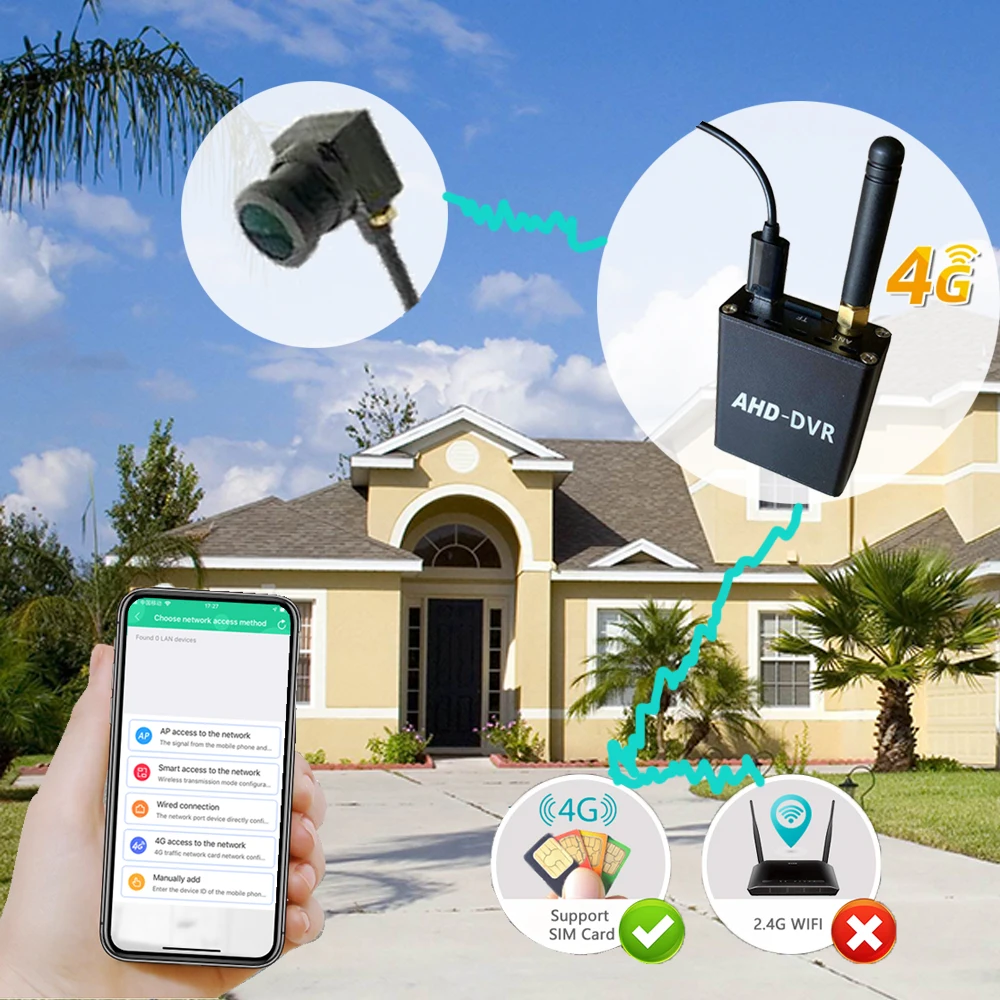

Turn on 4G mode, insert the Micro SIM card, remotely connection the camera with the mobile phone, to remotely monitoring by the mobile phone.

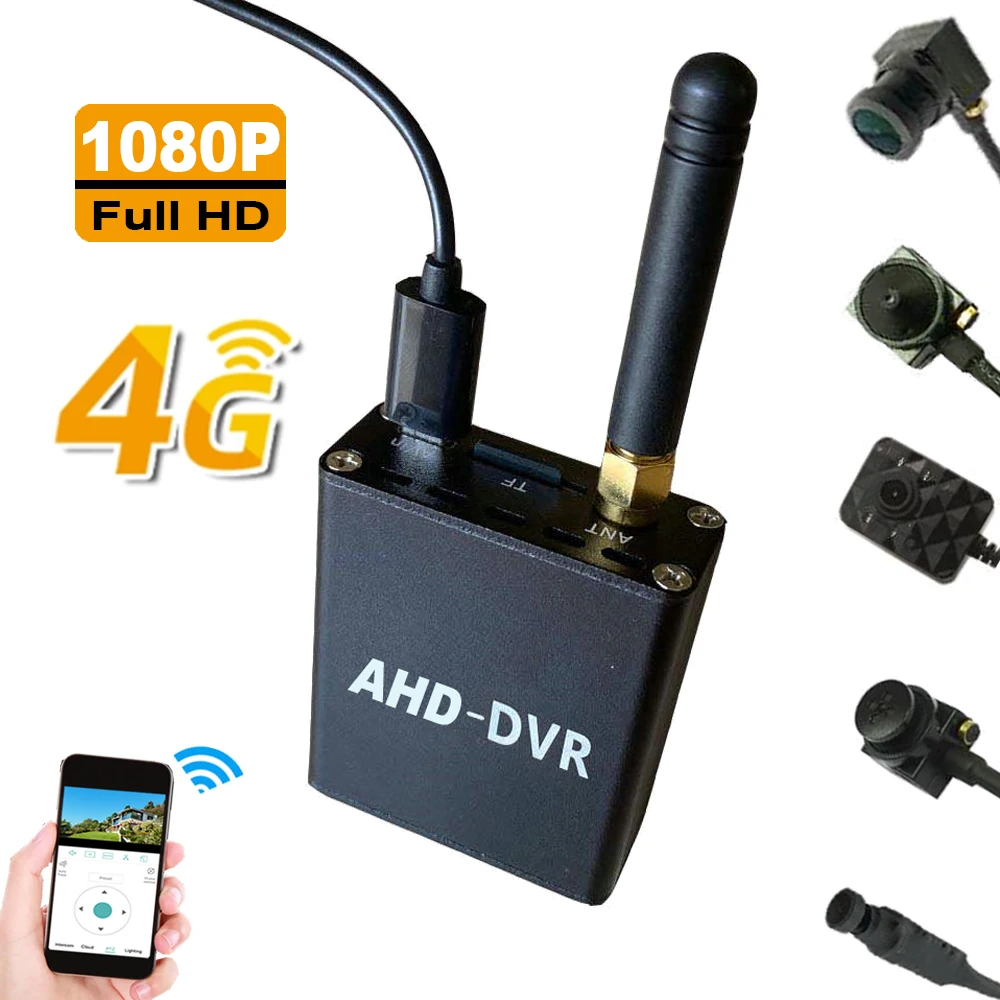

4G function Mini HD DVR



Support 2MP AHD/TVI/CVI camera. Not Support WiFi hotspot connect

4G version:HD DVR



Only work 3G/4G SIM-card,there will be more occasions to use it



Your 4G DVR can work within the range of 3G/4G, it is easy to access the network environment.

(not support WI-FI network)

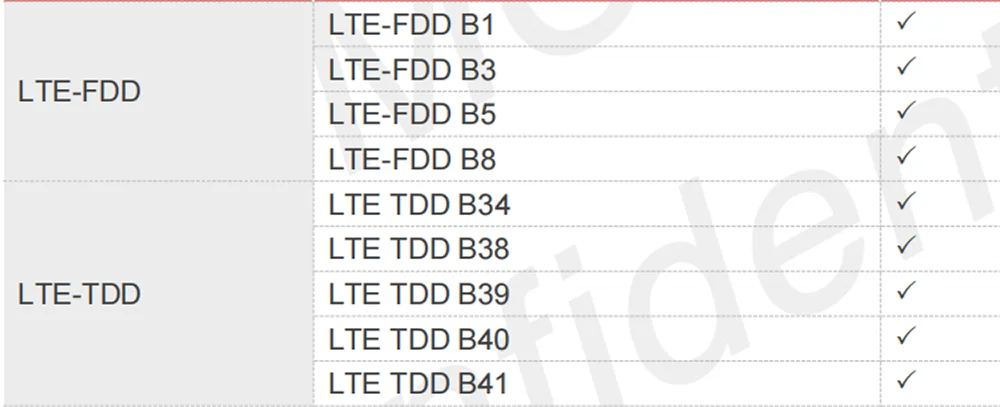

Please check if your carrier is in the following frequency bands



If your Sim-card is not in the following frequency bands, the 4G HD DVR will not work.

Product Features:

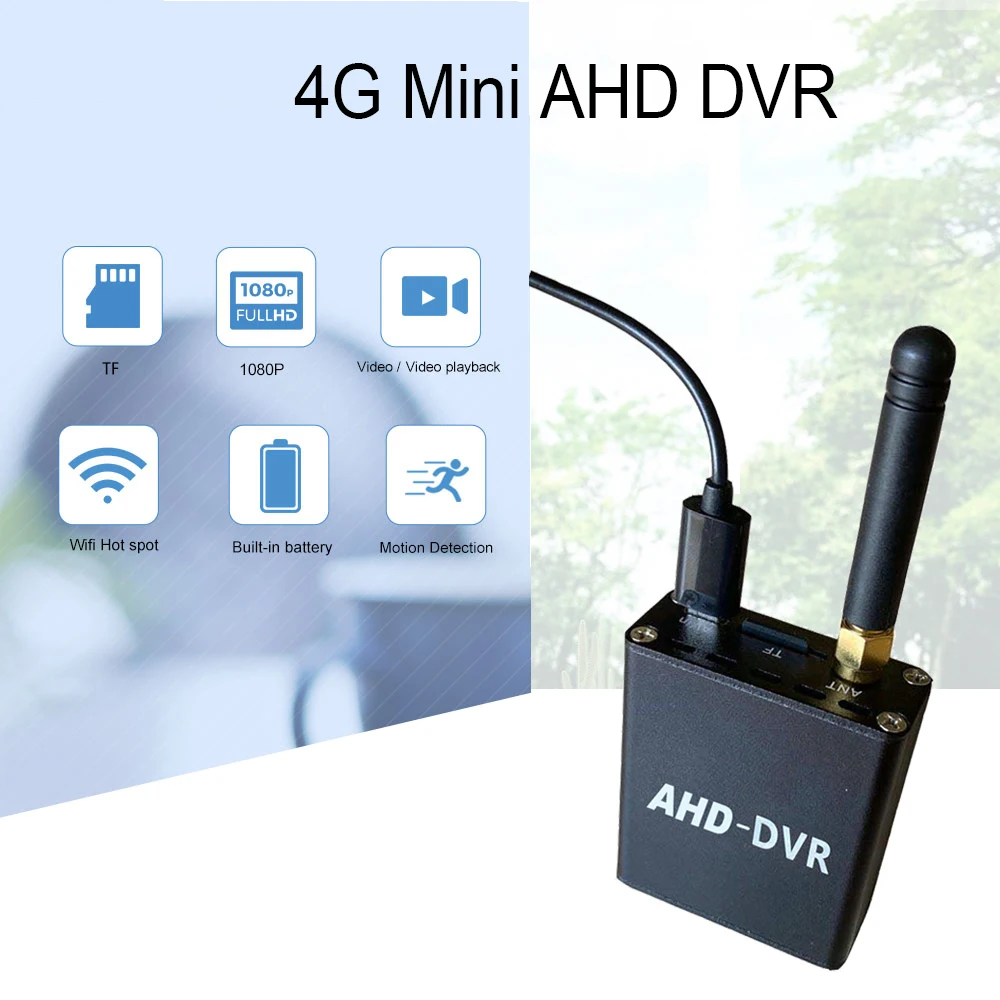

4G-DVR is a mini recorder which support a AHD / TVI / CVI

camera (max 1080P) and to make a small monitoring system.

It support a 128GB TF card Not included

local and remote monitoring of mobile phones and computer.

Super mini size;

1080P, 30 frame per second, full real-time smooth HD monitoring;

H. 265 video decoding and coding, clearer picture, less storage space, low code rate and smoother remote video;

WiFi remote real-time monitoring, playback and download Video

Not Support WIFI hotspot connection

Support AHD / TVI / CVI camera of 720P / 1080P, PAL/NTSC

Built-in large capacity battery

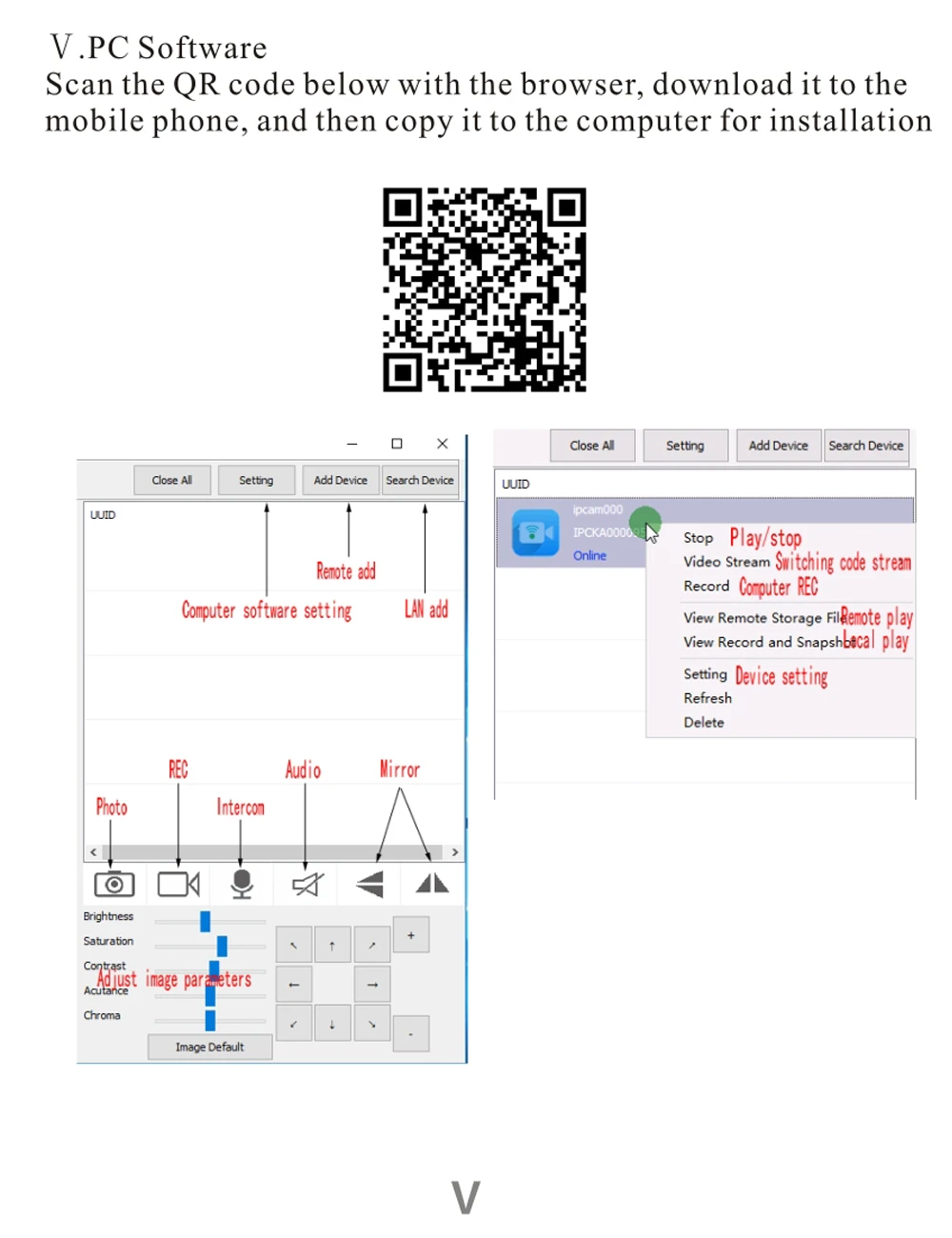

With mobile APP and computer client software;

High-level encryption technology and indedent password to ensure the security of monitoring data;

Support standard ON   VIF Protocol and RTSP protocol4gbulit-in battery keeos power supply diversified

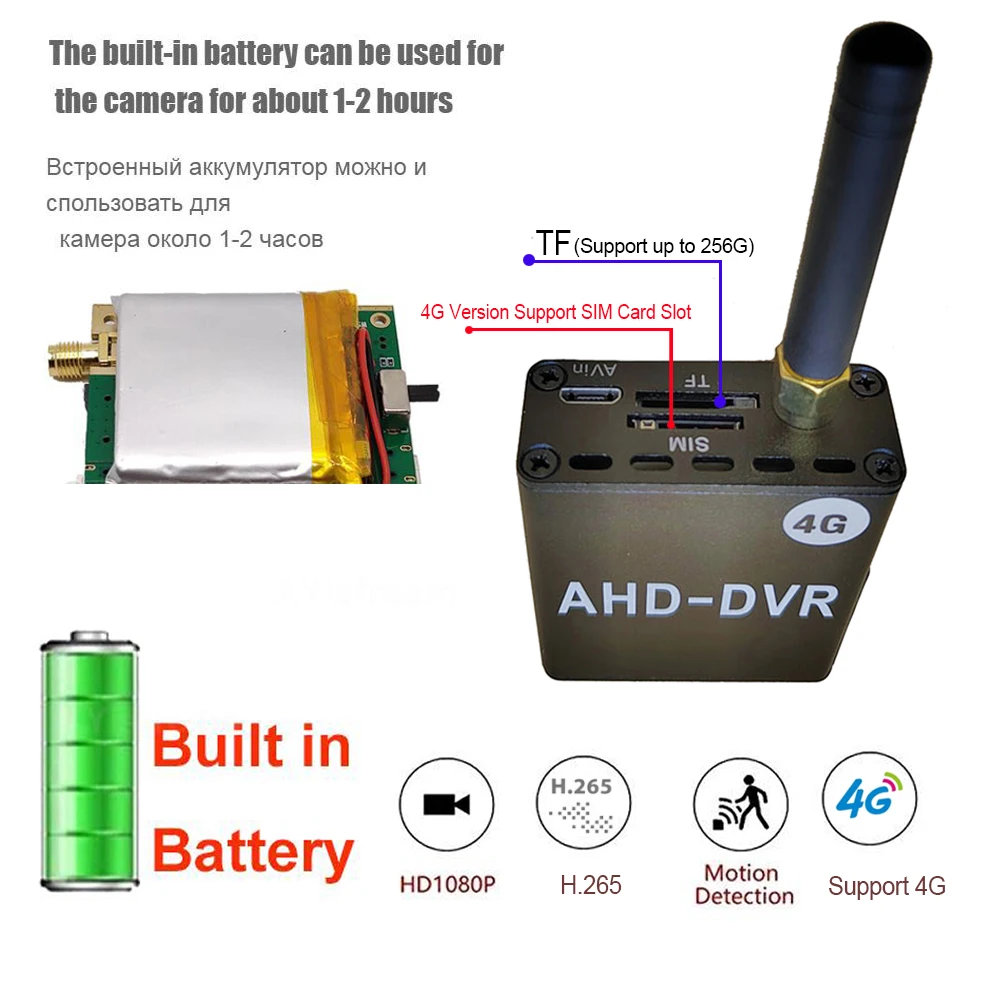

bulit-in lithium battery can also be connected to usb power supply,and connect car
charging power supply,with mobile power charging treasure and other power
supply equipment,to achieve longer 4G monitiring

flow is more economic
only when the mobile app remotely views the video of the 4G camera,the flow is
consumed,and the simple recording does noe consume the data













DVR KIT Parameter:



Model: 4G HD DVR

Processor system Linux

Video coding and decoding Defaulted:H.265,

Video input AHD/TVI/CVI, 720P/1080P, PAL/NSTC

Fully recognized automatically"

Video:1920*1080 or 1280*720

Video rate "Optional;

Compression format : H.265

Video frame rate 30 fps/25 fps

Video recording resolution 1080P/720P,Default main stream recording,Optional.

Audio coding and decoding G711A

Memory card Up to 256GB TF Card Not included

Video motion detection Support,trigger recording for 2 minutes

On  -vif Support

rtsp Support

Power input 5V 2A

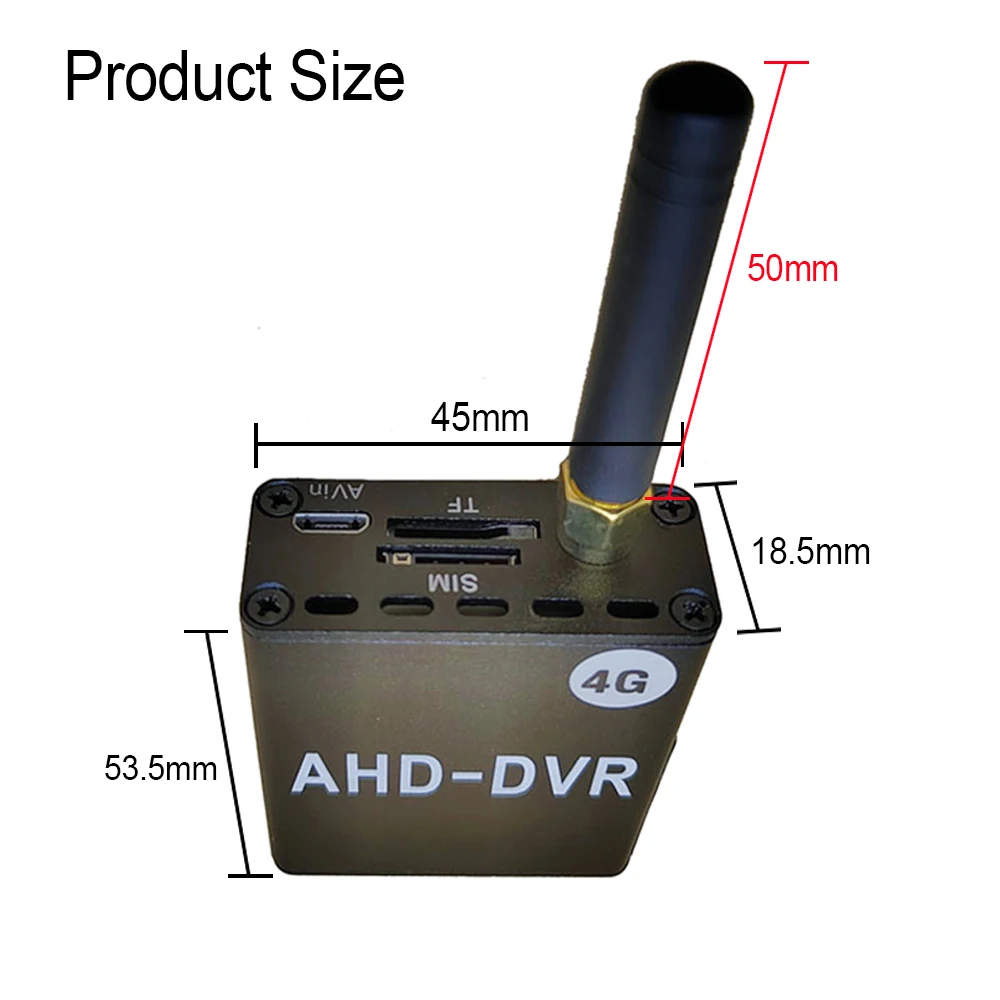

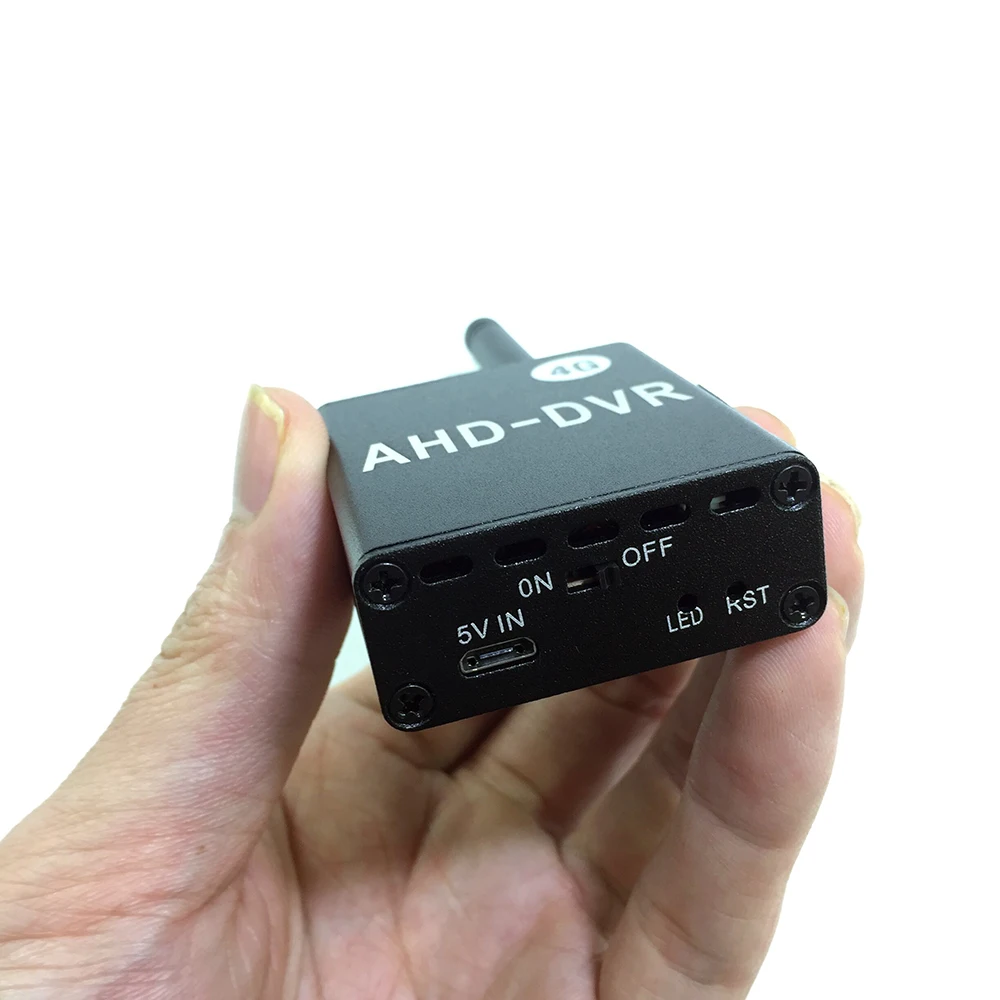

DVR size 53.5*45*18.5mm(±2mm)



Camera Parameter:



Model AHD 720P/1080P CAMER (optional)

Pixel: 1.0MP / 2.0MP

Resolution: 1280*720P/1920 * 1080P

Lens: /mini/wide angle (optional)

Illumination: 0.05LUX

Size: 15*15mm (±1mm)

Cable length: 1.5M



The listening effect is clear and the voice evidence is saved.
The sound restoration degree is real. and the detail sound recording is clear. Help you record important sound evidence

1080p full glass hd lens,showing more details

powerful 1080P image processing chip and 2 million pixel

high-definition picture quality makes the imaging picture become more delicate

asy to install , Multi-platform View

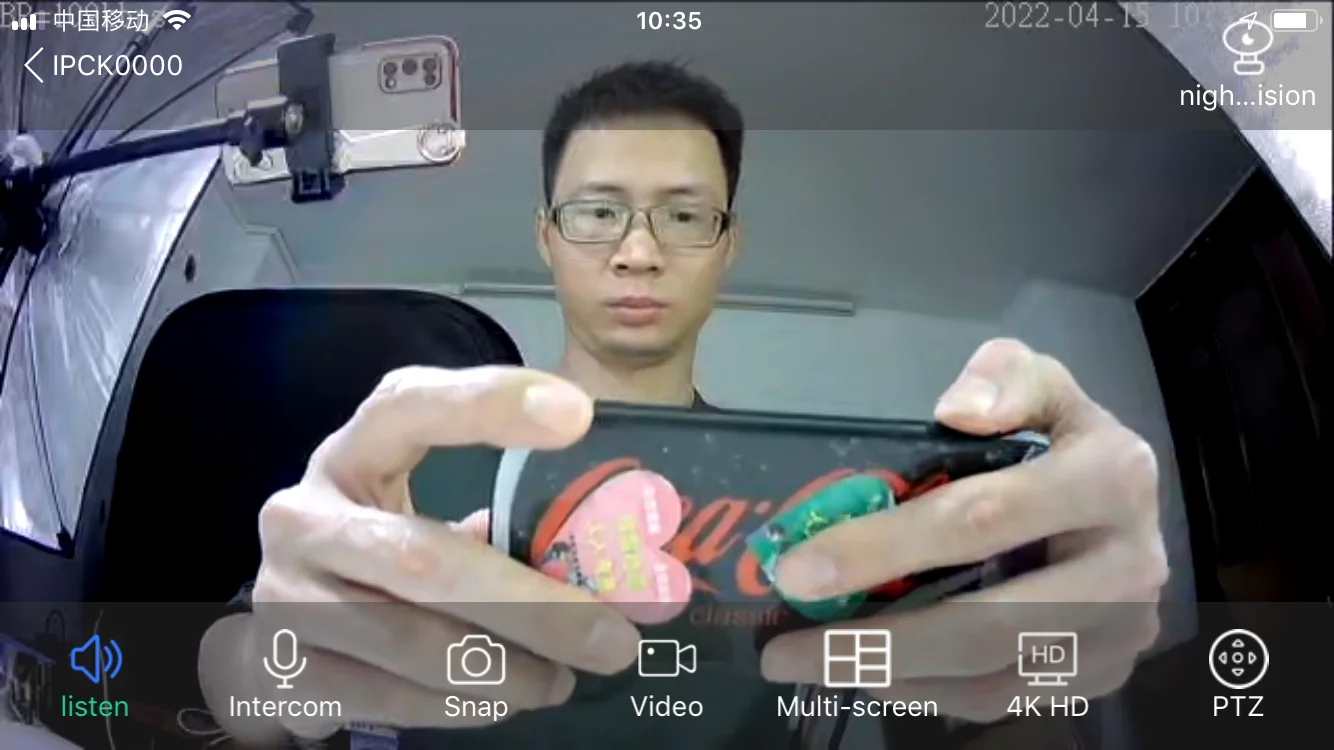

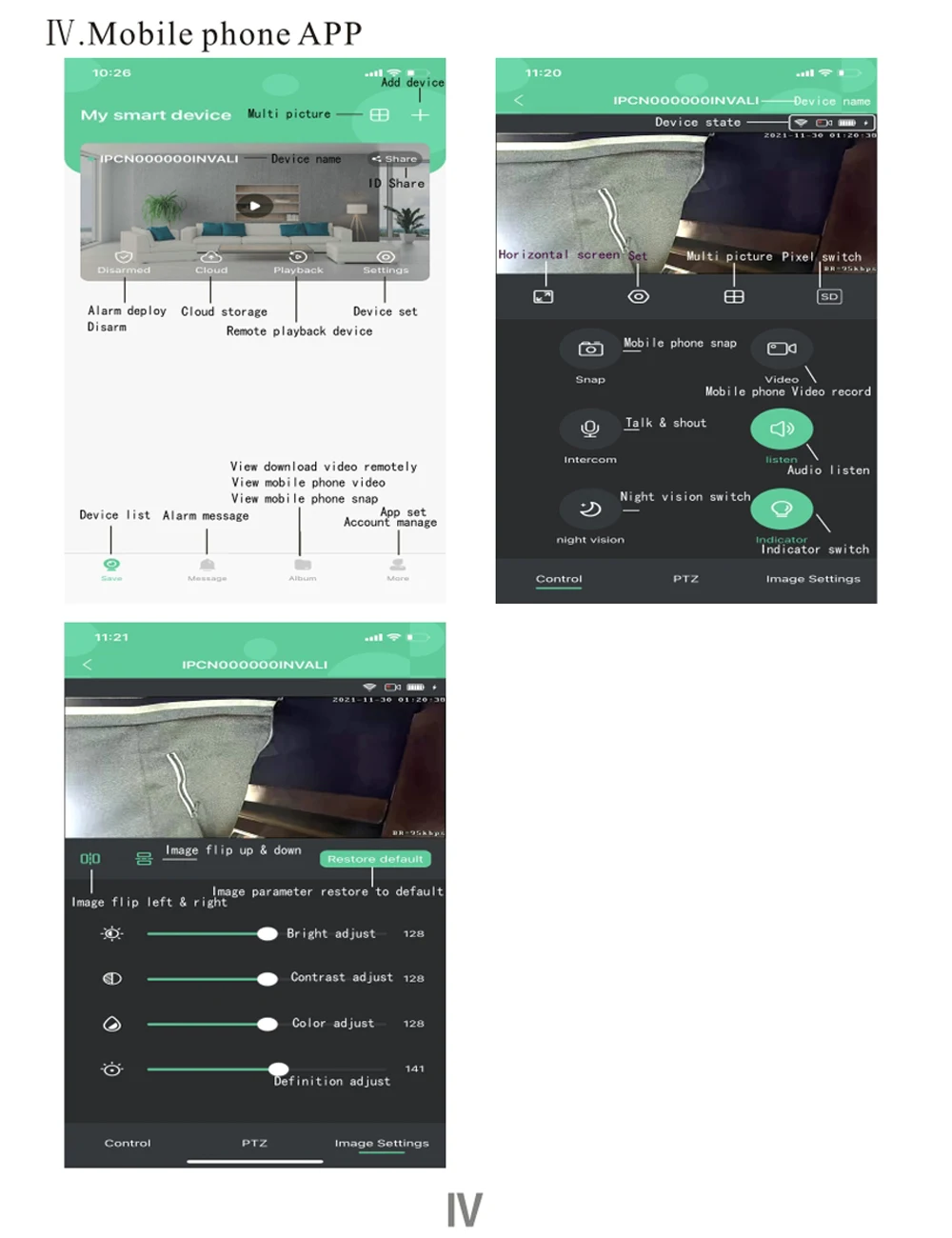

Support multiple users online to check video at the same time and supports IOS android,i pad view,Intelligent alerts from your security camera will be sent to your PC or smartphone via (KingfisherPro) app. Comes with CMS (Video Management Softwware), and records events as soon as they hap and store them on Micro SD Card.



User sharing Support multi-user real time sharging

The main account can add multiple sub accounts to view videos and the whole family can add them ,support multiple accounts to watch online at the same time

Support 4 Kinds of Video Definitions



 The listening effect is clear and the voice evidence is saved.

 The sound restoration degree is real. and the detail sound recording is clear. Help you record important sound evidence

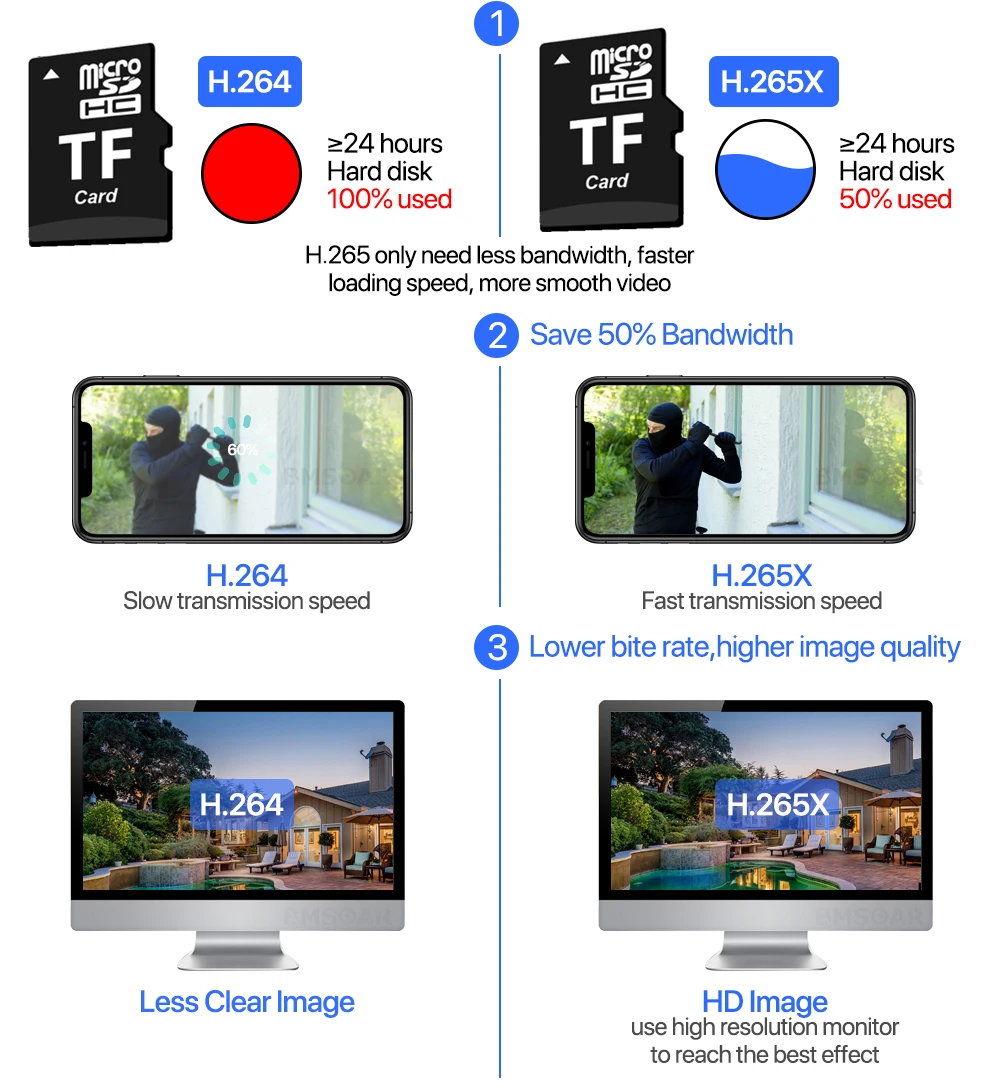

h.265 coding technology reviews fluently and saves room

the new generation of h.265 encoding technology,while ensuring high-definition

pictures,greatly reduces the storage space and broadband occupied by the video,the

transmission speed is faster,the video is clearer,and the storage space is greatly saved,

compared with the previous generation h.264 encoded data,the data quality is improvedby

35% ,and the seorage space is reduced by 50%

P2P Remote Access/Multi-User



Share the same Vision with your families , let all of you protect and pay more attention to your house.

P2P technology let you be able to view the live situation of your house wherever you are , just with the P2P account on the app via your Smartphone or tablet .

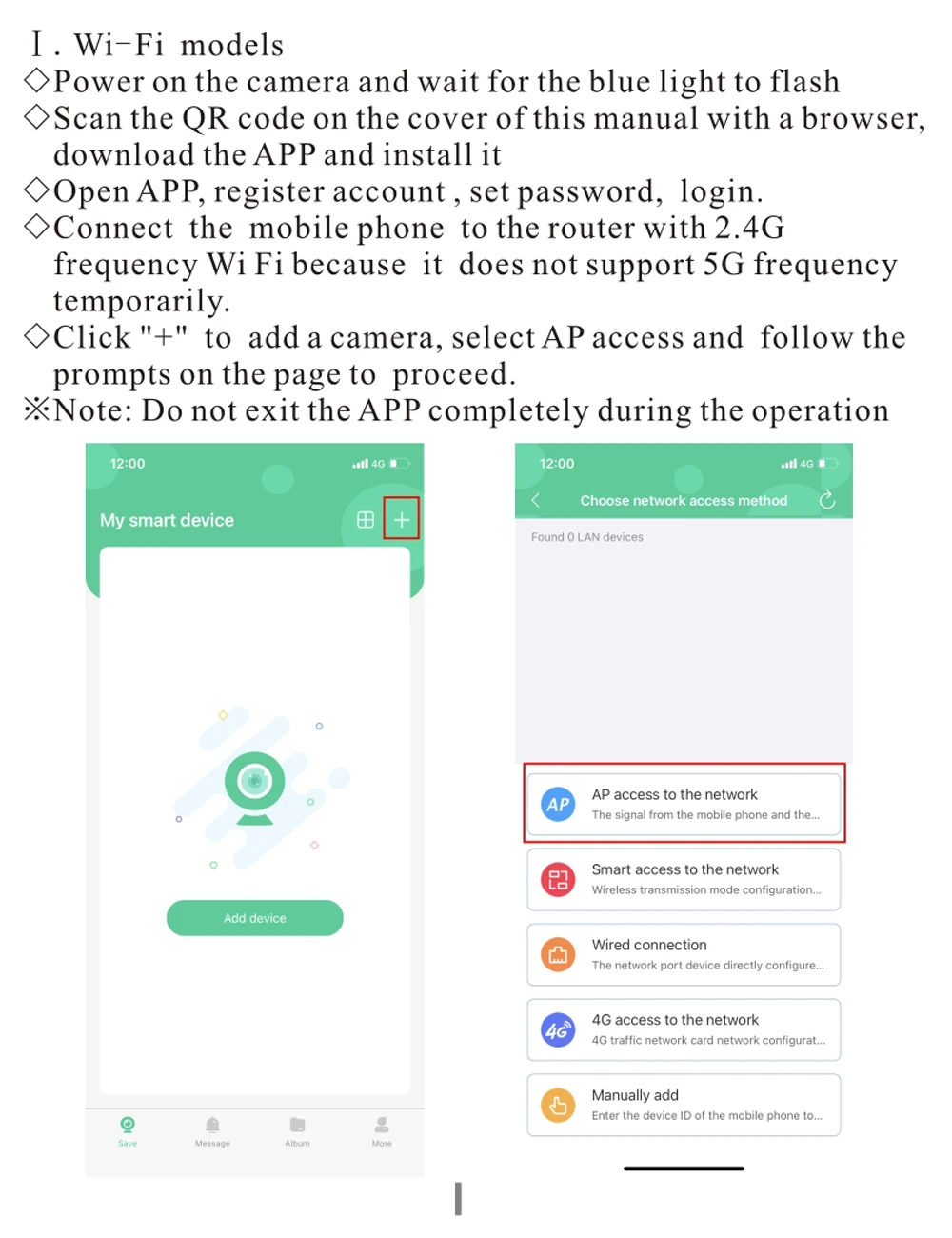

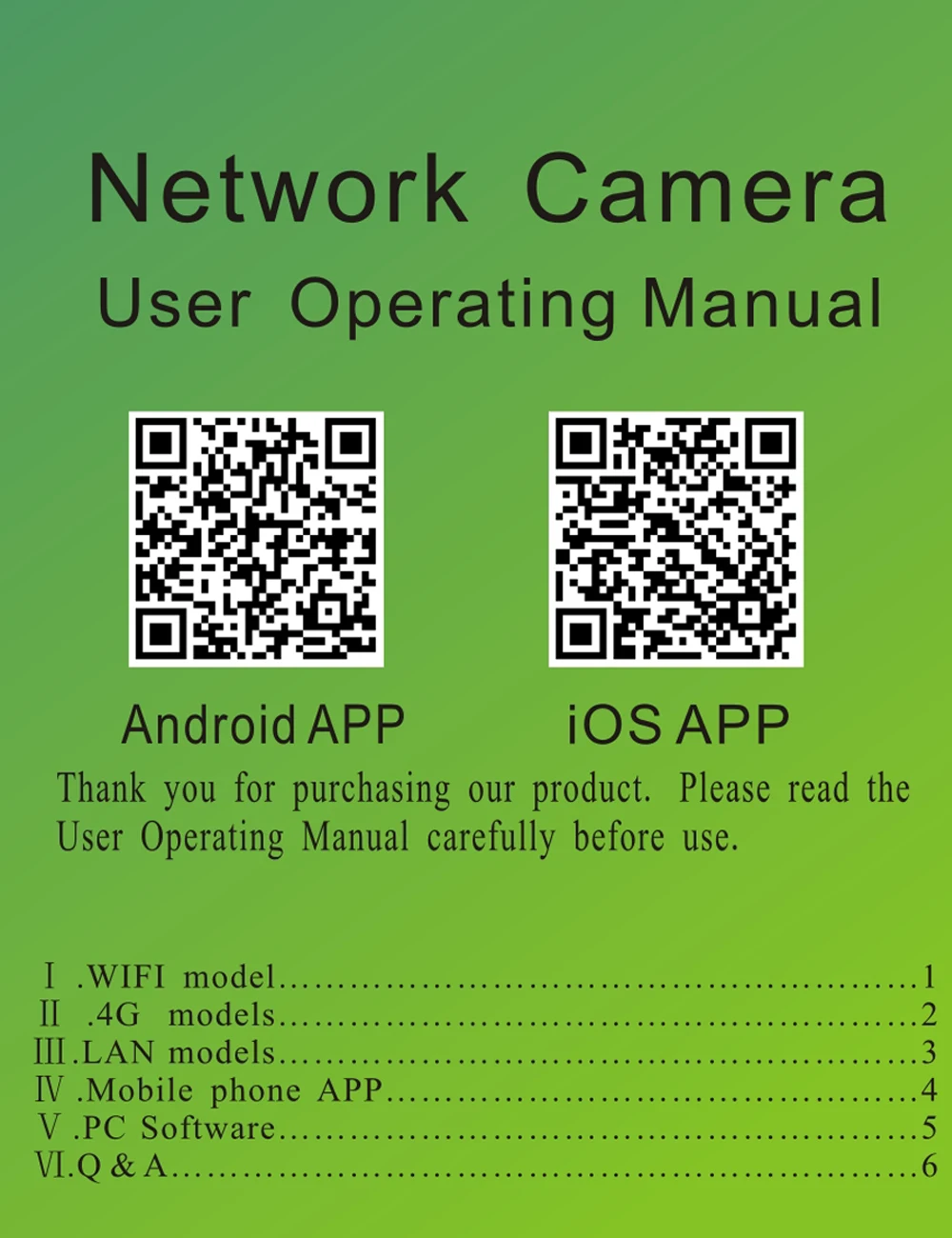

Easy to install, three steps in place APP download (Android) Search "KingfisherPro" in android market or scan the QR code to download. (iOS) Search "KingfisherPro" in the App Store or scan the QR code to download.
