CNC lathe machine turret CTCNC40C industry machinery CNC turning cutting lathe machine CK6140 CK6150
- Category: Machine Tool Equipment >>>
- Supplier: Anhui Citie Technology Co. Ltd.
Share on (1600515604156):
Product Overview
Description

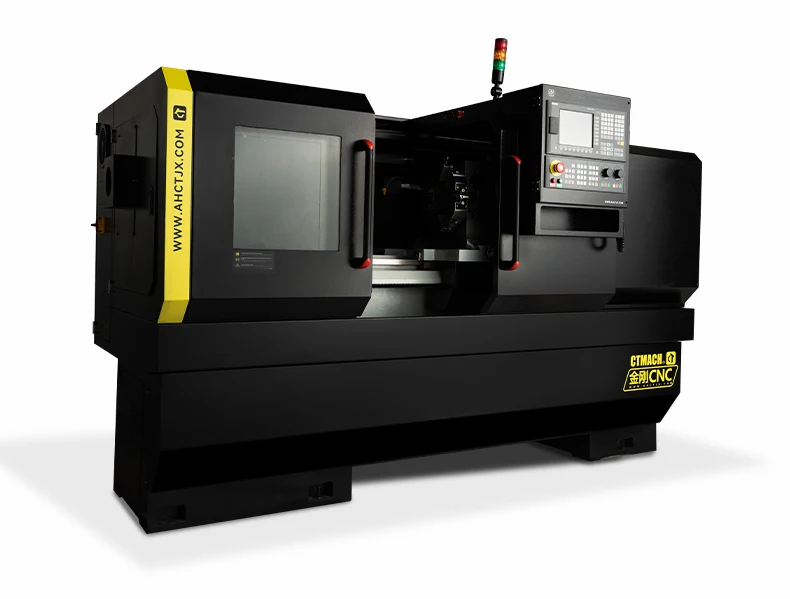

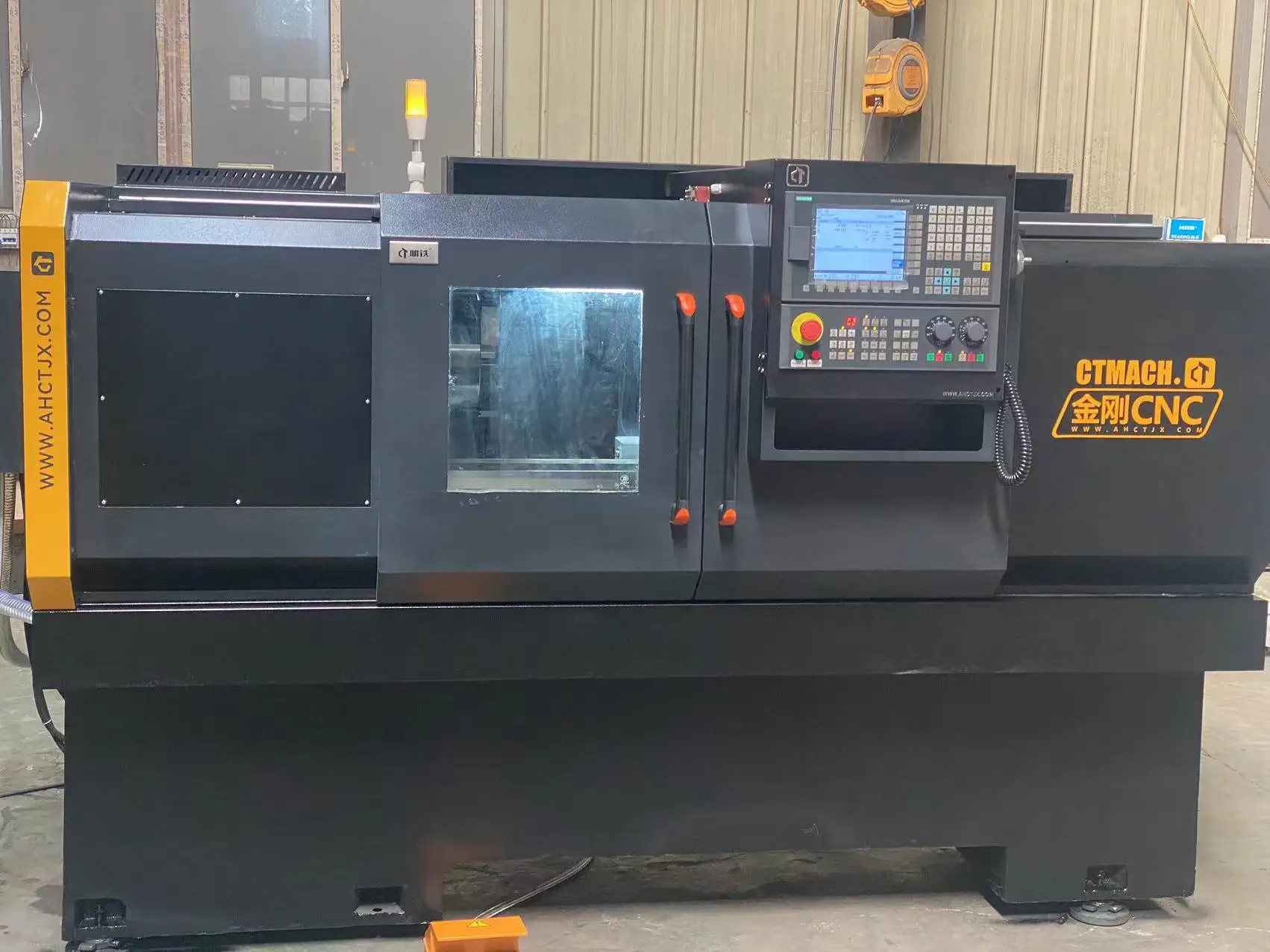

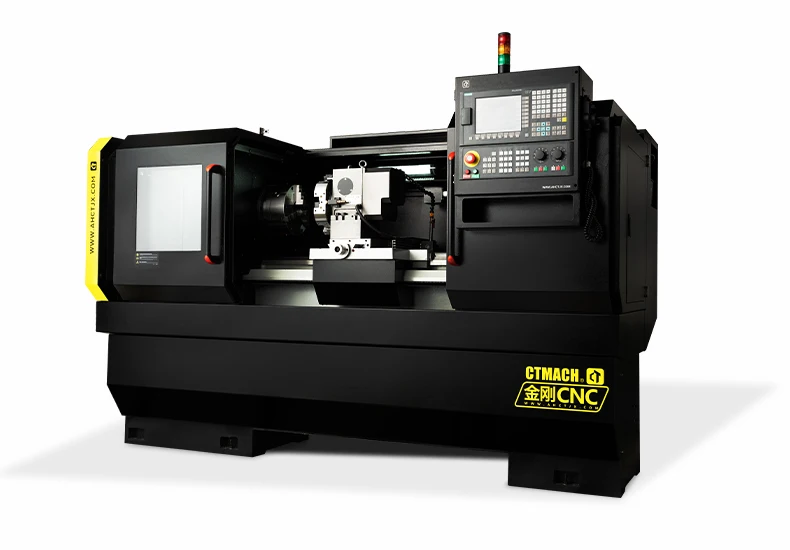

CTCNC40C Industrial CNC Lathe
1-High rigidity flat bed hard rail CNC lathe.
2-The surface of the bed guide is precision ground and hardened, HRC50.
3-The spindle adopts high-precision bearings to ensure the rigidity and precision of the machine.
4-High-precision grinding ball screw, positioning and machining accuracy is more stable.
5-Siemens 808D system.
6-Integral casting bed feet are optional to improve the overall rigidity of the machine.
2-The surface of the bed guide is precision ground and hardened, HRC50.
3-The spindle adopts high-precision bearings to ensure the rigidity and precision of the machine.
4-High-precision grinding ball screw, positioning and machining accuracy is more stable.
5-Siemens 808D system.
6-Integral casting bed feet are optional to improve the overall rigidity of the machine.
Introduction to Parameters CTCNC40C | CTCNC40C | |
Rotation diameter of bed | 400 mm | |
Swivel diameter on the middle carriage | 210 mm | |
Maximum workpiece length | 1000 mm | |
Spindle speed range | 200-2000 rpm | |
Spindle diameter | 82mm | |
Spindle hole taper | MT6 | |
Number of stations | 6 | |
Tool holder specifications | 25 mm | |
Tailstock sleeve taper | MT4 | |
Tailstock sleeve stroke | 120 mm | |
Main motor power | 7.5 kw | |
Pump motor power | 180 w | |
(ZX) Feed motor torque | 6 NM | |
Z axis rapid traverse speed | 10 m/min | |
X-axis rapid movement speed | 8 m/min | |
Z-axis repeatability | ≤ 0.01mm | |
Repeated positioning accuracy of X axis | ≤ 0.008mm | |
XZ axis positioning accuracy | ≤ 0.015mm | |
Machine size | ≈2640x1500x1766 mm | |
Net weight | ≈1800 kg | |

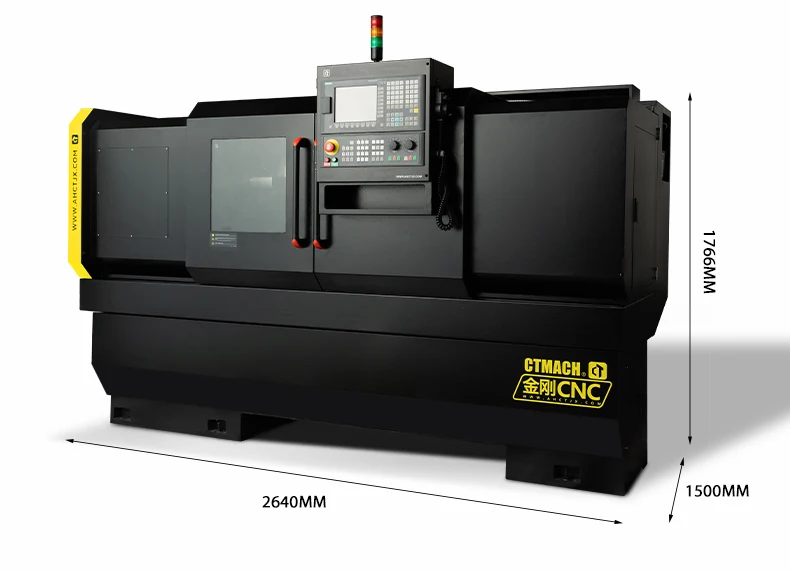

Machine Size
Machine size\t≈2640x1500x1766 mm
Net weight\t≈1800 kg
Reminder: The product size is measured manually, there is a small error, which is normal, and the actual product shall prevail.
Net weight\t≈1800 kg
Reminder: The product size is measured manually, there is a small error, which is normal, and the actual product shall prevail.
Show Deails

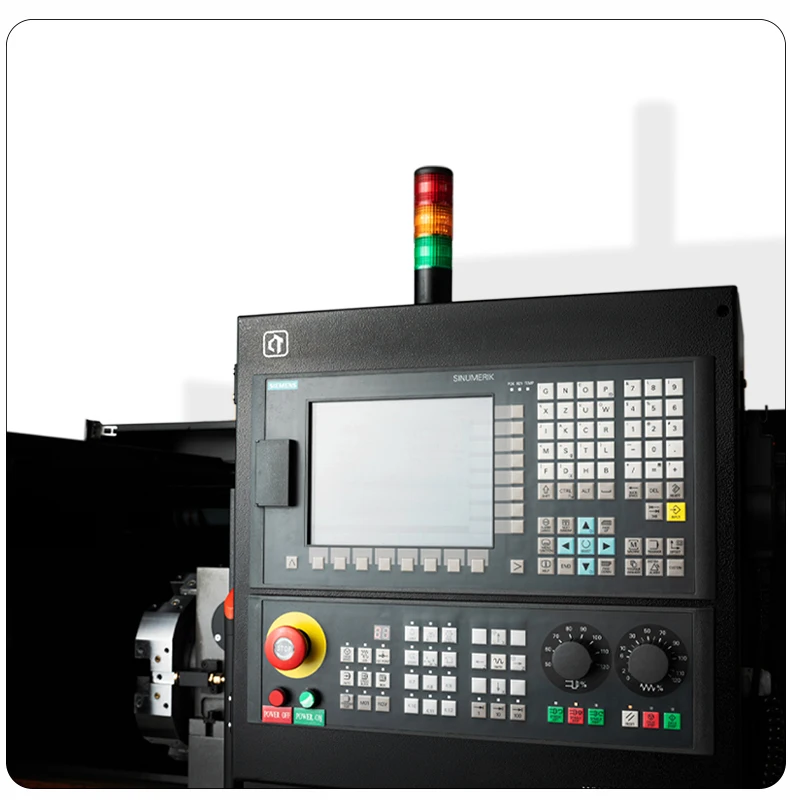

Siemens 808D system

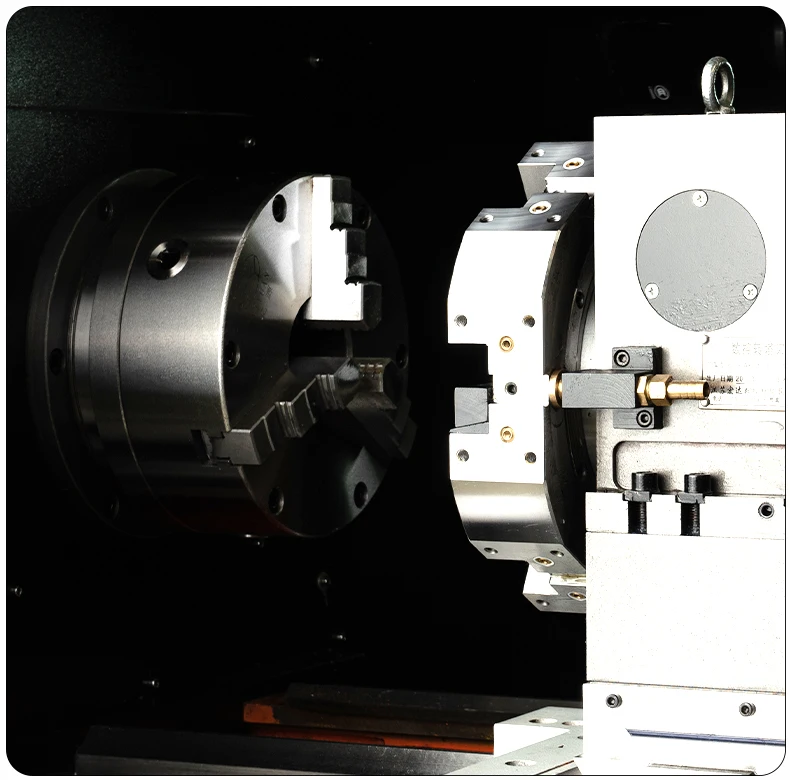

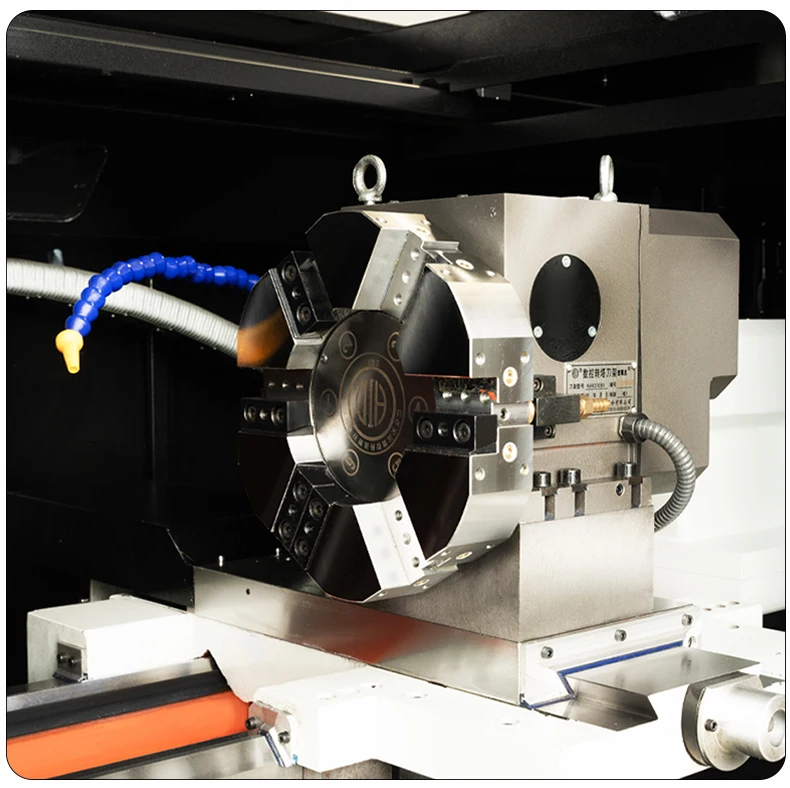

6-station electric tool holder
Shank size: 25x25mm
Shank size: 25x25mm
All-Inclusive Sheet Metal

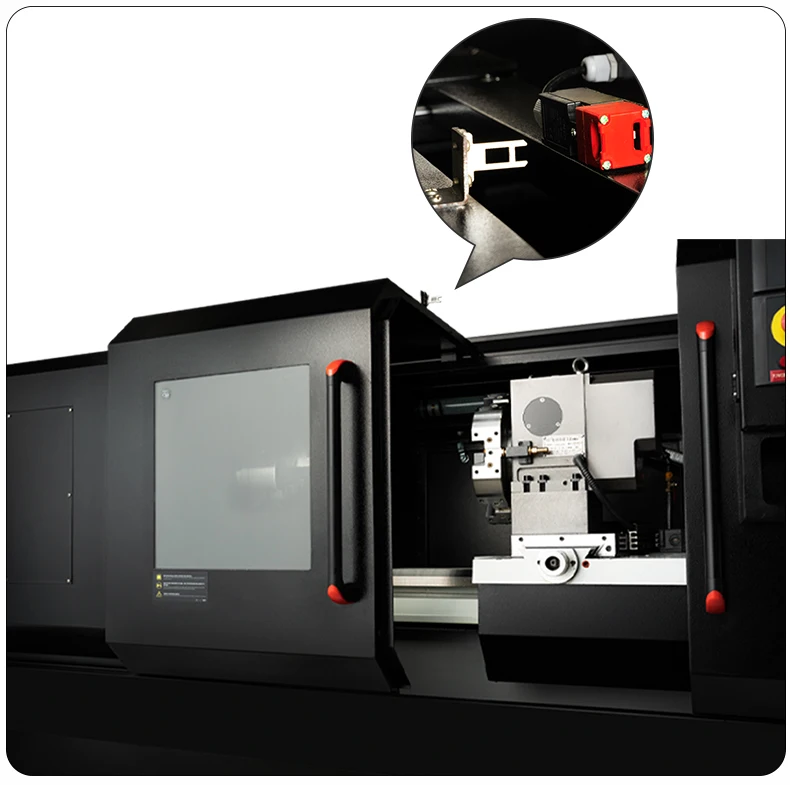

Double sliding door power off
Double sliding door power off

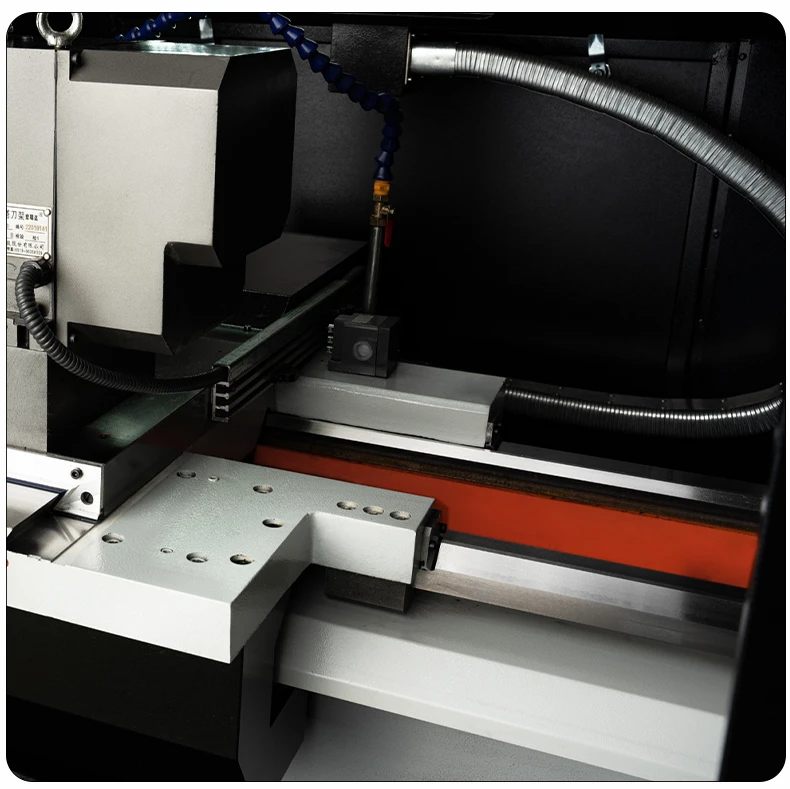

Induction hardening
Hard rail
High strength, strong bearing capacity
Hard rail
High strength, strong bearing capacity
Continuously variable speed
200-2000rpm

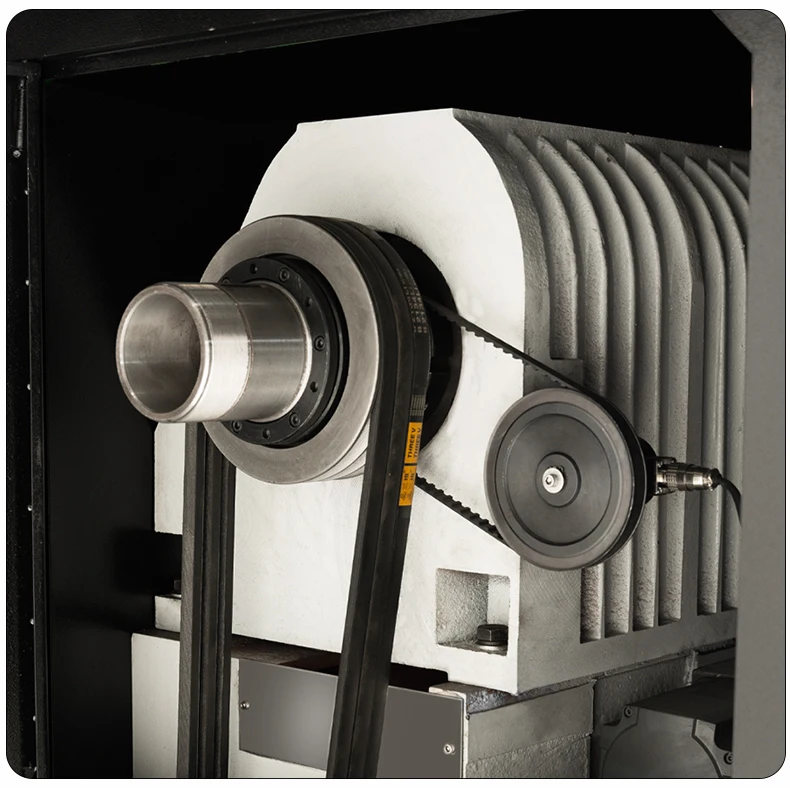

Independent Spindle A2-8
200-2000rpm
Independent Spindle A2-8
Frequency conversion main motor 7.5KW
Spindle through hole 82mm
Spindle through hole 82mm

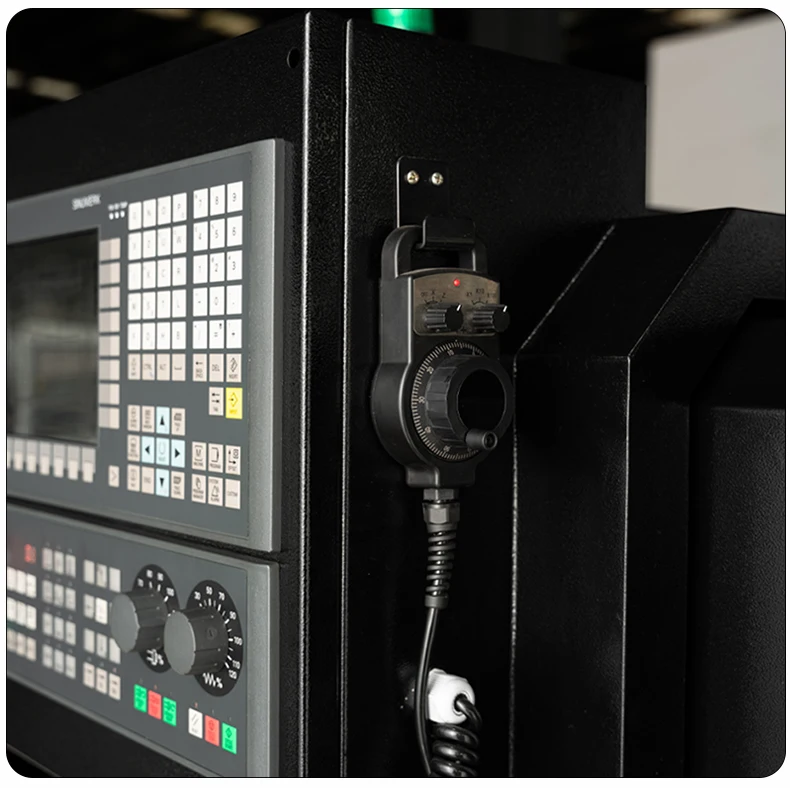

Handheld Electronic Handwheel

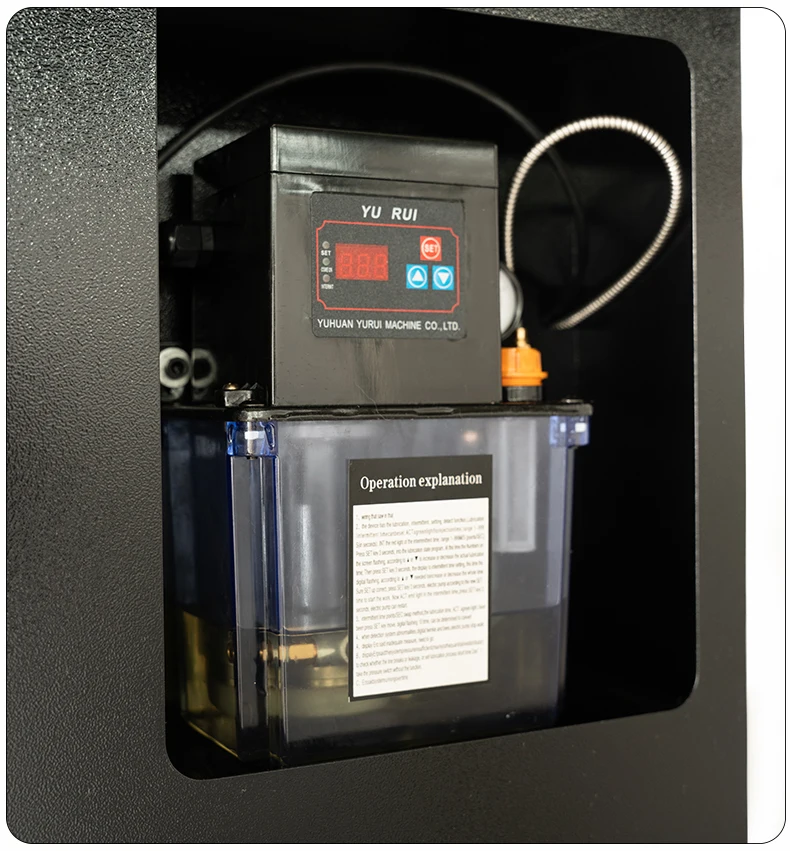

Automatic Lubrication Pump

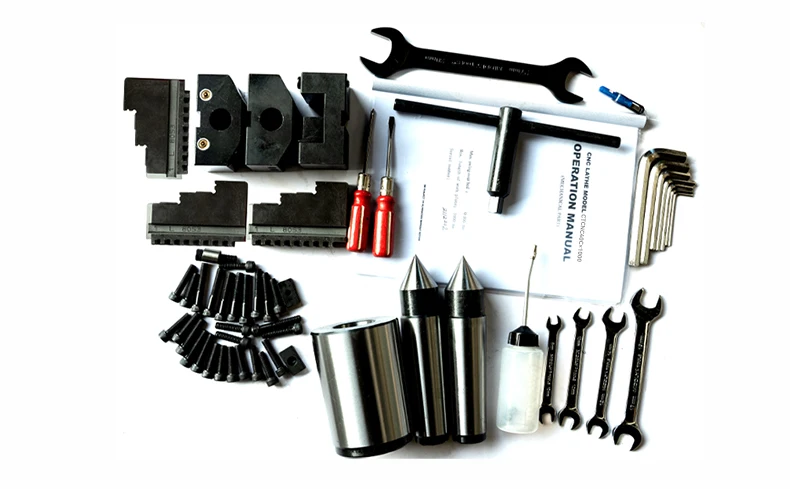

Standard Accessories

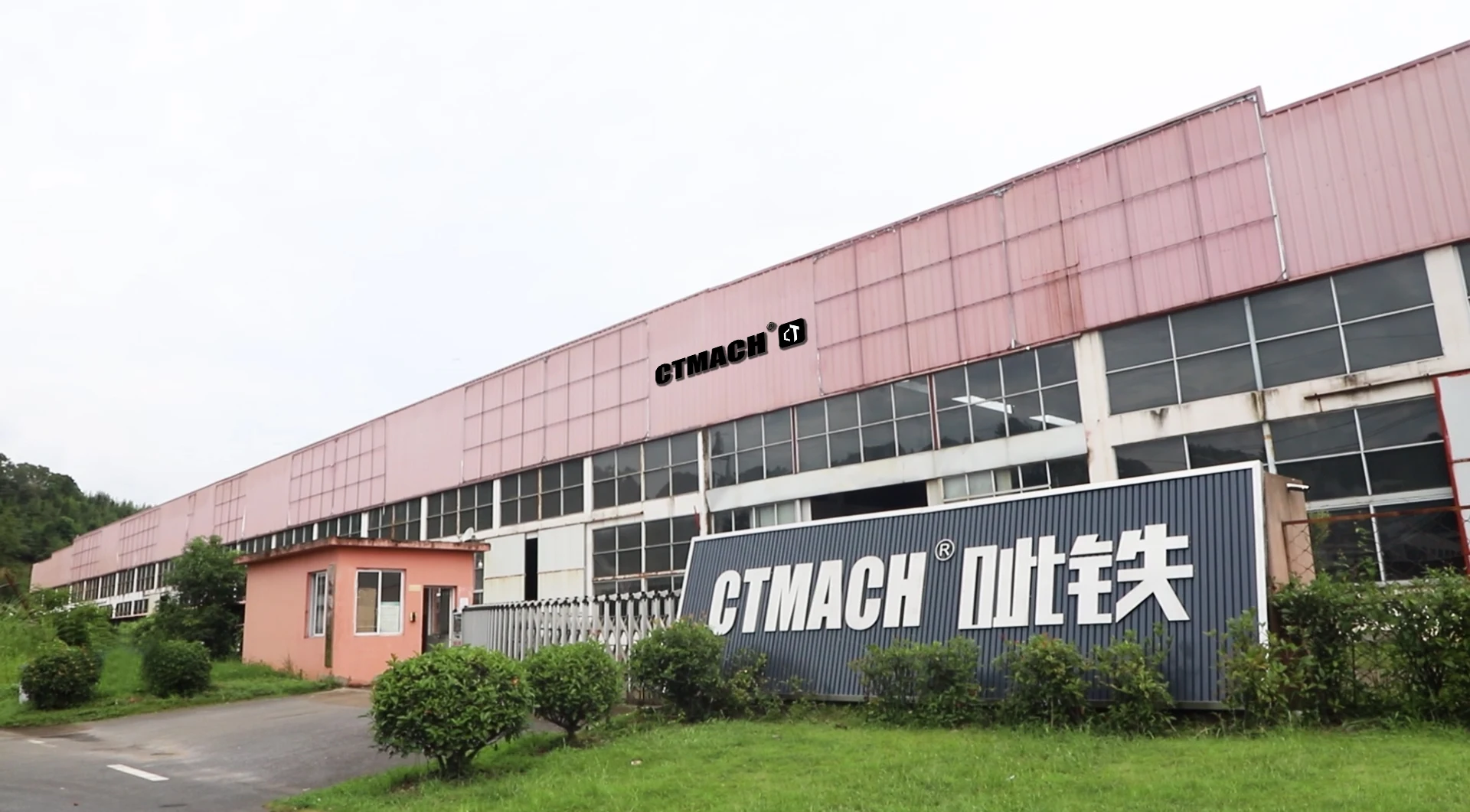

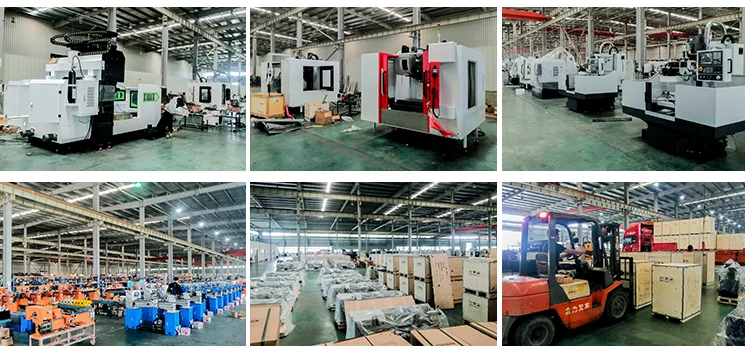

Company Profile
CTMACH is one of the largest manufacturers of bench lathes in China. We have 12 years of production and R&D experience. In 2019, we established foreign trade export sales department. We specialize in independent research and development, production, sales and after-sales service of small household machine tools, lathes, drilling and milling machines, small multi-function drilling and milling machines, small CNC machine tools, and cutting machines. Our products are exported to more than 30 countries such as Europe and the United States, and these machines are used in many industries and fields. We always insist on technological innovation and standard process production. We have engineers and after-sales service technicians who have been engaged in mechanical design for many years; with excellent technology and equipment support, our product quality has won the trust and appreciation of many foreign users.
Products are exported to more than 30
countries and regions in the world
CE IS9001

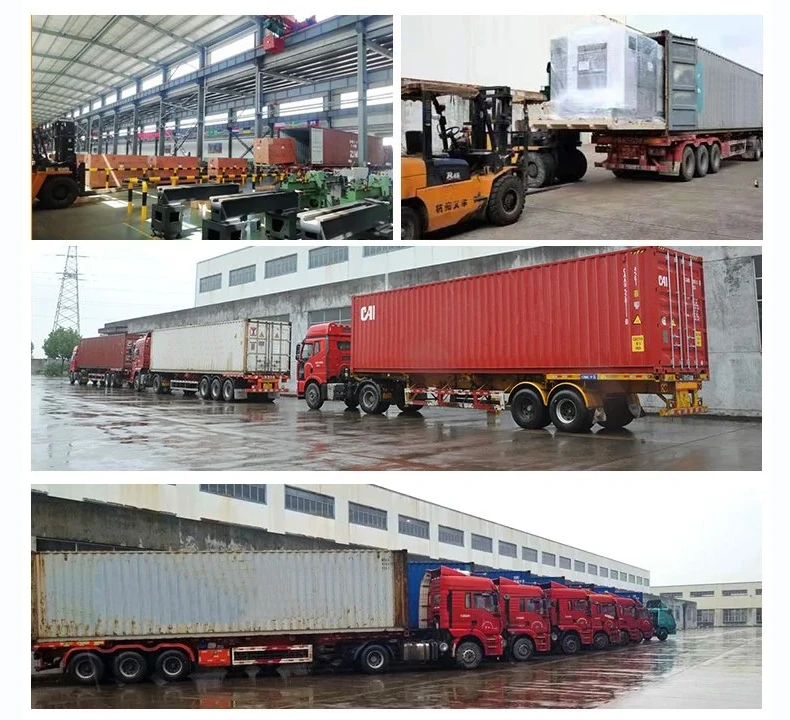

Packing & Shipping
