Heltec Relay Smart BMS 64S 96S 110S 200V 300V Hight Voltage BMS Energy Storage System CAN RS485 for 3.2V Lifepo4 Battery Pack
- Category: PCB & PCBA >>>
- Supplier: Chengdu Heltec Automation Technology Co. Ltd.
Share on (1600516412085):
Product Overview
Description
Bettery to Contact us to know more detail if you need a high voltage system

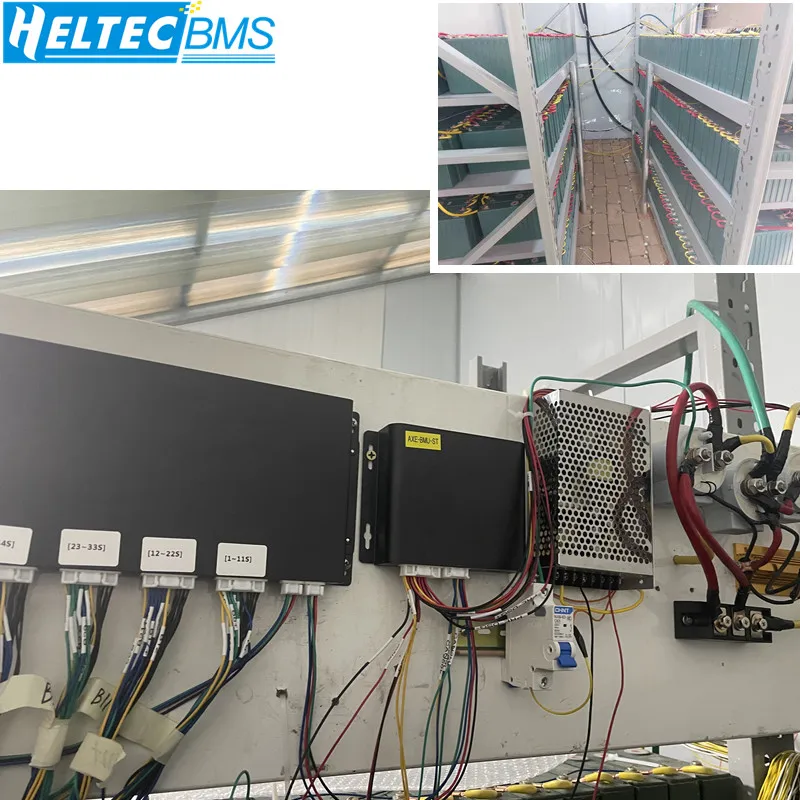

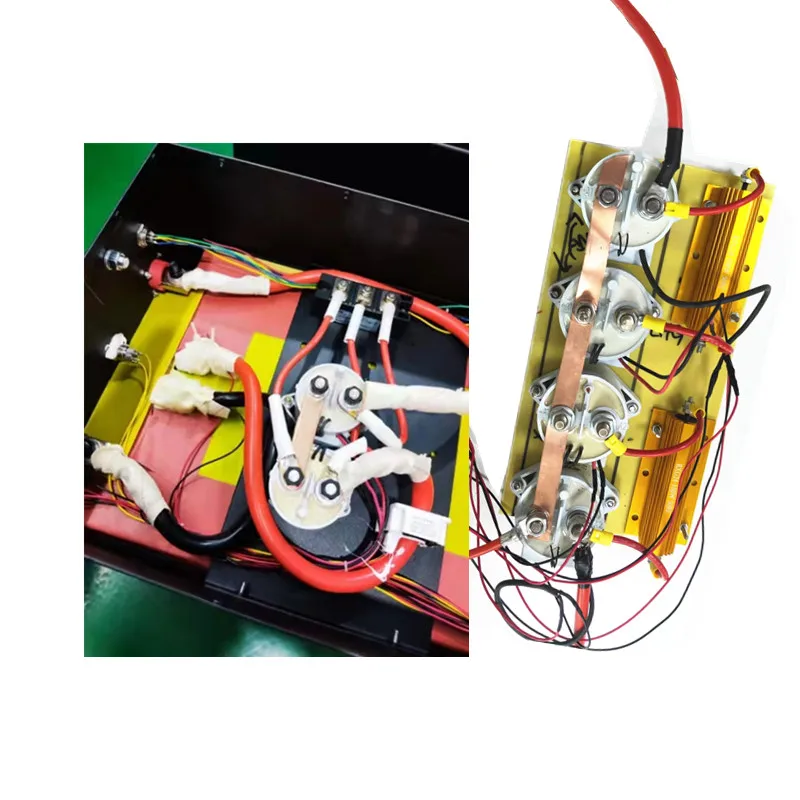

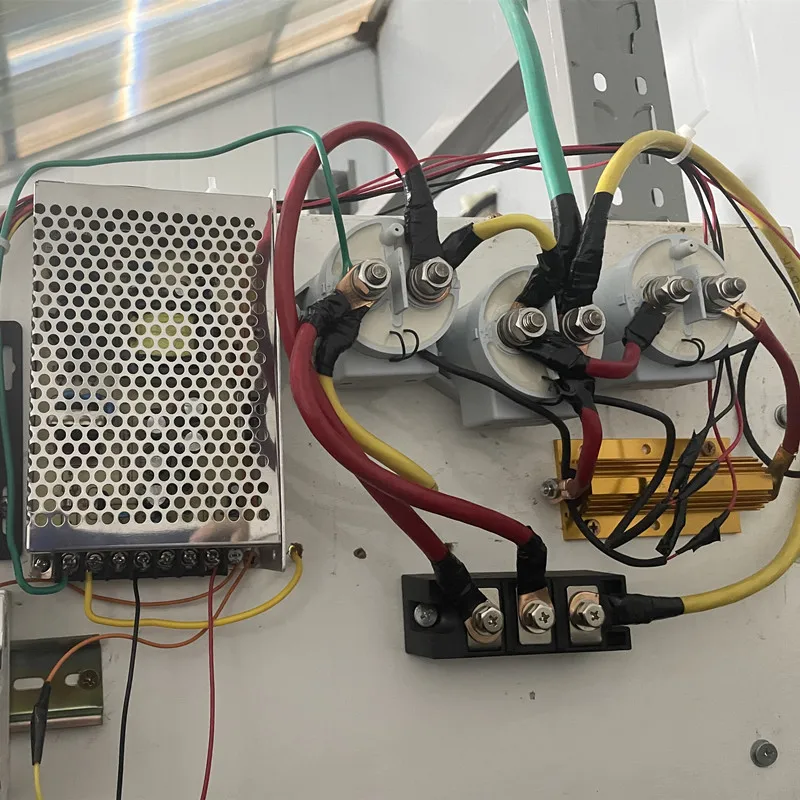

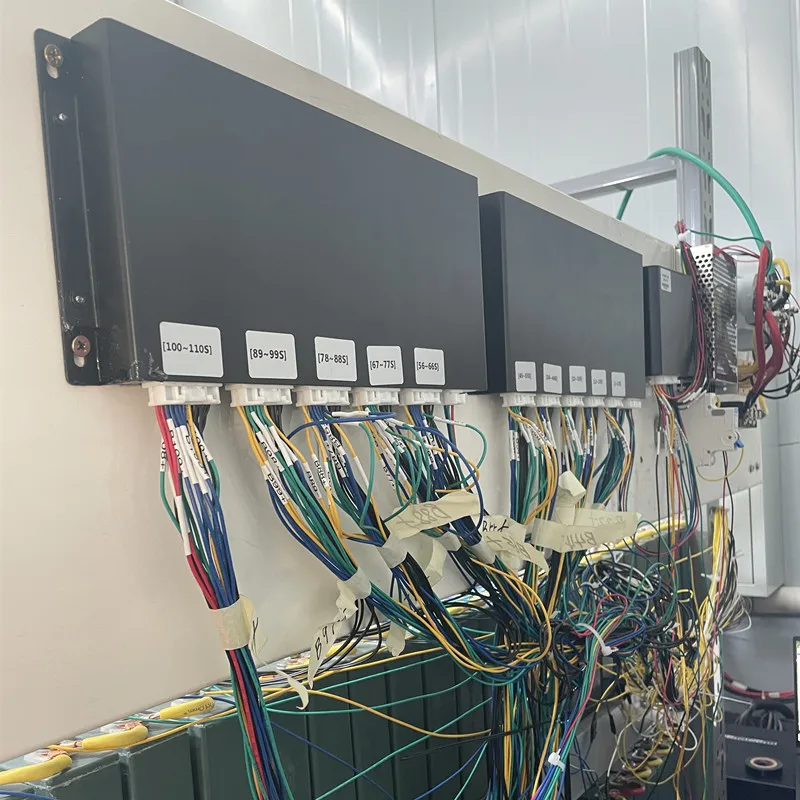

This is our real project for 110S 352V Solar Energy Storage
This client just want save money choose two package , one is 55S, but it is not good for package or any repair . So if you need high voltage bms system . Just contact us.
For Exampel
if you one battery packge is 16S , and need 10pcs pack, total 160S . 512V battery pack .
so you need 10pcs slave bms board . and other accessoires.
LIKE 64S system. choose two 32S battery pack, but the salve price is same as 36S . so just choose below 36S , will be ok .
so you need 10pcs slave bms board . and other accessoires.
LIKE 64S system. choose two 32S battery pack, but the salve price is same as 36S . so just choose below 36S , will be ok .
Above 32S BMS Customized
Pls Contact us if you want to make above 32S battery pack
Suggestion
Below 200A choose 2 Relay is enough
above 200A choose 3pcs relay
if used on like Heavy Truck start up. choose 4pcs relay

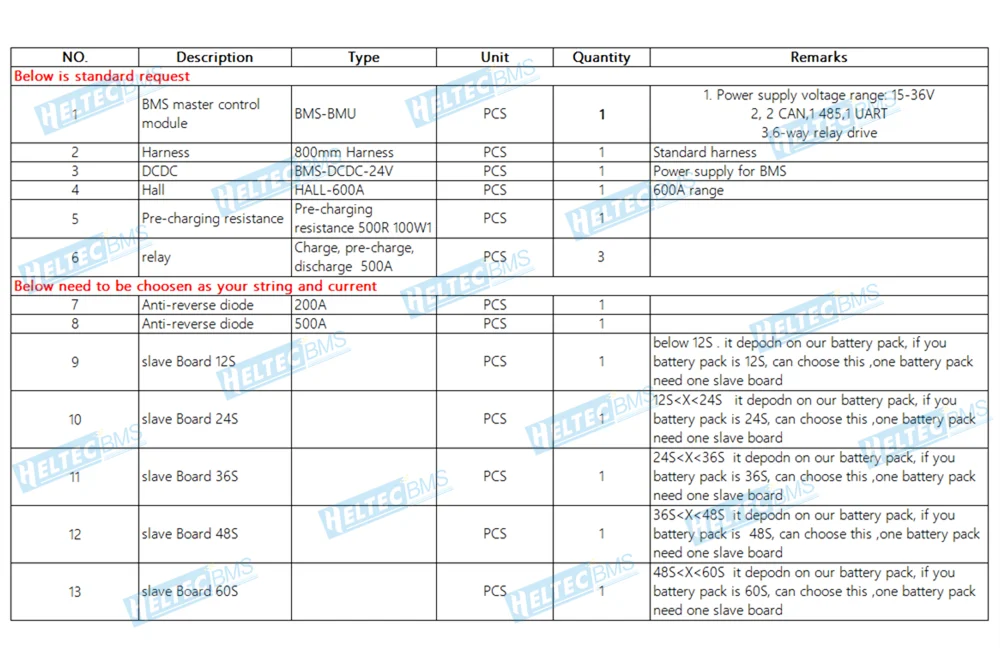

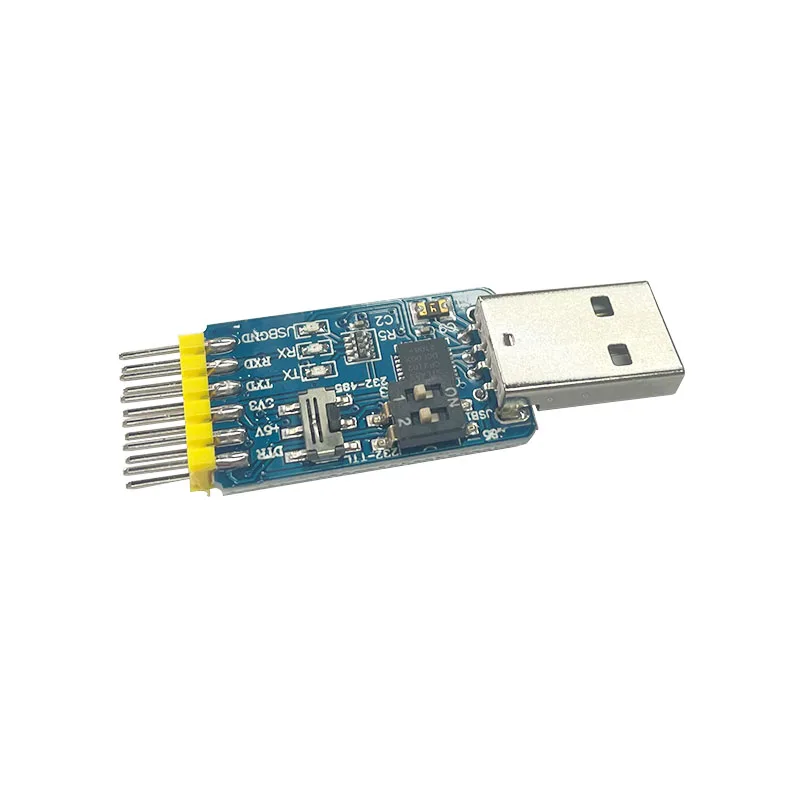

if you want to USE ON RS485 OR CAN , you need buy a Serial port module as below:
above 200A choose 3pcs relay
if used on like Heavy Truck start up. choose 4pcs relay
if you want to USE ON RS485 OR CAN , you need buy a Serial port module as below:
Feture
Voltage requirements 10~20V~55V~120V
Dynamic self-consumption: ≤1.5W
Static self-consumption: ≤50uA
System startup mode: external soft switch signal trigger
SOC estimation difference: ±5%
Balance current: 60mA
Working temperature: -40~85°C
Support battery pack: 3-4S, 6-16S .17-24S
Single string voltage collection range: 0~5V
Single string voltage collection error: ±10mV FS
Total battery voltage collection range: depends on specifications
Total battery voltage collection error: ±100MV FS
Charge and discharge current collection range: >500A
Charge and discharge current collection error: ±2%
NTC temperature control collection range: -40~125°C
NTC temperature control check error: ±1°C
Communication:
1* UART Support Modbus protocol
1*Isolated RS485 interface, support Modbus protocol
1*Independent CAN2.0B interface
Dynamic self-consumption: ≤1.5W
Static self-consumption: ≤50uA
System startup mode: external soft switch signal trigger
SOC estimation difference: ±5%
Balance current: 60mA
Working temperature: -40~85°C
Support battery pack: 3-4S, 6-16S .17-24S
Single string voltage collection range: 0~5V
Single string voltage collection error: ±10mV FS
Total battery voltage collection range: depends on specifications
Total battery voltage collection error: ±100MV FS
Charge and discharge current collection range: >500A
Charge and discharge current collection error: ±2%
NTC temperature control collection range: -40~125°C
NTC temperature control check error: ±1°C
Communication:
1* UART Support Modbus protocol
1*Isolated RS485 interface, support Modbus protocol
1*Independent CAN2.0B interface
Ternary Lithium Battery
Overcharge protection: 4.25V
Charge release protection: 4.15V
Charge detection delay: 1000mS
Discharge and power failure protection: 2.7V±0.1V
Discharge release protection: 2.9V±0.1V
Discharge detection delay: 1000mS
Charging current: number of strings*4.2V
Continuous current: 200A~500A
Overcurrent protection: 200A *3-8 Times
Overcurrent detection delay: 3000mS
Overcurrent release protection: disconnect the load
Short-circuit protection: load short-circuit through the protection board (no direct short-circuit BMS)
Charging and discharging temperature: ≥75°C
Reset social equipment: <50°C
Condition range: -20°C ~85°C
Opening conditions of balanced pressure difference: 0.02V-0.05V
Charge release protection: 4.15V
Charge detection delay: 1000mS
Discharge and power failure protection: 2.7V±0.1V
Discharge release protection: 2.9V±0.1V
Discharge detection delay: 1000mS
Charging current: number of strings*4.2V
Continuous current: 200A~500A
Overcurrent protection: 200A *3-8 Times
Overcurrent detection delay: 3000mS
Overcurrent release protection: disconnect the load
Short-circuit protection: load short-circuit through the protection board (no direct short-circuit BMS)
Charging and discharging temperature: ≥75°C
Reset social equipment: <50°C
Condition range: -20°C ~85°C
Opening conditions of balanced pressure difference: 0.02V-0.05V
Lifepo4 Battery
Overcharge protection: 3.65V
Charge release protection: 3.55V
Charge detection delay: 1000mS
Discharge and power-off protection: 2.4V±0.1V
Discharge release protection: 2.6V±0.1V
Discharge detection delay: 1000mS
Charging current: number of strings*3.6V
Continuous current: 200A~500A
Overcurrent protection: 200A *3-8 Times
Overcurrent detection delay: 3000mS
Overcurrent release protection: disconnect the load
Short-circuit protection: load short-circuit through the protection board (no direct short-circuit BMS)
Charging and discharging temperature: ≥75°C
Reset social equipment: <50°C
Condition range: -20°C ~85°C
Opening conditions of balanced pressure difference: 0.02V-0.05V
Charge release protection: 3.55V
Charge detection delay: 1000mS
Discharge and power-off protection: 2.4V±0.1V
Discharge release protection: 2.6V±0.1V
Discharge detection delay: 1000mS
Charging current: number of strings*3.6V
Continuous current: 200A~500A
Overcurrent protection: 200A *3-8 Times
Overcurrent detection delay: 3000mS
Overcurrent release protection: disconnect the load
Short-circuit protection: load short-circuit through the protection board (no direct short-circuit BMS)
Charging and discharging temperature: ≥75°C
Reset social equipment: <50°C
Condition range: -20°C ~85°C
Opening conditions of balanced pressure difference: 0.02V-0.05V
The scheme of control relay
Compatible with battery pack.
App modifies parameters, supports Li ion and lifepo4
App modifies parameters, supports Li ion and lifepo4
Products schematics

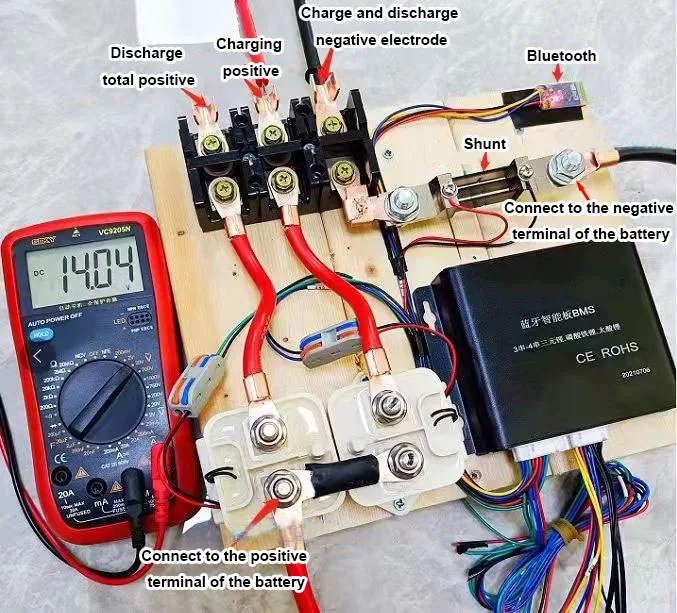

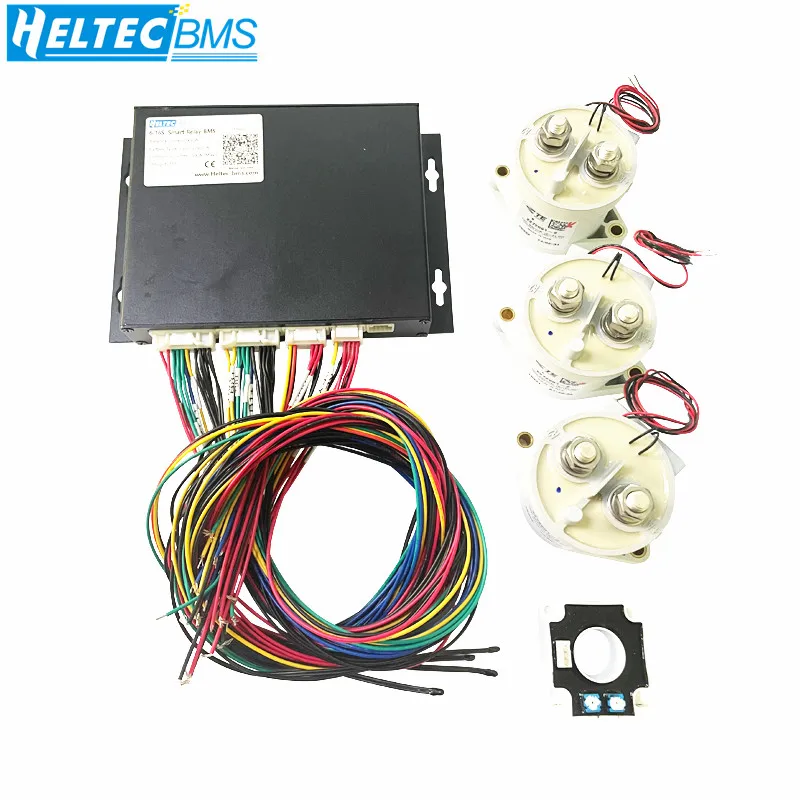

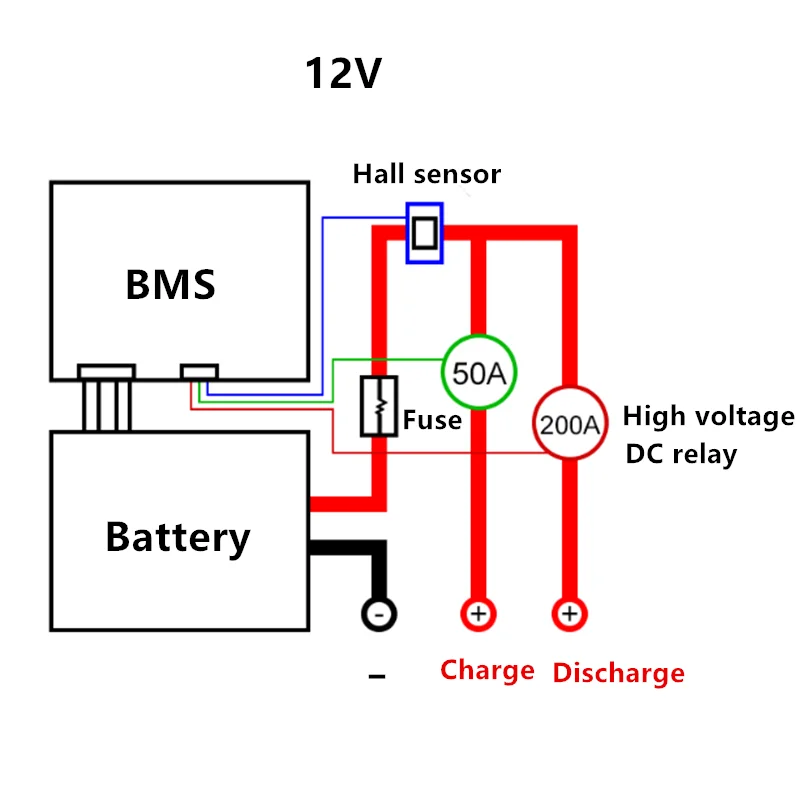

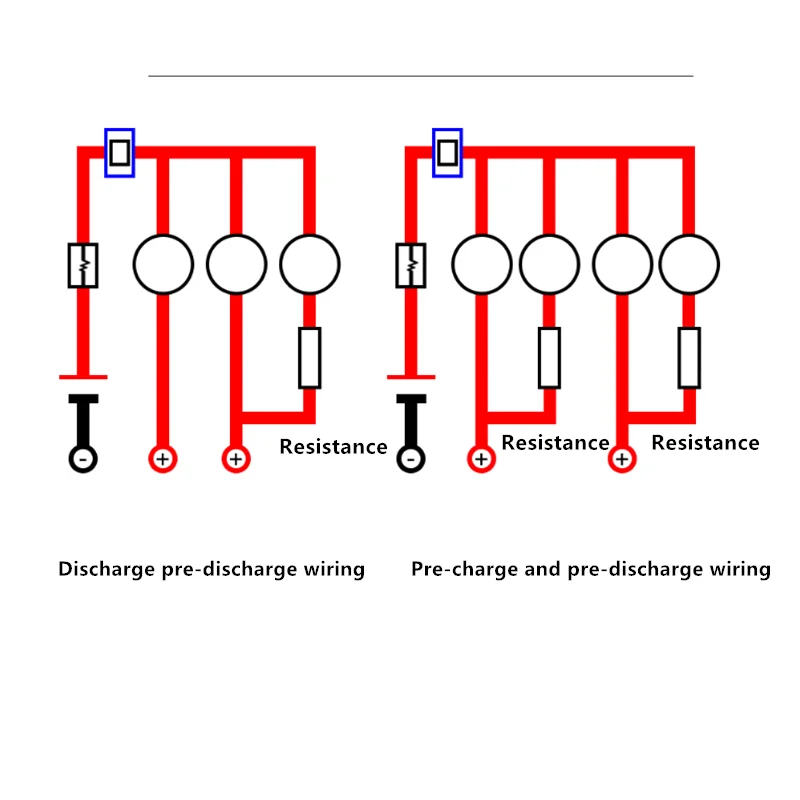

It can control 2-4 relays to control power off, connect with Hall sensor and shunt, and charge and discharge different ports.

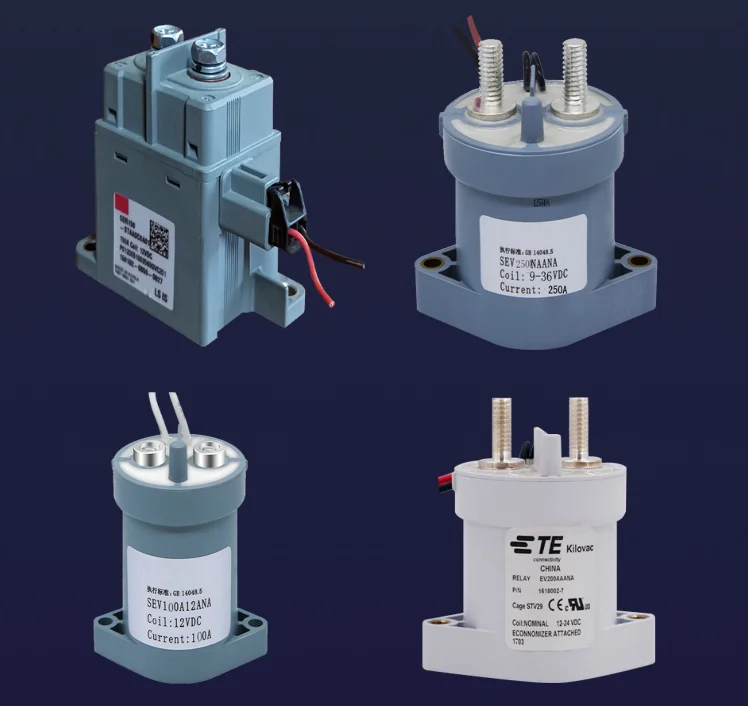

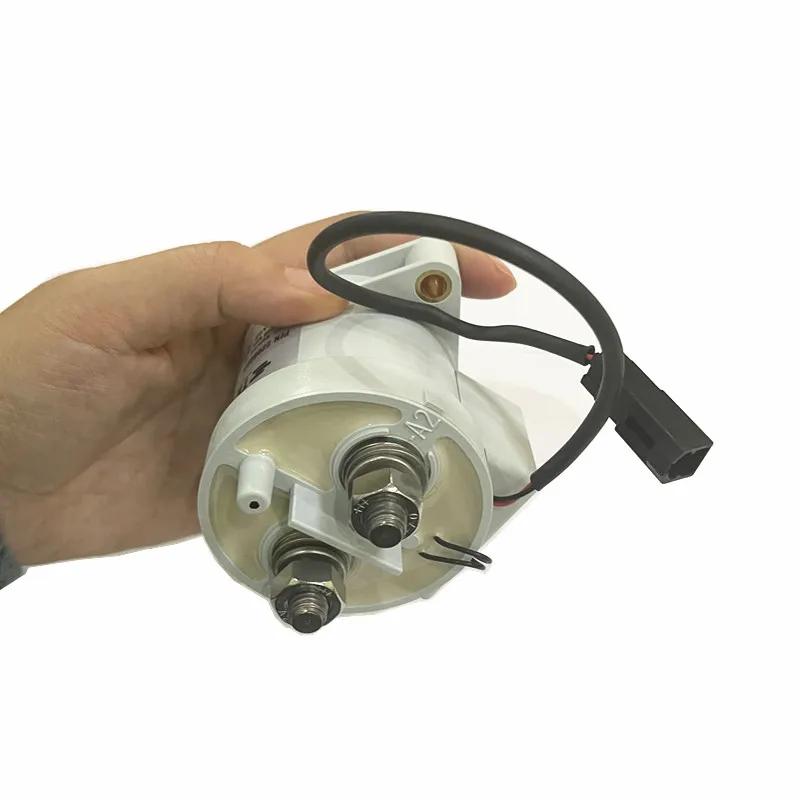

DC relay
Customers need to equip their own relays, select the required current, and support the choice to cut off the positive or negative wire.
Various mainstream relays can be used, with convenient selection and more stable use.
Various mainstream relays can be used, with convenient selection and more stable use.

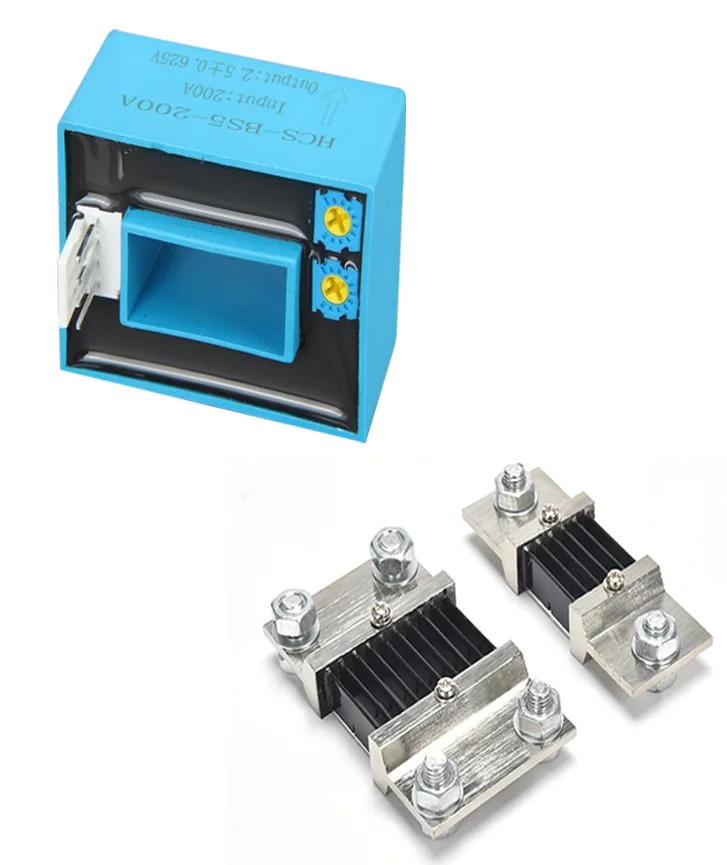

3s-4s is collected by shunt and 6s-24s is collected by Hall sensor.
Cables mark

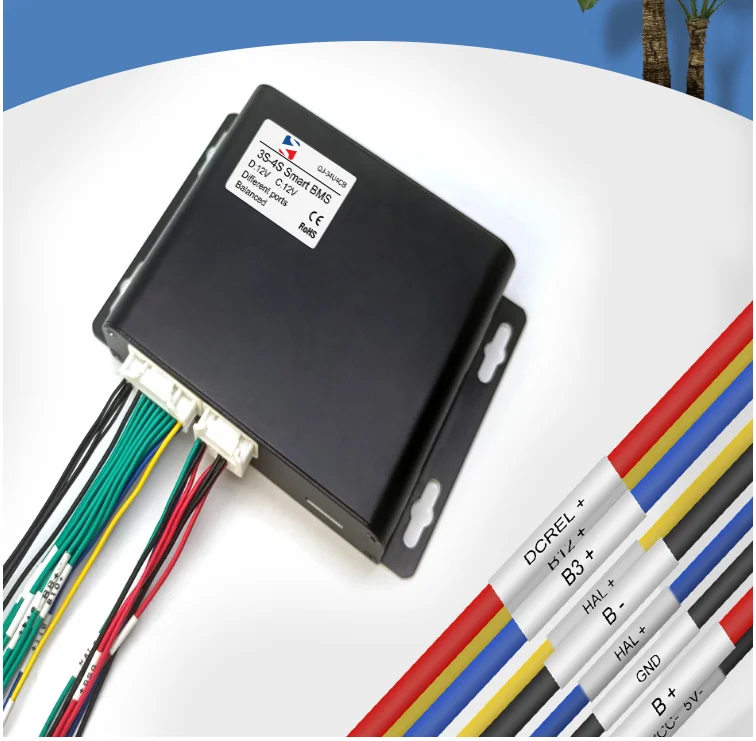

Each cable has a corresponding mark to facilitate customers to identify the corresponding function

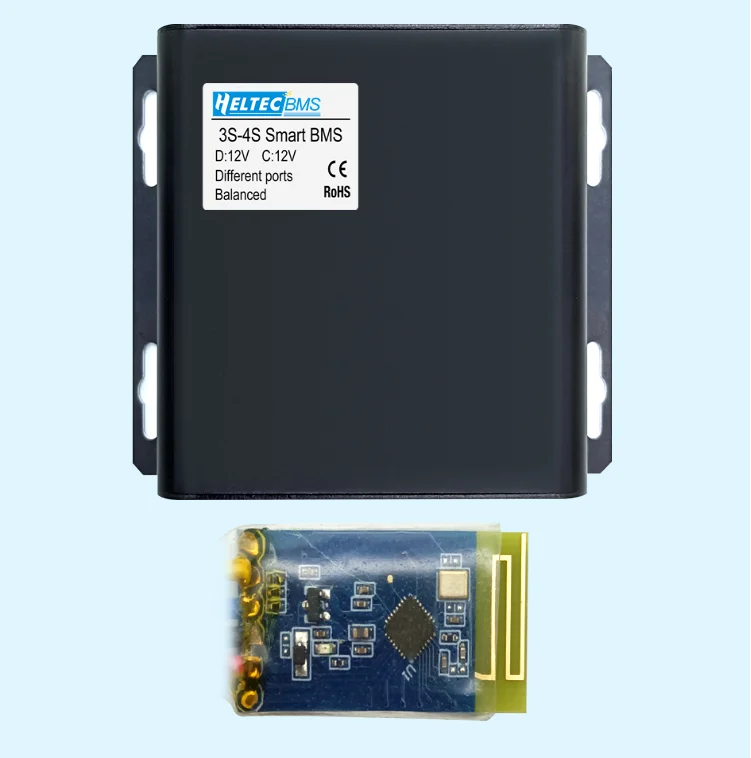

Bluetooth module
Bluetooth transmits signals, mobile phone APP receives information, and the effective distance is within 10 meters.
APP
You can view the battery status and adjust the BMS parameters by Phone Bluetooth APP. If you don’t know how to use it, please contact us to get the English manual.
Note: iPhone can only view parameters but cannot adjust parameters.
Note: iPhone can only view parameters but cannot adjust parameters.
Balance Function
After setting the battery voltage difference between 0.02V-0.05V, it will automatically turn on, and the balance current will be 60mA.
*This balance power can only play an auxiliary role. If the actual deviation is large, a special balance instrument is required
*This balance power can only play an auxiliary role. If the actual deviation is large, a special balance instrument is required
PC software
Our development and adaptation of the PC BMS PC software supports monitoring parameters, modify the configuration and other functions. Notice: It must be used with UART or RS485 module to USB . Please contact us to purchase if you need it.
NTC
The product has 3-4 temperature sensors with a length of 500mm. It can collect current battery temperature information.

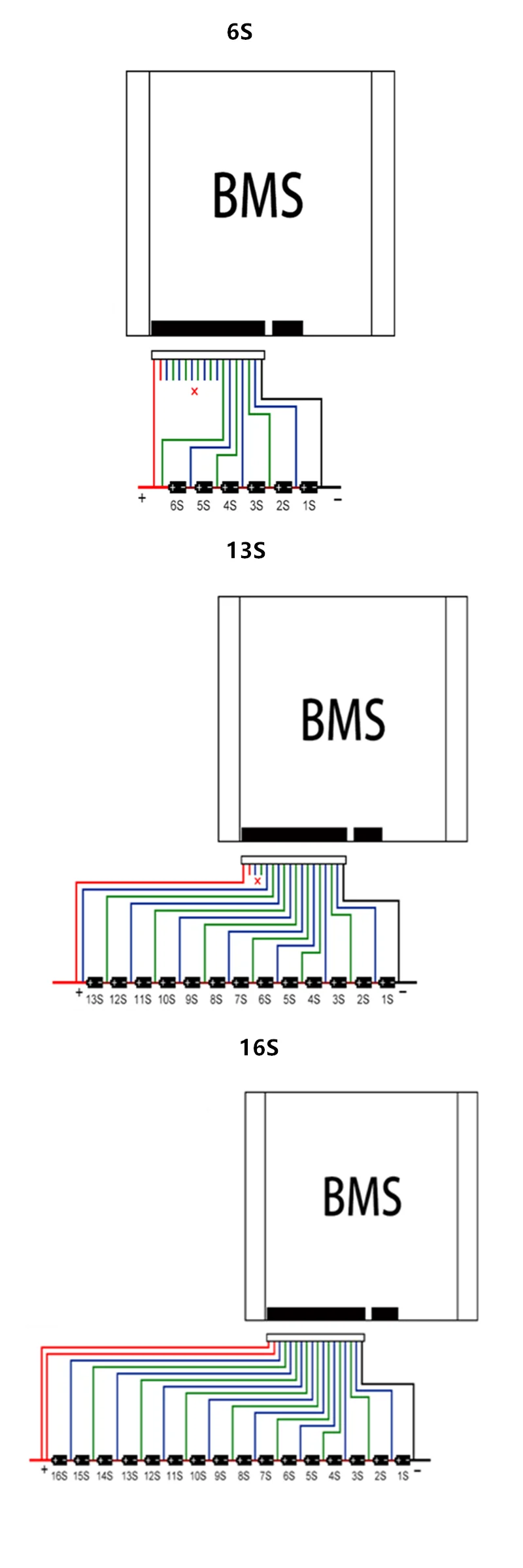

Connection
