Product Overview
Description
Product Description
Specification
Mode | K100-12 | |
Optical Parameter | ||
Sensor | 1/2.8" inch Exmore CMOS | |
Effective Pixels | 16：9 2.1 Megapixels | |
Video Format | USB2.0: 1080p30，720p30， 640X480p30, 320X240p30, | |
Optical Lens | 12X optical zoom lens，12X digital zoom lens f＝4.7mm～56mm | |
Horizontal View Angle | 62°(W)～5.2°(T) | |
Minimum illumination | 0.1Lux | |
White Balance | Auto/indoor/outdoor/Manual | |
Focus | Auto/Manual | |
Noise-Signal Ratio | >50dB | |

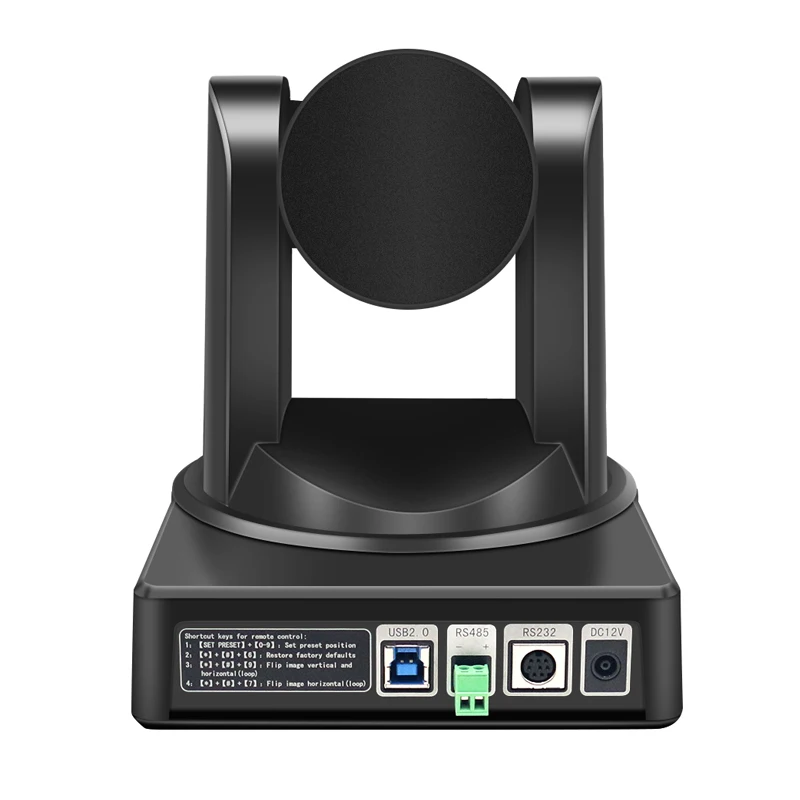

Input/Output interface | ||
HD video interface | USB 2.0 | |
Control signal interface | 8 mini DIN(RS232)/3.81 pin（RS485） | |
Control signal format | Start bit：1bit、data bit：8bit、stop bit：1bit、baud rate：9600/4800/2400bps | |
Power interface | HEC3800 power socket | |
Support operating system | Windows 7, Windows 10, Linux | |
USB protocol | UVC1.1 | |
Encoding | MPEG/YUY2 | |
USB interface PTZ control | USB interface PTZ control | |
Mechanical Parameter | ||
Pan-Tilt | Horizontal Angle: ±170°(Maximum speed: 100° /s); | |
Vertical Angle: -30° to +90°(Maximum speed: 60° /s) | ||
Preset accuracy：0.1° | ||
No. of Preset Positions:255 | ||
Colour | Steel gray | |
Power adapter | AC110V-AC220V switch DC12V/2A | |
Input voltage | DC12V(DC11.5-DC12.5V) | |
Power dissipation | 15W(Max) | |
Storage Temperature | -10℃～+60℃ | |
Working Temperature | 0℃～45℃ | |
Dimensions | (Length)150 × (Width)173 x (Height)175mm | |
Weight（Net weight） | 2.5KG(1.3KG) | |
Environment | Indoor | |
Effective Pixels: 1/2.8" high quality HD CMOS, 1080P 2.1 Megapixels
Zoom: 12X Optical Zoom f=4.7~56mm
Video Out: USB2.0
255 Preset Positions
Support SONY VISCA, PELCO P/D
IR Remote Control, RS232, IR Transparent Transmission
Horizontal Angle: ±170°; Vertical Angle: -30° to +90° degrees
Adopt 2D and 3D DNR Motion Estimation Algorithm, Low Noise CMOS Sensor
Adopt Quiet Motor, Servo Algorithm for PTZ Control, Precise location(±0.01°)
IR Remote Control Camera OSD Menu
Horizontal Speed: 0.1-100°/s; Vertical Speed: 0.1-60°/s
1080P30/25, 720P30/25 Multiple Video Formats Output
Preset Calling Speed: 100°/s; Vertical Speed: 60°/s

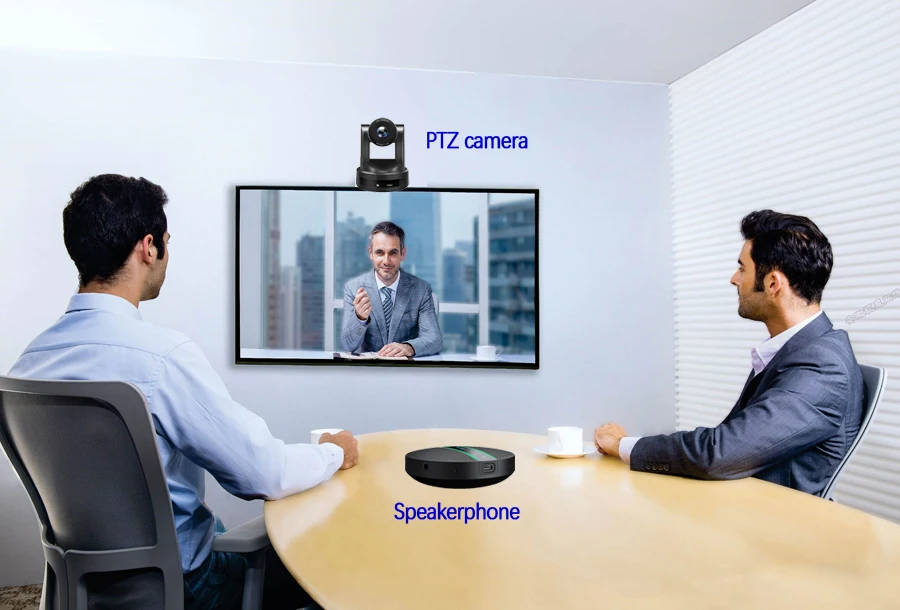

Widely Been Used in Video Conference System, Remote Education, Telemedicine, Church, Courts, Media Centers.
Enter/Exit Menu through IR Remote
340°Horizontal Angle; 120° Vertical Angle
IR Remote Control，RS-232C Control
VISCA, PELCO P/D Protocol
IR Transparent Transmission，Able to Receive the Video Conference Terminal's IR Control Signal
Firmware Update Through RS-232C Port
Desktop, Ceiling Mount, Wall Mount
Compatible with Most Kinds of Video Terminal in the Market
Zoom: 12X Optical Zoom f=4.7~56mm
Video Out: USB2.0
255 Preset Positions
Support SONY VISCA, PELCO P/D
IR Remote Control, RS232, IR Transparent Transmission
Horizontal Angle: ±170°; Vertical Angle: -30° to +90° degrees
Adopt 2D and 3D DNR Motion Estimation Algorithm, Low Noise CMOS Sensor
Adopt Quiet Motor, Servo Algorithm for PTZ Control, Precise location(±0.01°)
IR Remote Control Camera OSD Menu
Horizontal Speed: 0.1-100°/s; Vertical Speed: 0.1-60°/s
1080P30/25, 720P30/25 Multiple Video Formats Output
Preset Calling Speed: 100°/s; Vertical Speed: 60°/s
Widely Been Used in Video Conference System, Remote Education, Telemedicine, Church, Courts, Media Centers.
Enter/Exit Menu through IR Remote
340°Horizontal Angle; 120° Vertical Angle
IR Remote Control，RS-232C Control
VISCA, PELCO P/D Protocol
IR Transparent Transmission，Able to Receive the Video Conference Terminal's IR Control Signal
Firmware Update Through RS-232C Port
Desktop, Ceiling Mount, Wall Mount
Compatible with Most Kinds of Video Terminal in the Market

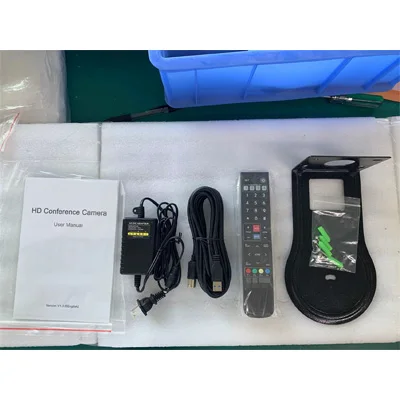

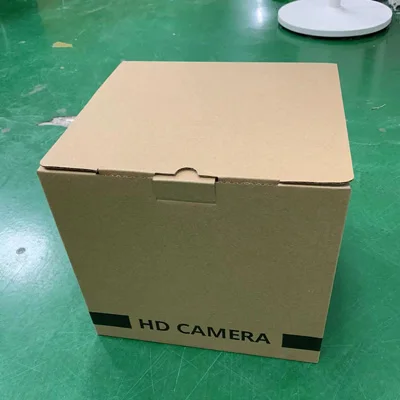

Packing & Delivery
CTN： 280x250x260mm
GW：2.5kg
