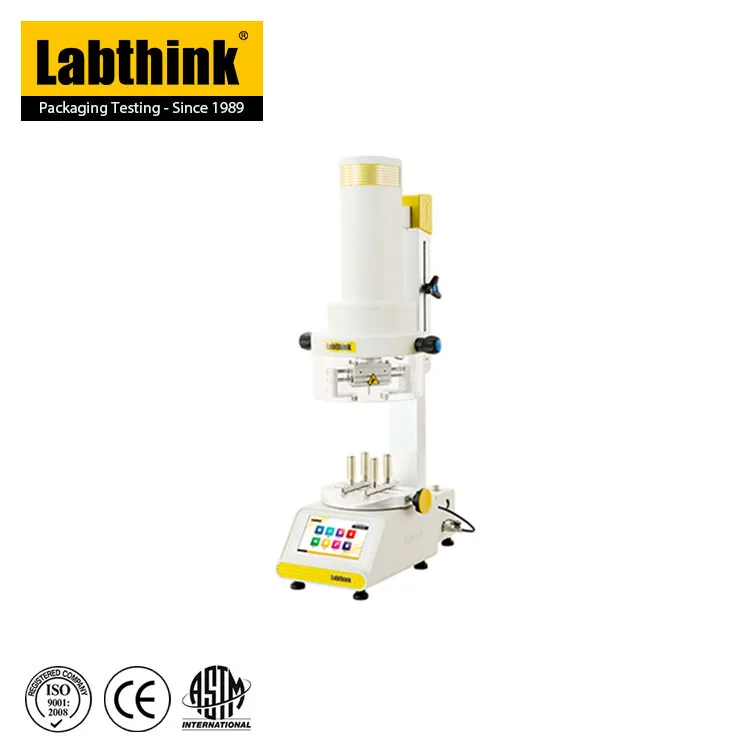

The application torque and removal torque of caps or closures of bottles, spout bags and flexible tube packages are important online and offline production parameters for the manufacturers, they may influence the transportation and consumption of the products. C612M Digital Torque Tester is the first generation of automatic torque tester with manipulator, which is one professional testing instrument that can be used to measure the application torque and removal torque of the caps of bottles, spout bags and flexible tube packages. C612M, featuring great stability and high precision, is an indispensable testing instrument in manufacturing process..





Features

Dual test modes including application torque test and removal torque test

Innovative patented manipulator technique supports automatic gripping, opening and fastening, which minimizes the error caused by manual operations and improves the testing accuracy and repeatability

Gripping force, fastening force and turning speed of the cap can be adjusted freely

Automatic gripping manipulator with deviation less than 0.01Nm, much better than manual fastening



Standards

ASTM D2063, ASTM D3198, ASTM D3474, BB/T 0025, BB/T 0034, GB/T 17876



Applications

Bottle Packages
Application and removal torque test of the bottle caps for bottled packages for food, pharmaceuticals, e.g. beverage or tablet bottles

Flexible Tube Packages
Application and removal torque test of flexible tube packages for food, pharmaceuticals and cosmetics, e.g. eye-drop, hand cream and shoe polish

Screws
Application and removal torque test of the screws

Vacuum Flasks and Vacuum Cups
Application and removal torque test of the caps of vacuum flasks and vacuum cups



Specifications
Load Cell Capacity
5 Nm (Standard)
20 Nm (Optional)
40 Nm (Optional)
Accuracy
Indicated Value ±0.5%(10%-100% of Load cell capacity)
±0.05%FS (0%-10% of Load cell capacity)
Resolution
0.0001 Nm
Body Clamp Range
Φ5 mm ~ Φ170 mm
Cap Clamp Range
Φ10 mm ~ Φ80 mm
Bottle Height
20 mm ~ 400 mm
Specimen Clamping and Turning Way
Pneumatic
Maximum Auto Removal / Application Torque
2 Nm (customization available for other specs)
Gas Supply
Air (Not in supply scope)
Gas Supply Pressure
0.7 Mpa (101.5psi)
Statistical Analysis Allowance
0 ~ 999
Instrument Dimension
550 mm (L) x 365 mm (W) x 1150 mm (H)
Power Supply
220VAC±10% 50Hz / 120VAC±10% 60Hz
