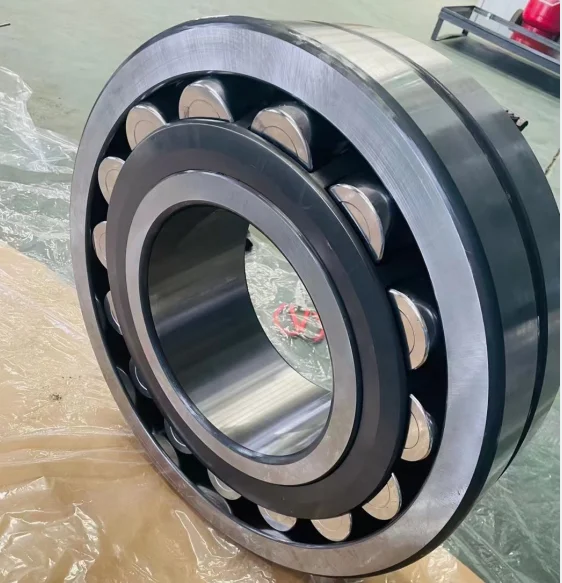

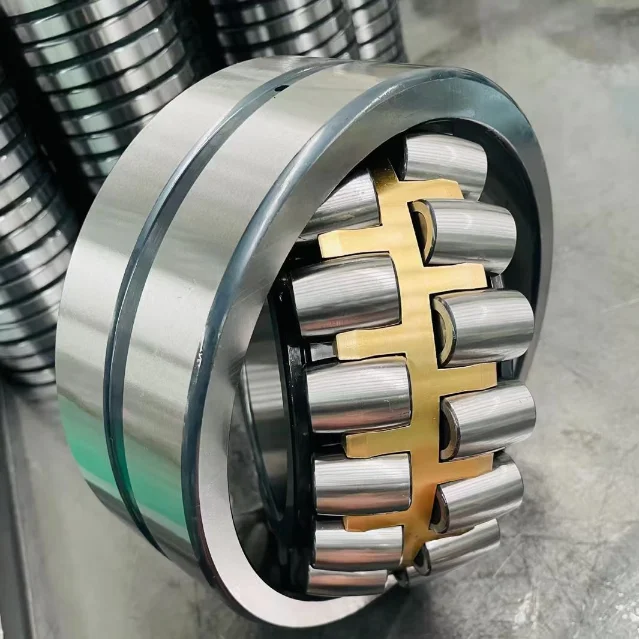

Высококачественный Сферический роликовый подшипник с длительным сроком службы 22330 для бумажной машины
- Category: Spherical Roller Bearings >>>
- Supplier: Jinan JiaRuiDa Mechanical&Electrical Equipment Co. Ltd.
Share on (1600516993257):
Product Overview
Description
High Quality Long Life Spherical Roller Bearing 22330 For Paper Making Machinery
Famous brand bearing
Product Description
Description:

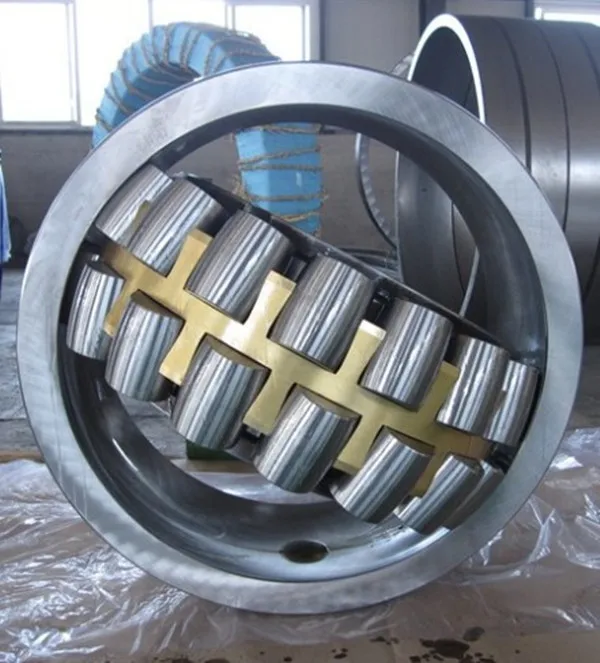

Spherical roller bearings are dedicated to extremely severe applications and must support high loads, severe misalignment, contaminated environments, shocks, and vibrations. And with the industry’s highest load rating and production coming from a
factory near you, there’s no reason to look anywhere else for spherical roller bearings.

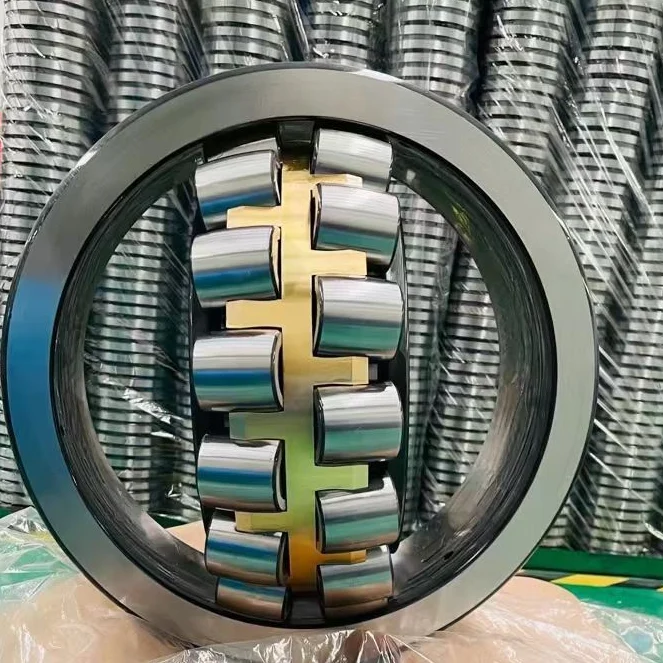

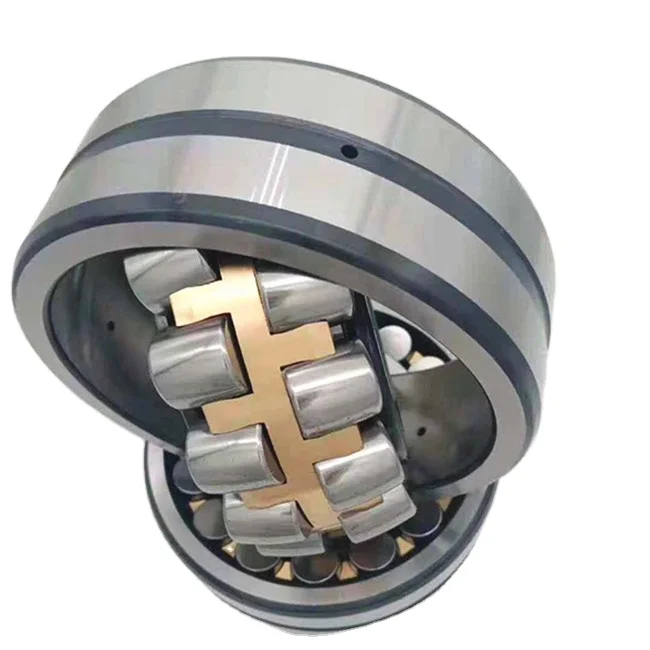

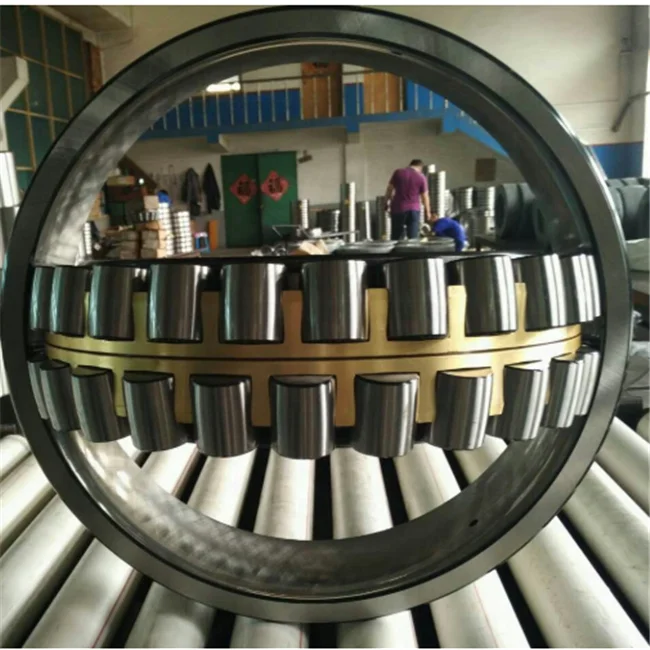

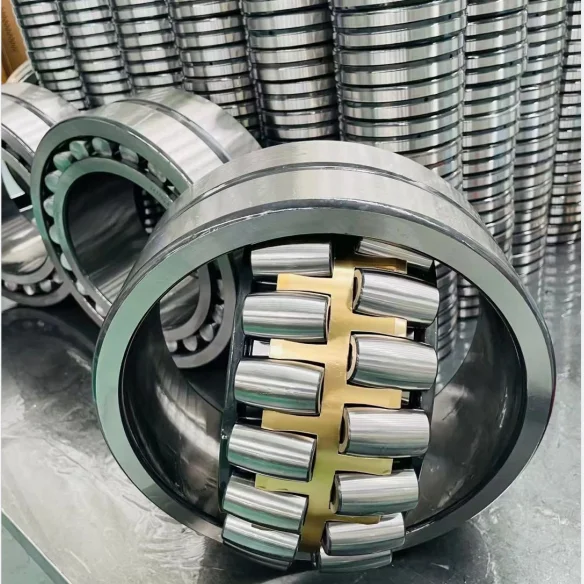

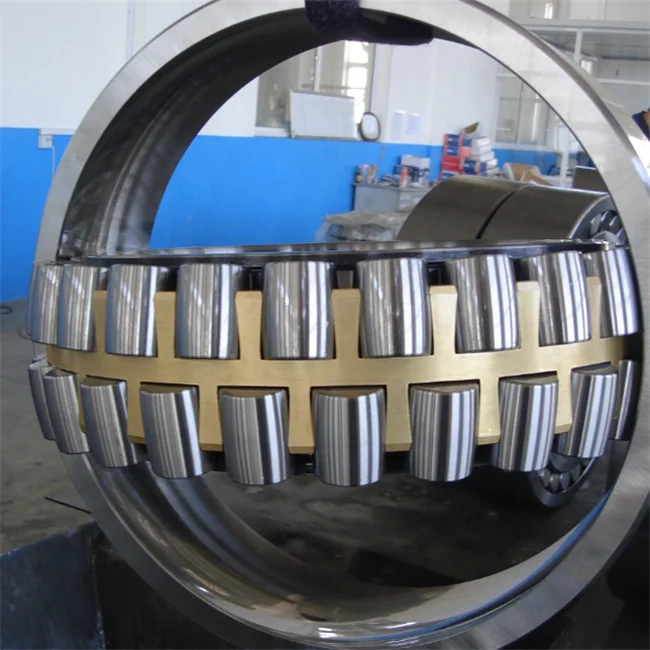

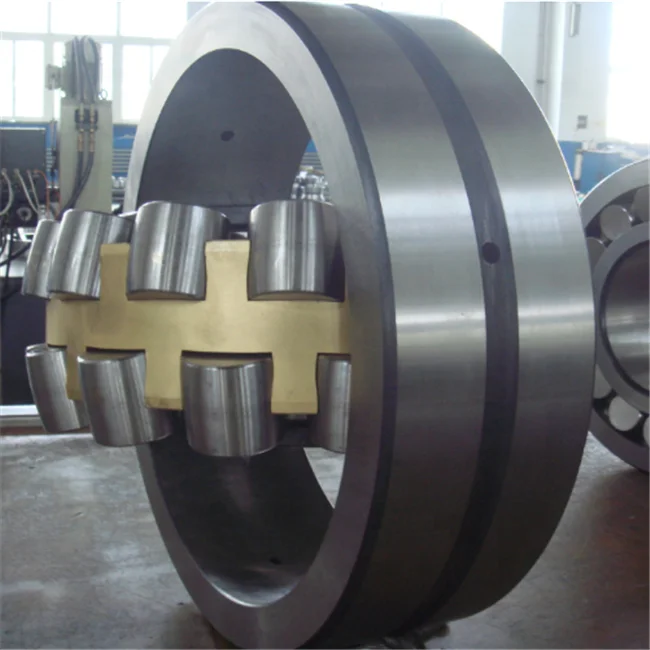

Shown in the figures, types EA, C, CD, CA, which are designed for high load capacity, are available. Types EA, C, and CD have pressed steel cages; and type CA has machined brass cages. Type EA has especially high load capacity, features low torque, and has a high-strength cage.
pecification | dimensions(mm) | specification | dimensions(mm) |
22205 | 25*52*18 | 23064 | 320*480*121 |
22206 | 30*62*20 | 23068 | 340*520*133 |
22207 | 35*72*23 | 23072 | 360*540*134 |
22208 | 40*80*23 | 23076 | 380*560*135 |
22209 | 45*85*23 | 23080 | 400*600*148 |
22210 | 50*90*23 | 23084 | 420*620*150 |
22211 | 55*100*25 | 23088 | 440*650*157 |
22212 | 60*110*28 | 23092 | 460*680*163 |
22213 | 65*120*31 | 23096 | 480*700*165 |
22214 | 70*125*31 | 230/500 | 500*720*167 |
22215 | 75*130*31 | 230/530 | 530*780*185 |
22216 | 80*140*33 | 230/560 | 560*780*195 |
22217 | 85*150*36 | 230/600 | 600*870*200 |
22218 | 90*160*40 | 230/630 | 630*920*212 |
22219 | 95*170*43 | 230/670 | 670*980*230 |
22220 | 100*180*46 | 240/850 | 850*1220*365 |
22222 | 110*200*53 | 240/900 | 900*1280*375 |
22224 | 120*215*58 | 23121 | 105*175*56 |
22226 | 130*230*64 | 23122 | 110*180*56 |
22228 | 140*250*68 | 23124 | 120*200*62 |
22230 | 150*270*73 | 23126 | 130*210*80 |
22232 | 160*260*80 | 23128 | 140*225*85 |
22234 | 170*310*86 | 23130 | 150*250*80 |
22236 | 180*320*86 | 23132 | 160*270*86 |
22238 | 190*320*92 | 23134 | 170*280*88 |
22240 | 200*360*98 | 23136 | 180*300*96 |
22244 | 220*400*108 | 23138 | 190*320*104 |
22248 | 240*440*120 | 23140 | 200*340*112 |
22252 | 260*480*130 | 23144 | 220*370*120 |
22256 | 280*500*130 | 23148 | 240*400*128 |
22260 | 300*540*140 | 23152 | 260*440*144 |
22308 | 40*90*33 | 23156 | 280*460*146 |
22309 | 45*90*33 | 23160 | 300*500*160 |
22310 | 50*110*40 | 23164 | 320*540*176 |
22311 | 55*120*43 | 23168 | 340*580*190 |
22312 | 60*130*46 | 23172 | 360*600*192 |
22313 | 65*140*48 | 23176 | 380*620*194 |
22314 | 70*150*51 | 23180 | 400*650*200 |
22315 | 75*160*55 | 23184 | 420*700*224 |
22316 | 80*170*58 | 23188 | 440*720*226 |
22317 | 85*180*60 | 23192 | 460*760*240 |
22318 | 90*190*64 | 23196 | 480*790*248 |
22319 | 95*200*67 | 23218 | 90*160*52.4 |
22320 | 100*215*73 | 23220 | 100*180*60.3 |
22322 | 110*240*80 | 23222 | 100*180*60.3 |
22324 | 120*246*80 | 23224 | 120*200*69.8 |
22326 | 130*280*93 | 23226 | 120*230*80 |
22328 | 140*300*102 | 23228 | 140*250*88 |
22330 | 150*320*108 | 23230 | 150*270*96 |
22332 | 1608340*114 | 23232 | 160*290*104 |
22334 | 170*360*120 | 23234 | 180*310*110 |
22336 | 180*380*126 | 23236 | 180*320*112 |
22338 | 190*400*132 | 23238 | 190*340*120 |
22340 | 200*420*138 | 23240 | 200*360*128 |
22344 | 220*4608145 | 23244 | 200*400*144 |
22348 | 240*500*155 | 23248 | 240*440*160 |
22352 | 260*540*165 | 23252 | 260*480*174 |
22356 | 280*580*175 | 23256 | 280*500*176 |
22372 | 360*750*244 | 23260 | 300*540*192 |
22380 | 400*820*243 | 23264 | 320*580*208 |
23022 | 110*170*75 | 23280 | 400*720*256 |
23024 | 120*180*46 | 23284 | 420*760*272 |
23026 | 130*200*52 | 23296 | 480*870*310 |
23028 | 140*210*53 | 23936 | 180*250*52 |
23030 | 150*225*56 | 23940 | 200*280*60 |
23032 | 160*240*60 | 23948 | 240*320*60 |
23034 | 170*260*67 | 23960 | 300*420*90 |
23036 | 180*280*74 | 23972 | 360*480*90 |
23038 | 190*290*75 | 23976 | 380*580*106 |
23040 | 200*310*82 | 23996 | 480*650*128 |
23044 | 230*340*90 | 239/500 | 500*670*128 |
23048 | 240*360*92 | 239/670 | 670*900*170 |
23052 | 260*400*104 | 239/710 | 710*950*180 |
23056 | 280*420*106 | 239/850 | 850*1200*200 |
23060 | 300*460*118 |
|
|
Packaging & Shipping
Packaging:
1. Industrial packaging: plastic bag/plastic tube + kraft paper + carton + plywood pallets
2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets
3. As the clients' requirement
Shipping:
DHL, FEDEX, TNT,ARAMEX
By SEA
By AIR
More brand products
Company Information
Jinan JiaRuiDa Mechanical&Electrical Equipment Co., Ltd. offer famous brands bearings like NSK, NTN, KOYO, NACHI, FYH, ASAHI, IKO, THK, NMB, KBC, TPI, GMB etc and OEM service.
We mainly provide Automobile hub bearing, Automobile water pump bearing, Clutch bearing, Tension wheel bearing, Machine Spindle precision bearings, Mining machinery bearings, High temperature bearings, Vibrating screen bearings, Insulated bearings,Forklift bearings,Slewing bearings,Universal joints, Oil seals, 3D printer bearings, Door and window bearings, Agricultural machine bearings, Ceramic bearings, Stainless steel bearings and so on. Welcome inquiry.
Our customer
FAQ
FAQ
Can you give me discount?
Yes,of course.And we will quote you lowest price at the beginning.
Will you send me free samples?
Yes.We will.Can you give me a chance of trying?
What should I do if the bearings has something wrong?
oh!We will try our best to help you and set up long time cooperation.
Working time,working environment,usage way will influence the life of bearings.
Do you like to serve clients with small orders only?
We would like to serve clients with all kinds of orders,big or small.
I believe that you will be larger clients for us.
