warehouse cargo lift hydraulic electric lift platform for construction equipment

Product Overview

Description

hydraulic  Garage car hoist Scissor lift up and down

The hydraulic scissor lift is widely used for the equipments installations and maintenance at the following places like construction sites workshops, warehouse, granary, bus/railway stations, hotels, airports, gas station and aerial pipeline.



1.Scissor hydraulic lift is the professional high-altitude operation equipment.

2. Its scissor mechanical structure makes the lifting platform lift more stably.Wide working platform and large loading capacity can make the work scope bigger.It’s suiable for several pelople working together.

3.Lifting height:1m,2m,3m 4m, 6m, 8m, 10m, 11m and so on. And the max height of the scissor lift is 18m.

4. Loading capacity: 300kg, 500kg, 800kg, 1000kg and so on.







1.High working capacity, easily pushed around,most spacious platforms for several people to work on

2.igh strength steel structures,smoothly lift up and drop down, easily operated, few faults.

3.Moving method: 4 wheel and 2wheel types are optional, it can be pneumatic rubber tyres, solid rubber tyres or polyurethane tyres.

4.Power sources: local power available at the working sites(110V, 220V, 380V, 415V), diesel engines and generators

5.Working heights:  4m, 6m, 8m, 10m, 12m, 14m, 16m, 18m, 20m

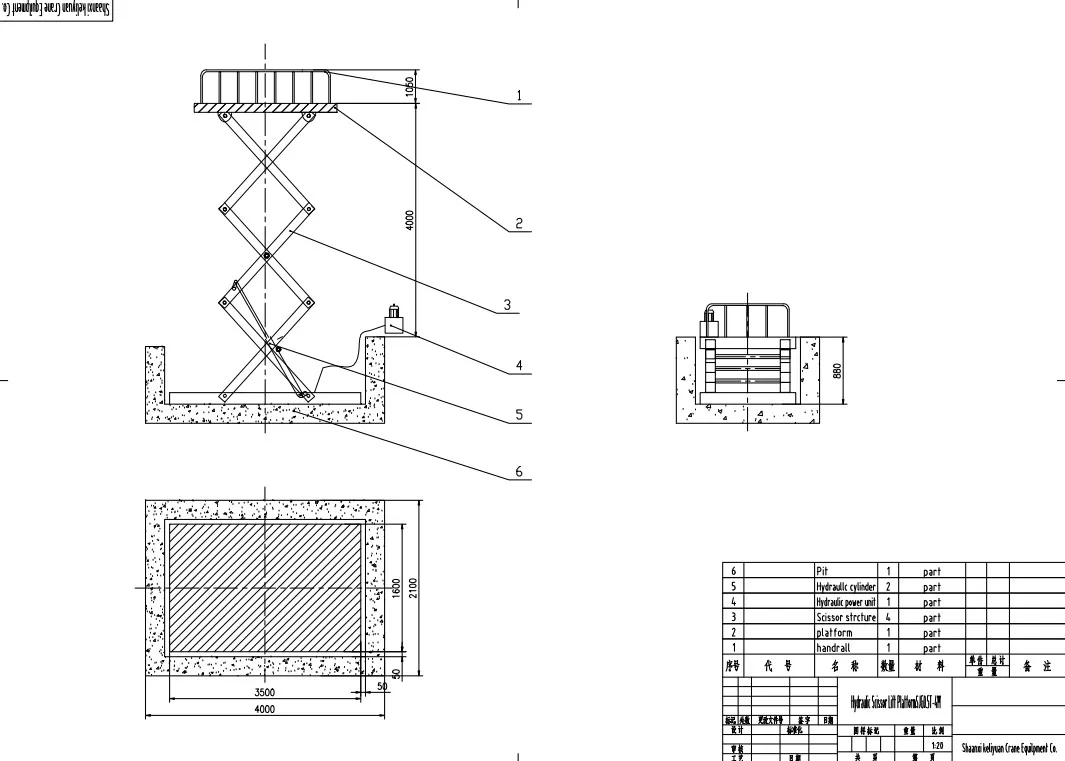

Category			Specification
Model			SJG2t-4m
Loading			2000Kg
Lifting height			4000mm
Self heiht when it is closed			900mm
Platform size			2000*2000mm

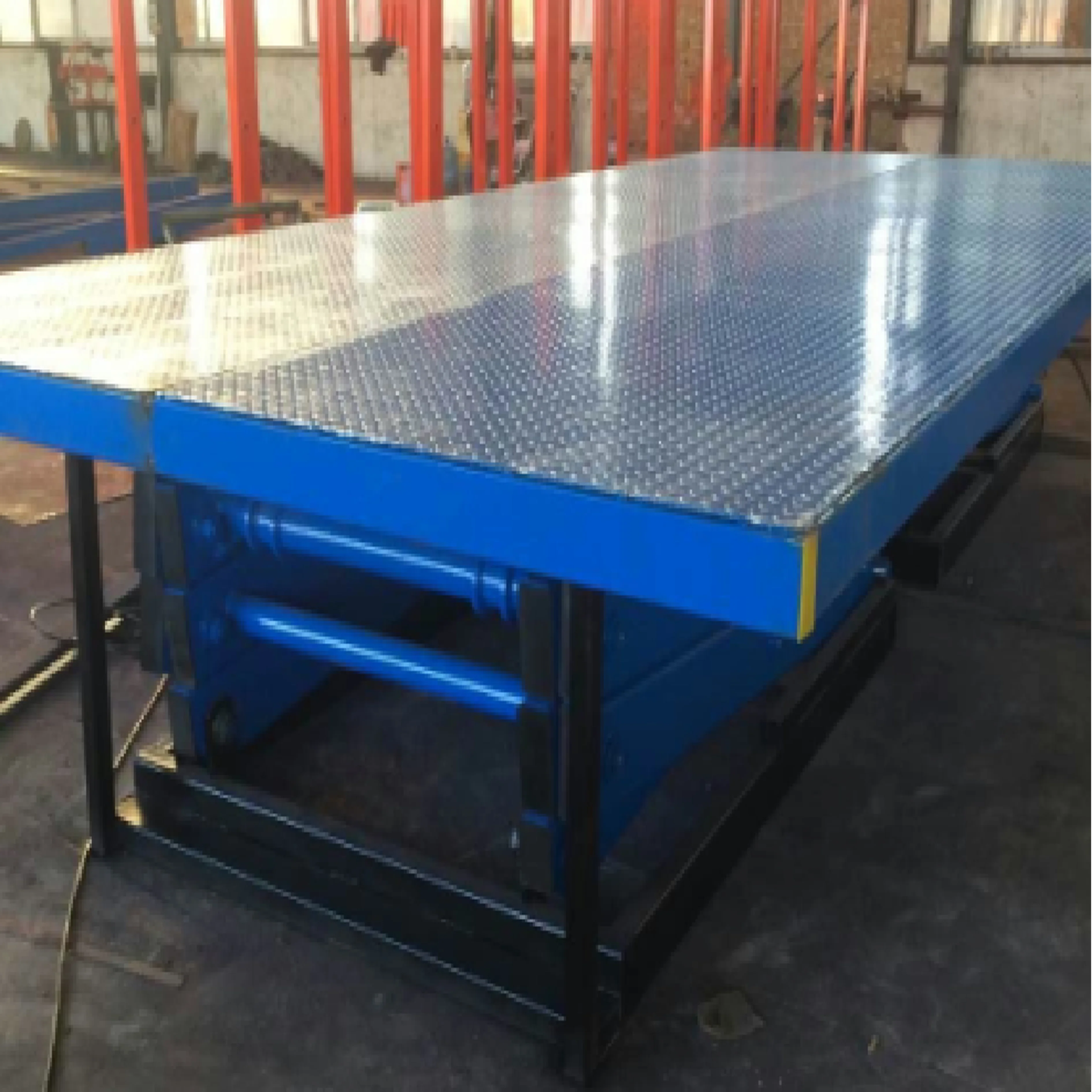

Checkered plate			4mm checkered plate

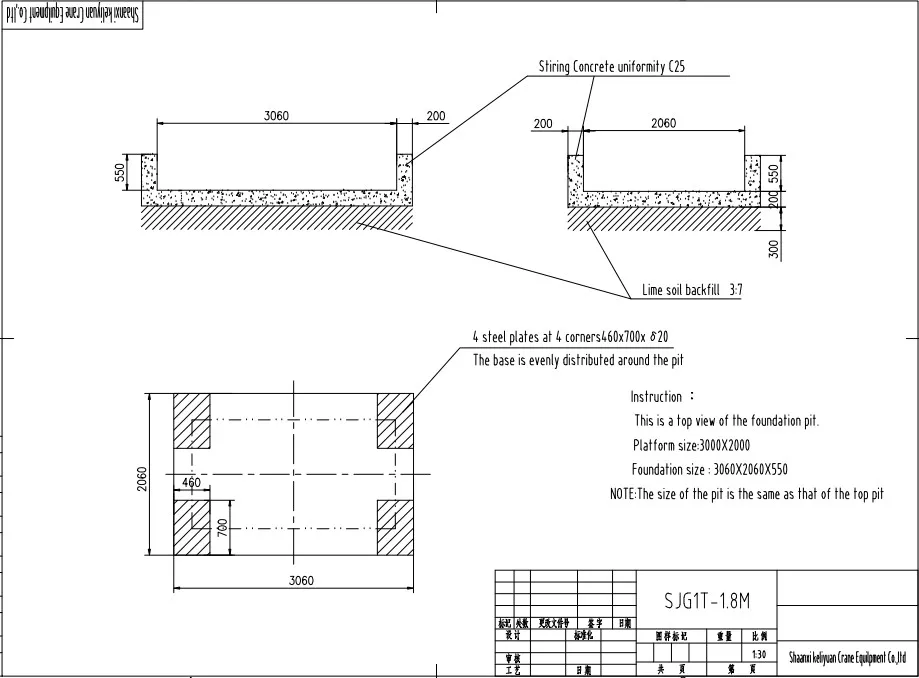

Foundation size			2100*2100*900mm
Lifting bracket			200*100*8mm manganese steel rectangular tube
table			120*60*4mm rectangular tube
The whole power method			electric hydraulic
Power supply			380v 50hz 3ph
Hydraulic oil			46 # anti-wear hydraulic oil
Switch			CHINT
Hydraulic oil tube			Sided wire high pressure oil hose

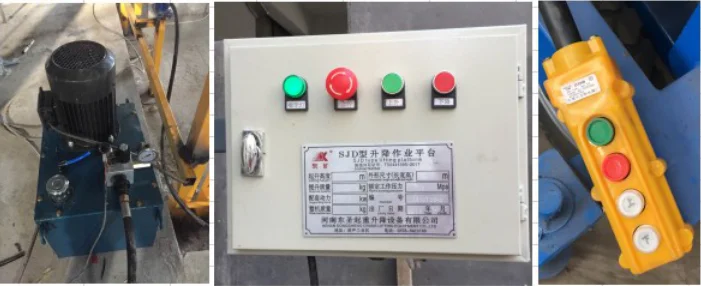

Hydraulic power unit			ZCF-F8B-380V-4kw
Electric equipment			CHINT control box
Certification			CE
Hydraulic cylinder			HSGF-110/50BE*2PCS

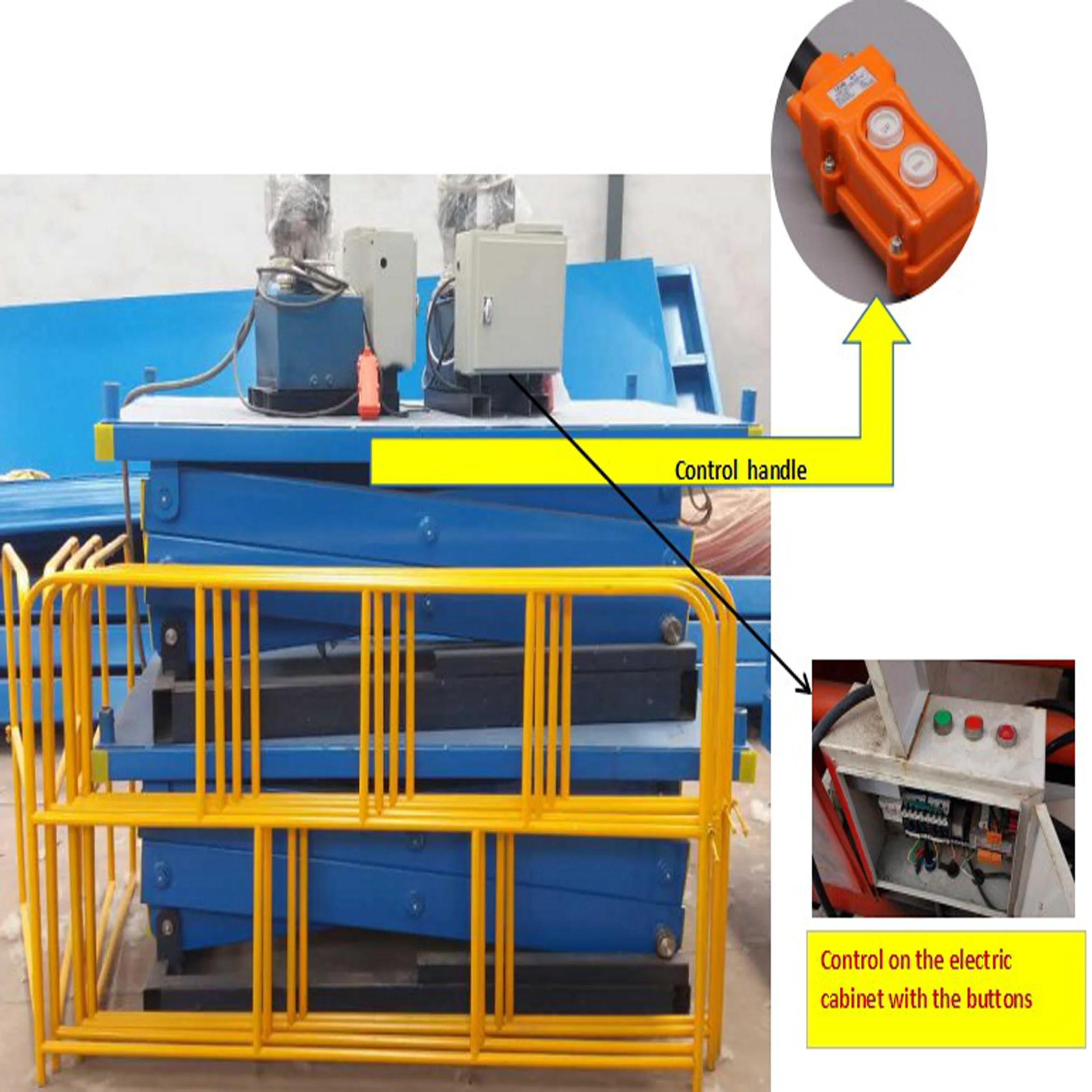

Operation methods			Control box and hand controller on platform
Packing			Wooden case
Weight of lift platform			1200kg
Safty device			Overload Limiter
Lifting speed			about 4-6 m/min



5.Spare parts for free
Model			Description			Quantity
0.4m Hydraulic tubing			0.4m Hydraulic tubing			1
O model rings			O model rings			6
Pads			Combination pad			6



Delivery date		In 30 working days after received the deposit and comfirmed designs
Payment		* 30% down payment through T/T within 2days after signing the contract.                   * 70% balanced payment after inspection before delivery from factory by T/T        * We also accept order on line throught trade assurance of Alibaba .
Validity		15days
Warranty		12 months after commissioning at site or 18 months after delivery, what occurs first. During this period, we will bear all repair and maintenance expenses including broken spare parts and man power if it is caused by the defects of products itself.
Shipment		Shipped by sea in FCL  .

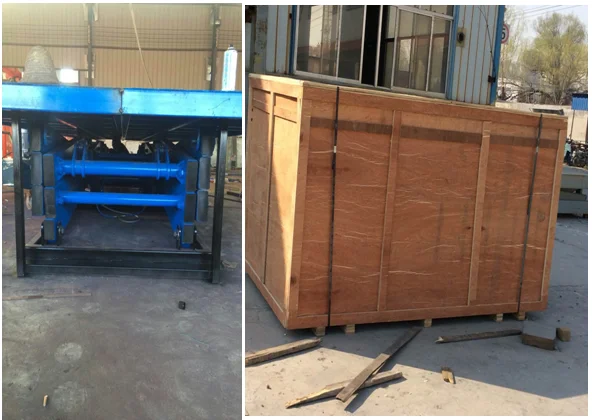

Packing		Packed with wooden case
Paint Color		According to your request
Country of origin		China
Cetification		CE
Safty features  1)Electrical up-down control device, or manual hydraulic pump device when the electricity Is not available.We can also install the remote control device according to your requirement 2) The remote control and multi-control points at the different floors could be realized at each control point. Lift Up, Stop and Lower could be realized at each control point.The lift platform could stop at the accurate loaction point

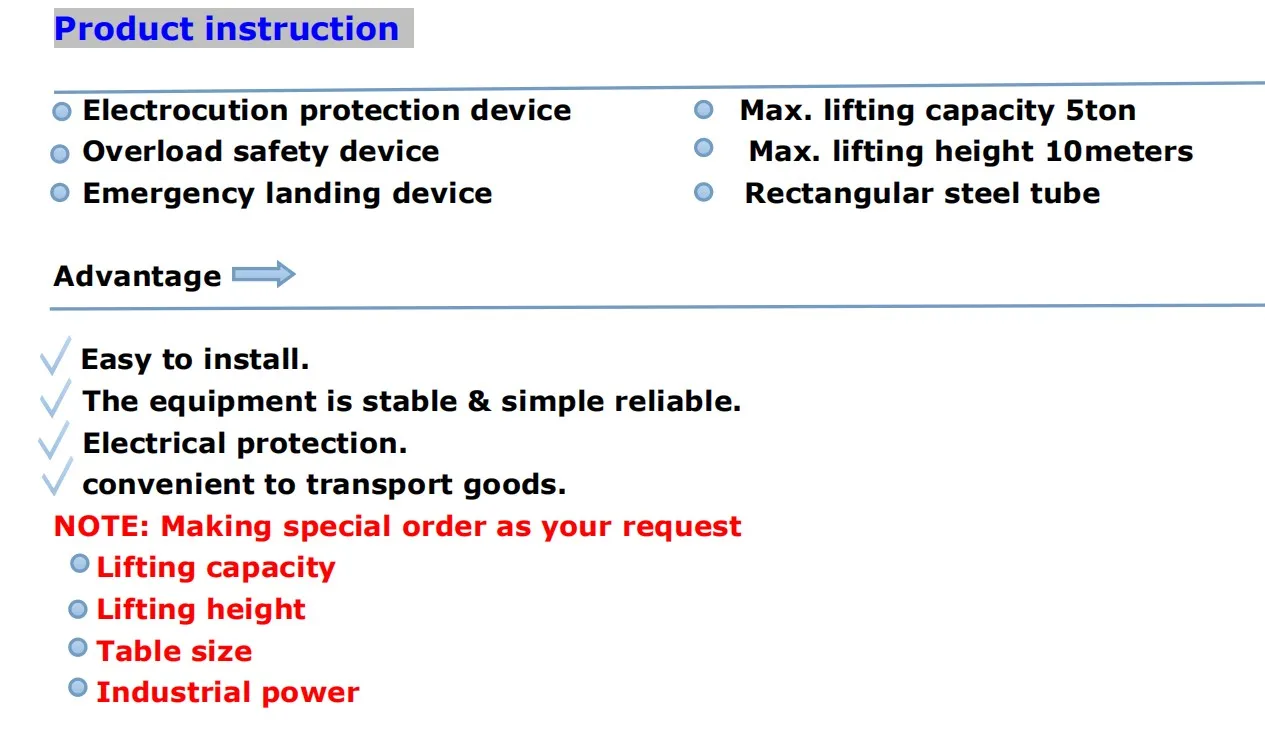

Safty Devices		Safety devices and equipments :                                                                                                1.CE Certifacation                                                                                                              2.Safety devices are provided in the hydraulic cylinders in case the hose breaks                                3. Emergency stop system, Prevent high pressure while machine move upcurrent                                                                                                            4.Overload protection system.                                                                                   5.Weight overload protection device,Protect hydraulic pipe.                                              6.Leakage of electricity protection device                                                                                                                                          7.The lowering speed is controlled by the built-in high precision injection valve.                                                                                              8.The drive mechanism consists of a pump and an AC motor











In order to provide a proper product to you ,please confirm some details for us:

1. the load capacity is _____ kg ?

2. the lifting height is ____m?

3. we have standard size of the platform size, is it ok?

4. the power supply is ____?

5. If you need us to deliver for you ,please kindly tell us your destination port.

Once these informations are confirmed , the best quotation will be sent to you at once !
