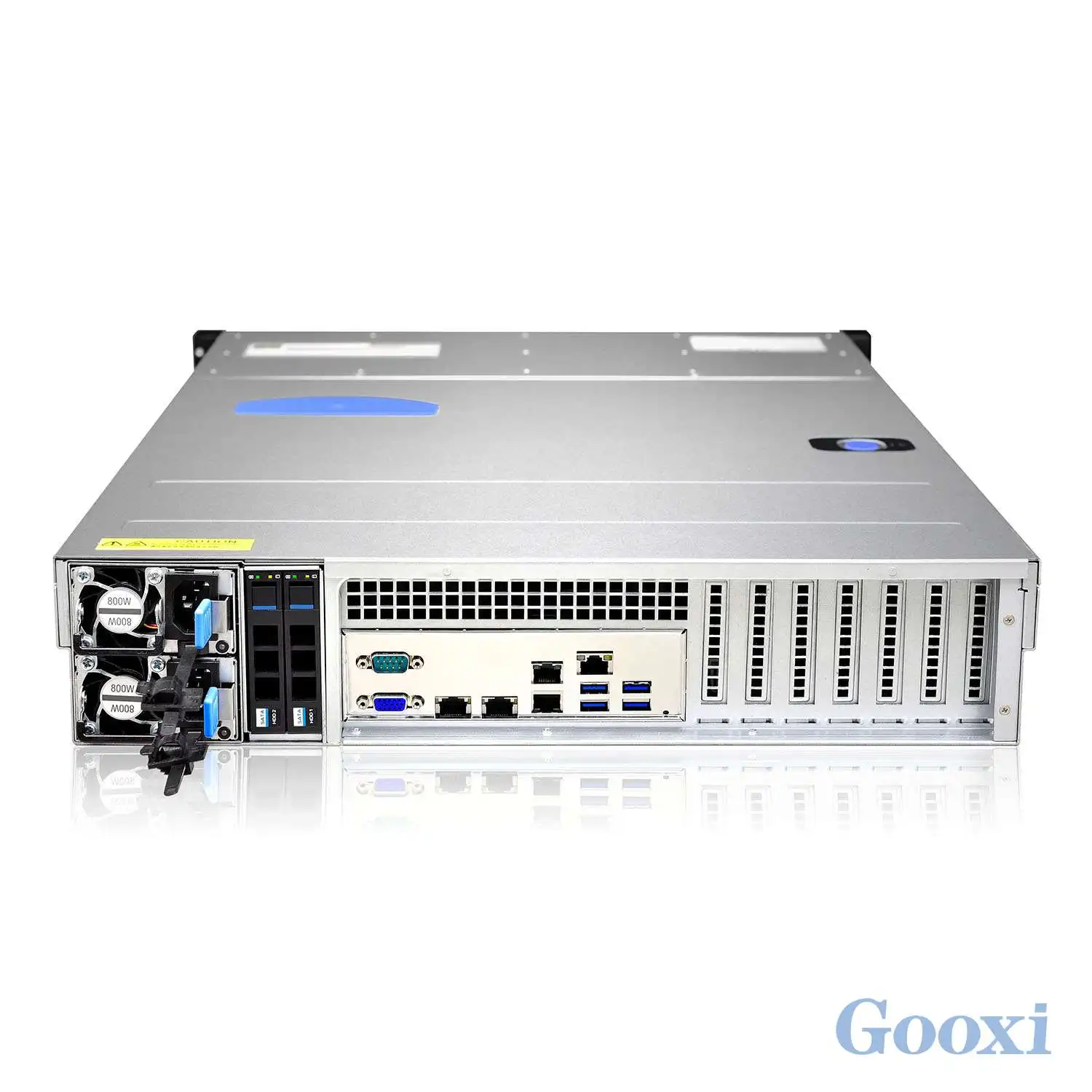

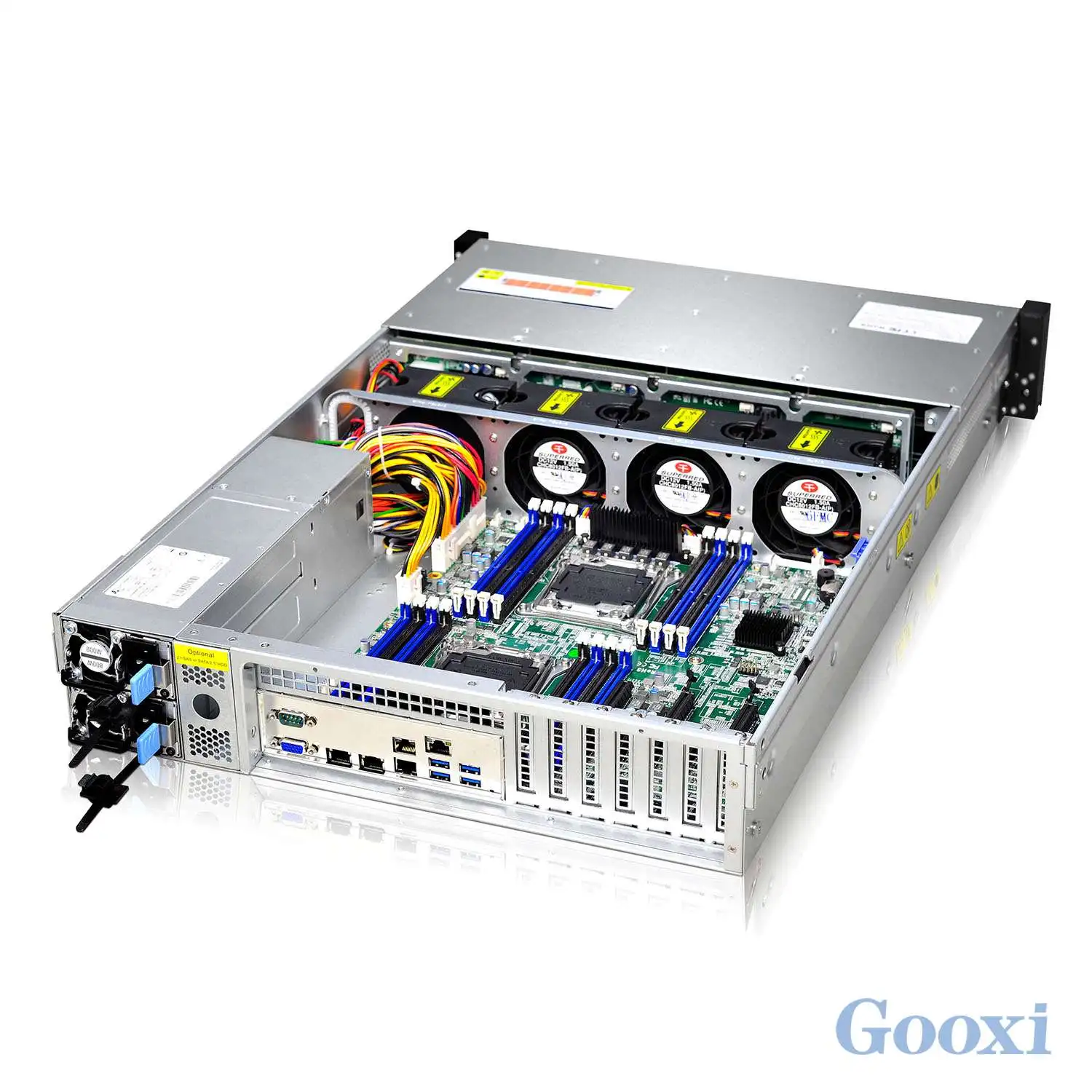

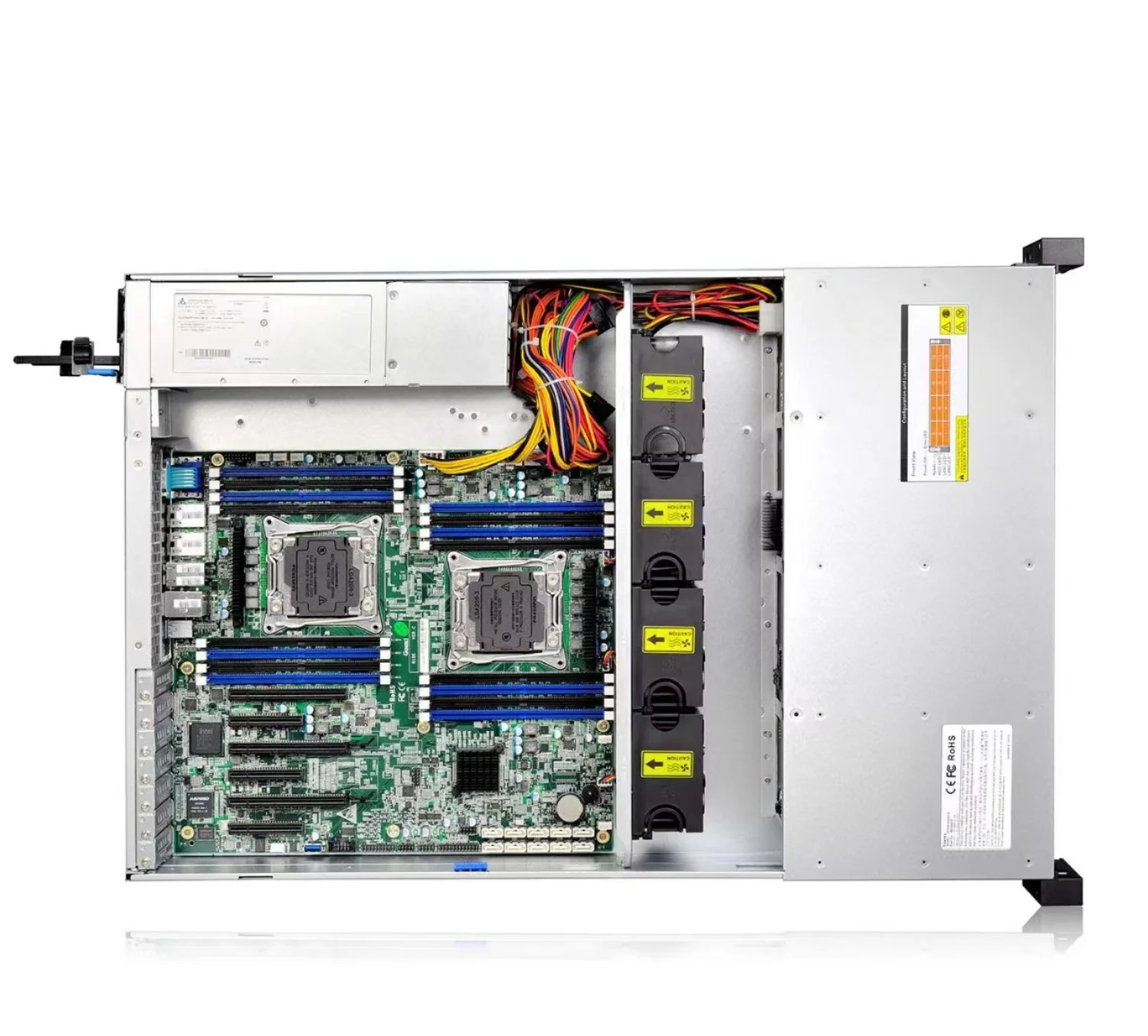

2U 12bays server case rackmount chassis with 670mm depth storage chassis
2U 12bays server case rackmount chassis with 670mm depth storage chassis
2U 12bays server case rackmount chassis with 670mm depth storage chassis
2U 12bays server case rackmount chassis with 670mm depth storage chassis
2U 12bays server case rackmount chassis with 670mm depth storage chassis
2U 12bays server case rackmount chassis with 670mm depth storage chassis
2U 12bays server case rackmount chassis with 670mm depth storage chassis

2U 12bays server case rackmount chassis with 670mm depth storage chassis

Share on (1600518067315):


Price:

Quantity:


Product Overview

Description



Product Overview


Introduce
● 2U Rackmount server chassis series with 670mm depth
● Serverboard supports up to standard EEB 12"x13", backward supports to CEB and below
● Supports default 7x low-profile or optional 3x full-height full-length PCIe cards

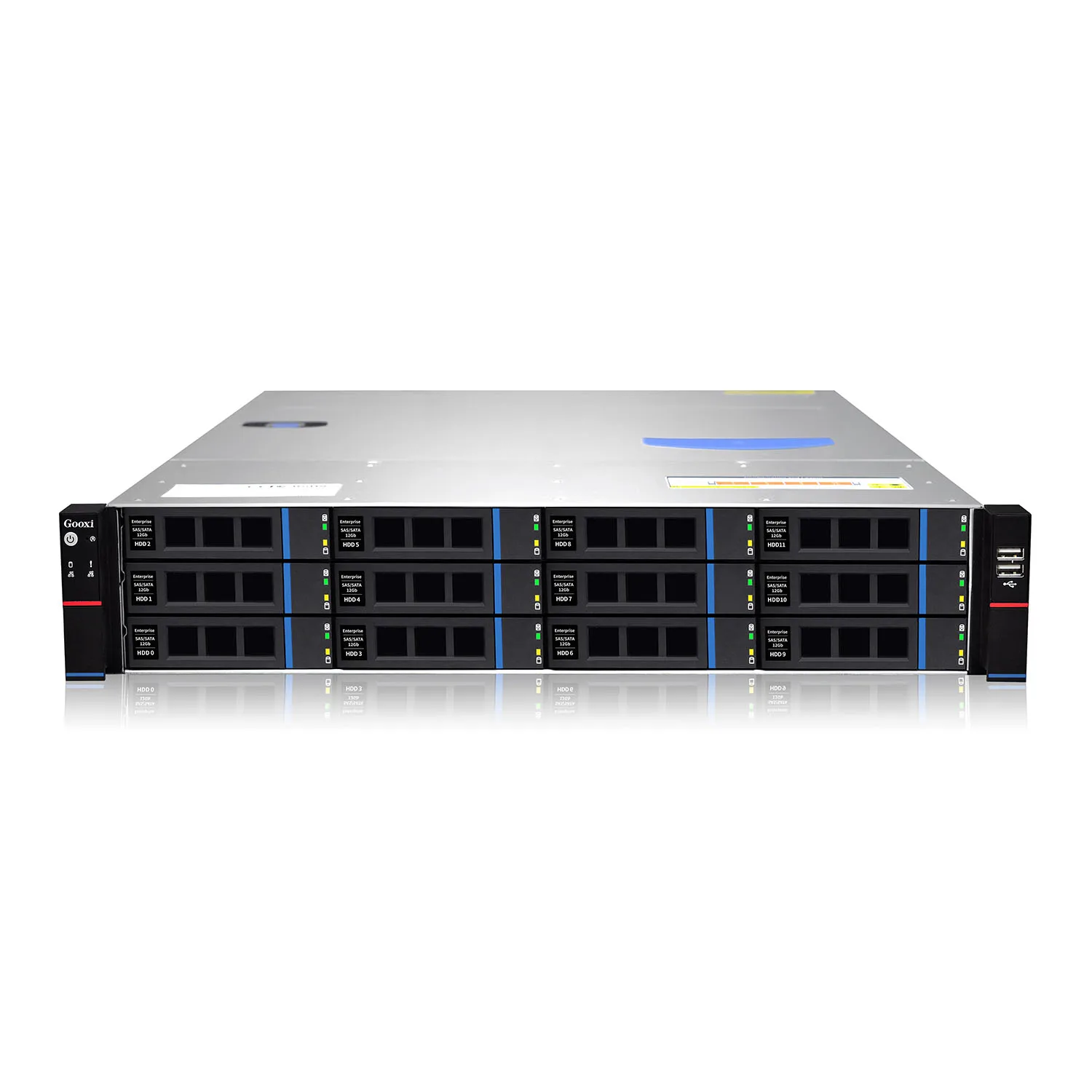

● Front 12x 3.5" hot-swap HDDs (2.5" HDD compatible) and rear 2x2.5" hot-swap HDDs
● High-performance 3x 8038 cooling fans with anti-vibration mechanism, and optional maximum 4x 8038 cooling fans configuration
● Smart system fan control by intelligent temperature management
● 12Gb/s SAS Expander backplane with SGPIO, compatible with SAS and SATA HDDs








Specification


Items
Value
Chassis
Rackmount
Form Factor
2U
Brand Name
Gooxi
Model Number
RMC2112-670-HSE
Place of Origin
Guangdong, China
Serverboard
Supports EEB(12"x13"), CEB(12"x10.5"), ATX(12"x9.6") and microATX(9.6"x9.6")

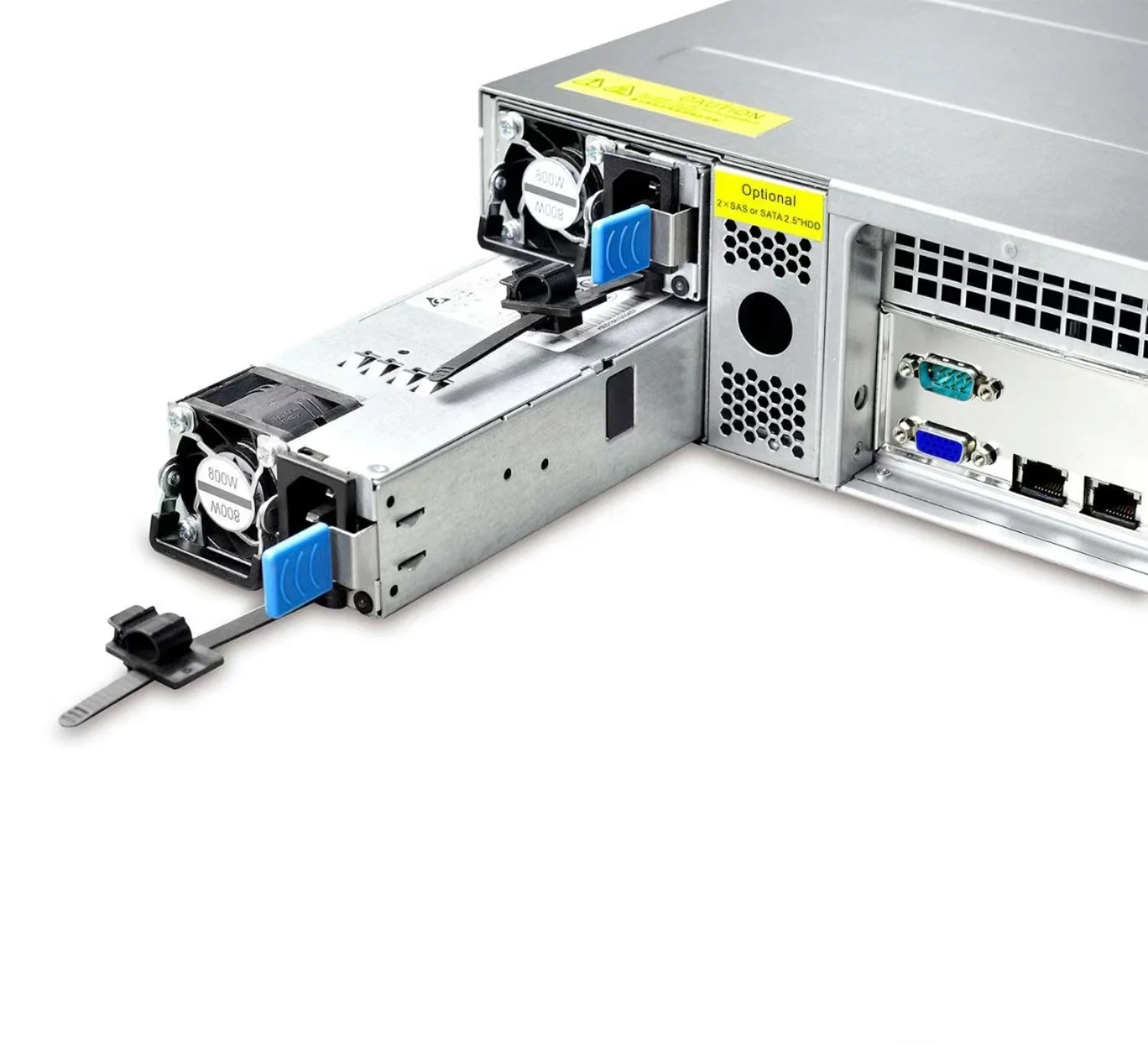

PSU Form Factor

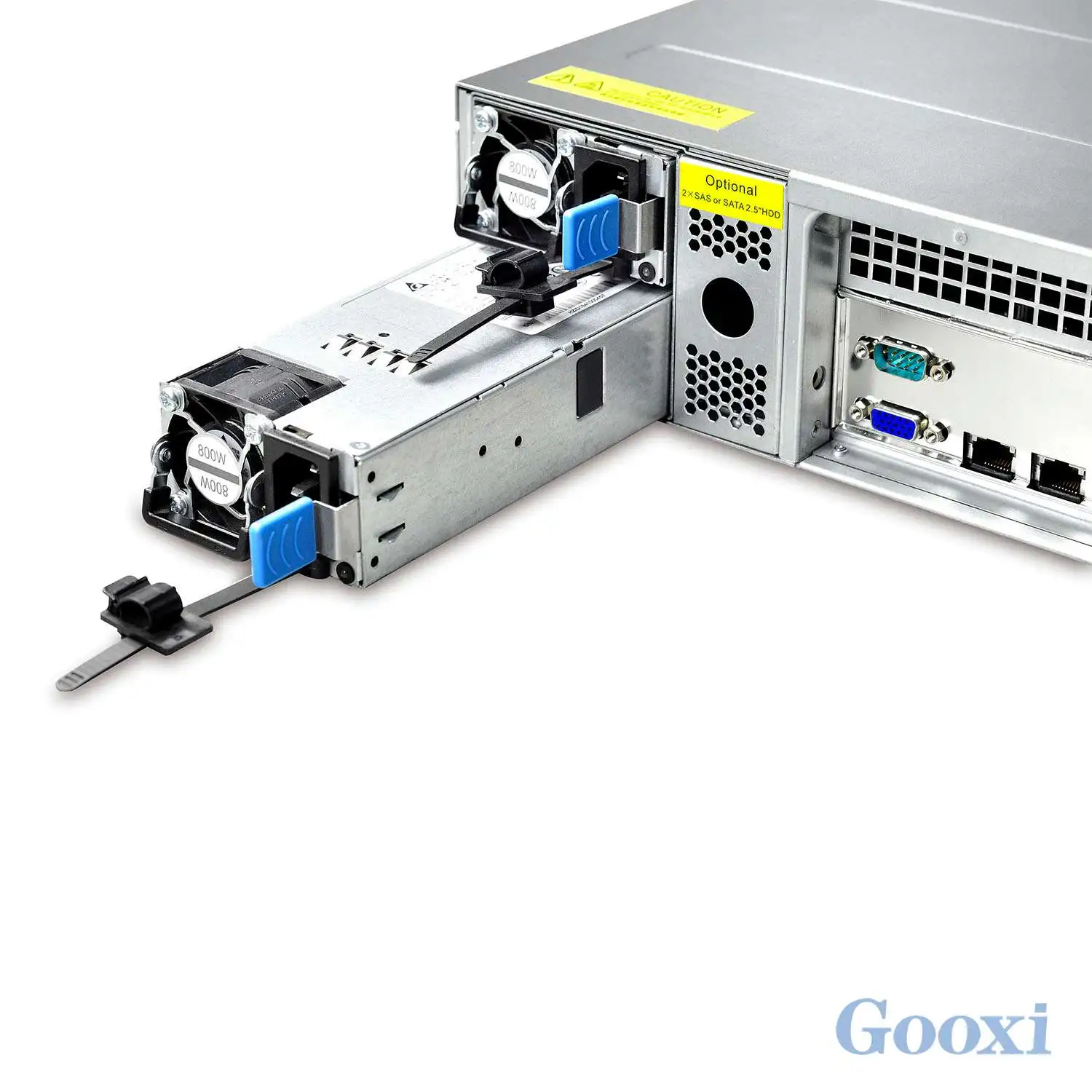

Single or 1+1 Redundant
Backplane SGPIO
Supports
HDD Backplane
12Gb/s SAS backplane
HDD Hot-swap
Supports SAS and SATA HDD
Hot-swap Fans
Supports
HDD Drive
Front 12x3.5" Hot-swap HDDs (2.5" HDD compatible)
Rear 2x2.5" Hot-swap HDDs
HDD Anti-Vibration
with specific EMIspring design
Cooling Fans
Default 3x 8038 Hot-swap middle fans (Max. 4x8038 by option)
Temperature Control
Supports system smart fans controlled by Serverboard
Air Duct
Optional
Expansion Slots
7 half heights PCIe Cards or optional 3x full-height PCIe Cards
Slide Rail
Optional
Indicators
2x USB2.0, 1x Power Switch, 1x Reset, 1x Power LED, 1x HDD LED, 2x LAN Indicators
Tool-less
NOT support
Metal Thickness
1mm SGCC
Chassis Dimensions
670*444*87.6mm (LxWxH)
Net Weight
10.5Kgs
Carton Dimensions
902*591*228mm (LxWxH）
Gross Weight
16 Kgs
Certification
CE、FCC、RoHS


Company Profile


Gooxi, as a leading Chinese Server Solutions Provider, with independent R&Dand production abilities of intact industry chain, is currently one of the few software and hardware manufacturers in server and storage in China that integrates R&D, production, sales and service. Our products have been expanded to over 10 series of servers and storage platforms, barebones, motherboards, chassis, accessories, etc., and are extensively used in cloud computing, cloud storage, datacenter, Internet, AI, security, telecom, radio&television, finance, government, education, blockchain, etc.

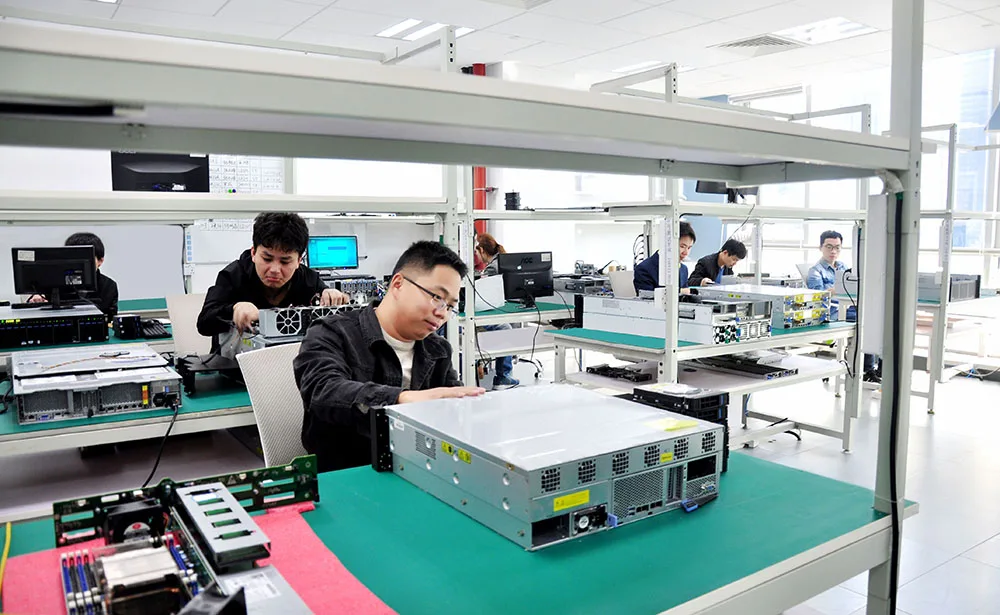

We own a complete integrated manufacturing system of production, processing and quality inspection, 2 production bases in Shenzhen and Dongguan of a total area over 30,000 m2, 12 productionlines, 3 SMT placement lines and an entire set of stamping, CNC, and other structural production platforms. As a server supplier for manifold Listed and large-scale enterprises, annual output of servers exceeds 300,000 units.




With an all-round&precise global marketing service system, we established 6 branches in Shenzhen, Beijing, Dongguan, Shanghai, Taipei(overseasbusinessdevelopmentdept), Silicon Valley in the U.S. and offices in Chengdu, Xi'an, Japan, SouthKorea, and Hamburg, Germany, core agents and distribution channels in Shenzhen, Beijing, Tianjin, Canton, Chengdu, Shanghai, Hangzhou, Nanjing,etc., cooperative dealers and joint insurance outlets in globe.

We commit to becoming the world's leading Server Solutions Provider by adhering to the customer-demand guide, win-win strategy, as well as the vision of integrity, collaboration, innovation and win-win.


Exhibition




Business Partners




Qualification & Honor


Gooxi Corporation owns 250 patents:
108 patents of invention
79 utility models
31 outward appearance patents
32 software copyrights




FAQ


1. What services can we provide?
As a factory, we can provide OEM/ODM high-end customized services to meet the differentiated needs of different customers. We have
professional technical staff, sales staff and customer service team, reply messages within 24 hours. From production to
after-sales, perfect system management can effectively solve customers' doubts.

2. How do we guarantee the quality?
We have our own factory and production line. Each assembled machine will be tested before shipping. In this process, we strictly
control every operation process and deliver the goods to every customer safely.

3. what can you buy from us?
Server, Server chassis, motherboard, barebone, rackmount

4. What is the shipping method?
- It can be shipped by sea, air or express (EMS, UPS, DHL, TNT, FEDEX, etc.).

5. How do you keep our business in good long-term relationships?
-1. We maintain good quality and competitive prices to ensure our customers benefit;
-2. We respect every customer and treat them as friends, no matter where they come from, we sincerely do business with them and make friends.


Contact Us


Susana Lu - Overseas Business Department
Email：susana@gooxi.com
Whatsapp: +86 15227838505
Skype: +86 15227838505
Addr：Room 1808, Jinquan Time, Building NO.317, Chaoyang District, Beijing, China.
