Product Overview
Description
KD50X Switchboard control panel (For ATEM Switcher/vMix/OBS Software) Selling Points:
1.Integrated hardware design
2.Multi-functional system control integration, two-color colorful LED crystal buttons
3.High quality aluminum alloy T-BAR fader

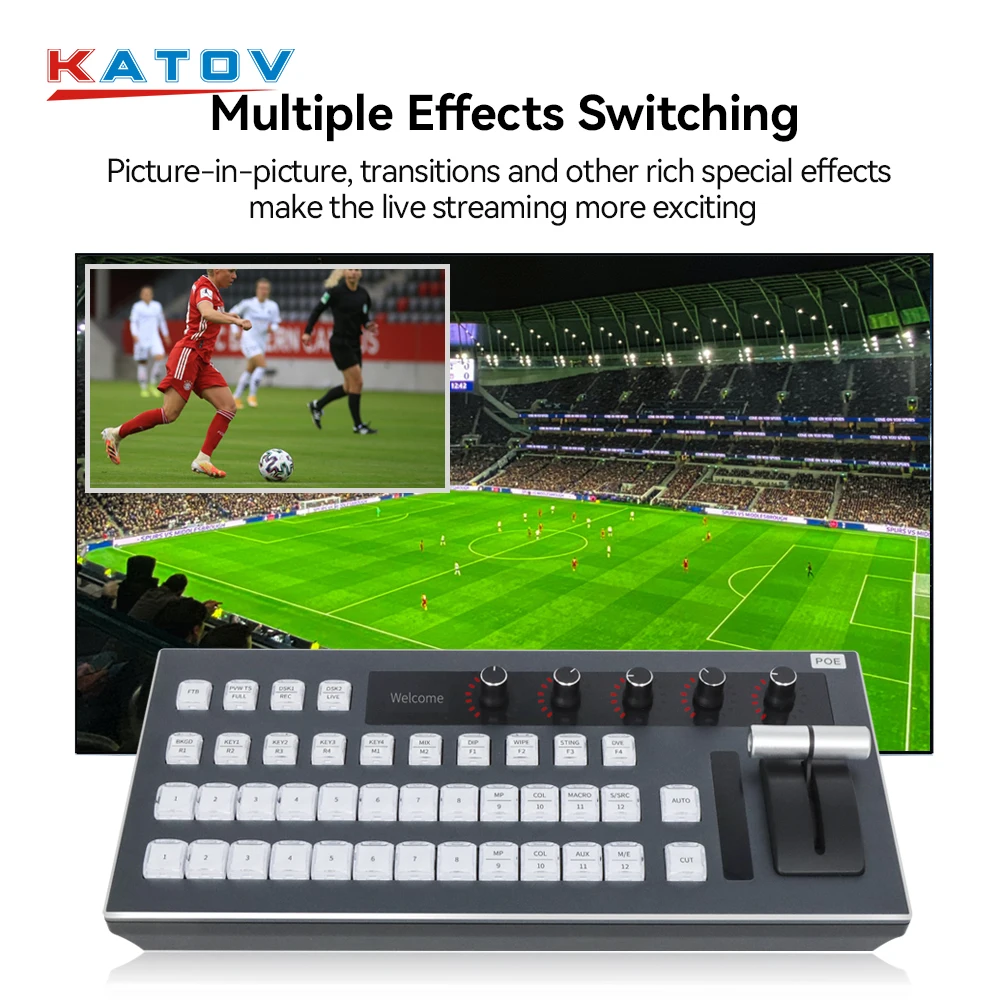

4.Brand-new upgrade function, custom combination to play more effects

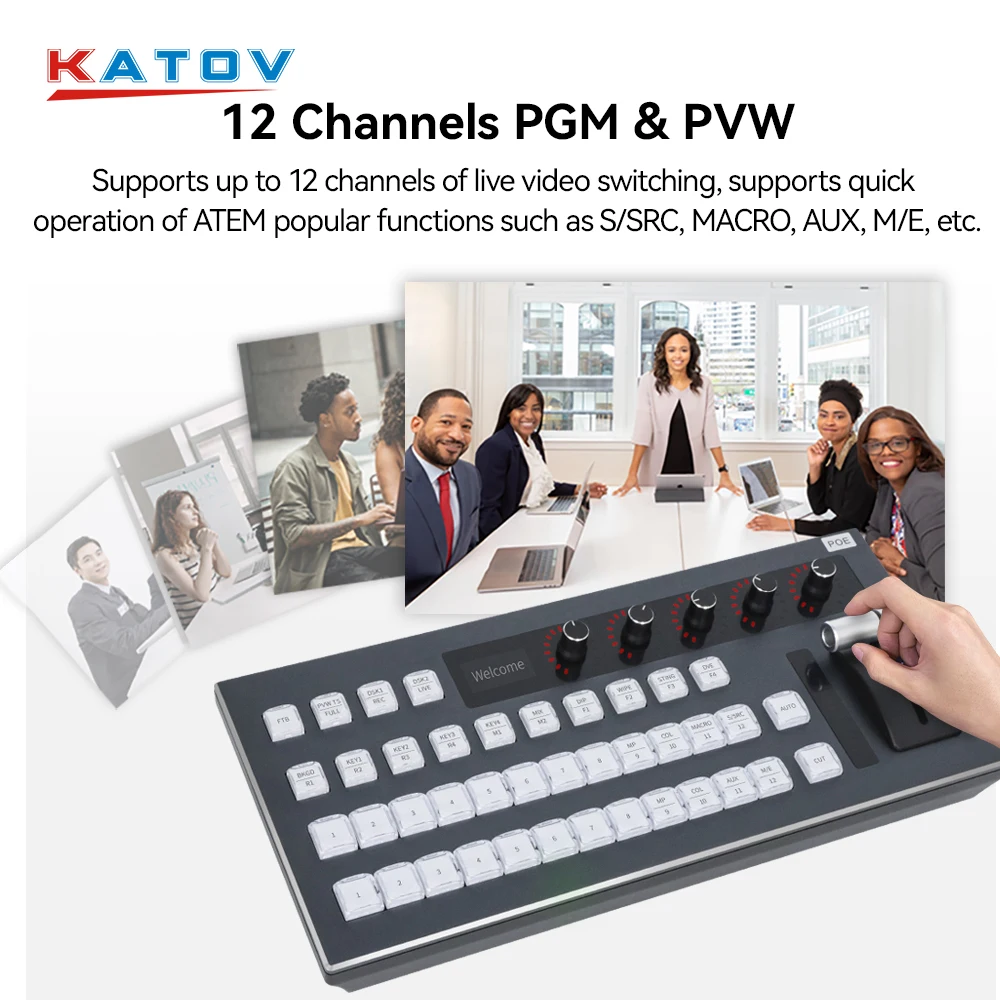

5.Supports up to 12 channels of live video switching

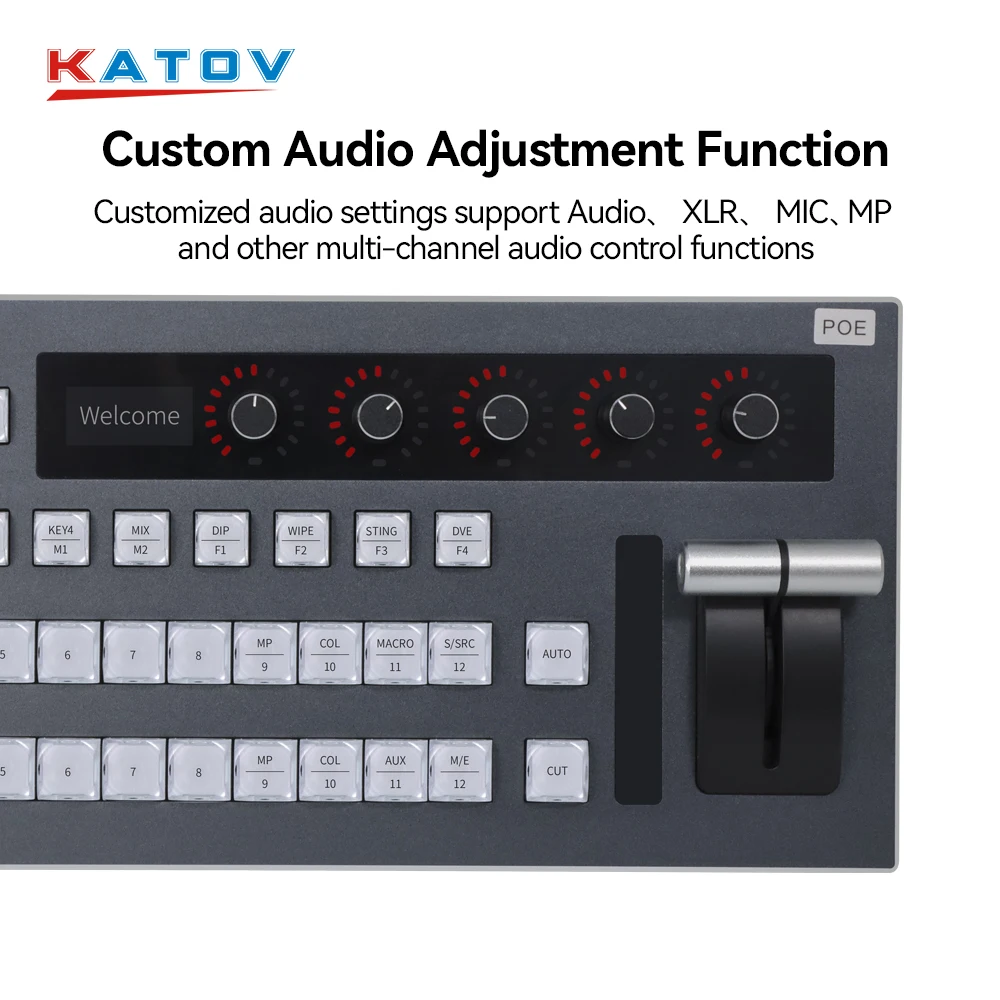

6.Built-in custom audio adjustment function
7.Compatible with plenty of live broadcast software
8.Support 24-channel tally output function
9.USB 2.0, LAN dual interface connections, simple and convenient
10.All aluminum alloy body
1.Integrated hardware design
2.Multi-functional system control integration, two-color colorful LED crystal buttons
3.High quality aluminum alloy T-BAR fader
4.Brand-new upgrade function, custom combination to play more effects
5.Supports up to 12 channels of live video switching
6.Built-in custom audio adjustment function
7.Compatible with plenty of live broadcast software
8.Support 24-channel tally output function
9.USB 2.0, LAN dual interface connections, simple and convenient
10.All aluminum alloy body
Product Parameters
Main Parameters | ||
Audio Control | 1ch master+4ch input | |
Transition Control | Auto transitions, hard cuts, T-Bar | |
OLED Display | Set device parameters | |
Indicator Light | Indicate switcher status | |
Tally | 12ch PGM+12ch PVW | |
ATEM Functions: | ||
Connection Method | 100M LAN，support POE 802.3af | |
Video Control | 12ch inputs | |
Transition Effects | MIX / DIP / WIPE / STING / DVE | |
Upstream Keyboard | BKGD / KEY1 / KEY2 / KEY3 / KEY4 | |
Downstream Keyboard | DSK1 / DSK2 | |
FTB | Support | |
PREV TRANS | Support | |
MACRO | Support | |
S/SRC | Support | |
M/E | Support | |
AUX | Support | |
vMix Functions: | ||
Connection Method | 100M LAN，support POE 802.3af；USB | |
Video Control | 12ch inputs | |
Transition Effects | 4 kinds | |
Picture-in-picture Function | R1 / R2 / R3 / R4 | |
Playback Setting | M1 / M2 | |
REC | Support | |
LIVE | Support | |
T-BAR | Support | |
Power Supply | ||
Input Voltage | DC 12V | |
Input Current | 0.3A | |
Rated Power | 4W | |
POE | POE 802.3af for optional | |
Powered by USB | Support ( rely on the USB power supply capability of the computer ) | |
General Specifications | ||
Use Environment | Indoor | |
Operating Temperature | -10℃~40℃ | |
Storage Temperature | -20℃-60℃ | |
Dimension | (W)354*(D)165*(H)67mm | |
Weight | 1.5kg | |

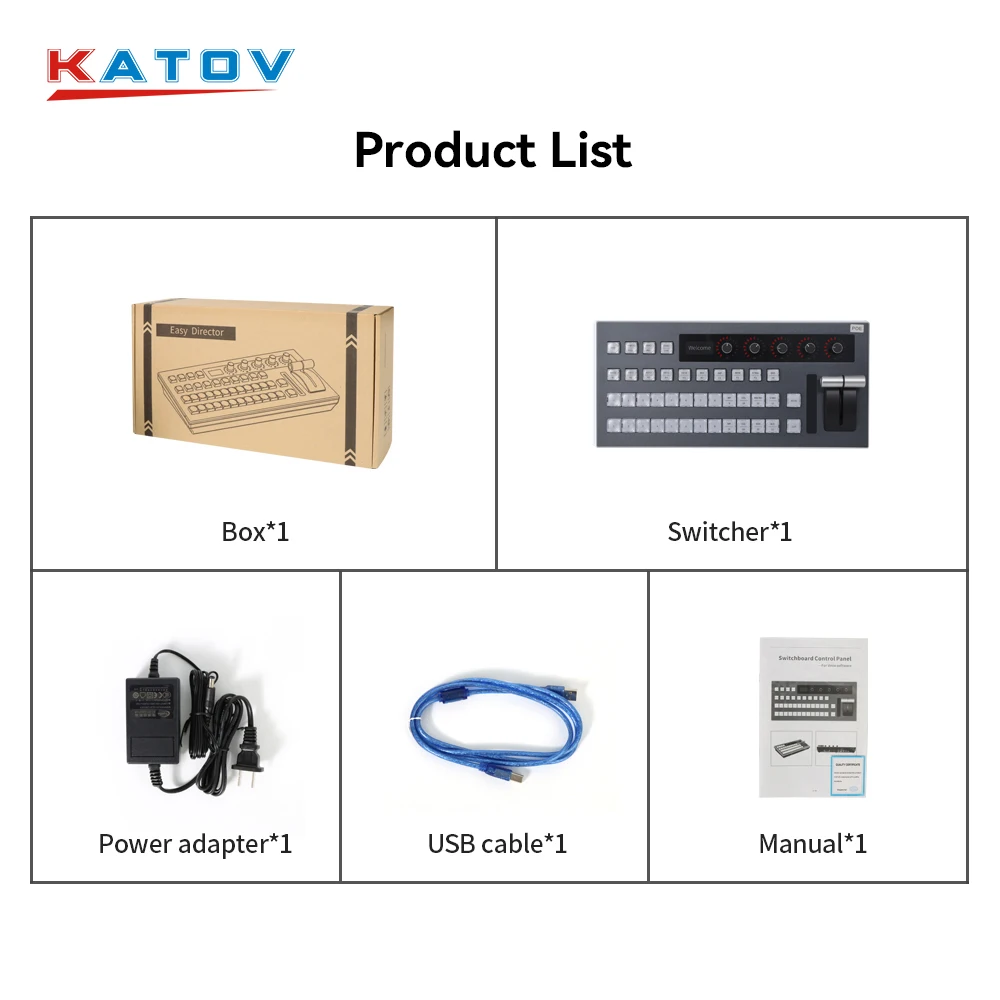

Accessories | Power adapter*1, USB cable*1, User manual*1 | |
KATO VISION OEM Service | Description |
Firmware Customization | 1. Booting logo |
2. UI | |
3. Language | |
Logo Customization | 1. Logo silkprint |
Customization | 1. Inner box |
2. User manual | |
3. Accessories |
KATO VISION ODM Service | Description |
Physical design | 1.Customer drawing design 2.Color |
Hardware development | 1.PCB/PCBA development 2.Replace/adding hardware |
Software development | Architecture, Driver, System, Application etc |
Qualification Honor
Exhibition Cases
Buyer Reviews
Company Profile
Our Advantages
FAQ
Q1.What's your payment term?
A:Our payment term is TT in advance before shipment.
Q2.What's your warranty period?
A:The warranty period is 3 years and start from the purchase date.
Q3.Do you offer remote assistance when facing a technical problem?
A:Yes, surely. We have very professional technical team, and it is our responsibility to help our clients when meet with any technical problem.
Q4.Could I put my own logo products?
A:Sure, we have our R&D department, we can do ODM and OEM.
Q5.How do you guarantee the quality?
A:We have our own QC to inspect all our goods before packing. And also, we have CE/FCC/RoHS/ISO.
Q6.I'm buying with yours company at the first time,how can I trust you?
A:We totally understand if you have some doubt about us at our first cooperation. You are welcome to visit our company or our factory anytime you like. You can also choose trade assurance for your order.
