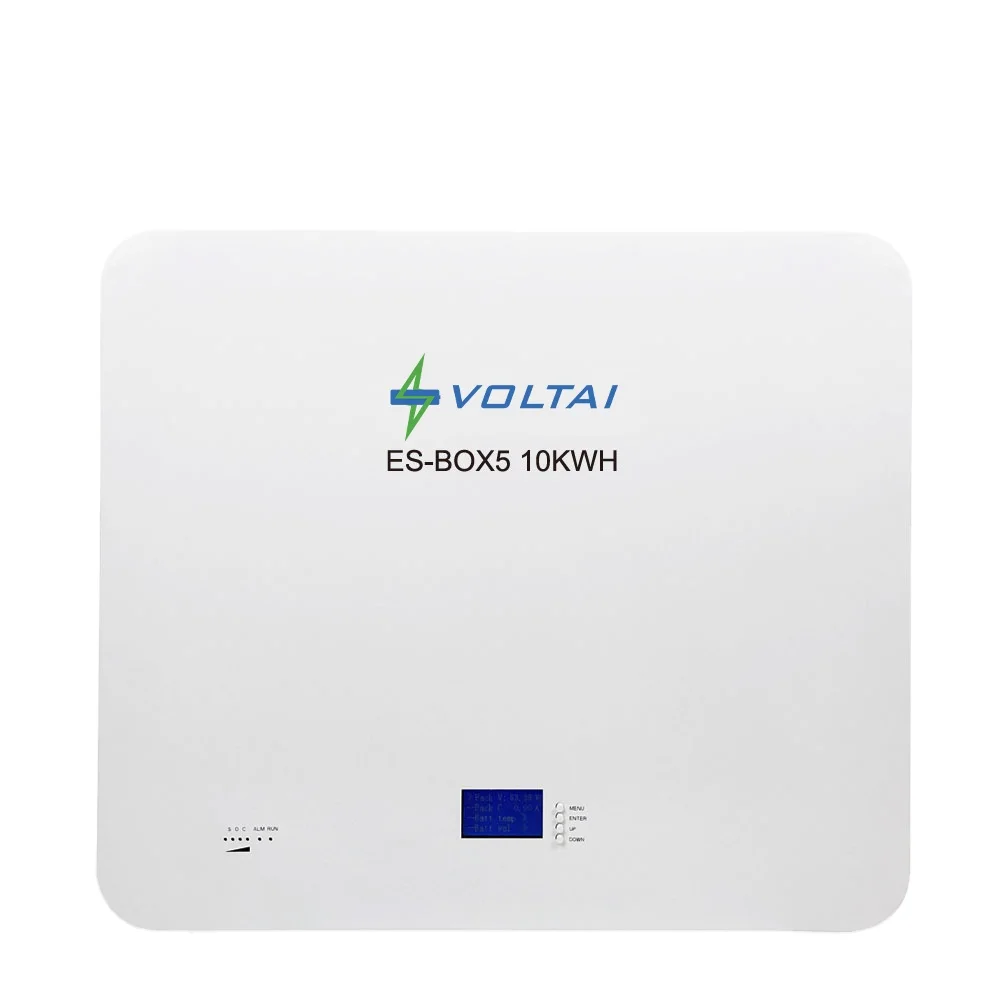

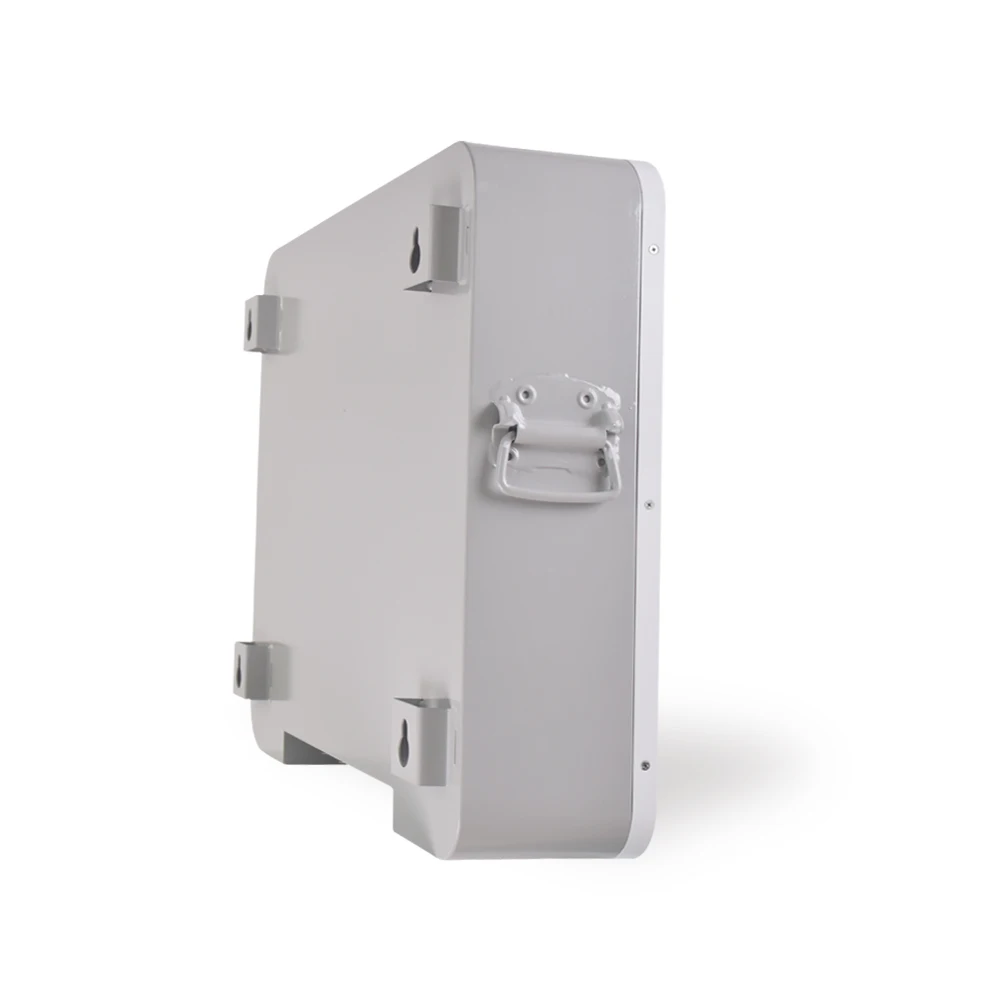

Model | ES-BOX5 |
Battery Type | LiFePO4 |
Energy | 10240Wh |
Rated Capacity | 200Ah |
Rated Voltage | 51.2V |
Battery cell | 3.2V 200Ah Pirsmatic Battery Cell |
Configuration (*S*P) | 16S1P |
Disharge Cut-off Protect Voltage | 40V |
Charge Cut-off Protect Voltage | 58.4V |
Max. Charge Current | 100A |
Max. Discharge Current | 100A |

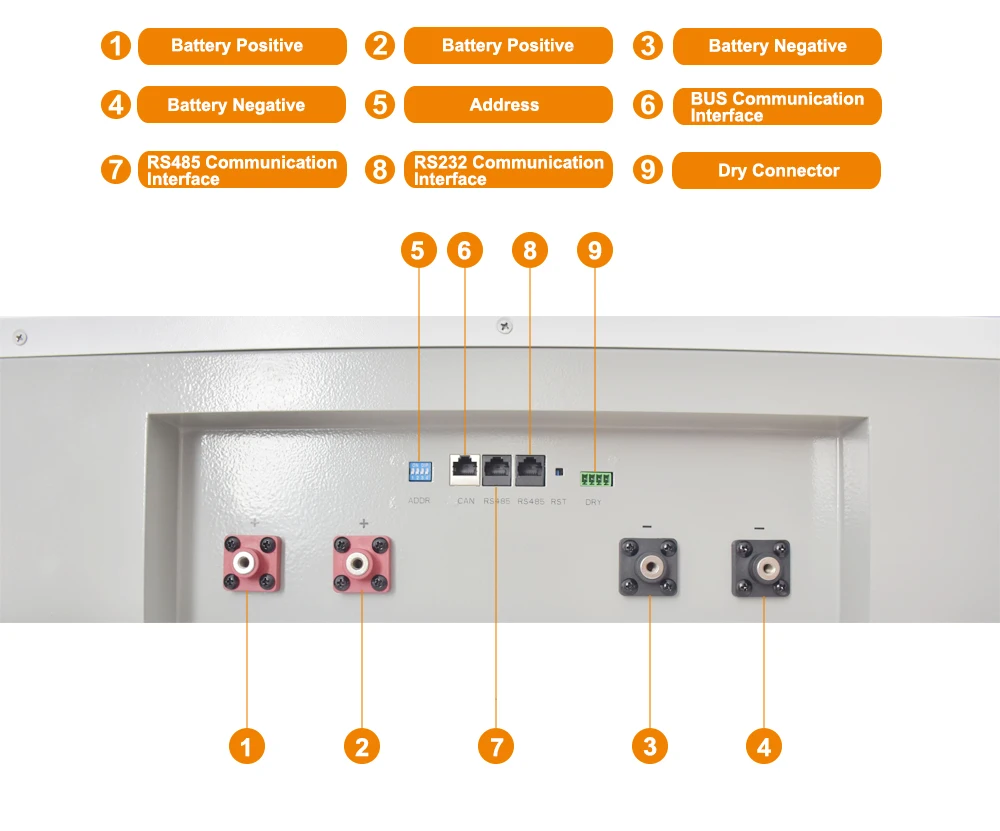

Communication Port | CAN, RS485 |
Compitable Inverter Brand | SMA, Growatt, Solax, Solis,DEYE,Sungrow, Sofar, Voltronic, Goodwe, etc. |

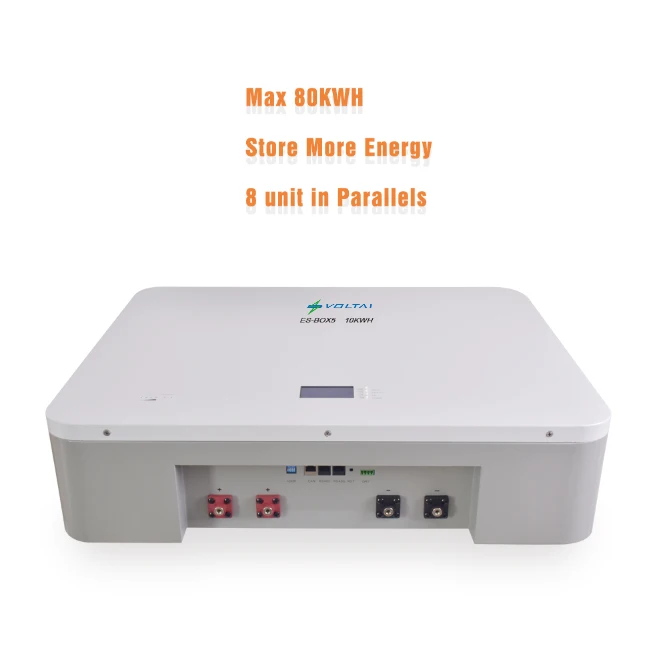

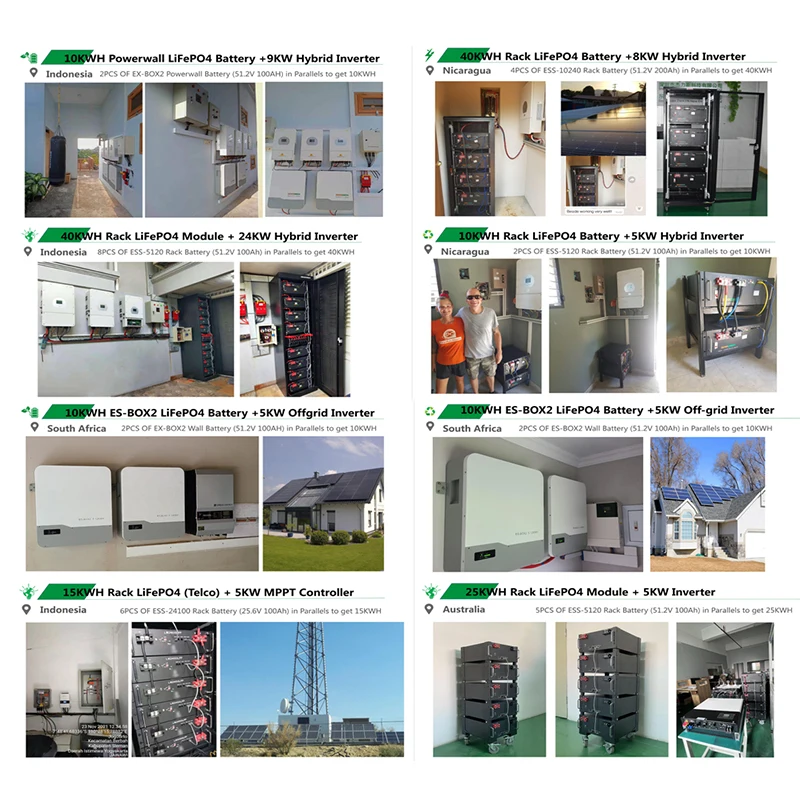

Parallel | Max. 8 units in Parallels to get 81kwh. |
Cycle life | 6000-8000 times |

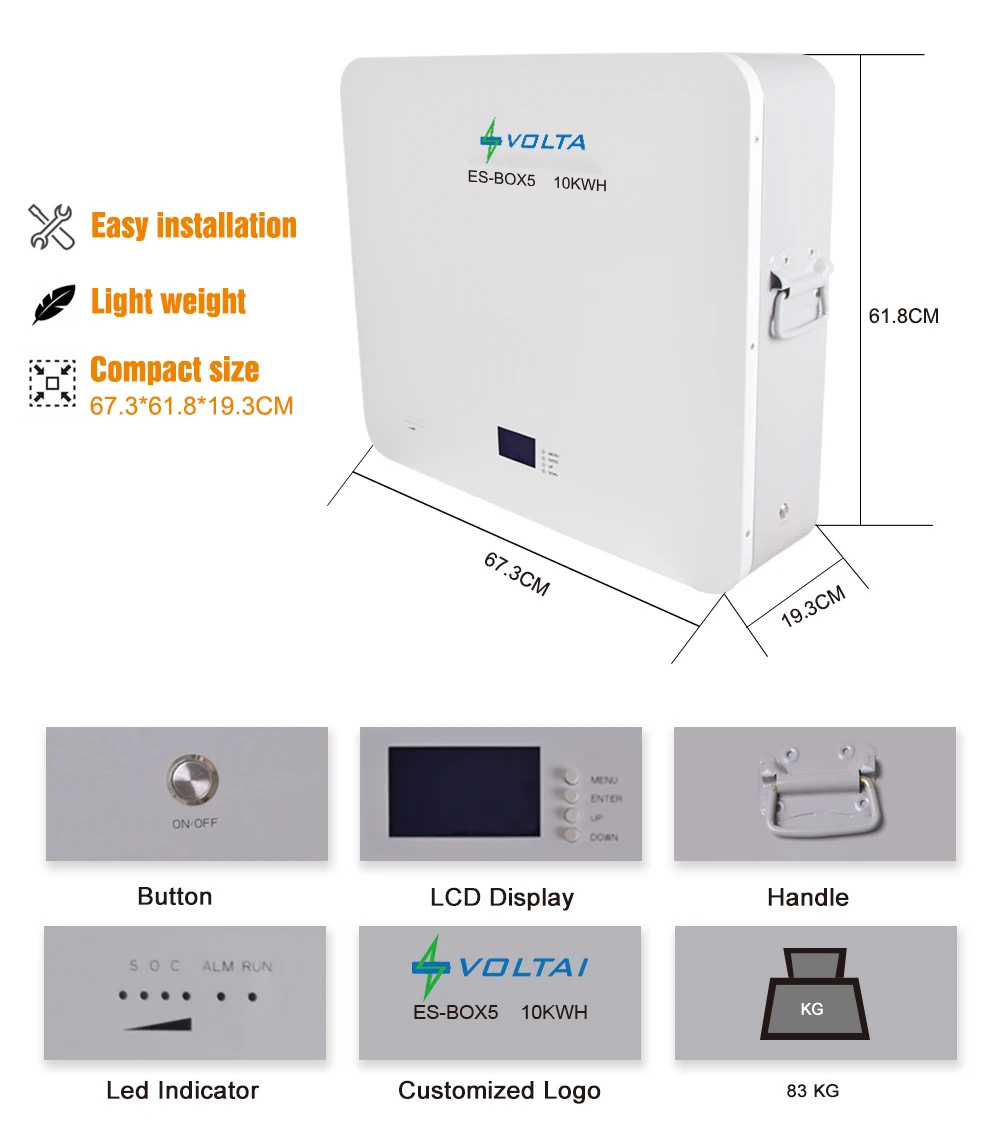

L*W*H (mm) | 673*618*193 |
Net Weight (KG) | 83KG |
Cooling | Natural cooling |
Environment | Indoor |
Mounting options | Wall mount |
Discharge Temperature (℃) | -10℃~+60℃ |
Charge Temperature (℃) | 0℃ ~+45℃ |
Storage Conditions | –20°C to 30°C (–4°F to 86°F) Up to 95% RH, non-condensing State of Energy (SoE): 25% initial |
Maximum Elevation | 3000 m (9843 ft) |
Material | LifePo4 Lithium Iron Battery |
