Fiber Optic Cable 24F Armoured Steel tape Overhead /underground GYTS 24 core fiber optic cable 4KM/Roll
- Category: Communication Cables >>>
- Supplier: Guangzhou Jiqian Fiber Optic Cable Co. Ltd.
Share on (1600523735392):
Product Overview
Description
Product Description
Fiber Optic Cable 24F Armoured Steel tape Overhead /underground GYTS-24 core fiber optic cable | Jiqian/OEM | |
Model Number | GYTS-24core | |
Type | Outdoor Fiber Optic Cable | |
Place of Origin | Guangdong China | |
Brand Name | Jiqian | |
Number of Conductors | ≥ 10 | |
Color | Black | |
JACKET | PE | |
Fiber range | 4-288 | |
Strength member | Steel Wire | |
Armored | Steel tape | |
Application | Overhead /underground | |
Model | Armored fiber optic cable | |
Package | 4km/Plyooden Drum | |
Diameter | 9.3mm | |
Product Paramenters
Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) | Cable diameter (mm) | Cable weight (kg/km) |
4 | 1+5 | 4 | 1.8±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
6 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
8 | 1+5 | 8 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
12 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 80 |
24 | 1+5 | 6 | 1.9±0.1 | 1.4/1.4 | 1.4 | 9.0±0.3 | 85 |
36 | 1+6 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.7±0.3 | 100 |
48 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.7±0.3 | 105 |
60 | 1+5 | 12 | 2.2±0.1 | 1.6/1.6 | 1.6 | 9.7±0.3 | 110 |
72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.6±0.3 | 122 |
96 | 1+8 | 12 | 2.2±0.1 | 1.6/3.5 | 1.6 | 12.0±0.3 | 160 |
144 | 1+12 | 12 | 2.2±0.1 | 2.0/6.4 | 1.8 | 15.6±0.3 | 240 |
216 | 1+6+12 | 12 | 2.2±0.1 | 2.2/2.2 | 1.8 | 16.0±0.3 | 270 |
288 | 1+9+15 | 12 | 2.2±0.1 | 2.2/4.3 | 2.0 | 18.2±0.3 | 282 |

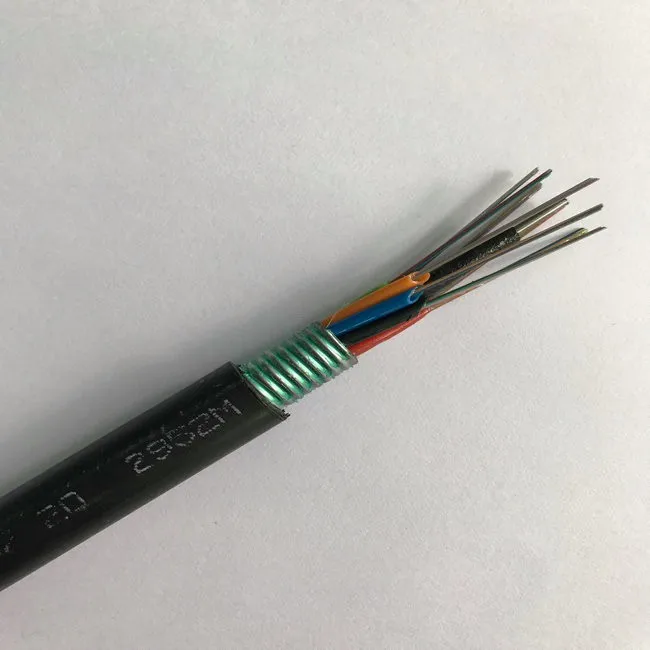

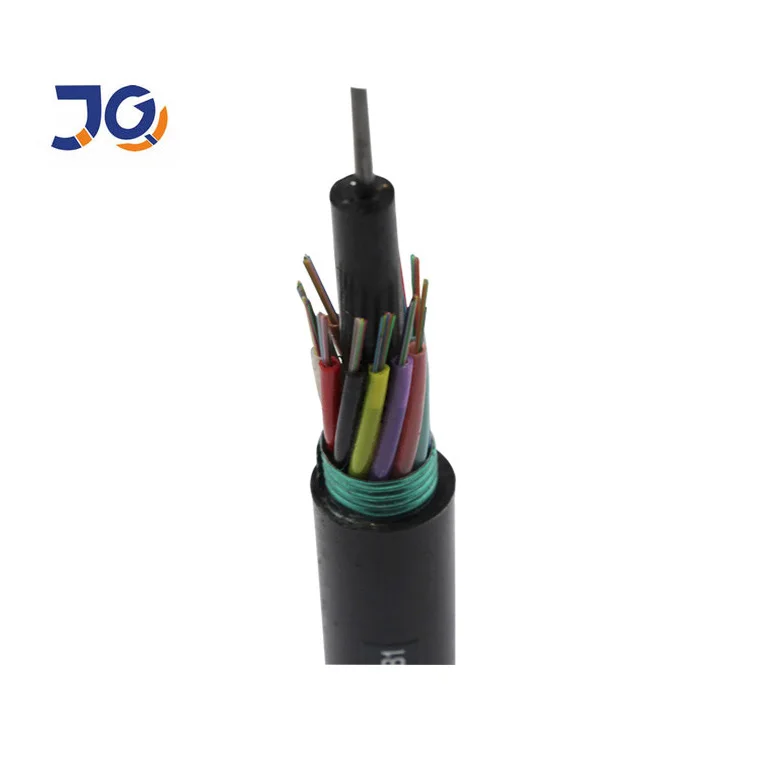

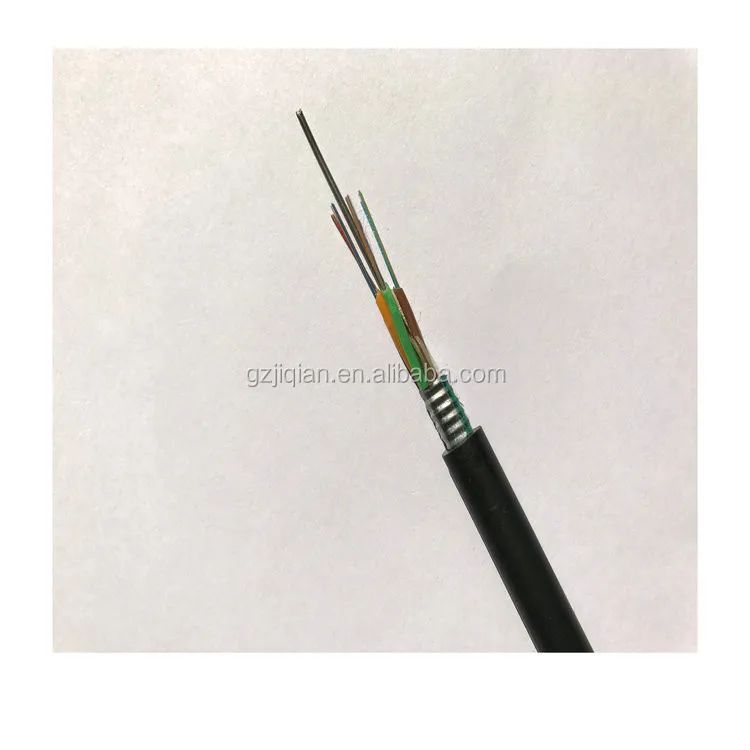

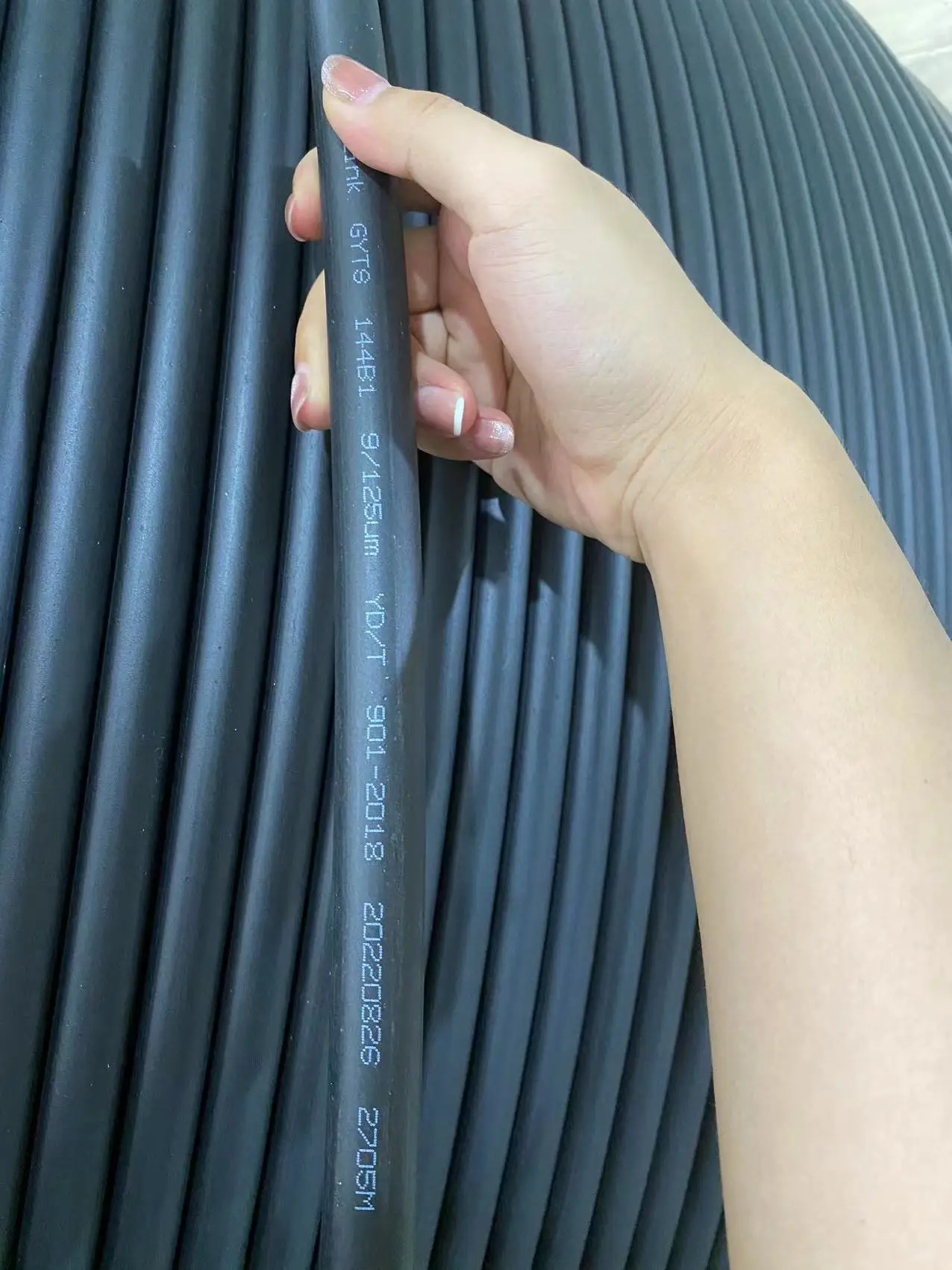

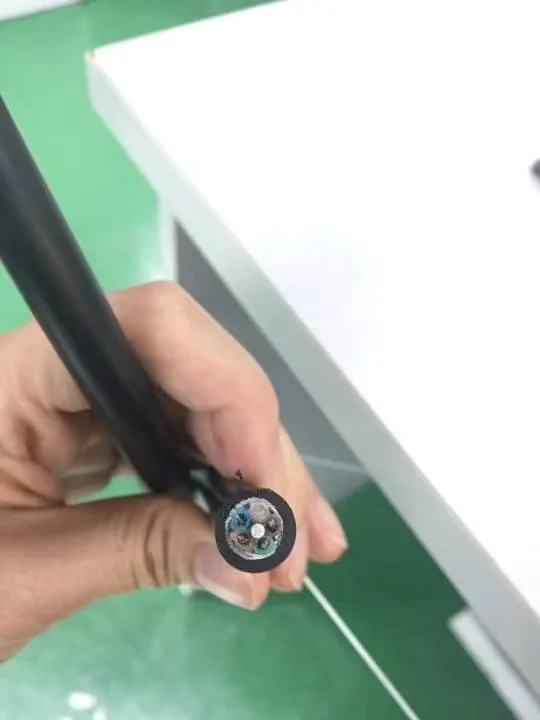

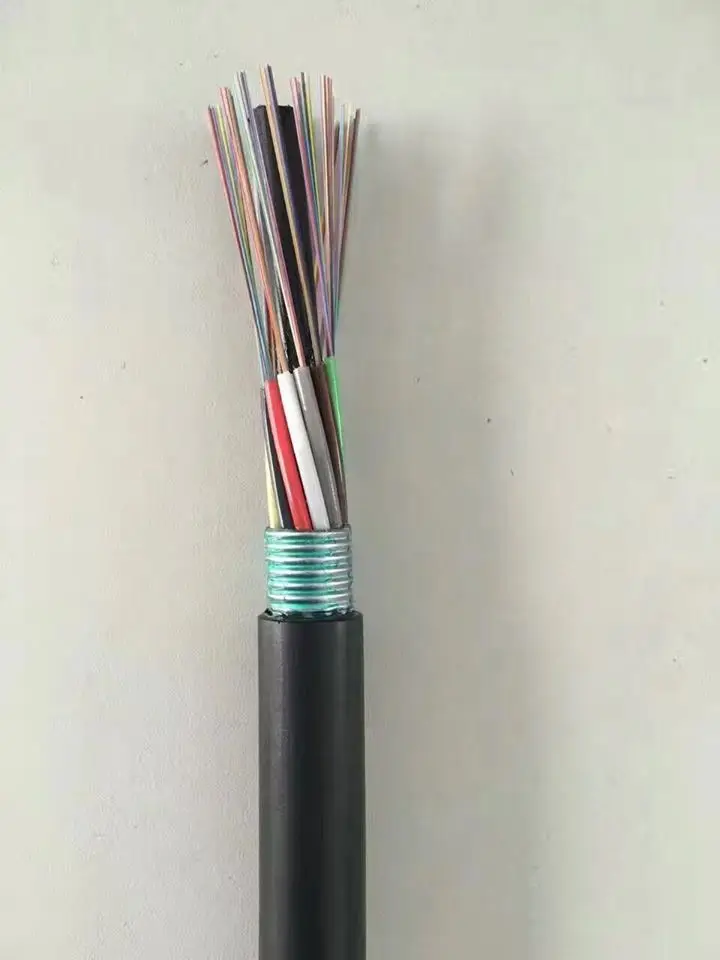

Details Images
Product Name | GYTS Fiber Optic Cable |
Fiber Account | 4core-288 cores |
Installation | Underground/Aerial |
Armor | Steel Tape+Al Tape |
Outer Jacket | Black PE |
Fiber type | G.652D(9/125) |
Loose tube | PBT Loose Tube |
Attenuation@1310nm | ≤ 0.36 dB/km |
Attenuation@1550nm | ≤ 0.22 dB/km |
Temperature range | Transport/Operating -40~+70°C |
Proof stress level | ≥100 kpsi |
Recommend Products
Certifications

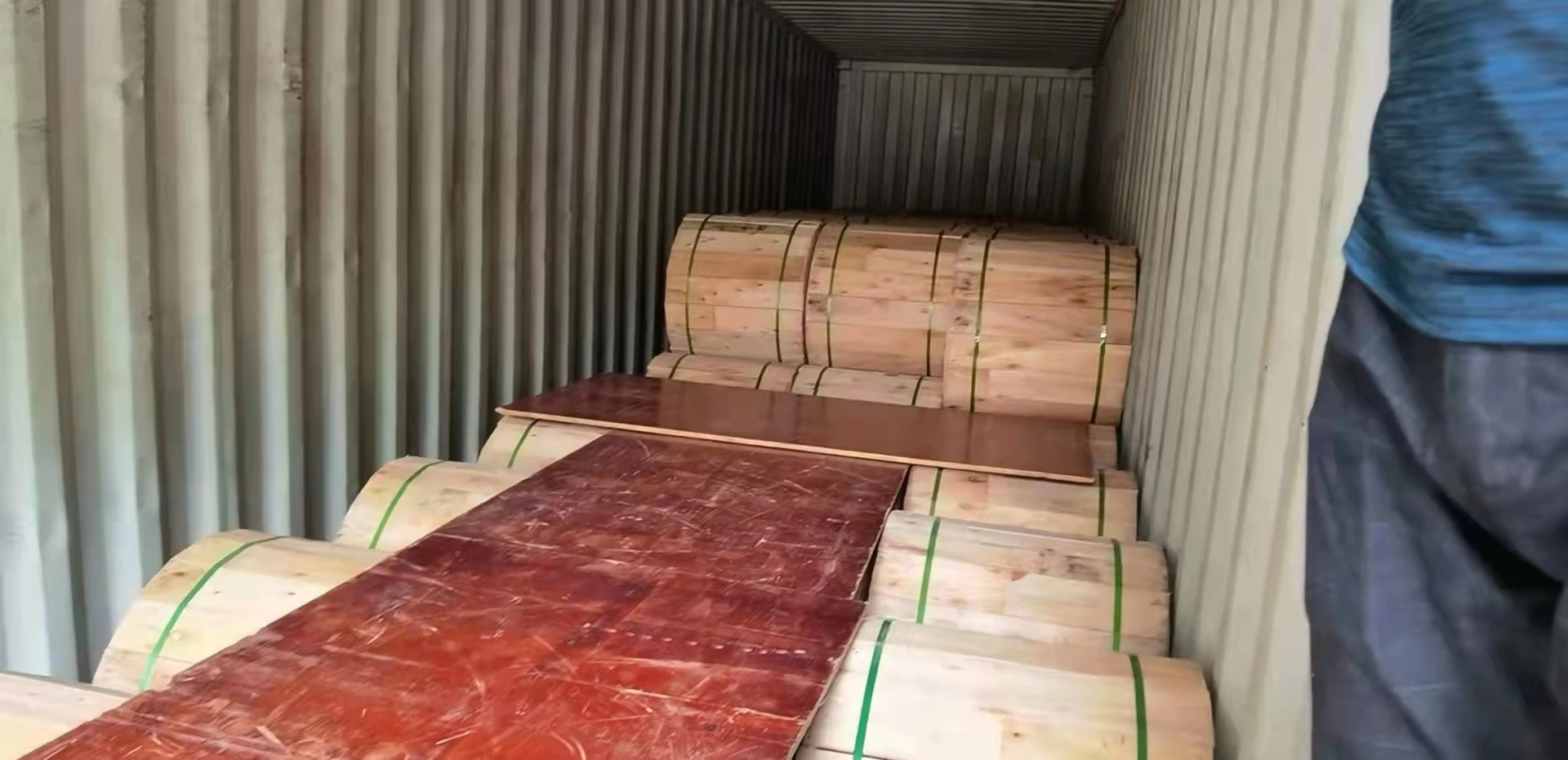

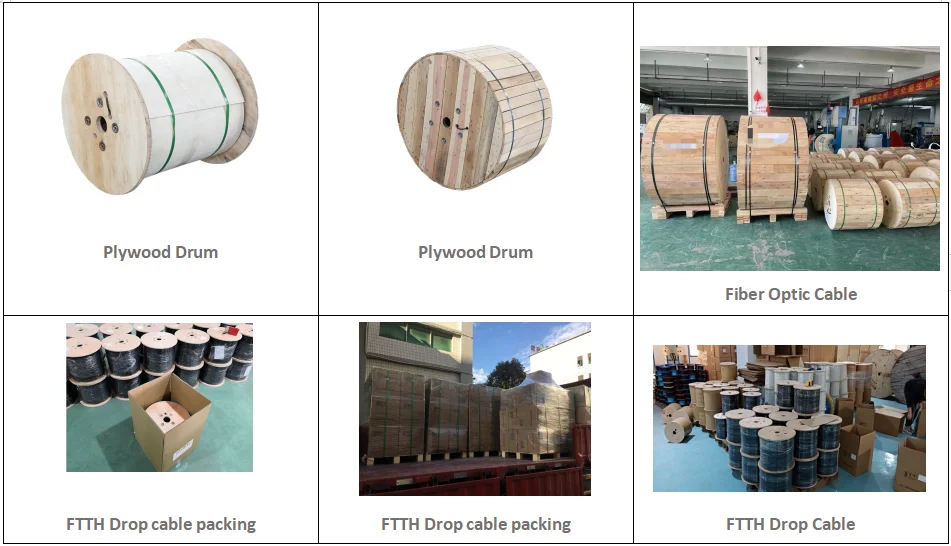

Packing & Delivery
Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum
Shipping:
By sea/by air or express delivery,it depends on the order quantity
1km/ 2km/3km/4km 5km per plywooden drum
Shipping:
By sea/by air or express delivery,it depends on the order quantity

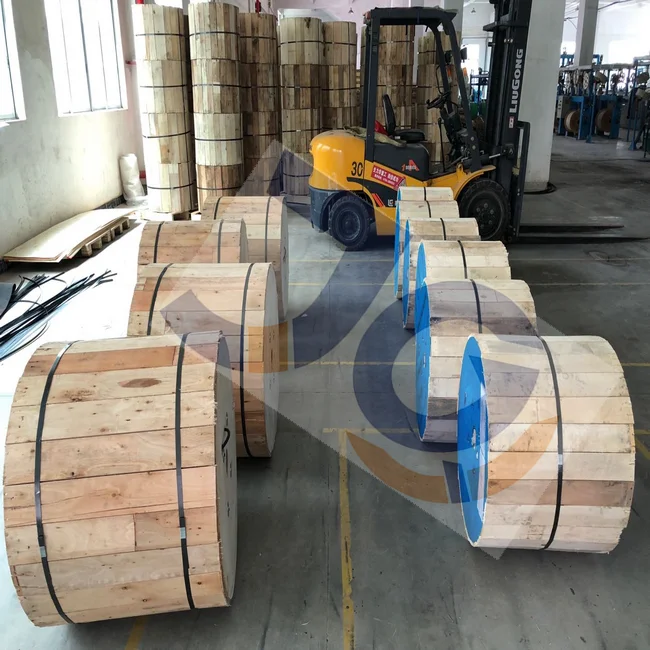

Factory picture
