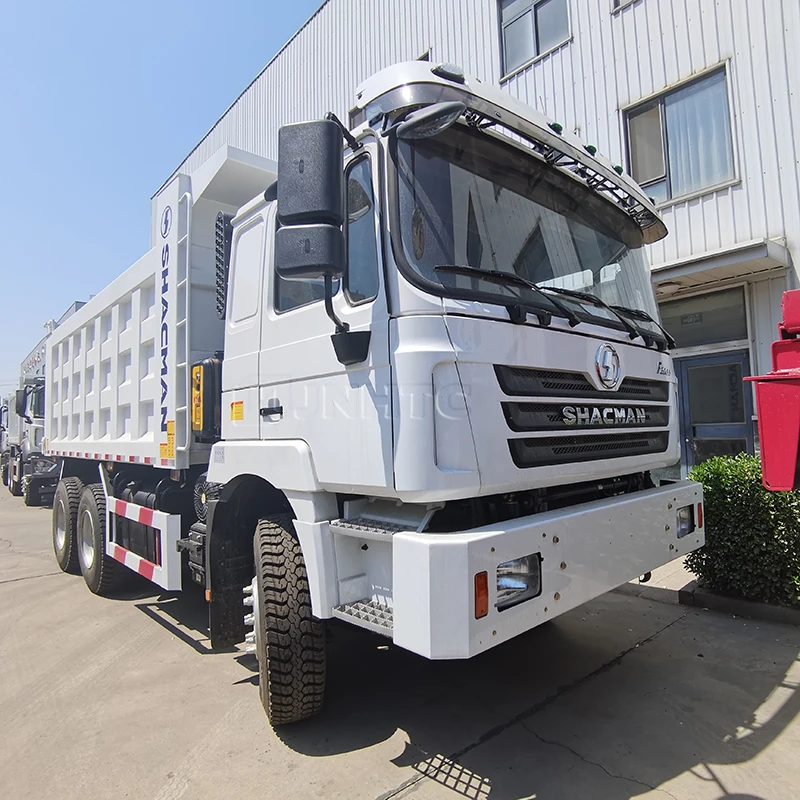

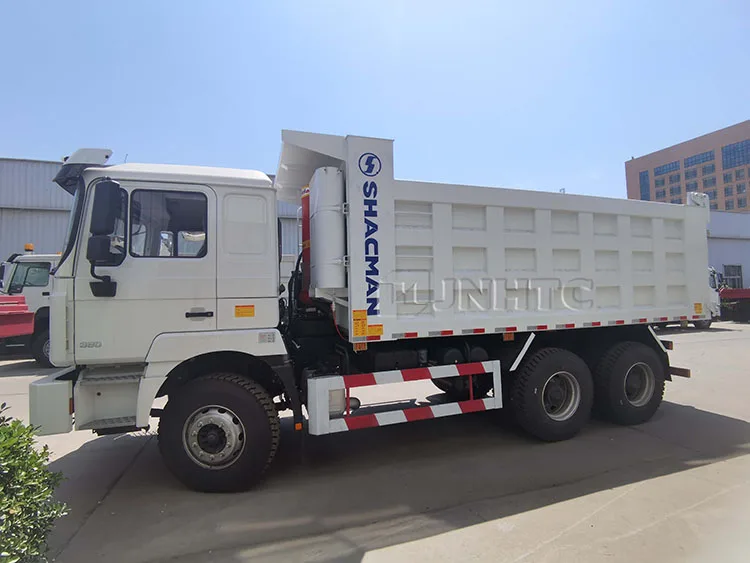

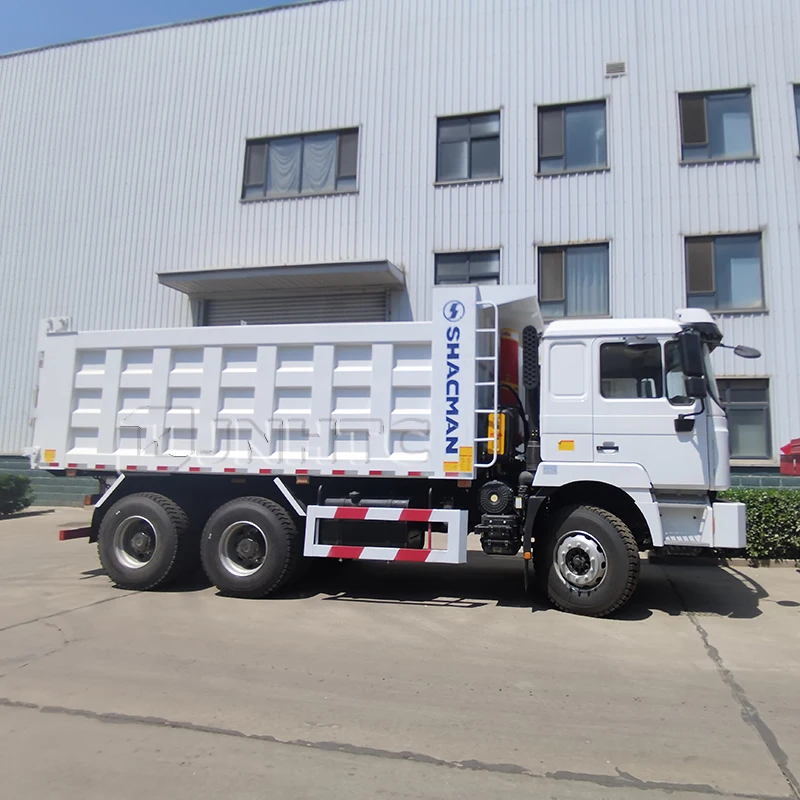

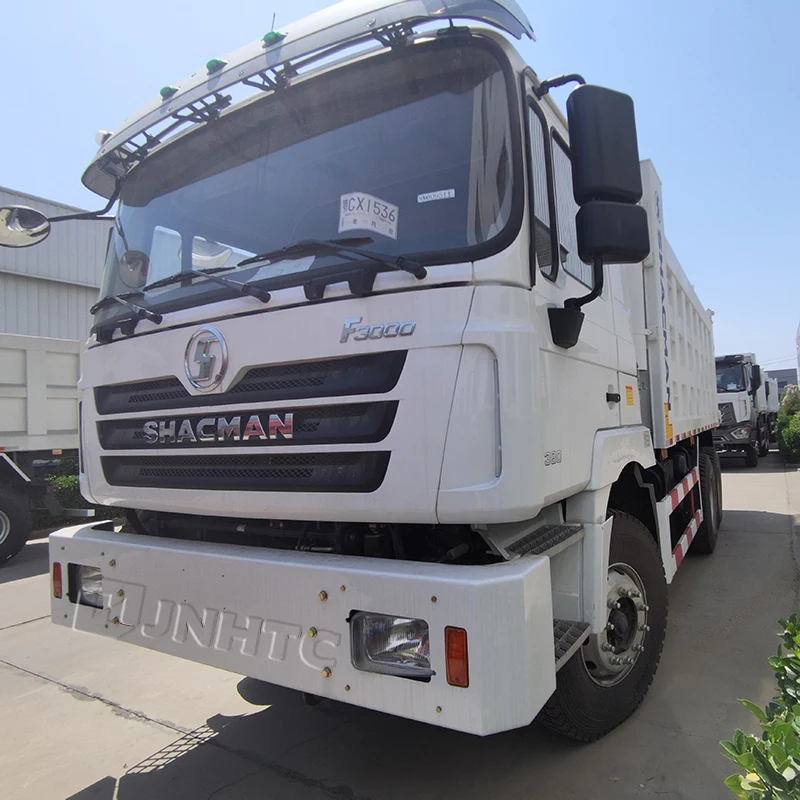

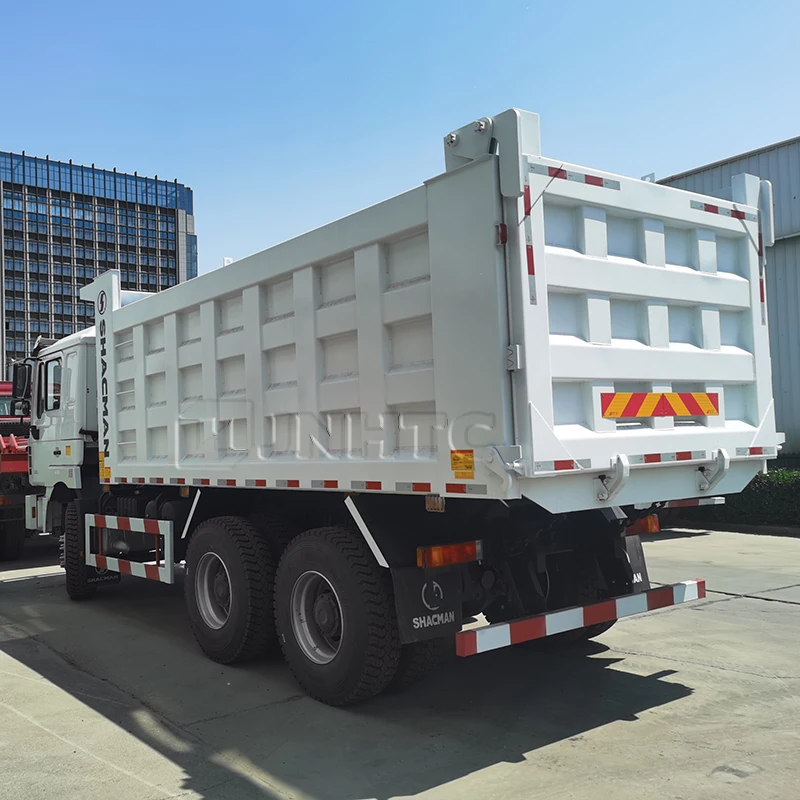

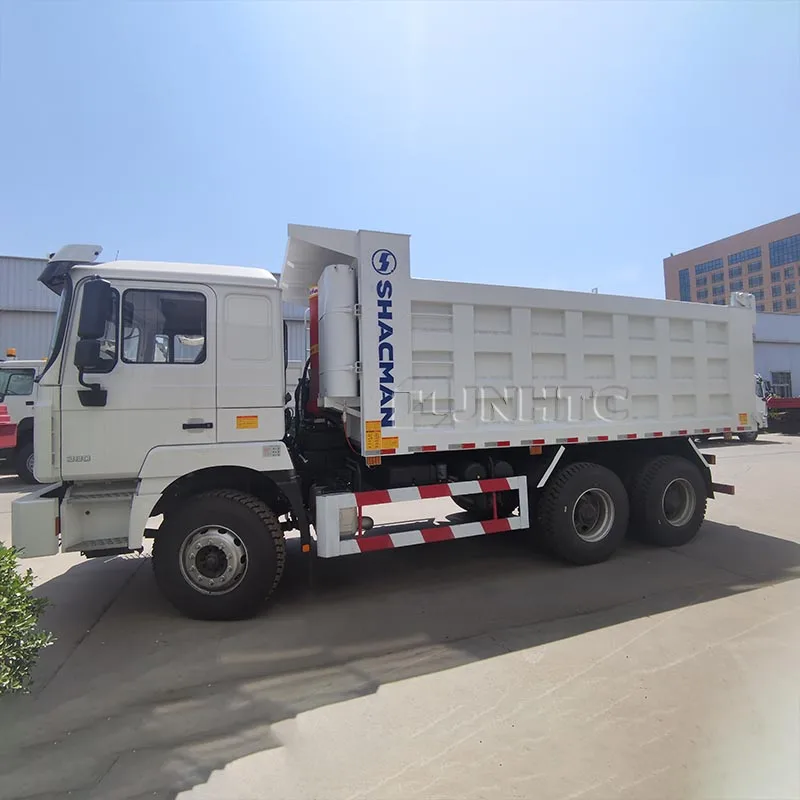

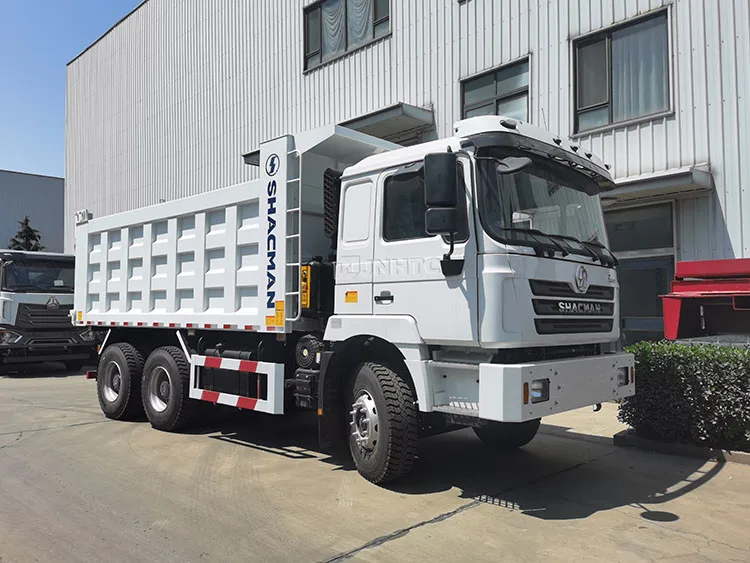

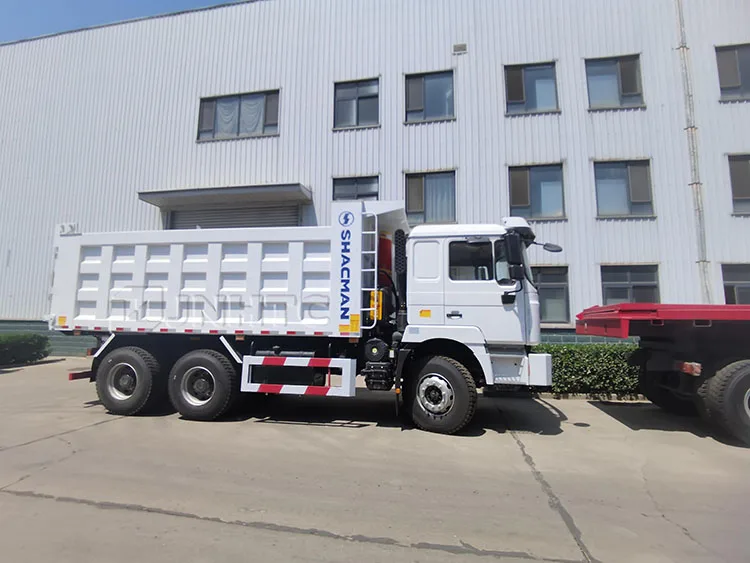

China Shacman f3000 l3000 Camiones 6x4 10 Wheels New Tipper Truck 25Tons Dump Truck For Sale
- Category: >>>
- Supplier: Jinan Heavy Truck Import & Export Co. Ltd.Jinan Ltd.
Share on (1600523788279):
Product Overview
Description
Drive type | 6×4 | ||||||
Complete kerb mass (kg) | 11200 | ||||||
Max.total mass (kg) | 25000 | ||||||
Max.speed (km/h) | 70 | ||||||
Min.turning circle(m) | 18 | ||||||
Min.ground clearance(mm) | 314 | ||||||
Approach / Departure angle (°) | 16/66 | ||||||
Max.gradeability(%) | 40 | ||||||
Appearance dimensions (mm) | Max.length | 8275 | |||||
Max.width | 2490 | ||||||
Max.heigh | 3300 | ||||||
Front / Rear overhang | 1525/1600 | ||||||
Wheel base(mm) | 3800+1350 | ||||||
Track width(mm) | 1939 / 1800 | ||||||
Engine | WP10.290 | ||||||
Rated Output (kw/ps) | 228/290 | ||||||
Clutch | φ420mmSpring-loaded clutch damper | ||||||
Transmission | FULLER 9JS135 | ||||||
Gear ratio | 12.11 8.08 5.93 4.42 3.36 2.41 1.76 1.32 1.00 12.66R | ||||||
Front axle | 7.5tons | ||||||
Rear axle | Shan Qi Steyr military reinforced axle 13tons | ||||||
Steering | Integral inner circulation power sreering | ||||||
Cab | D'LONG F2000, flat roof | ||||||
Tire | 12.00R20 | ||||||
Fuel consumption for 100km(50km/h) L | 36 | ||||||
Fuel tank capacity (L) | 300 | ||||||
Platform dimensions(mm) | 5600*2300*1500 middle lift | ||||||
