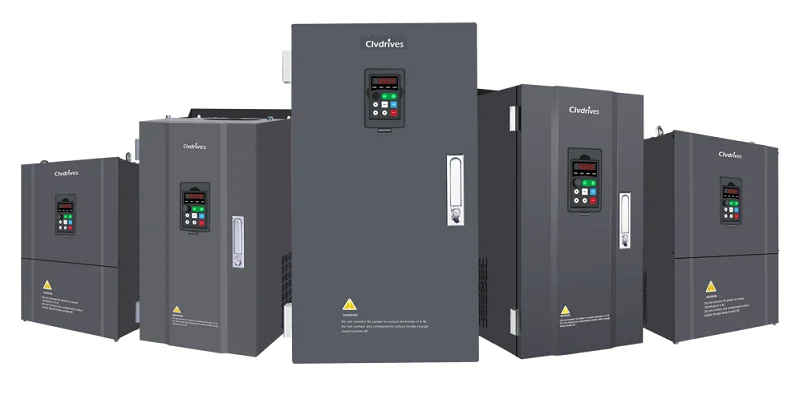

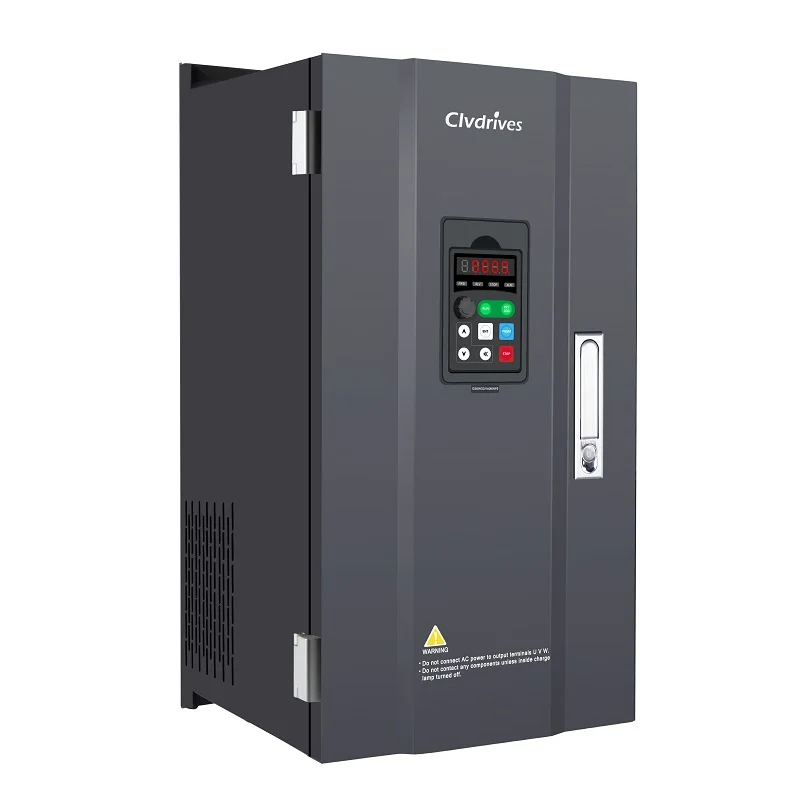

MPPT Solar power 450~800VDC to AC 132KW three phase 380V solar water pump Inverter Drive
- Category: Solar Applications >>>
- Supplier: CLV Drives Co. Ltd.
Share on (1600524768902):
Product Overview
Description
Product Description
Rating Table
MPPT 132KW solar pump inverter 3 Phase 50Hz to 60Hz 380V solar vfd converter DC to AC Variable Frequency Inverter VFD
0.75KW to 75KW Power Rating Table | |||||

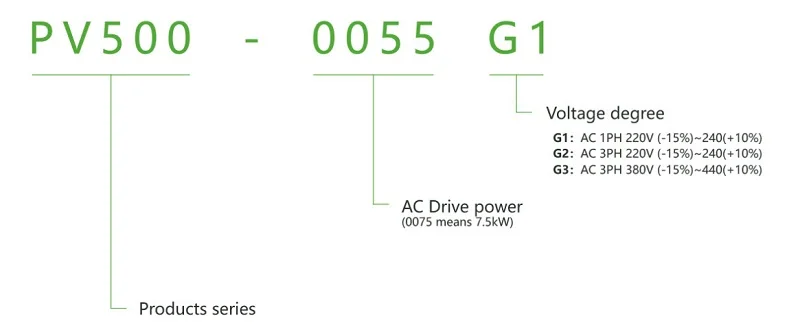

Model No. | Input Voltage | Output Power | Output Current(A) | Dimensions | |
| KW | HP | L*W*H(mm) | |||
| PV500-0007G3 | 3 Phase AC (540V DC Input) | 0.75 | 1 | 2.1 | 170*86*131.5 |
| PV500-0015G3 | 1.5 | 2 | 3.8 | 170*86*131.5 | |
| PV500-0022G3 | 2.2 | 3 | 5 | 170*86*131.5 | |
| PV500-0040G3 | 4 | 5 | 9 | 180*96*151 | |
| PV500-0055G3 | 5.5 | 7.5 | 13 | 221.6*113*166.5 | |
| PV500-0075G3 | 7.5 | 10 | 17 | 221.6*113*166.5 | |
| PV500-0110G3 | 11 | 15 | 25 | 265*160*171.5 | |
| PV500-0150G3 | 15 | 20 | 32 | 265*160*171.5 | |
| PV500-0185G3 | 18.5 | 25 | 38 | 302.5*192*171.5 | |
| PV500-0220G3 | 22 | 30 | 45 | 302.5*192*171.5 | |
| PV500-0300G3 | 30 | 40 | 60 | 348.5*227*171.5 | |
| PV500-0370G3 | 37 | 50 | 75 | 348.5*227*171.5 | |
| PV500-0450G3 | 45 | 60 | 90 | 490*327.5*238 | |
| PV500-0550G3 | 55 | 70 | 110 | 490*327.5*238 | |
| PV500-0750G3 | 75 | 100 | 150 | 303*528*292 | |
| PV500-0930G3 | 93 | 125 | 170 | 303*528*292 | |
| PV500-1100G3 | 110 | 150 | 210 | 690*370*350 | |
| PV500-1320G3 | 132 | 175 | 250 | 690*370*350 | |
| PV500-1600G3 | 160 | 210 | 300 | 720*410*360 | |
| PV500-1850G3 | 185 | 250 | 340 | 720*410*360 | |
Rated Specifications
300V DC Input Inverter Specification
| PV Input | Maximum Input DC Voltage | 400VDC |
| Recommended MPPT Voltage Range | 250~350VDC | |
| Recommended Input Operation Voltage | 310VDC | |
| Grid or Backup Generator input | Input Voltage | Single phase 220V(-15%~30%) |
| Output Specification | Rated Output Voltage | 3PH 220V |
| Output frequency | 0~500.00Hz(default: 0~50.00Hz) | |
| Protection | Built-in Protection | Lighting Protection, over-current, overvoltage, output phase-lose, under-load, under-voltage, short circuit, overheating, water pump idling etc. |
500V DC Input Inverter Specification
| PV Input | Maximum Input DC Voltage | 800VDC |
| Recommended MPPT Voltage Range | 450~600VDC | |
| Recommended Input Operation Voltage | 540VDC | |
| Grid or Backup Generator input | Input Voltage | Three phase 380V(-15%~30%) |
| Output Specification | Rated Output Voltage | 3PH 380V |
| Output Frequency | 0~500.00Hz(default: 0~50.00Hz) | |
| Protection | Built-in Protection | Lighting Protection, over-current, overvoltage, output phase-lose, under-load, under-voltage, short circuit, overheating, water pump idling etc. |
Environment Conditions
| Installation Conditions | Indoor, and be free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt. |
| Altitude | Below 1000m If the altitudeis above 1000m, please derate 1% for every additional100m. |
| Ambient Temperature | -10℃~+40℃. Derateing use once ambienttemperature exceeds 40℃. It is not recommended to use the inverter if ambient temperature is above 50℃. |
| Humidity | RH≤95%. No condensation is allowed. |
| Vibration | ≤ 5.8m/s2(0.6g) |
| Storage Temperature | -40°C~+70°C. The temperature changerate is less than 1°C/minute. |
| Efficiency | Rated Power Run≥93% |
| Installation | The inverter should be installed on an upright position to ensure sufficient cooling effect. |
| Protection Grade | IP20 |
| Cooling | Forced Air Cooling |

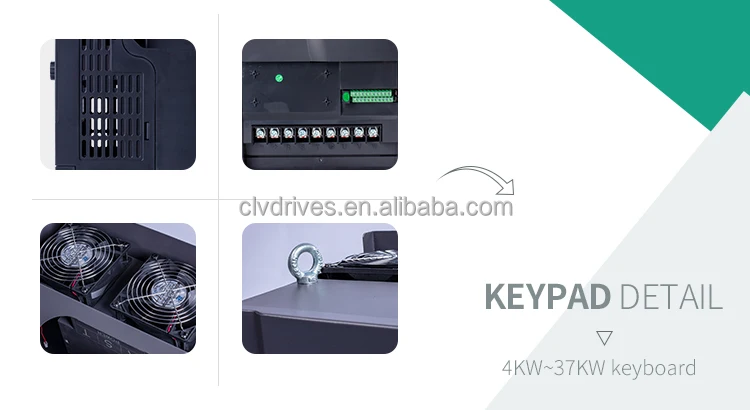

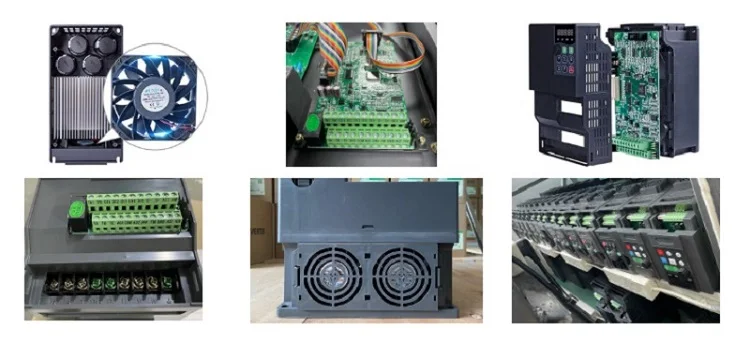

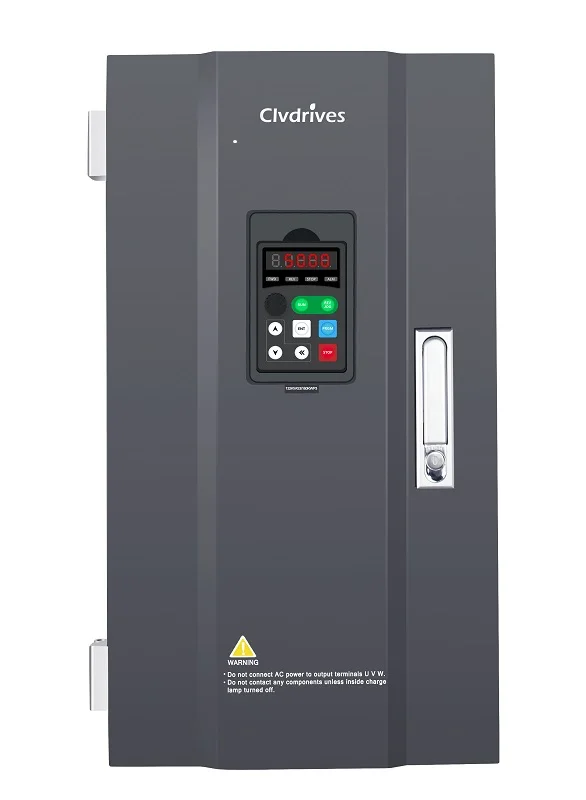

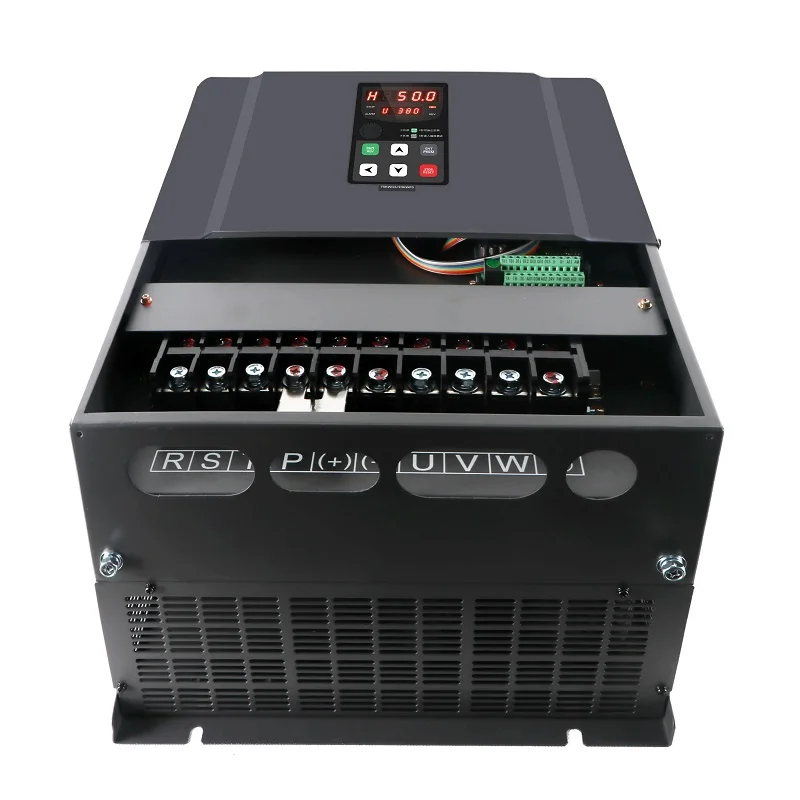

Detail Images

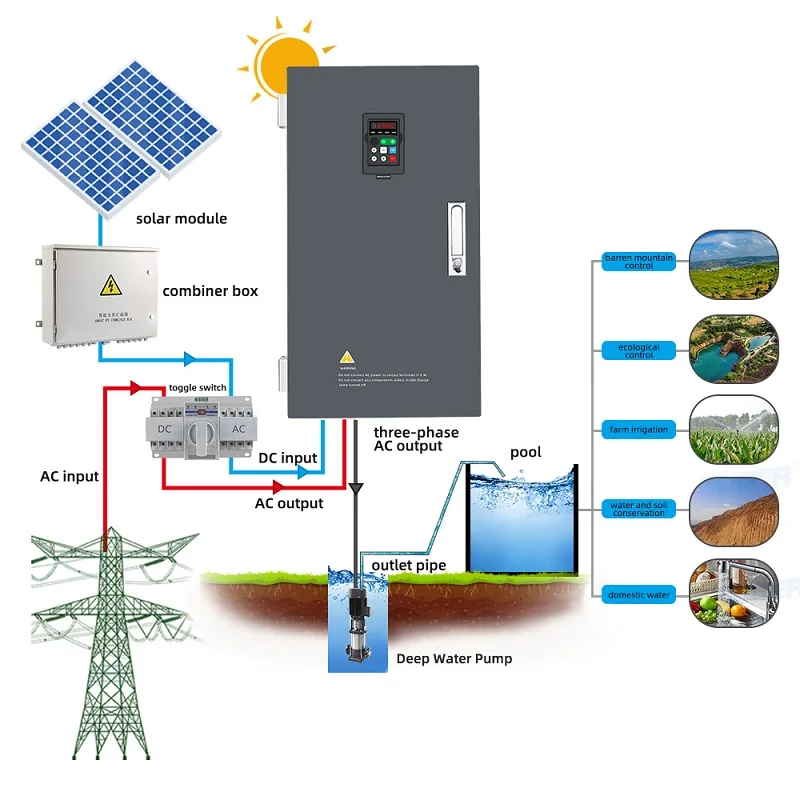

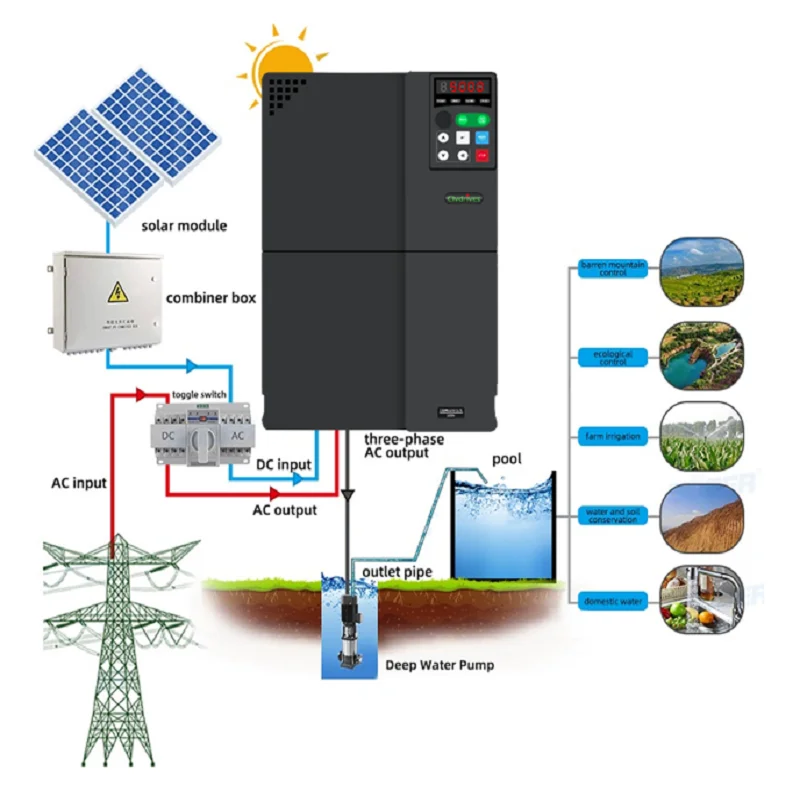

Application
Packaging & Shipping
We have cartons and wooden boxes, which are pwcked in cartons below 75KW and wooden boxes above 93KW. Thichened shockproof foam is filled inside to prevent damage to equipment in transit.
FAQ
Q 1: Are you trading company or manufacturer ?
A: We are factory.
Q 2: How long is your lead time?
A: Generally it is 3-7 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q 3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample,but we will charge the sample fee and the cost of freight.
Q 4: What is your terms of payment ?
A:We accept T/T, L/C and Western Union , MoneyGram.
Q 5: What is the standard of package?
A. Export standard package or special package according to customer requirement.
Q 6: Is there any discount ?
A. The discount will depend on the quanlity you purchase.
Q 7: What is your supply capacity?
A. The week output of the factory exceeds 500 PCS.
Q 8: Do you provide warranty for the goods?
A. Yes, we provide 18 months of warranty for all the goods from us.
Q 9: Could CLV Driver provide technical support?
A.We' have more than 12 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
