Brand New Lowest Price Steel Rib Corrugated Panel Profile Electrical Cutter Trapezoidal Tr4 Tr5 Tr6 Tile Roofing Sheet Roll Form
- Category: >>>
- Supplier: Cangzhou Hener Machinery Co. Ltd.
Share on (1600524814766):
Product Overview
Description
Product Certification
CE Certified.Valid from 2020-07-18 until 2025-07-18
Packaging & Delivery
Selling Units: Single item
Single package size: 5500mm*1600mm*1800mm
Single gross weight:4500.000 kg
Package Type:nude
Lead Time :within 35 days

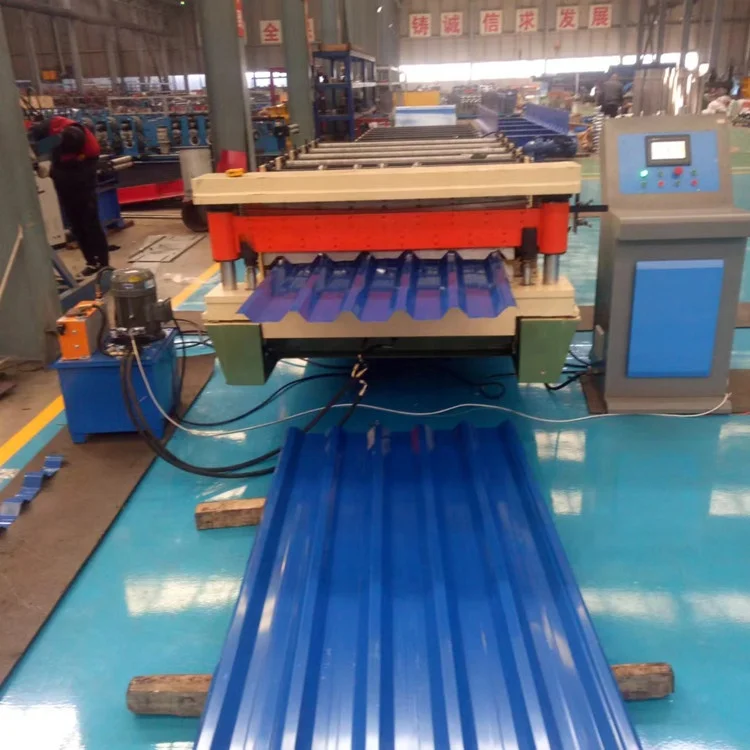

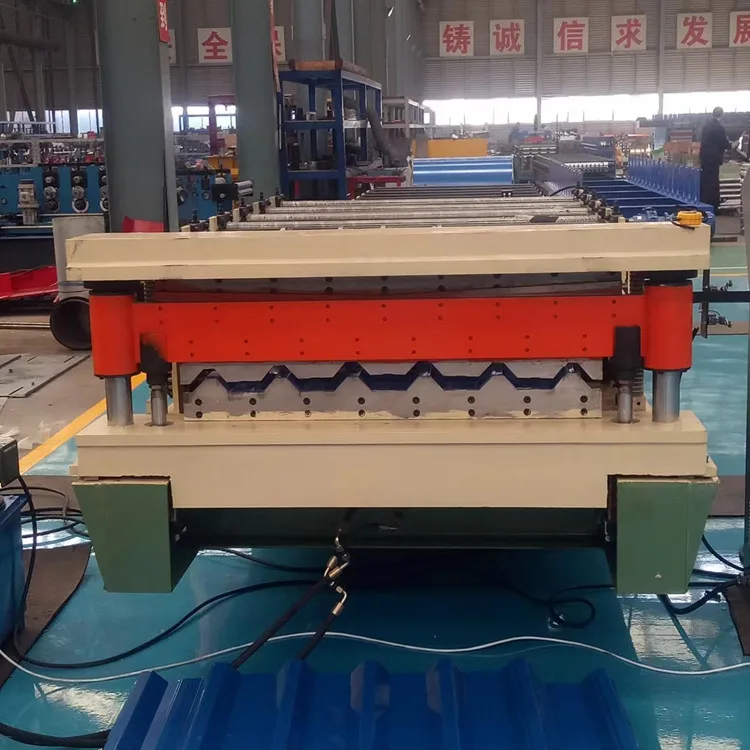

Brand New Lowest Price Steel Rib Corrugated Panel Profile Electrical Cutter Trapezoidal Tr4 Tr5 Tr6 Tile Roofing Sheet Roll Forming Machine

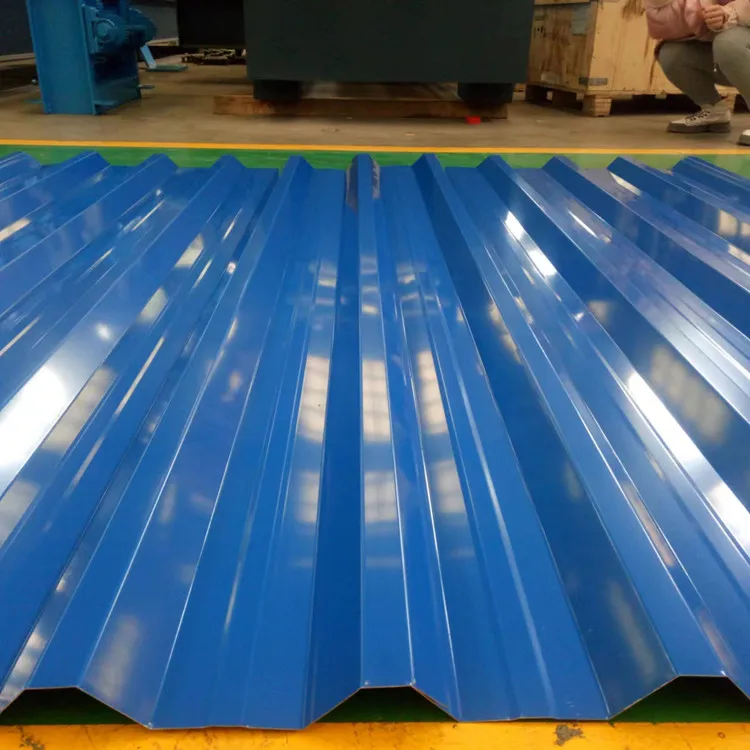

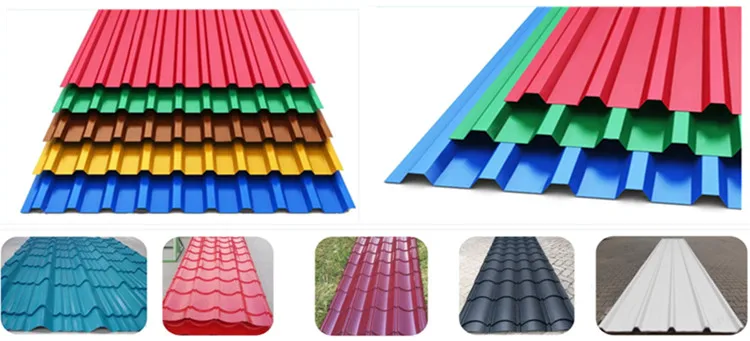

Trapezoidal Metal Roofing Sheet Tile Roll Forming Machine is one of most popular metal building material making machines,it can produce many kinds of trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widely used in many scenes,like school,gym, warehouse,etc.

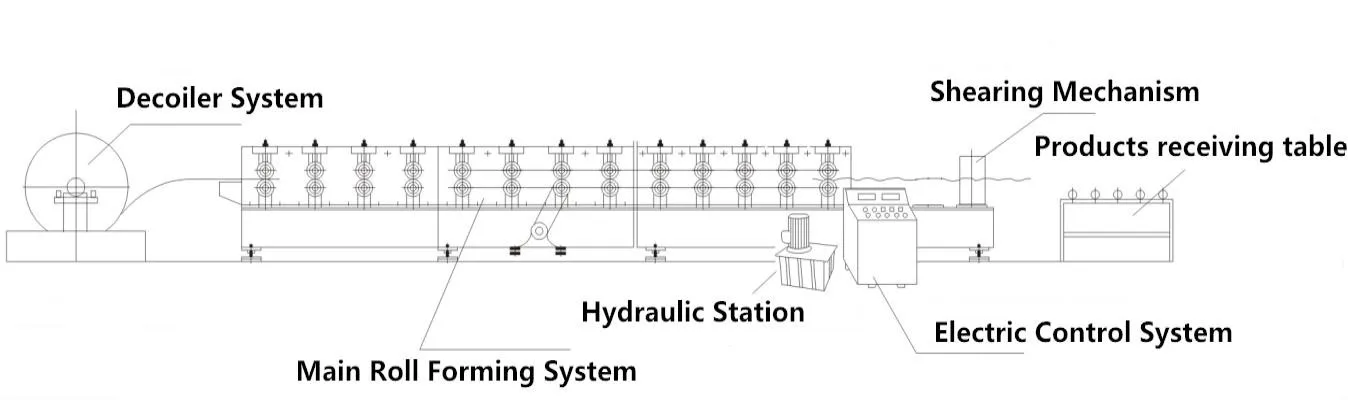

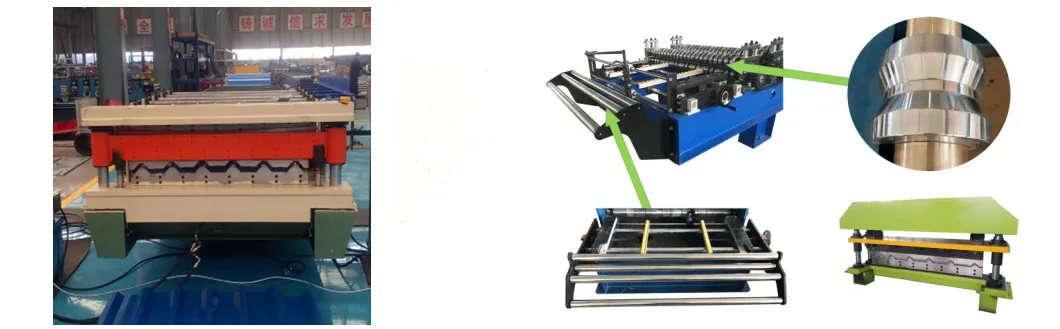

Work flow of production line

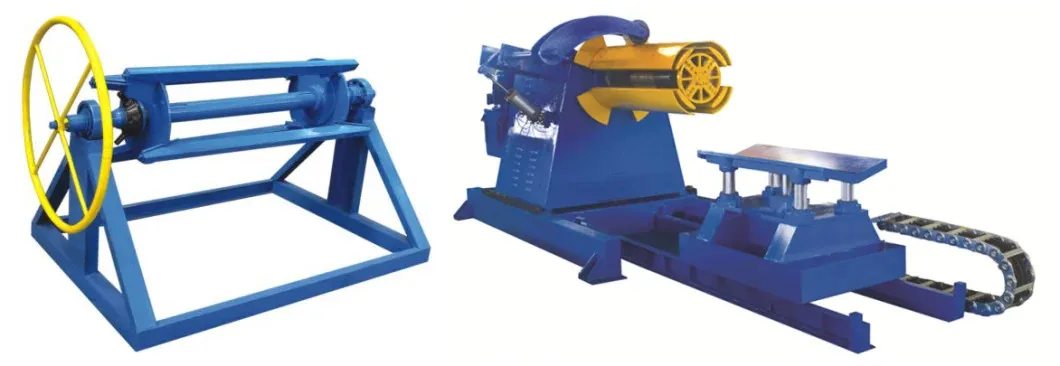

Decoiler: ( Selectable configuration ):
1) Left ( Standard configuration ): Manual simple decoiler;
2) Right (Optional configuration ): Hydraulic decoiler;
3) Loading Lecel: 5tons(common), 8tons, 10tons, 15tons or as requirement;
4) Loading Width: Max. 1250mm or 1450mm (common);
5) Loading Inner Diameter: φ450-550mm;
6) Loading Outer Diameter: Max. φ1500mm

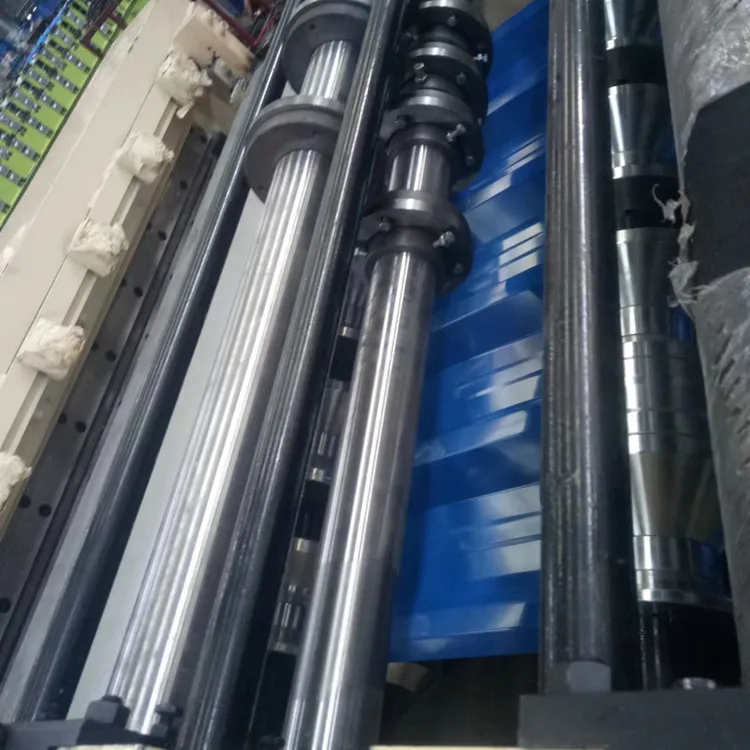

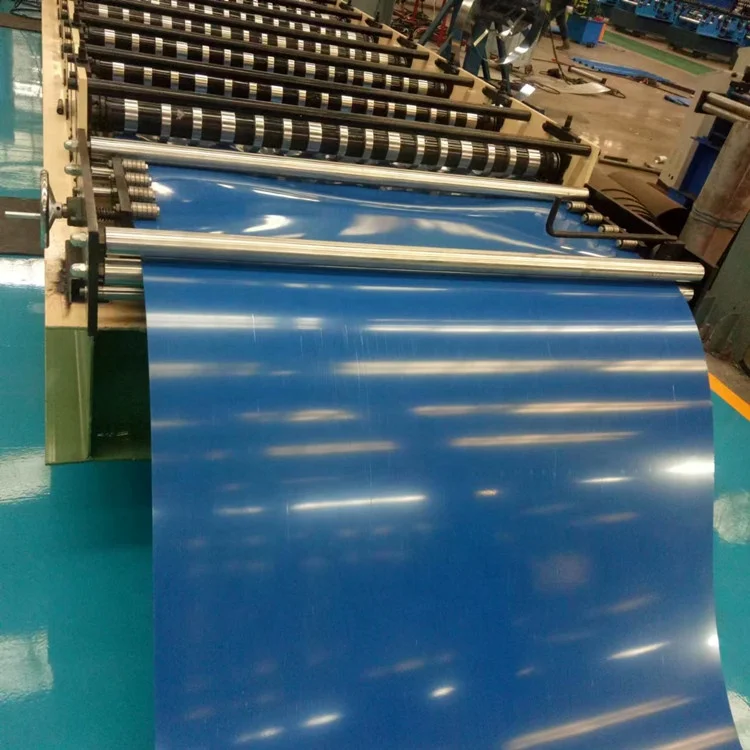

Main Roll Forming Machine:
1) Driving Type: Chain(common) or Gear or Gearbox;
2) Forming Model: Integral Forming or Split Forming;
3) Forming Machine structure: Medium-plate Type(common) or Arch Type or Guide-pillar type;
4) Roller: 45# or Cr12 or GCr15 or GCr12MoV
5) Shaft: 45# or 40Cr; 70mm/80mm/90mm(common) or as design;
6) Motor Power: 4.0kW or 5.5kW or according to the design requirements;
7) Main Frame: 350# or 400# H-beam steel welded.
Cutter:
1) Working Model: Hydraulic Cutter (common) or Electric Cutter;
2) Cast iron tool holder: obvious shock absorption effect and strong impact resistance.
3) Cutter Blade Material: Cr12. The cutting life exceeds 1 million times.
4) Rear scissor frame: Q235 steel plate, annealing treatment after rough turning, finishing

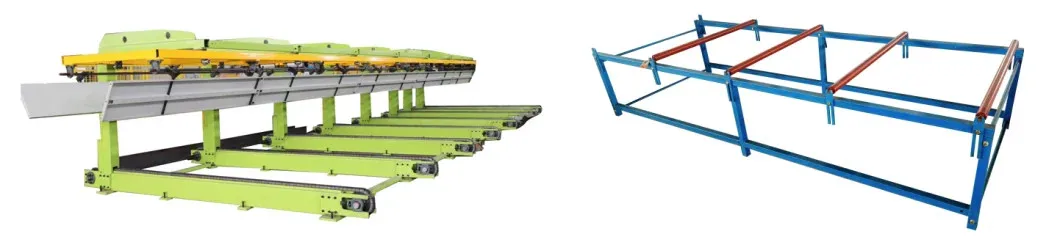

Collecting Product Table
Left: Automatic Stacker (optional configuration)--Length: According to customized;
Right: Manual Simple collecting product table (standard configuration)--Length: 3m(common) or as customized.

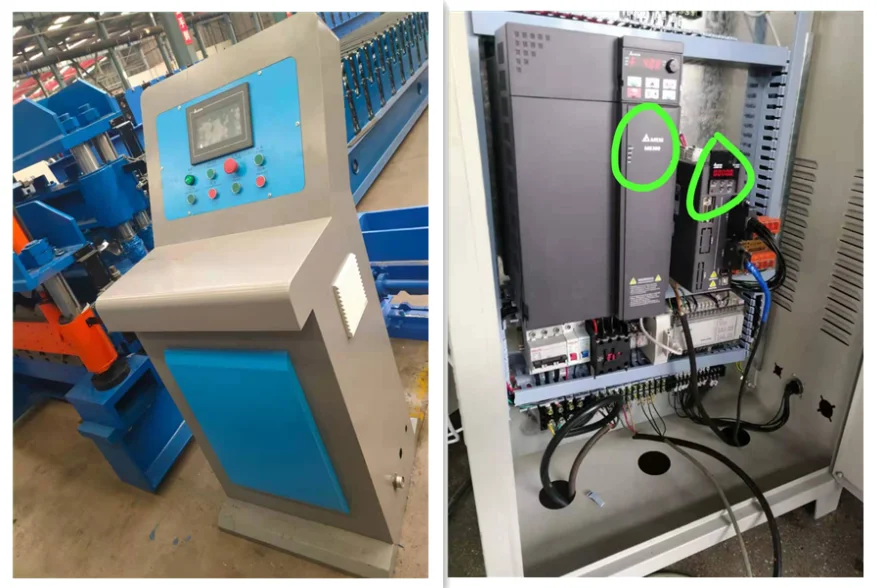

PLC control cabinet:
1) PLC:Adopt DELTA high-precision PLC electronic device.
2) Inverter:DELTA Heavy-duty inverter,running efficienty and stable.
3) Control components: with long service life and low failure rate.
4)Touch screen control:input production data and automatically complete production requirements.
Product Features
1. More efficient and accurate execution of production orders;
2. High equipment reliability;
3. Little waste of materials and energy;
4. High productivity;
5. High quality materials, get a longer service life;
6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;
7. Customized coil processing solutions to solve all aspects of technical problems.
Certification

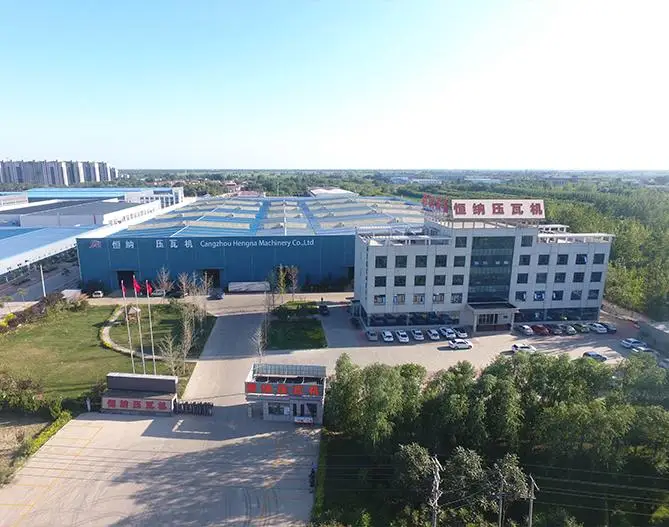

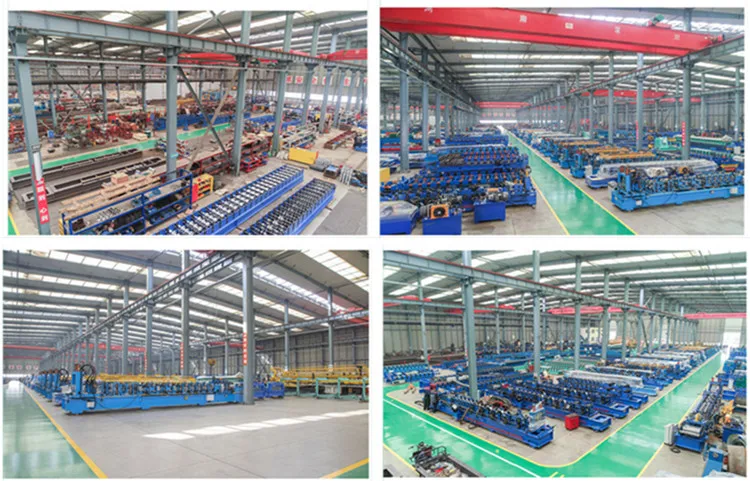

Company Profile
FAQ
1. Does your company can customized my needed profile?
Yes sir/Madam. Our machines are all customized according to customers' requests. Just provided me your needed profile drawing and we can give you our professional machine design solution.
2. If i don't have profile drawing, but i want to buy one machine, can you help me?
Yes sir/ Madam. If you don't have profile drawings, the solutions have:
2.1 : Provide me with your profiles' pictures ;
2.2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you related profile drawings.
2.3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.
3. What your company advantages?
Yes sir/Madam. Our advantages have :
3.1: We are a 12 years big factory. We have abundant machine designing and making experience. We can give you the best machine solution.
3.2: We have completed production system. And more than 20 sets of CNC machines which can support lots of machine orders' making and guarantee the delivery.
3.3 : We have 10 years foreign trade exported experience. Our sellers abundant experience can guarantee you will have a pleasant purchase and use of the machine and after-sales experience. And cooperated with us , you can get more details about the machine, including those problems that you can't think of but we can think of, we can tell you to ensure that you can buy the most suitable machine for you.
3.4 : We are a golden integrity roll forming machine company.
About the after-sale services, no worries, we will responsible for you.
About the after-sale services, no worries, we will responsible for you.
4. Will i receive a good machine ? Same with my wanted ?
Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.
5. What is the machine minimum quantity?
One machine is okay.
6. What is your payment terms?
6.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
6.2 : We accept 100% L/C at sight
6.3: We accept Western Union payments.
6.4 : Other payment terms you want to pay, please let me know and i will check and reply you.
