12V 24V 100Ah Bms Lifepo4 Deep Cycle Battery 24 12 Volt 200Ah 280Ah Lithium Ion Battery Pack For Electric Golf Cart Rv Marine
- Category: Batteries >>>
- Supplier: Shenzhen Polinovel Tech Co. Ltd
Share on (1600525813591):
Product Overview
Description
Product Description
Polinovel 12v 24v 36v 48v 100ah 200ah 300ah 400ah lifepo4 battery pack solar storage ups rechargeable lithium ion batteries
1. Weight is about 70% lighter than lead acid batteries
2. Two to four times for the service life (2000-8000 cycles)
3. Great for Marine, RV, Boat, Golf, UPS systems, solar energy storage
4. Battery Management Systems (BMS) with power terminal cut-off and recovery
5. Cell balancing and low voltage/over voltage protection, over current, short-circuit protection
6. Maximize your energy potential with 100% Depth of Discharge (DOD)
7. Drop in replacements (plug and play)
8. Offer you 5 years warranty
9. Manufacturer directly, MOQ 1pc
2. Two to four times for the service life (2000-8000 cycles)
3. Great for Marine, RV, Boat, Golf, UPS systems, solar energy storage
4. Battery Management Systems (BMS) with power terminal cut-off and recovery
5. Cell balancing and low voltage/over voltage protection, over current, short-circuit protection
6. Maximize your energy potential with 100% Depth of Discharge (DOD)
7. Drop in replacements (plug and play)
8. Offer you 5 years warranty
9. Manufacturer directly, MOQ 1pc
Electrical Parameter | ||
Nominal Voltage | 12.8V | |
Nominal Capacity | 100Ah | |
Energy | 1280Wh | |
Cycle Life | >6000cycles (@0.1C, 50% DOD); >2000cycles (@1C, 100% DOD) | |
Self Discharge | <3%/month | |
Series or Parallel Connection | 4pcs in series or parallel | |
Manchanical Parameter | ||

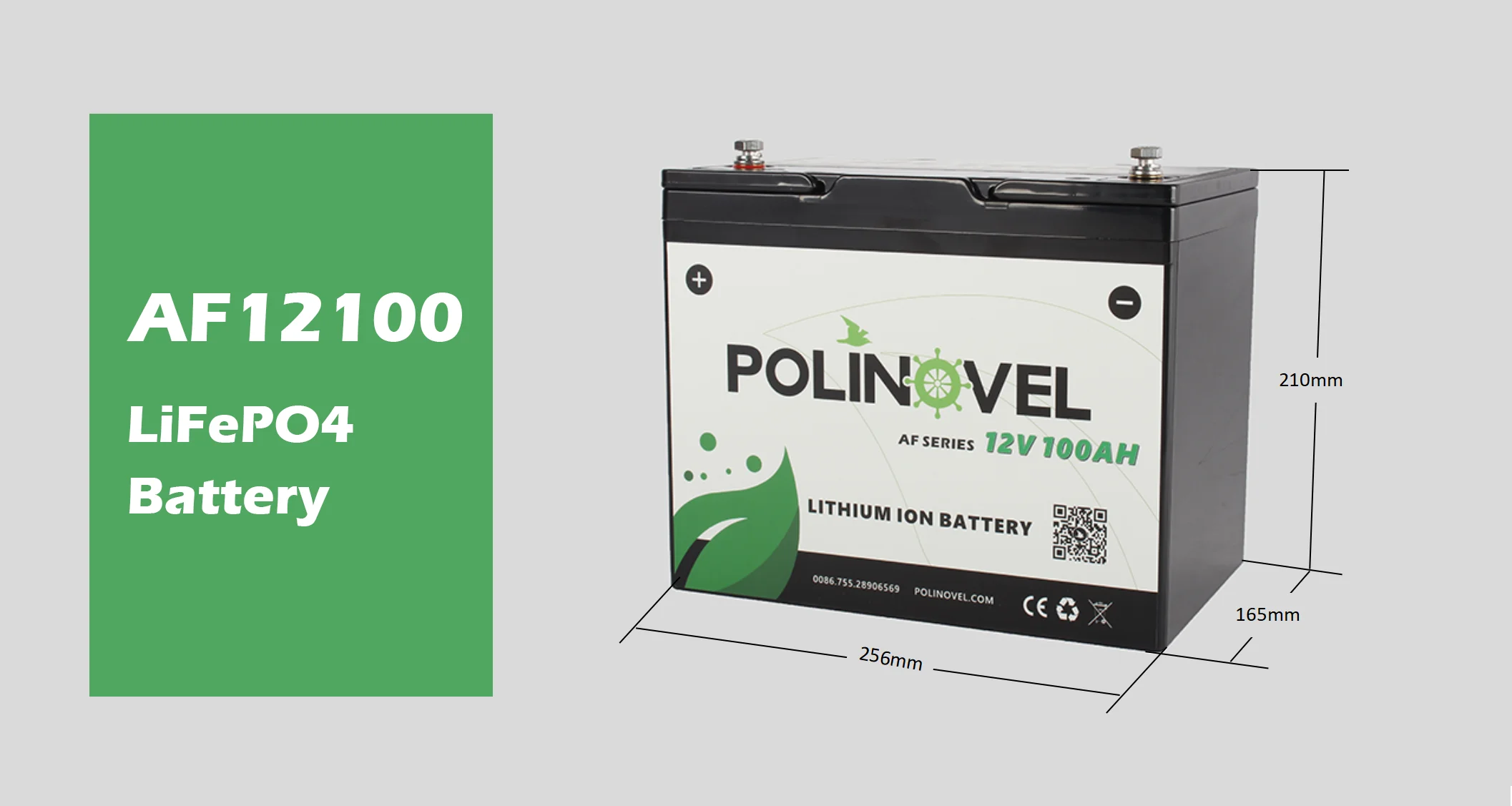

Dimension (L x W x H) | 256x165x210mm | |
Weight | 11kg | |

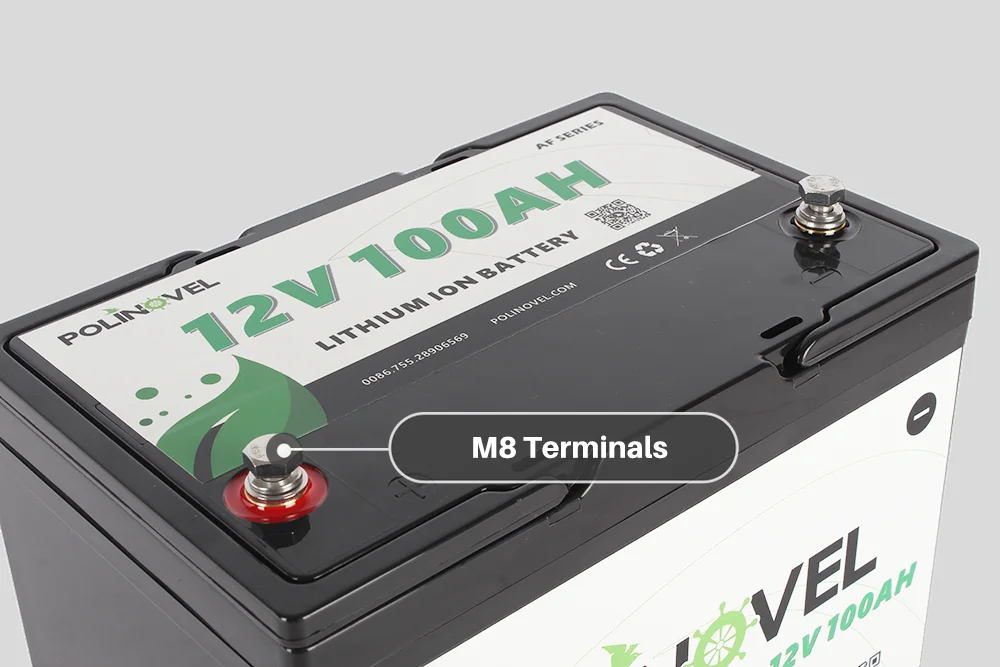

Teminal Type | M8 | |
Case Material | ABS | |
Cell Type | Prismatic | |
Chemistry | LiFePO4 | |
More Models Available:
Voltage Range: 12V, 24V, 36V, 48V, 60V, 72V, 80V, 96V ...
Capacity Range: 7Ah, 10Ah, 20Ah, 30Ah, 40Ah, 50Ah, 60Ah, 80Ah, 100Ah, 120Ah, 150Ah, 200Ah, 250Ah, 300Ah, 400Ah, 500Ah, 600Ah ...
Customizable: Voltage, Capacity, Size, Charge Discharge Current, Connector, Communication Port, Display, LOGO, Sticker...
Product Description

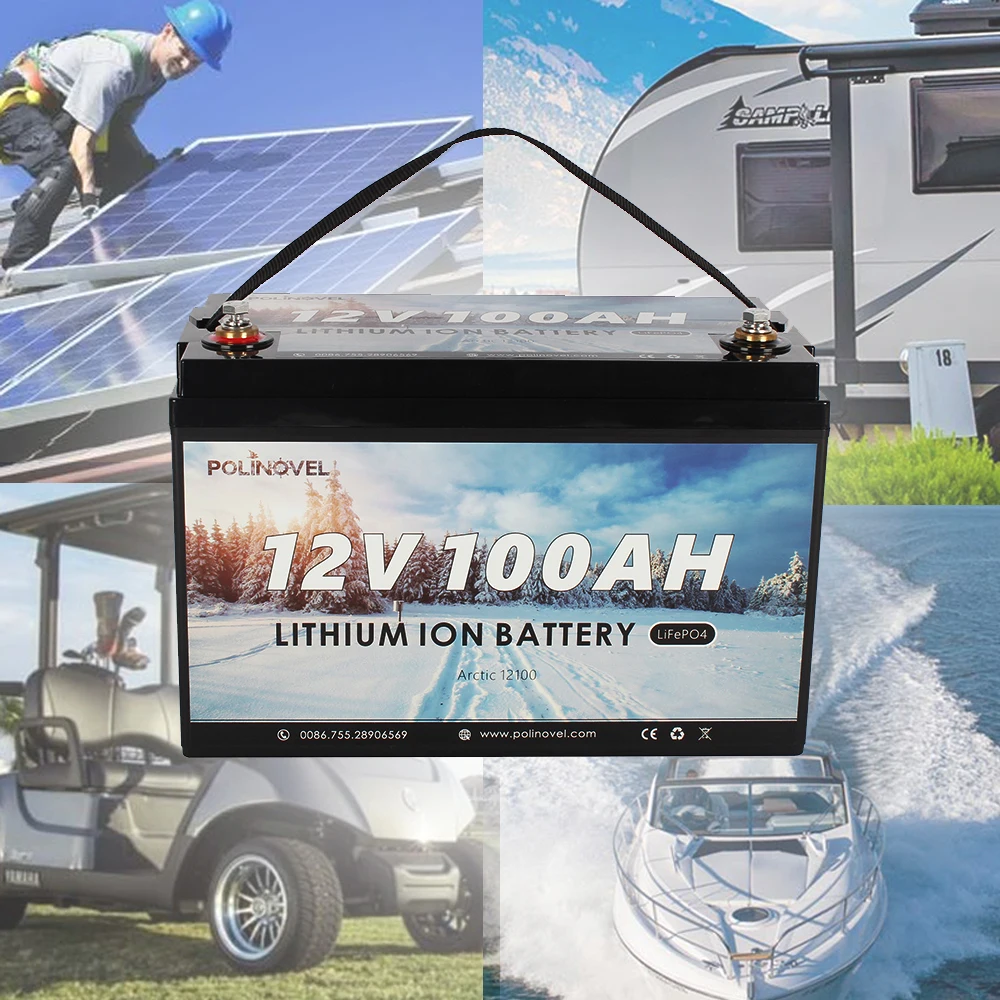

Polinovel Lifepo4 12v Battery Solar 12 Volt 100ah Deep Lithium Ion For RV
Electrical Parameter | ||
Nominal Voltage | 12.8V | |
Nominal Capacity | 100Ah | |
Energy | 1280Wh | |
Cycle Life | >6000 cycles @ (0.1C, 50% DOD) | |
Self Discharge | <3%/month | |
Series or Parallel Connection | 4pcs in series or parallel | |
Manchanical Parameter | ||
Dimension (L x W x H) | 329x172x214mm | |
Weight | 14.6kg | |
Teminal Type | M8 | |
Case Material | ABS | |
Chemistry | LiFePO4 | |
IP Rate | IP67 | |
Product Description
Electrical Parameter | Model | Arctic12100 |
Electrical Parameter | Nominal Voltage | 12.8V |
Nominal Capacity | 100Ah | |
Energy | 1280Wh | |
Internal Resistance | ≤20mΩ | |
Chemistry | LiFePO4 (Lithium Iron Phosphate) | |
Cycle Life | >6000 cycles @ 0.1C 50% DOD | |
Self Discharge | <3%/month | |
Charge Rate | 100% | |
Discharge Rate | 100% | |
Expandable Connection | 4pcs in Series or Parallel | |
Charge Parameter | Charge Voltage | 14.6V |
Charge Current | 20A~100A | |
Max. Charge Current | 100A | |
Charge Method | CC/CV | |
Discharge Parameter | Constant Discharge Current | 100A |
Pulse Discharge Current | 200A (<5s) | |
Discharge Cut-ioff Voltage | 10V | |
Machanical Parameter | Battery Case | ABS |
Machanical Parameter | Approx. Dimension | 329*172*214mm |
Approx. Weight | 15kg | |
Terminal | M8 | |

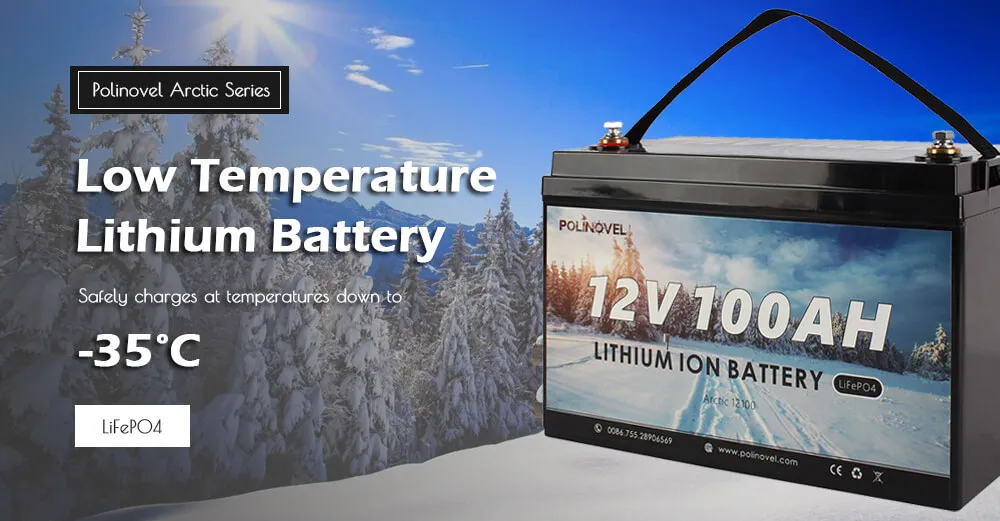

Environmental Parameter | Charge Temperature | -35~45ºC |
Discharge Temperature | -35~60ºC | |
Storage Temperature | -20~45ºC |
Product Advantages
Top-Quality Lifepo4 Cell
Polinovel Arctic lithium battery pack utilizes grade-A quality 3.2V 6Ah cylindrical 32700 lifepo4 battery cells, every
cells are proven 100% new and strictly capacity graded to ensure high conformity of cells used in battery module.
cells are proven 100% new and strictly capacity graded to ensure high conformity of cells used in battery module.

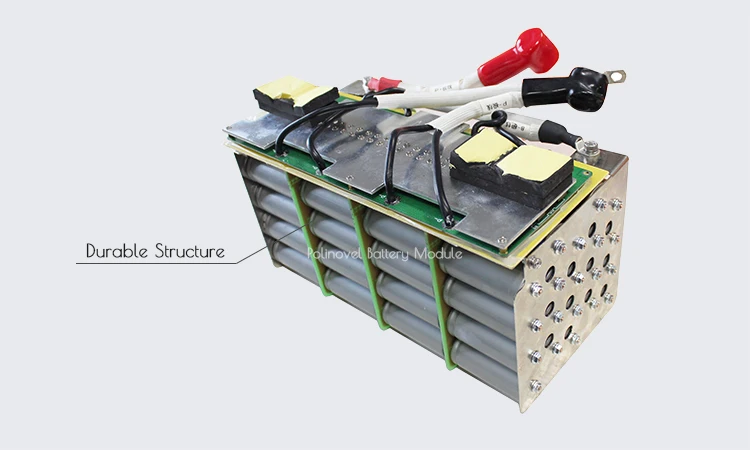

Durable Structure
Our Arctic series low temperature lifepo4 battery internal structure are patented screw-fastened on PCB, which is rather well-designed and built to take a beating from bumps or vibration. The battery also has a wide operating temperature range, making it a good choice for year-round use, especially in cold winter.
Durable Structure

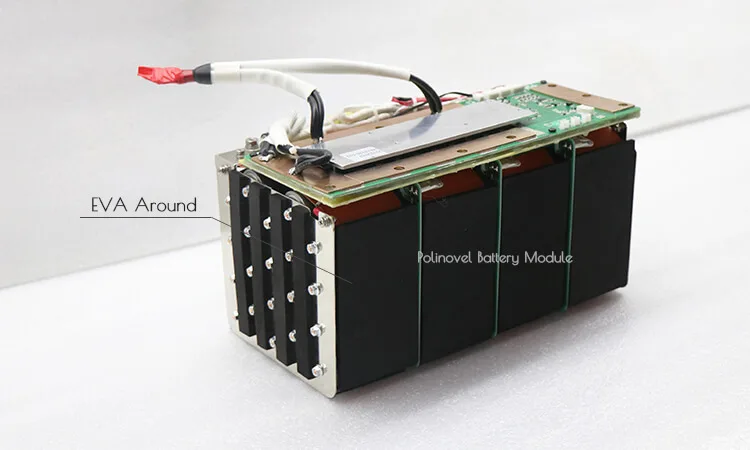

There is a layer of vibration-resistant EVA material around the battery module, that offers increased protection for the battery and delivers superior power, performance and life.
Dual Thermal Control

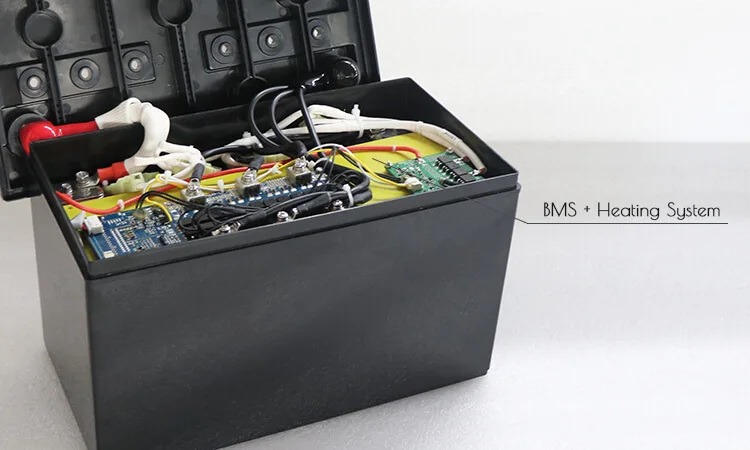

The self-heating system and battery management system, both feature with temperature monitoring control function that provides dual protection to maximize battery safety and performance in cold weather.
Scalable Battery System

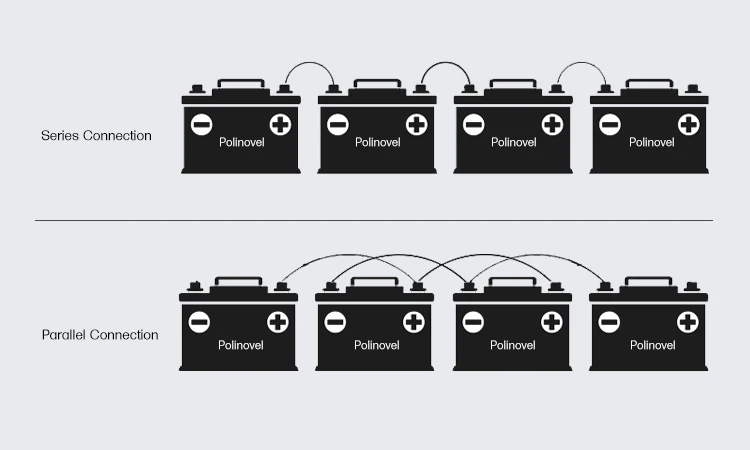

The batteries support (4S) series or (4P) parallel connection so you can scale your system to provide increased power and energy (up to 48V or 400Ah) as needed.
Product Advantages
Case Performance
Certifications
Package & Delivery
Professional Exporting Package
Appropriate packaging method (UN Carton or Wooden Case) will be used according to battery weight and size, that are strong enough for long-distance transportation.
Reliable Shipping Service
Polinovel cooperates with professional and experienced forwarders in the transport of dangerous goods, to guarantee the battery shipping quick, safe, and efficiency.

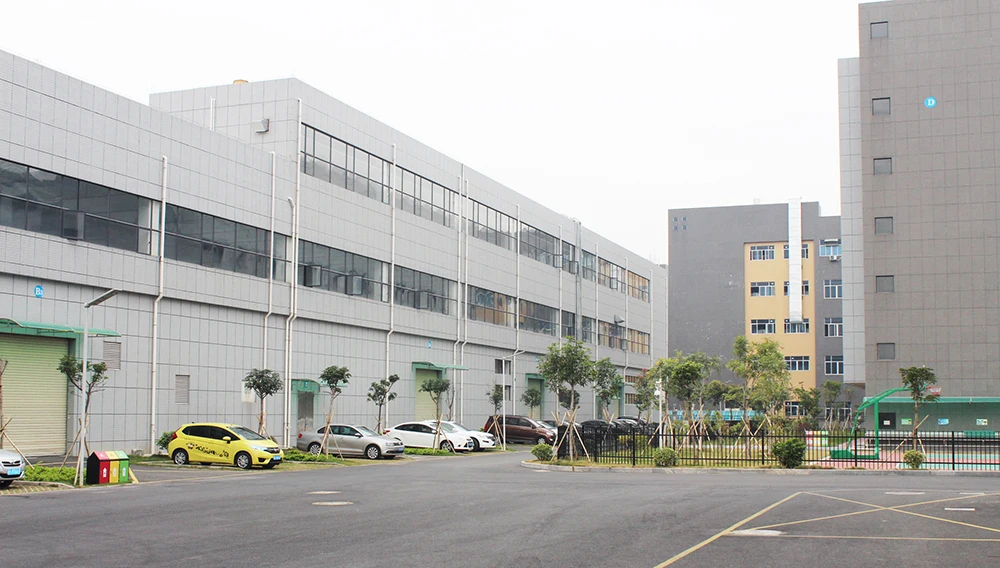

Company Profile
ABOUT US
Polinovel lithium batteries have been rigorously tested and certified to be safely used in wide applications. We are proud of our batteries are conform to UN38.3 shipping regulations that are safe for air or sePolinovel is a unique company with vertical integration of designing, developing and manufacturing high-technology lithium battery since from 2006. With talented team and advanced technology, we are able to quick provide professional, safe and reliable lithium batteries that deliver high performance, maximum usable energy and long life power to many applications around the world. Polinovel never stop the efforts on introducing talents and equipment to continuously improve our technologies and products to keep us ahead in industry. We strongly believe the bright future of human being will be achieved with greener and more efficient power. a shipping, and CE certified for international sales.

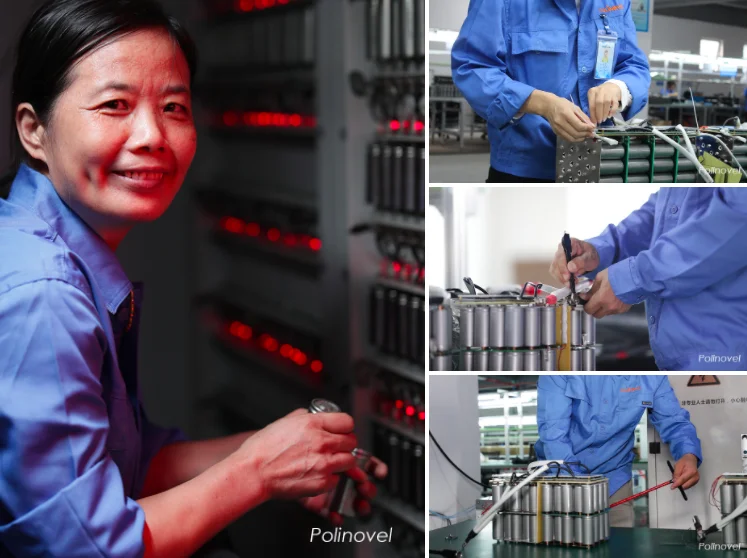

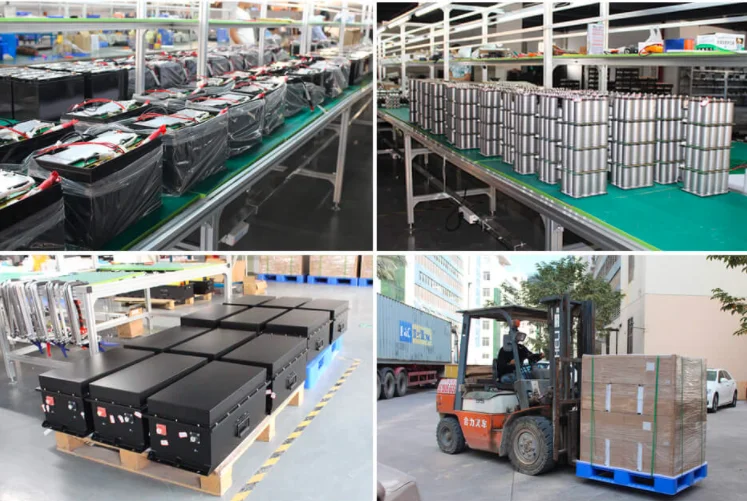

High-standard Production
Polinovel lithium batteries are built to the high standards from the inside out, quality and safety are guaranteed to work in various applications.

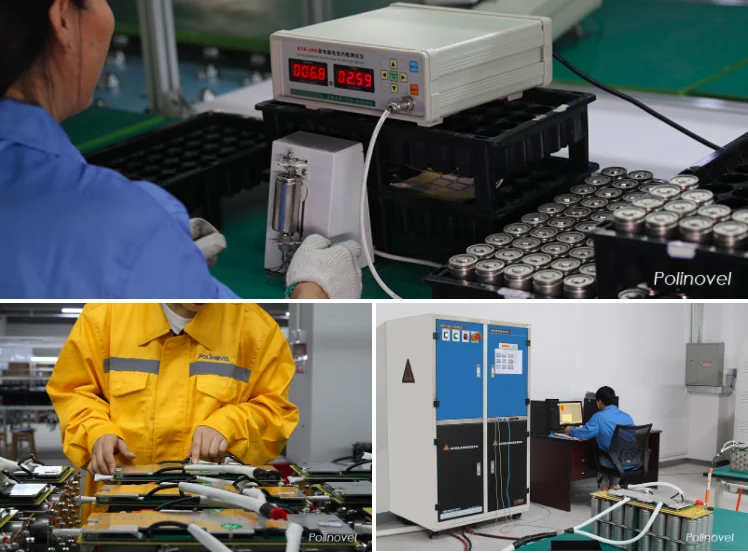

Strict Test & Inspection
Polinovel battery pack undergoes rigorous quality control inspection at each stage of assembly and strictly tested to ensure a reliable and consistent product.
FAQ
Q1: Does Polinovel support door to door shipping? drop ship ?
A1: Yes. Normally if battery unit weight is below 30kg, we can delivery it to the destination address via Air Express. If battery unit weight is above 30kg, we delivery it via sea shipping. If you want to us to help you to make custom clearance, we would like to do that. We support drop ship.
Q2.: Can we do series and parallel connection by ourselves (12 volt battery)?
A2.: Yes. But, we should pay attention to below tips:
a.: Connect the same spec. battery pack. Please don't mix them.
b.: The voltage difference of the connection batteries should be 50mV below.
c.: Support 4 series OR 4 parallel connection. Please don't do series and parallel connection at the same time.
d. If we don't obey the tips, It may cause battery damaged or shorten the battery lifespan.
Q3.: How can I resell lithium batteries well in my market ?
A3.: Do market research, set your focus application field,learn more knowledge about lithium battery. build your own brand. We can work together with you to explode the market.
Q4.: Why Polinovel guys ask me so many questions? I just want to know the price !!
A4.: Sorry for annoying you. But the discharge current, voltage etc. Information is very important for us to produce the correct battery for you. If we produce the battery which can not achieve the real application discharge current, size etc. That will put both of us in a very embarrassing and lose-lose condition. We also have price list, but it is only for your reference. We should confirm the discharge current etc. Information before we produce your orders.
Q5. Does Polinovel battery include BMS? Can we use it for vehicle?
A5: Yes, our battery pack include BMS, you can use it for low speed vehicles.And make sure the discharge current can meet the application request (please refer to Q4) . If you want to use standard vehicle, please inform us, we need to adopt more complex design BMS and different technology solution.
Q6. What is your warranty?
A6: Our standard warranty is 2 years. Our battery lifespan can be used for at least 8 years for normal 1 cycles per day. We have a complete warranty policy documents, please feel free to contact us to get it.
......
Your inquiries or questions are welcome, we will reply you quickly !
A1: Yes. Normally if battery unit weight is below 30kg, we can delivery it to the destination address via Air Express. If battery unit weight is above 30kg, we delivery it via sea shipping. If you want to us to help you to make custom clearance, we would like to do that. We support drop ship.
Q2.: Can we do series and parallel connection by ourselves (12 volt battery)?
A2.: Yes. But, we should pay attention to below tips:
a.: Connect the same spec. battery pack. Please don't mix them.
b.: The voltage difference of the connection batteries should be 50mV below.
c.: Support 4 series OR 4 parallel connection. Please don't do series and parallel connection at the same time.
d. If we don't obey the tips, It may cause battery damaged or shorten the battery lifespan.
Q3.: How can I resell lithium batteries well in my market ?
A3.: Do market research, set your focus application field,learn more knowledge about lithium battery. build your own brand. We can work together with you to explode the market.
Q4.: Why Polinovel guys ask me so many questions? I just want to know the price !!
A4.: Sorry for annoying you. But the discharge current, voltage etc. Information is very important for us to produce the correct battery for you. If we produce the battery which can not achieve the real application discharge current, size etc. That will put both of us in a very embarrassing and lose-lose condition. We also have price list, but it is only for your reference. We should confirm the discharge current etc. Information before we produce your orders.
Q5. Does Polinovel battery include BMS? Can we use it for vehicle?
A5: Yes, our battery pack include BMS, you can use it for low speed vehicles.And make sure the discharge current can meet the application request (please refer to Q4) . If you want to use standard vehicle, please inform us, we need to adopt more complex design BMS and different technology solution.
Q6. What is your warranty?
A6: Our standard warranty is 2 years. Our battery lifespan can be used for at least 8 years for normal 1 cycles per day. We have a complete warranty policy documents, please feel free to contact us to get it.
......
Your inquiries or questions are welcome, we will reply you quickly !
