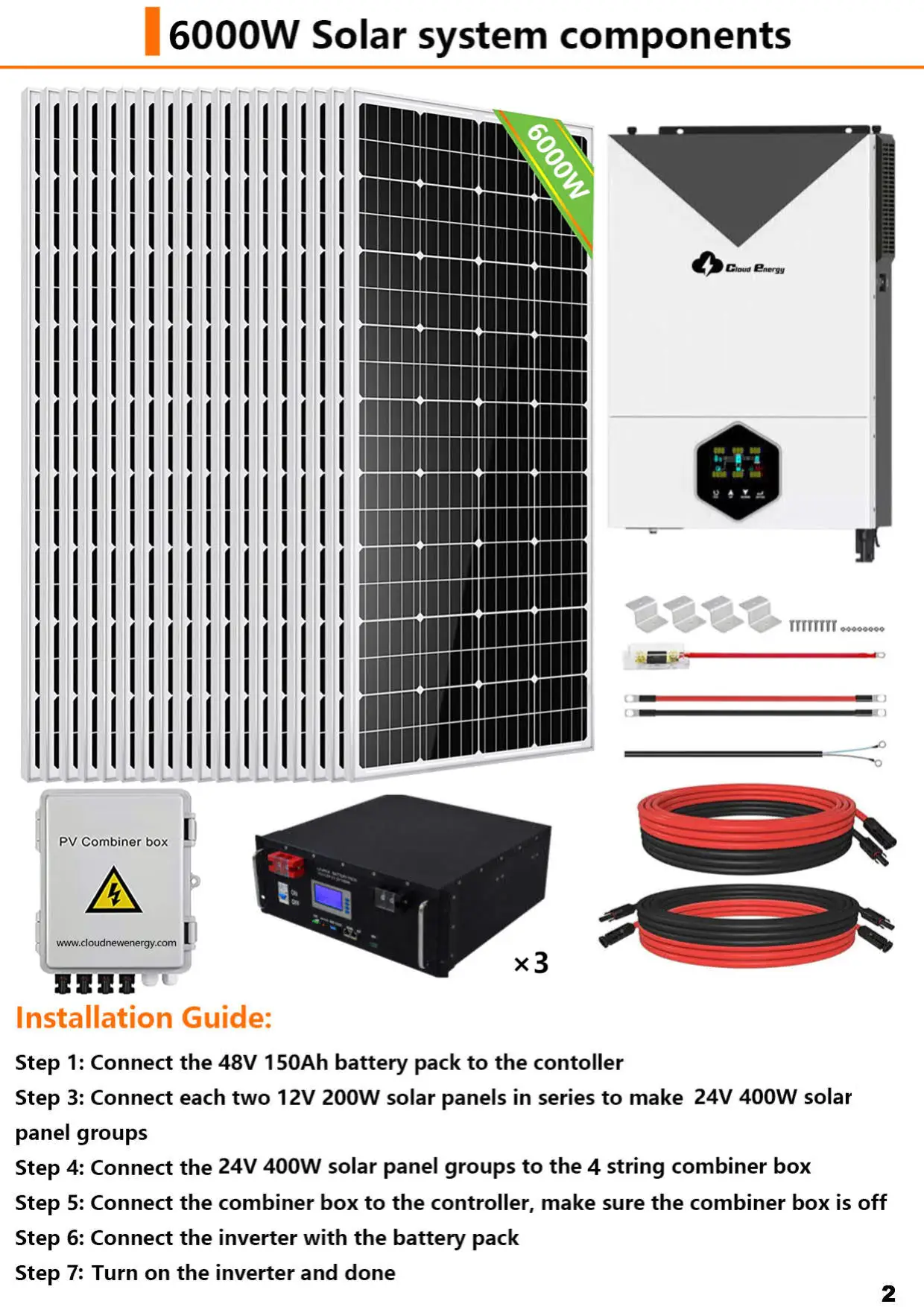

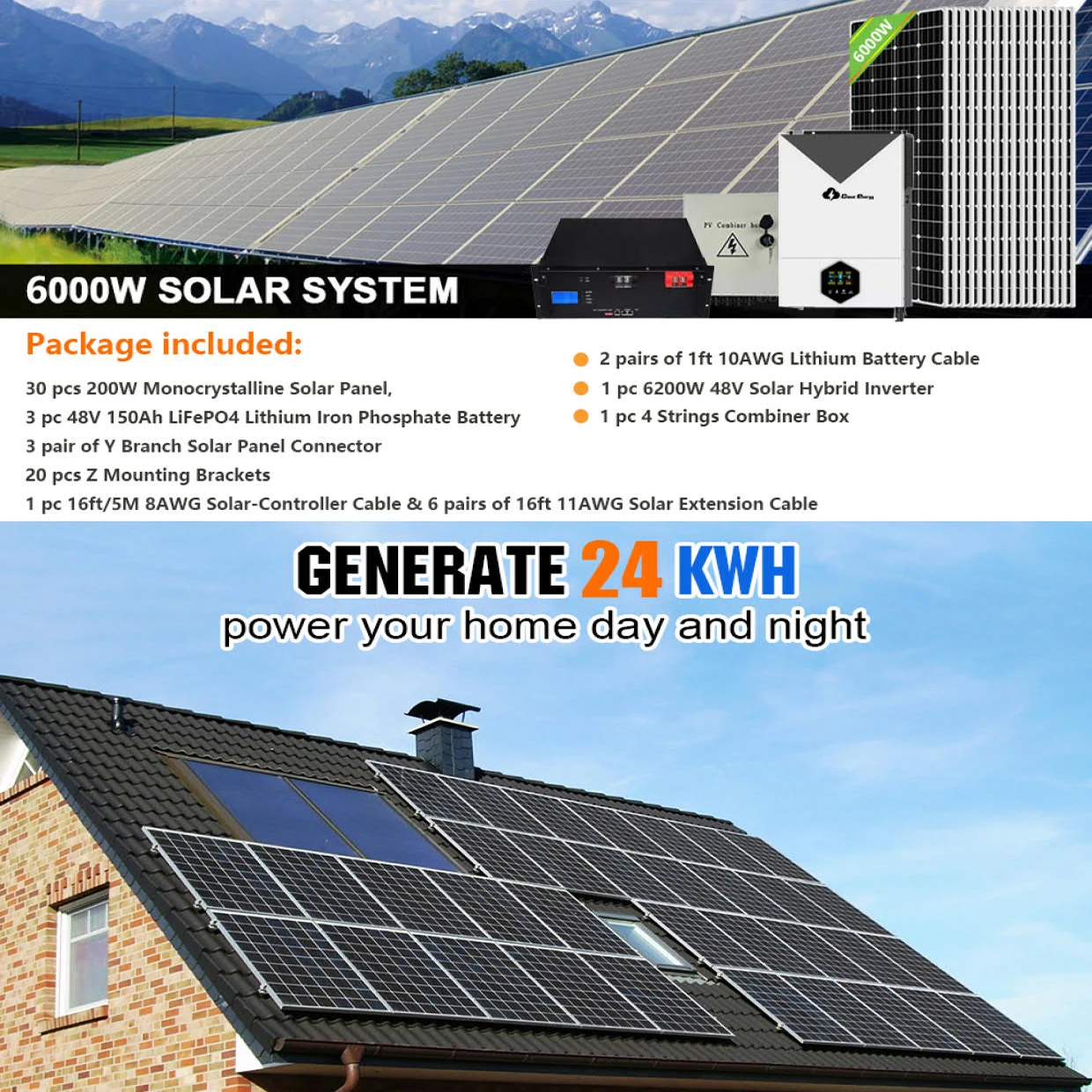

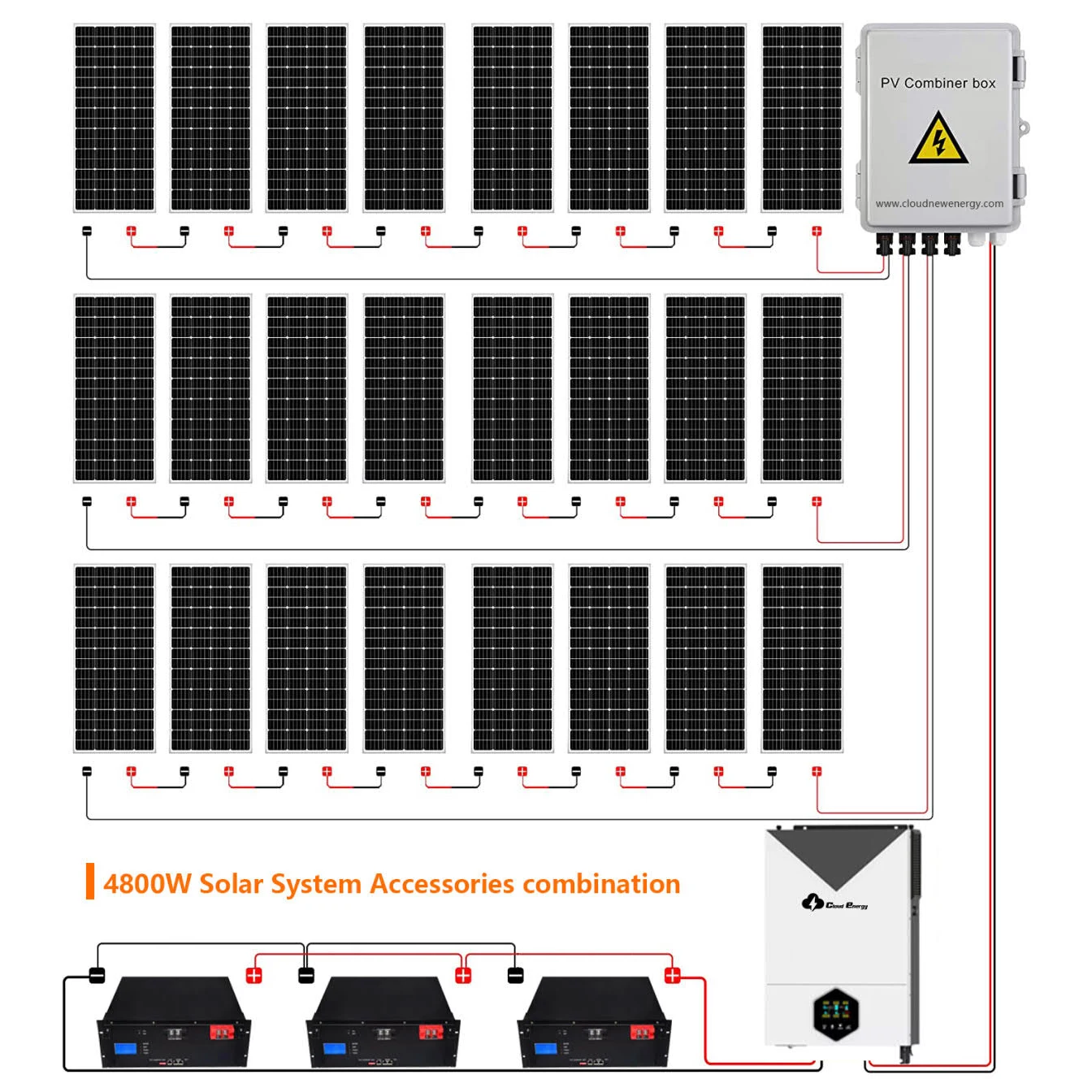

6000W Off Grid energy storage solar system for Home 3pcs 48V150 Ah Lifepo4 30 pcs 200W Solar Panel 6200W Inverter accessories
- Category: Batteries >>>
- Supplier: Shenzhen Cloud lithium Battery New Energy Co. LTD.
Share on (1600526780330):
Product Overview
Description
Product Paramenters

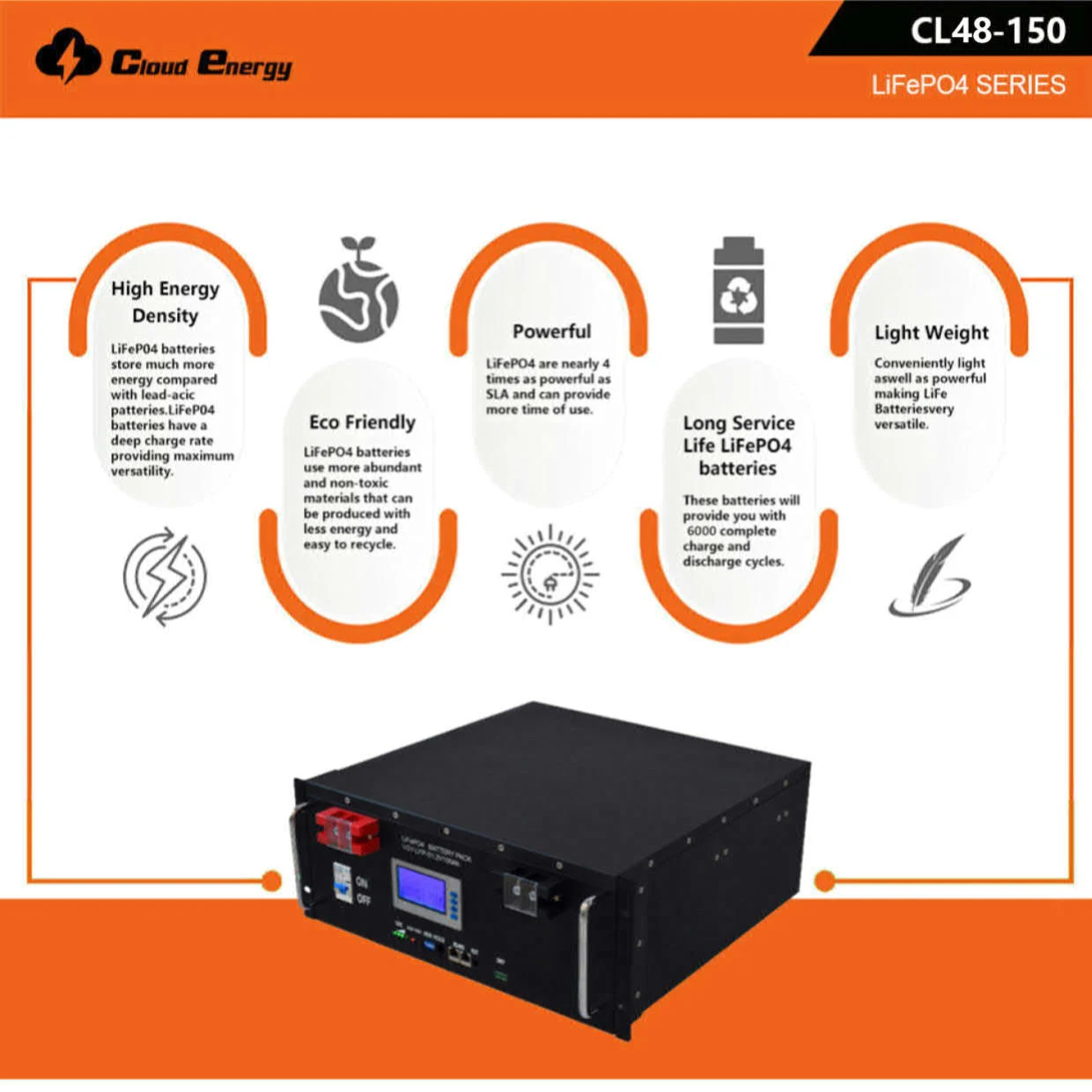

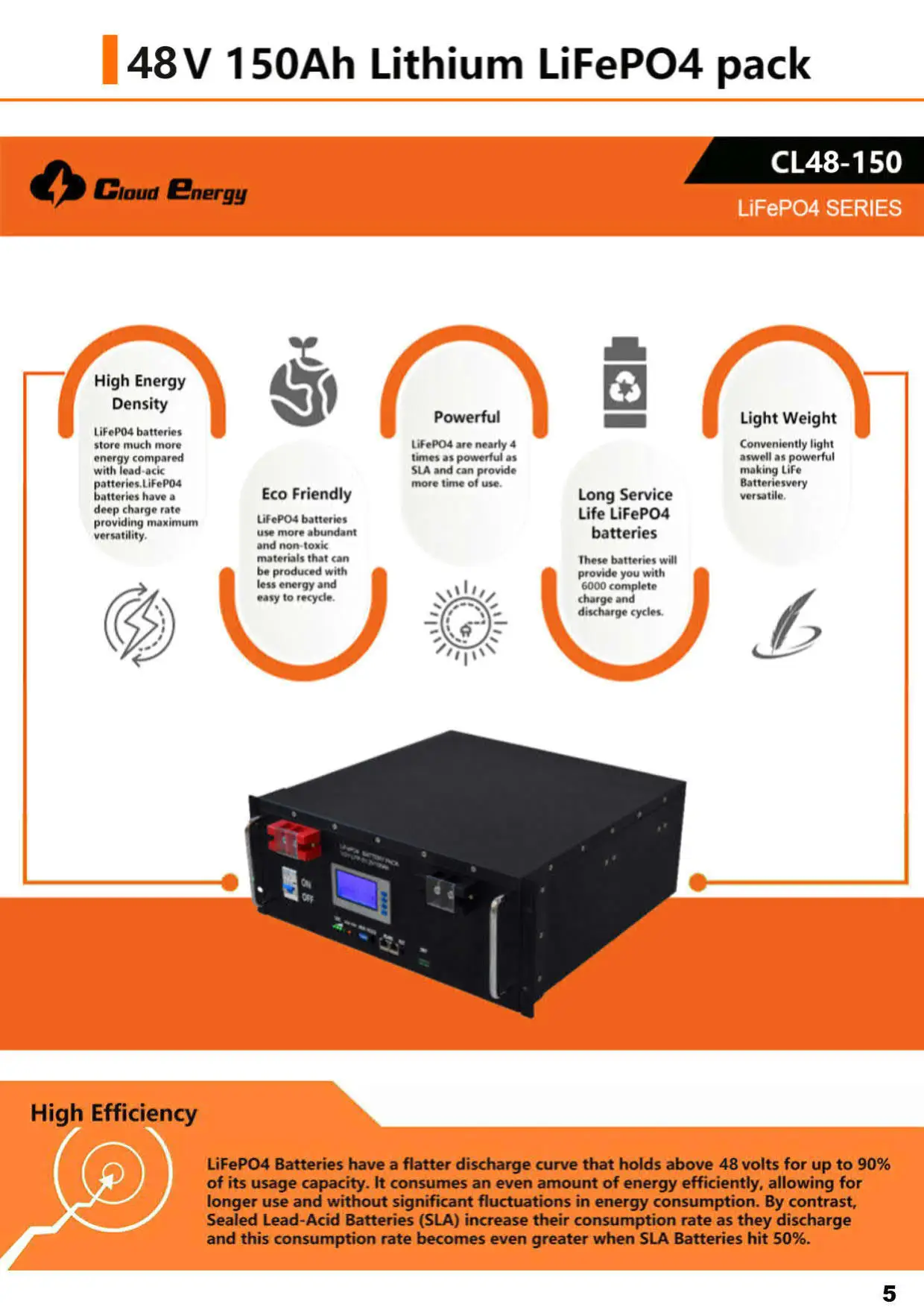

LiFePO4 Battery Parameter | ||||
Function Parameter | Norminal Capacity | 150Ah | ||
Norminal Voltage | 51.2V | |||
Internal Resistance | ≤15mΩ | |||
Cycle Life | >6000 Cycles 0.2C Charging/Discharging, Until 70% Capacity | |||
Months Self Discharge | ≤3.5% per month at 25℃ | |||
Charge Data | Standard charging current | 50A | ||
Allowed Max.charge current | 100A | |||
Max.Charging Voltage | 58.4V | |||
Continuous discharge current | 100A | |||
Allowed Max. discharge current | 120A | |||
Working Condition | Charge Temperature | 0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity | ||
Discharge Temperature | -20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity | |||
Storage Temperature | 0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity | |||
Enclosure Protection Level | IP58 | |||

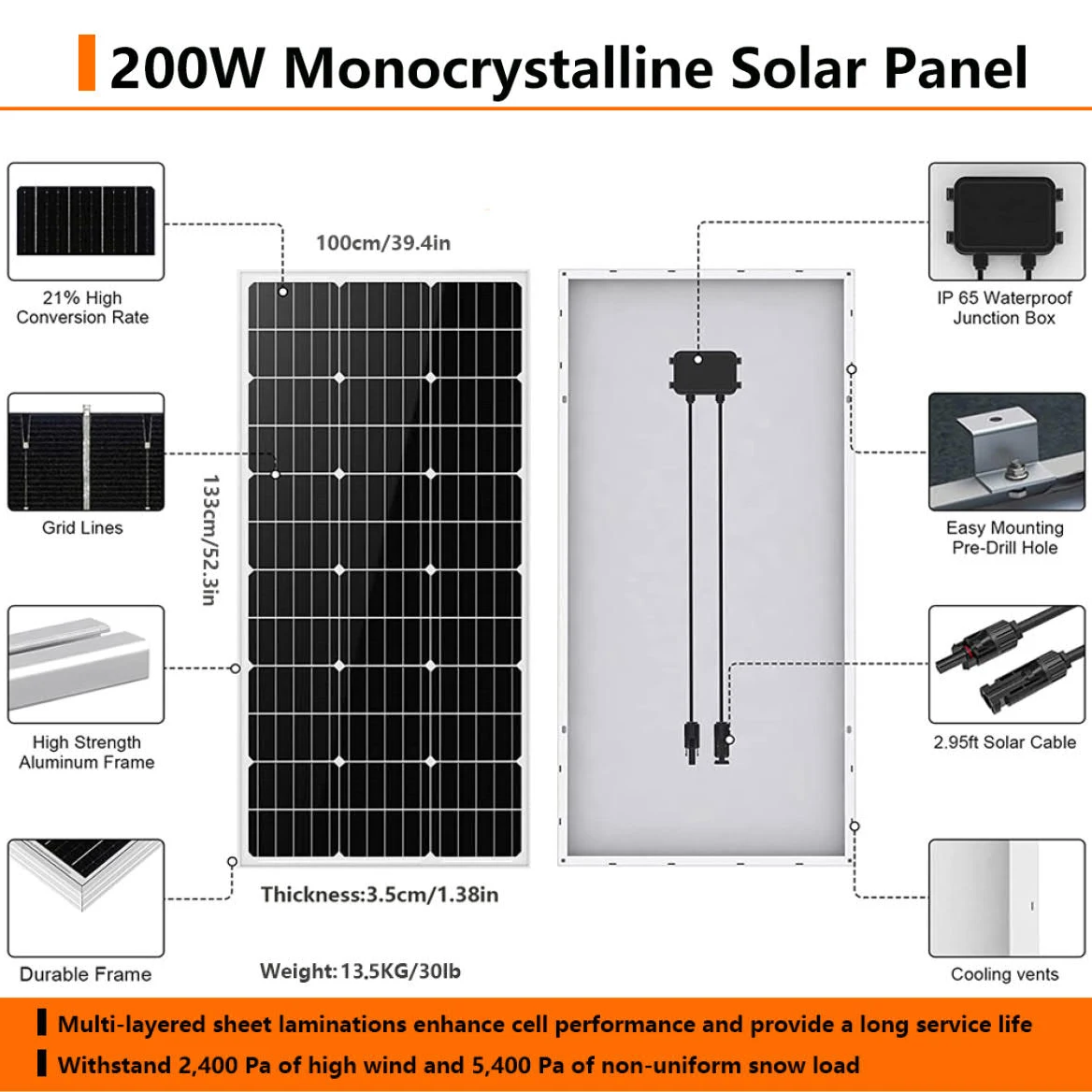

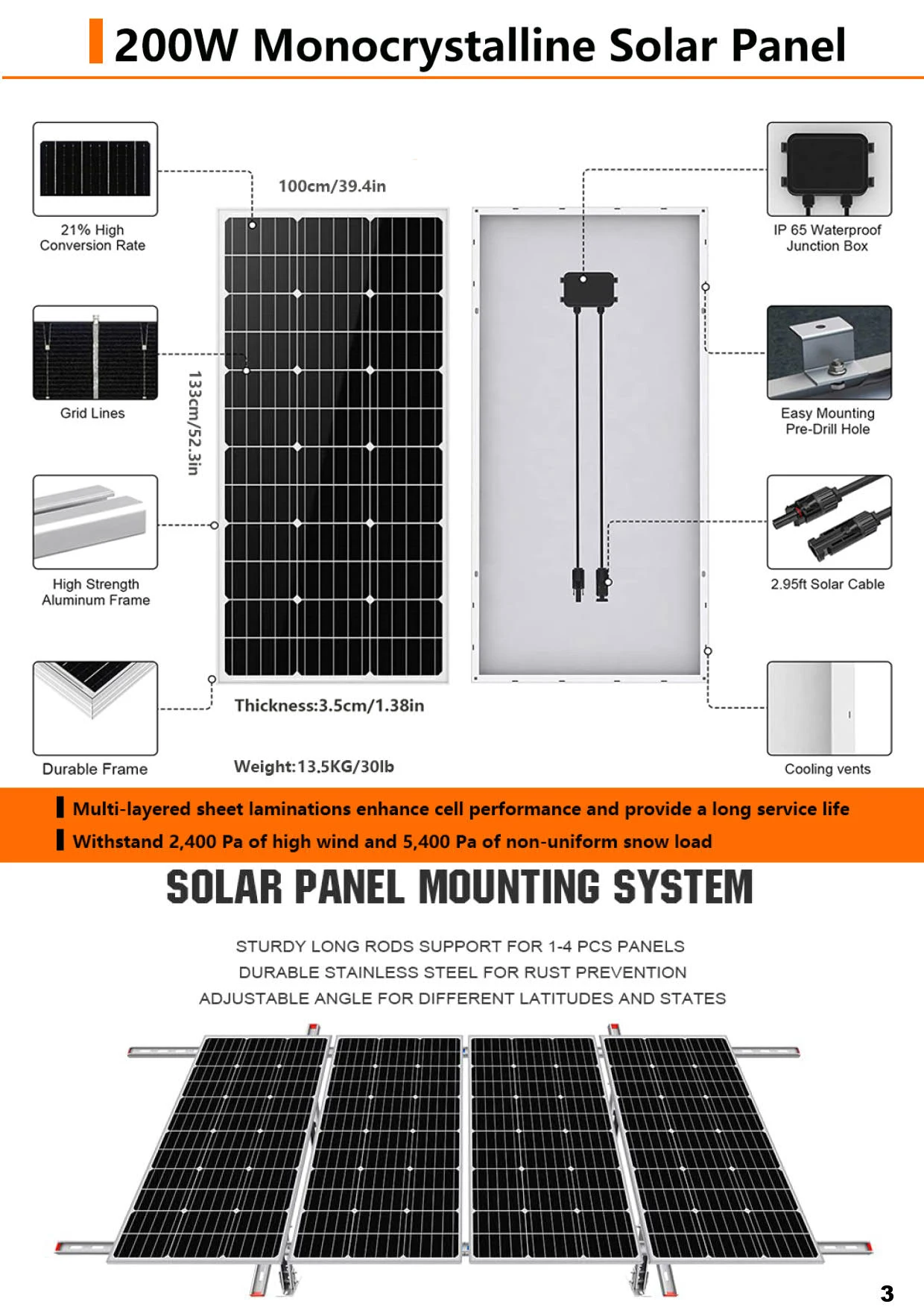

Solar Panle | ||||
Characteristics | Maximum Power(Pmax) | 200Wp | ||
Optimum Operating Voltage/Vmp | 37.1VV | |||
Optimum Operating Current/Imp | 5.39A | |||
Open Circuit Voltage /Voc | 45.8V | |||
Short Circuit Current /Isc | 5.71A | |||
Weight | 13KG/30lb | |||
Dimensions(mm) | 100*133*3.5cm/39.4*52.3*1.38in | |||
Mechanical Characteristics | Power Tolerance | ±3 % | ||
Maximum Series Fuse Rating | 15A | |||
Operating Module Temperature | -40°C to +80°C | |||
Frame Material | Clear Anodized aluminum Frame | |||
Thickness of glass | 3.2mm tempered glass | |||
Frame | Anodized aluminum alloy | |||
Laminating material | EVA | |||
Backsheet material | TPT | |||
Junction box | Ip65 | |||

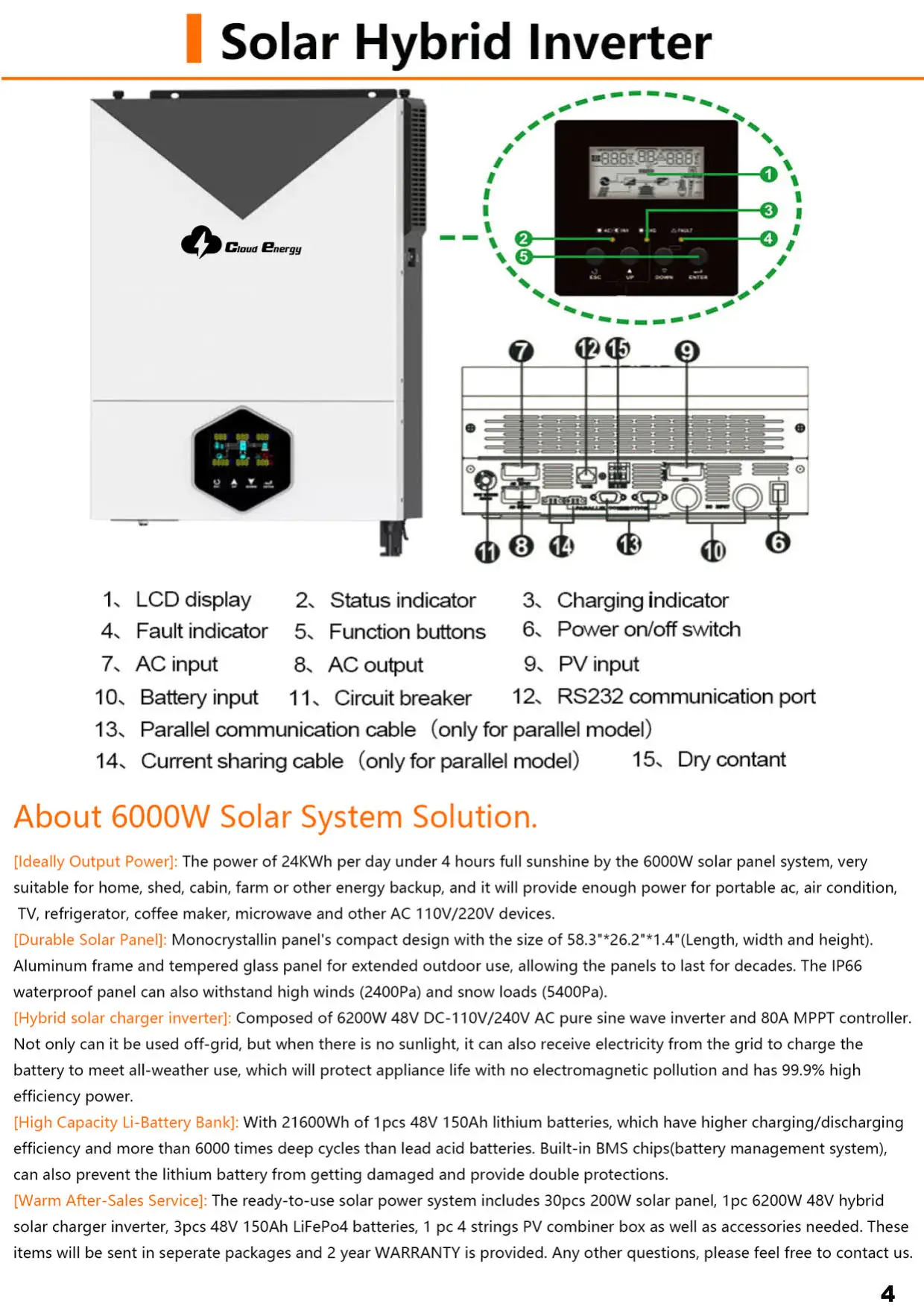

Pure sine wave power inverter | ||||
RATED POWER | 6200W | |||
AC Input | Voltage | 500VAC | ||
Selectable Voltage Range | 90~450VAC(for home appliances) | |||
Frequency Range | 50Hz/60Hz(Auto sensing) | |||
AC Output | AC Voltage Regulation | 230VAC | ||
Output Voltage Range | 195.5/253VAC | |||
Efficiency(Peak)PV to INV | 97% | |||
Efficiency(Peak)Battery to INV | 94% | |||
Battery & AC Charger | Transfer Time | 20 ms | ||
Battery & AC Charger | Main load cut off voltage | 44 VDC | ||
Main load return voltage | 48 VDC | |||
AC start-up volotage | 180VAC | |||
Maximum AC Charge Current | 40A | |||
Solar Charger | Surge Power | 12400VA | ||
MPPT Rane @ Operating Voltage | 90~450VDC | |||
Maximum DC voltage | 500VDC | |||
Maximun Efficiency | 98% | |||
Maximum Solar charging current | 120A | |||
Physical | Dimension,D*W*H(mm) | 420*310*110 | ||
Net Weight(kgs) | 11 | |||
Communication interface | RS232/BMS/WIFI | |||
Operation Environment | Mumidity | 5% TO 95% Relative Humidity(Non~condensing) | ||
Operating Temperature | 0C° ~ 55C° | |||
Storage Temperature | -10C° ~ 55C° | |||
