High Speed Wirecut Edm Dk7732 Cnc Wire Cutting Machine
US $5555-$8888

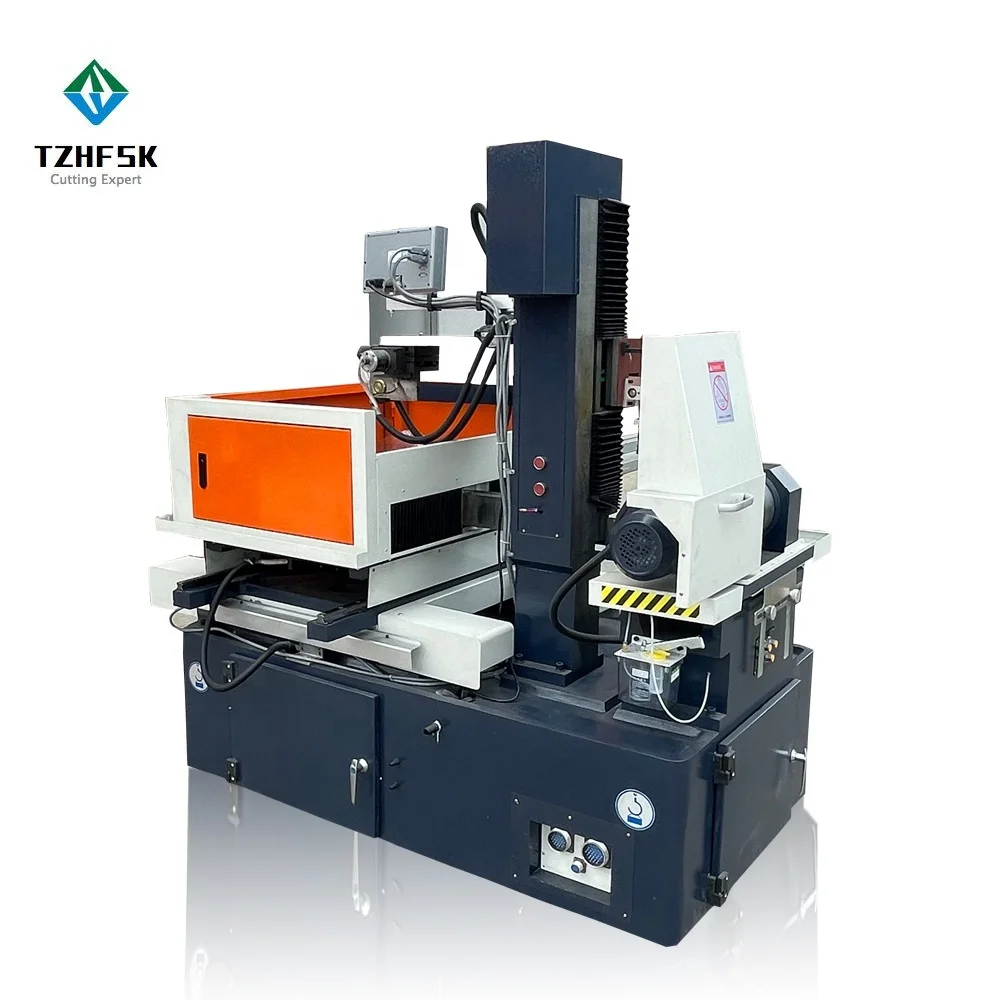

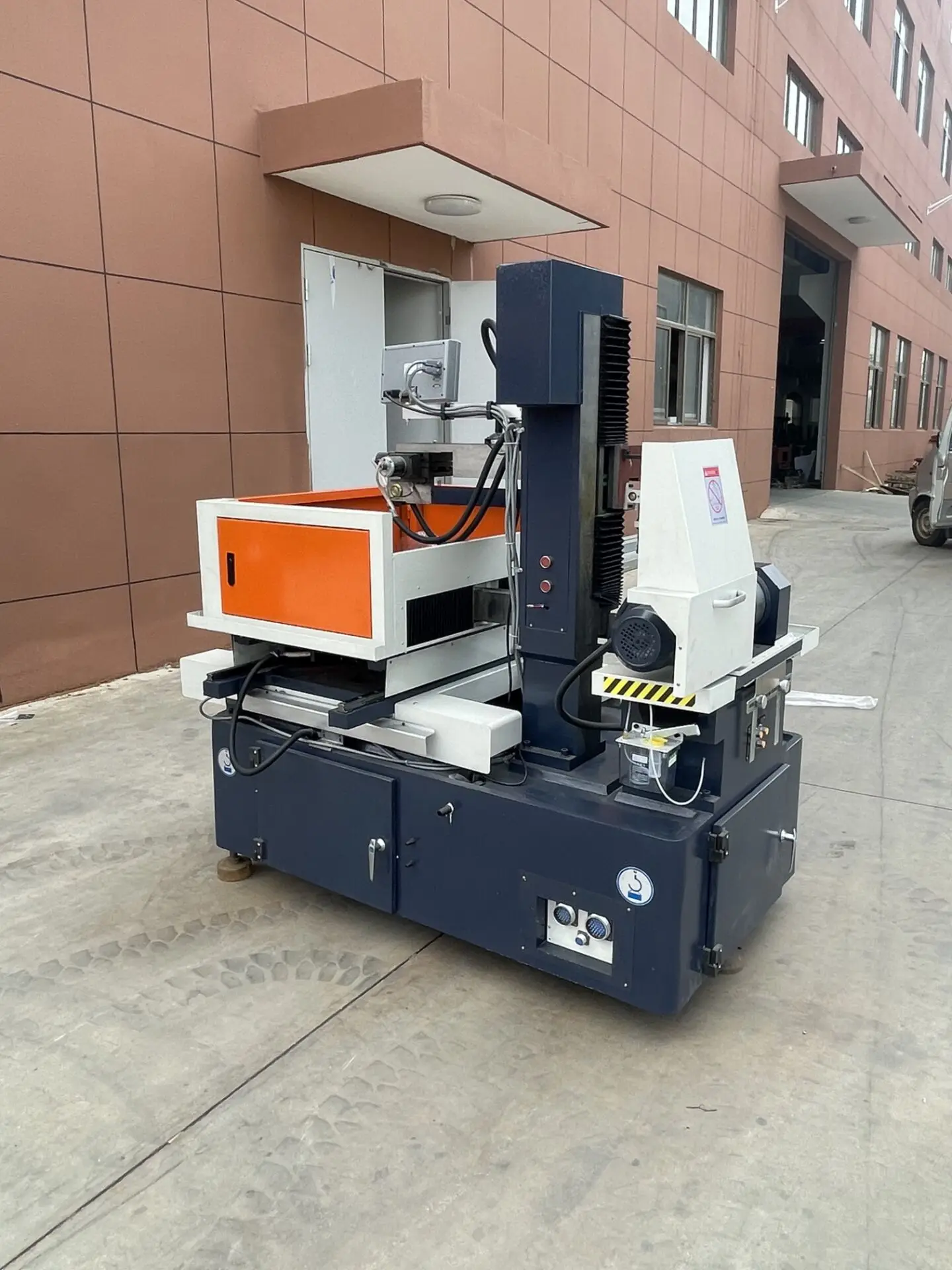

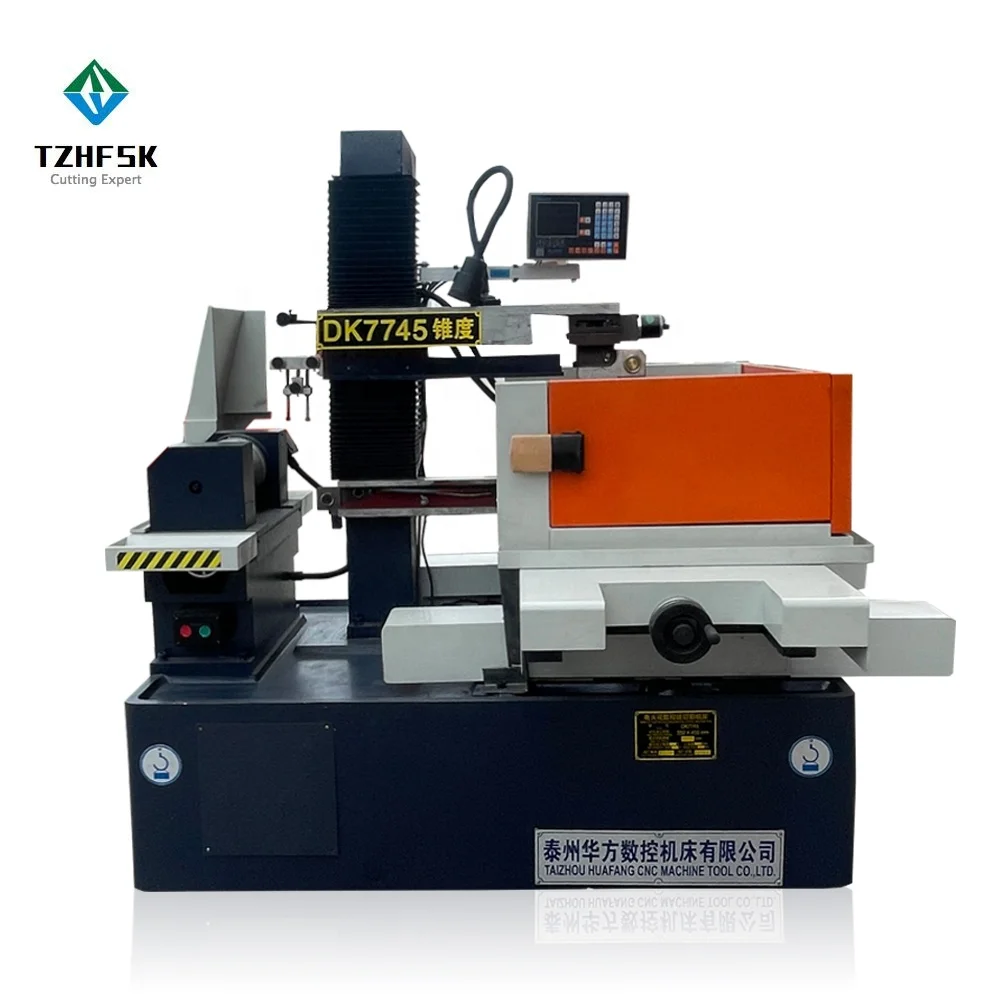

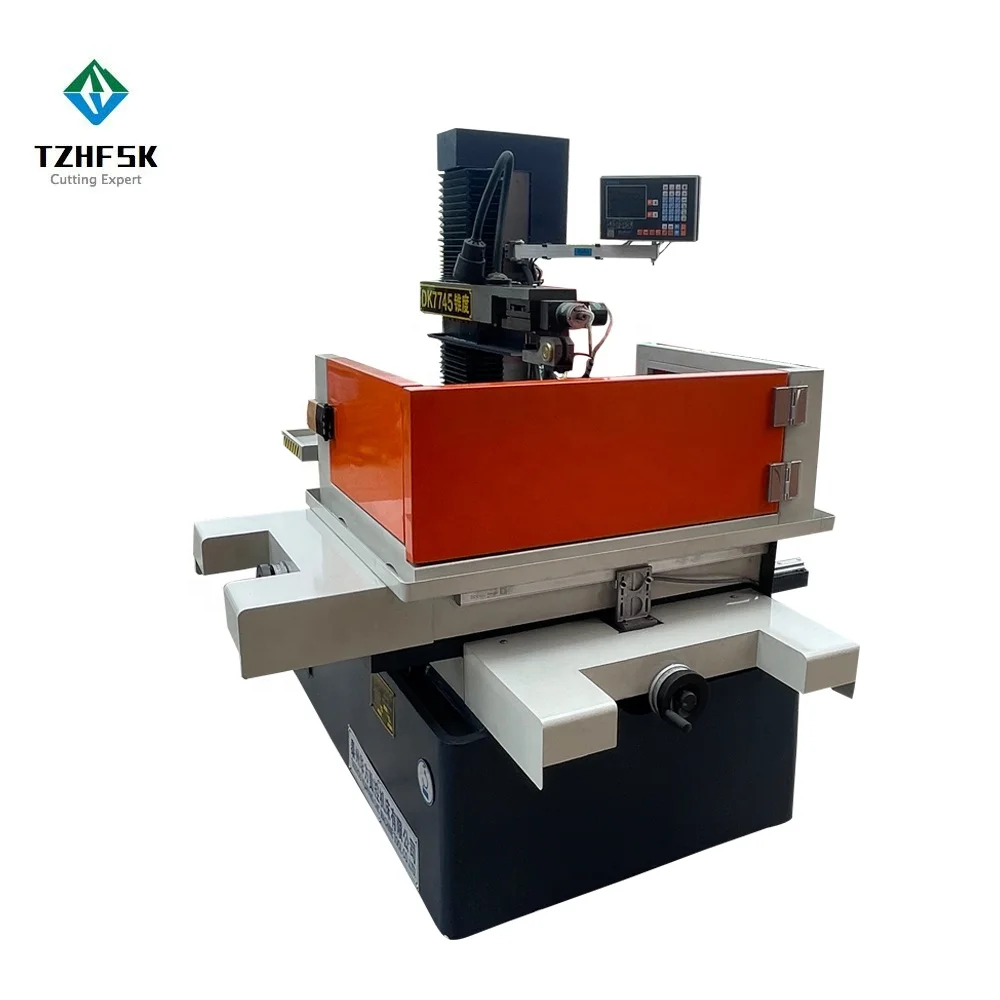

CNC Multi cut wire cut EDM machine DK7745 high precision good Surface Roughness linear guide rail WEDM
- Category: Machine Tool Equipment >>>
- Supplier: Taizhou Huafang CNC Machine Tool Co. Ltd.
Share on (1600527853542):
Product Overview
Description
Product Description
Main Features
1.The high quality machine adopts precise ball screw linear guide track.
2.The fuse protection function.the automatic centralizing and edge-tracing processing and the alarm upon finished job functions.
3.The maximum working speed is over 160mm ²/min and the best surface roughness is less than Ra1.2 μm.
4.High column matches electric lift to adjust the gap of guide wheel.
5.Large swing taper machine matches electrode wire expansion mechanism.(±6-45°)
6.High-performance pulse power supply with multi-level two-range amplifier,applicable to thick jobs,the thickest being≥800mm.
Default Config :
1、Color DRO（2-axis digital display）
2、Precision linear guide rail for both X axis,Y axis,Drum
3、Metal water retaining enclosure
4、Automatic molybdenum wire tightening device
5、Default configuration P3 level grinding screw rod
PS: All the working area and specifications can be customized according to your requests.
Technical parameter/Model | unit | DK7745 |
Worktable size | mm | 810*570 |
Worktable travel | mm | 450*550 |
Max cutting thickness | mm | 500 |
Cutting angel | ° | 6° |
Max cutting speed(single) | m㎡/min | 160 |
Optimum roughness | um | <2.4 um(1.2um for multi cut) |
Dia of molybdenum wire | mm | 0.1-0.2 |
molybdenum wire moving speed | m/s | 11.5 |
Power supply | HZ V | 50HZ 220V/380V |
Precision | mm | <0.02 mm |
MAX.workpiece weight | kg | 450 |
Power consumption | Kw | <1.2 |
Machine weight | kg | 1300 |
Machine demensions | mm | 1650*1270*1900 |

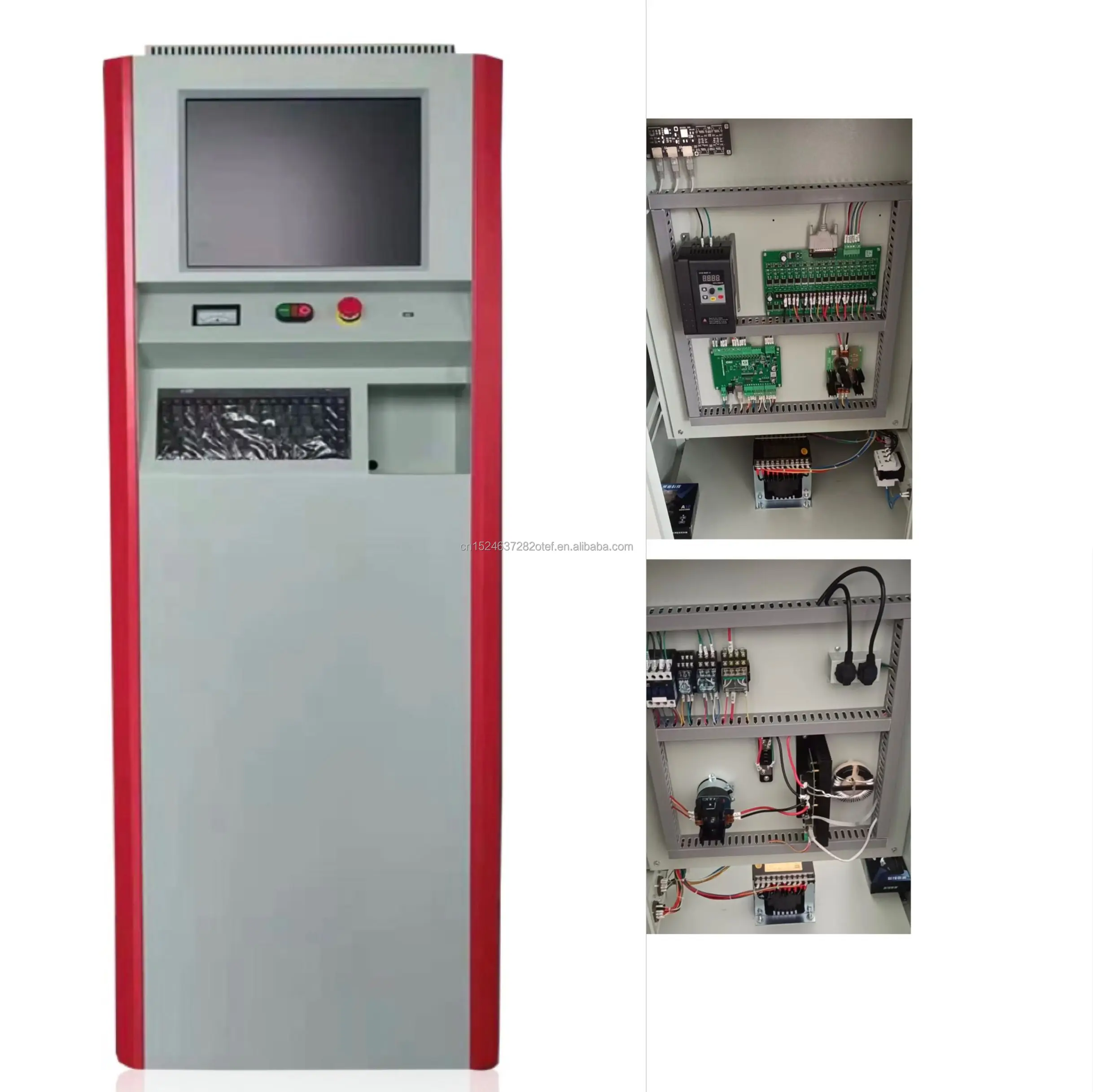

Control Cabinet

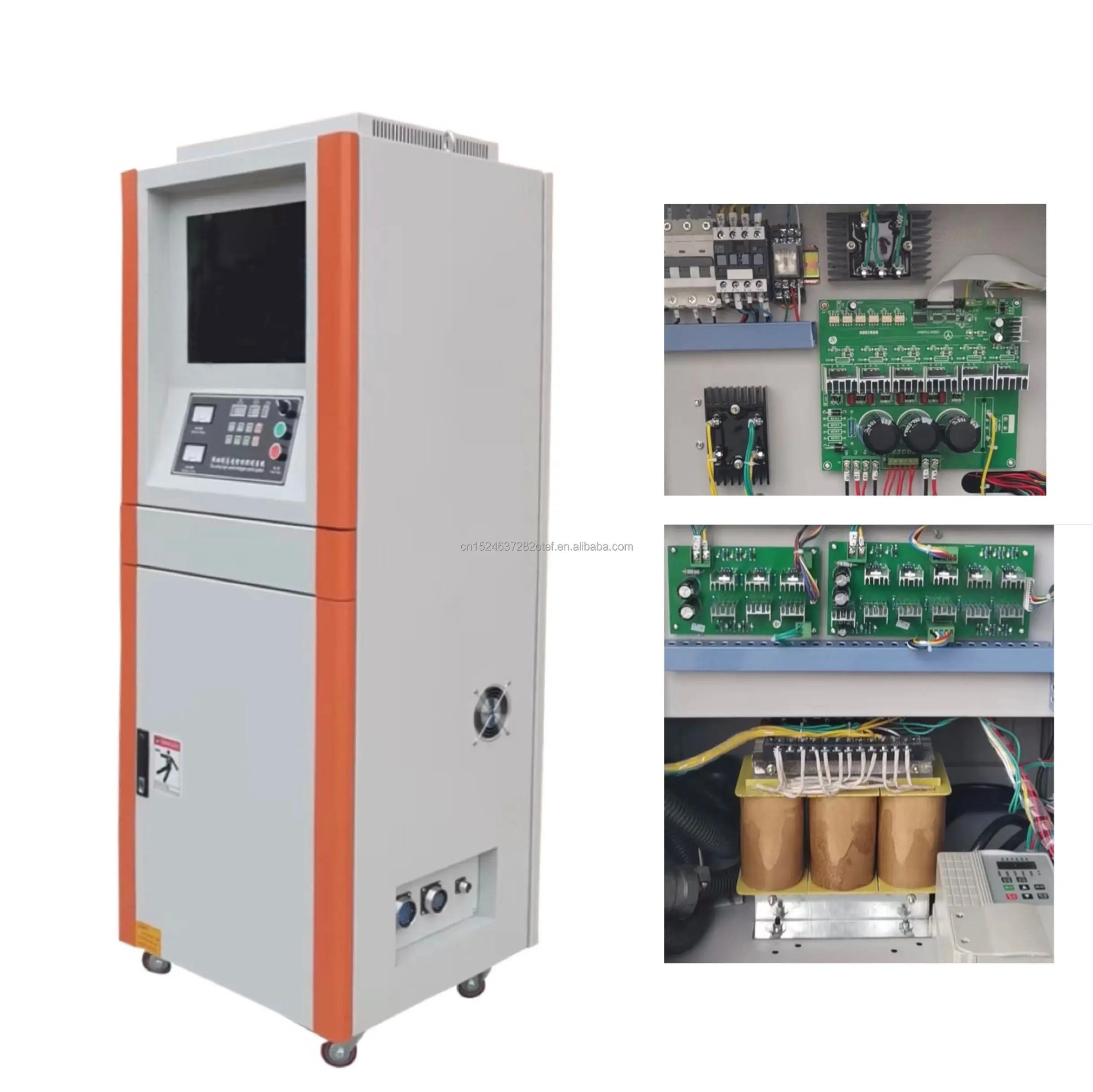

Vertical high-speed control cabinet
（Default Config）
(1) High speed single cut
(2) Cut system default config Autocut System (HL、HF、X8 optional)
(3) Computer system use windows XP or Windows 7
(4) Default config efficient and stable VFD
(5) Support wireless remote control
(6) Support multiple languages, English, Russian, Chinese, etc

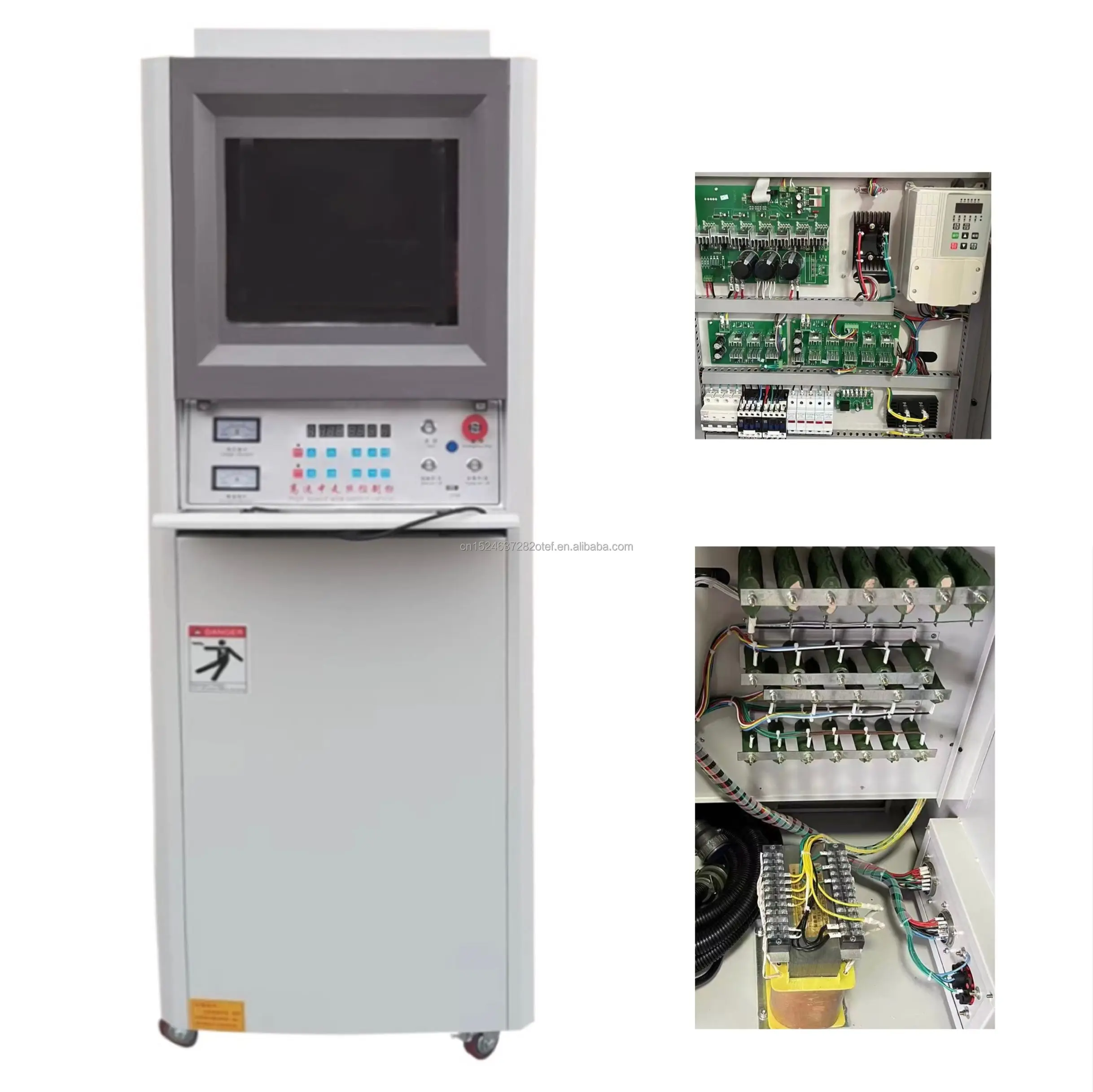

Vertical multi-cut control cabinet
（Optional configuration）
(2) Cut system default config Autocut System (HL、HF、X8 optional)
(3) Computer system use windows XP or Windows 7
(4) Default config efficient and stable VFD
(5) Support wireless remote control
(6) Support multiple languages, English, Russian, Chinese, etc
intelligence multi-cut control cabinet
（Optional configuration）
(1) Automatically generate cutting parameters ，Configured intelligent expert database system and intelligent tracking function
(2) multi-cut (multi-pass) support ,optimum roughness reach 1.2um(3) Cut system default config Autocut System (HL、HF、X8 optional)
(4) Computer system use windows XP or Windows 7
(5) config efficient and stable VFD
(6) Support multiple languages, English, Russian, Chinese, etc

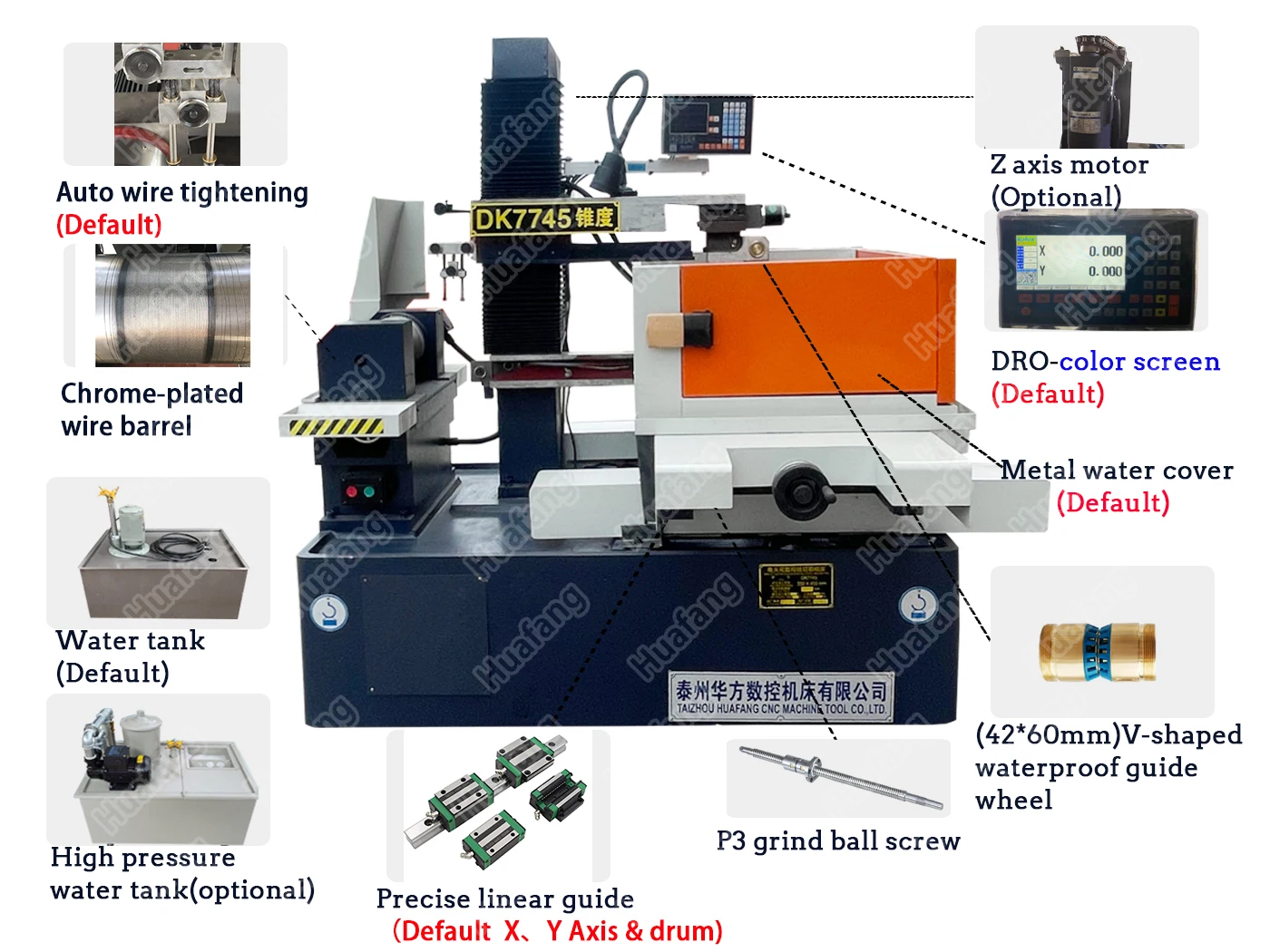

Detail design

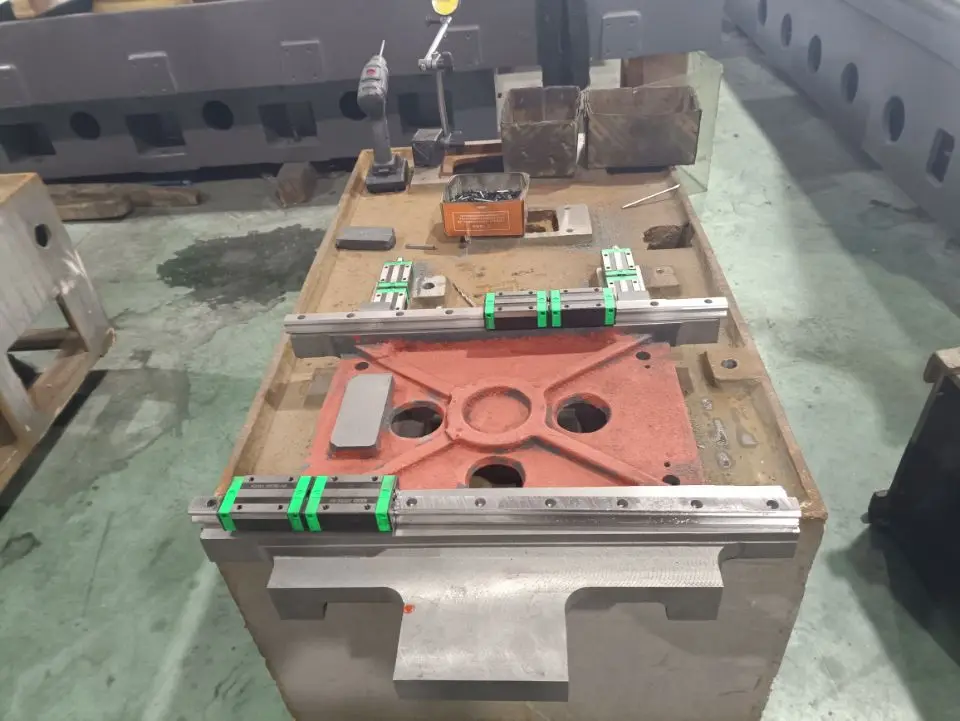

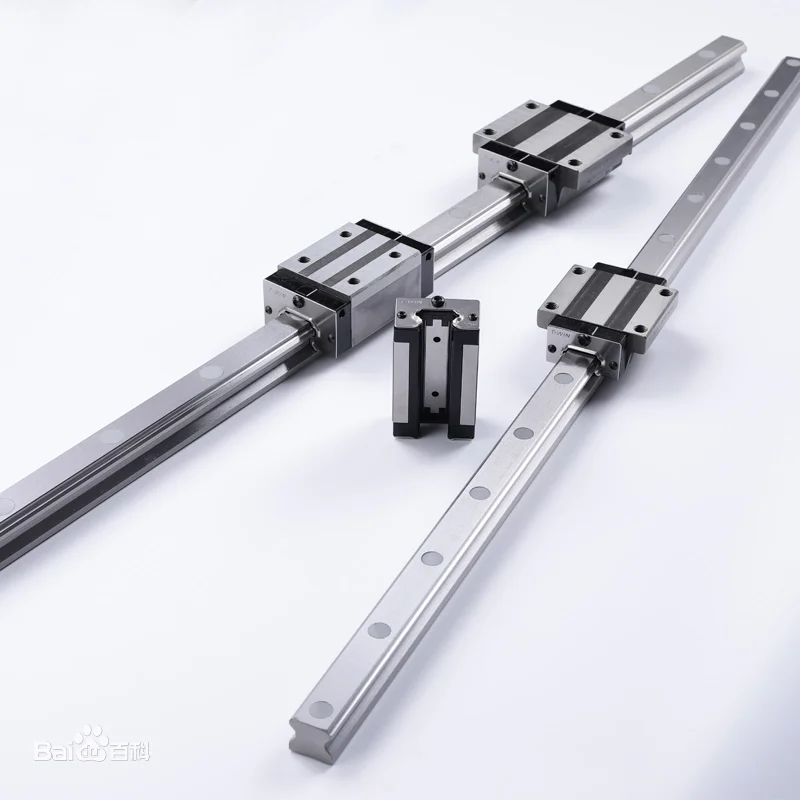

Precision linear guide rail （Default Config）
We configure Taiwan precision linear guide rail by default，not only for drum but also X and Y axis.
（Default Config）

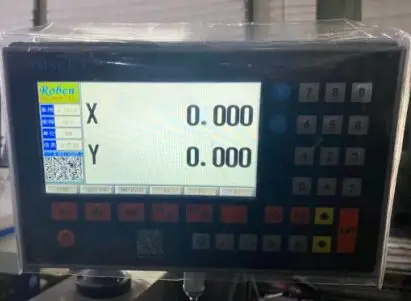

Two axis digital display DRO is configured by default, the x-axis and y-axis move by one eye

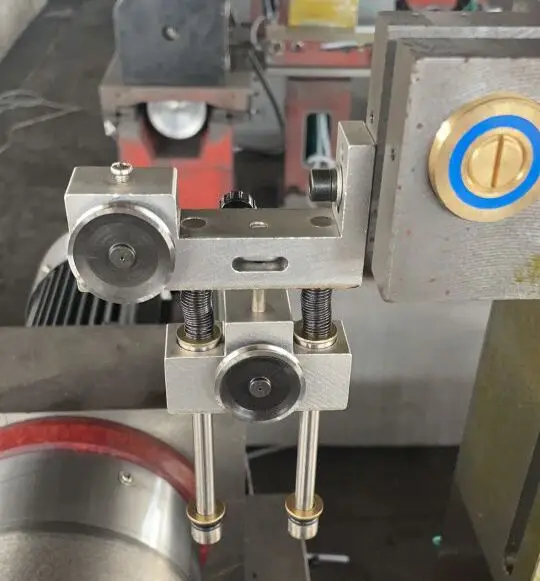

Automatic tightening device
（Default Config）
By default, each machine is equipped with an automatic wire tightening device，Easily solve the problem of loose and broken wires
Wire barrel
（Default Config）
Wire barrel through high-tech dynamic and static balance process,reducing the drum beating
Non-contact photoelectric induction switch
（Default Config）
The switch for the photoelectric sensor non-contact
reversing switch, the purpose is to increase its service life

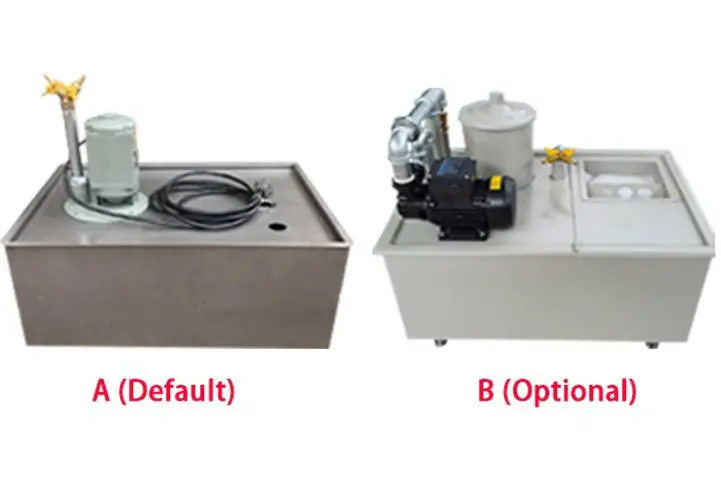

(A default B optional)
We provide A type water tank as the default configuration and B type water tank as the optional configuration
(optional)
By default, lifting and lowering can be Shaking by hand ， Z-axis motor can automatic lifting function
Configurations
Item | Quantity | ||||
DK7745 | 1 set | ||||
PC, monitor, keyboard, mouse, HL card | 1 set | ||||
CNC control cabinet (single/ multi control cabinet) | 1 set | ||||
Access to water pipes | 3 root | ||||
Water pump | 1 set | ||||
Water tank | 1 set | ||||
Plug the control panel with the key | 1 root | ||||
Screw | 2 root | ||||
Factory data | 1 part | ||||
Emulsion cream | 1 set | ||||
Fixture | 1 set | ||||
Waterproof cover | 1 set | ||||
Shake handle | 1 | ||||
Tight wire | 1 | ||||
Foot adjustment screw | 6 | ||||
Adjust the nut at the foot | 6 | ||||
Certifications

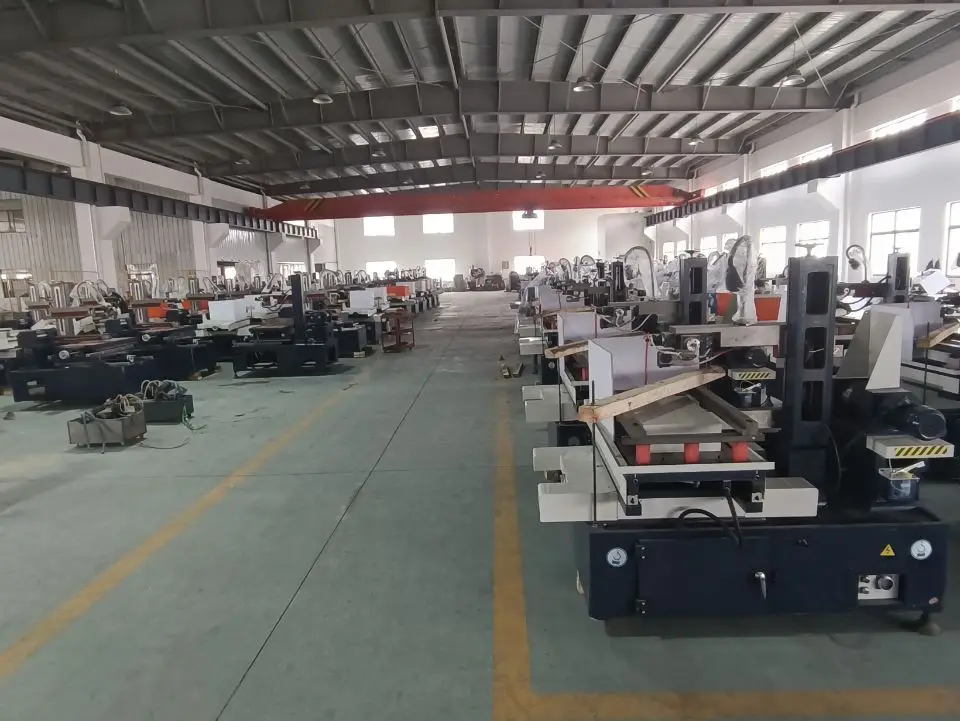

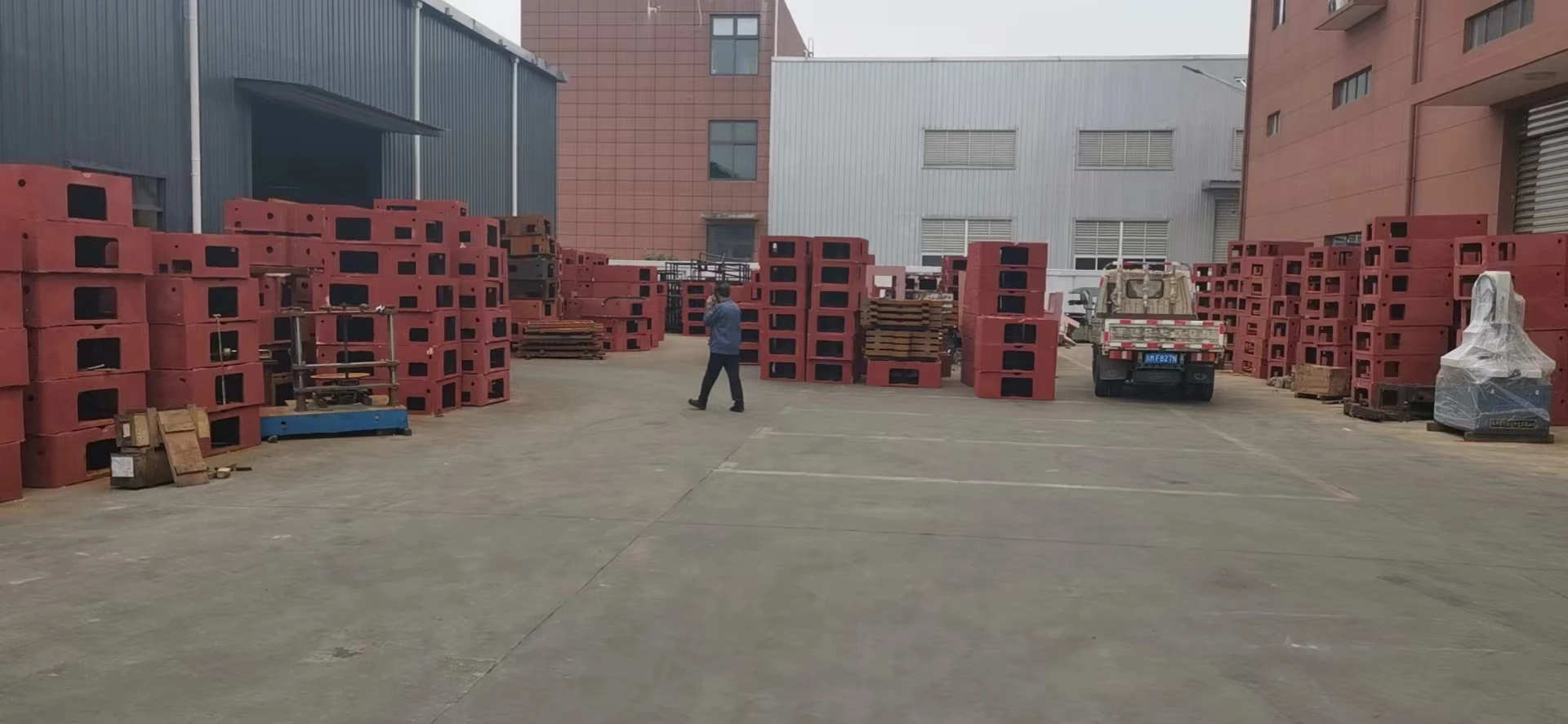

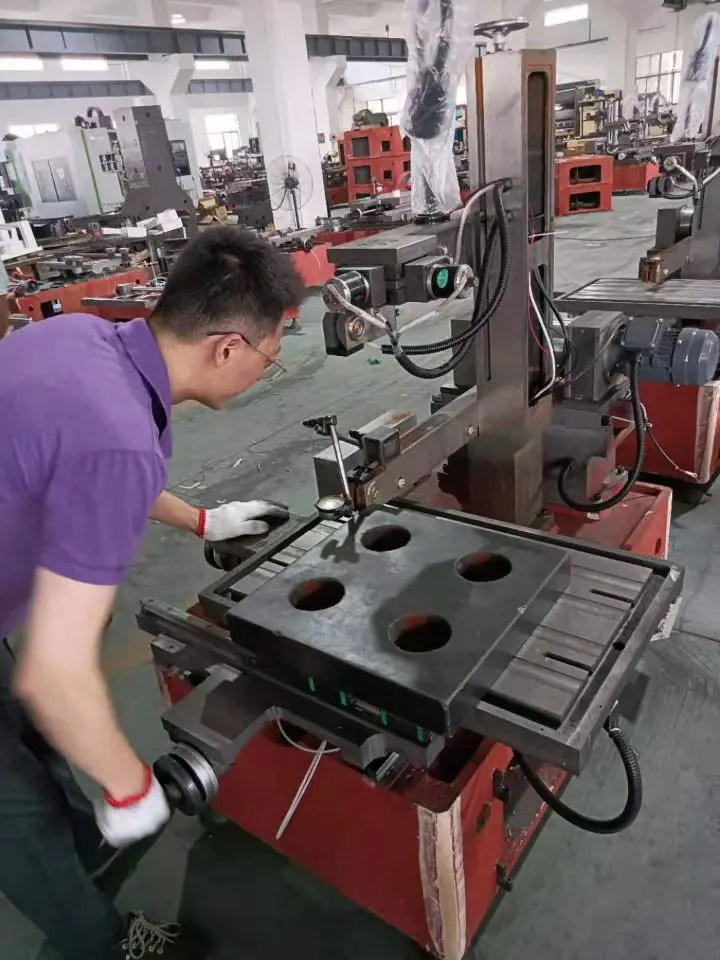

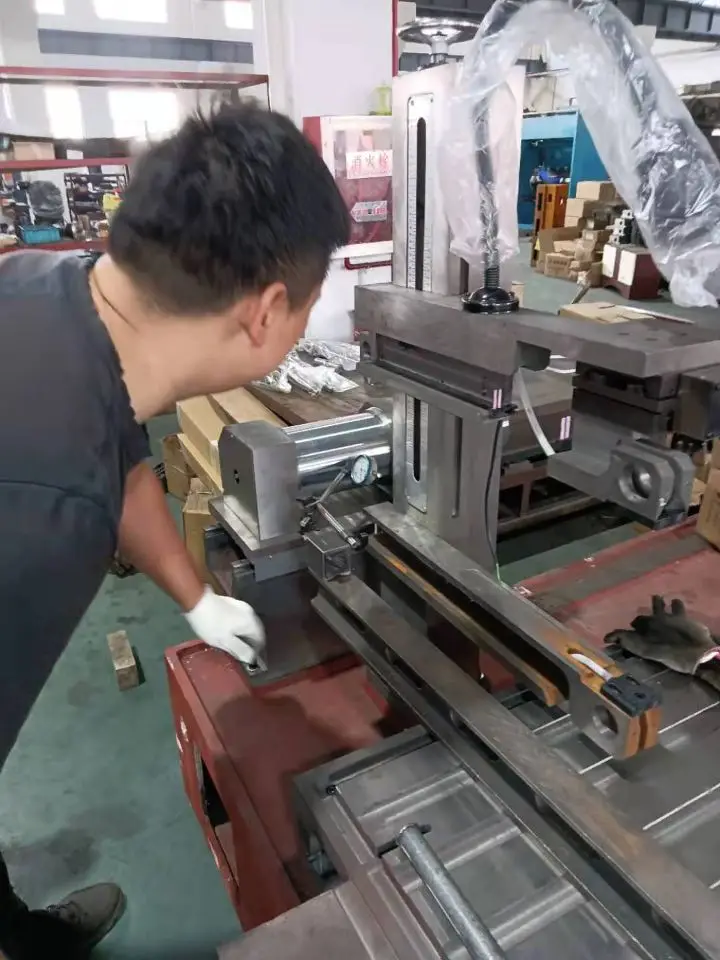

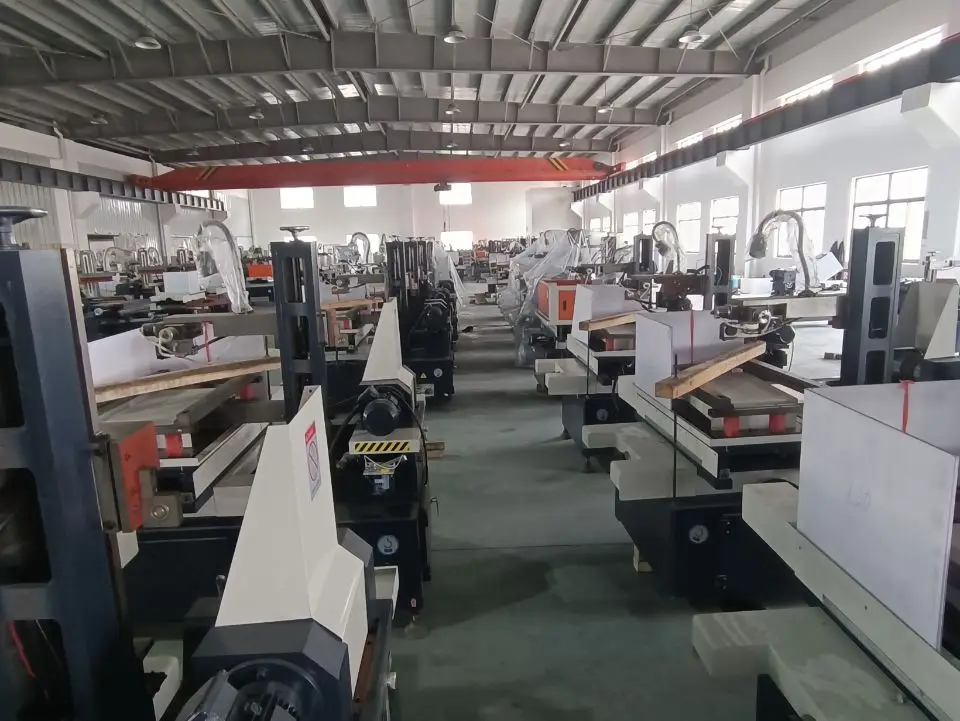

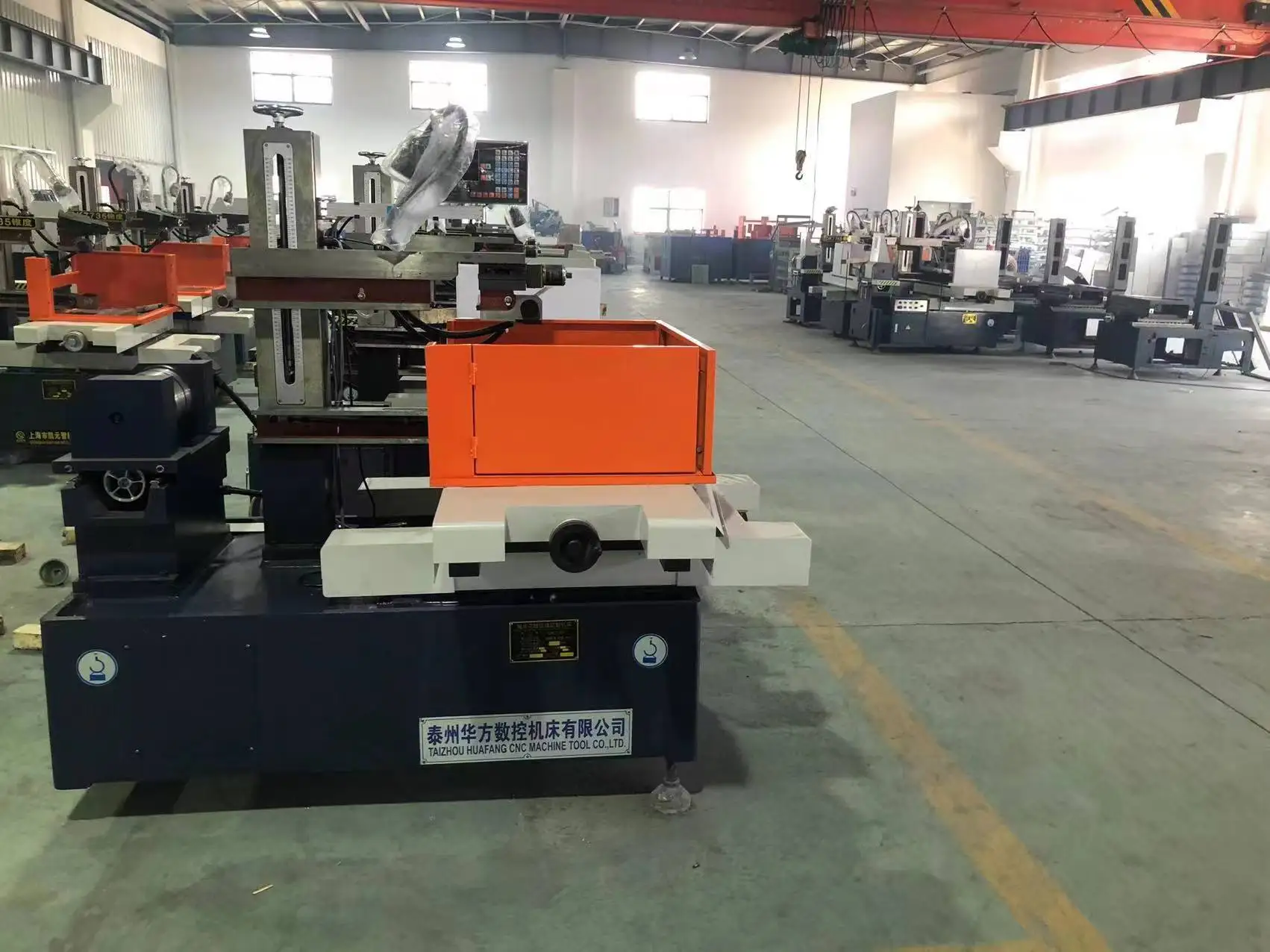

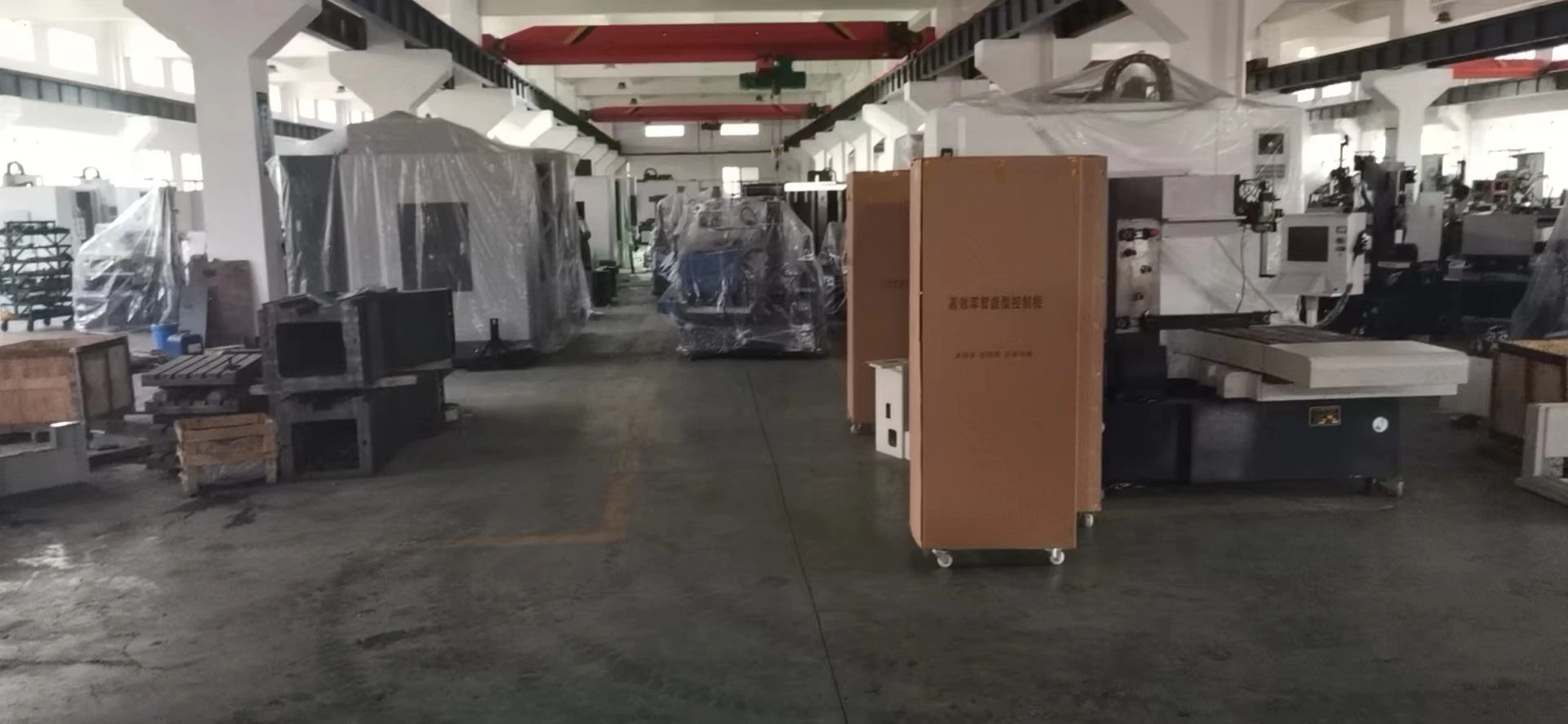

Workshop

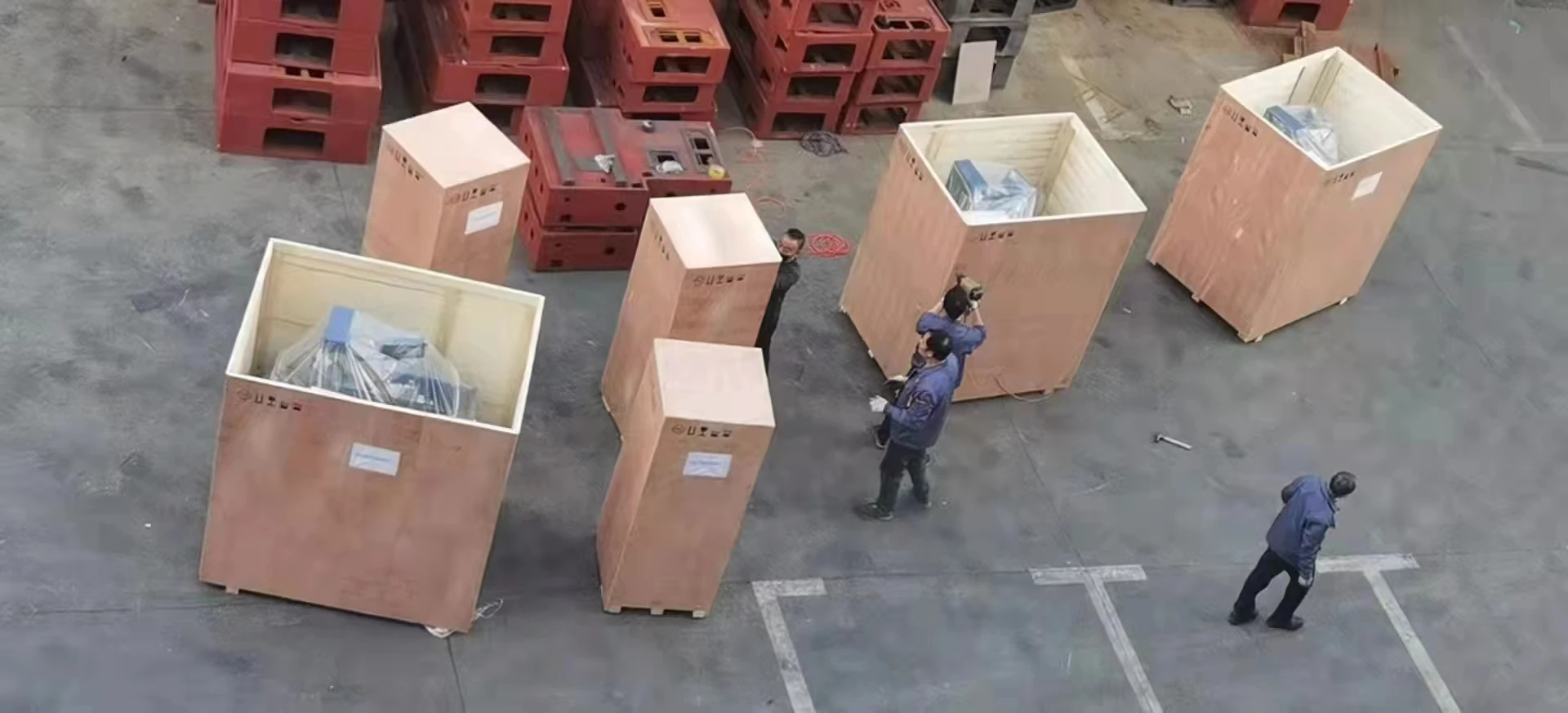

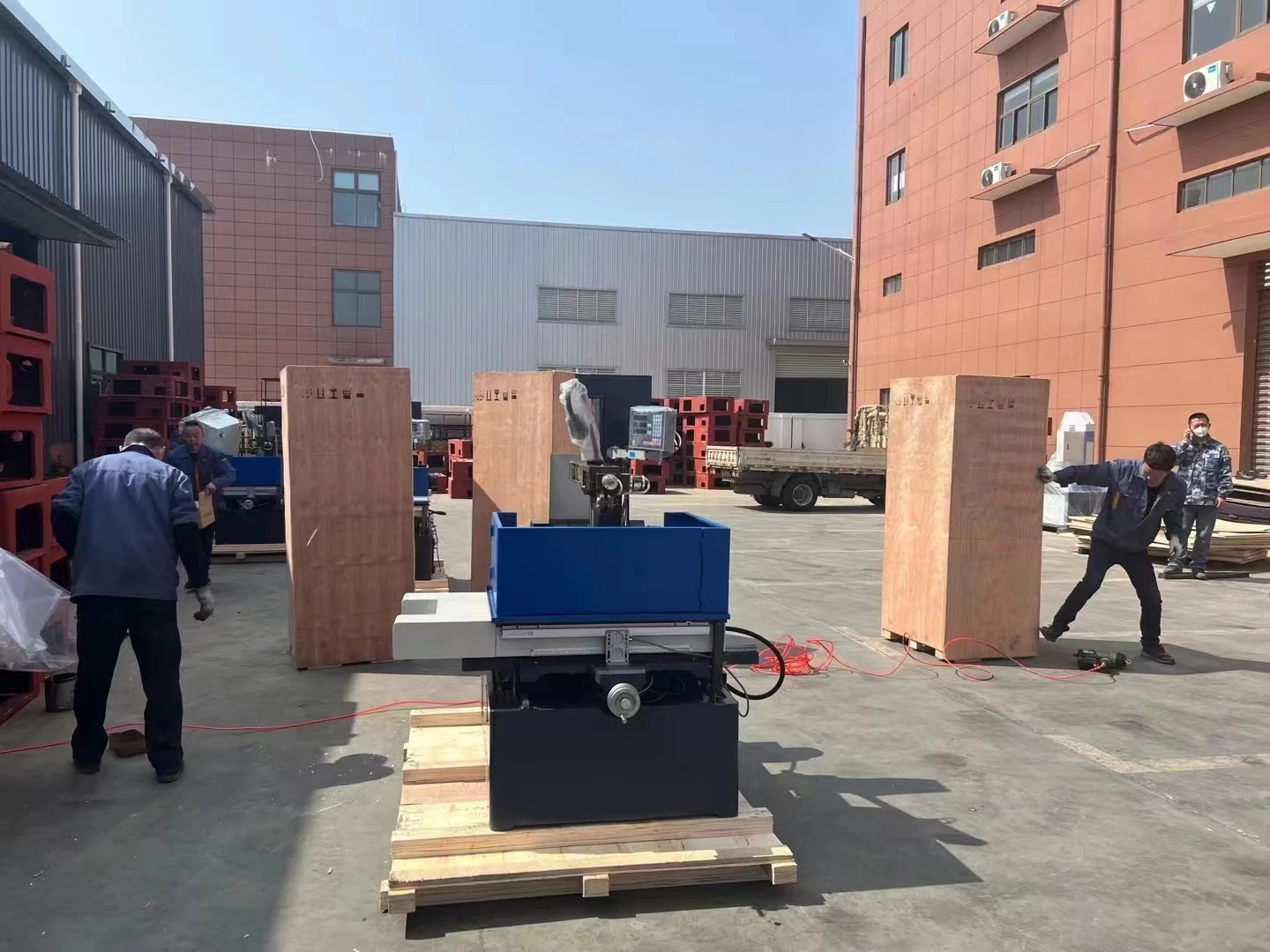

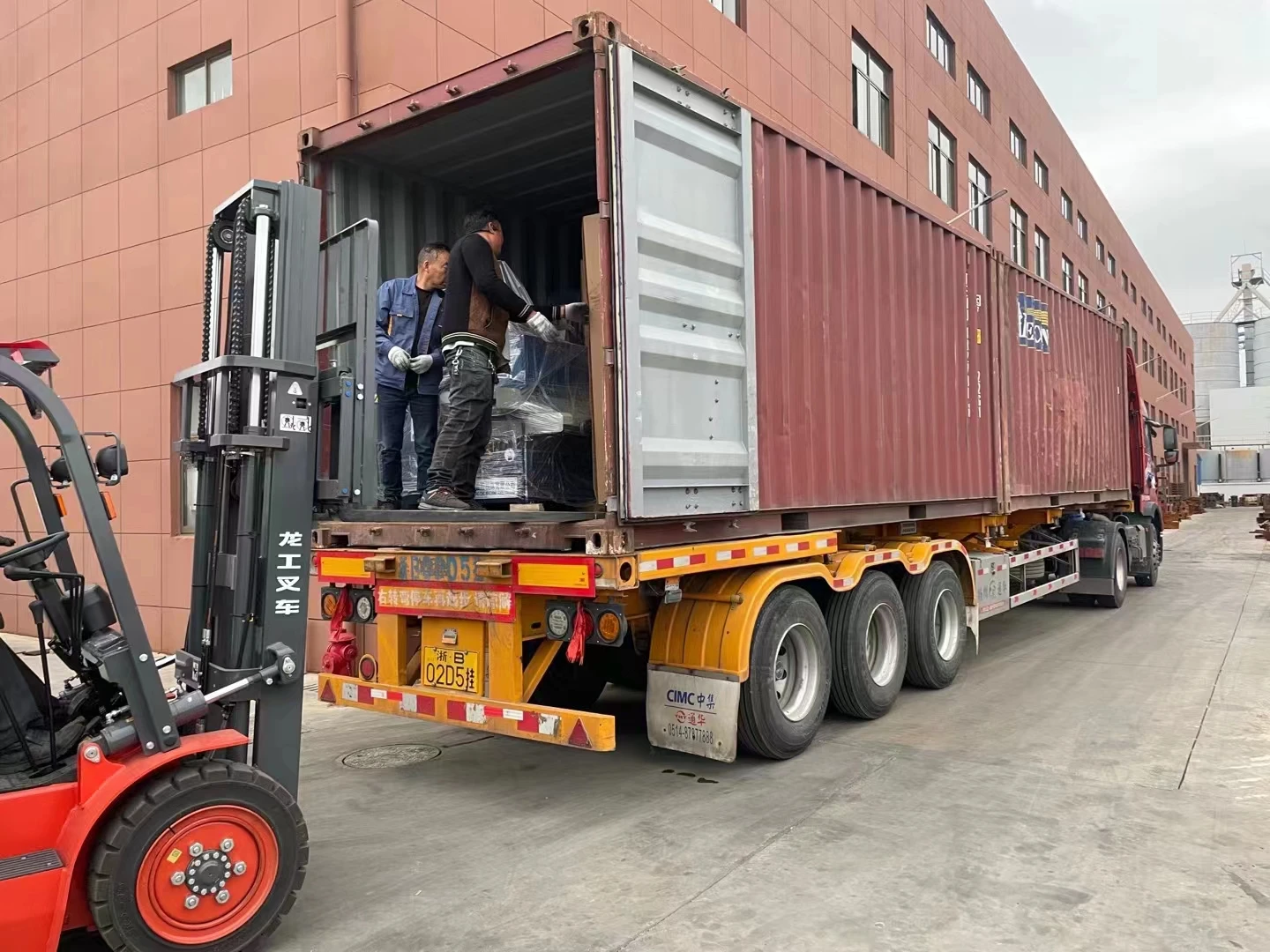

Packing & Delivery
FAQ
Q: Could I visit your factory ?
A:Of course,Yes! Warmly welcome all customer from all over the world to visit our factory.
Q: What about the price?
A: We promise the price we offer is lowest if same application, only to enlarge the market share.And given you cost price for consumable parts.
Q:Could you modified and production machine according to our designer ?What information will you need ?
A6:Of course yes.The worktable size and worktable travel, your special requirements.
Q: Do you provide training and maintenance?
A: Yes. In order to make your production more efficient, after signing contract, you can send someone to my company for professional operation training. we also can dispatch our engineer go to your country and assist you on installation and operation. But all accommodation charge and Round trip tickets should be stand by the buyer
Q:Whats your fast delivery time ?
A:If have stock after we received pre payment with 15days can arrange shipment.
Generally delivery time around 30 days not include national holiday.
Q: How to solve the quality problems after sales?
A: Take photos or video of the problems and send to us After we check and confirm the problems, within 24 hours days,we will reply satisfied solution for you.
Q:What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.
For regular orders,we prefer 30% in advance,70% before shipment.
Q: Are you a manufacturer or trade company?
A: We are the professional manufacturer of cnc machine tool, commited to this field for above 15 years.
