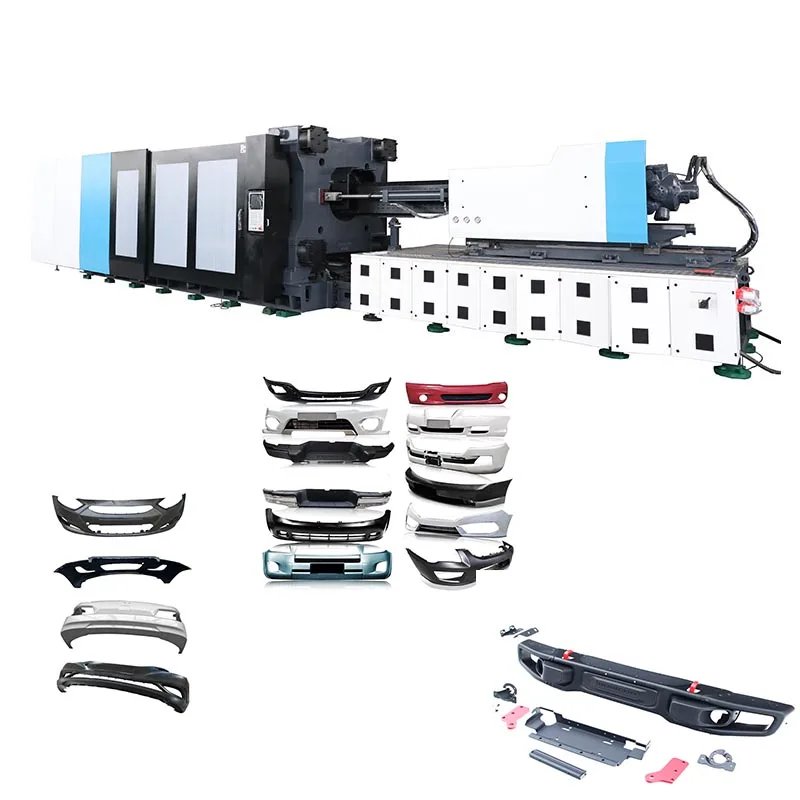

HS 1600 Full Automatic Horizontal Bumper Injection Molding Machine Plastic Auto Parts Making Machine Car Bumper Making Machine
- Category: Injection Molding Machines >>>
- Supplier: Hangzhou Qianshang Machinery Co. Ltd.
Share on (1600530523358):
Product Overview
Description
HS-1600 Full Automatic Horizontal Bumper Injection Molding Machine Plastic Auto Parts Making Machine Car Bumper Making Machine
Contact: Jodie
What's app&wechat: +8615869162884
The company is specializing in the production of clamping force 80T-4000T injection molding machine large equipment enterprises. In order to move towards a healthy and sustainable business philosophy, the company focuses on the deployment of technology, research and development and production quality backbone personnel actively involved in the development of new product series.
To serve the market with high quality, to meet the needs of customers in the industry, on the basis of inheriting the well-known brand " TUP ", enriched the factory product line; Bakelite injection molding machine, rigid PVC powder injection machine and other products, and actively develop the physical foam injection molding machine and all-electric injection molding machine as the main follow-up development.
To serve the market with high quality, to meet the needs of customers in the industry, on the basis of inheriting the well-known brand " TUP ", enriched the factory product line; Bakelite injection molding machine, rigid PVC powder injection machine and other products, and actively develop the physical foam injection molding machine and all-electric injection molding machine as the main follow-up development.
Parameter
Injection Unit B Screw
Screw Diameter mm 125
Theoretical Shot Volume CM 8284
Shot Weight (PS) g 7621
Length/Diameter Ratio L/D 21.6
Injection Pressure MPa 197
Injection Rate ps g/s 964
Injection Stroke mm 975
Screw Speed rpm 110
Clamping Unit
Clamping Force ton 1600
Max. daylight mm 3100
Opening Stroke mm 1600
Opening Stroke mm 1600
Distance Between Tie Bars mm 1560X1430
Min. Mold Height mm 1090X1000
Mould thickness range mm 700~1500
Ejector Force ton 31.8
Ejector Stroke mm 400
Ejector Stroke mm 400
No. of ejector pins pcs 29
System pressure Mpa 17.5
Others
Major motor KW 50+42+42
No. of heater zones unit 7+1
Heater input power KW 68/74
Oil Tank Capacity L 1600
Net Weight T 90
Machine Dimensions(L*W*H) m 14.5X3.55X2.9
Highshine Injection Molding Machine Other Models
Model | tie bar distance(mm) | B screw injection weight(g) | clamping force (KN) | machine weight(ton) | machine size (L*W*H, m) |
HS-110 | 410*360mm | 153g | 1100kn | 3.5ton | 4.1*1.25*1.7m |
HS-150 | 460*410mm | 153g | 1500kn | 4.5ton | 4.7*1.35*1.8m |
HS-180 | 520*470mm | 326g | 1800kn | 5.4ton | 5.2*1.45*1.9m |
HS-240 | 580*530mm | 447g | 2400kn | 7.5ton | 5.6*1.65*2m |
HS-270 | 580*530mm | 447g | 2700kn | 8.4ton | 6.2*1.55*2.1m |
HS-320 | 710*670mm | 975g | 3200kn | 13.4ton | 6.8*1.65*2.2m |
HS-400 | 760*710mm | 1362g | 4000kn | 15.8ton | 7.45*1.71*2.25m |
HS-500 | 830*810mm | 1866g | 5000kn | 19.5ton | 8.23*1.78*2.3m |
HS-560 | 860*840mm | 1866g | 5600kn | 24ton | 8.53*1.82*2.45m |
HS-650 | 930*930mm | 2541g | 6500kn | 29.5ton | 10.5*2.28*2.75m |
HS-850 | 1080*1000mm | 3431g | 8500kn | 40ton | 11.45*2.43*2.85m |
HS-1000 | 1160*1160mm | 4502g | 10000kn | 50ton | 12.4*2.53*2.78m |
HS-1200 | 1250*1250mm | 5770g | 120000kn | 58ton | 12.6*2.72*2.88m |
HS-1400 | 1450*1350mm | 7621g | 14000kn | 75ton | 13.8*3.12*2.9m |
HS-1600 | 1560*1430mm | 7621g | 16000kn | 90ton | 14.5*3.35*2.9m |
