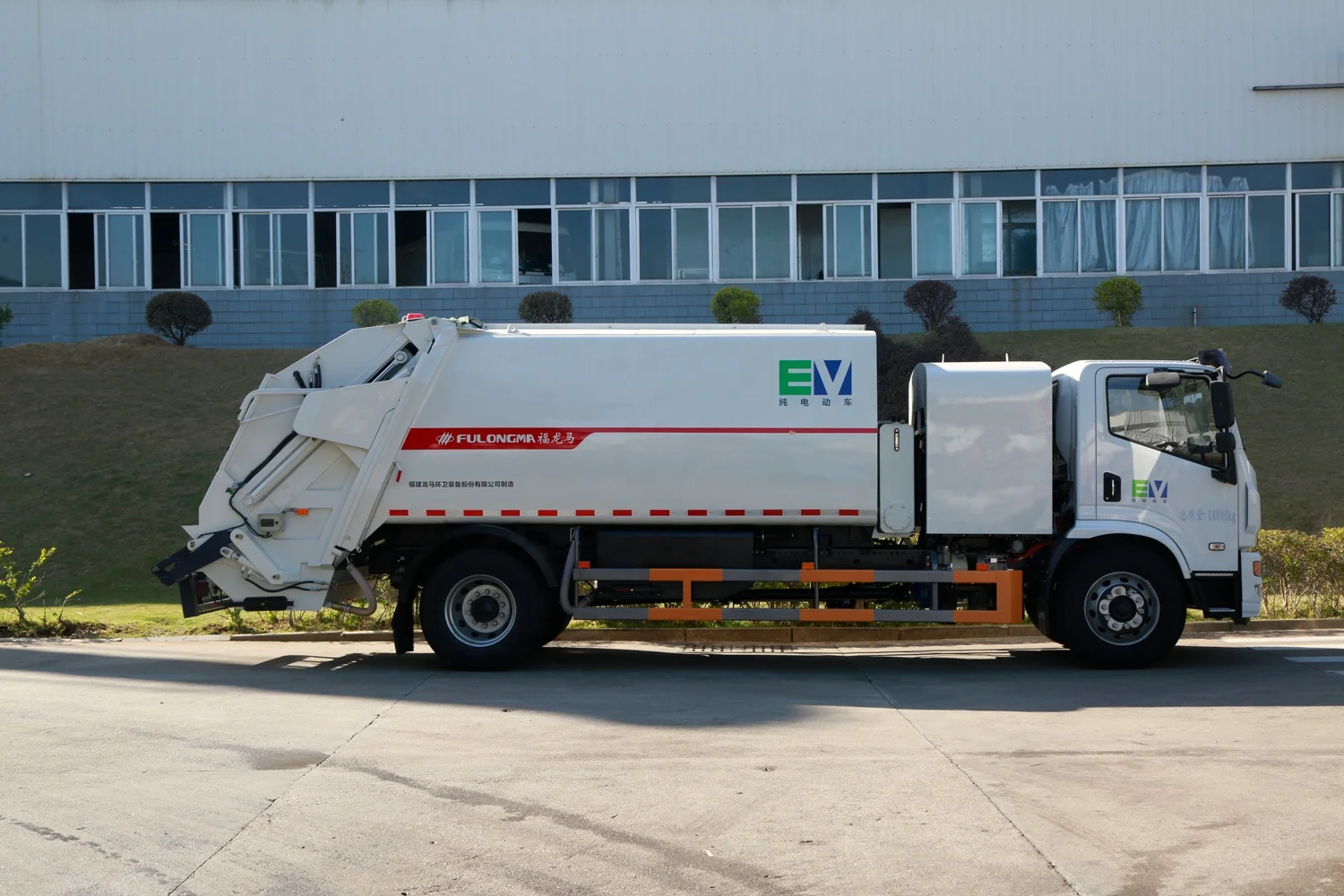

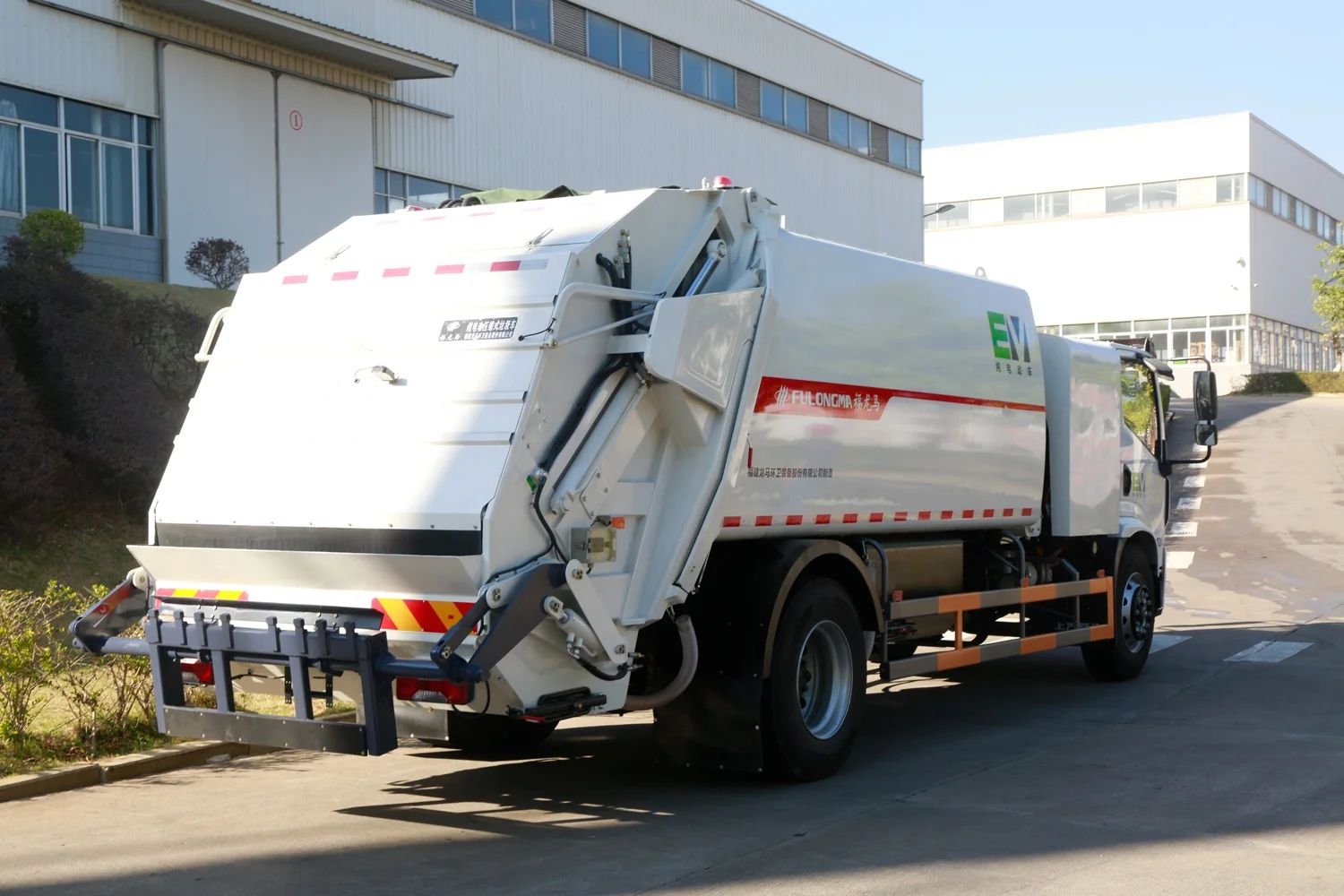

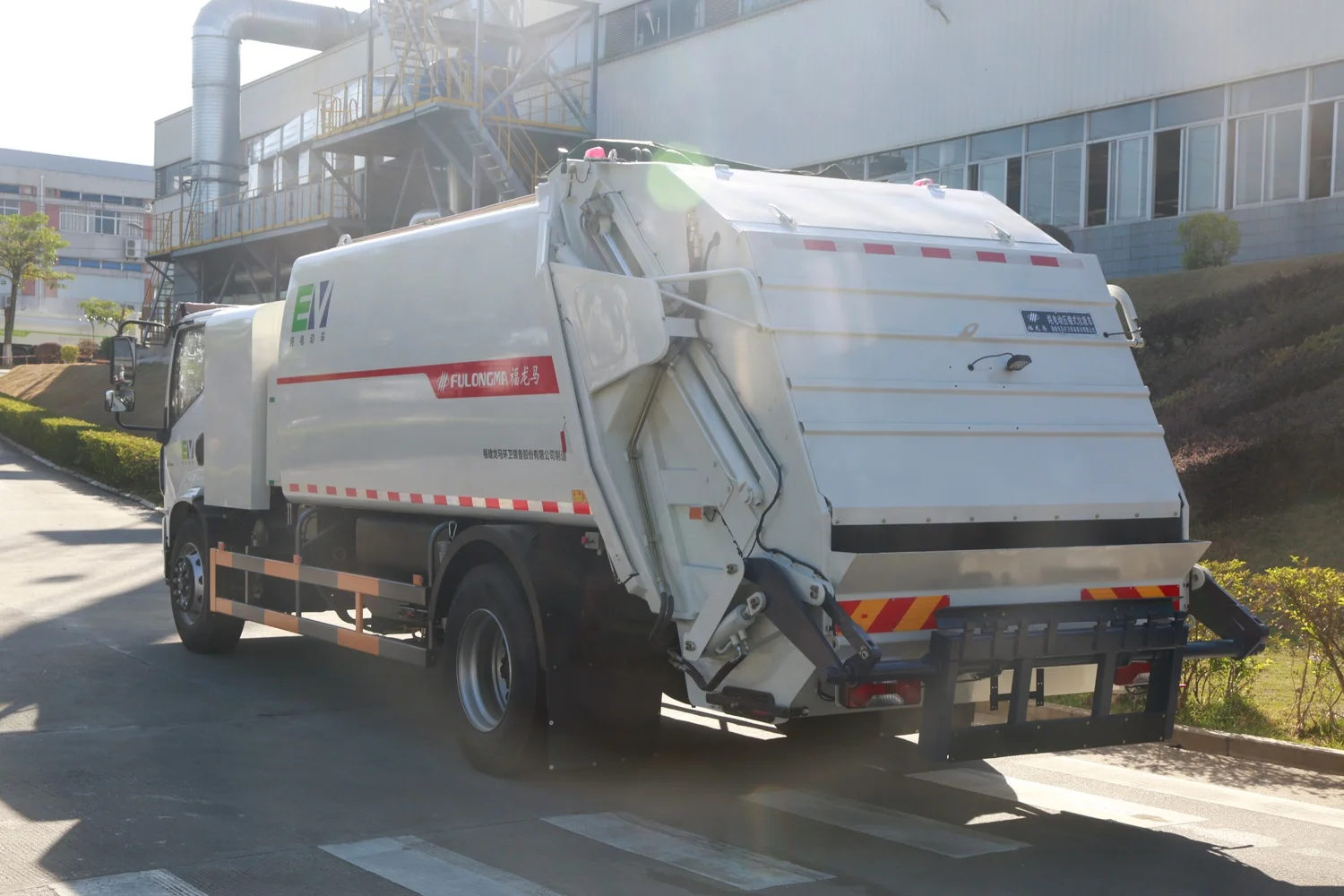

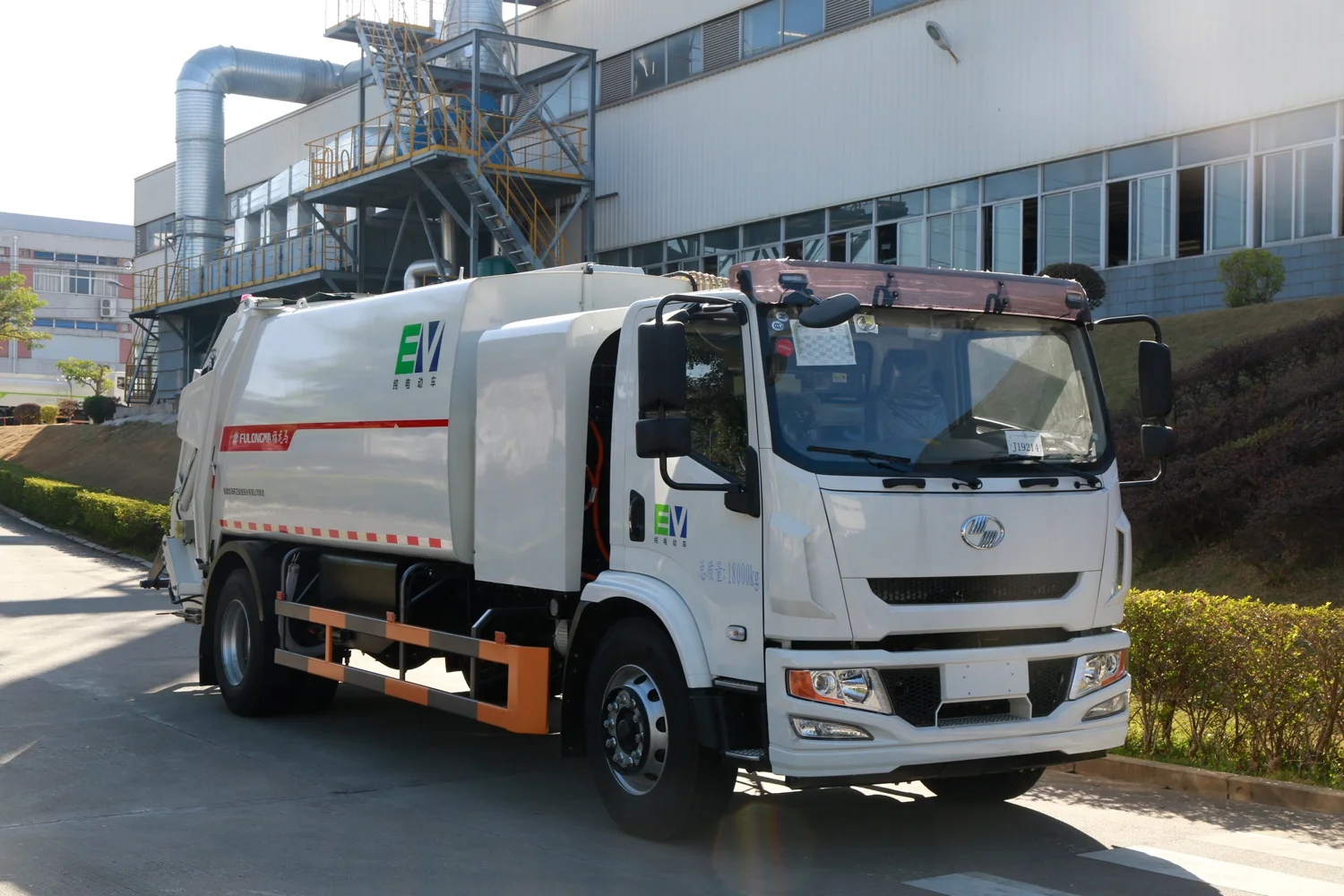

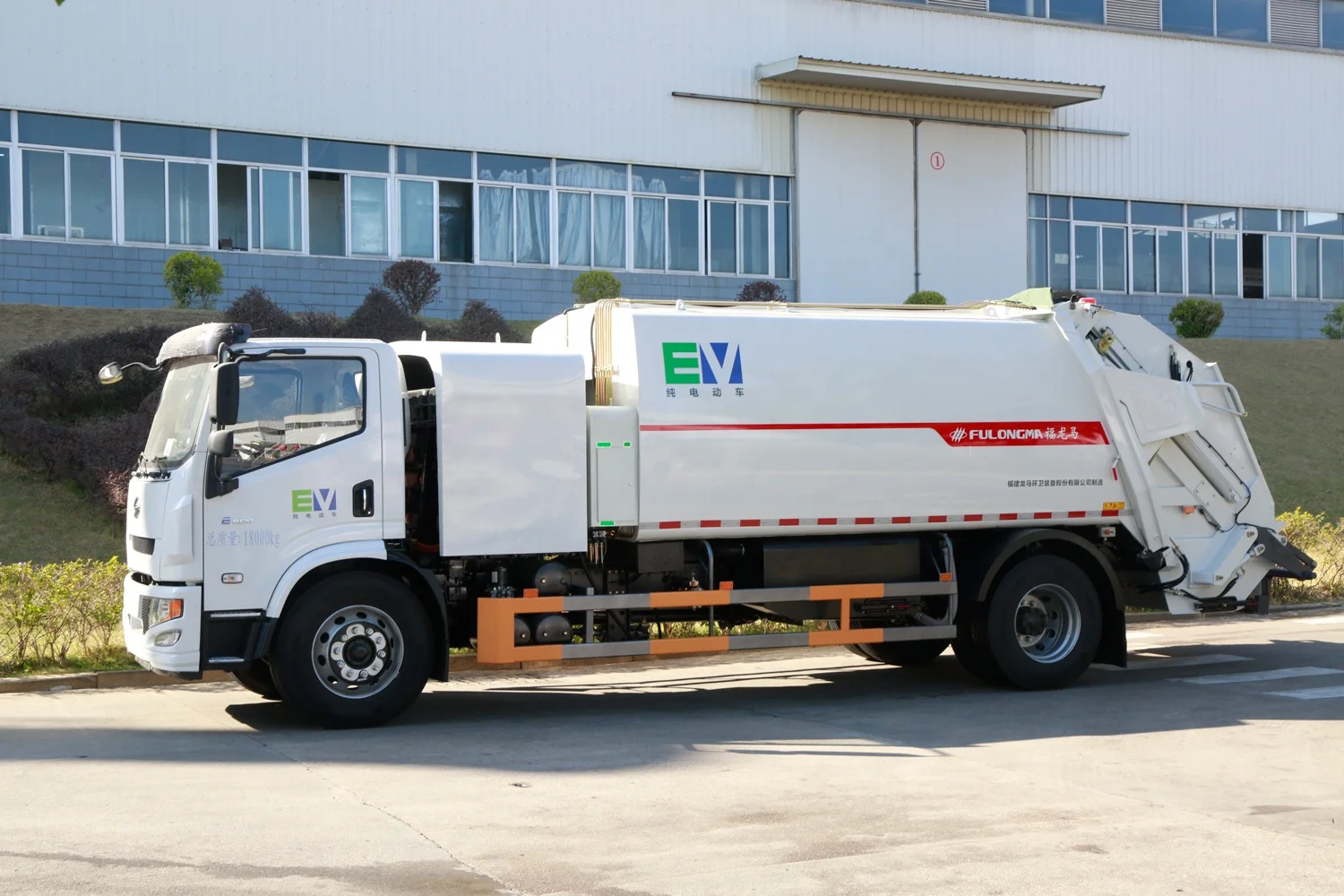

FULONGMA 18t chassis 12.5 cbm electric garbage trucks for trash cans
- Category: Garbage Truck >>>
- Supplier: Fulongma Group Co. Ltd.
Share on (1600533855692):
Product Overview
Description
Company Profile
Product Overview
Garbage Compactor Truck
Manufactured with SH1187ZPEVWZ pure electric chassis produced by SAIC Maxus, it has strong power, strong carrying capacity, and a cruising range of 305km.
This garbage truck adopts a controller intelligent control system. With automatic and manual dual control modes, it can control the garbage truck operation in the cab, middle, and the rear of the vehicle, which is convenient and efficient. Equipped with two-way compression function, high compression efficiency and large garbage loading capacity. When unloading, after the hopper is lifted in place, the scraper and slide plate automatically realize a cycle to remove the garbage remaining in the hopper. Equipped with a large-capacity sewage tank to effectively prevent secondary pollution caused by sewage leakage.PRODUCT SPECIFICATIONS
No. | Item | Data |
1 | Chassis Model | SH1187ZPEVWZ |
2 | Emission Standard | China VI |
3 | Generator Model | TZ370XS-LKM1305 |
4 | Total Mass (kg) | 18000 |
5 | External Dimension(mm) | 9475×2510×3000 (Bin Lifter) 8990×2510×3000 (No Lifter) 9285×2510×3000 (Bucket Lifter) |
8 | Wheelbase (mm) | 5200 |
9 | Hopper Volume (m³) | 1.1 |
10 | Garbage Tank Volume (m³) | 12.5 |
11 | Sewage Tank Volume (L) | 1030 |
12 | Ejection Force (kN) | 187 |
13 | Compression Cycle Time (s) | ≤17 |
14 | Unloading Cycle Time (s) | ≤55 |
15 | Lifting Cycle Time (s) | ≤11 |
High-efficiency Hopper
The hopper is composed of a loading port, a scraper, a sliding plate, a fixed plate and other components, which are used to complete the garbage crushing, compaction and packing the dense garbage into the garbage tank. The effective volume of the hopper 1.1 m³, the compression cycle time is not longer than 17s, the garbage compression density is between 0.65-0.8 t/m³, and the maximum crushing compression force is 162 kN.
Advantages
Bin Lifter
Lifting cycle time: ≤11s
Driven by the left and right hydraulic cylinders, 2 trash cans can be lifted at the same time
Driven by the left and right hydraulic cylinders, 2 trash cans can be lifted at the same time
Compression Mechanism
Compression cycle time: ≤17s
Maximum crushing compression force: 162kN
Lifting operation and pressure filling operation can be carried out at the same time to improve work efficiency.
Maximum crushing compression force: 162kN
Lifting operation and pressure filling operation can be carried out at the same time to improve work efficiency.
Reasonable Ejector
Unloading cycle time: ≤55s
The U-shaped integrally formed truss trough with Japanese technology is used as the movable guide rail of the garbage pushing plate, which has strong pressure resistance and good deformation resistance.
The U-shaped integrally formed truss trough with Japanese technology is used as the movable guide rail of the garbage pushing plate, which has strong pressure resistance and good deformation resistance.
Safety Support Brace
Equipped with emergency stop button, interlock switch to prevent the hopper from falling, safety struts, self-locking function of the filler lifting cylinder, etc., to ensure the safety of personnel.
Sewage Tank Maintenance Port
It is used for the internal cleaning of the sewage tank, and the operation is simple, convenient and fast. The large window area is convenient for washing.
Sewage Collecting Device
Used to collect a small amount of sewage leaking out between the box and the hopper.
Optional Selected
Aluminum Side Guard
It is used to protect the side of the truck body to prevent people and objects from getting into the bottom of the truck. It is made of aluminum alloy, which is light and convenient, and will not rust.
240L Bin Lifter with Weighing Mechanism
Used to lift and weigh 240L trash cans. It is easy to disassemble and assemble, and each bin of garbage can accurately record the weight, which is convenient for monitoring and statistics.
330L Iron Bin Lifter
Used to lift 330L iron trash cans, the hook plate can be replaced, which is convenient to adapt to trash cans of different sizes.
240L & 330L Iron Bin Lifter
Two 240L trash cans can be lifted at the same time, and the hook plate can be replaced, which is convenient to adapt to iron trash cans of different sizes.
240L & 660L Bin Lifter
Equipped with a retractable support arm, by replacing the support arm, it can be adapted to different sizes of 660L trash cans.
240L & 330L &660L Bin Lifter
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Bucket Lifter
It is used to lift the garbage poured into the hopper, it is not easy to spill, and the lifting force is large.
Bucket Lifter 2
It is used to lift the garbage poured into the hopper, it is not easy to spill, the parts are universal, and it is easy to exchange with other lifting mechanisms.
240L Bin Lifter + Bucket Lifter
It has a wide range of applications, which can be used for feeding barreled garbage or bulk garbage.
