Product Overview

Description

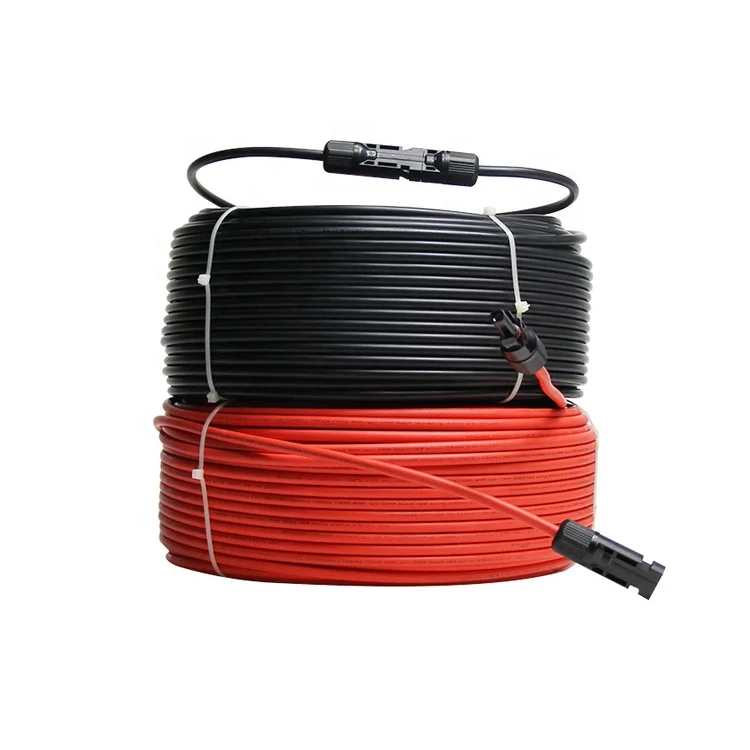

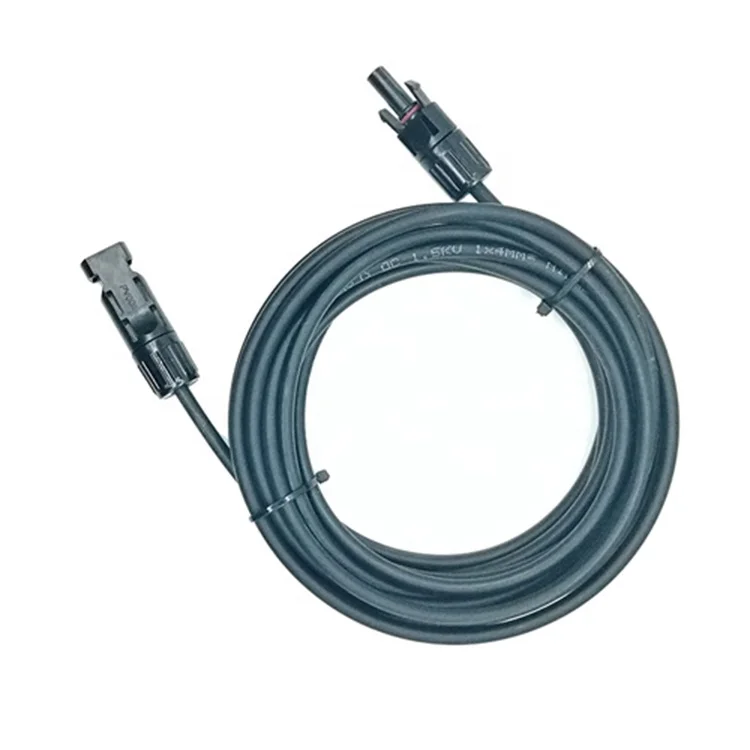

MC4 Solar PV Connection Cable
10 AWG - UL Approved - 600 Volt - Double Jacketed Copper - Direct Burial

Description:
* Our photovoltaic cable has a chemically crosslinked polyethylene insulation with a sunlight resistant PVC jacket and includes MC4 connectors to quickly connect your solar panels to necessary components of your solar system.

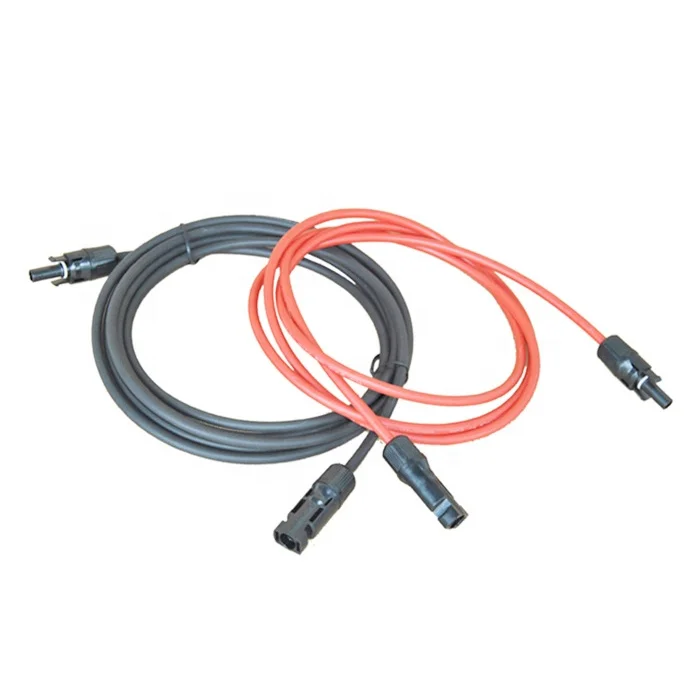

* The black cable has a male MC4 connector; The red cable has a female MC4 connector.

Applications:
 * Appropriate for use in solar power applications that require a 600-volt rating. For use in grounded interconnection and ungrounded Photovoltaic power systems.

Construction:
* Conductors: Stranded bare copper conductor per ASTM B-3, B-8.Available in 7 or 19 stranded versions as well as tinned copper.
* Insulation: White Chemically Cross-linked polyethylene with colored sunlight resistant PVC jacket.
* Black cables made with a male MC4 connector for negative connections
* Red cables made with a female MC4 connector for positive connections


Insulation Thickness
45 mils
Cable features
90°C Wet/105°C Dry Rated
Jacket Thickness
30 mils
Protection
Gasoline and Oil Resistant II, Sunlight Resistant
Outside Diameter
0.264 in
Cable Length
1M, 2M, or customized
Cable standard
UL4703, 44
Standards
RoHS Compliant, VW-1 Rated
