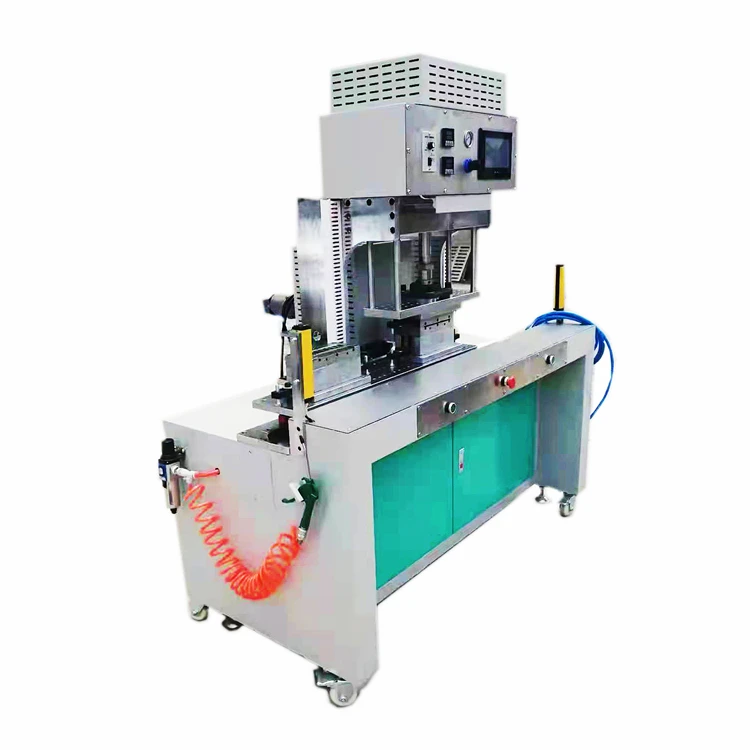

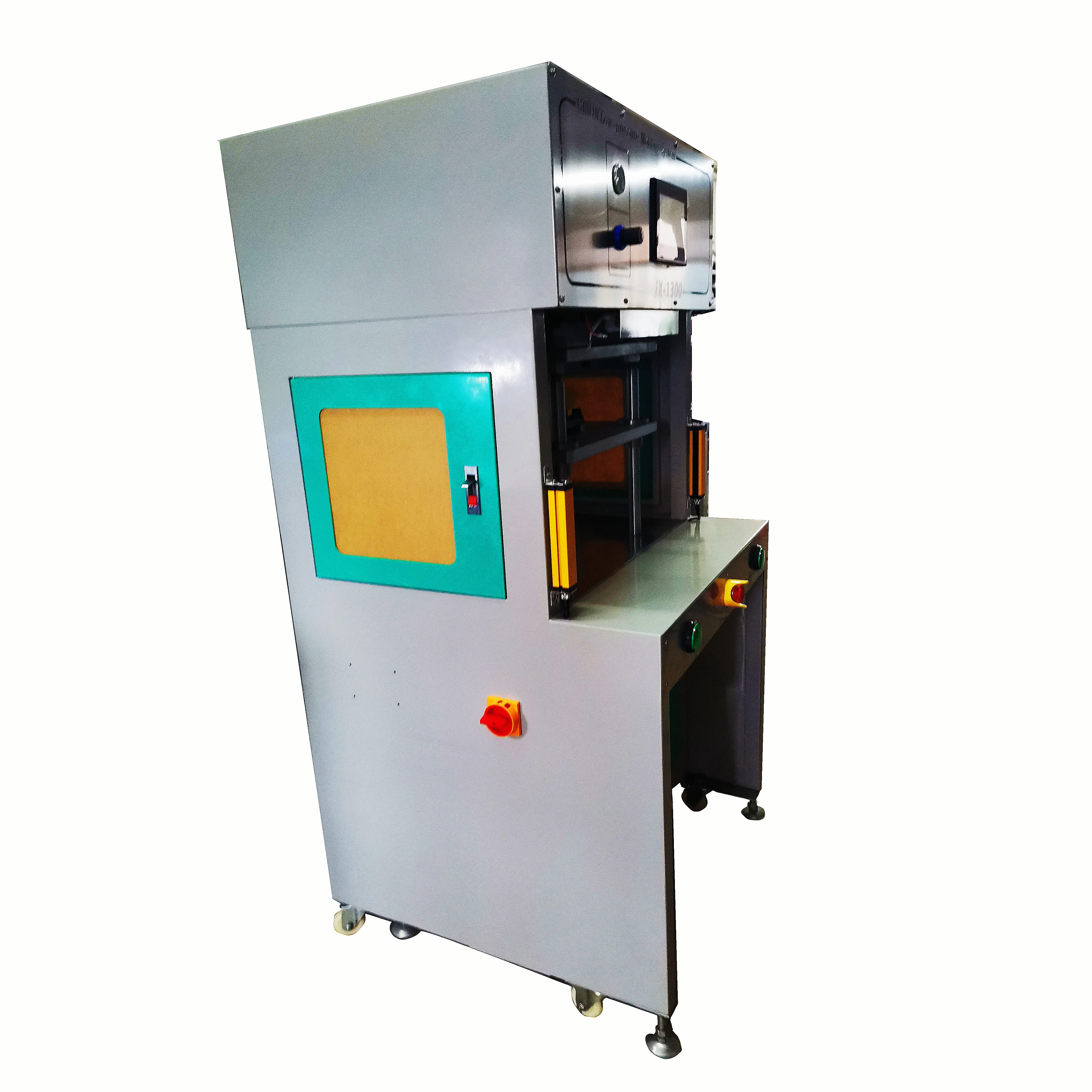

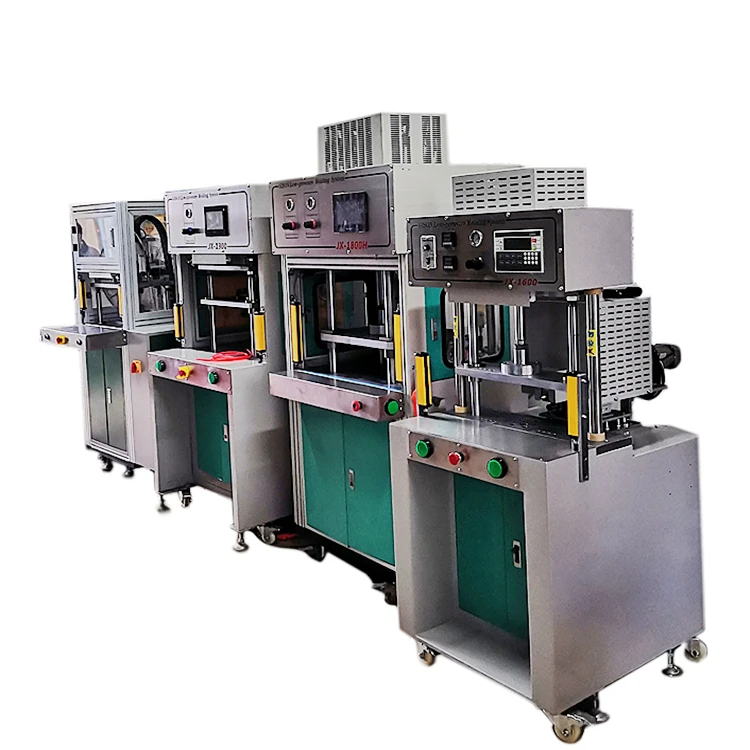

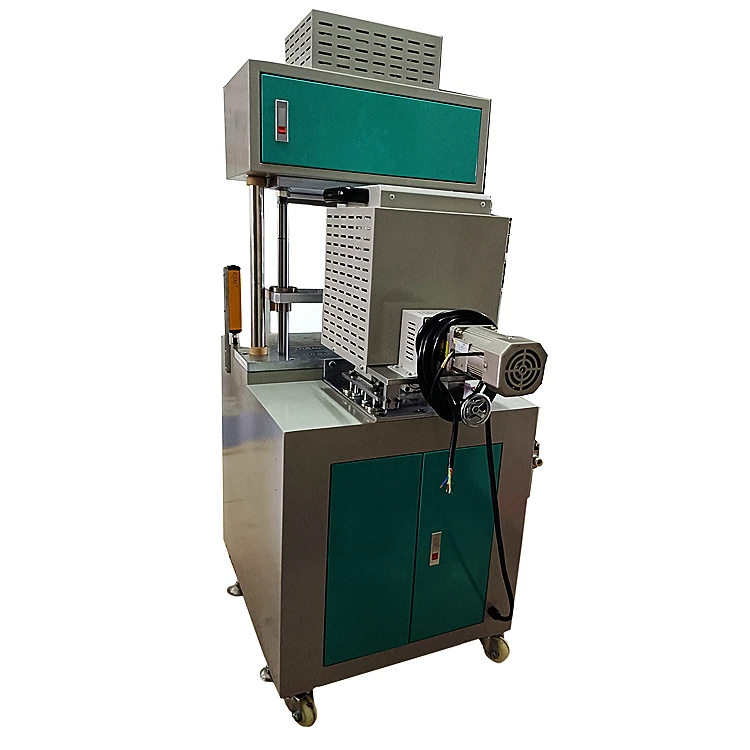

hotmelt side vertical plastics PVC Small Vertical Plastic Injection Molding Machine
- Category: Injection Molding Machine >>>
- Supplier: Dongguan Jixin Electronic Materials Co. Ltd.
Share on (1600536544387):
Product Overview
Description
Products Description
Specification
Size | 850×1015×1640 mm |
Weight | 270kg |
Work station high | 840 mm |
Plant view | 1020×850 mm |
Packing size | 950×1120×1700(315kg) |
Melting tank | (3Liter)×1 |
Gun & Tip Angle | (36.4°60°.90°)optional |
Electricity | 200-240VAC/1Phase/50 or 60Hz |
Temperature Control Zones | 2 |
Temperature range | 70℃- 260℃ |
Max power (kw) | 4 kw |
Working pressure | 0.5 Mpa -0.8 Mpa |
Air consumptiom | 0.1m3/min |
Clamping device | (Pneumatic) |
Clamping force | Max 1.2 ton |
Clamping stroke | 125mm or 150mm optional |
Control system | Text display |
Standard mold set size (mm) | 180×100×150(16kg) |
Max mold set size (mm) | 300×120×150 |
Max part size (mm) | 50×45×8 |
Certifications
Company Profile
Dongguan Jixin Electronic Materials Co., Ltd. was founded in June 2014, and is located in Chashan Town, Dongguan City, the manufacturing capital in China.The company is invested by Chinese International Industrial(Hong Kong)Co., Ltd., which is composed of innovative research and development team with professional engineering and technical team for many years.The company specializes in the research and production of low pressure injection molding machine, low pressure mold, low pressure injection molding processing and low pressure injection molding material manufacturers, is the most complete supporting the enterprise.Low pressure injection molding process is mainly used in: printing circuit board (PCB), automotive electronics, automotive wiring harness, automotive connectors, sensors, micro switch, antenna, mobile phone battery packaging, LED packaging company in low pressure injection molding industry deep for many years, more than 2000 projects, has rich practical experience, complete products not only for customers, can improve the efficiency to the customer, meet the full range of low pressure injection molding production demand.
Why Choose Us
"17years experience for low pressure injection solution"
"One station solution for your case"
"Hundreds of Success Case"
"One station solution for your case"
"Hundreds of Success Case"
Package
FAQ
Q: What can your machines do?
A: Make the batteries production automatically.Save the factory owner's invest and better the efficiency.
Q: What kind of items can your machines produce?
A: Our machines can be used to produce batteries for Power Bank, Laptops, Cell Phones and Ebikes, etc.
Q: How can I see samples or know more about the machines?
A: Please contact our sales to get the links.Indian friends can visit our New Delhi sales office and see the machine by yourselves.
Q: Do you have a MOQ for orders?
A: Customers are free to buy our production line (3-5 machines altogether) or just 1 single machine.Our factory MOQ is 1 set.
Q: Do you have any warranty or certifications?
A: We provide 12 months warranty for the machine, and life-time after-sales maintenance.
Q: I am a new factory owner. Can I get some advices about automatic production?
A: You can tell us the ideal turn-over you want for your new factories.Our professional engineers and sales shall provide you with budget and costs how much it takes.
A: Make the batteries production automatically.Save the factory owner's invest and better the efficiency.
Q: What kind of items can your machines produce?
A: Our machines can be used to produce batteries for Power Bank, Laptops, Cell Phones and Ebikes, etc.
Q: How can I see samples or know more about the machines?
A: Please contact our sales to get the links.Indian friends can visit our New Delhi sales office and see the machine by yourselves.
Q: Do you have a MOQ for orders?
A: Customers are free to buy our production line (3-5 machines altogether) or just 1 single machine.Our factory MOQ is 1 set.
Q: Do you have any warranty or certifications?
A: We provide 12 months warranty for the machine, and life-time after-sales maintenance.
Q: I am a new factory owner. Can I get some advices about automatic production?
A: You can tell us the ideal turn-over you want for your new factories.Our professional engineers and sales shall provide you with budget and costs how much it takes.
