Product Overview
Description
Multi Heads High Speed Metal Work 3 Axis CNC Profile Milling Machine For Sale Price
Product Description
| UHB-600 | ||
| System | SIEMENS 828D-280 | |
| Product Name | Conprofe High Precision Ultrasonic Machining Center | |
| Work table | Dimension | 620x560 |
| Max.Load | 300 | |
| Travels | Max.Travel in X-/Y-/Z-axis | 600x500x300mm |
| FeedRate | Rapid Traverse in X-/Y-/Z-axis | 15/15/12m/min |

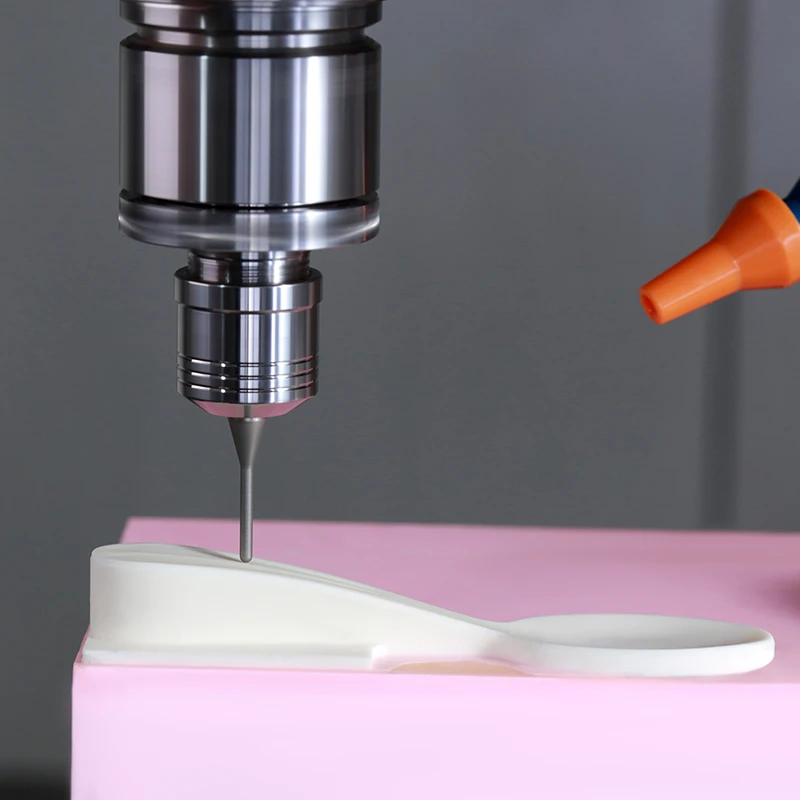

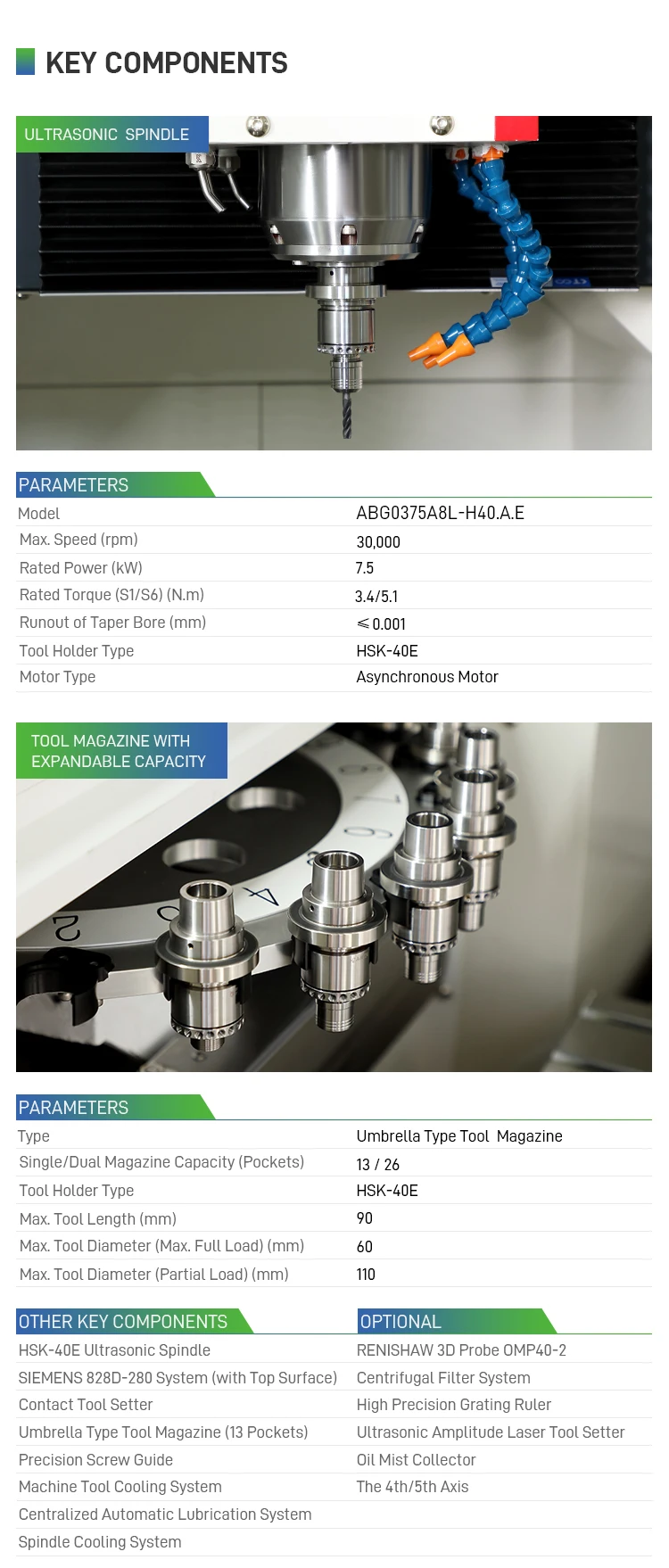

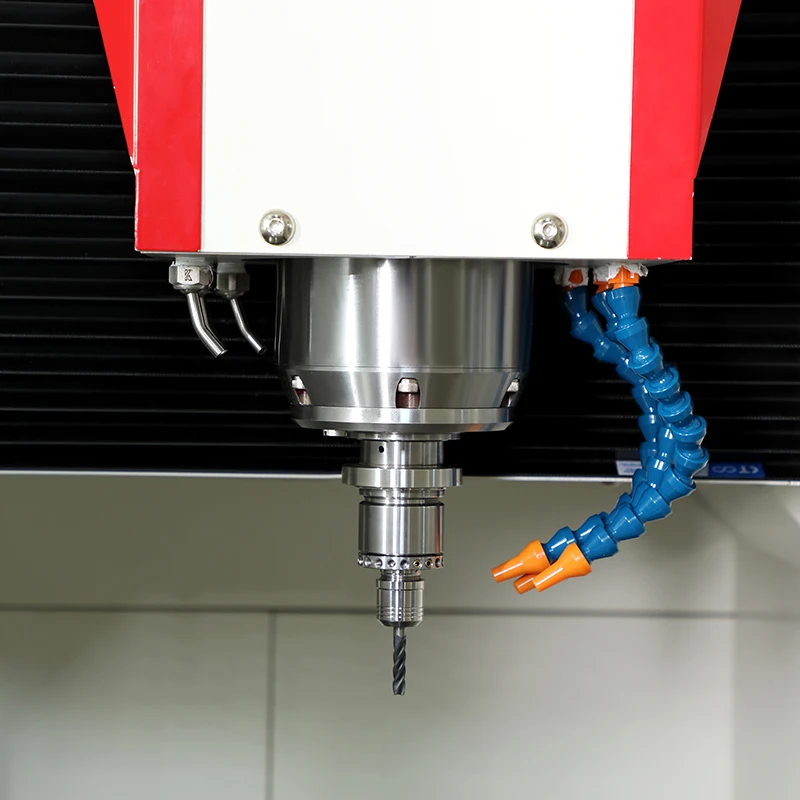

| Spindle | Diameter | 120mm |
| Power Rating | 7.5kW | |
| Max.Speed | 30000rpm | |

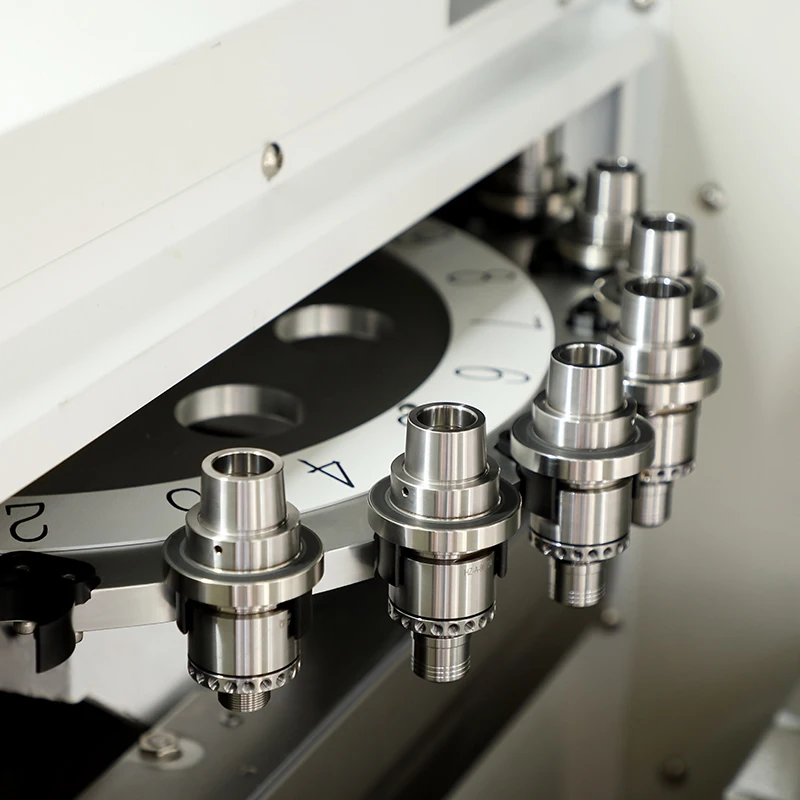

| Magazine | Tool Capacity | 13Positions |
| Tool Holder Spindle | HSK-40E | |
| Tool Overhang | 90mm | |
| Accuracy | Positioning Accuracy in X-/Y-/Z-axis | 0.005mm |
| Repeatability Accuracy in X-/Y-IZ-axis | 0.003mm | |
| Power and Dimensions | PowerSupply | 3-phase AC, 380V/50Hz/25A |
| Weight | 5000kg | |
| Required Compressed Air Connection | ≥0.6MPa | |

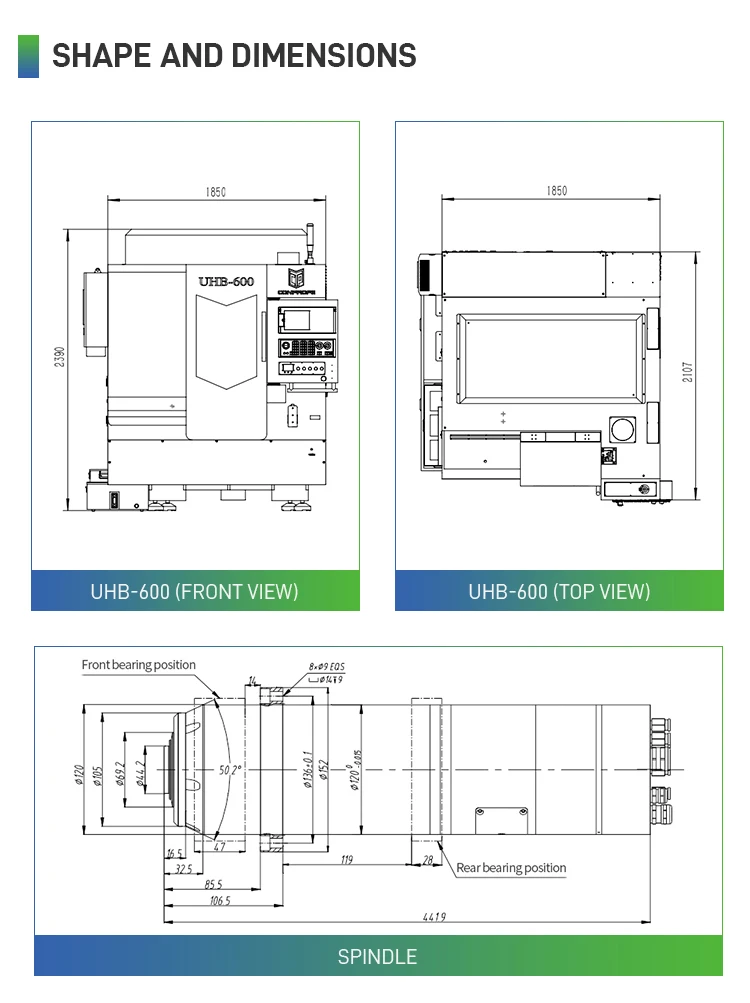

| Dimensions(X/Y/Z) | 2160 × 2090 × 2390mm | |

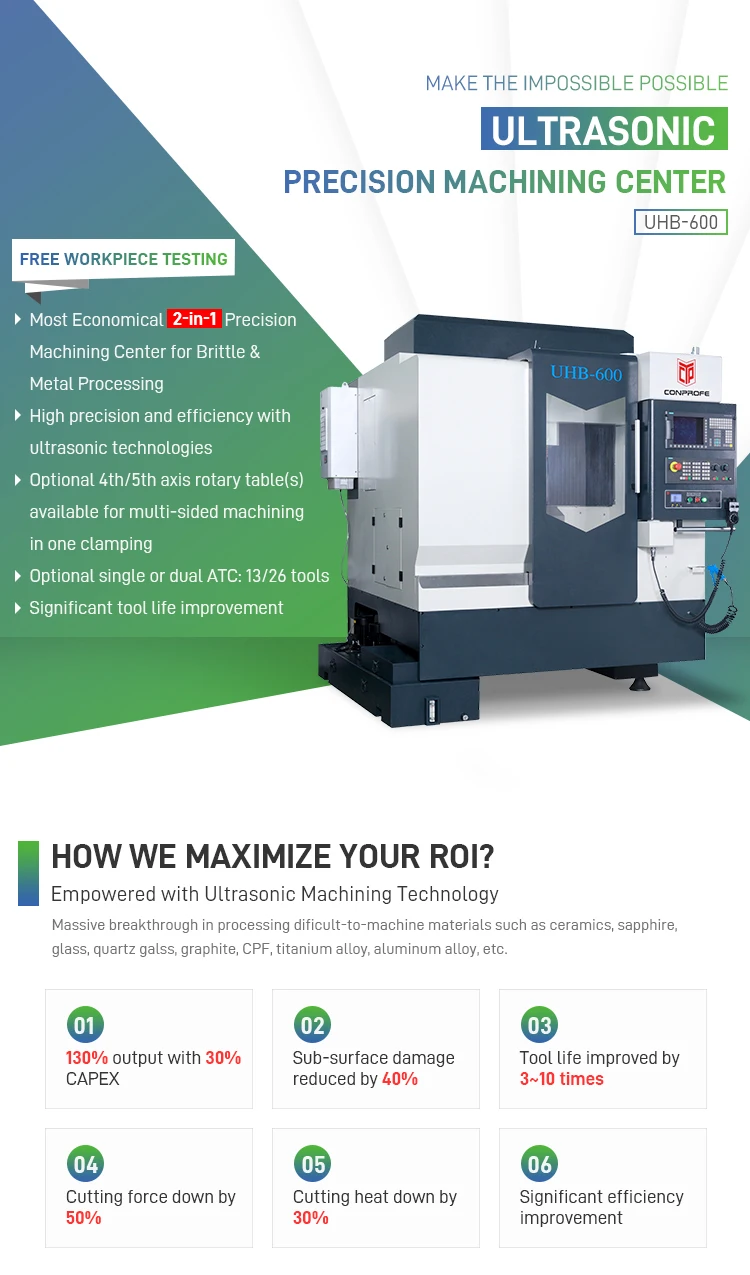

Make the Impossible Possible:
- 130% output with 30% CAPEX
- Sub-surface damage reduced by 40%
- Tool life improved by 3~10 times
- Cutting force down by 50%
- Cutting heat down by 30%

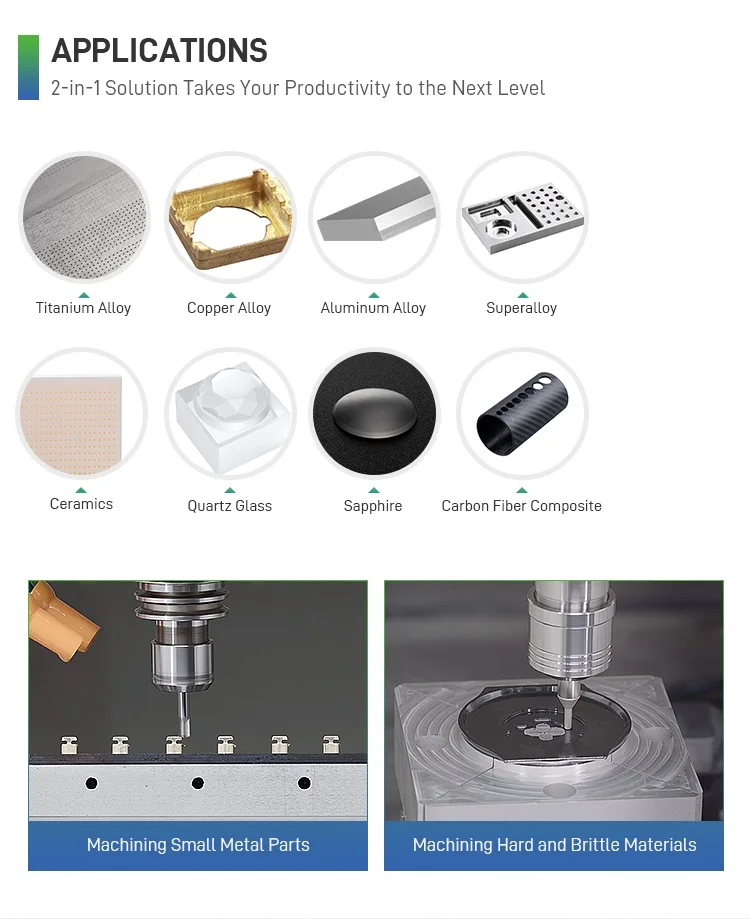

1. Most Economical 2-in-1 Precision Machining Center for Brittle & Metal Processing

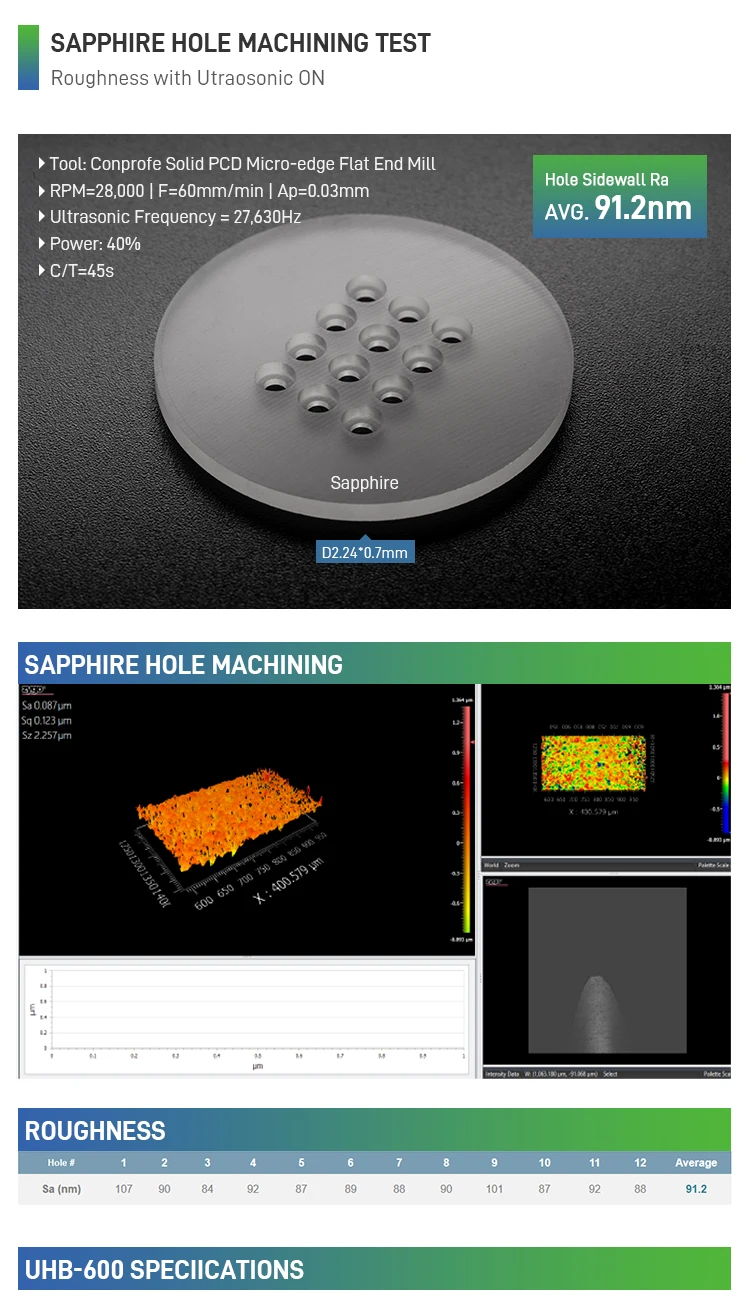

2. High precision and efficiency with ultrasonic technologies

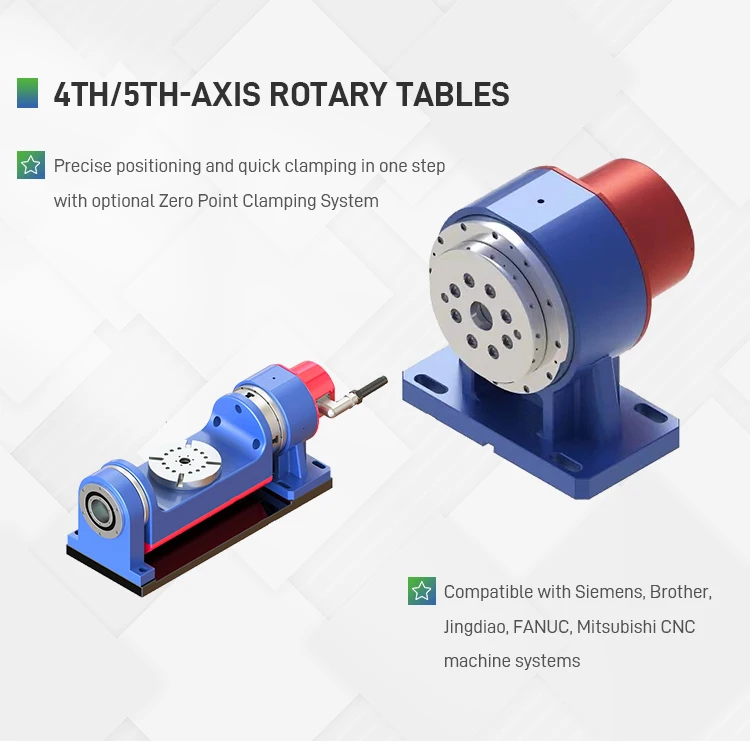

3. Optional 4th/5th axis rotary table(s) available for multi-sided machining in one clamping
4. Optional single or dual ATC: 13/26 tools
5. Significant tool life improvement
6. Free workpiece testing
