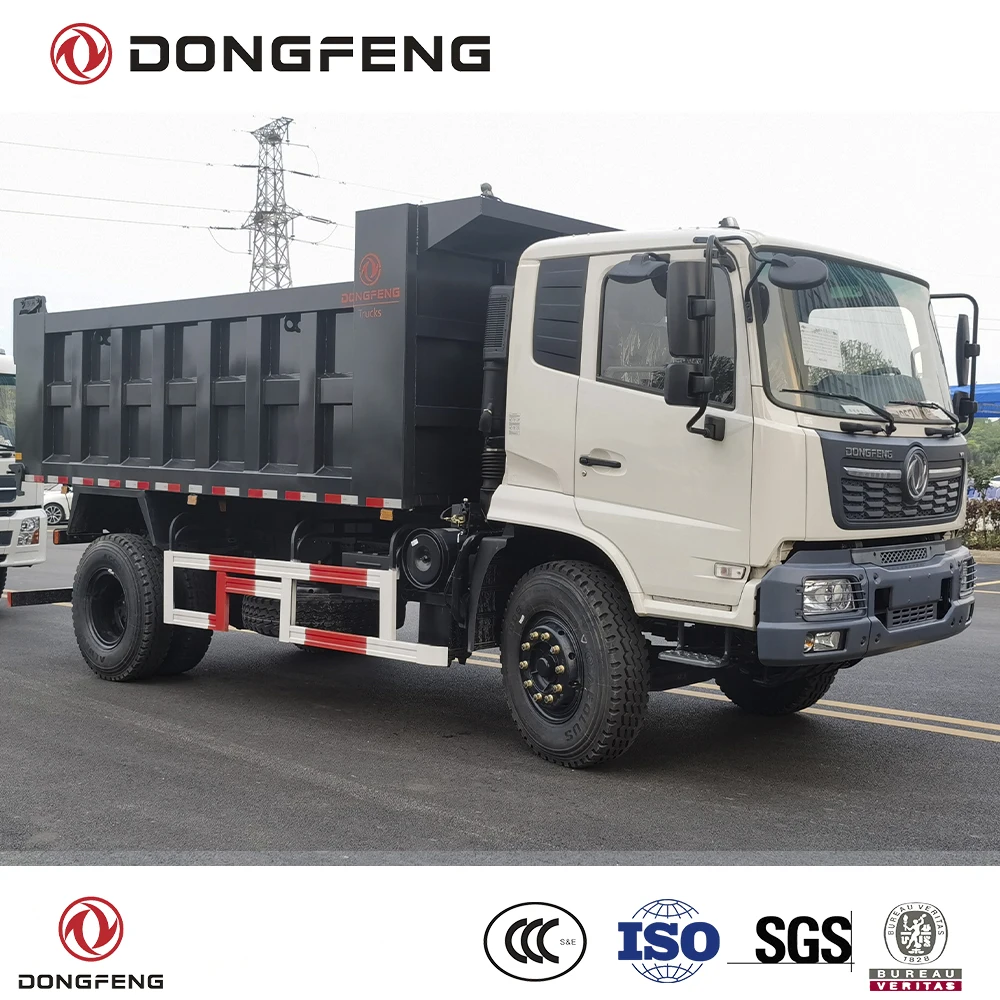

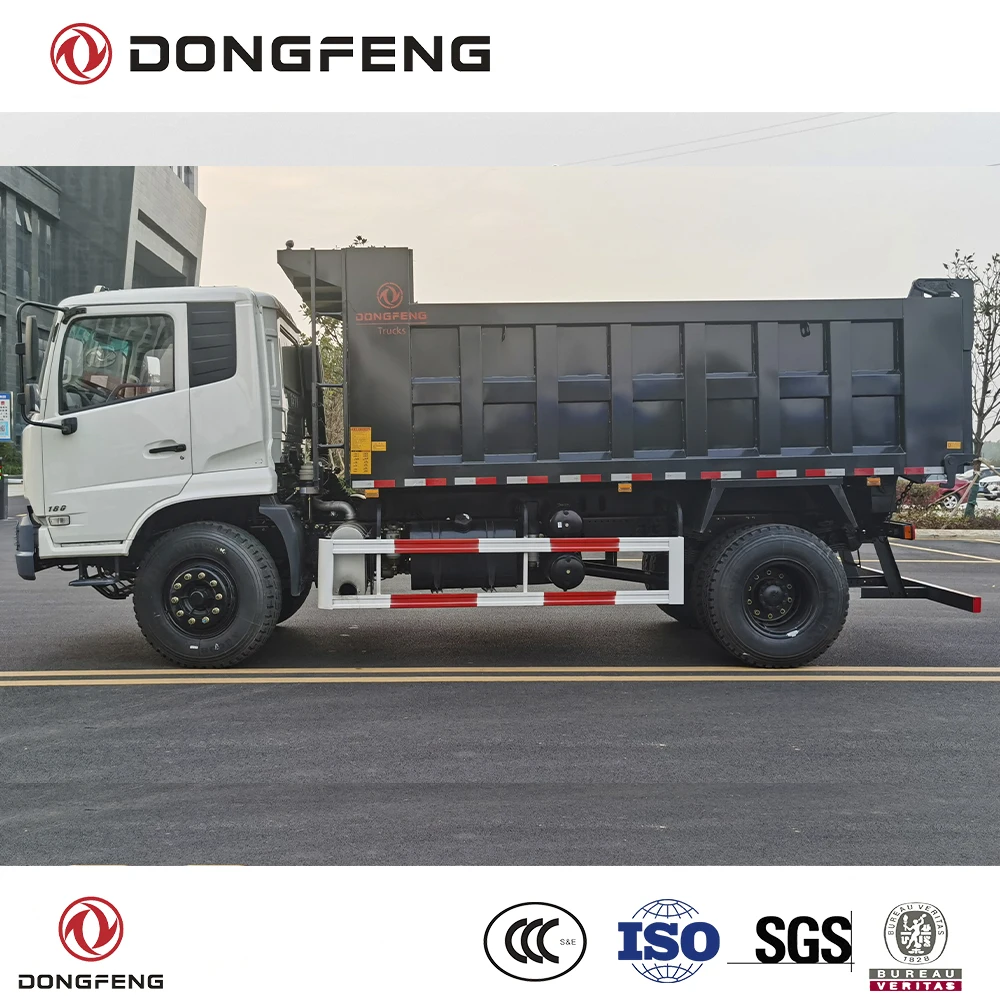

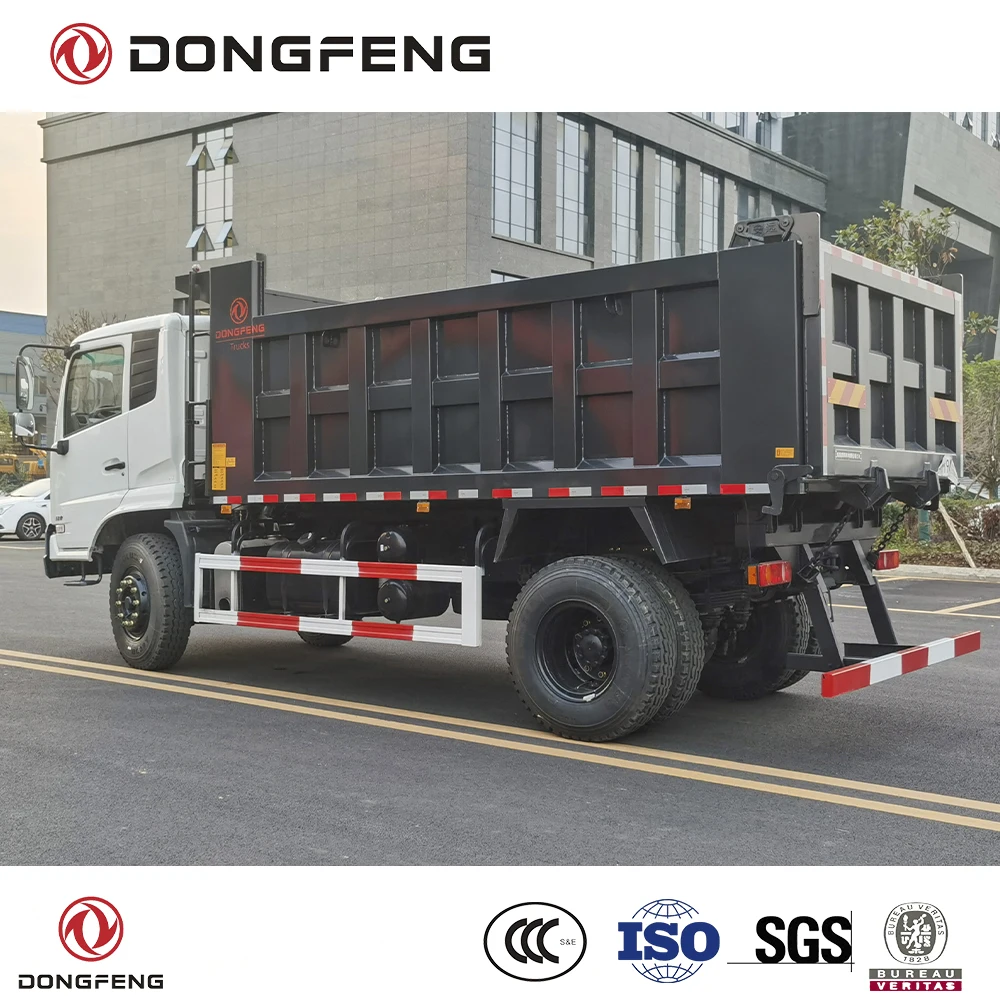

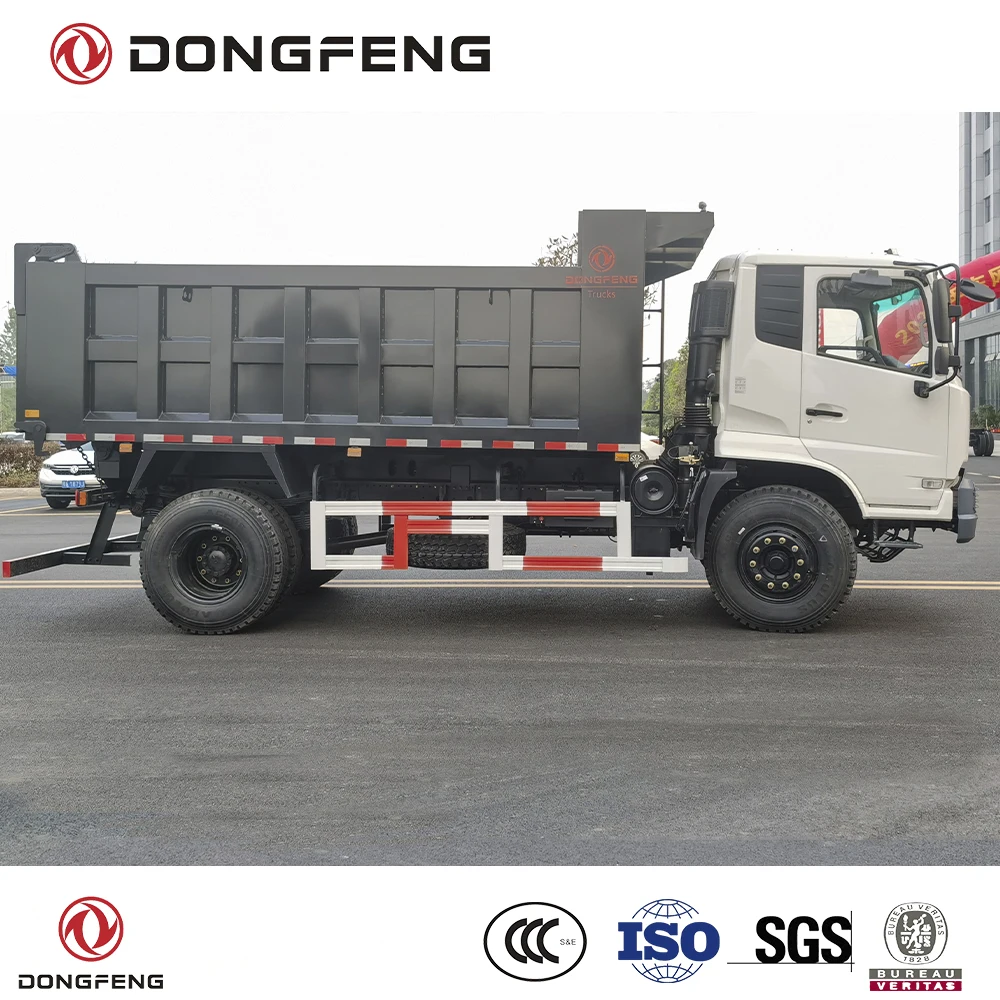

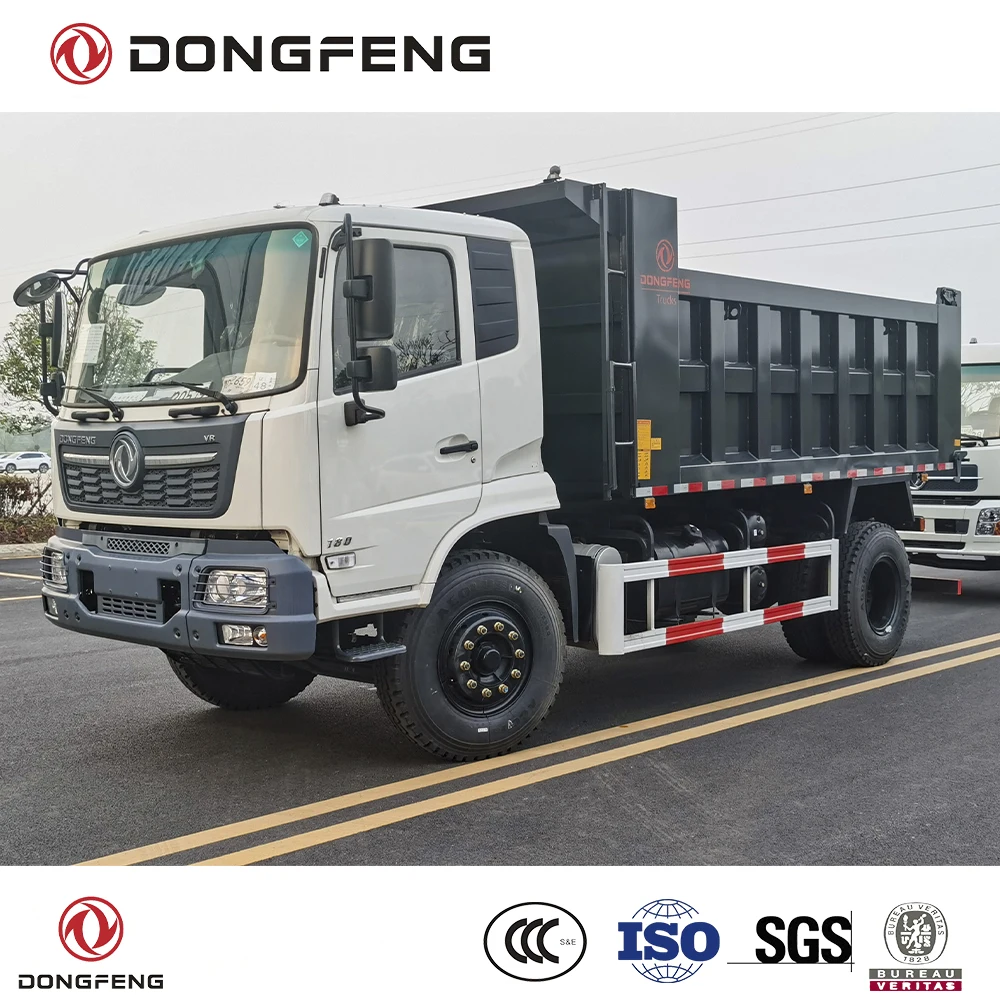

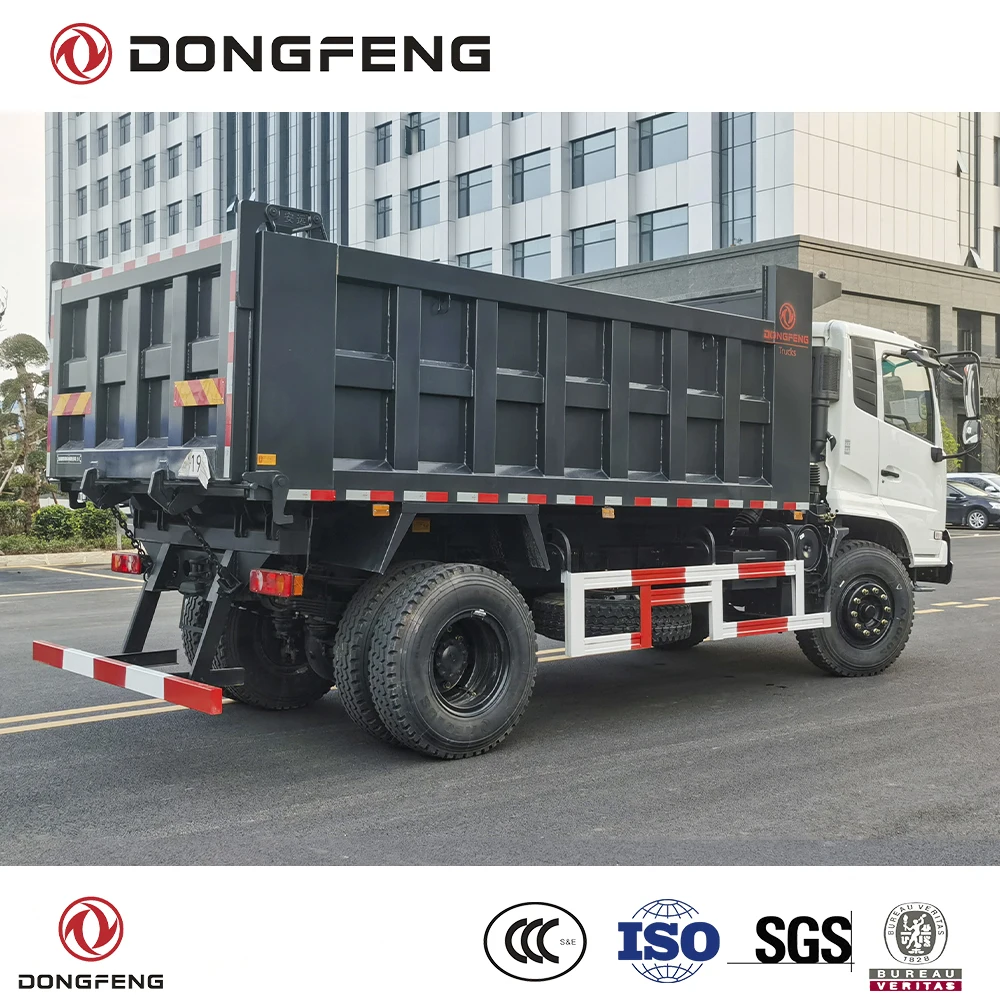

Dongfeng 4x2 dump truck 15 ton loading capacity cummins 270 Hp diesel engine LHD tipper truck
- Category: >>>
- Supplier: China Dongfeng Motor Industry Imp. & Exp. Co. LtdChina Ltd
Share on (1600537953044):
Product Overview
Description
China Dongfeng Motor Industry Imp.&Exp. Co., Ltd, established In May of 1983 as the professional trade company of Dongfeng Group, also the first state own and approved trade company in China's Motor vehicle industry, and to be one of the most important trade companies regulated by the Ministry of Commerce of the people’s Republic of China, Currently Dongfeng commercial vehicles brand trucks and passenger car brand fengsheng,fengxing,Fengdu, and so on, which are exported to South Asia, Middle-east, South America, and other more than 100 Countries and areas.
- Dongfeng 4x2 dump truck 15-ton loading capacity cummins 270 Hp diesel engine LHD tipper truck
- Main Specification
| Item | Unit | Description | ||||||||
| Model | Dongfeng brand dump truck | |||||||||
| Dimension | mm | 7410*2500*2980 | ||||||||
| Sample Box Dimension | mm | 4800*2350*1500 | ||||||||
| m3 | 17 | |||||||||
| Side/Bottom | 8 mm / 10 mm thick | |||||||||
| Hydraulic | DN 157 mm cylinder, Front Mounted design, China brand | |||||||||
| Type | Square | |||||||||
| Curb Weight | kg | 8300 | ||||||||
| Load weight | kg | Around 15 tons | ||||||||
| G.V.W | kg | 20000 | ||||||||
| Wheel Base | mm | 4200 | ||||||||
| F/R track base | mm | 1940/1860 | ||||||||
| F/R Axle-load | Kg | 6000/13000 | ||||||||
| Suspension | Steel Spring | |||||||||
| Approach/Departure angle | . | 21/16 | ||||||||
| Traction system | Type | 4*2 | ||||||||
| Tire Specification/Number | Type | 295/80R22.5, 6+1 Spare Unit | ||||||||
| Max speed | Km/h | 85 | ||||||||
| Engine | Model | ISDe270 30 | ||||||||
| Emission/Kw | 6700 cc, 198 Kw / 2500 r | |||||||||
| Horse Power | 270 Hp | |||||||||
| Power | 970 N.m - 1400 r/min | |||||||||
| Type | Diesel, 6 cylinders, turbocharge, Inter-cooling | |||||||||
| Brand | Dongfeng Cummins Engine Power Co.,Ltd | |||||||||
| Standard | Euro III | |||||||||
| Gearbox | model | 7F&1R, Manual, DC7J120TD DD | ||||||||
| Fuel Tank | Liter | 280 | ||||||||
| Electronic | V | 24 | ||||||||
| Cab | Person | 3 | ||||||||
| Type | Reversible, Manual | |||||||||
| Steering | Powering , LHD or RHD | |||||||||
| Installing | Mp3, Radio | |||||||||
| Air Conditioner | Hot Wind / Cold Wind | |||||||||
