SIAECOSYS/FARDRIVER High Power Electric Motorcycle Controller 530A 6000W BLDC Programmable Fardriver ND72530/ND84530/ND96530 For QSMotor

FarDriver controller is sine wave type controller, which is brushless DC controller with self-learning function. Generally, it matches well with QS Motors, if you want to match with new brand motor, some parameters should be tested by yourself.

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.



Combo1.

One set including below kits

1. 1pcs X ND72530 sine wave controller

2. 1pcs X Blue-tooth adaptor

Combo2.

One set including below kits

1. 1pcs X ND84530 sine wave controller

2. 1pcs X Blue-tooth adaptor

Combo3.

One set including below kits

1. 1pcs X ND96530 sine wave controller

2. 1pcs X Blue-tooth adaptor

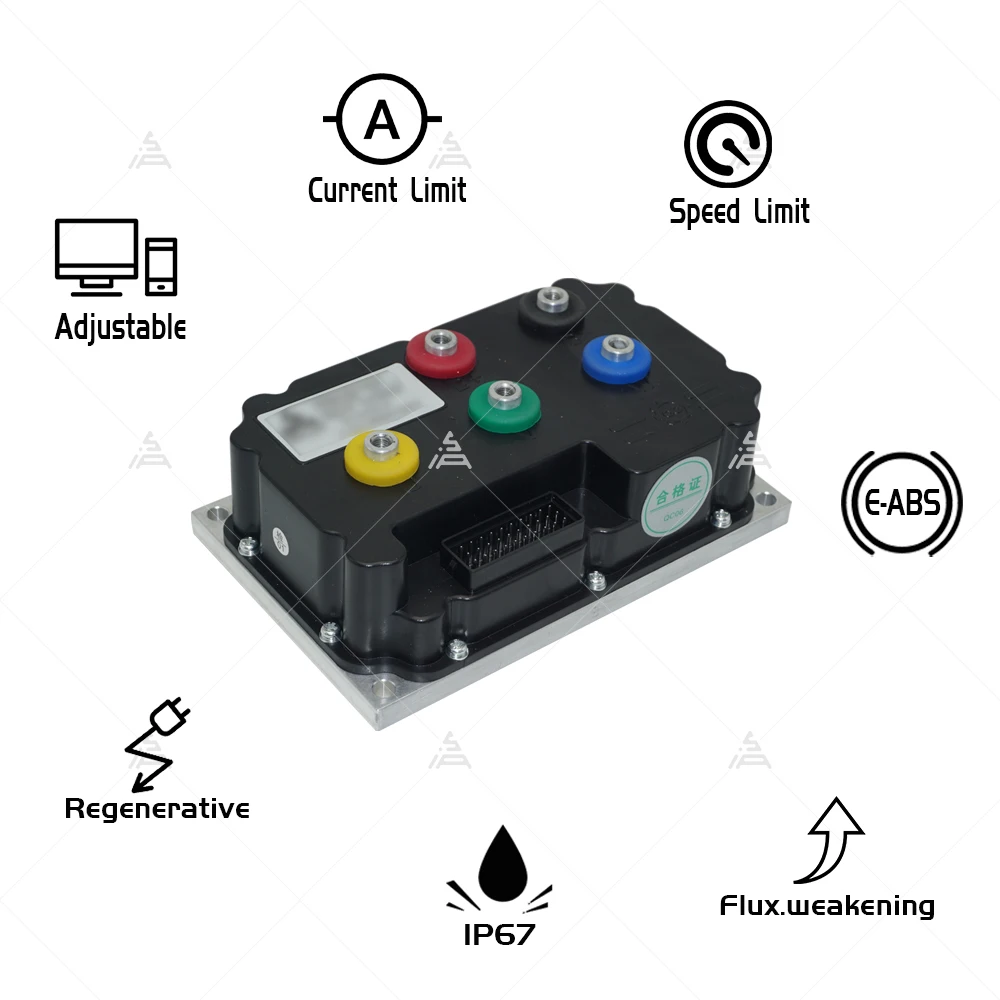

Key Features

1). All the raw materials are imported, using high-performance Moss tube

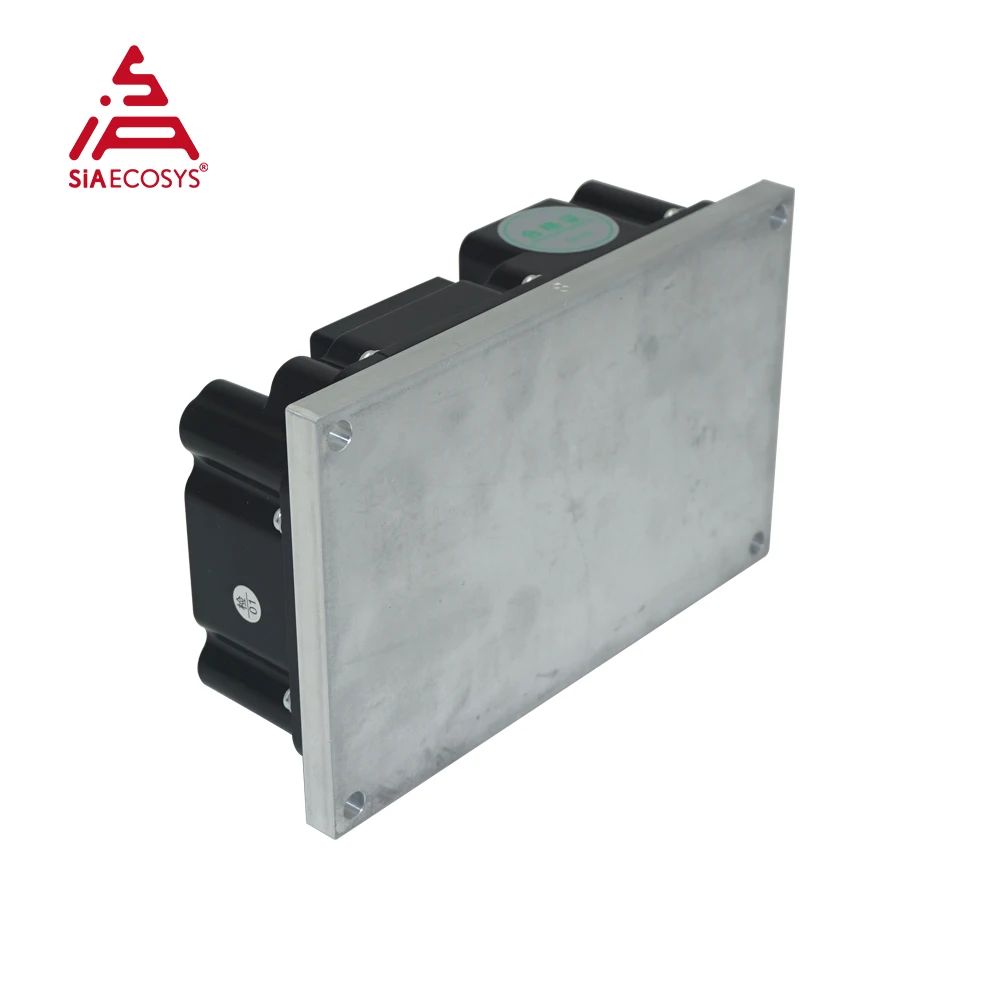

2). With the aluminum substrate scheme, the Moss tube is laid on the aluminum substrate and then placed on the PCB board

3). Small in size

4). High efficiency, low temperature rise, small running current

5). With self-learning function, excellent commonality

6). The app compatible with Android and Apple

7). With flux weakening function.(The product does not contain magnetism)



Product Description

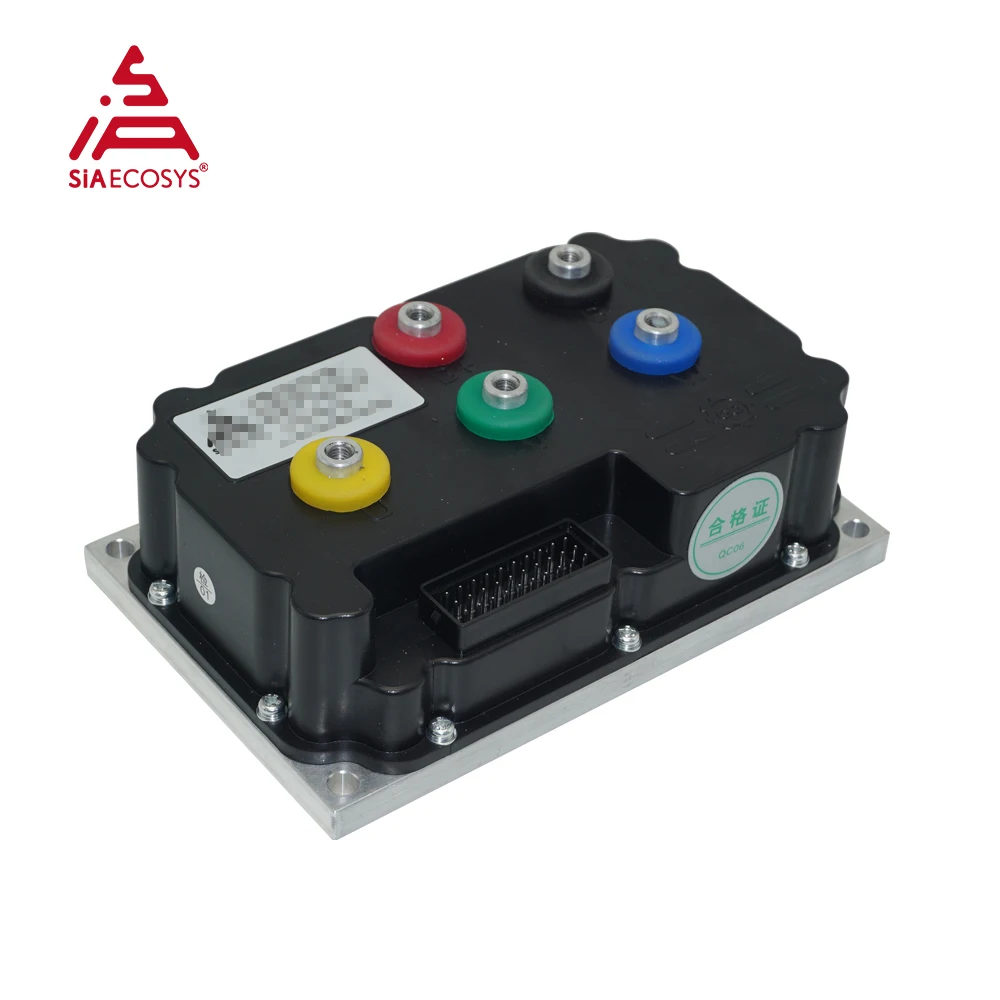

ND72530 and ND96530 are sine wave controller with waterproofing grade IP67, suit for 6-8kw motors.

For ND72530,  the peak voltage is 88V

For ND84530,  the peak voltage is 100V

For ND96530,  the peak voltage is 115V and the mosfet inside more resistant to temperature than ND72530 and ND84530.

It’s hall version (as default) which suit with hall motors.

It could also support encoders, please check with sales.

Drawing



Adapter Cable

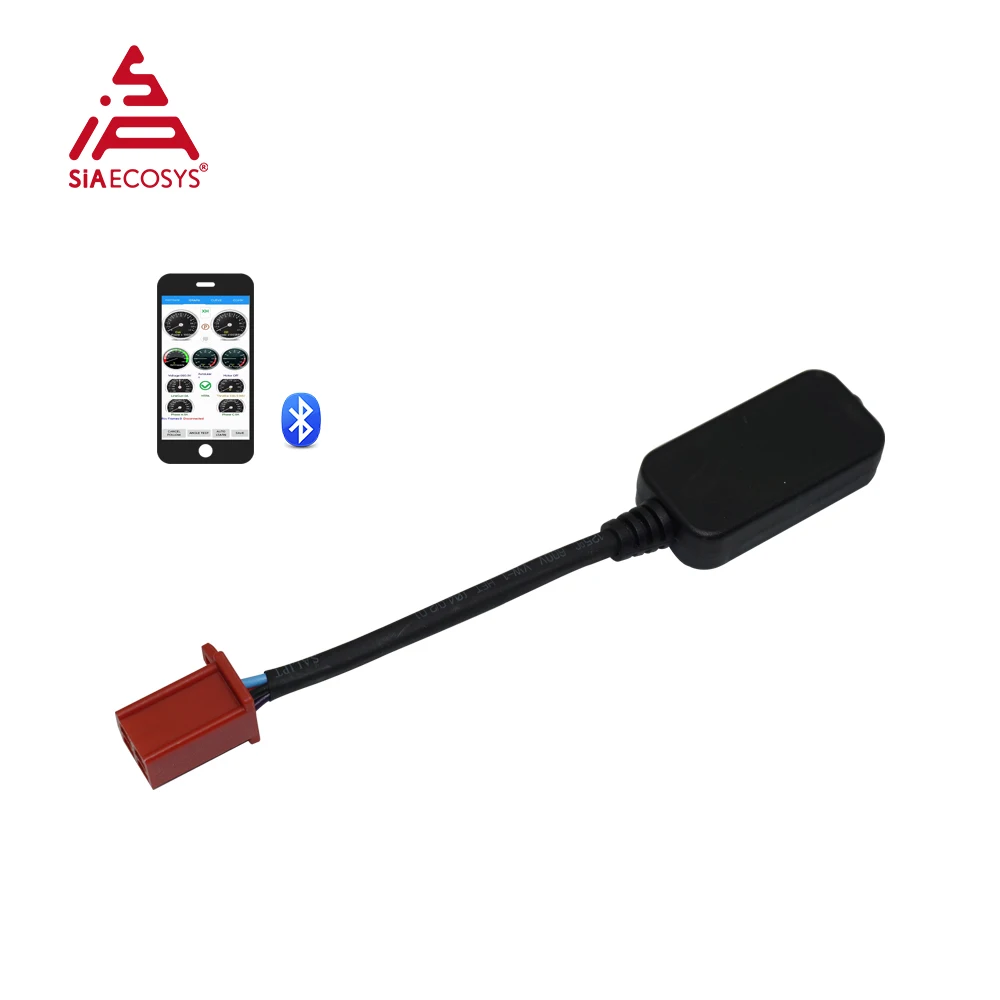

Blue-tooth

Software interface(APP)



Programmable Software & User manual (Before you received the controller)

Pls. Contact with sales to get the link and password to download the manuals and software before/when you got the controllers.
