Price:$820.00 - $880.00

Quantity:


Product Overview

Description



Product Description

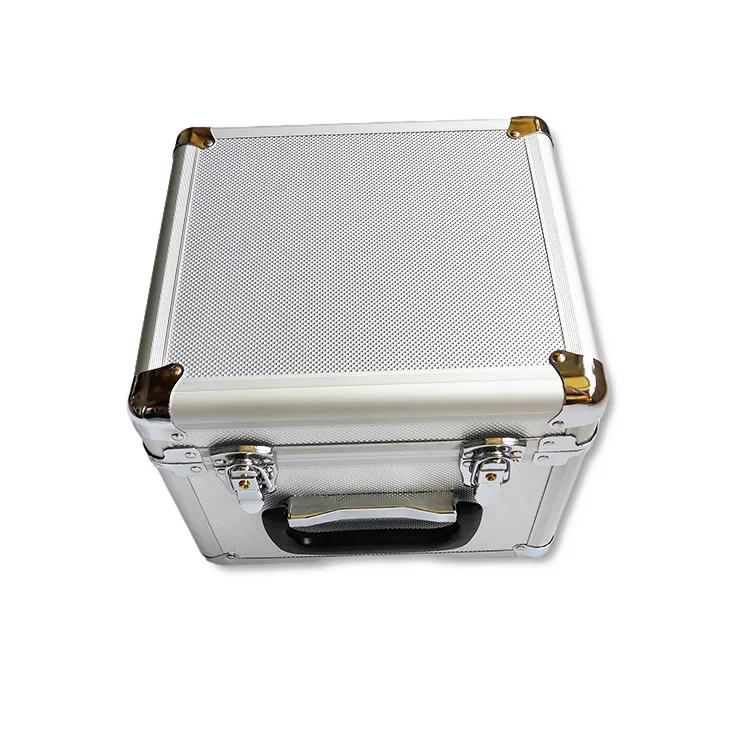

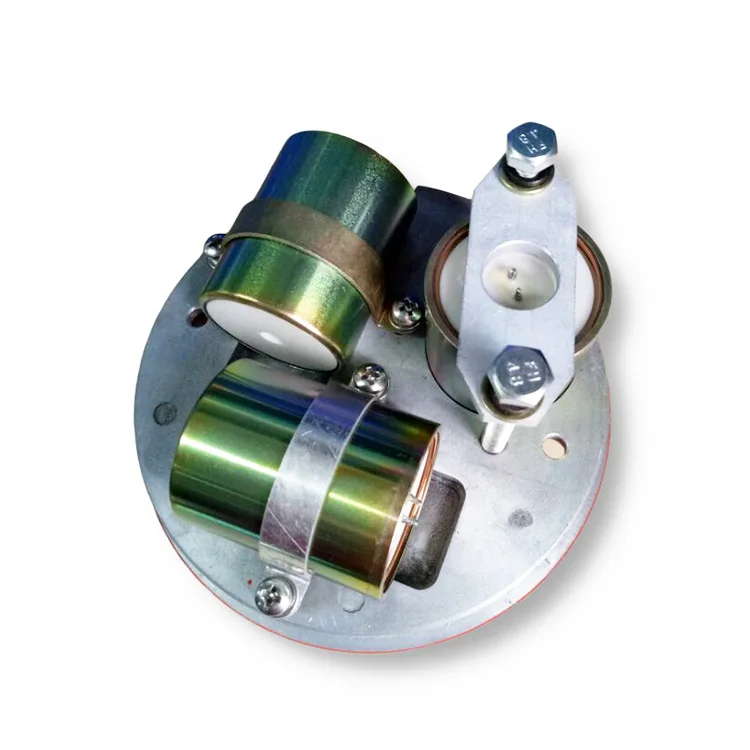

3C Geophone 2Hz EG-2-I in metal land case terminated without Connector
The geophone 2Hz has good parameter consistency, firm mechanism, good tightness, high sensitivity, low distortion, reasonable damping coefficient, and high resolution, which can meet the requirements of multiwave component seismic data acquisition technology.

Working frequency bandwidth ：2Hz - 200 Hz

The Seismic geophones 2Hz are mainly used for deep seismic surveys, advanced predictions, natural seismic surveys, pulsating microseismic measurements of bridges, dams, highways and railways, and safety monitoring.

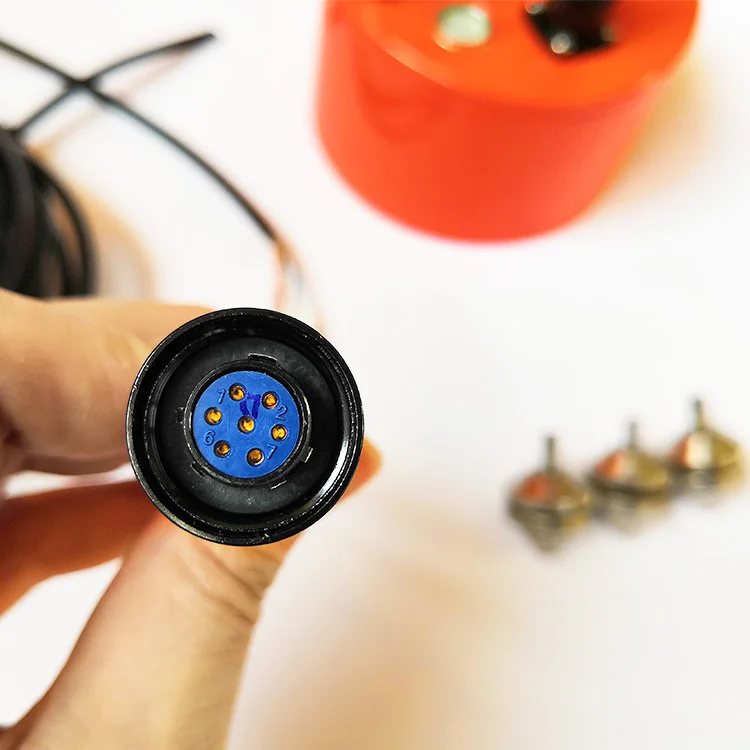

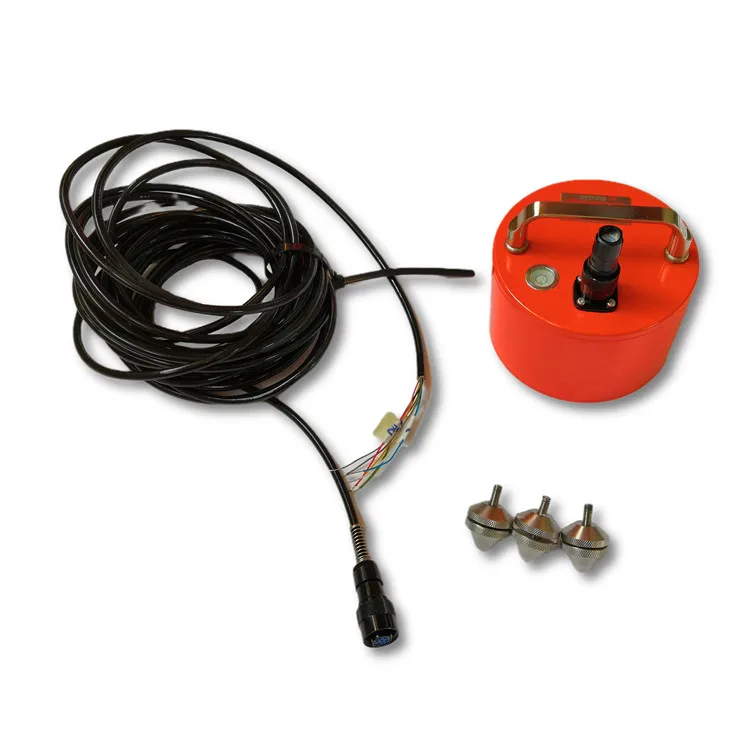

Three Component Geophone 2Hz EG-2-I , Equipped with One connecting connector on geophone and Another connecting connector on connecting cable, The other side of connecting cable is kept open.




Specification


All parameters specified here in are rated at a temperature 20℃±2℃ .


Type
EG-2-I
Natural Frequency ( Hz )
2±10%
Sensitivity (v/m/s)
200±10%
Coil Resistance/ Rc(Ω)
6040±5%
Internal Resistance/ R（Ω）
5800±5%
Damping Coefficient Bt
0.7±10%
Harmonic Distortion D ( % )
≦0.2
Insulating Resistance Ri (MΩ)
≧20
Coil’s Maximum Displacement /P-P (mm)
3
Suspension Mass（g）
60
Element Diameter (mm)
38.5
Element Height (mm)
47
Element Weight (g)
250
Working Temperature（℃）
-25℃ to +55℃


Recommend Products




Company Profile






Tcherb Inc ( EGL) is a professional geophone supplier which located in China, with the aim to integrate separated resources and supply our clients with all around Geophone / Geophysical Products and related services. All the founding partners of EGL have experiences of over 20 years' in the field of Geophone production / Geophysical services with education background of PHD, Master or Geophysics Undergraduate Degree.

We are a professional supplier for Geophysical Equipment, Geological Instrument and related Cables, Spare Parts, such as ( but not limited to) geophone sensor, three component geophone, single seismic geophone, geophone string, hydrophone, geophysical connector & plug, seismic cable, telemetry cable, resistivity cable, cable take-outs.

All the products supplied by EGL are strictly produced as per Quantity Control System ISO9001:2008, API Specification Q1 and HSE. EGL also provide global logistics solution for every shipment including transportation by Sea, by Air and by Courier Express. During the past years, EGL has established stable business relationship with our Clients in US, Canada, Colombia, Chile, Peru, Brazil, UK, Germany, Saudi Arabia, UAE, Pakistan, India, Indonesia, Australia.


Packing & Delivery




Shipment
DHL ,UPS , FedEx , By Air , By Sea
MOQ
1 set
Advantage
Fast shipping

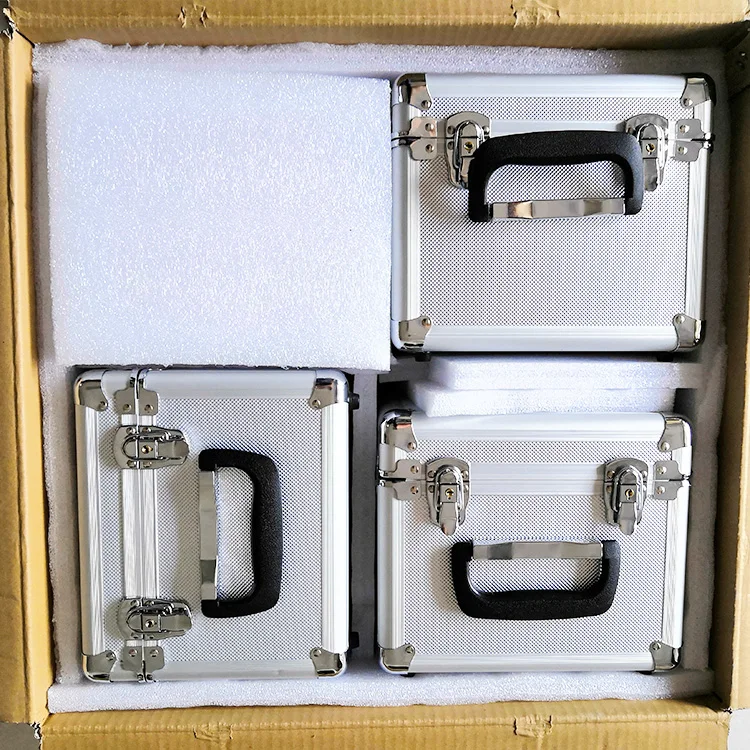

Package
Packed by carton
Payment
Bank Transfer, Paypal, Western Union, Alibaba Pay
