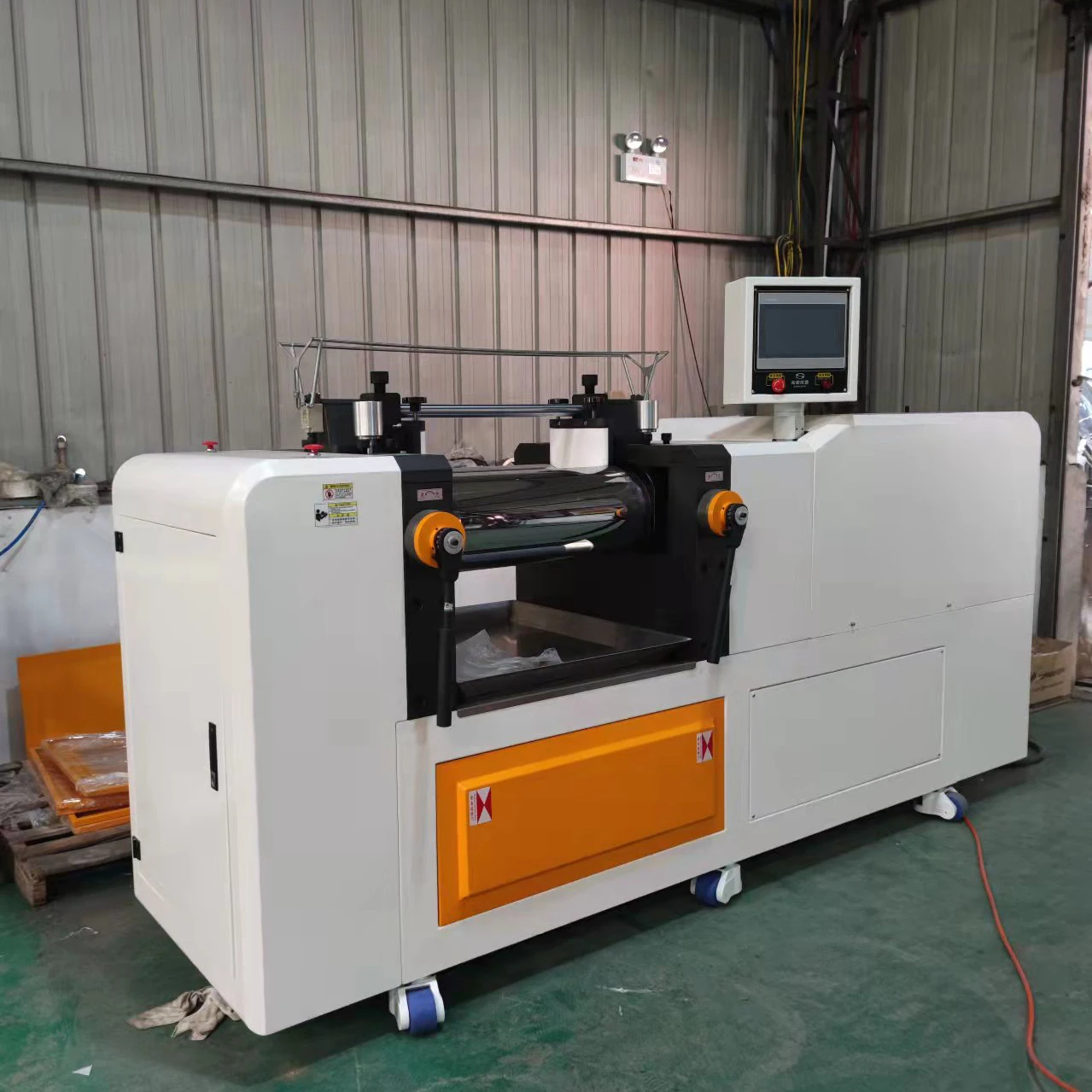

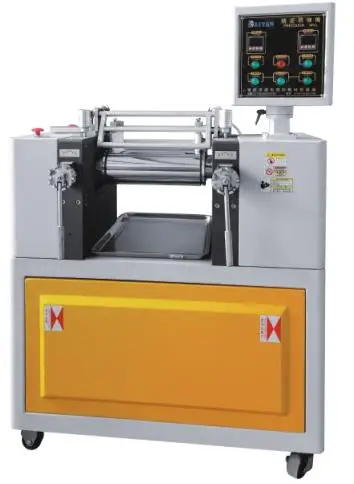

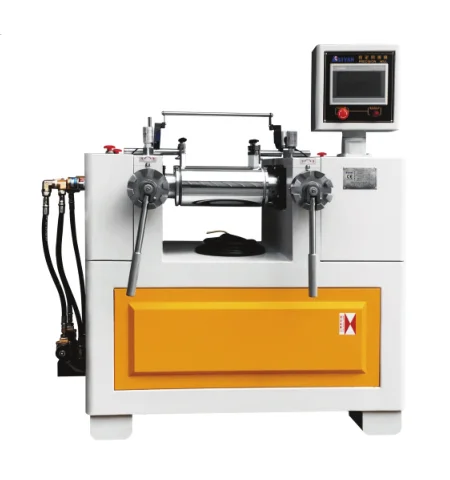

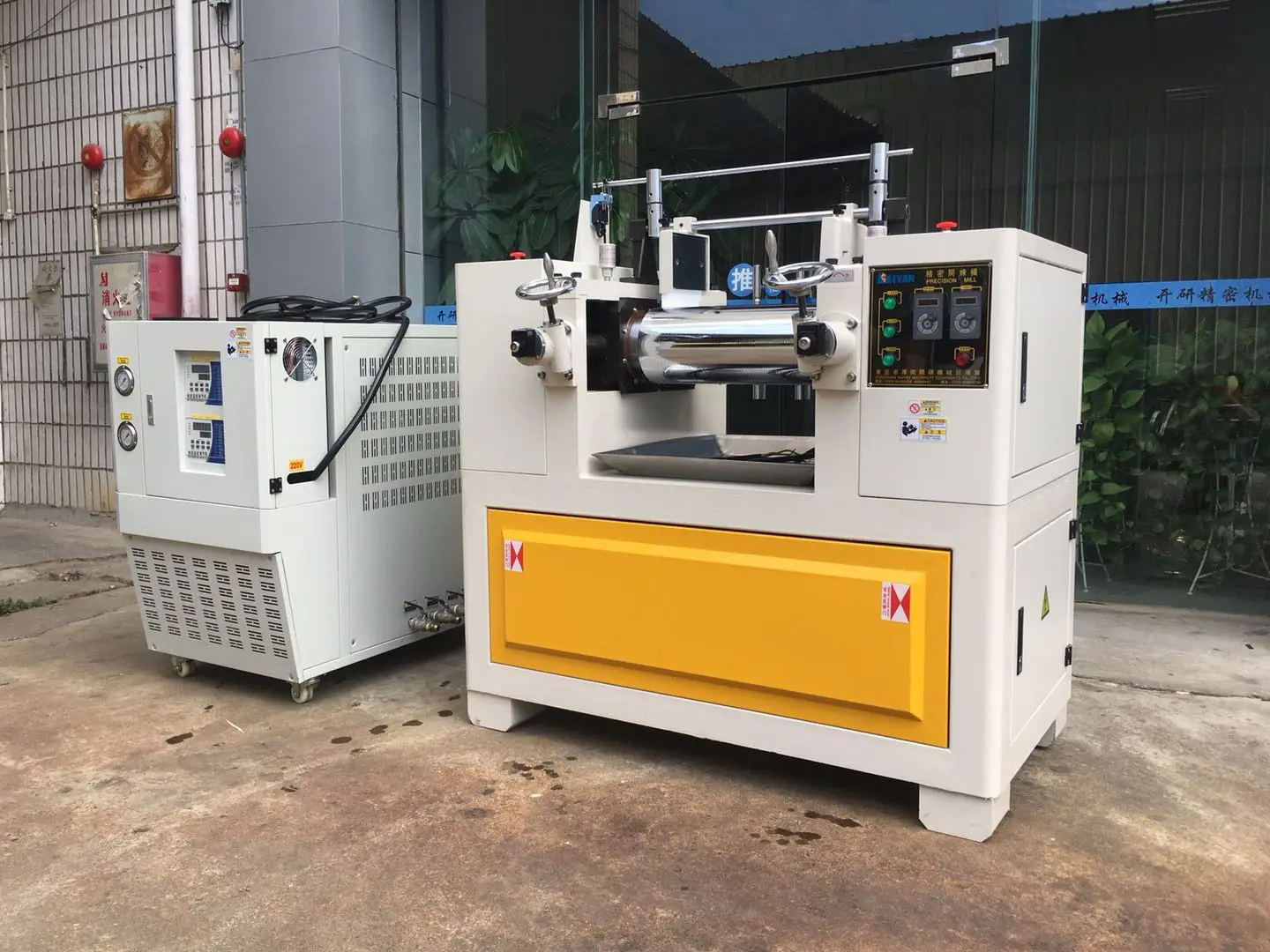

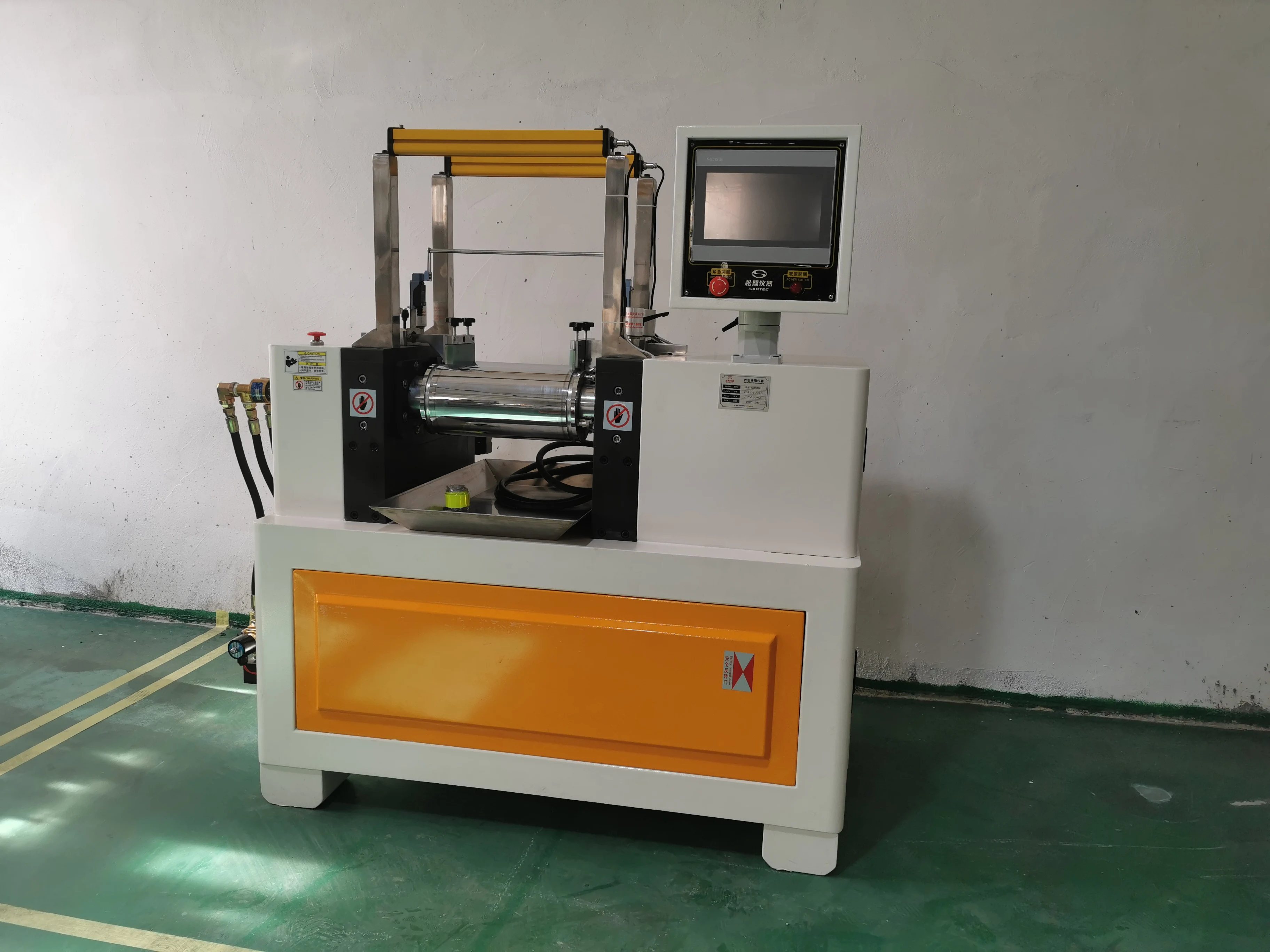

High quality Two roller Open mixing mill Rubber/ Plastic Open mill Open Mill Water Cooled Small batch production
High quality Two roller Open mixing mill Rubber/ Plastic Open mill Open Mill Water Cooled Small batch production
High quality Two roller Open mixing mill Rubber/ Plastic Open mill Open Mill Water Cooled Small batch production
High quality Two roller Open mixing mill Rubber/ Plastic Open mill Open Mill Water Cooled Small batch production
High quality Two roller Open mixing mill Rubber/ Plastic Open mill Open Mill Water Cooled Small batch production
High quality Two roller Open mixing mill Rubber/ Plastic Open mill Open Mill Water Cooled Small batch production
High quality Two roller Open mixing mill Rubber/ Plastic Open mill Open Mill Water Cooled Small batch production

High quality Two roller Open mixing mill Rubber/ Plastic Open mill Open Mill Water Cooled Small batch production

Share on (1600547876802):


Price:

Quantity:


Product Overview

Description



Details Images




PRODUCT SPECIFICATIONS


No
Item
Data
No
Item
Data
1
Model Numbe
KY-3203C-250
10
Place of Origin
Guandong,China
2
Main motor power
22 KW
11
Dimension(L*W*H)
3.05*1.05*1.95 m
3
Heating power
13 KW
12
Weight (KG)
3000 Kg
4
Heating mode
Oil heating/Electric heating
13
Voltage
380V/220V
5
Cooling mode
Water cooling
14
Warranty
1 year
6
Roller size
250*620
15
Roller hardness
HRC 50-60
7
Application type
Production and Lab type
16
Production cycle
2 months
8
Temperature accuracy
±1℃
17
Roller spacing
0.1-5 mm (Adjustable)
9
Core Components
PLC,Mostor,
Heating system
18
Certification
CE
ISO 9001
PS：
   The specifications shown are the minimum dimensions.
   For other dimensions, please contact customer service to provide detailed specifications.


FEATURES AT A GLANCE


Product description
This product is a device for mixing the test materials and ingredients evenly,and is equipped with a colorful touchable screenPLC program .All parameters can be set and controlled on the PLC programmable colorful touchable screen .


Products Description


Application
It is suitable for universities, scientific research institutes, and enterprises.



Typical application:
1、Mixing,color test and performing of rawterials ;
2、Color preparation ;
3、Hardness test ;
4、Testing of a variety of special ingredients ;
5、Production in small quantity.


Production Workshop




Successful Project


Vietnam customer bill of lading
Taiwan customer bill of lading
Taiwan customer bill of lading


Our Services
1、 Reply your inquiry in 24 working hours. Reply your inquiry in 24 working hours.
2、Provide professional guidance online.
3、Free accessories during the one-year warranty.
