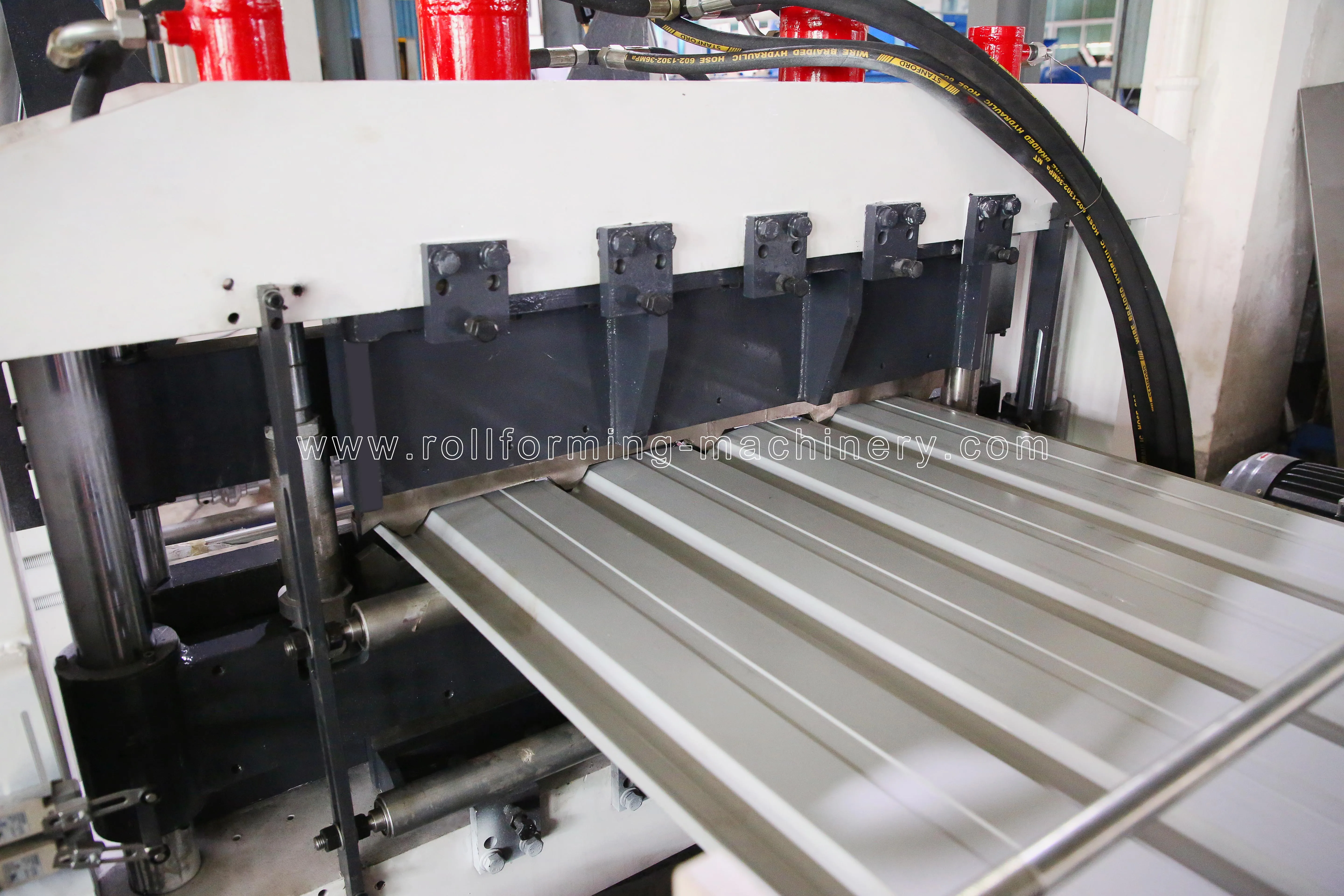

Colorful Corrugated Sheet Making Double Layer Roll Forming Form Metal Roof Machine
- Category: >>>
- Supplier: Xiamen Bms Group
Share on (1600548903875):
Product Overview
Description
Product Description
| Product Name | Double Layer Rooffing Roll Forming Machine | |
| Material | Applicable material | GI(Galvanized Steel Sheet)/PPGI/PPGL |
| Material thickness | 0.25-0.8mm | |
| With yield strength | 235-345-550Mpa Yield Strength | |
| Machine | Base frame | H450 type steel |
| Roller material | 45# steel with hard chrome coating | |
| Hardness | Heat treatment to HRC52-58 degree | |
| Roller station | 20/20steps to form | |
| Shaft diameter | 80mm/ 75mm | |
| Machine size | 10000*2000*2000mm | |
| Machine weight | 10tons | |
| Machine color | 2.Blue(RAL5015)+ orange (RAL2004), as per the seller factory’s color standard | |
| Working speed | 15m/min | |
| Cutter | Hardness | Heat treatment to HRC58-62 degree |
| Cutting tolerance | ≤±1mm | |
| Material | Cr12MoV(= Z200C12 with at least one million times of cutting life) | |
| Operate | By PLC | |
| Power | Driving way | Gear/Sprocket transmission, |
| Main motor | 7.5-11KW | |
| Pump motor for cutter | 3-4kw | |
| Voltage | 220/380/415/480V- 60/50Hz/3Ph --should be confirmed | |
| PLC Control System | Inverter | Schneider Electric/Siemens/DELTA (Taiwan brand) |
| Touch screen | Schneider Electric/Siemens/WEINVIEW(Taiwan brand) | |
| Encoder | OMRON (Japan brand) or KOYO (Japan brand) | |
| Cut-to-length tolerance | ≤±1mm | |
| Control voltage | 24V | |
| Automatic Stacker and Printer | Options | |
| Features | If factory space is limiting your company’s prospects for growth, this Double Layer Roll Forming Machine is the best solution to get more out of your premises with the help of its multi profile lines. | |

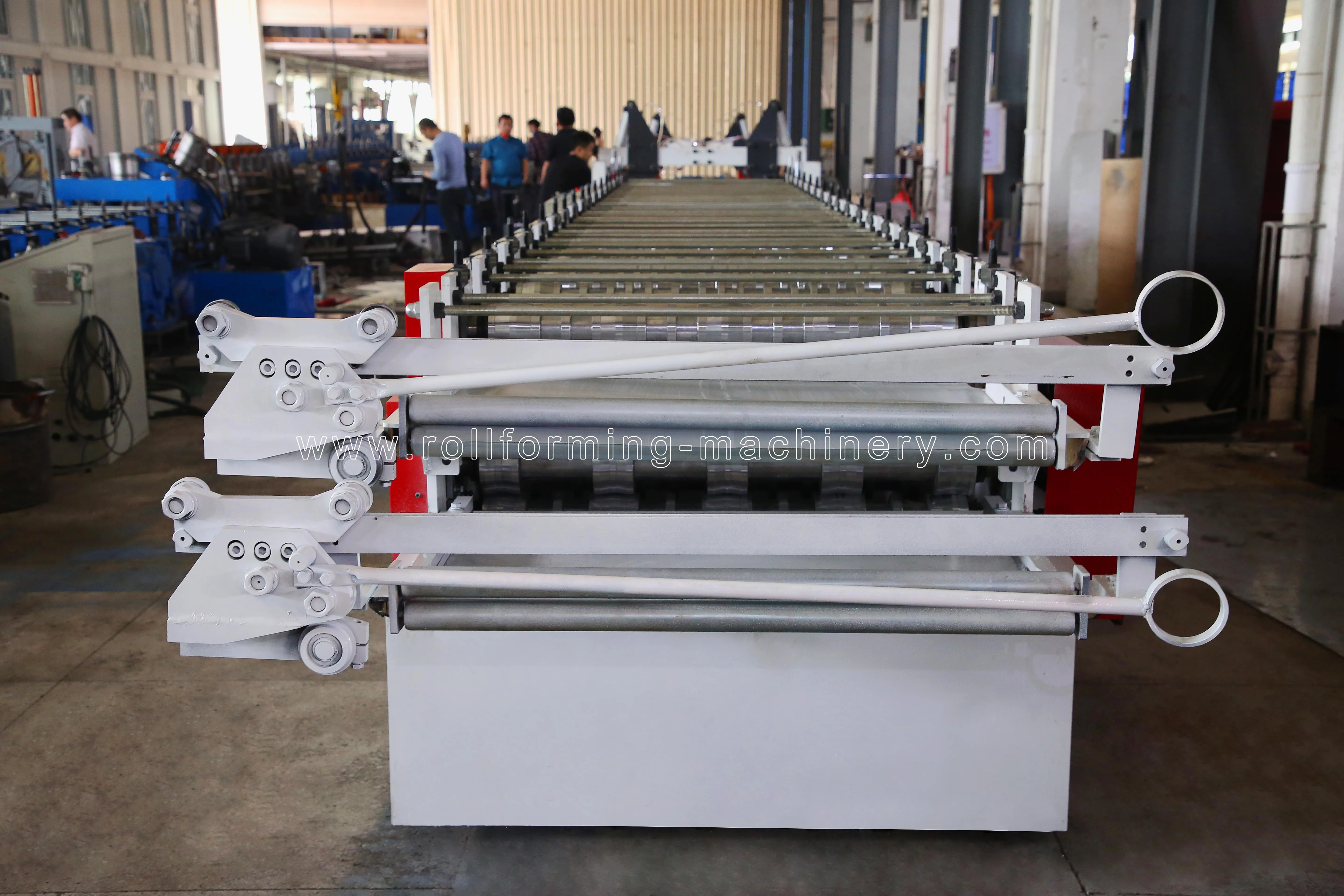

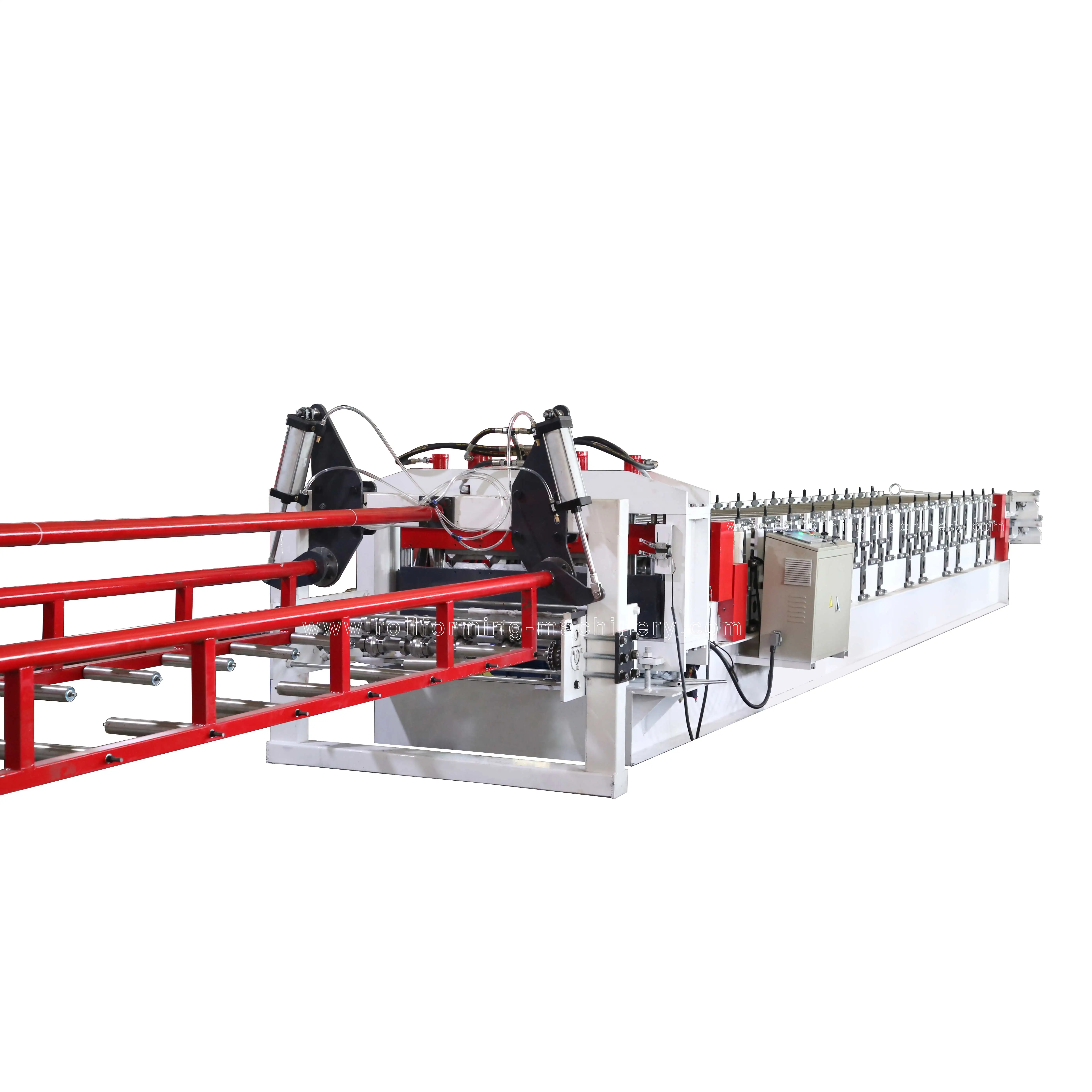

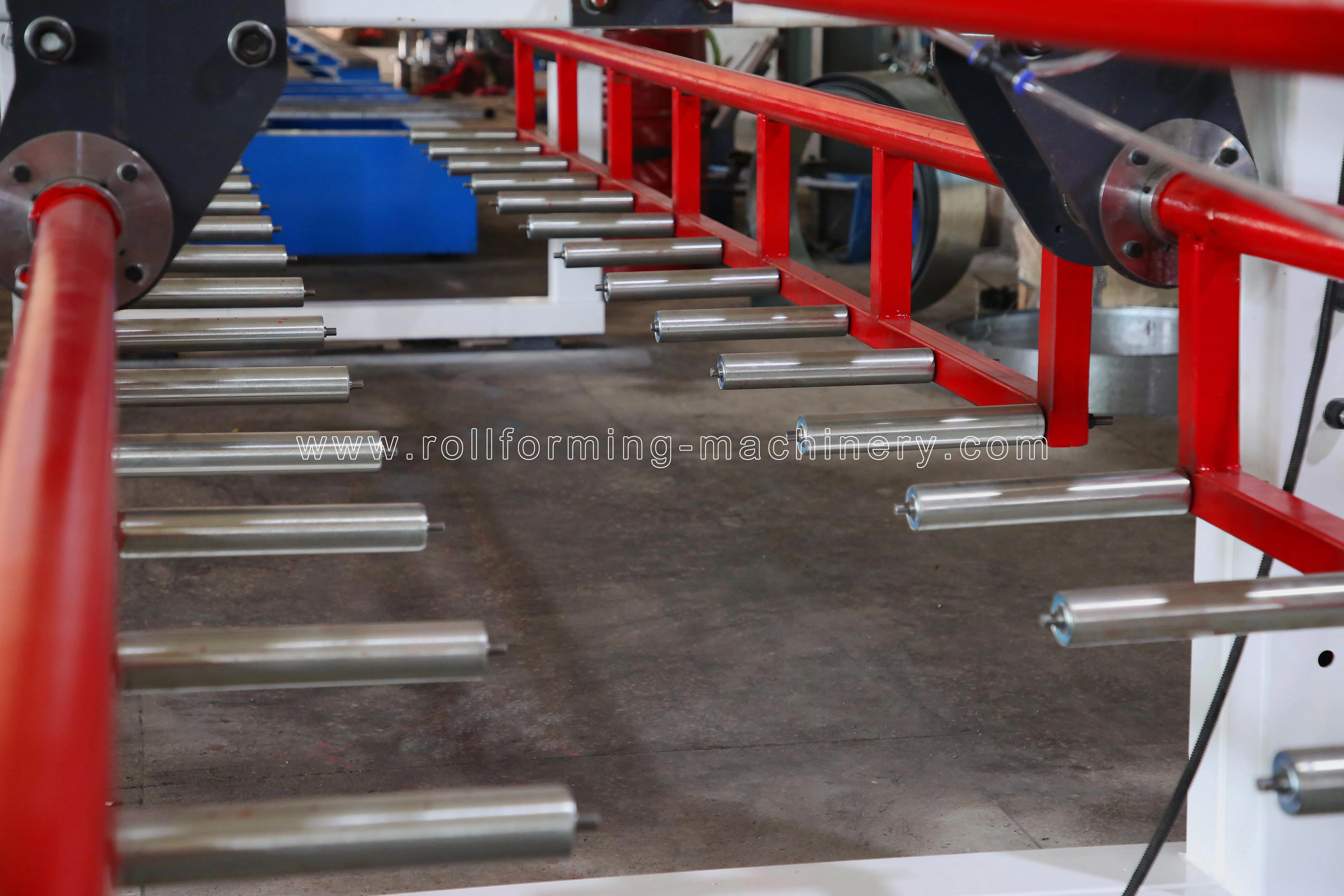

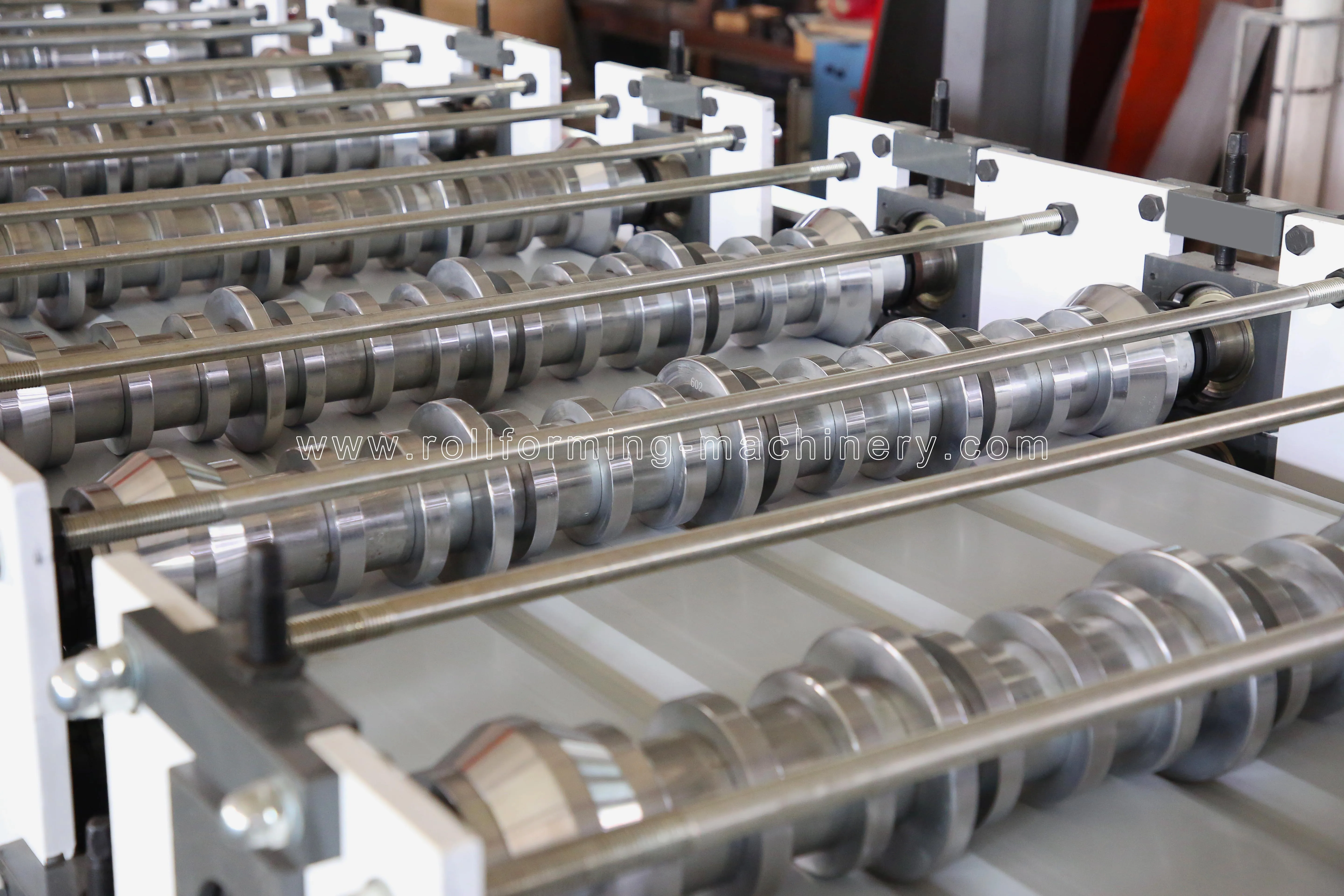

Product Show

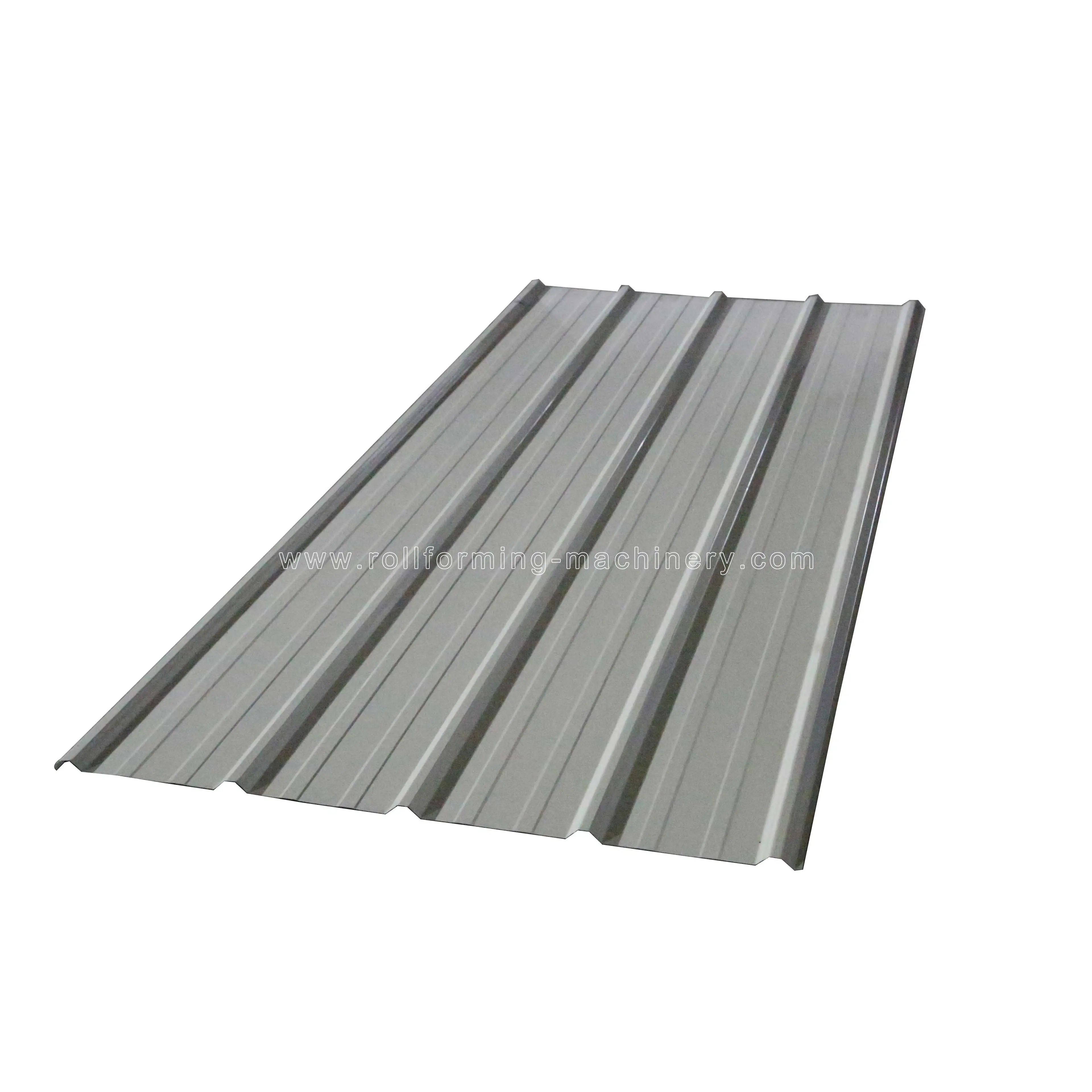

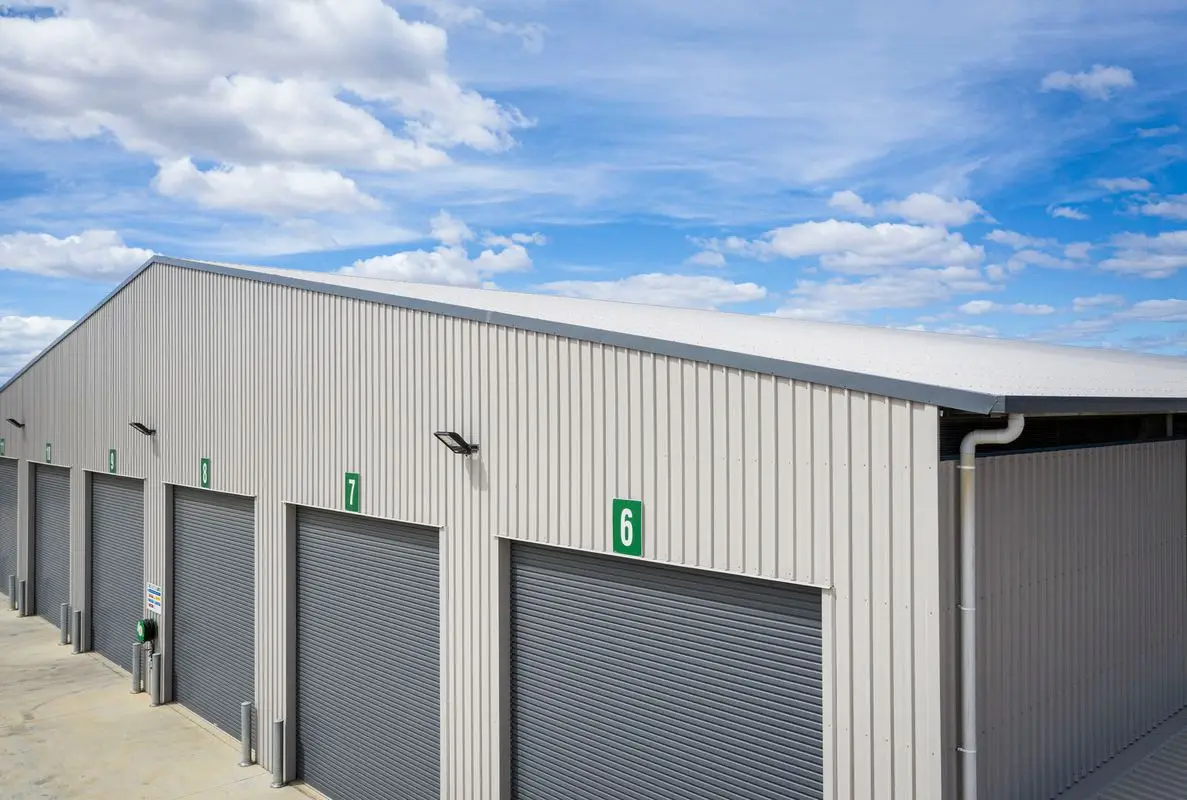

Profile Drawing
![BV7~B57H%]0V_%6I47CDAT7.jpg](http://sc03.alicdn.com/kf/Hb356cea97b9c432faa19711a552ee17c1/225590597/Hb356cea97b9c432faa19711a552ee17c1.jpg)
