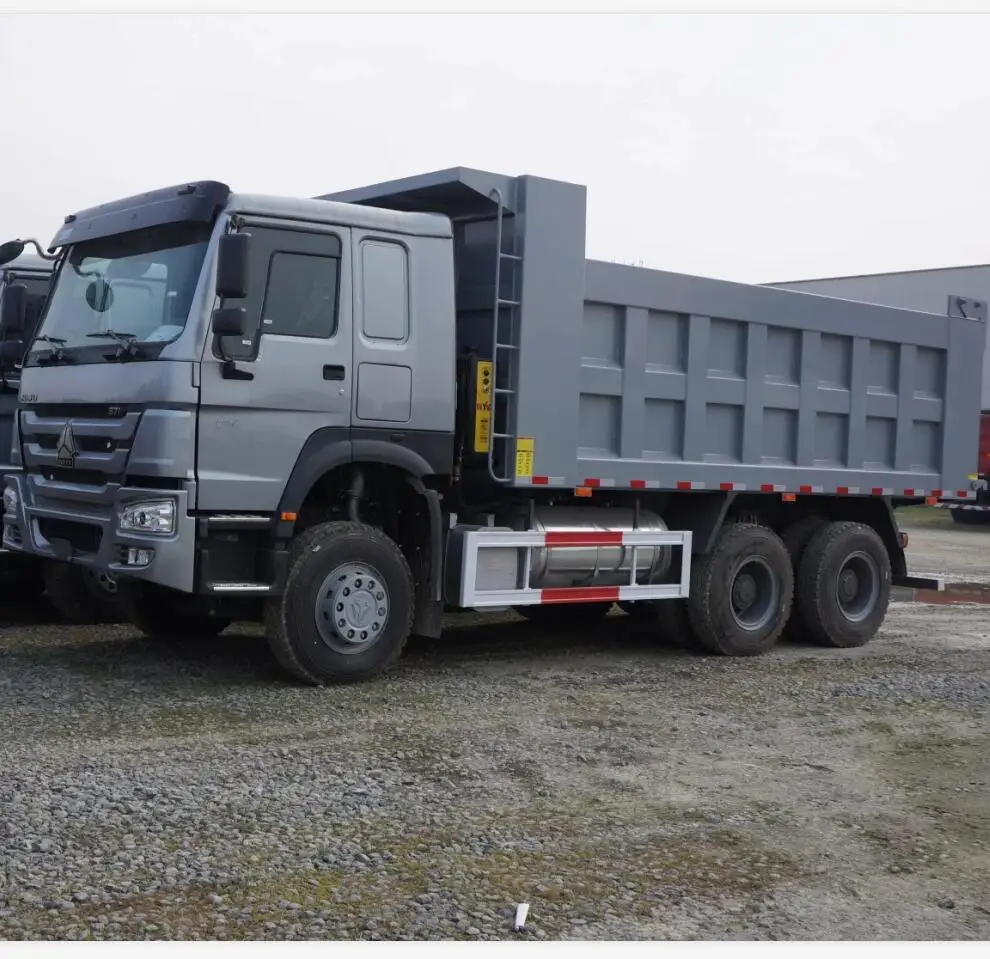

Sinotruck Flatbed Dump Truck Howo Tipper Mining Dump Truck Mining Haul Truck
- Category: >>>
- Supplier: Sinotruk Hubei Huawin Imp. & Exp. Co. Ltd.
Share on (1600549057950):
Product Overview
Description
Product Overview
What does dump truck mean?
An automotive truck for the transportation of bulk material that has a body which tilts to dump its contents.
a large truck for transporting heavy loads, with a back part that can be raised at one end so that its contents fall out
FEATURES AT A GLANCE
1. Strong power,China famous brand engine
2. Comfortable driving
3. Thicken and heighten cargo body,large capacity and more durable
4. Safety: ABS, air brake
3. Thicken and heighten cargo body,large capacity and more durable
4. Safety: ABS, air brake
This model can meet the requirements of severe environment like construction site and mining zone.
Right elevation
Left elevation
Front elevation
1. The truck can work under the temperature from 41C to + 46C day and night, elevation up to 5000m high. The options for the truck are ABS system, concentrated lubricating system, hydraulic windlass, etc.
2. The cab of HOWO series off-road vehicle is four-point suspended and installed the domestic originally created horizontal stabilizer for cab as well as strong protector frame to prevent front striking Thus the cab has been thought of the safest domestic cab by specialists.
3. Equipped with such advanced parts as CNHTC WD615 series Euro-l/ Euro lll turbine turbocharged inter-cooled diesel engines, power ranging from 266hp to 300hp, CNHTC transmission, with FULLER transmission for alternative,ZQC1200 transfer case, strengthened drive axle, WABCO brake system and exported ZF8098 traversing mechanism.
4. Tough chassis for bad working conditions. Front tipping and middle tipping to meet different dump box size.
2. The cab of HOWO series off-road vehicle is four-point suspended and installed the domestic originally created horizontal stabilizer for cab as well as strong protector frame to prevent front striking Thus the cab has been thought of the safest domestic cab by specialists.
3. Equipped with such advanced parts as CNHTC WD615 series Euro-l/ Euro lll turbine turbocharged inter-cooled diesel engines, power ranging from 266hp to 300hp, CNHTC transmission, with FULLER transmission for alternative,ZQC1200 transfer case, strengthened drive axle, WABCO brake system and exported ZF8098 traversing mechanism.
4. Tough chassis for bad working conditions. Front tipping and middle tipping to meet different dump box size.
PRODUCT SPECIFICATIONS
Truck Chassis | Driving type 8x4, LHD | ||||||

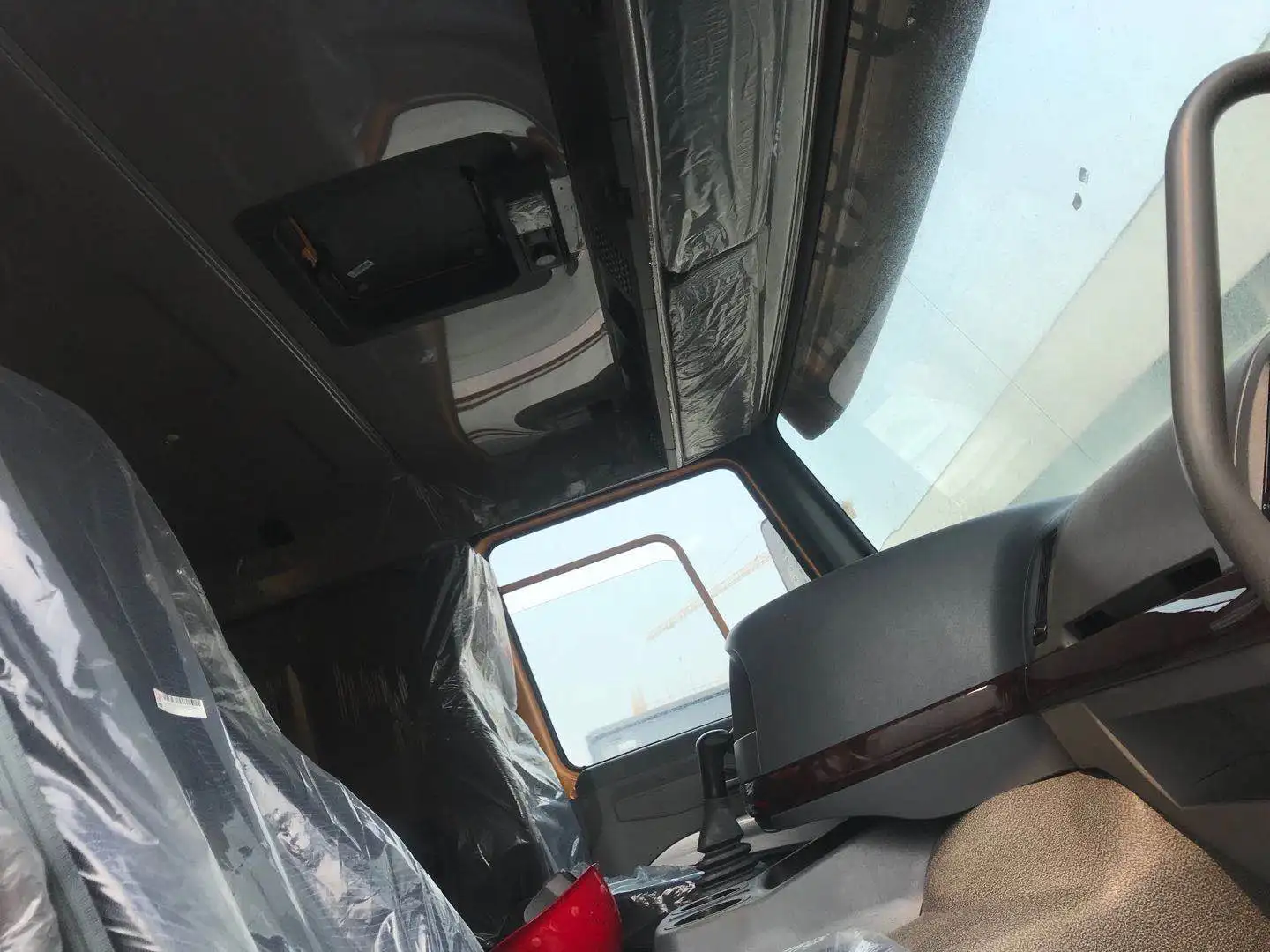

Cabin | A7-V luxury cab, high-roof cabin, with T7 mask, with two seats and two beds and air conditioner as attached photo for ref. | ||||||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 11500x2496x3800 | |||||
Wheel base (mm) | 1800+4625+1350 | ||||||
Weight in KGS | Tare Weight | 15980 | |||||
Front axles loading capacity | HF9, 2x9000 | ||||||
Rear axles loading capacity | HC16, 2x16000 | ||||||
Total loading capacity | 35000 | ||||||
Engine | Brand | SINOTRUK | |||||
Model | D12.42-40 | ||||||
Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||||||
Horse Power(HP)/(RPM) | 420HP | ||||||
Emission standard | Euro 2 | ||||||
Gearbox | HW19712, 12 forward & 2 reverse | ||||||
Clutch | Reinforced diaphragm clutch 430 | ||||||
Steering Gear | ZF, power steering, hydraulic steering with power assistance from Germany | ||||||
Water brake | One set of manual water brake, 200L | ||||||

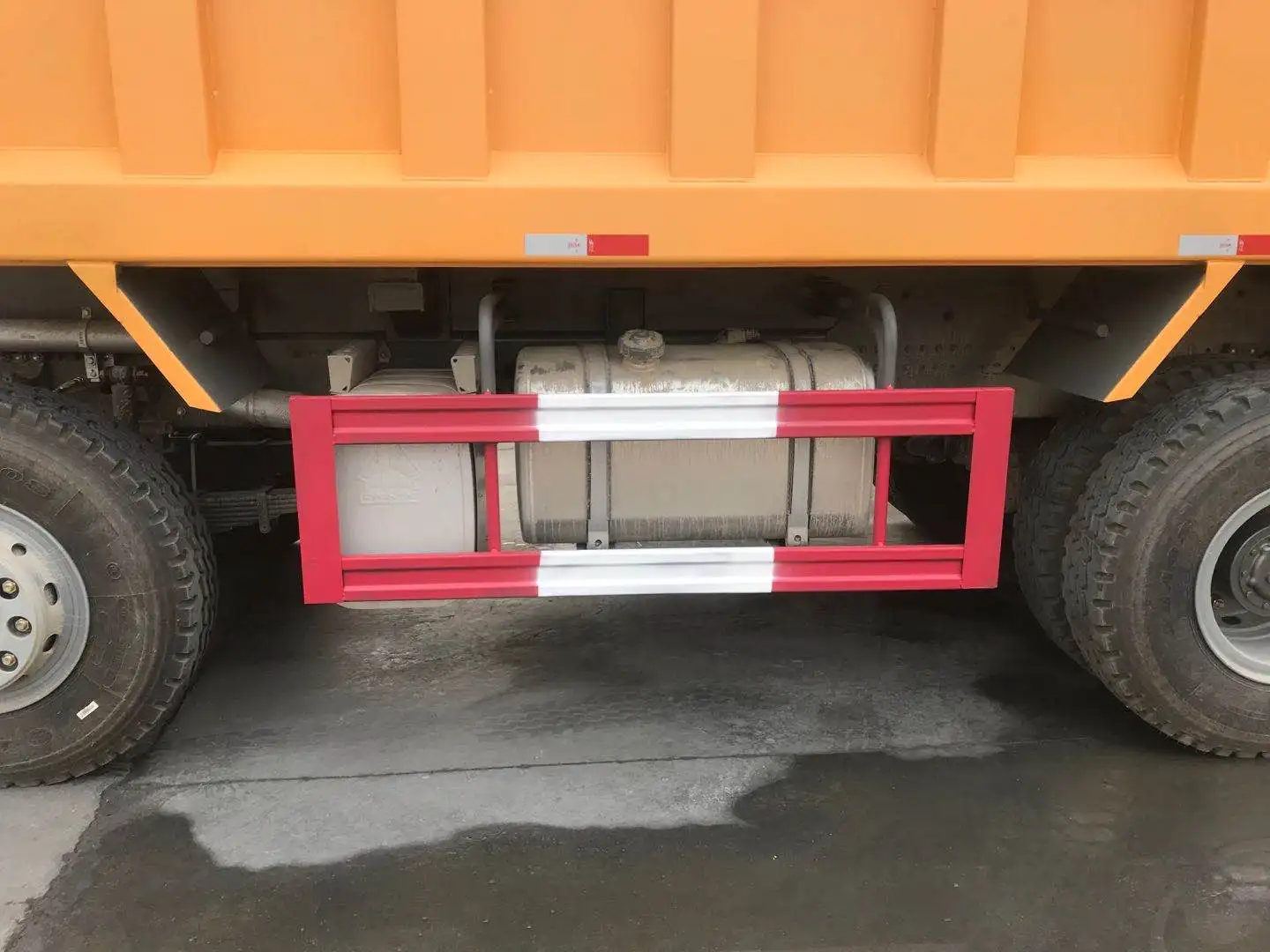

Fuel tank (L) | 300L | ||||||
Tire | 12.00R20 steel tire, 13pcs including one set spare tire | ||||||
Dump body | Dimension(L x W x H)mm | 8500x2300x1800 | |||||
Thickness | Floor 8mm, side 6mm | ||||||
Steel | Q235 high strength steel | ||||||
Shape | Square shape | ||||||

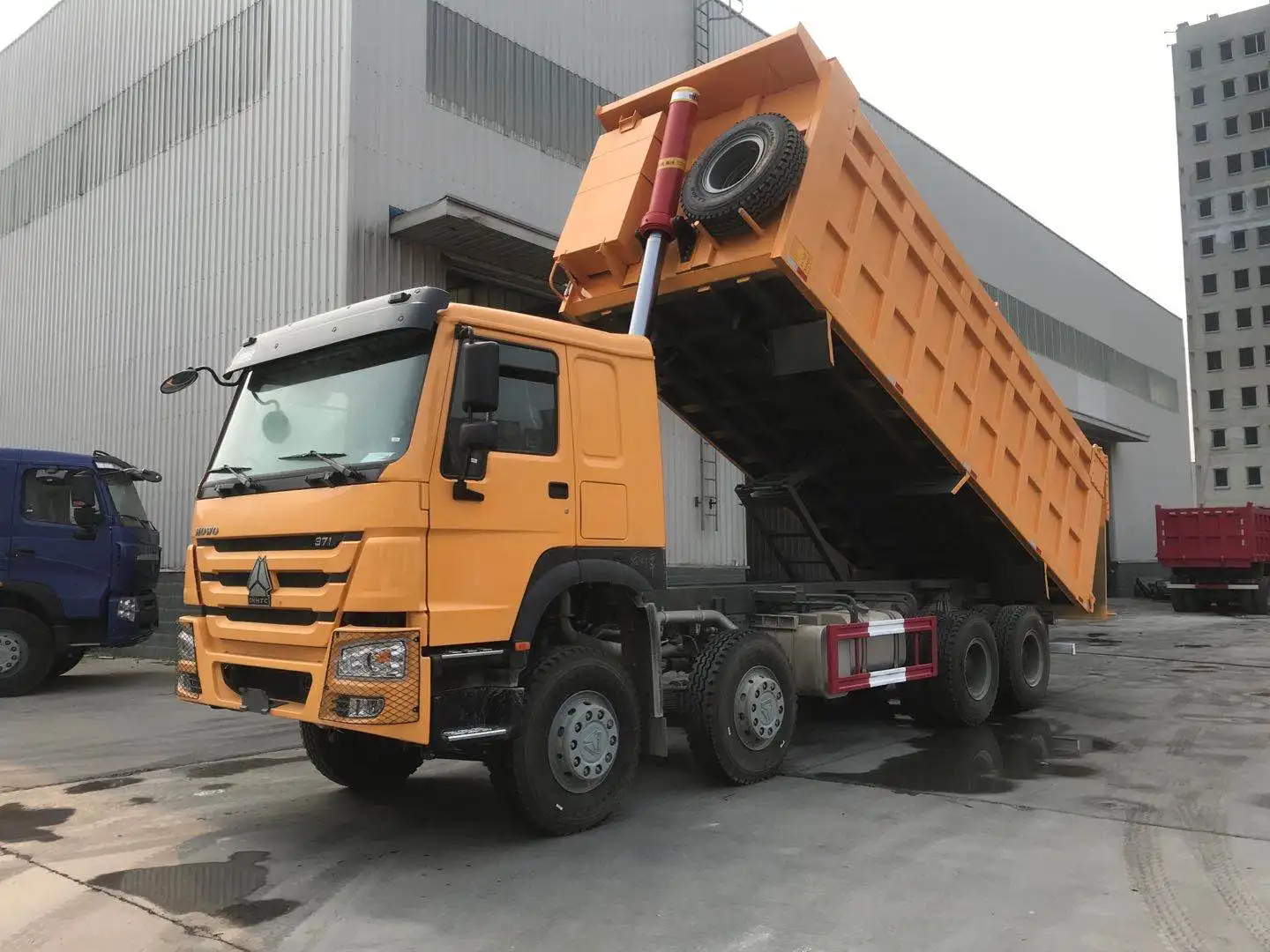

Hydraulics | Tipping Type: Front tipping, HYVA brand hydraulic system 191 | ||||||
SIMILAR PRODUCTS

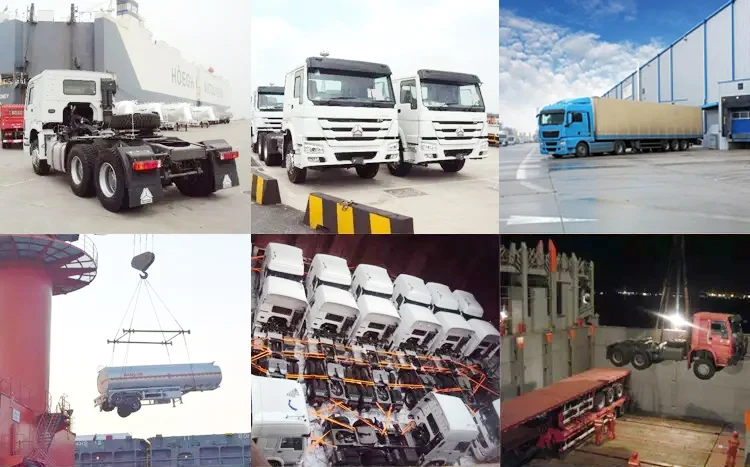

Shipment & Delivery
Company Profile

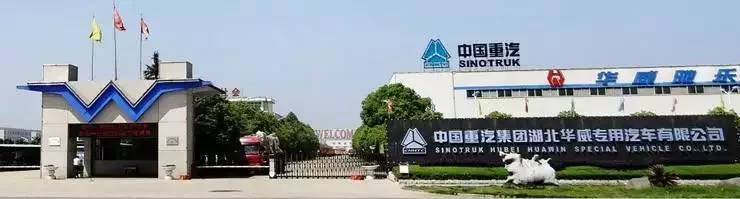

SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the No. 1 for exporting, specialized in the
researching, developing and manufacturing of heavy trucks and related key parts.
Now SINOTRUK has 6 truck production factories, 2 engine factories, 2 gearbox factories, 1 axle factory, and cooperated with other international company (STEYR, Germany MAN). MAN introduce its all series products and core technology through SINOTRUK.
WE, SINOTRUK HUAWIN, is SINOTRUK branch factory, located in Hubei Province, professional in producing different special vehicles, with annual capacity is over 20 000units of all kinds special trucks.
SINOTRUK includes: cargo truck, tractor truck, dump truck, concrete mixer, tanker truck, special purpose truck, garbage truck, tank truck, crane truck, flat bed semi trailer etc.
researching, developing and manufacturing of heavy trucks and related key parts.
Now SINOTRUK has 6 truck production factories, 2 engine factories, 2 gearbox factories, 1 axle factory, and cooperated with other international company (STEYR, Germany MAN). MAN introduce its all series products and core technology through SINOTRUK.
WE, SINOTRUK HUAWIN, is SINOTRUK branch factory, located in Hubei Province, professional in producing different special vehicles, with annual capacity is over 20 000units of all kinds special trucks.
SINOTRUK includes: cargo truck, tractor truck, dump truck, concrete mixer, tanker truck, special purpose truck, garbage truck, tank truck, crane truck, flat bed semi trailer etc.
