High efficiency energy saving industrial mobile date center precision air conditioner 17000BTU
- Category: Air Conditioners >>>
- Supplier: Changzhou Chen Tong Yuan Communication Equipment Co. Ltd.
Share on (1600550735725):
Product Overview
Description
Product Description
High efficiency energy saving industrial mobile date center precision air conditioner 17000BTU

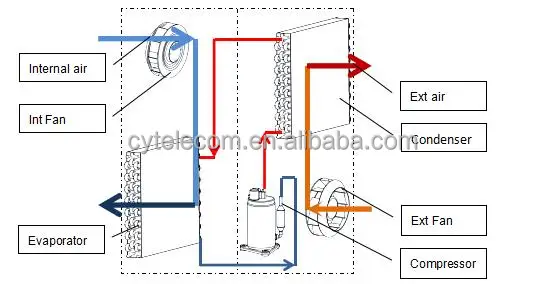

Mobile data center air conditioner is actively cooling with compressor, and it will remove the heat inside date center to outside. It also can keep the dust and heat outside the data center, avoiding problems from using fan. The inside data center can be maintained at an ideal temperature for electrical components which effectively guarantees the stability of the electronic equipment and improves the reliability of the whole system.
Product Feature
1. This series of products can be widely used for outdoor communication cabinets, battery cabinets, electric cabinets and industry control cabinets etc.
2. The protective level of internal and external circulation is IP55, which can protect cabinet to avoid moisture, dust, water. The air conditioner can also be indoor or outdoor installed.
3. Digital temperature controller and high precision of temperature control.
2. The protective level of internal and external circulation is IP55, which can protect cabinet to avoid moisture, dust, water. The air conditioner can also be indoor or outdoor installed.
3. Digital temperature controller and high precision of temperature control.
Product Paramenters
Name | container air conditioner |
Model | AC5000 |
Mounting Method | Semi-embedded Mounting |
Power Supply | AC220V 50HZ |
Cooling capacity | 5000W@L35/35 |
Power capacity | 1850W@L35/35 |
Max Noise Level | 65dB（A） |
IP Grade | IP55 |
Net Weight | 80kg |
Refrigerant | R134a |
Dimensions | 600*1300*300 (mm, W*H*D) |

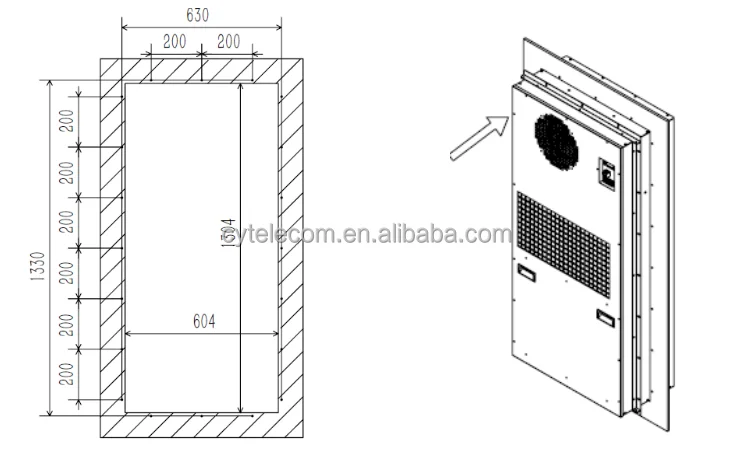

Installation of Air Conditioner
•Please do not use this equipment in hot、dusty、moist or corrosive environment. The ambient temperature should not be high than55℃ and also should not be less than -40℃. The humidity should not be more than 85%. Starting voltage should not be higher or lower than 10% of the rated voltage.
• Place the air conditioner on the cabin and screw the air conditioner on the edge of the cabin.
•Make sure that the air conditioning drainage is smooth and that the pipe exposed outside the wall should not be raised or bent to avoid affecting the drainage.
•Do not upside-down, over-tilt and collision when handling or moving the equipment
•Installation and electrical wiring of the equipment must be operated strictly by professionals in accordance with the relevant provisions of this manual.
• Place the air conditioner on the cabin and screw the air conditioner on the edge of the cabin.
•Make sure that the air conditioning drainage is smooth and that the pipe exposed outside the wall should not be raised or bent to avoid affecting the drainage.
•Do not upside-down, over-tilt and collision when handling or moving the equipment
•Installation and electrical wiring of the equipment must be operated strictly by professionals in accordance with the relevant provisions of this manual.
Company Profile
Chen Tong Yuan a high-tech enterprise integrating R & D, production and sales. The total area of the factory is 5000 square meters, the total number of employees is about 200, and the annual output sales are nearly 100 million RMB. Since its establishment, the company has been focusing on Mobile data center air conditioner, network cabinet 48v air conditioner, electric cabinet air conditioning, heat exchanger, Thermal energy equipment，embedded switching power supply, power environment monitoring system,distribution cabinet research and development, production and sales.
Why Choose Us
Q1.Do you have any MOQ limit for Mobile data center air conditioner?
A: Low MOQ, 1pc for sample checking is available.
Q2.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.
Q3.Are your Mobile data center air conditioner can be customized?
A: Yes,We can customize products according to customer needs.
Q4.Do you offer guarantee ?
A: Yes,we offer 1 year warranty for our products. If any problem happen in warranty period, we will reply your technical questions in 24 hours, and remote video support is available.
Q5: Where the application of Mobile data center air conditioner?
A: Our products have been widely used in many industries, like data processing, indoor/outdoor telecommunications, base station, steel, metallurgy, petrification, cars and war industry etc.
A: Low MOQ, 1pc for sample checking is available.
Q2.What is your payment terms?
A: Normally our payment term is 50% advanced by T/T, Balance before shipment.
Q3.Are your Mobile data center air conditioner can be customized?
A: Yes,We can customize products according to customer needs.
Q4.Do you offer guarantee ?
A: Yes,we offer 1 year warranty for our products. If any problem happen in warranty period, we will reply your technical questions in 24 hours, and remote video support is available.
Q5: Where the application of Mobile data center air conditioner?
A: Our products have been widely used in many industries, like data processing, indoor/outdoor telecommunications, base station, steel, metallurgy, petrification, cars and war industry etc.
Welcome your inquiry for further discussion regarding on our Mobile data center air conditioner
